2D meshing on the instrumental Panel of an car.
Aim:
1) To generate mid surface and meshing the dashboard component using appropriate element quality.
2) To assign the thickness and material to the component.
3) To eliminate Maximum possible Quality errors.

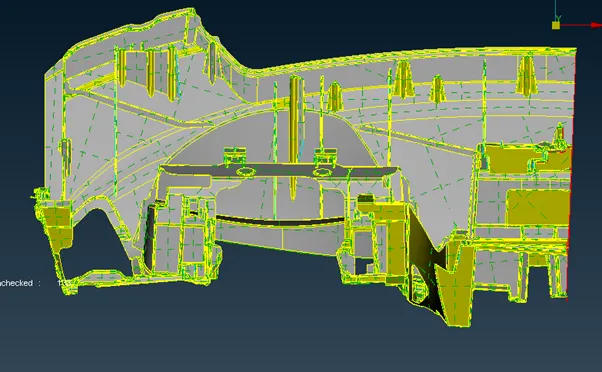

CAD model:
Procedure:
As the model is of plastic component the thickness may vary from surface to surface. It is advisable to check the thickness of every surface. As thickness is not uniform, the generation of the mid surface using the manual method is used.
1) Generation of mid surface:
While creating a manual mid surface, checking the thickness of the material and offsetting the face to the middle is important. The thickness of the surface can be check using different methods depend on the geometry and complexity of the geometry

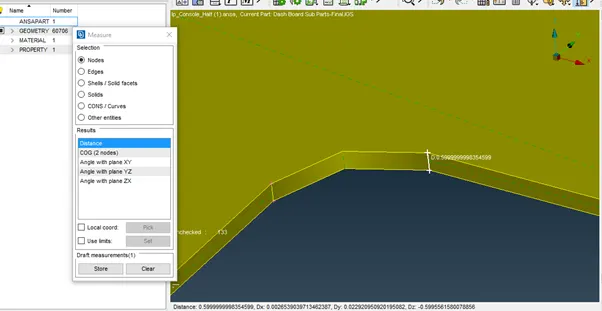

i) Measuring thickness on edge:

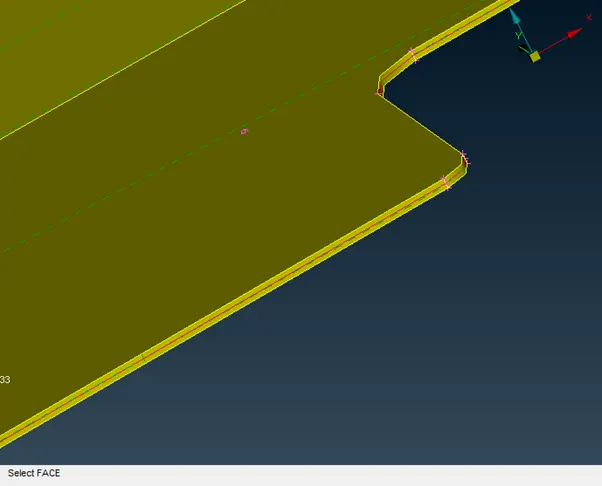

To measure the thickness on the edge, project hot point on con and then use measure hot point option
Topo – hot points – project – select point – select edge
Also Using Measure tools.

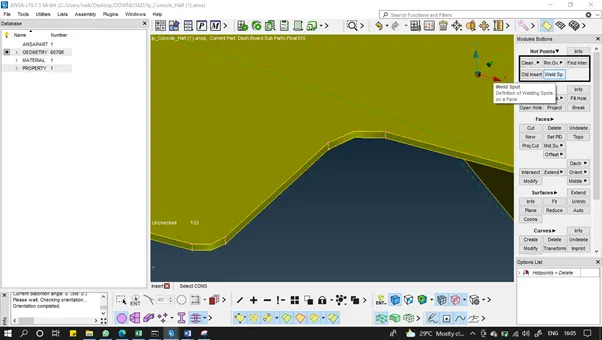

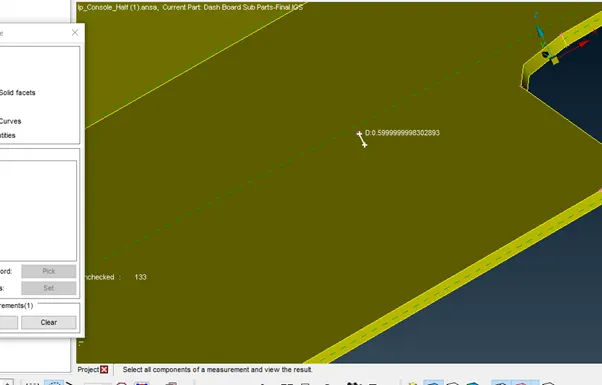

ii) Measure thickness using weld point
The surface which is complex to measure and be measured using weld point and project.

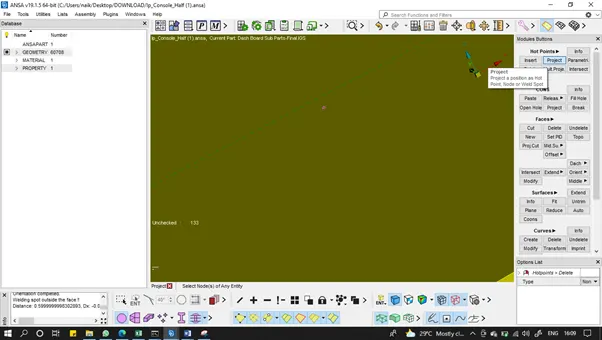

Topo – hot point – weld point – select surface
Topo – hot points – project – select point – select edge
Utility – measure – hot points
iii) offset the surface

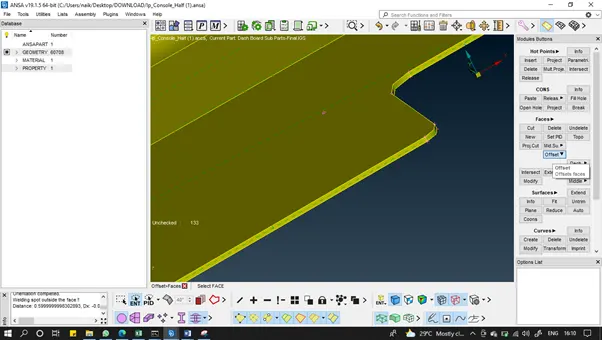

Topo – Face – offset – select surface – distance

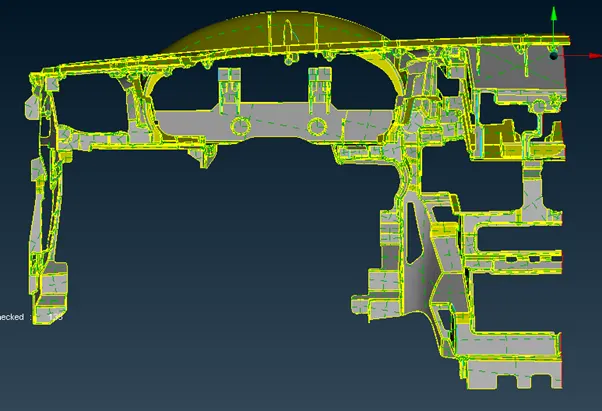

Once all the surfaces are extracted, check for geometry
This tool is used to connect the cons which are in tolerance limit. After generating topo the cons are categorized into three types
1) Single cons: which share 1 face, appears on the edges of the model, appear in red colour
2) Double cons: Shares 2 face, this type of cons are present within the model, appear in yellow colour
3) Triple cons: Share 3 faces. It is advised to remove most of the triple cons, which appear in blue.
If there is a cut in between the surface then we can paste one con over another using the paste option.
After completing the geometry clean-up check the geometry

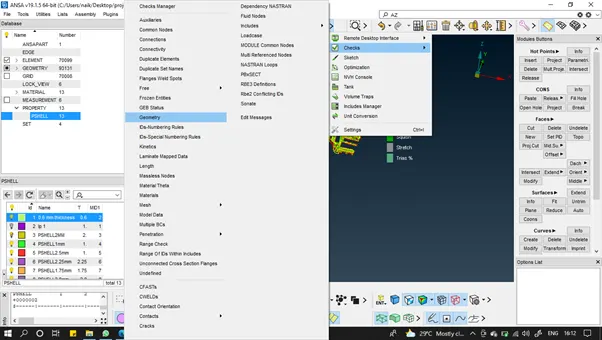

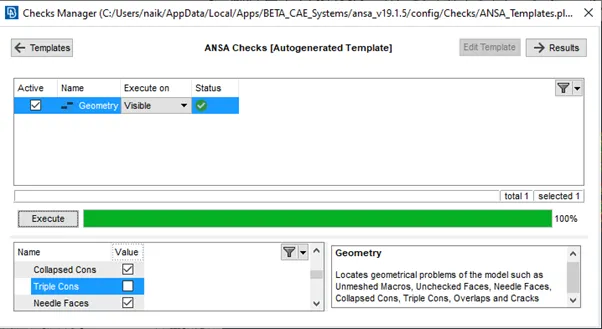

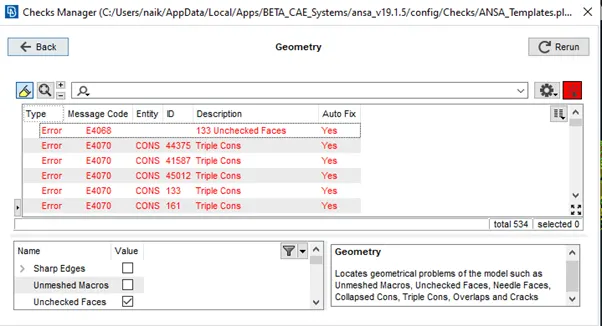

Check manager - select parameter to check – Execute
If there is any error we can manually resolve the error. In this model triple cons are necessary as the ribs are connected at single cons which makes it triple cons.
There is some surface having a varying thickness in this case, using the middle tool is suitable, as this tool will automatically generate the mid surface.
2) Generating mesh on the mid surface:

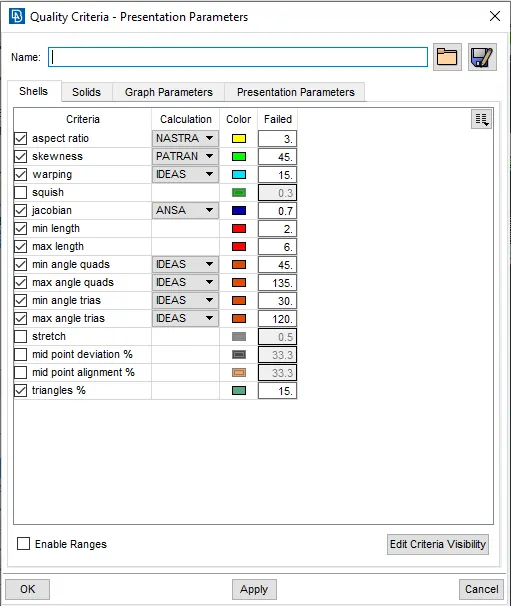

i) Changing the quality criteria
As the model should be meshed using different quality criteria, changing the criteria as per instruction.

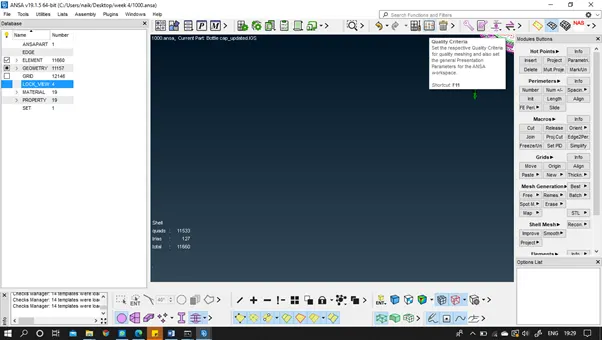

Go to Quality criteria or F11
Unlock the required parameter and edit it as per instruction.

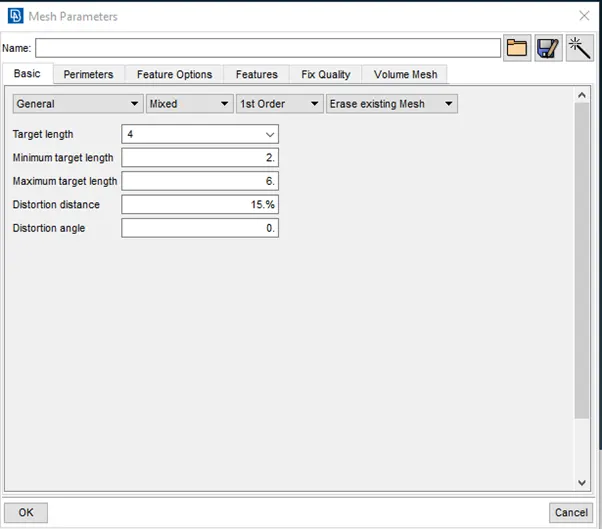

ii) Change the mesh perimeter
This is used to change the parameter like mesh flow, element size, element order, element shapes
Change the length of the perimeter to 1 as the element size is 1
Mesh – Perimeter – Length – 4 – select all
iii) Meshing the model:
In ansa, we can mesh model using a different algorithm, as per geometry. We are going to use the best option as it will select the best suitable algorithm for meshing the component. After meshing the model use reconstruct the mesh using reconstruct option, this will improve the mesh flow and reduce the tria in the region, even if the mesh is to reconstruct use split option to move tria and to combine trias,
After reconstructing the mesh flow get disturbed, to create a good flow mesh use the option of smoothing operation. This improves the mesh flow

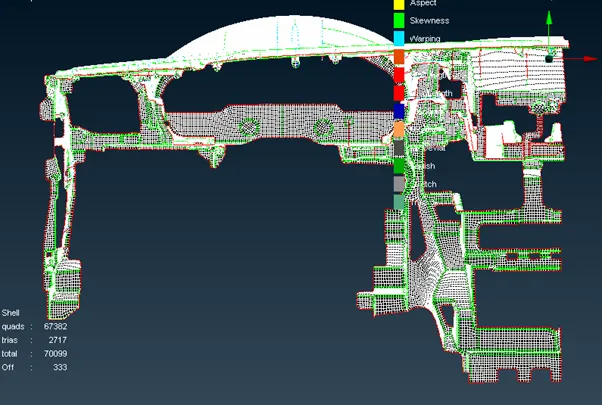

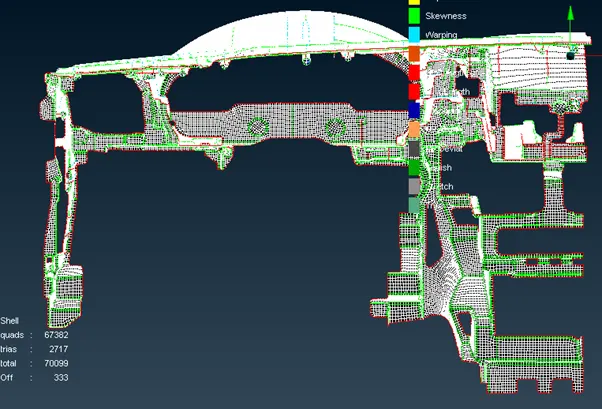

iv) Check the quality criteria of element :
To check the failing element unlock the hidden view option. This tool will display the failing element due to different parameters
Try to eliminate elements using reconstructing, smoothing, moving trias, etc.
In this case, if we try to remove a failing element, the geometry may disturb, in such case, we can leave it as it is.
3) Assign the Property ID
As the model is of plastic component it may have varying thickness, for each thickness we have to create different properties for different thicknesses.
Before assigning the property ID we have to create the property
To create property ID

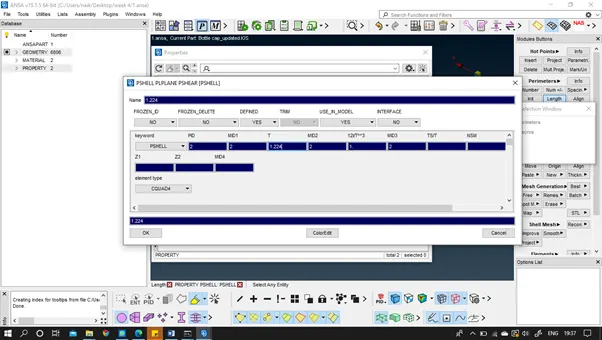

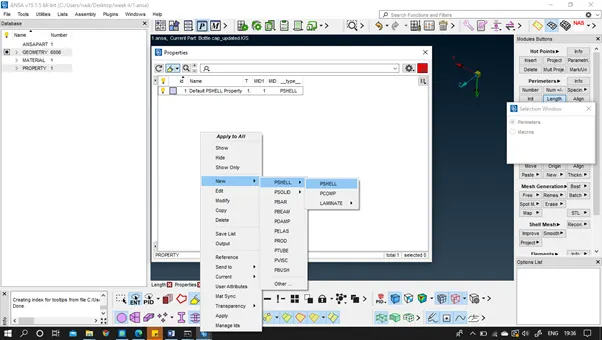

List – property – right click – create one – assign thickness
Create property according to the thickness variation
After creating the property ID, assign the geometry to the property ID
Mesh – Macros – Set PID – select face – select PID
Conclusion:
- Got to know the interface of ansa software, learned how to clean up the geometry, mesh the component and hot to eliminate the failing elements.
- Got to know property ID and associated steps while assigning property ID to the geometry.

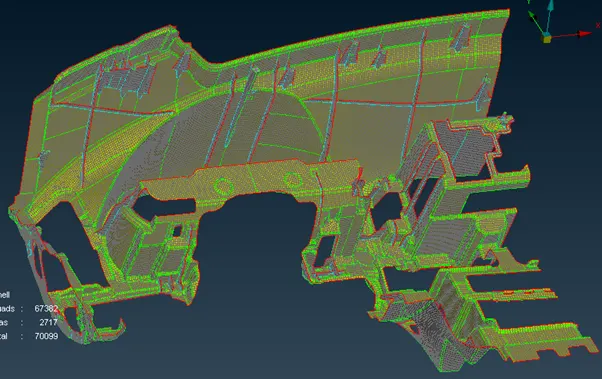

Final model:
Model File :https://drive.google.com/drive/folders/1M9iPgA2zN77KFFckcRGD5nisfpqrmFEf?usp=sharing
