Project 1 - 2D meshing on the instrumental Panel

aim : 2-D meshing of given model.

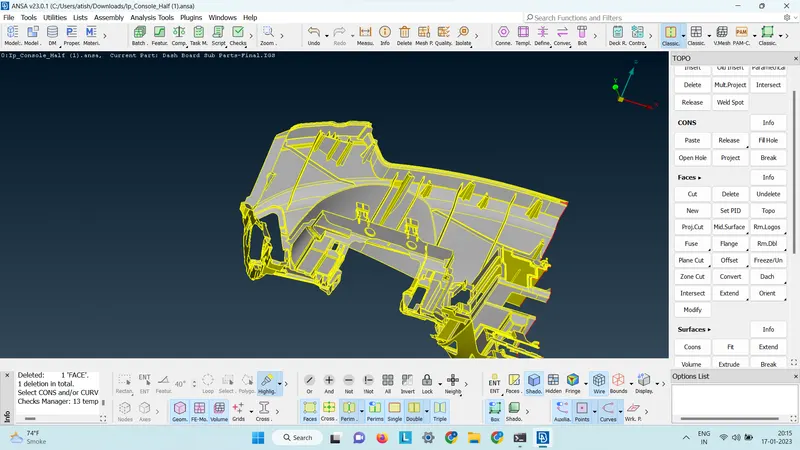

procedure: 1) topo

2) perimeter set to 1.

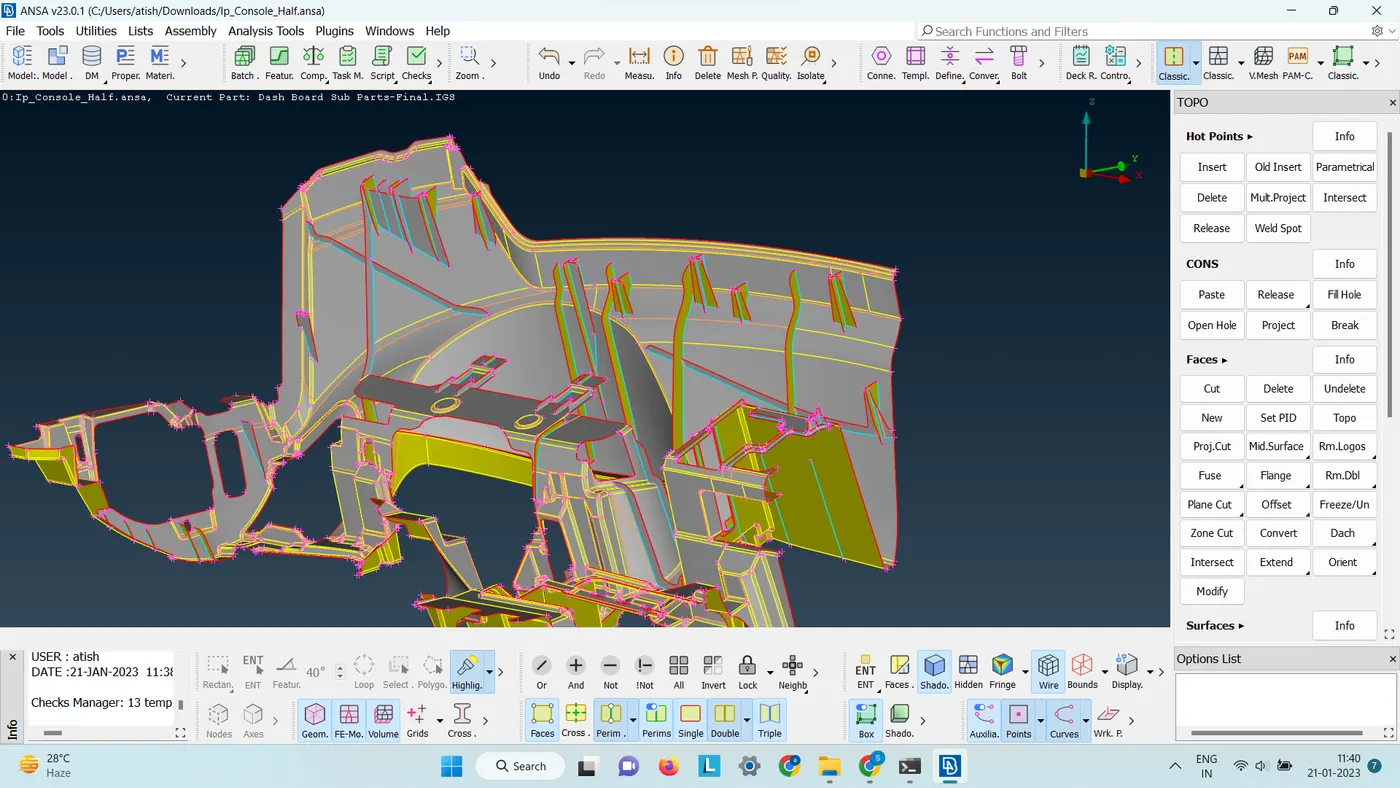

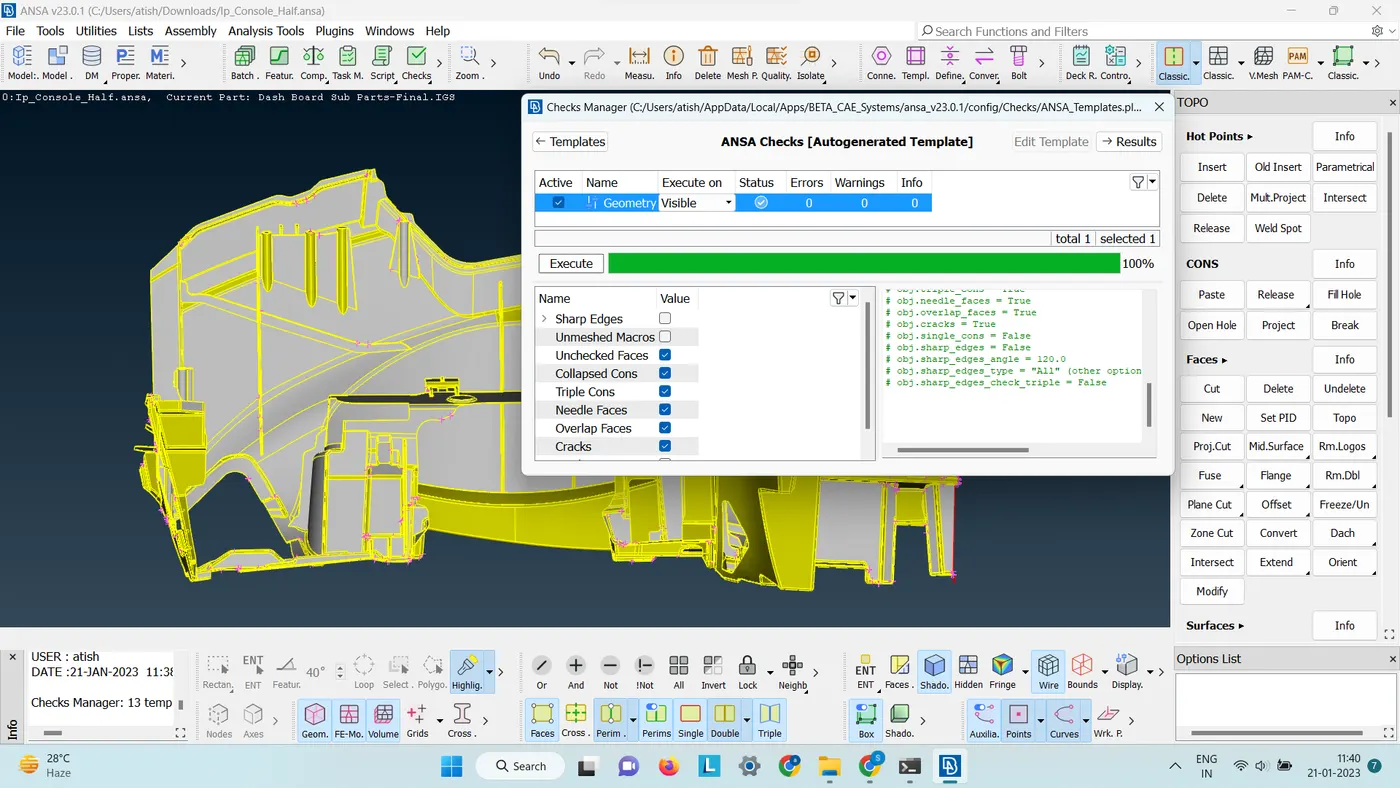

3) geometry cleanup .

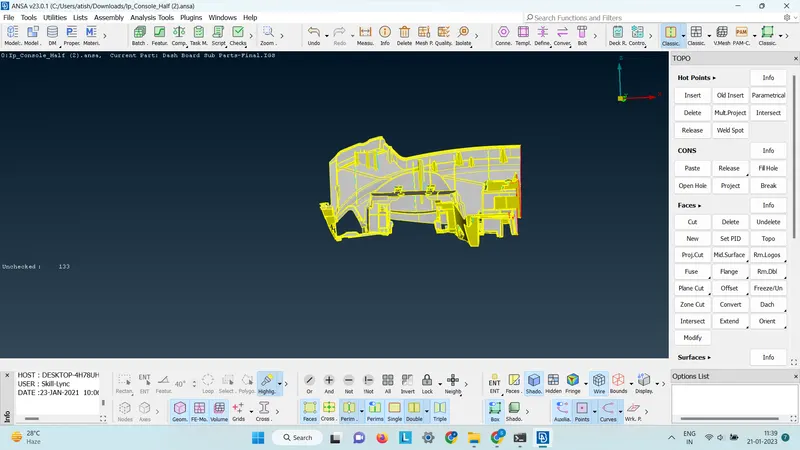

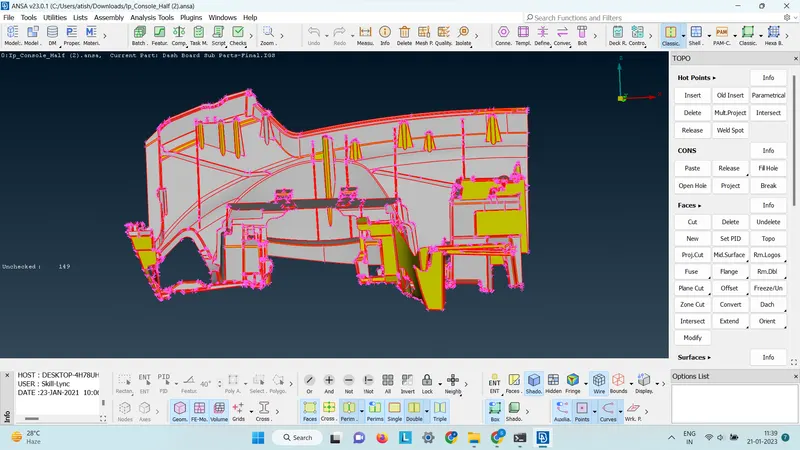

4) manual midsurface using offset , because auto midsurface triple con area was distorted.

5) perimeter and macro set to average length i.e 4.

6) Quality and mesh parameter given to requirement.

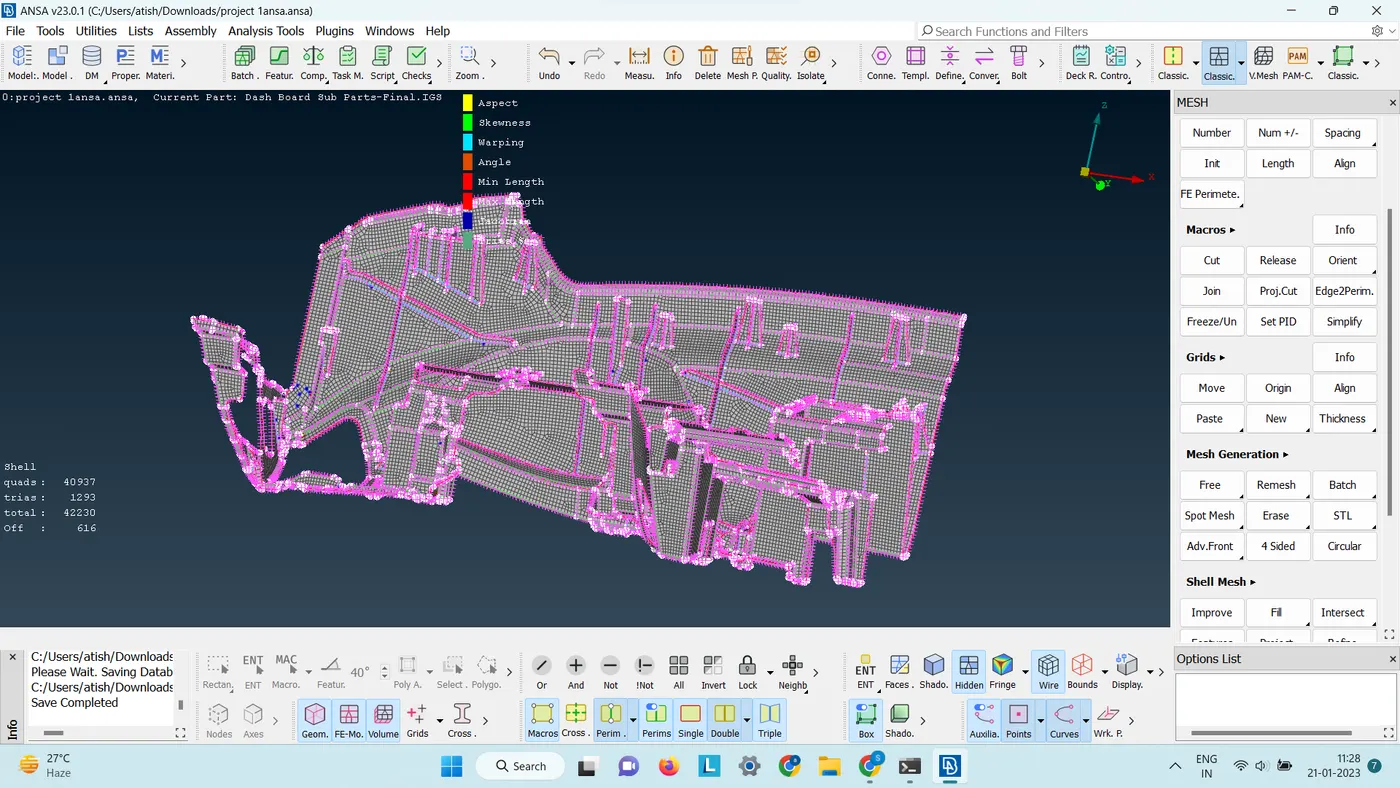

7) mesh using spot and best mesh.

8) mesh improvement.

 learning outcome : mid surface and meshing of complex and small area.
