Project 1 - 2D meshing on the instrumental Panel

Aim: To perform meshing on Dashboard of the car

Objective: To mesh the dashboard model with the given Quality criteria

S.No	Quality Criteria	Value
1	Target/Average length	4
2	Minimum Length	2
3	Maximum Length	6
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum Tria Angle	30
11	Maximum Tria Angle	120
12	Tria Percentage	15

Procedure :

Step 1: To perform topology on the model as it was having lots of geometrical issues all the single cons,triple cons and unchecked faces were cleared

Step 2: At the edges there were lots of single cons as the model was cut from the center for meshing purpose as the edges were cleared by the same is shown in fig below

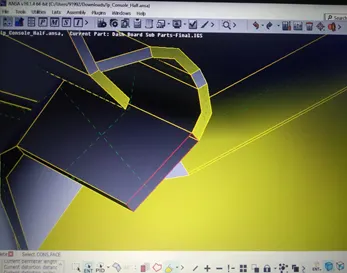

Fig.1: Single cons at the Edges of the Model

__

Step 3: For clearing the above single cons new faces were created the edges from faces option in topo module which in turn 100% check geometry

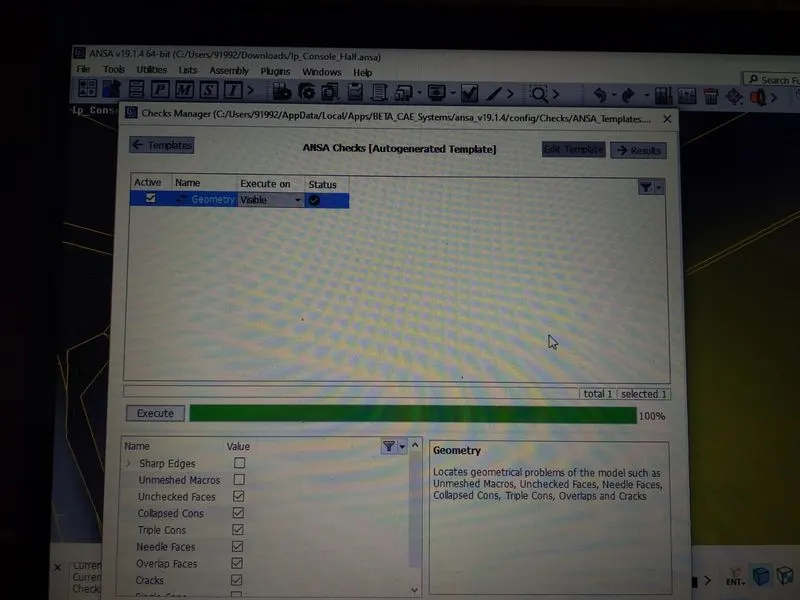

Fig.2:100% check geometry

Step 3: For clearing the above single cons new faces were created the edges from faces option in topo module which in turn 100% check geometry

Step 4: Mid surface was extracted for the model by manual approach and made necessary changes at the damage faces by creating new faces

Step 5:The mid was taken for the model by feature angle selection .

Step 6:The necessary feature where extended and intersected for proper connection which in turn resulted in to triple con

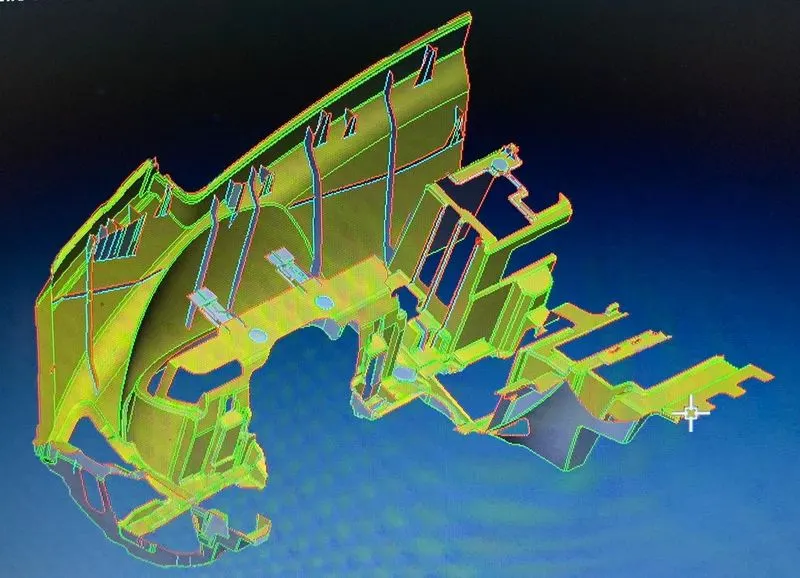

Fig 3: Mid surface

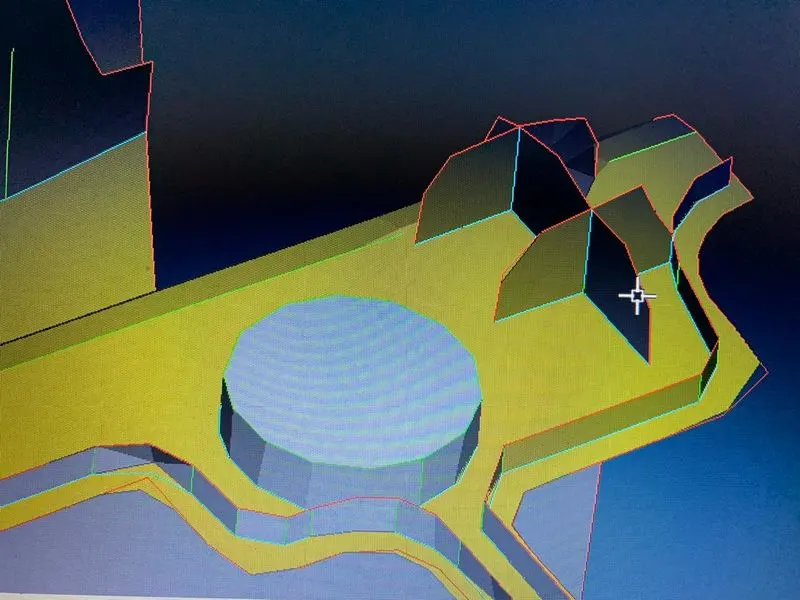

Fig 4 : Dog house elements and curved features resulting into Triple cons

Step 7: Then after Mid Surfacing the model was meshed with the above given quality criteria

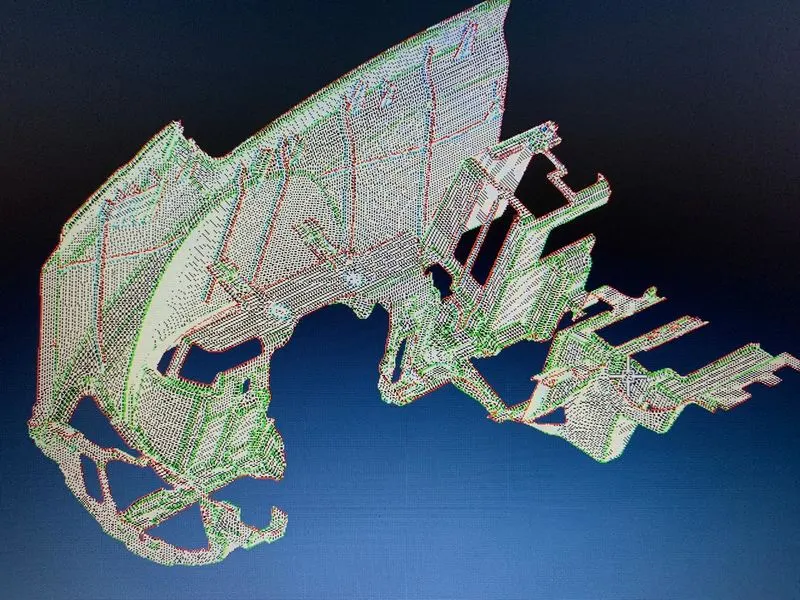

Fig 5:Meshing of the Model

Step 8: The meshing was done by spot mesh and Best mesh method

Step 9: After meshing off elements were cleared on the model by Reconstruction-->Split-->Smooth in shell mesh and elements tab

Step 10: The elements at triple cons were not possible to solve hence eliminating those elements

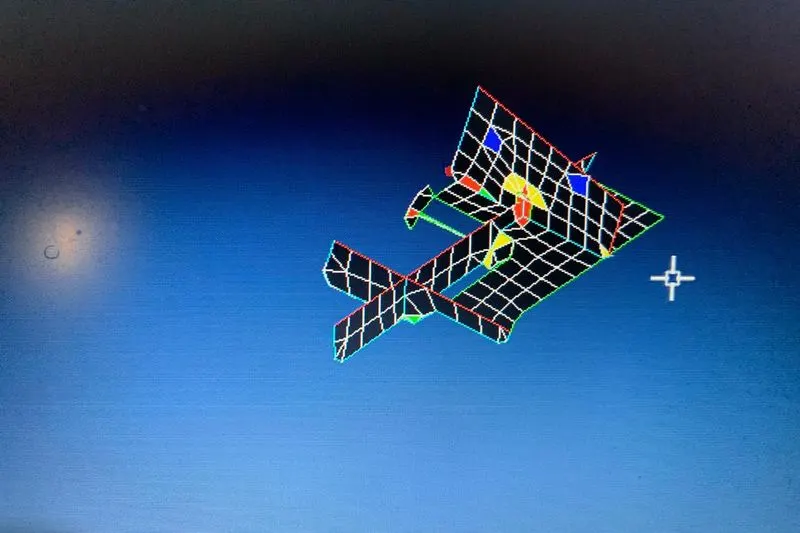

Fig 6: Off elements at tripple Cons

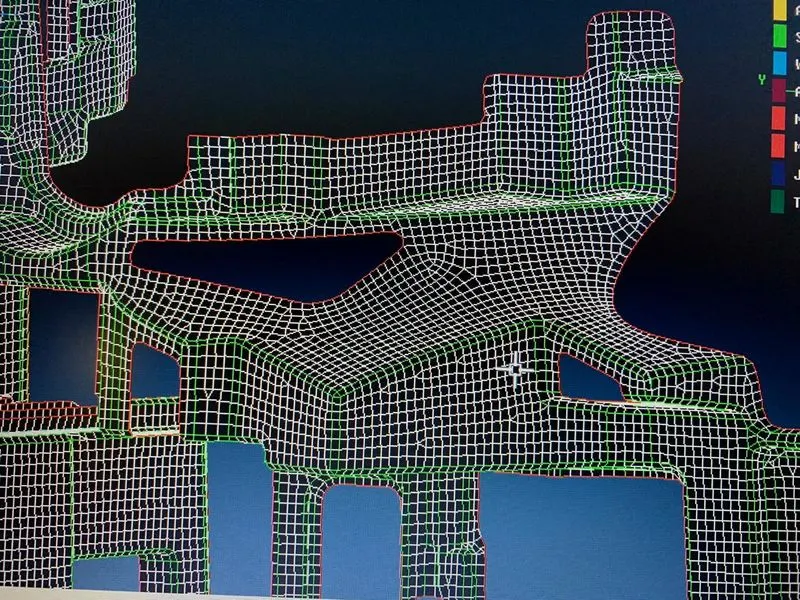

Fig 7: Zero off elements at the Single and Double Cons region

Conclusion: The Model was meshed with the given criteria and higher off elements where found at Cuved features and Tripple Cons

Learning Outcomes: How to check the geometry for the plastic dashboard and properly extracting mid by using various commands and meshing according to the given quality criteria how to clear off elements at curved features

The model solved above is very complicated part in automobile after meshing such model got an confidence to mesh any plastic model
