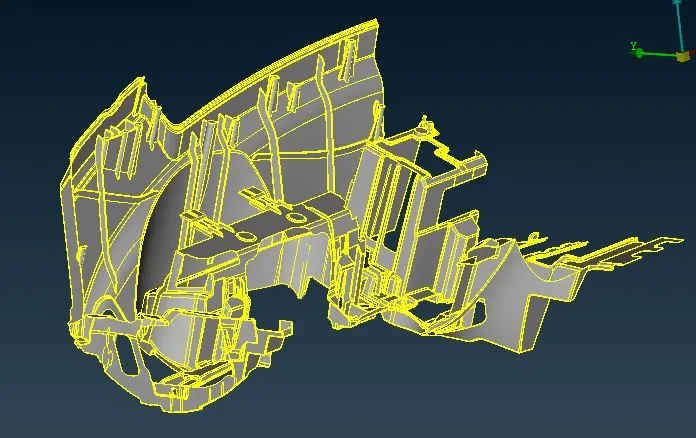

Project 1 - 2D meshing on the instrumental Panel

Aim: To create a mid surface for a gevin model and align feature with geometry.

Working procedure:

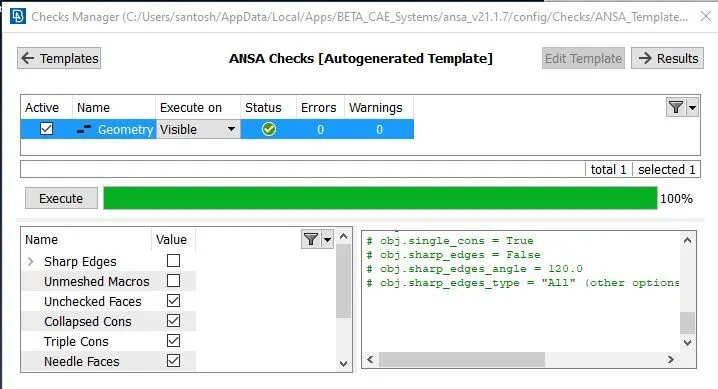

Step 1: Check the geometrical errors in model.

Step 2: Set the quality criteria for gevin model.

S.No	Quality Criteria	Value
1	Target/Average length	4
2	Minimum Length	2
3	Maximum Length	6
4	Aspect	3
5	Warpage	15
6	Skewness	45
7	Jacobian	0.7
8	Minimum Quad Angle	45
9	Maximum Quad Angle	135
10	Minimum  Tria Angle	30
11	Maximum Tria Angle	120
10	Tria Percentage	15

Step 3: Set the target element length.

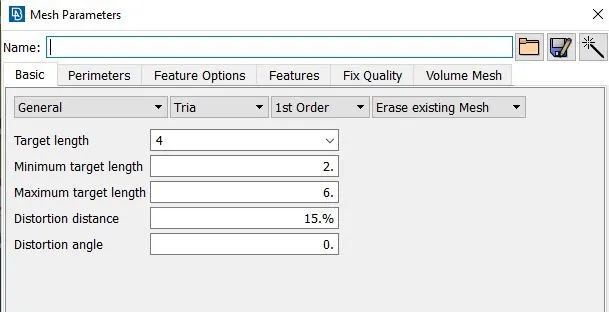

Step 4: Set the mesh parameters.

Step 5: Create the mid surface by using Casting operation.

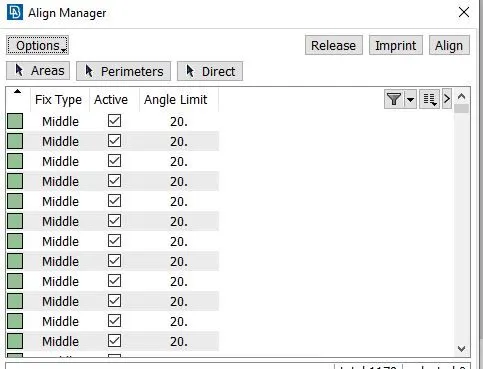

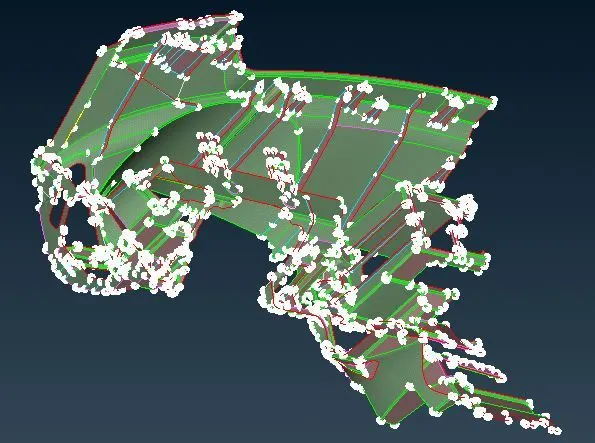

Step 6: Use the align manager to align all the feature.

Learning outcome: In this model i have learn the align manager.

Conclusion: In this project good result obtain. Where triple cons present the featurre is little bit disturbe.
