Project 1 - 2D meshing on the instrumental Panel
AIM
------------------------------------------------------------------------------------------------------------------------------------------
The IP Consol is cleaned, midsurface generated and finally meshed.
OBJECTIVE
------------------------------------------------------------------------------------------------------------------------------------------
- Check for geometrical errors
- Generate mid surface
- Mesh the model according to quality criteria

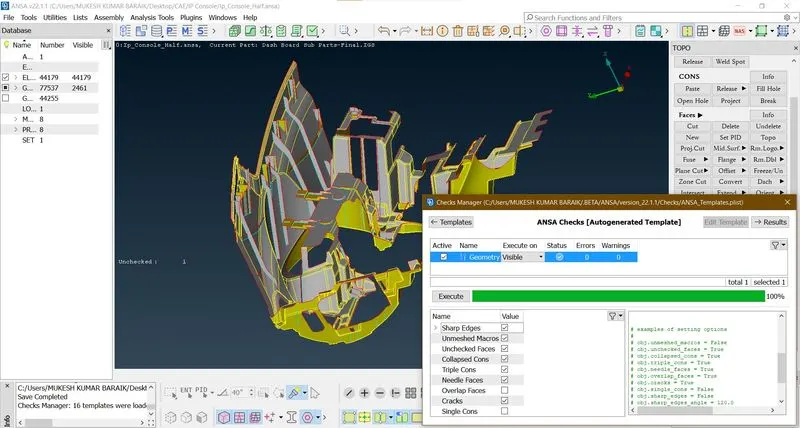

GEOMETRY CLEANUP
--------------------------------------------------------------------------------------------------------------------------------
Geometry errors has been cleaned.

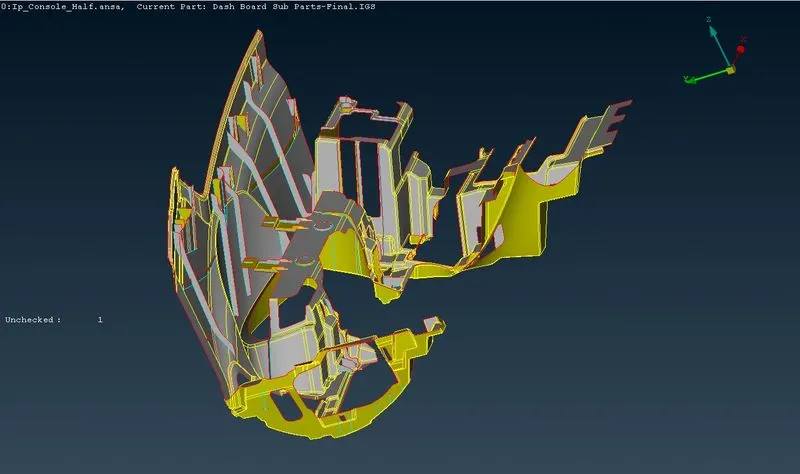

MIDSURFACE
--------------------------------------------------------------------------------------------------------------------------------
Middle surface of all the different components is generated with different suitable option i.e OFFSET, MIDDLE(CURVE), MIDDLE(FACES).

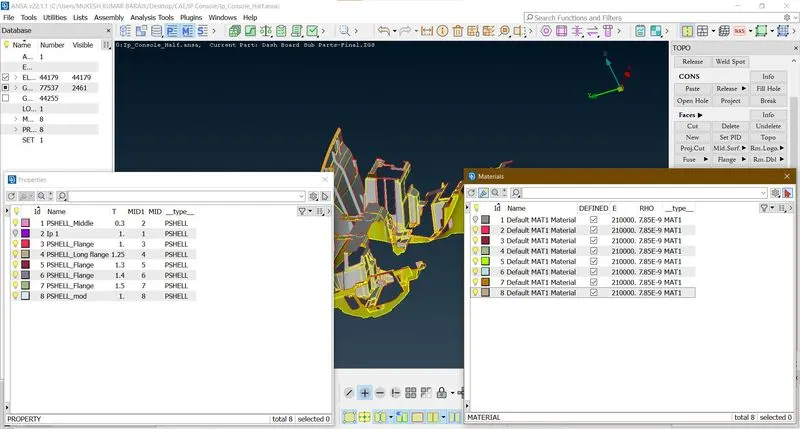

ASSIGNING PID MID AND THICKNESS
--------------------------------------------------------------------------------------------------------------------------------
Property ID and thickness has been assigned to the middle surface of different components.

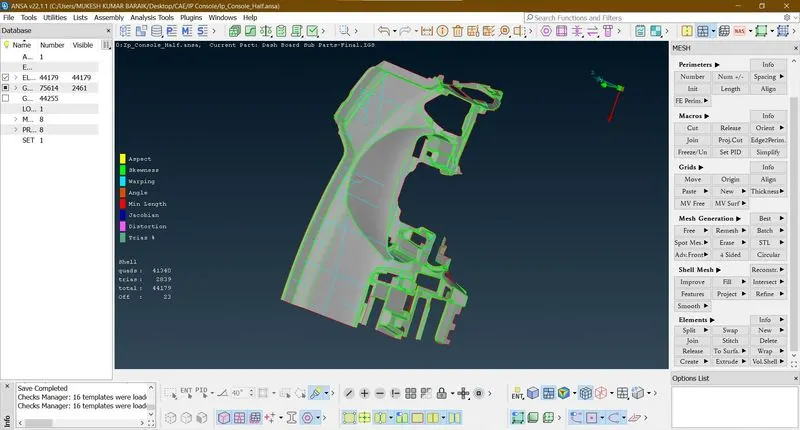

MESH GENERATION
------------------------------------------------------------------------------------------------------------------------------------------

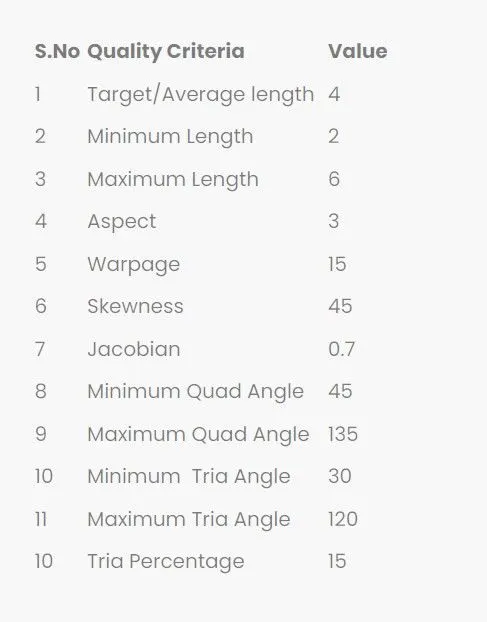

Before meshing MESH, PARAMETER and QUALITY CRITERIA is assigned Mesh flow is started from the middle cylinder and then went outwards in all direction.

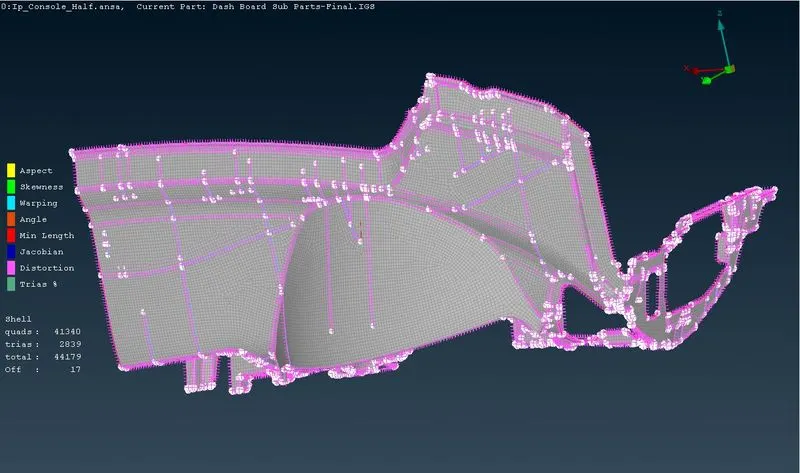

Mesh is applied and after many improvements the proper flow of mesh is generated.
CONCLUSION
------------------------------------------------------------------------------------------------------------------------------------------
Hence the proper mesh flow is done.
