Project 1
AIM:
Design a DC-DC SEPIC converter with input voltage = 10 V, output voltage = 0-20VTake f = 50 kHz, ΔI1=ΔI2 =0.2 A, , Δv1=Δv2 =0.2V.Find the state space model of the converter
- Construct the converter in MATLAB and simulate
- Obtain the waveforms for input and output voltage, inductor current and capacitor voltage
- Repeat the above for Cuk converter
- Compare the results
SOLUTION:
Based on the give data sepic and cuk converter designed.All the vaules were calculated and simulated in the Matlab.
SEPIC CONVERTER:

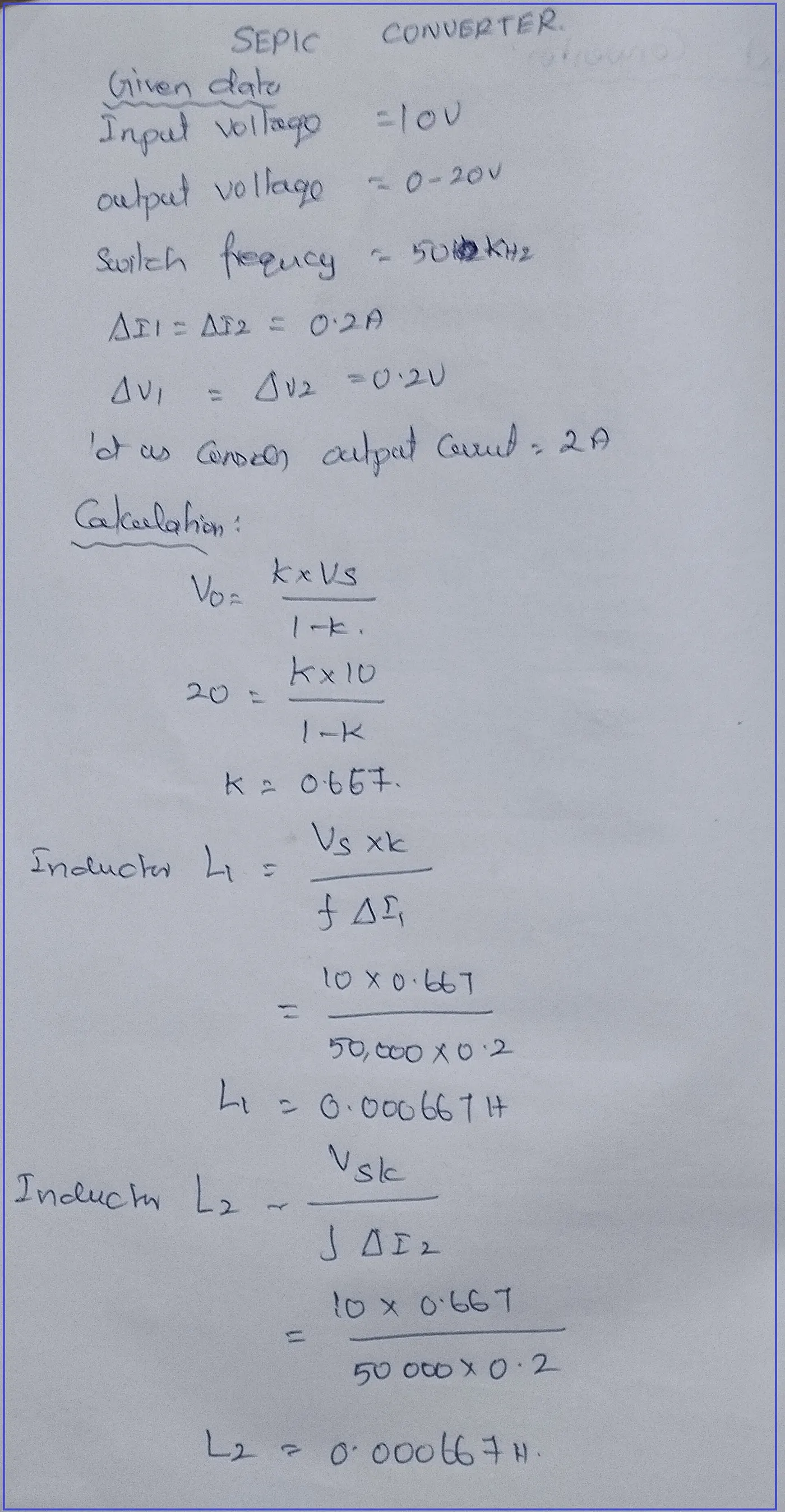

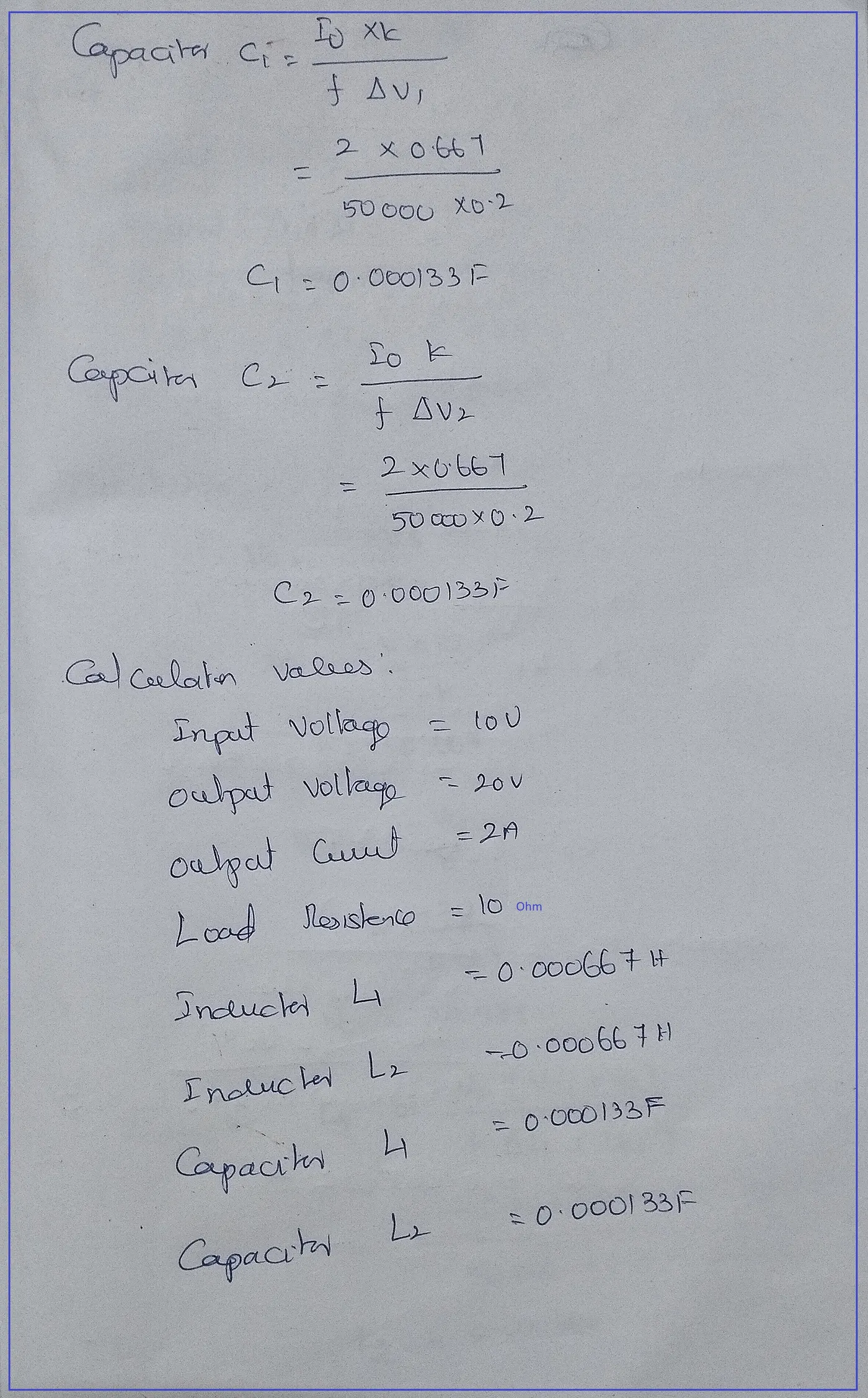

Calculation:

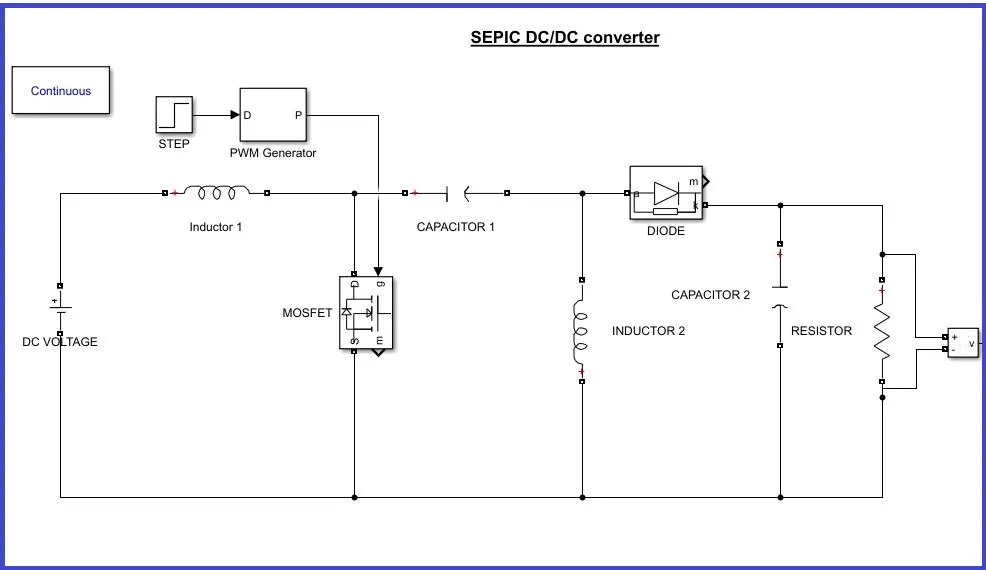

Simulation Diagram:
Output waveforms:

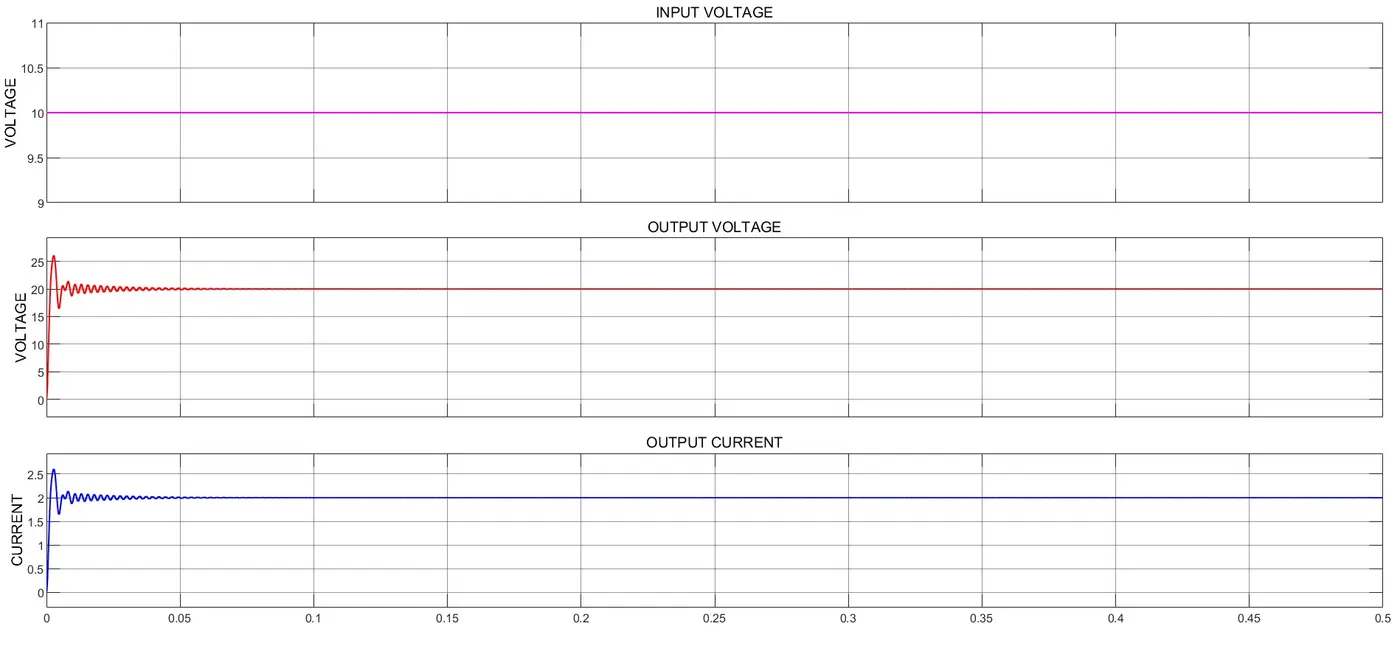

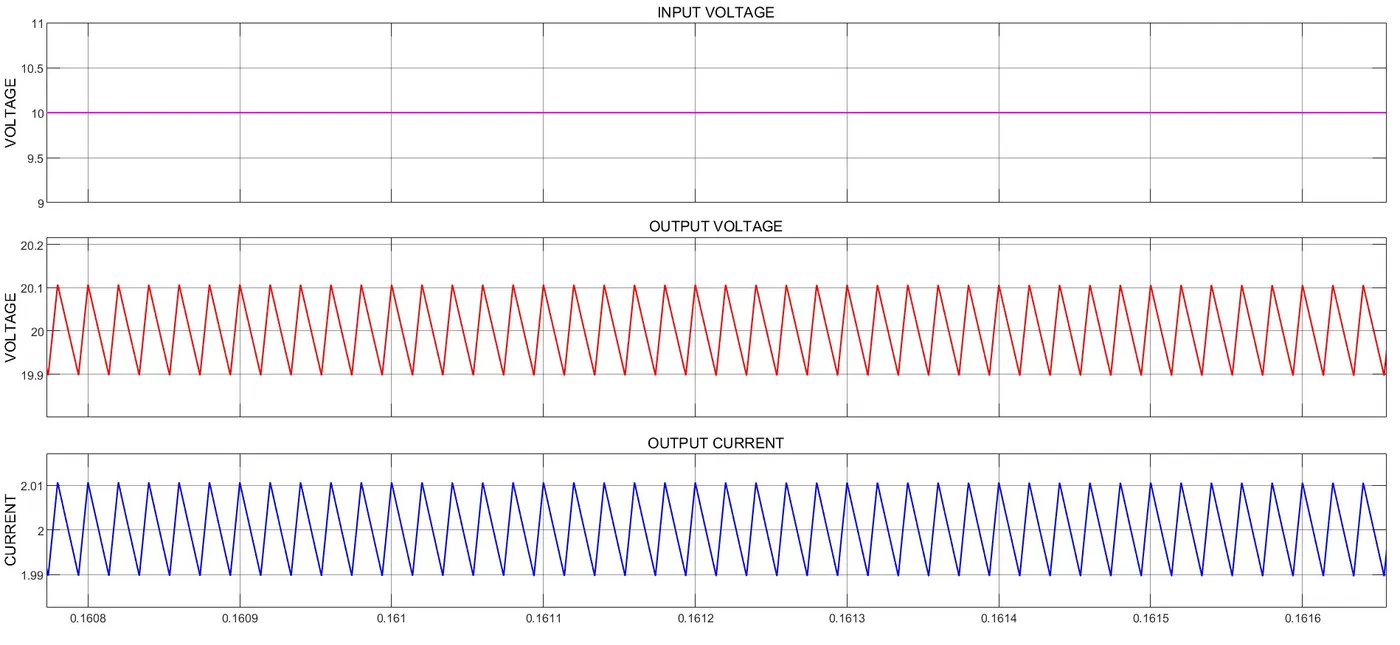

Input voltage and Output voltage

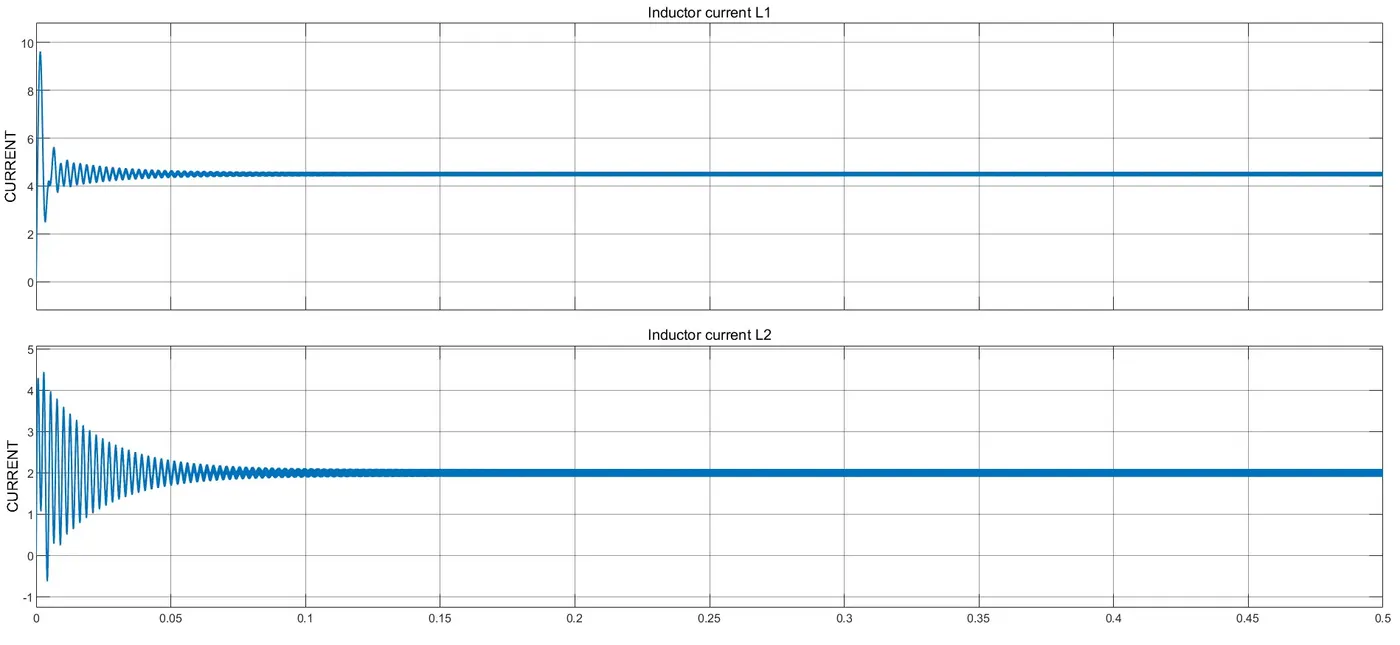

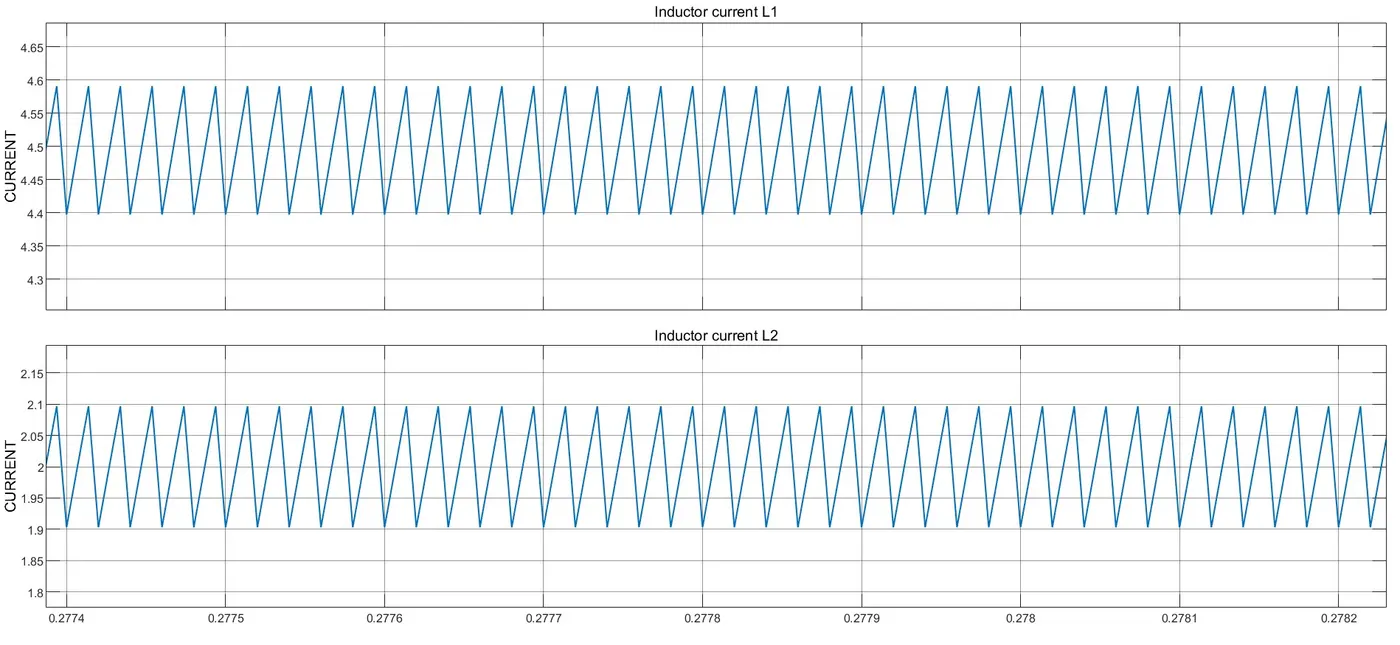

Inductor current

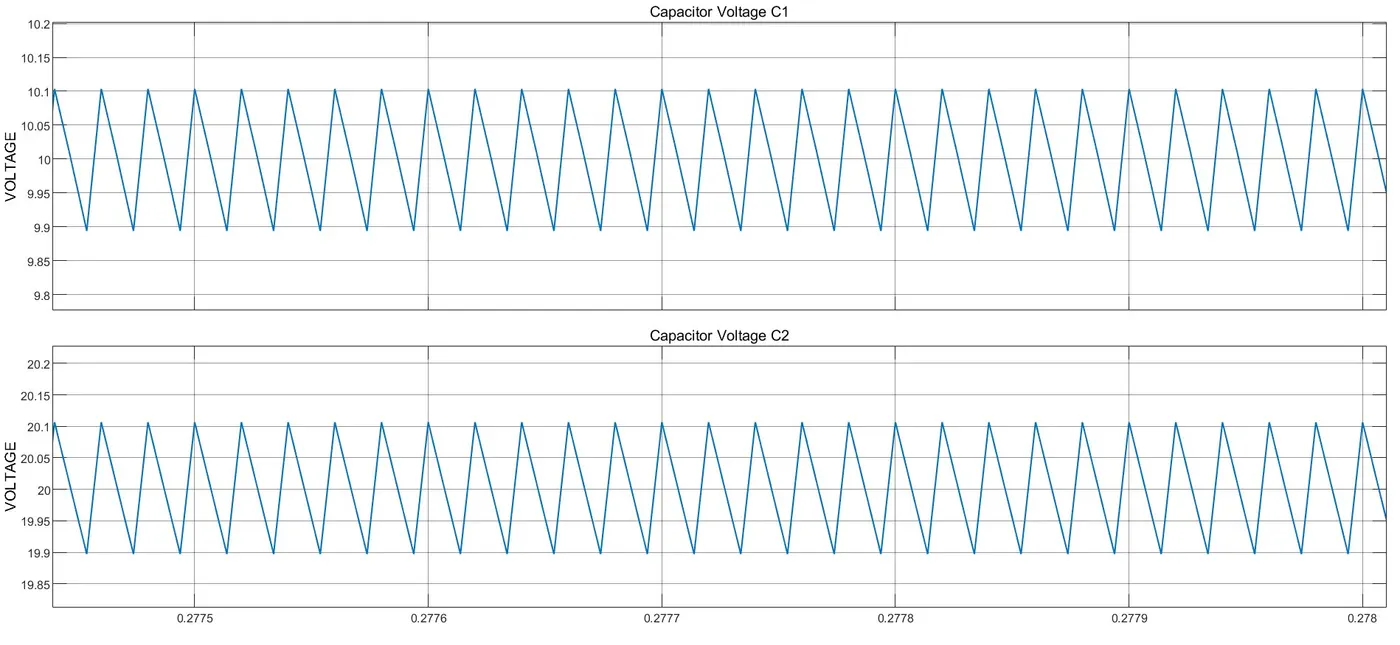

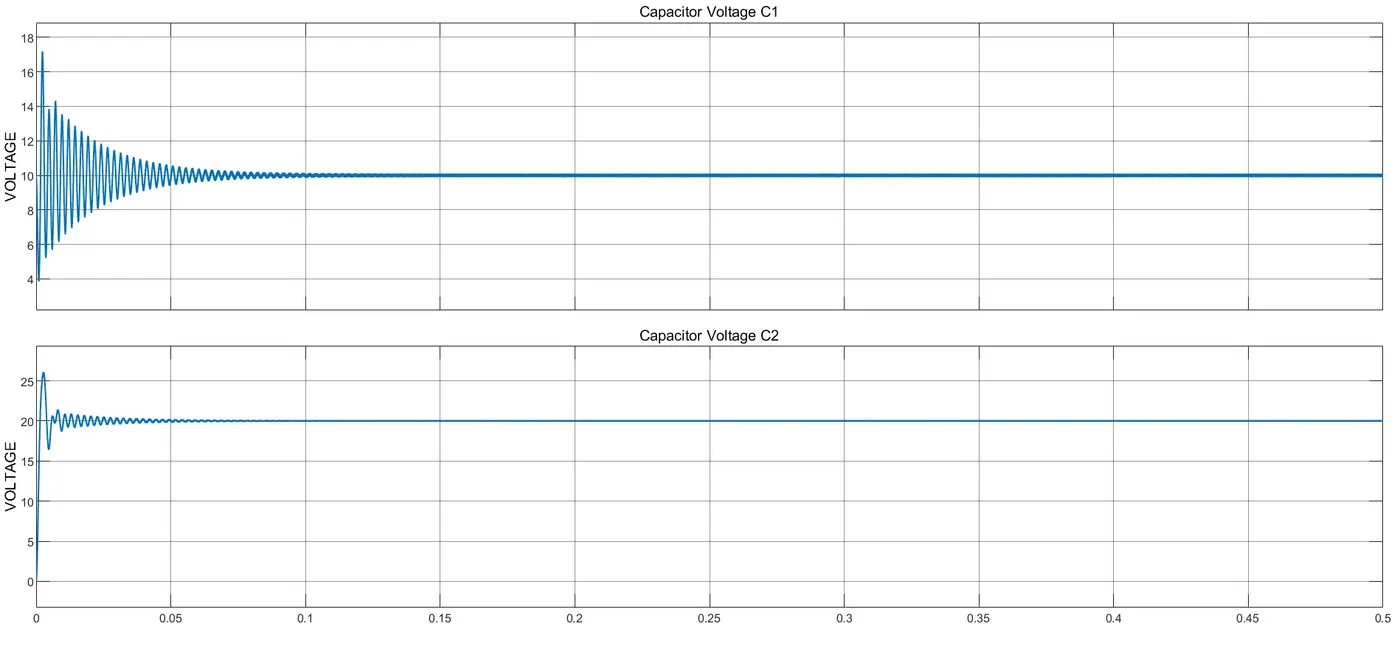

Capacitor Voltage
CUK CONVERTER:

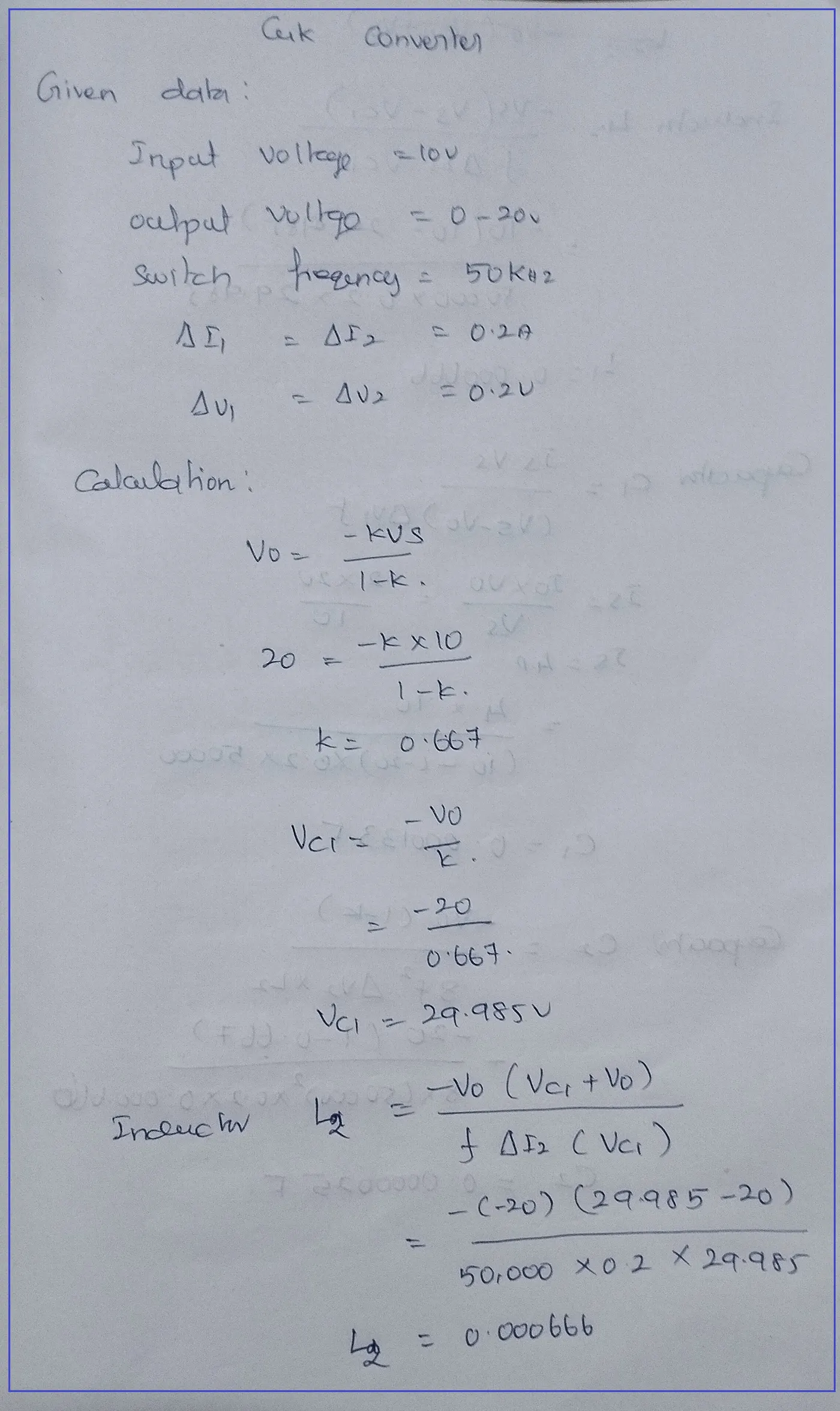

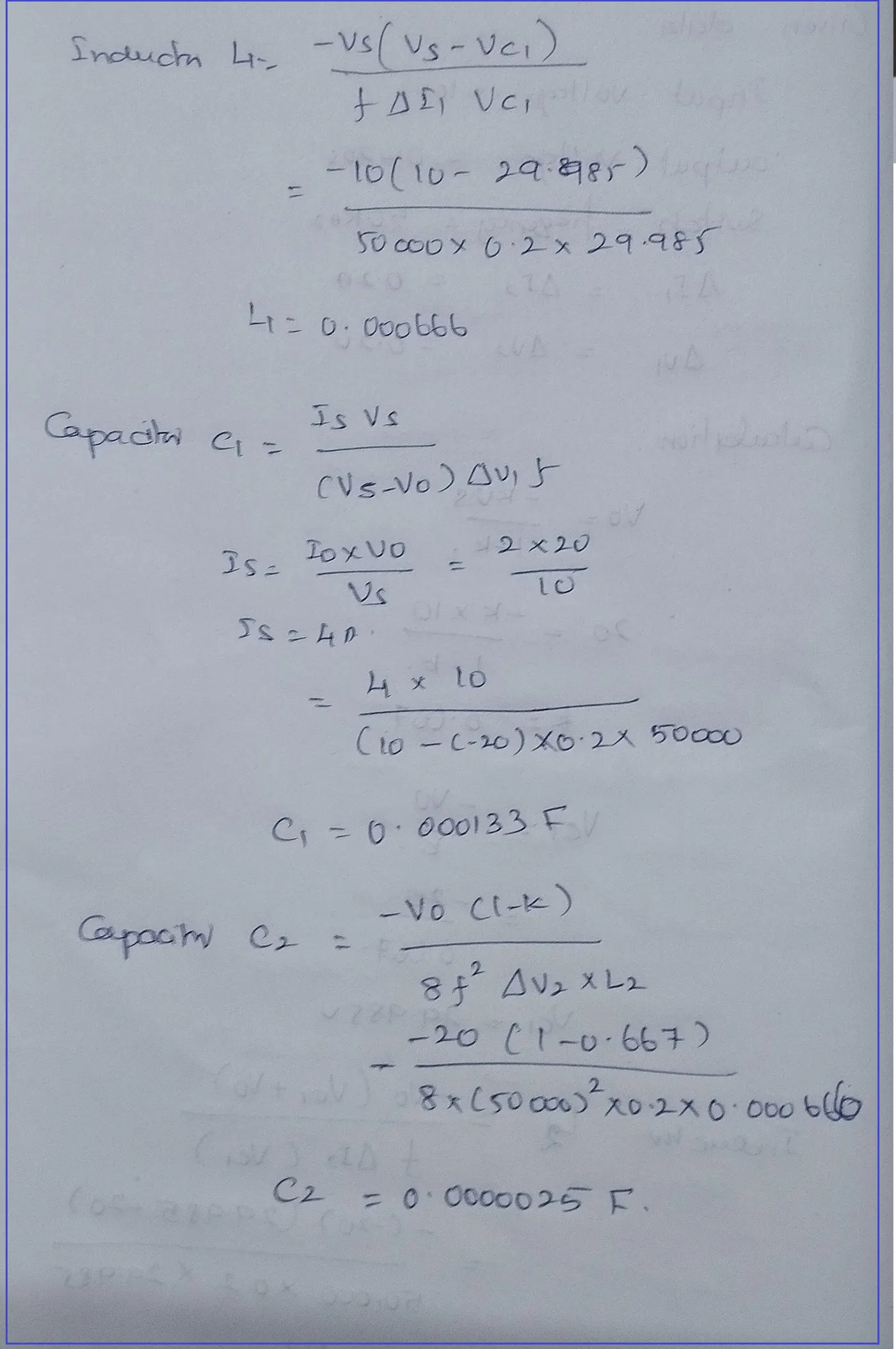

Calculation:

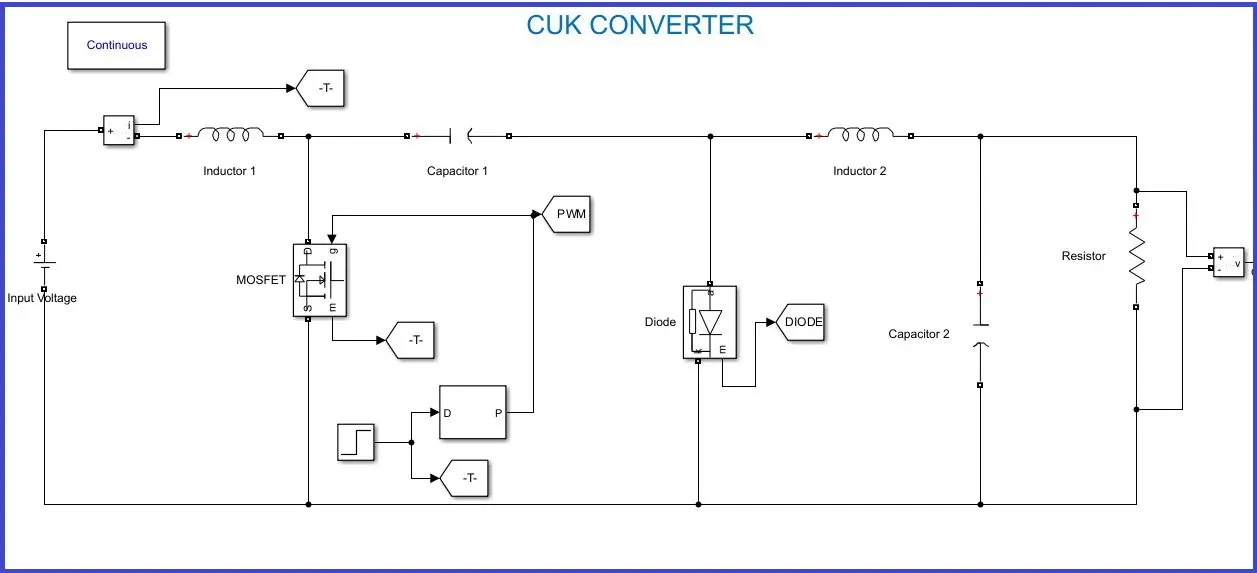

Simulation Diagram:
Output waveforms:

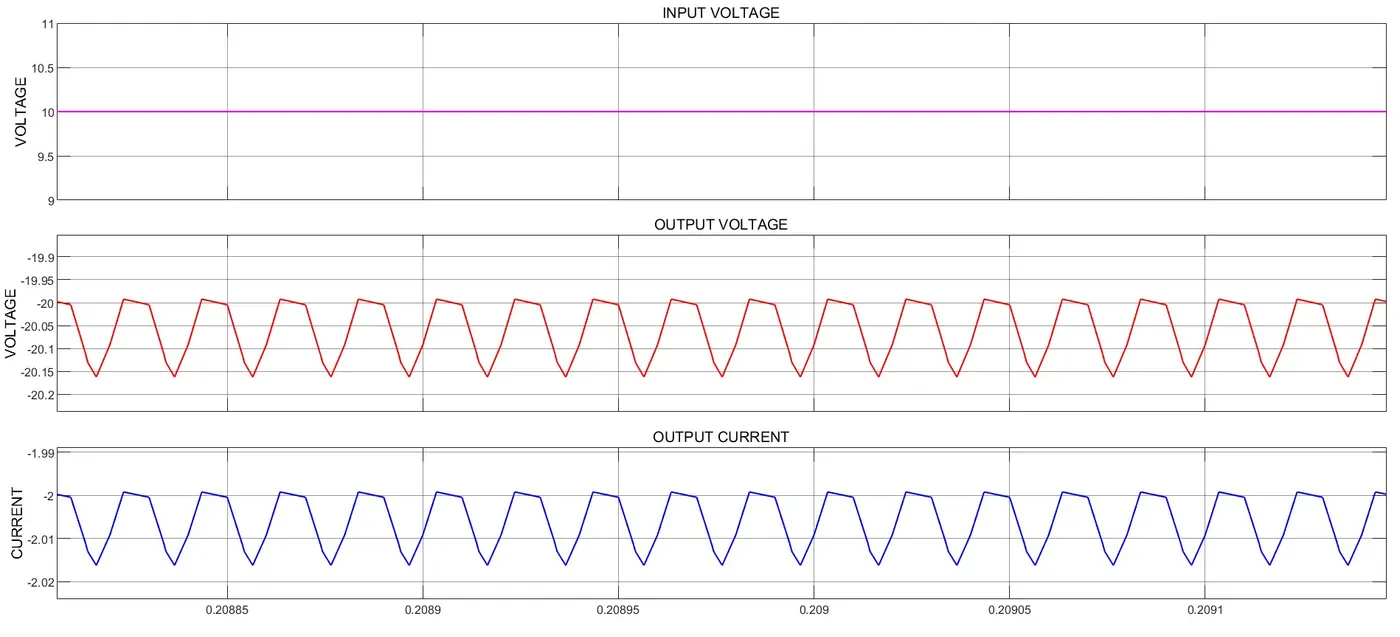

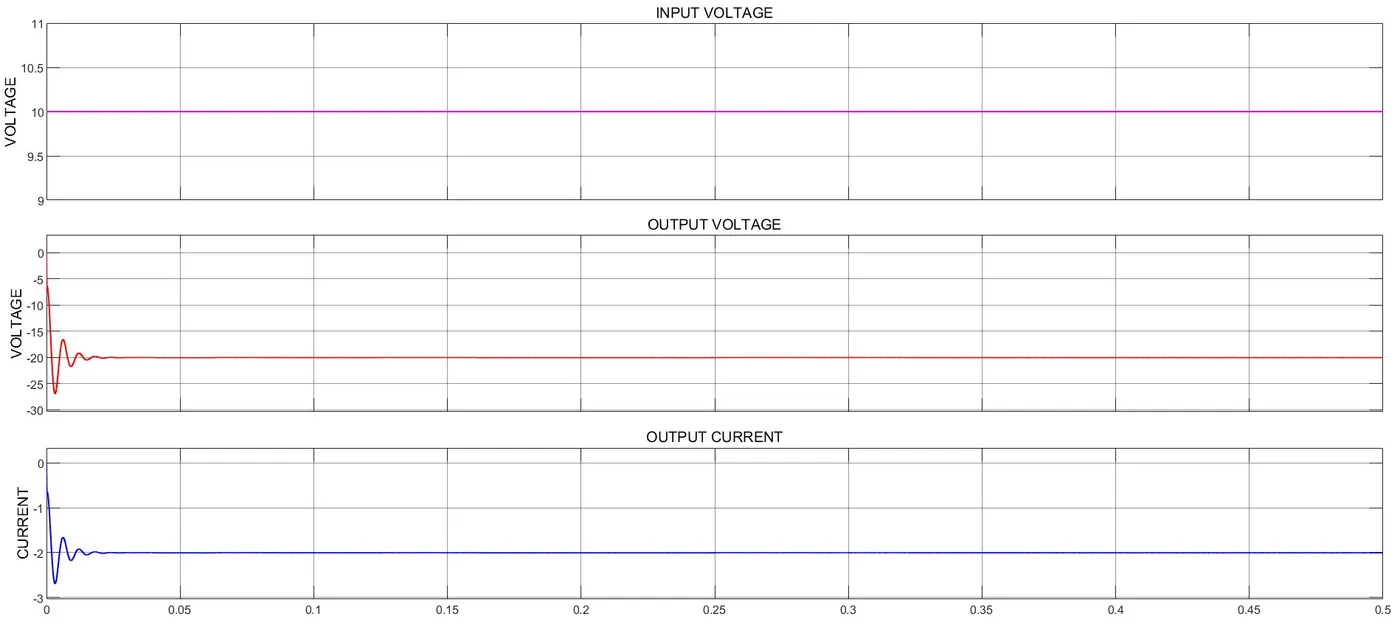

Input voltage and Output voltage:

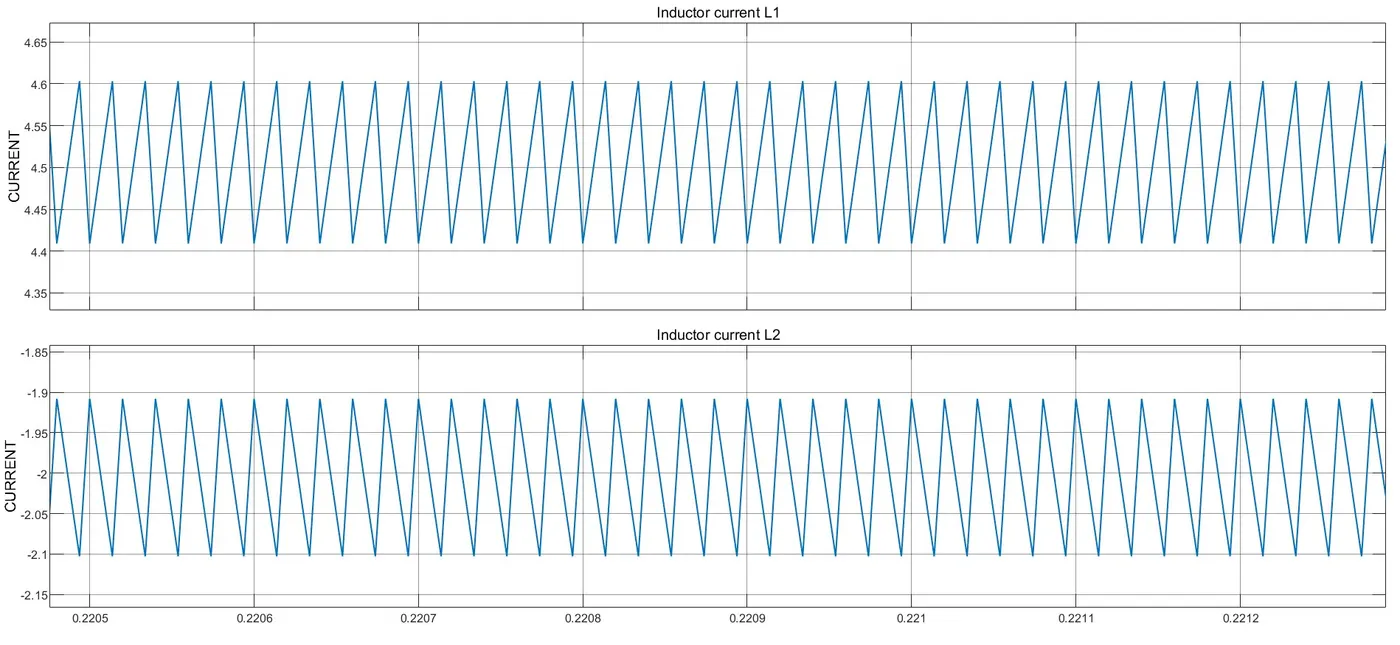

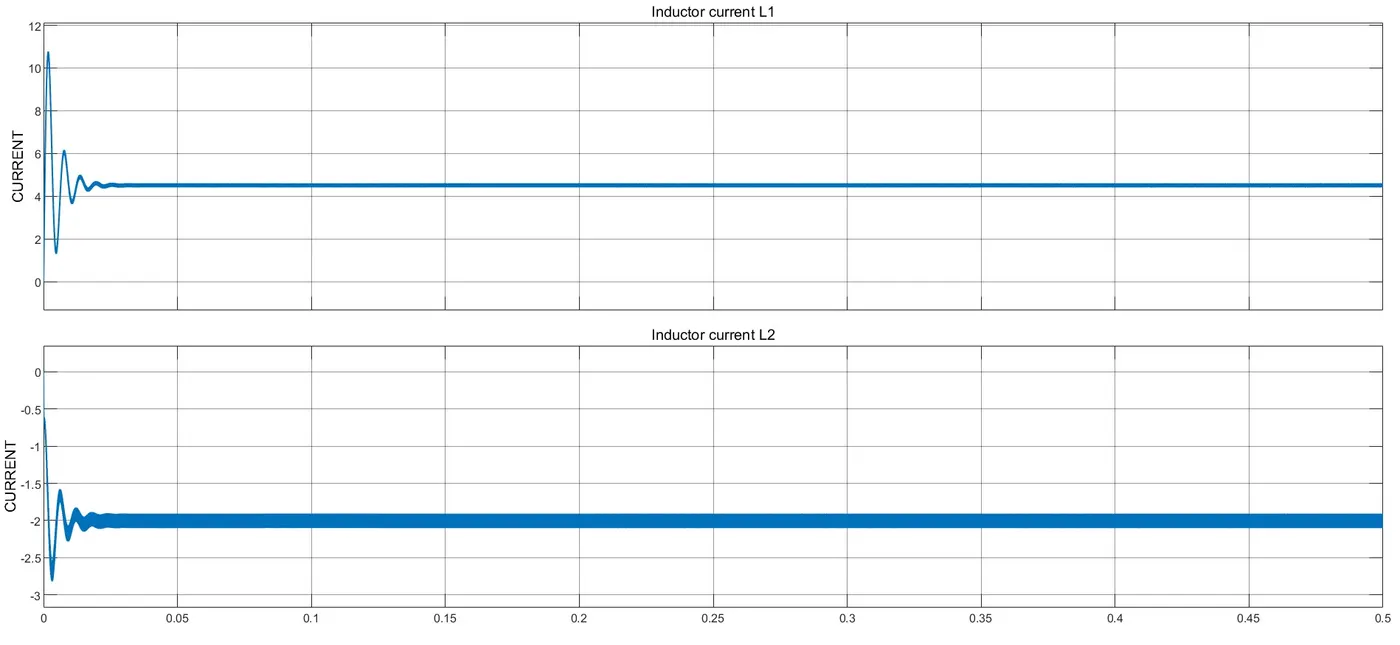

Inductor current:

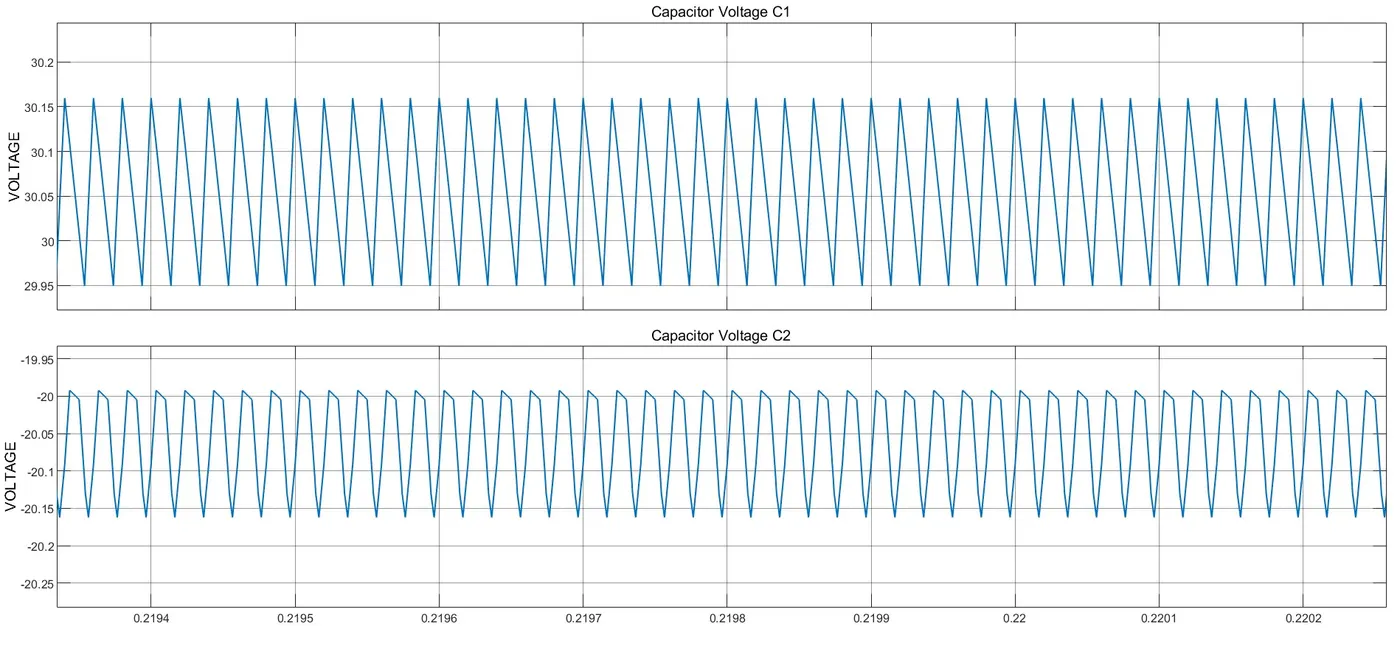

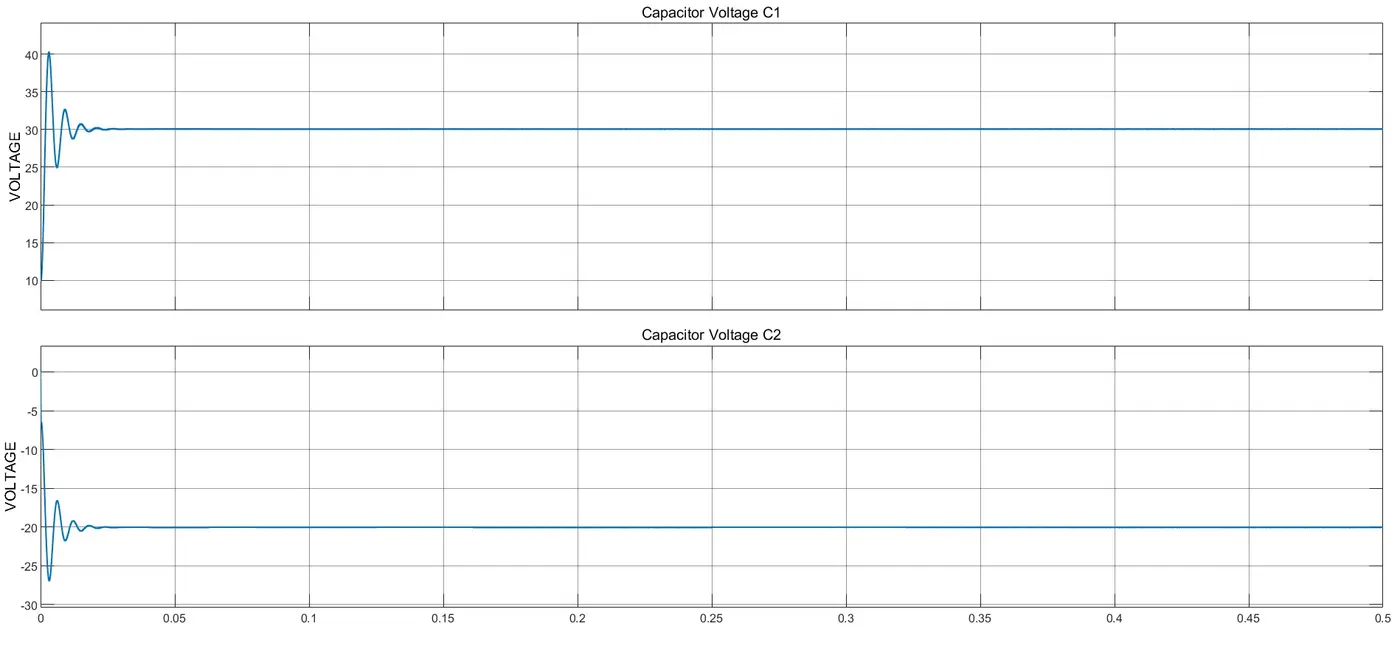

Capacitor Voltage:
Comparing the SEPIC and CUK convertert Output:

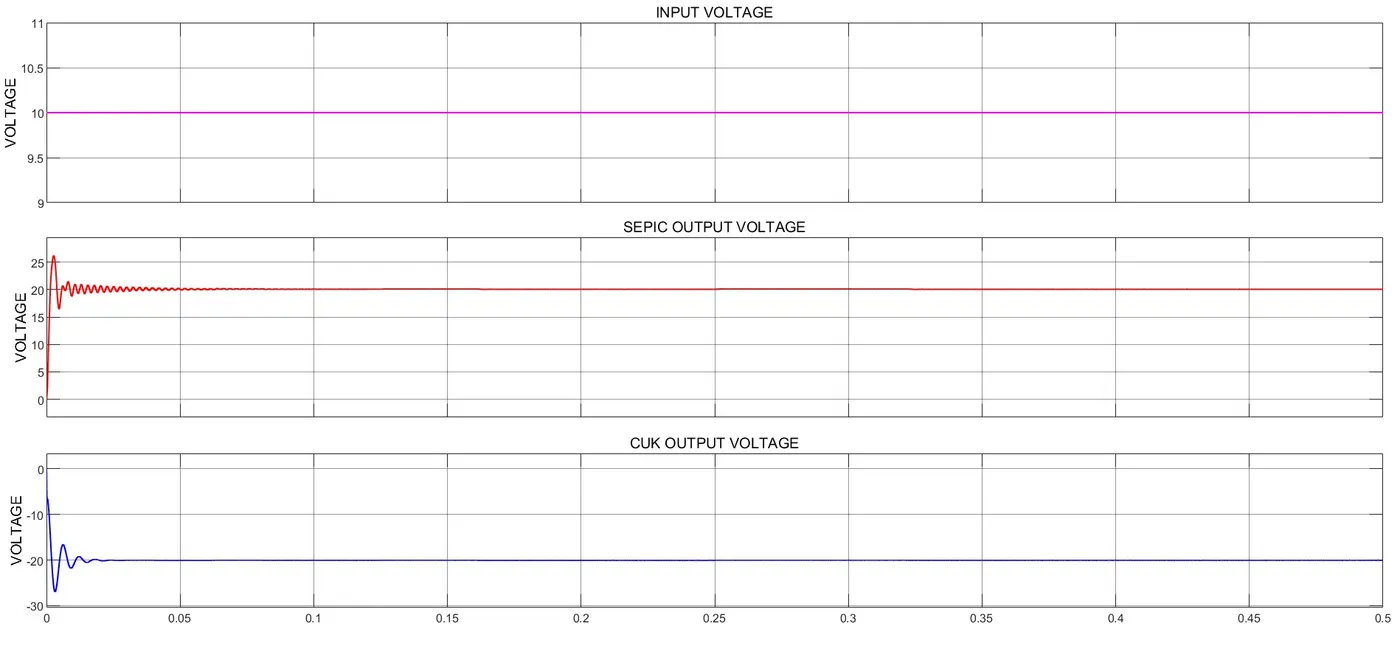

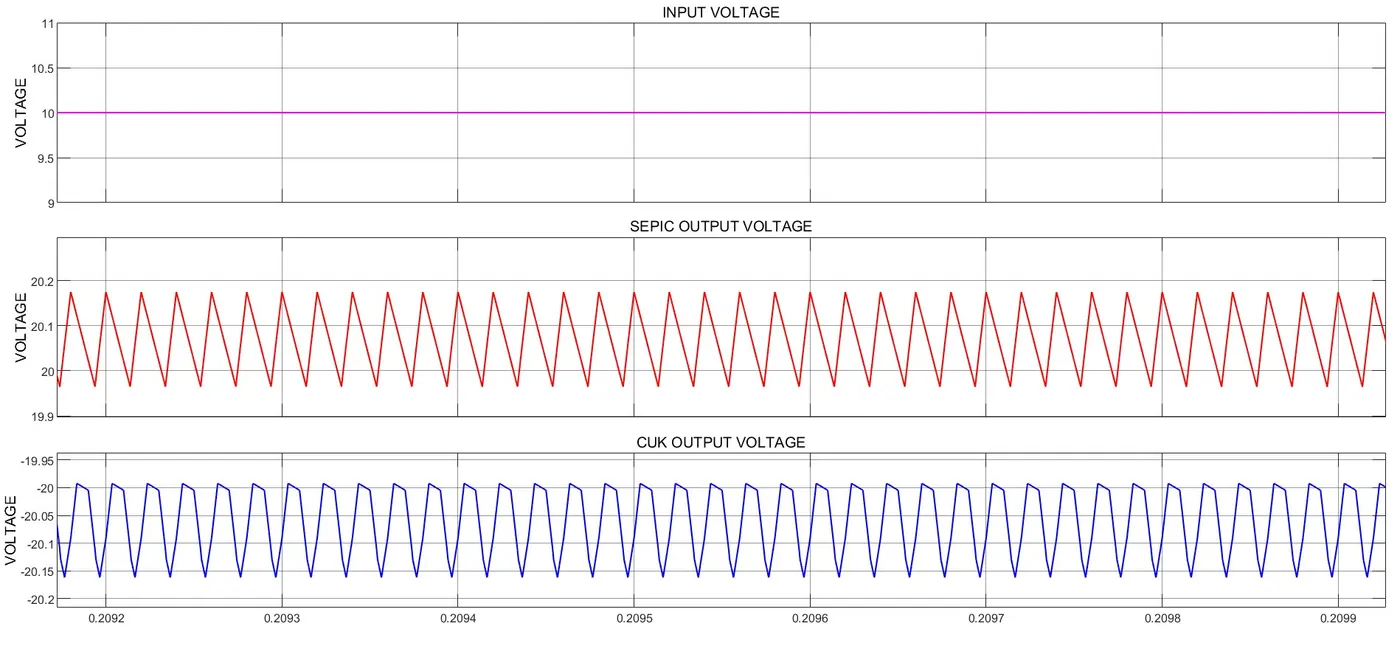

Input voltage and Output voltage:

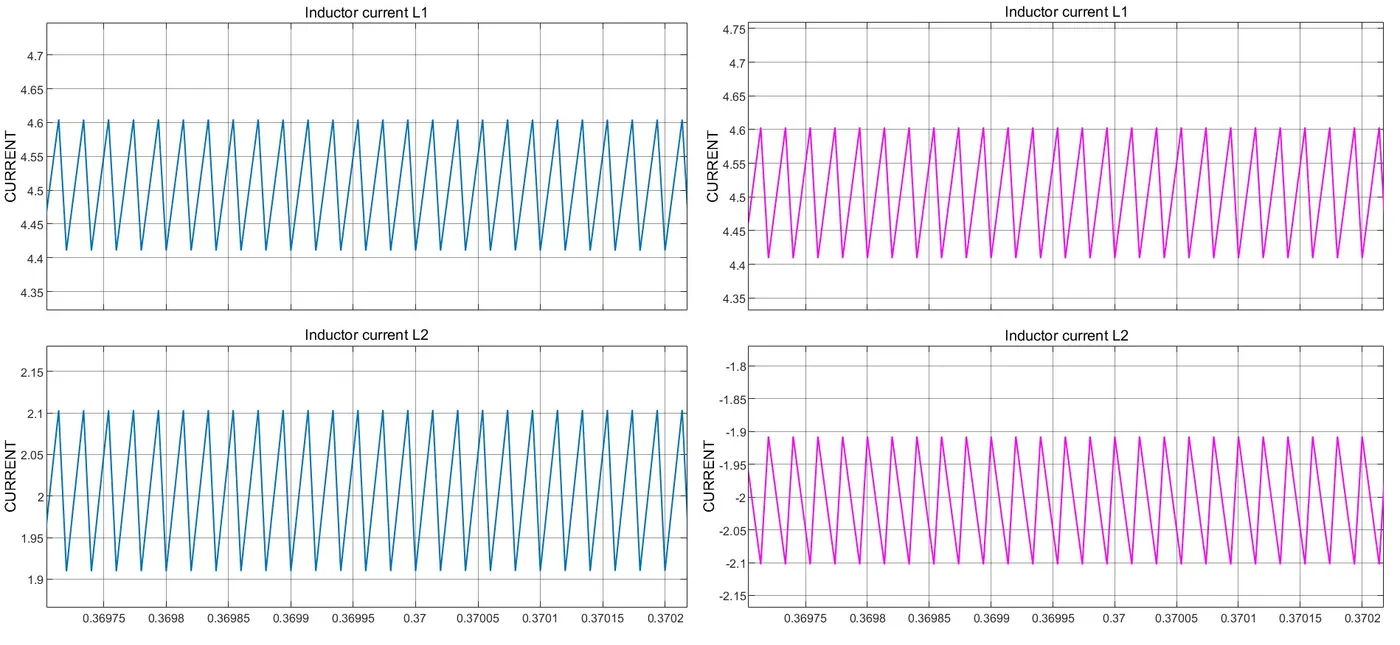

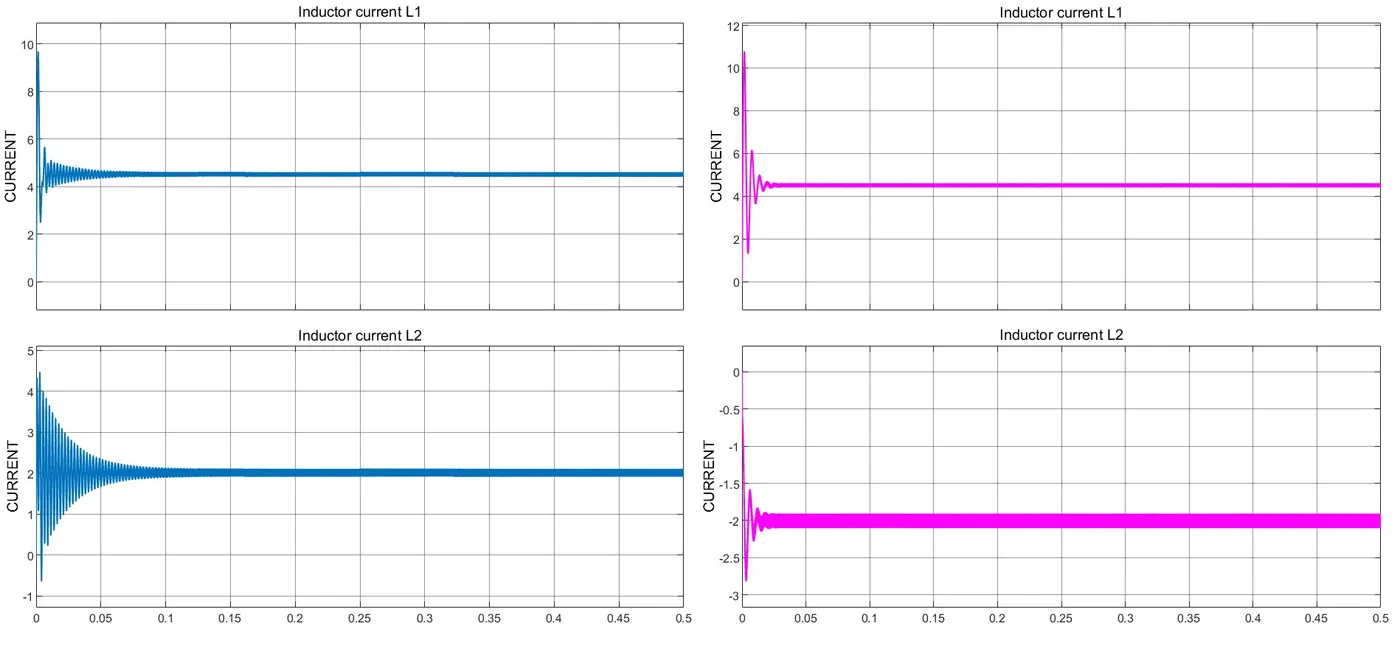

Inductor current:

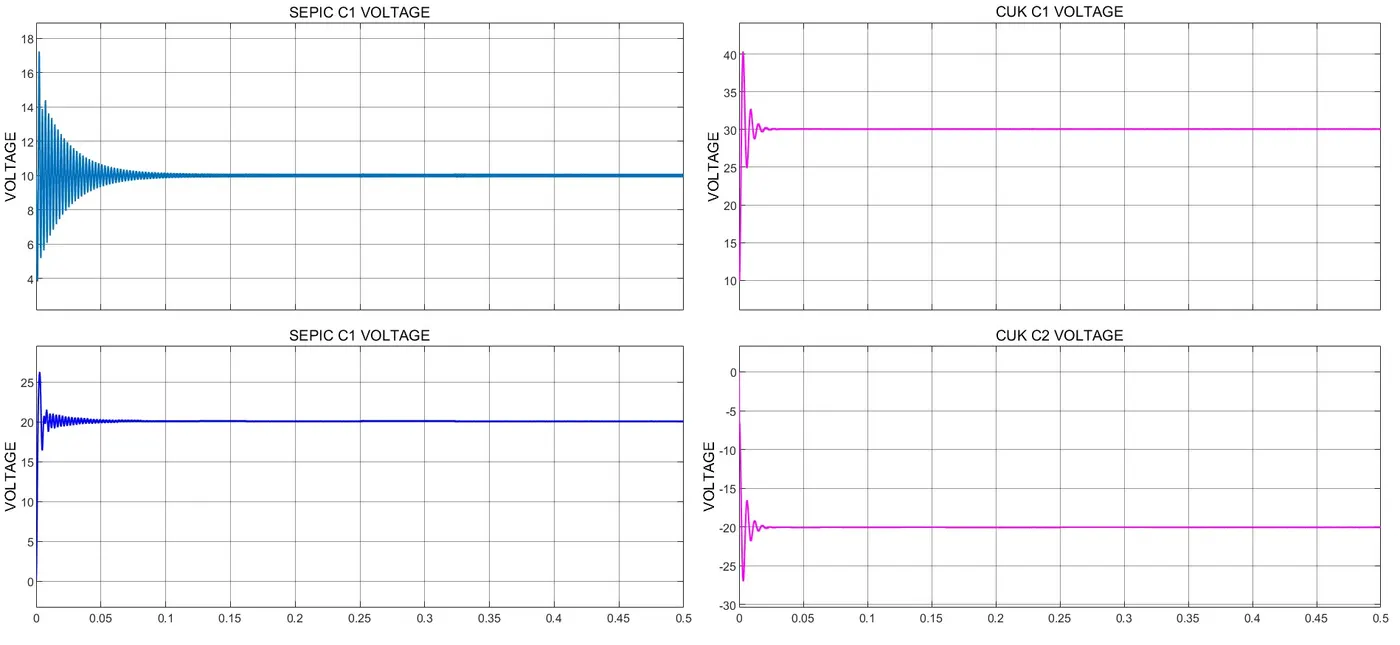

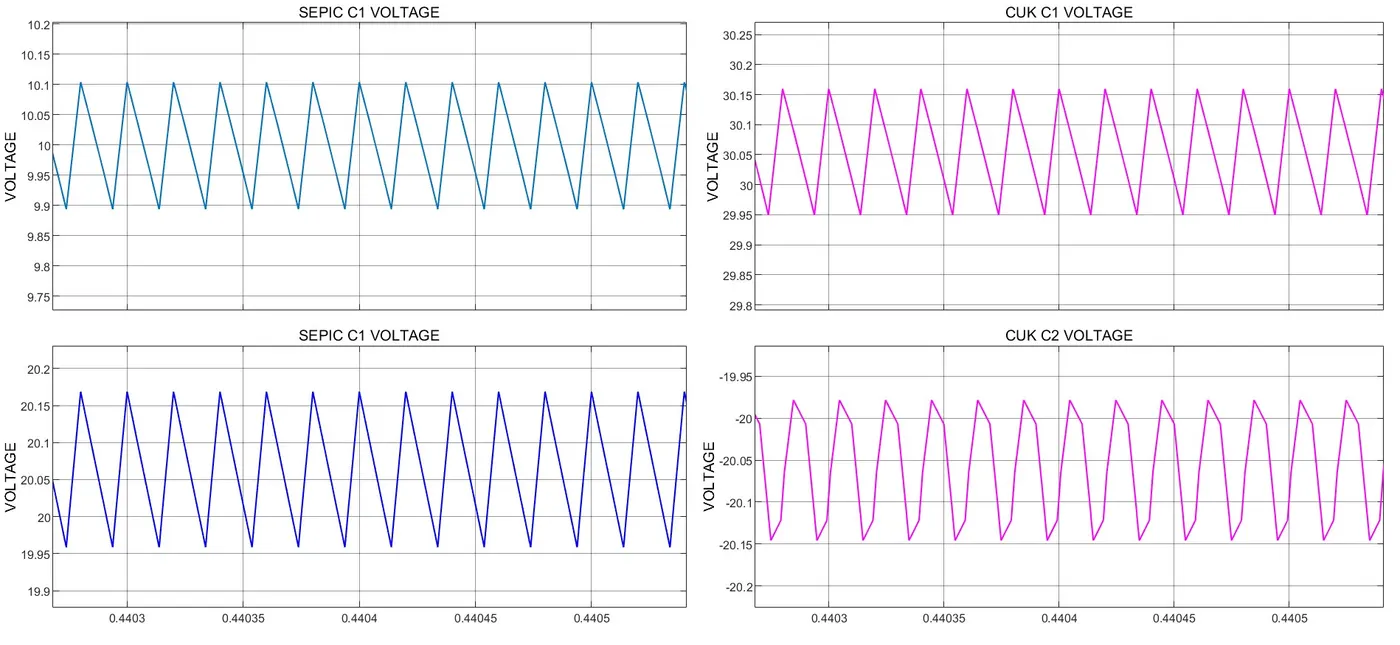

Capacitor Voltage:
RESULT:
Based on the give data sepic and cuk converter designed.All the vaules were calculated and simulated in the Matlab.
Both SEPIC and CUK converter output results were compared.Output results as shown.
