Project 1

OBJECTIVE

Route the Wiring harness on Given Engine and Prepare flattened view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required.

Prepare & Submit all necessary reports like clearance, Clipping/Clamping selection, Harness fixing requirements, Harness continuity, and Assumptions if any along with CATIA 3D data.

GIVEN DATA

Engine STP file

PROCEDURE

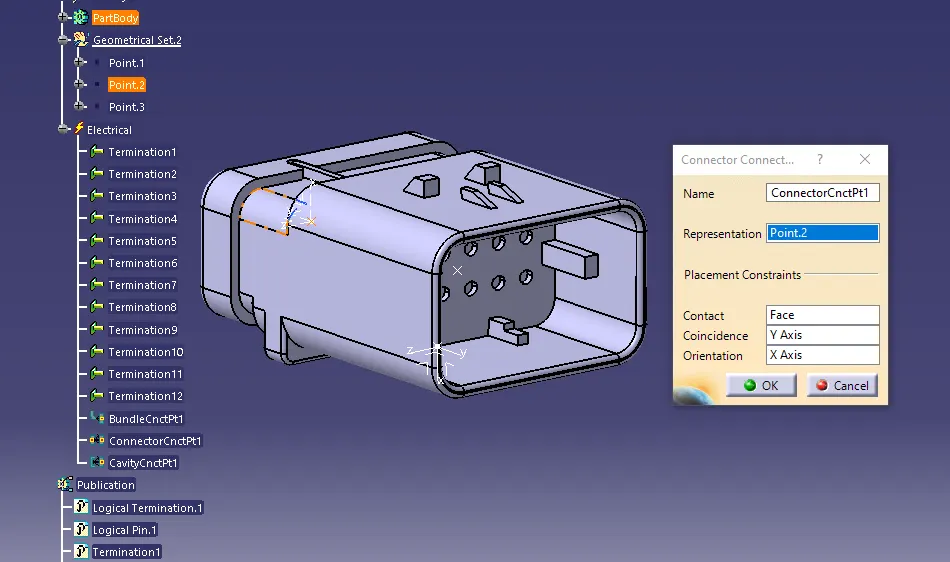

Defining all mechanical parts into the Electrical parts

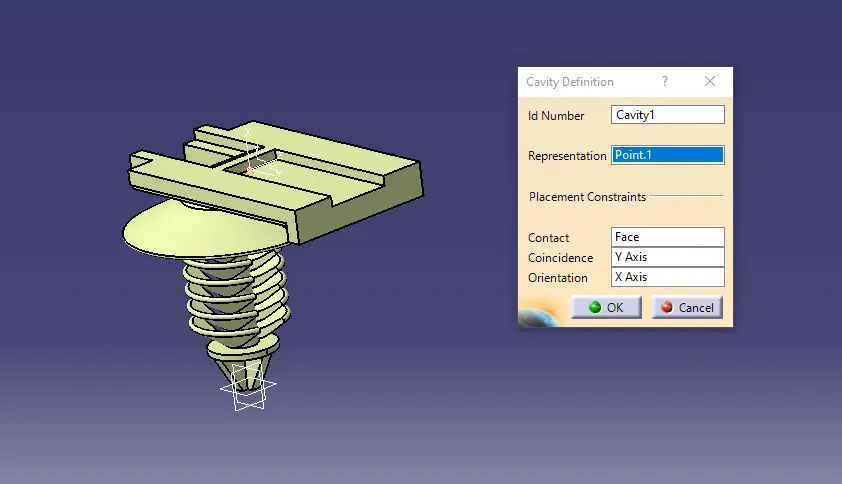

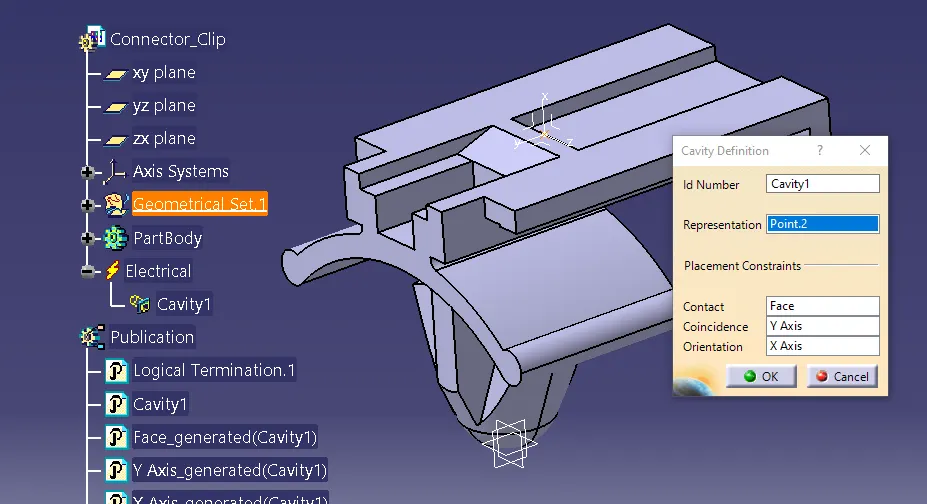

Cavity clip

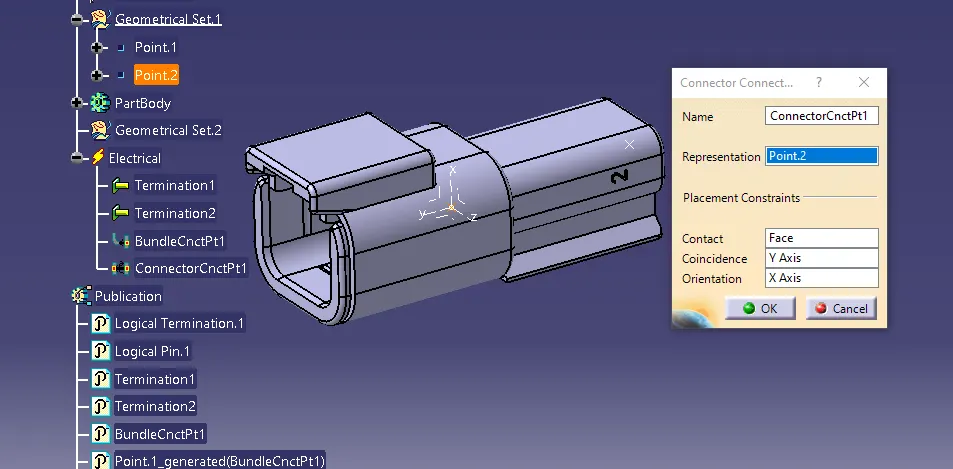

Connector 1

Connector Clip

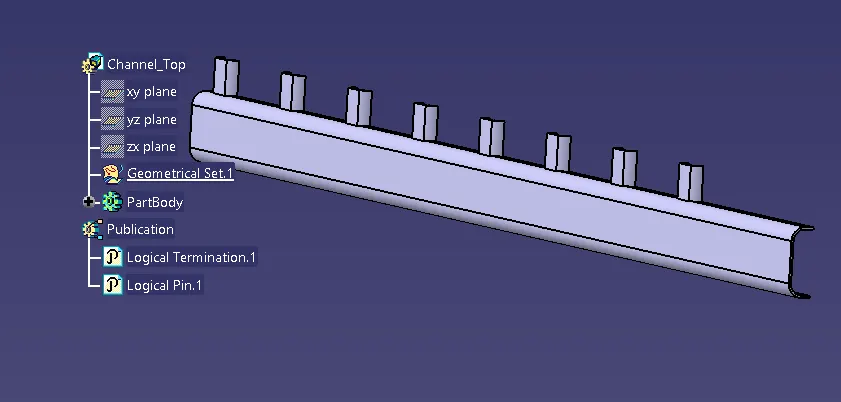

Channel bottom

Channel Top

Connector 2

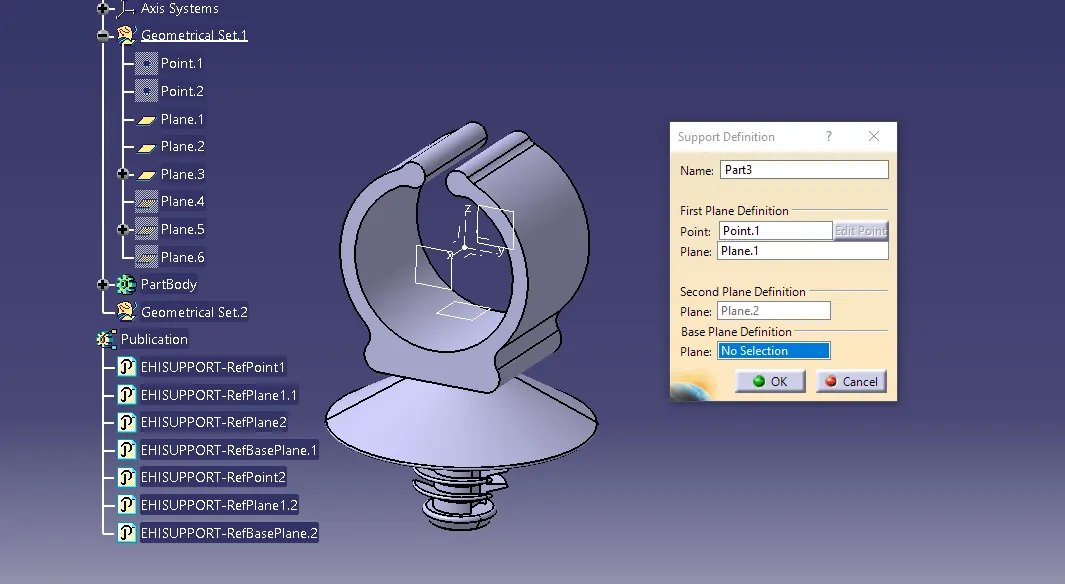

Fir tree clip

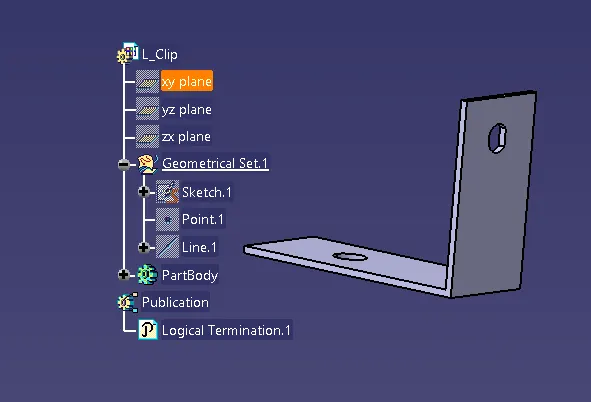

L-SHAPE Clip

Placing all the connector in the required place

Right side

Left side

In front side

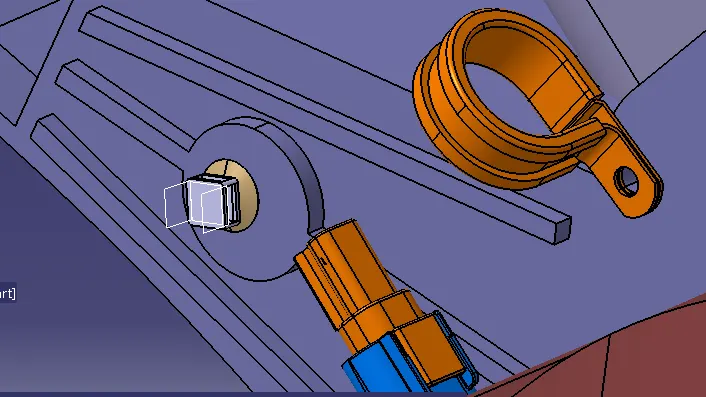

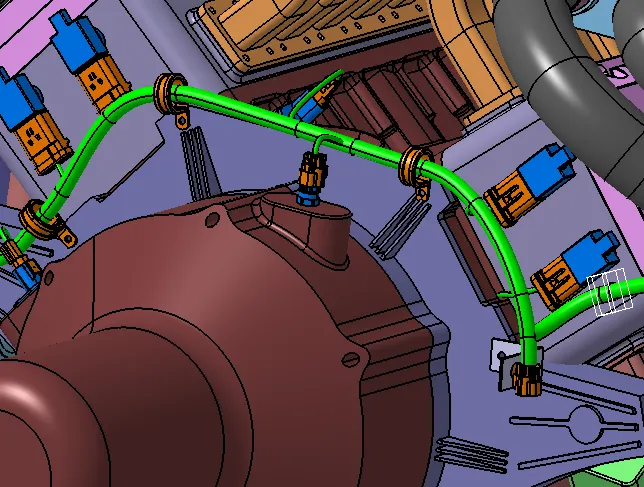

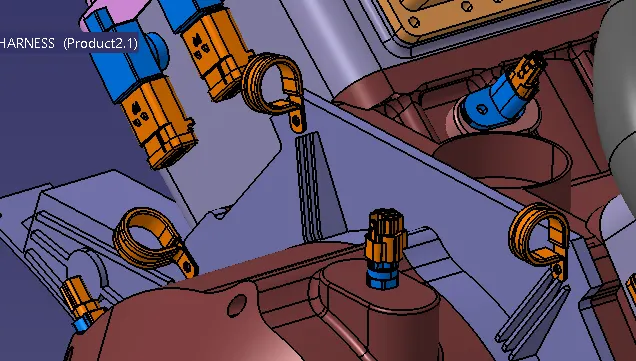

Adding P-clamps for guiding bundle wire

Adding Fir tree clips

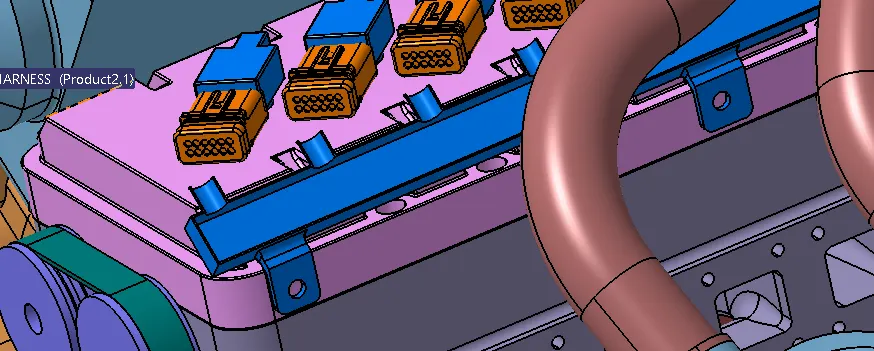

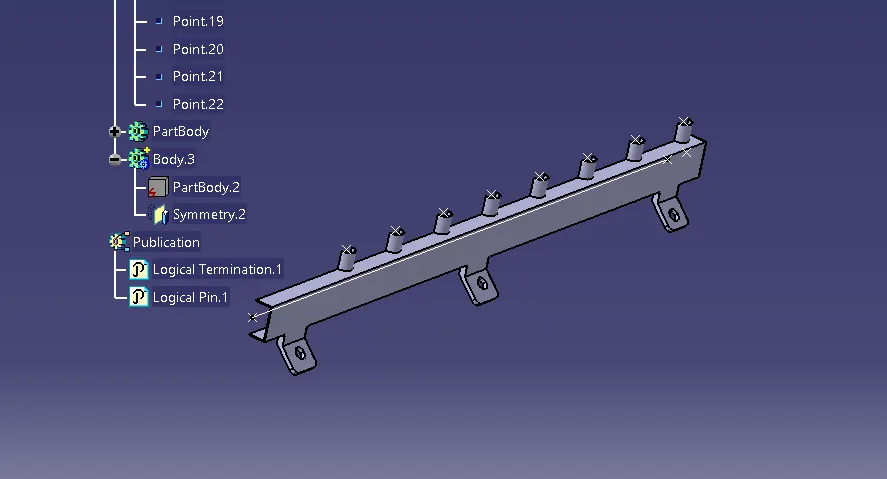

Fixing Guid channel Bottom

WIRING HARNESS

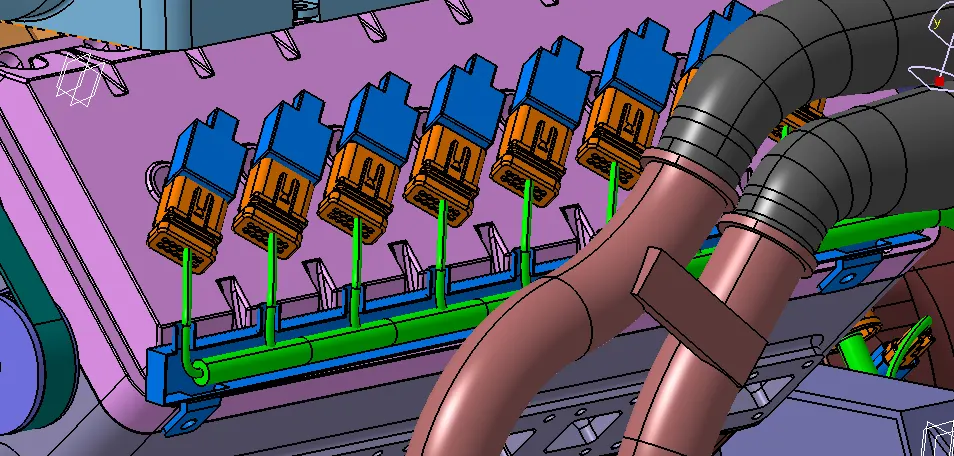

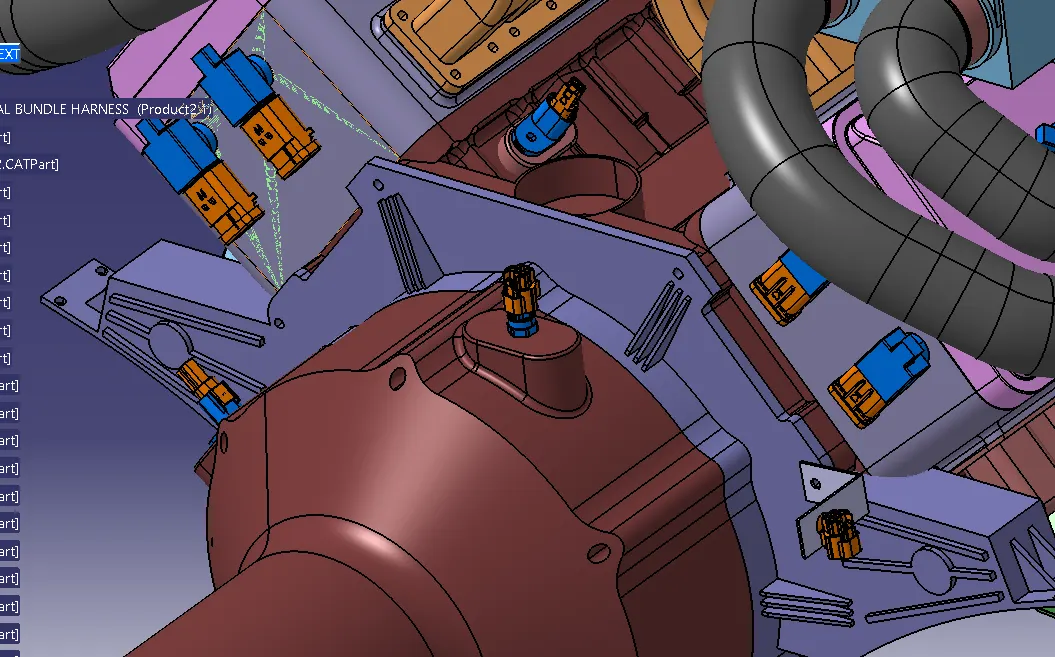

Bundle connection in ignition connectors left side

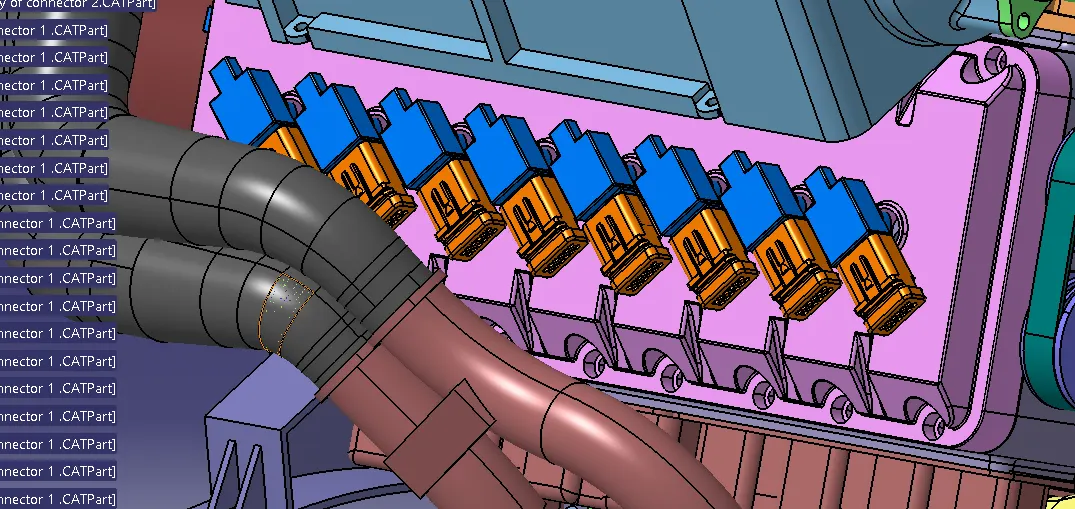

Bundle connection in front side connectors

Bundle connection in ignition connectors Right side

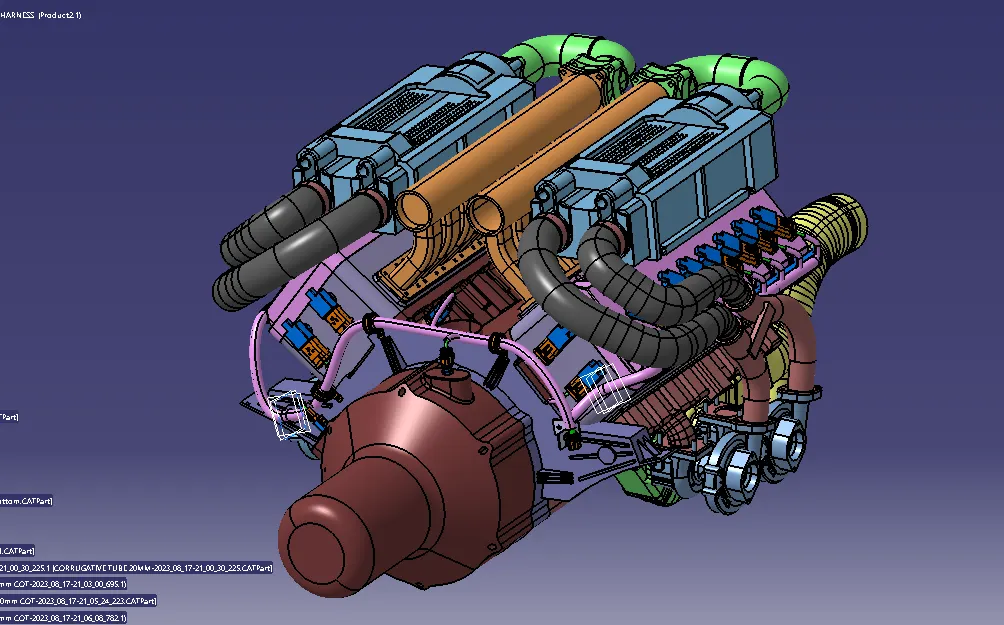

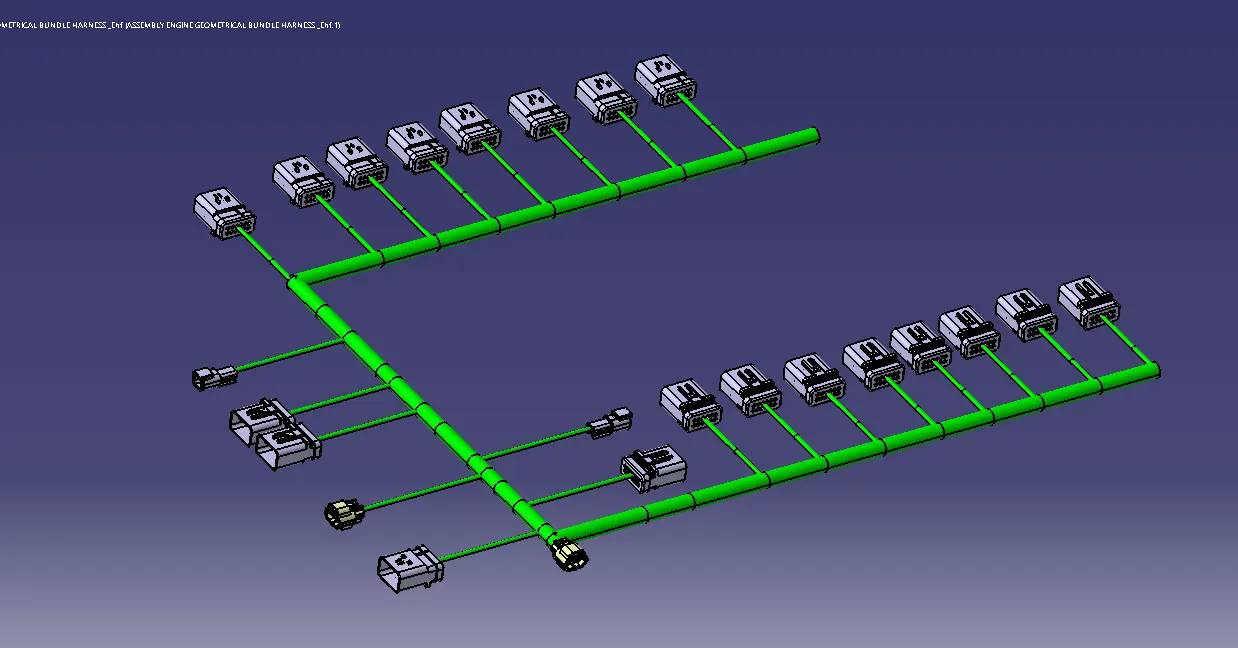

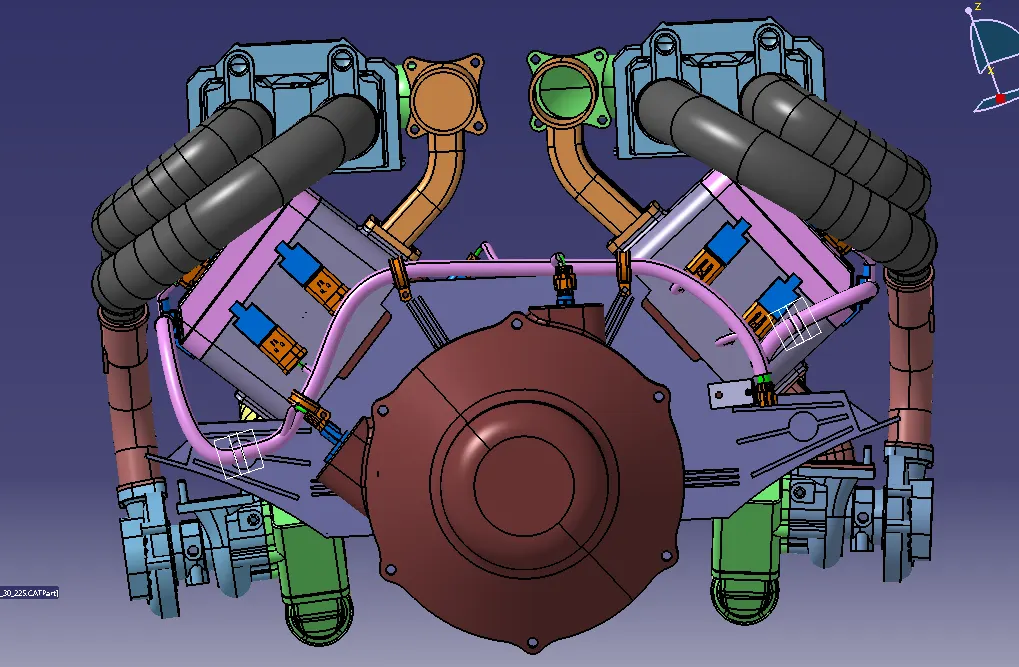

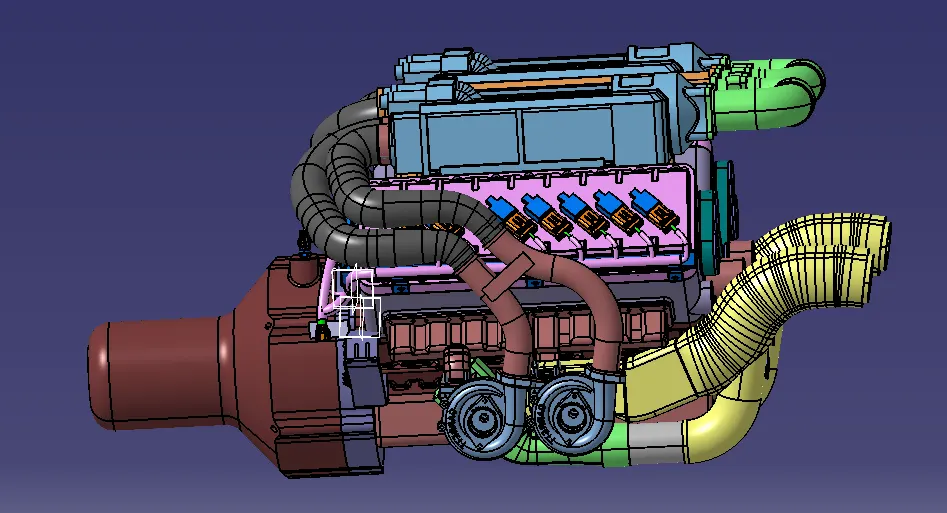

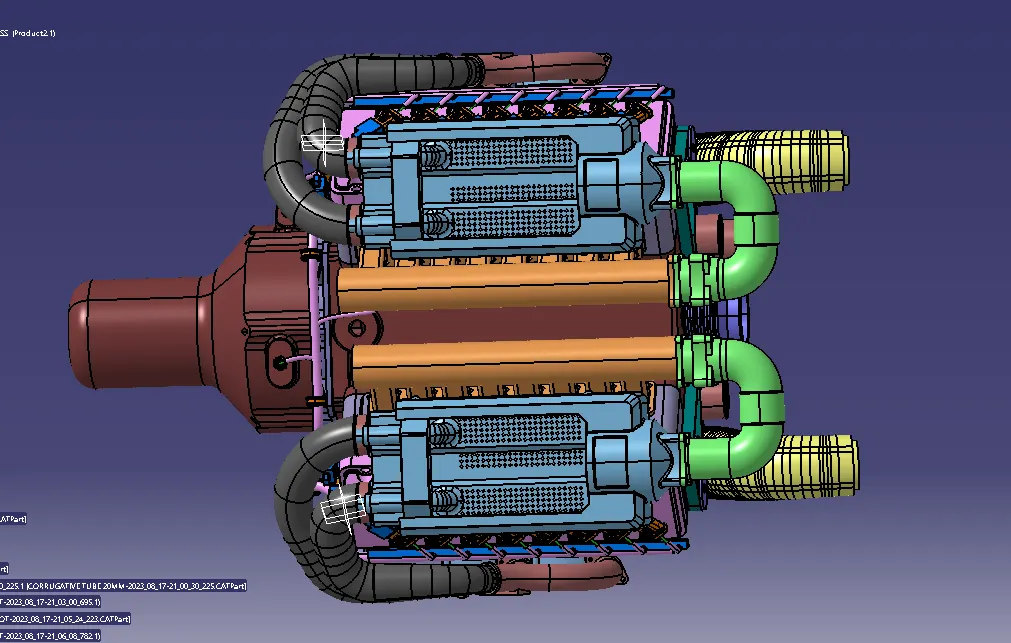

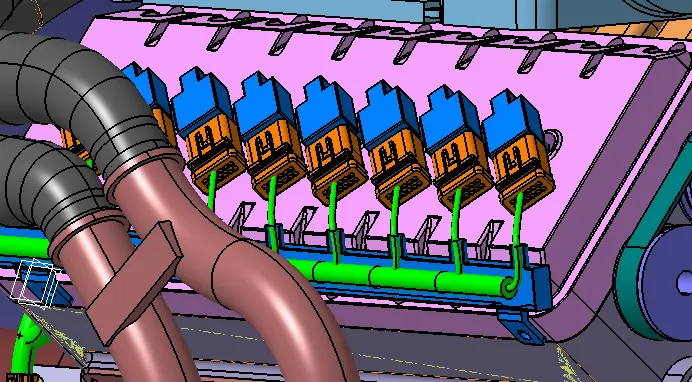

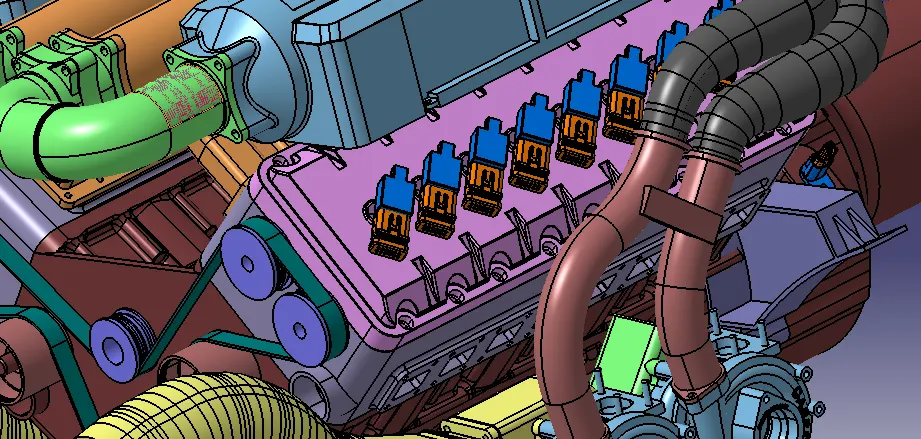

Overall view of Wiring Harness Routing

Protective cover

Corrugative tubes

HARNESS FLATERN

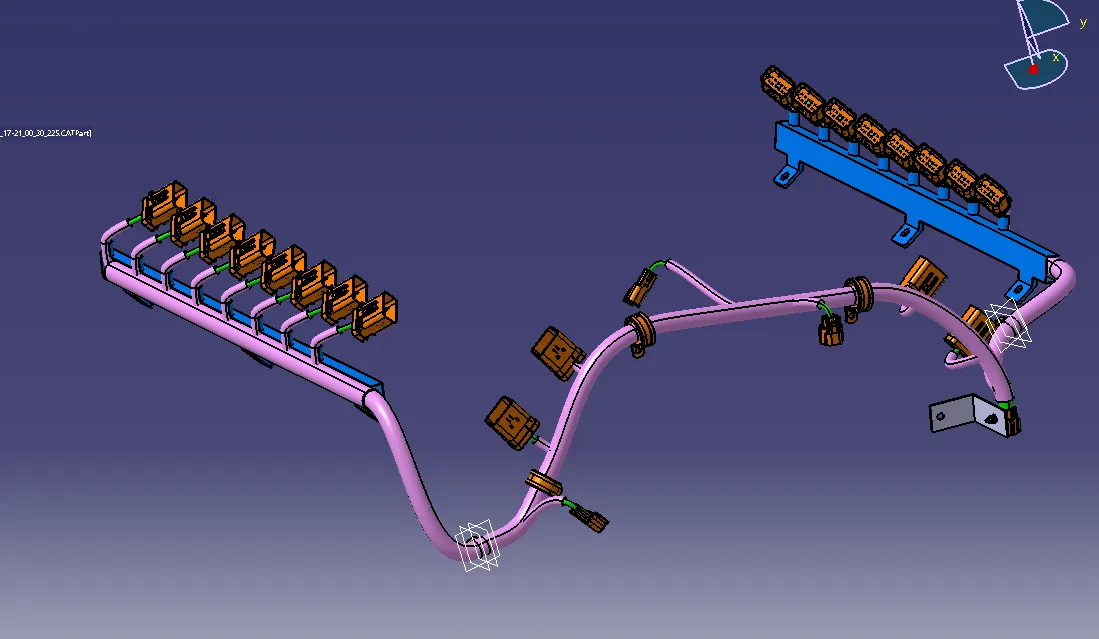

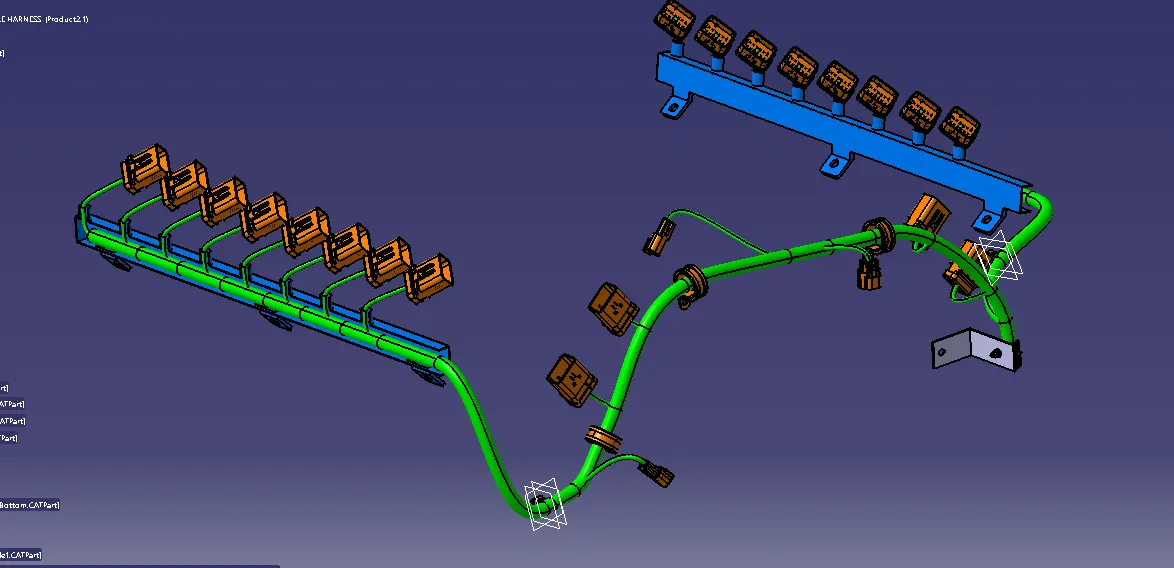

Flattern view of harness routing

Drawing creation

Drawing is created fron the harness flattern

Annotation for all the components

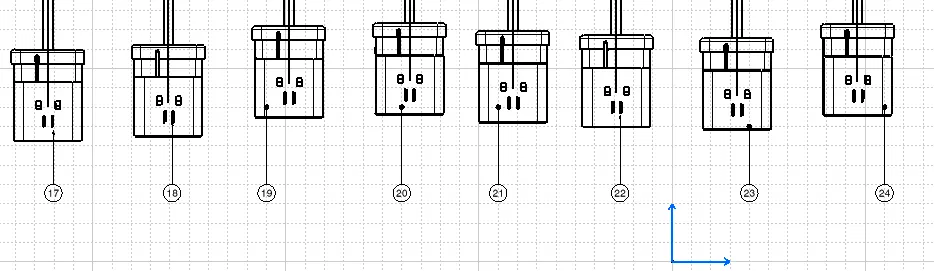

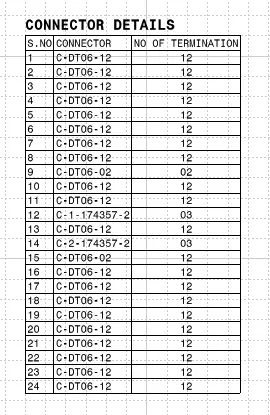

Details of all connectors

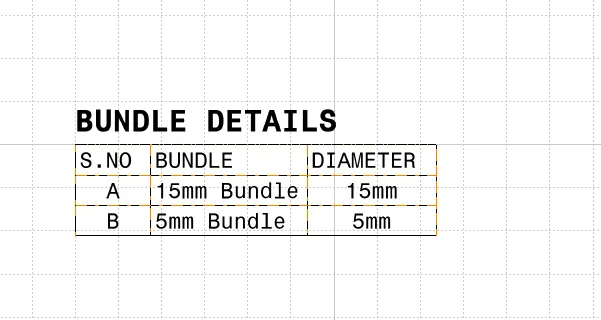

Details of wirning bundles

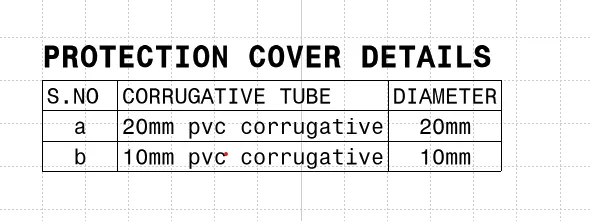

Details of Corrugative tubes

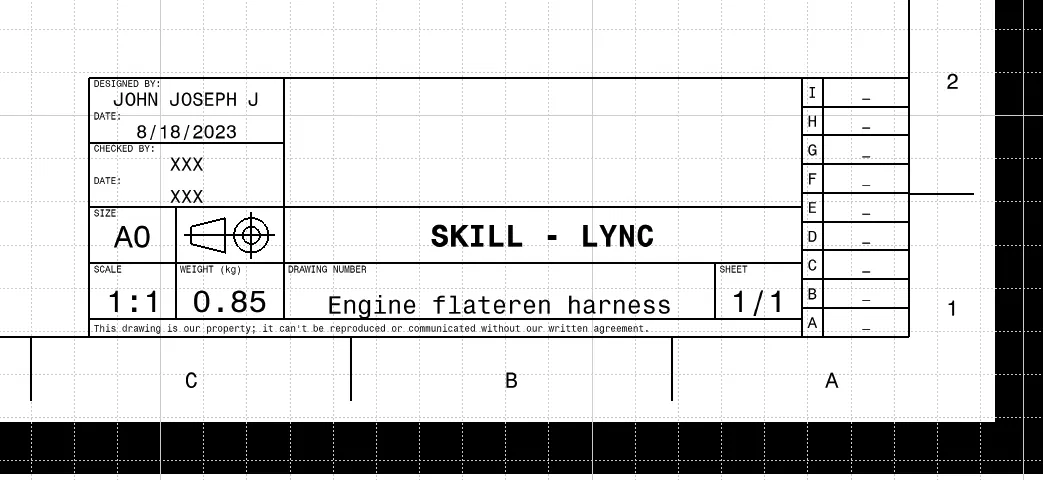

Title block cration

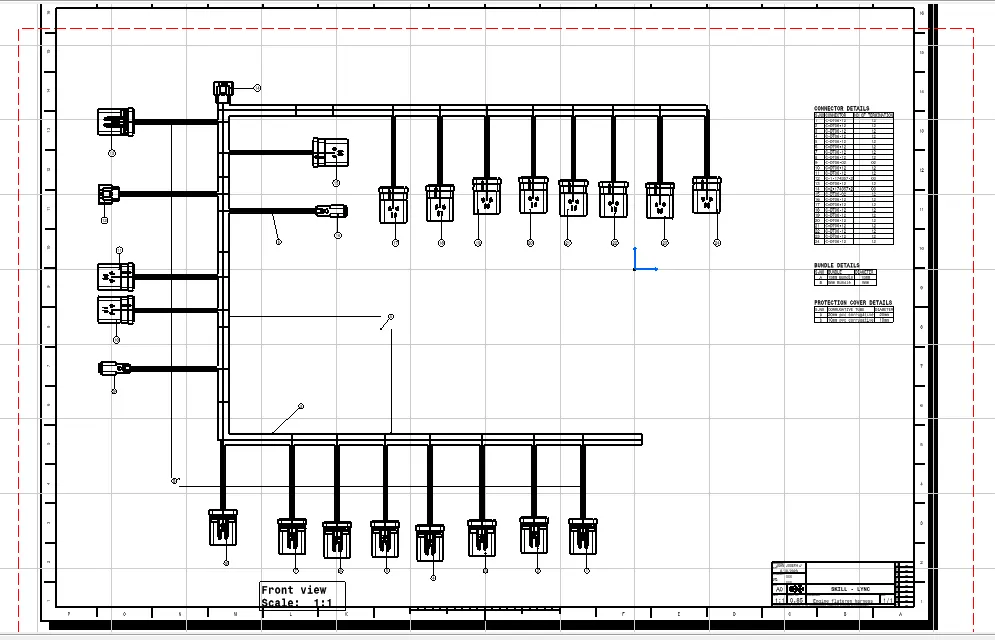

Overall view of Drawing sheet

Catalogue creation

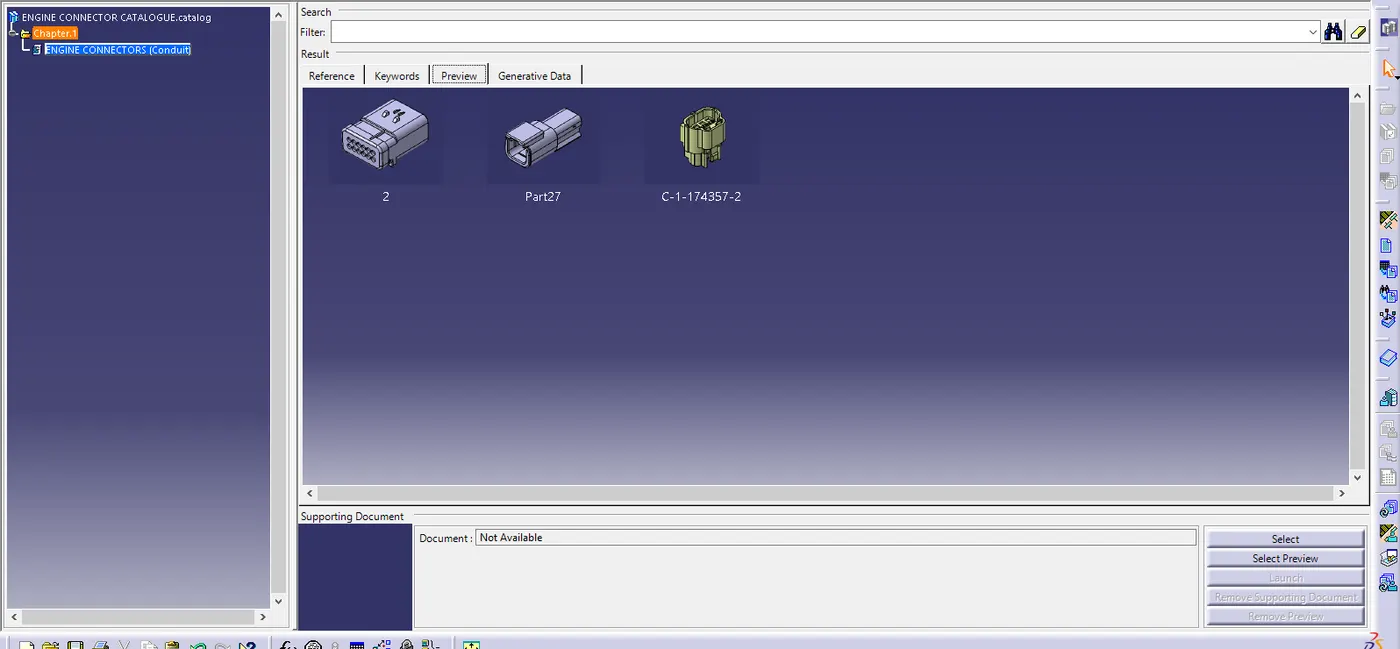

Catalogue creation for connectors

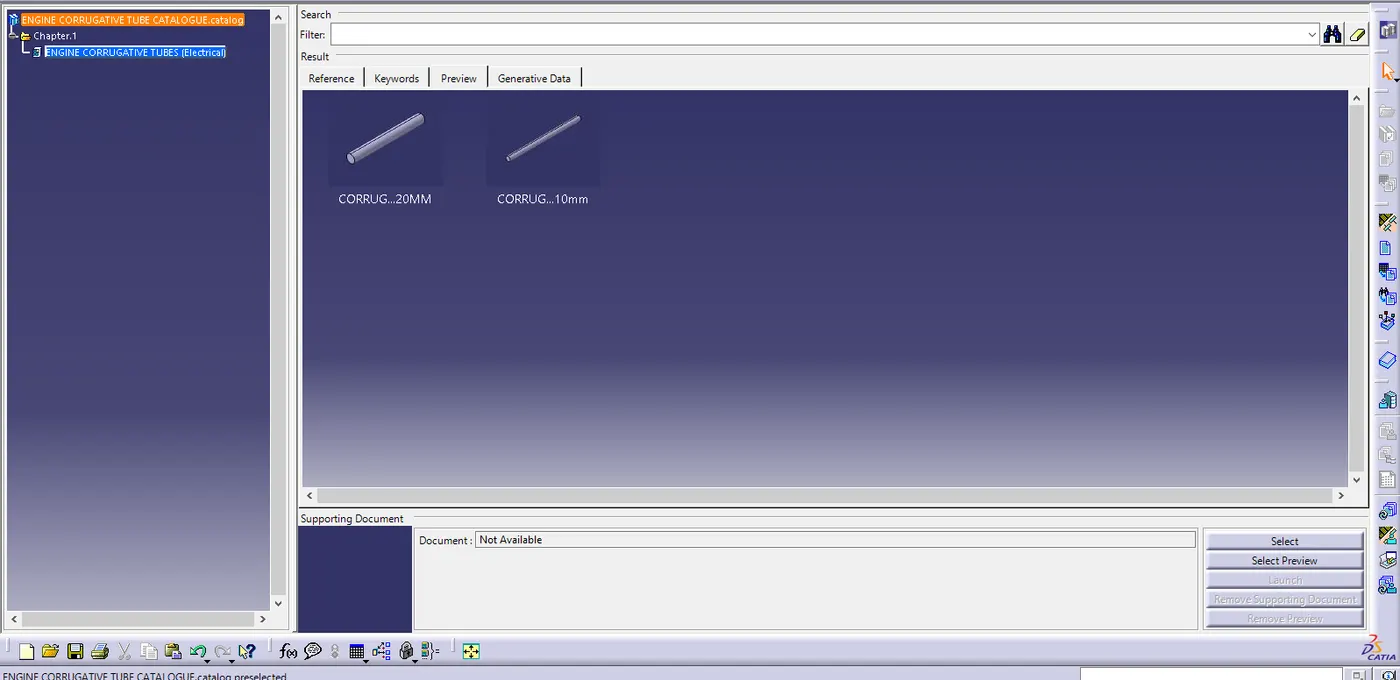

Catalogue creation for Corrugative tubes

Different views

Front view

Side view

Top view

Isometric View
