Week 8 - Challenge 4 - Bumper

1.TOOLING AXIS CREATION:

I CREATED THE TOOLING AXIS IN THE FRONT DIRECTION USING NUMBER PLATE, WHERE I CAN SEE ALL THE SURFACE WITHOUT ANY HIDDEN SURFACE. WHILE EJECTING PART FROM THE MOULD IT WILL COME SMOOTHLY BY USING THIS DIRECTION.

2.DRAFT ANALYSIS:

USING THE TOOLING AXIS I HAVE DONE THE DRAFT ANALYSIS, I HAVE SET RED COLOUR FOR DRAFT ANGLE LESS THAN 0, BLUE COLOUR FOR DRAFT ANGLE BETWEEN 0-3 AND GREEN COLOUR FOR DRAFT ANGLE MORE THAN 3.

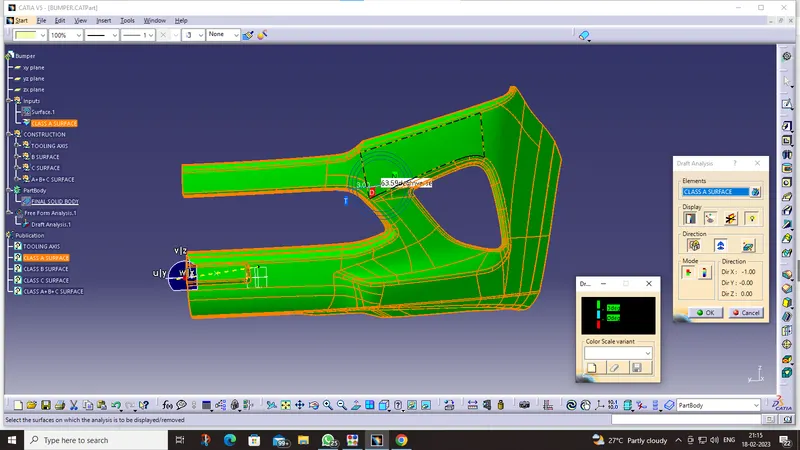

1.Screenshots of the CLASS A SURFACE Draft analysis.

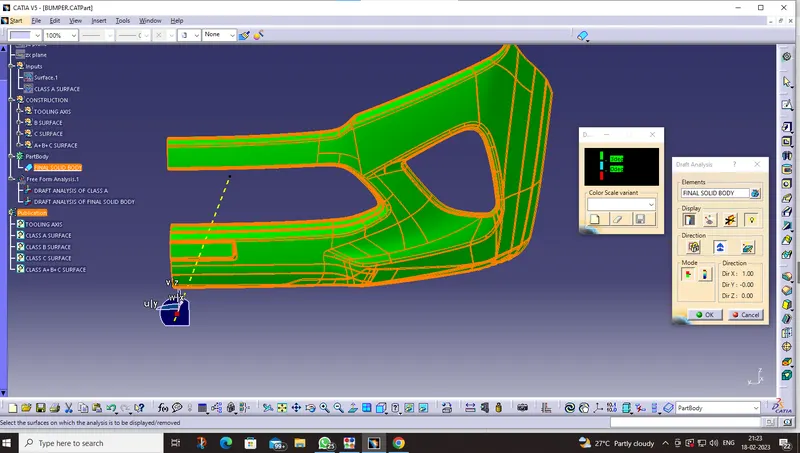

2.Screenshots of the FINAL SOLID COMPONENT Draft analysis.

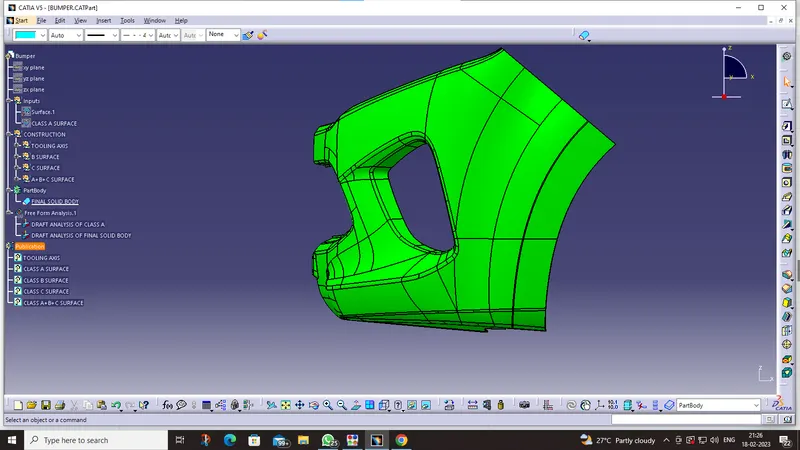

3.Screenshots of the ISOMETRIC view.

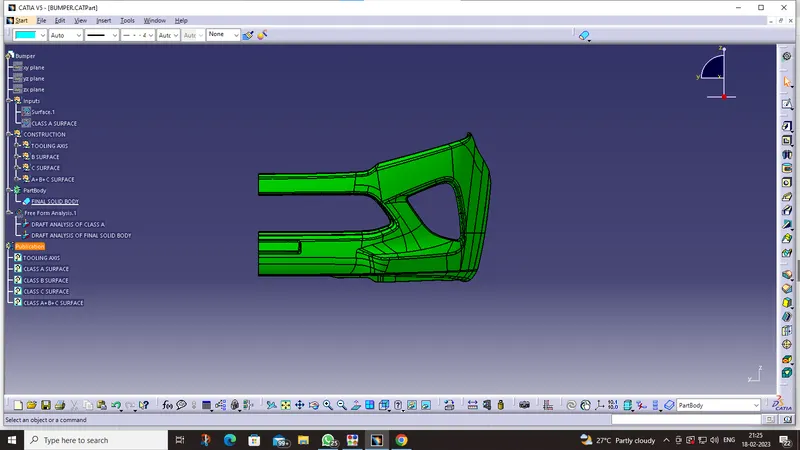

4.Screenshots of the FRONT view.

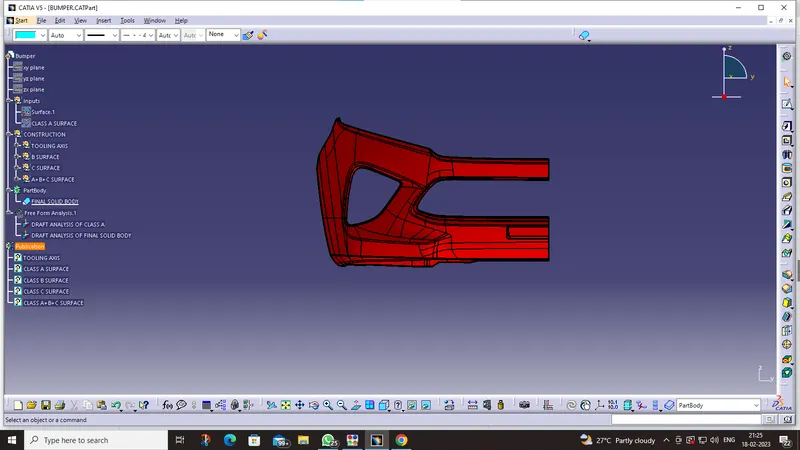

5.Screenshots of the BACK view.

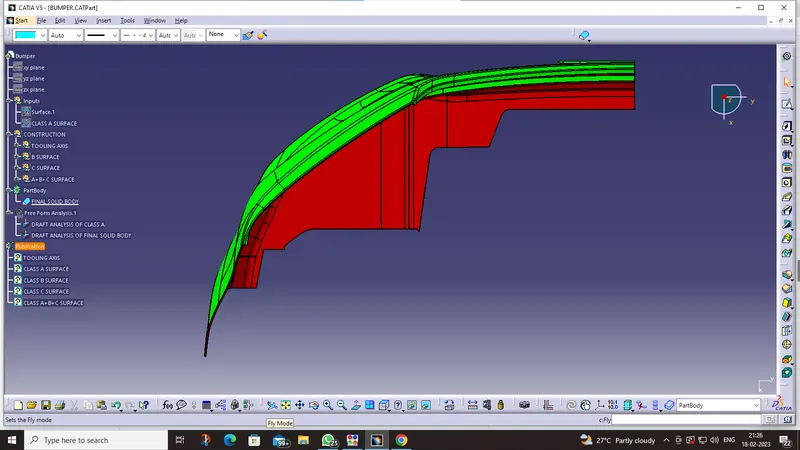

6.Screenshots of the SIDE view.

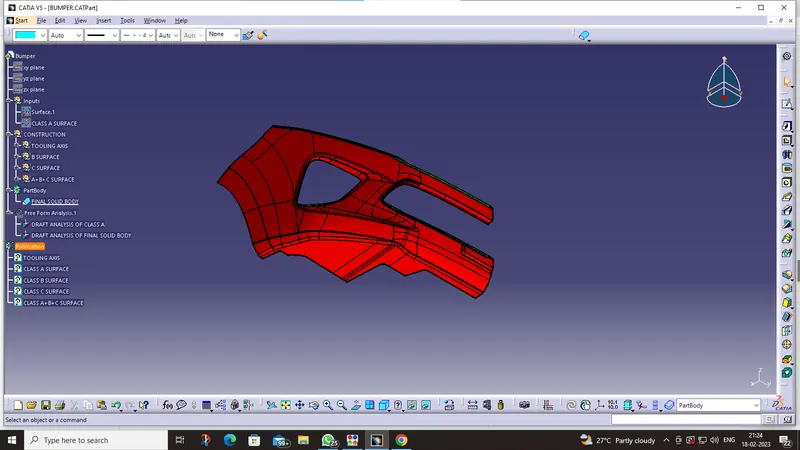

7.Screenshots of the TOP view.
