Project 1:

The Cad provided is an IGS file without any history. It is front-row back foam. Use Under build / Over build technology. Make use of the foam terminology. Make foam parametric and use standards for making the parts.

1 – The Complete design should be parametric.

2 – Use Best Practices as Explained.

3 – Use of best practice and maximum use part design.

The Cad provided is an IGS file without any history. It is front-row cushion foam. Use Under build / Over build technology. Make use of the foam terminology. Make foam parametric and use standards for making the parts.

1 – The Complete design should be parametric.

2 – Use Best Practices as Explained.

Estimated Hours to complete the Part: 9 hours

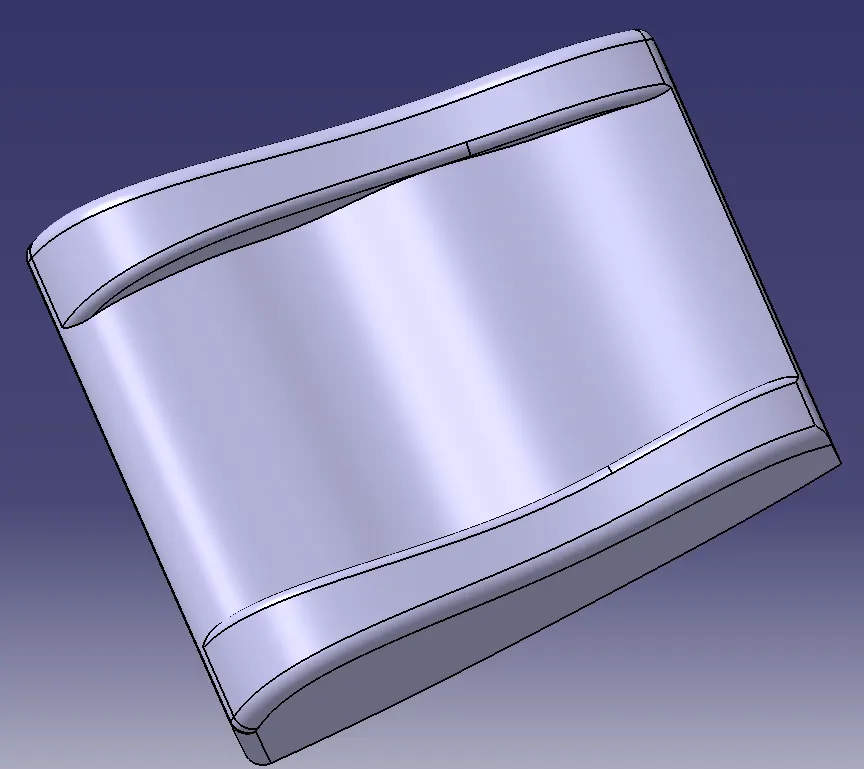

Making of the seat back:

In this case, we've got provided with a dump solid of the seat back and headrest so we'll have to create sto then we'll have to create the solid foam so for that I extracted the surfaces of the dump solid and repaired some damages over the surfaces then I've created sto

Creating H-point:

To create the H-point I've created a point over the curve then I've created lines from that point in 40 mm length and 20 mm height

Creating H-point:

To create the H-point I've created a point over the curve then I've created lines from that point in 40 mm length and 20 mm height

Then I begin to create the top and bottom surfaces first I extracted the top surface then took a boundary and extrapolated then I trimmed them together and the same thing I've done for the bottom surface as well.

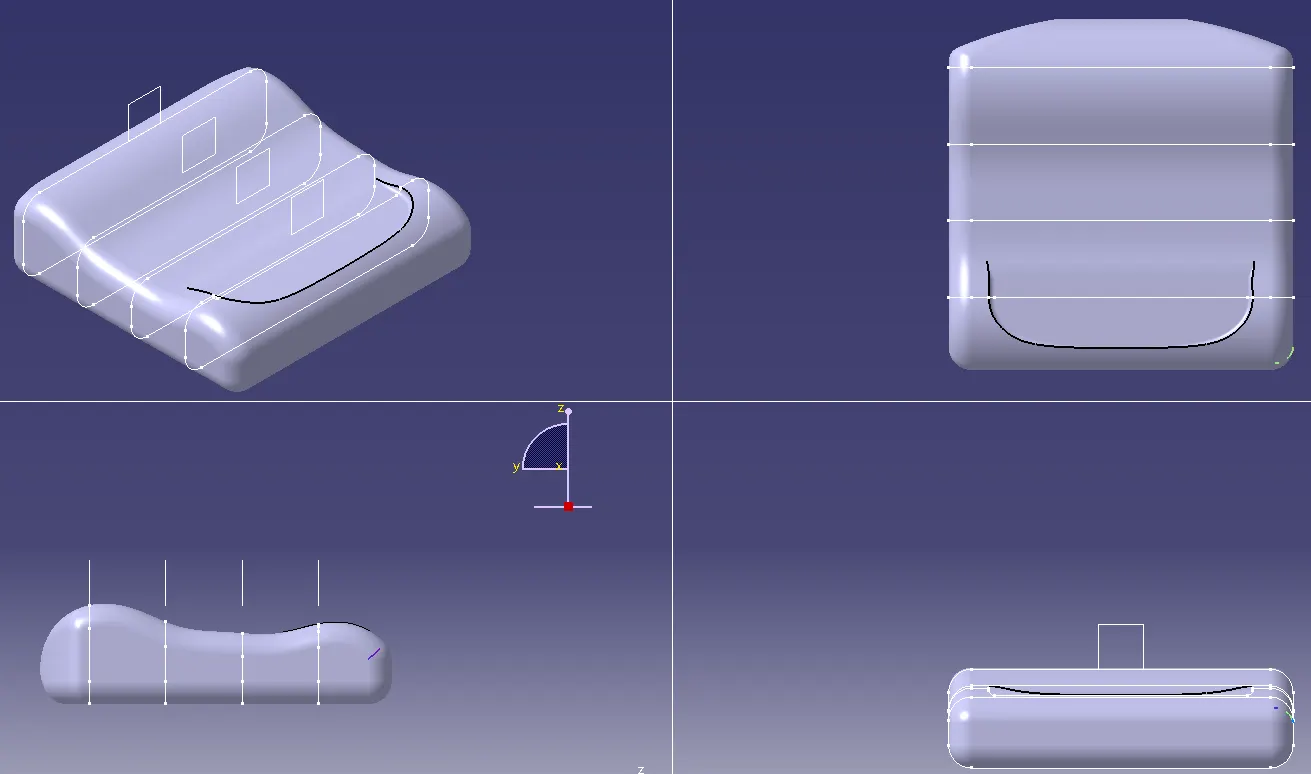

Making of seat lower part:

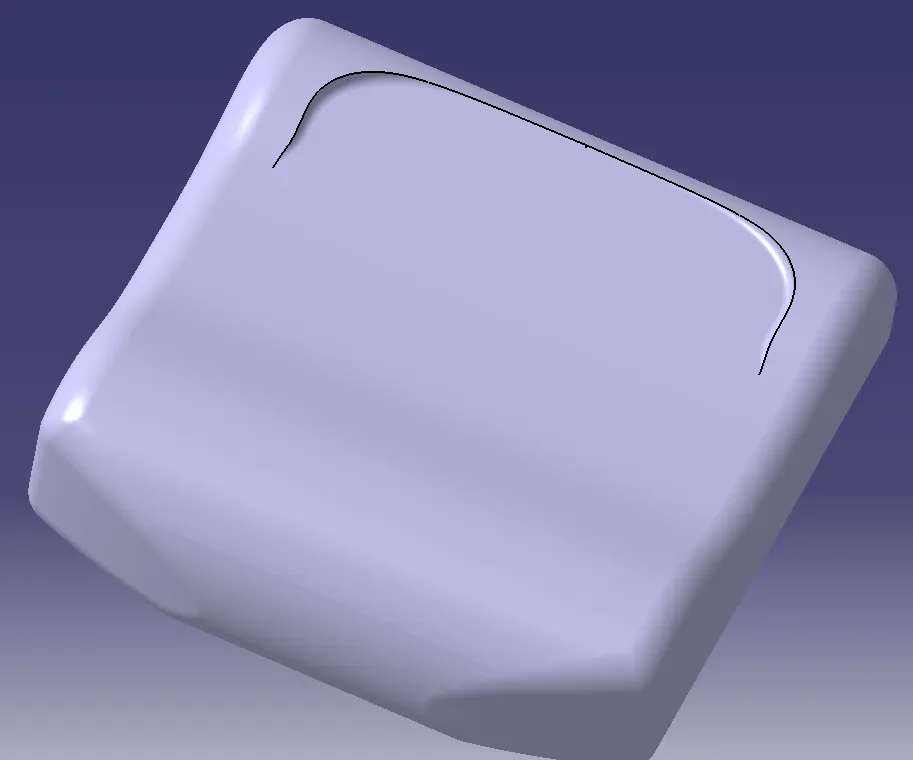

Then whatever methods I followed for creating seat upper part same thing I applied for the seat lower part as well

STO:

Surface body:

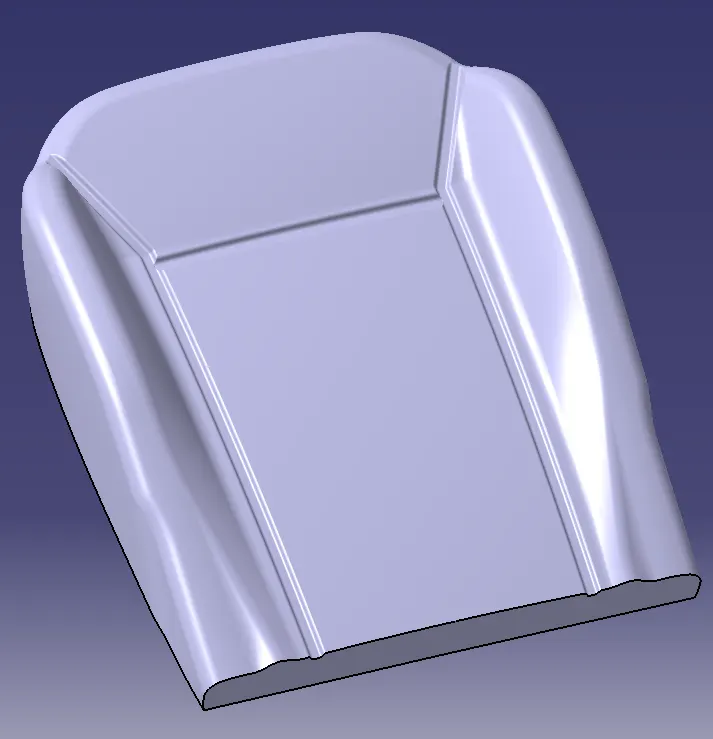

Solid foam:

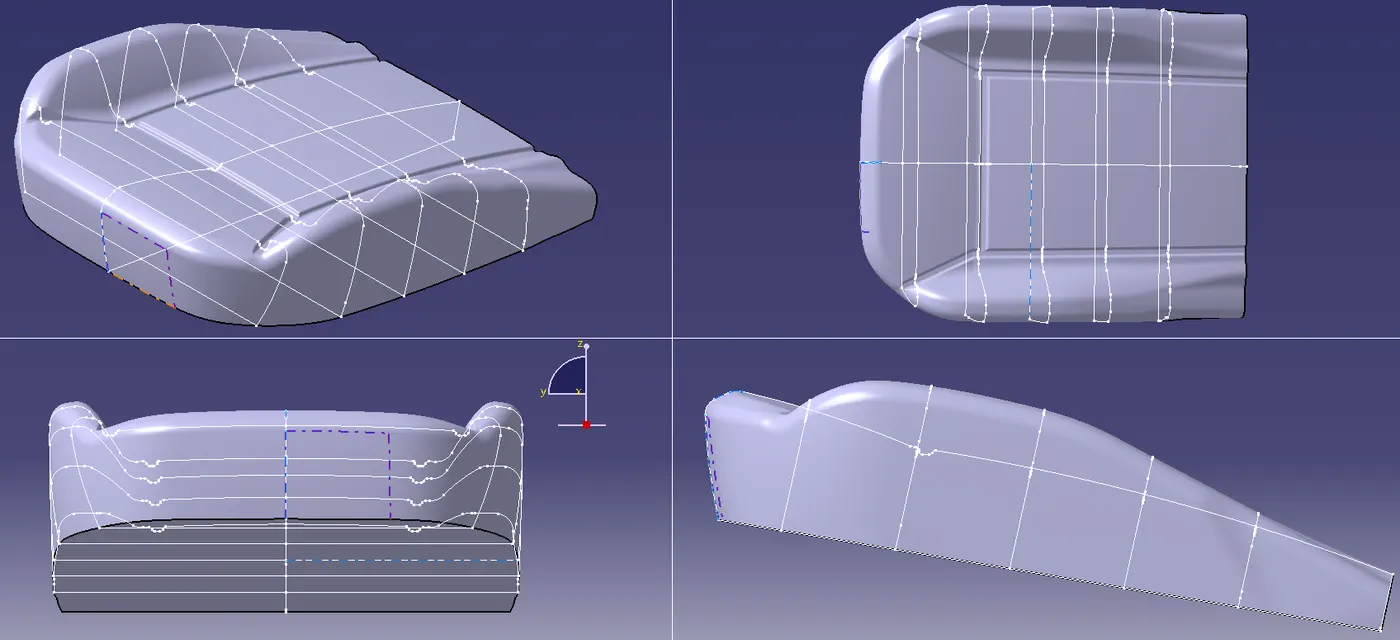

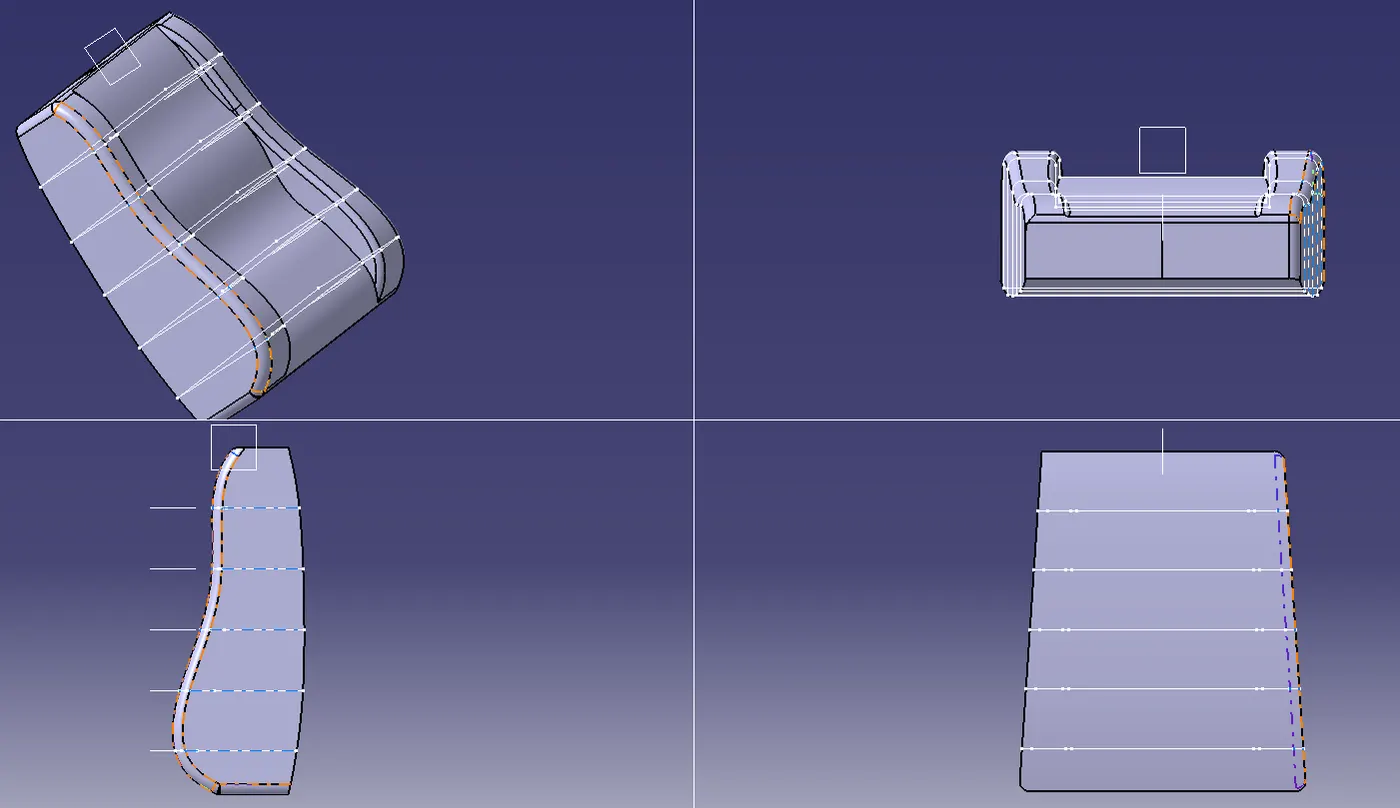

views of seat upper part (sto)
