Project 1

Aim:-

1] Build Simulink model using blocks and complete the vehicle model.

2] Writting scripts in MATLAB to load all the variables required for running the Simulink model.

3] Tabulate the fuel economy numbers (kmpl) for UDDS and HWFET cycle.

4] Plot the time trace for engine, transmission input, transmission output and wheel speed on one plot.

5] Plot engine torque, engine power, fuel rate and fuel consumption using subplots.

6] Plot accelerator and brake pedal, gear command, vehicle desired and actual speed, vehicle distance using subplots.

7] Plot the engine operating points on the engine fuel map.

8] Generate the plots for both drive cycles.

9] Study of Conventional vehicle simulink model and creates graphs.

Conventional Vehicle:-

Conventional vehicles use fueled by gasoline or diesel to power the wheels. In this the heat engine uses the principle of heat release through combustion of a fuel with an oxidizer in a combustion chamber to create expanding gases which pushes against a piston creating forcce and torque output.

In this vehicle engine converts chemical energy stored in the fuel into heat which is used to produce useful work. Typically use fossil fuels like petroleum (petrol and diesel).

The most popular type of engine is used in this system is 4 stroke reciprocating engine. Engine in cyclinder process can be represented by ideal thermodynamic cycles such as Otto cycle, Diesel cycle. Otto cycle is a ideal cycle thet describes the cycle process for spark ignited SI engine. and the Diesel cycle is the ideal cycle thet describes the cycle process for a compression ignited CI engine.

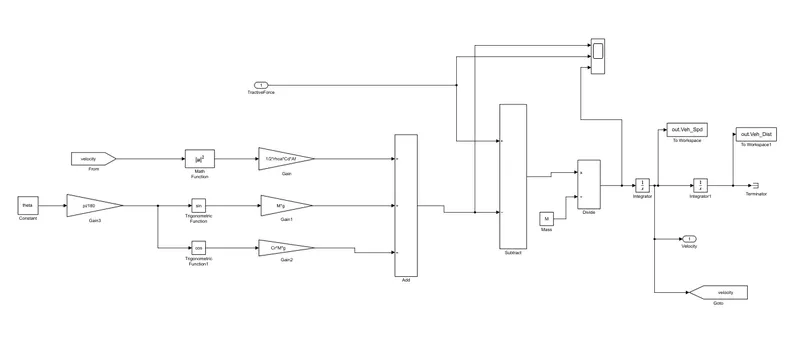

Energy and performance of vehicle:-

In this system trge power demand on the wheel need to instant supplied by the powertrain. In otyher word the power coming from the powertrain dictates the power demand on the wheels (as per performance viz, acceleration, speed etc is determined by it.

In tis vehicle the powertrain is consists of an engine connected to the wheels through a transmission therefore the power comes from the engine through the transmission.

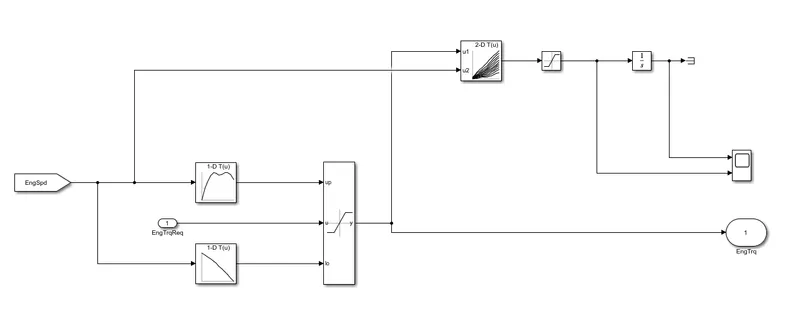

Conventional powwertrain efficiency:-

The engine generates power by converting chemical energy stored into the mechanical energy by the process of combustion. This process of energy conversion also has an efficiency and the energy input is in the form of fuel consumption.

Where,

mf = mass flow rate in [kg]

pe = Power of engine

pt = power of transmission

nt = efficiency of transmission

ne = efficiency of engine

QLHV = it is th ecalorific value/ lower heating value of fuel.

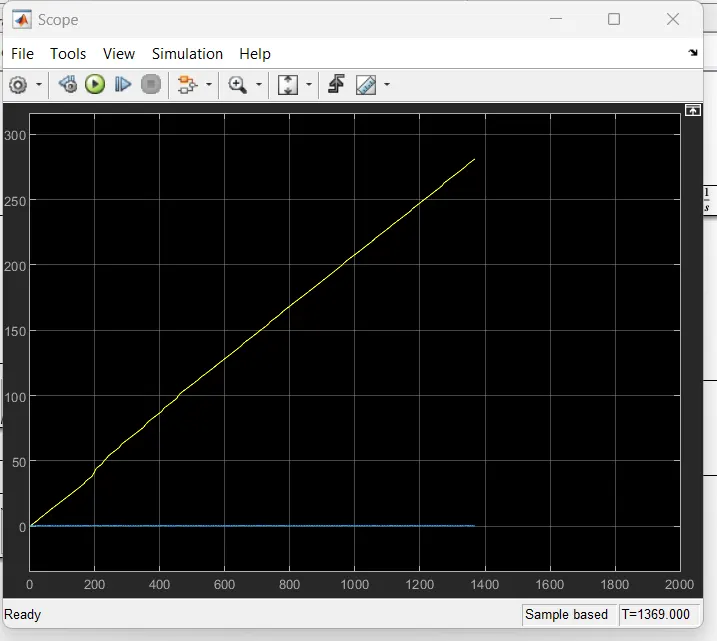

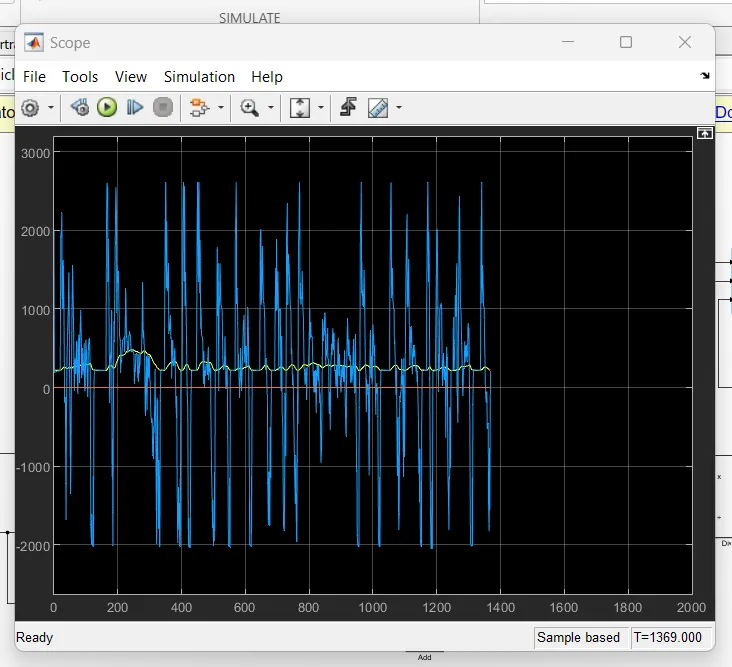

In this system of IC engine if tge power at the wheels is zero the engine is idling and still consumes some fuel to overcome the engine drag loss and keep it spinning this is the idling fuel consumption and know as idling process. Above mentioned formula is applicable only when the wheel power is strictly power. When the wheel power is negative either th engine is disengaged and idling or the engiune is engaged and providing some engine braking due to the engine drag losses.

The engine is consuming fuel when it is idling but even for engine braking the engine might be consuming some fuel.

The fuel consumption not only depend on the power requirement at the wheels but also is required to generate power to run the various engine and vehicle accessory loads.

System Dynamics:-

It deals with the modeling of multi domain systems through the use of a unified approach based on a ordinary differential and algebraic equation describing the static and dynamic effects.

Each systems has are two generalised variables-

1] Efforts:- It is generalised force variable. ex- torque, force, voltage, heating value.

2] Flow:- It is the generalised flow/velocity variable. ex:- velocity, current, mass flow rate.

3] Power:- It is the product of the effort and flow variable. It is interchangeable between energy domains.

Energy based models- Element models

To models the internal physical properties of the element and the losses there are basically two kinds of approach.

1] Map based models:- Elements are modeled using maps which characterized the relationship between the input and output , output and losses etc.

2] Analytical models:- Elements are modeled using physical equation that represent the internal dynamics. These are the two extremes most models are a combination of the two with some dynamics models analytically and for some using maps.

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%% Skill-Lync -> Hybrid Drives Development
% Project 1 - Conventional Vehicle Model
% By - Ullekh Gambhira

% Description:

%% Initialization File
% Initialization file for loading the variables for the Conventional vehicle simulation model

%% Vehicle Parameters
M = 1500;       % Vehicle weight [kg]
Cr = 0.015;     % Rolling resistance coefficient
Rw = 0.35;      % Rolling radius [m]
Cd = 0.33;      % Drag coefficient
Af = 2;         % Frontal area [m2]
rhoa = 1.225;   % Air density [kg/m3]
Vwind = 0;      % Wind velocity [kmph]
g = 9.81;       % Gravitational acceleration [m/s2]
theta = 0;      % Slope [deg]
myu_road_tire = 1; % Coefficient of friction between tire - road interface

%% Powertrain Parameters
FDR = 3.73;                         % Final Drive Ratio / Diff Ratio
DiffEff = 0.99;                     % Differential efficiency (assumed independent of operating conditions)

NumGear = 4;                        % Number of gears in transmission
TransGear = [1:NumGear];            % Transmission Gears
TransRatio = [3.06, 1.62, 1, 0.7];  % Corresponding Transmission ratios
TransEff = 0.90;                    % Transmission efficiency (assumed independent of operating conditions)

TC_SR = [0, .5, .6, .7, .8, .87, .92, .94, .96, .97, 1];   % Torque Converter Speed Ratio (Matlab default) -> TurbSpd/PumpSpd
TC_TR = [2.232, 1.5462, 1.4058, 1.2746, 1.1528, 1.0732, 1.0192, 1, 1, 1, 1];   % Torque Converter Torque Ratio (Matlab default) -> TurbTrq/PumpTrq
TC_Cf = 1e-4 * [.72558, .66322, .63463, .59042, .51331, .4144, .29287, .22444, .12186, .04386, 0]; % Torque Converter Capacity Factor (Matlab default) -> PumpTrq/PumpSpd^2 [Nm/rpm^2]

load Vehicle_Data/Engine_data_1_9L_Saturn_95kW
load Vehicle_Data/Trans_Shift_map

%% Driver Parameters
Kp = 10;                    % P gain for driver PI model
Ki = 1;                     % I gain for driver PI model
Drive_Cycle_Select = 1;     % Drive cycle selection

% Drive cycle values in m/s

if Drive_Cycle_Select == 1
    load DriveCycles/UDDS;

elseif Drive_Cycle_Select == 2
    load DriveCycles/HWFET;

elseif Drive_Cycle_Select == 3
    load DriveCycles/FTP;

elseif Drive_Cycle_Select == 4
    load DriveCycles/US06;

elseif Drive_Cycle_Select == 5
    load DriveCycles/NEDC;

elseif Drive_Cycle_Select == 6
    load DriveCycles/WLTP;

end

time_end = cyc_time(end);
vel_end = cyc_vel(end);
