Project 1

AIM:

Develop a double acting actuator model in SIMSCAPE Multibody and Simscape components.

OBJECTIVE:

The mechanical system of the cylinder needs to be built using Simscape Multibody library components/blocks, and the hydraulic system needs to be modeled using Simscape library physical components

Theory :

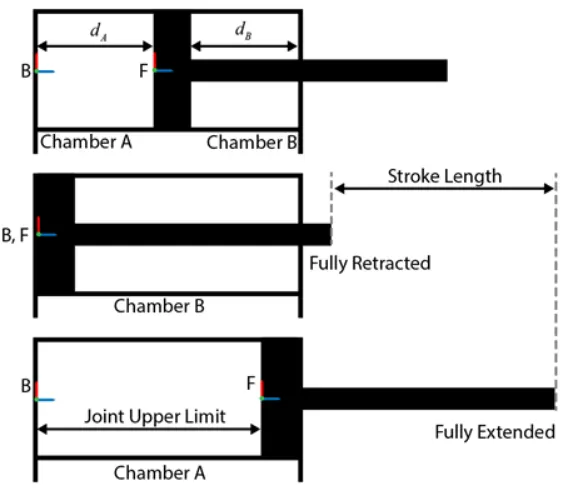

The following Cylindrical Model Schematic shows the three different configurations of the piston

Half Retracted, Fully Retracted, Fully Extended

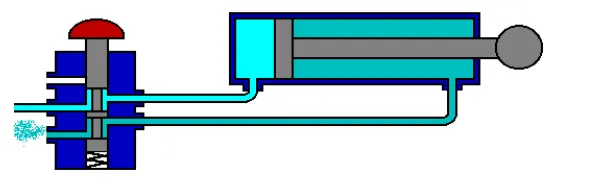

How the Double Acting Hydraulic actuator works -

Double-acting hydraulic cylinders have a Cylindrical housing and one piston. When hydraulic oil is supplied to its cap end port, hydraulic pressure force will be applied over the piston and the end cylinder will be extended. During the extension of the piston hydraulic oil at the rod, the end side will be pushed out and directed towards the reservoir.

For the returning stroke, the hydraulic direction is reversed with the help of the direction control valve. During the returning stroke hydraulic oil is supplied to the rod end side and hence piston is retracted. During the retracting of the piston cap end, oil is directed towards the reservoir. hence the double-acting hydraulic actuator operated in both the directions

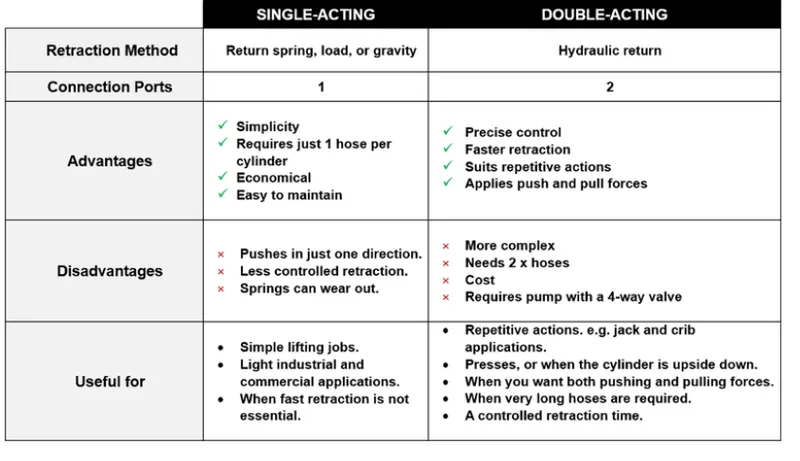

Difference Between Double Acting Hydraulic actuator and Single acting Hydraulic actuator

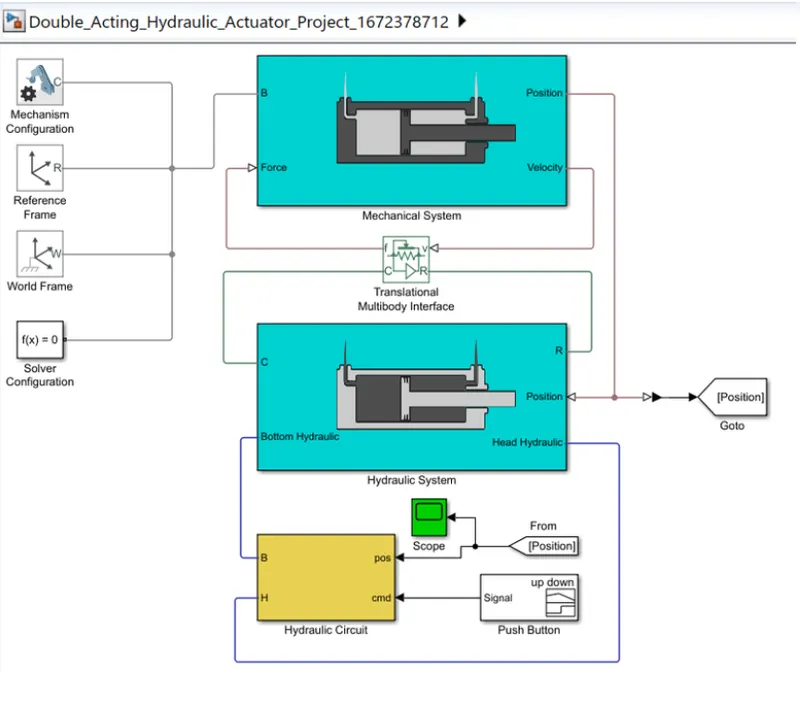

SIMULINK AND SIMSCAPE MODEL:

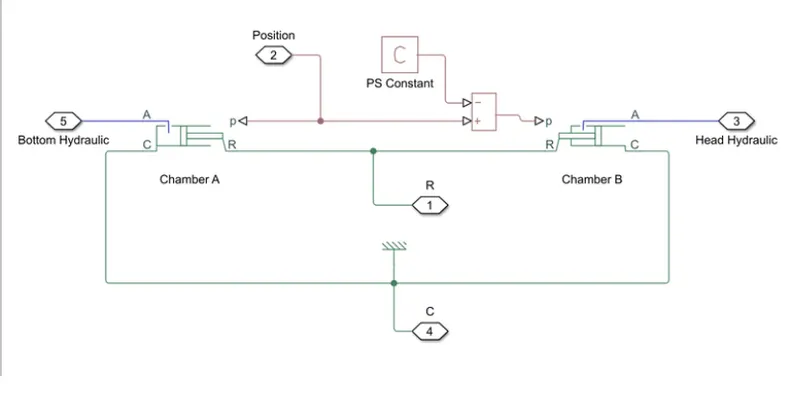

HYDRALIC SYSTEM:

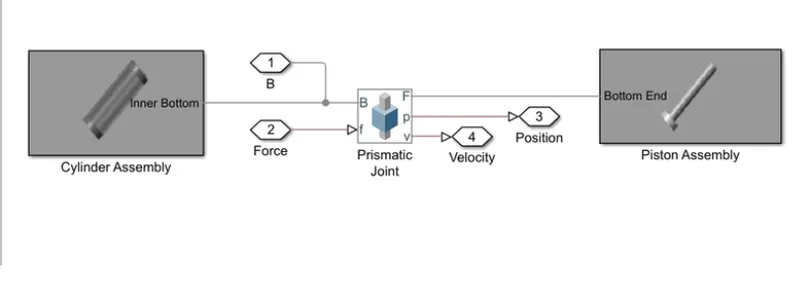

MECHANICAL SYSTEM:

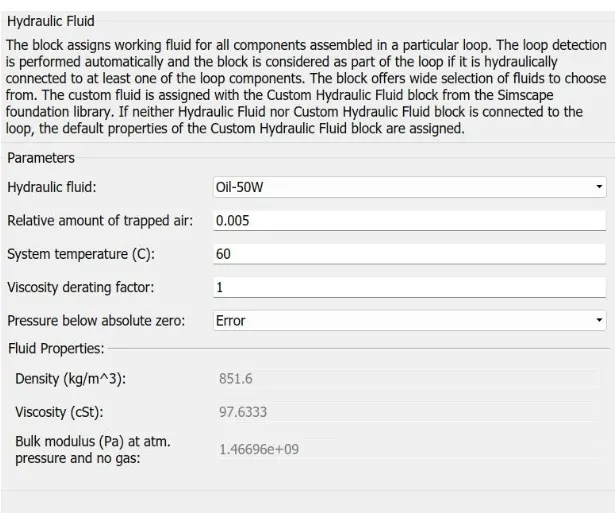

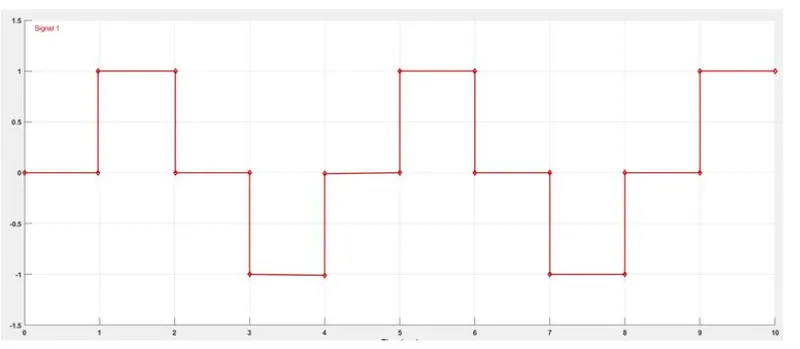

VALUES:
