Project 1

ANSWER:

REPORT FOR ENGINE ROUTING:

• TO MAKE THE ROUTING TO THE ENGINE HARNESS ASSEMBLLY WITH ALL THE CONNECTORS GIVEN THE DATA
• FIRST WE WANT TO DOWNLOAD THE ALL THE DATA NEEDED AND EXTRACT THE CAD DATA OF ENGINE COMPOMENTS AND CONNECTORS FROM THE TE.COM OFFICAL WEBSITE
• AFTER DOWNLOADING ALL THE CONNECTORS FIRST WANT TO DEFINE ALL THE CONNECTORS AS ELECTRICAL DEFINED TO MAKE THE ELECTRICALLY ROUTING IN ENGINE DATA
• FIRST WE WANT TO FIX ALL THE CONNECTORS IN REQURIED PLACE THAT HAVE PROVIDED IN THE ENGINE CAD DATA BY UAING THE MANIPULATE AND SMART MOVE OPTION TO PLACE THE CONNECTORS IN POSTION
• AFTER FIXING ALL THE CONNECTORS THE START ROTING IN THE ENGINE BEFORE ROUTING MANY CONNECTORS ARE PLACED IN SINGLE LINE SO WE WANT USE THE CHANNEL TO AVOID THE MISCONNECTION
• AFTER THAT START ROUTING WITH ALL THE CONNECTORS WITH CHANNEL POSTION AND CLOSE THE CHANNEL SURFACE AND SAVE ALL THE PARTS
• THEN NOW WANT TO FALTERNED THE SURFACE FOR THAT FIRST CREATE THE NEW PRODUCT FILE AND GO TO ELECTRICXAL HARNESS FLATERNING WORKBENCH TO START ROUTING
• AFTER ENTERING INTO THE FLATTERNING WORKBENCH NOW WANT TO SET THE PARAMETERS AFTER SETTING THE PARAMETRS THEN THE ALL THE OPTION ARE AVAILABLE TO SELECT
• THEN EXTRACT THE REQUIRED ROUTING OBJECTS TO FLATTERNED OBJECTS BY CLICK THE EXTRACT OPTION
• AFTER THAT USE THE FLATTERN OPTION TO FLATTERN THE ROUTING SURFACE CLICK THE ROUTING AND SELECT THE SELECT ALL THE BRANCH OPTION AND CLICK OK
• AFTER FLATTERNING THE SURFACE CAN WE USE ROTATE OPTION TO ROTATE THE THE WIRING AREA
• THEN AFTER USING THE FALTERNING NOW GO TO DRAWING TO TAKE THE DRAFTED SURFACE OF THE WIRING ROUTING AREA
• FOR THAT FIRST CLICK THE FRONT VIEW OPTION TO THE SELECT THE VIEW ON THE SURFACE THE PLACE THE VIEW IN DRAFTED SHEET
• AFTER PLACING THE VIEW CLICK THE PROPETIES AND MAKE THE SETTING AS 3D WIREFRAME OPTION TO SEE THE WIRE FRAME
• IF THE CONNECTORS AND WIRE FRAME ARE LIKE BOXES THEN WE WANT TO MODIFIED IN THE FLATTERNING PARAMETRS AS DOUBBLE LINE AND 3D PROJECTION OPTION TO MAKE THE CONNECTORS VISIBLE

SCREENSHOTS:

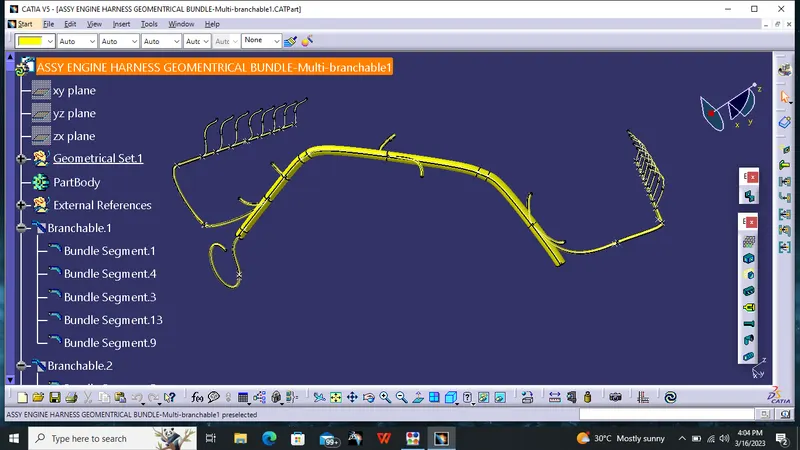

1)ROUTING:

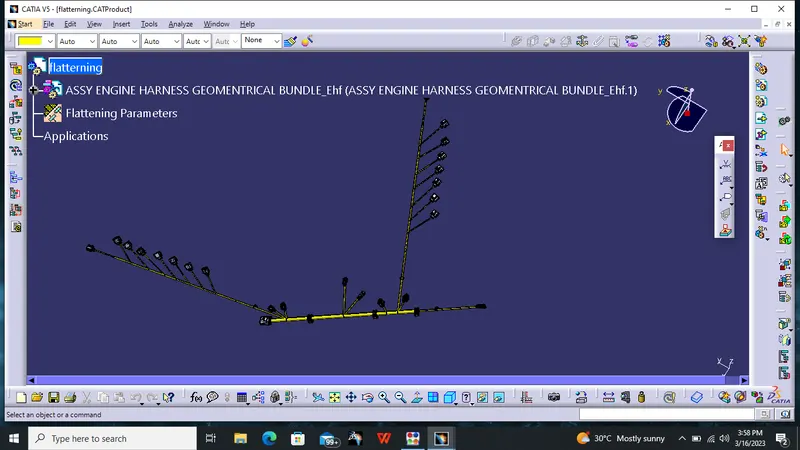

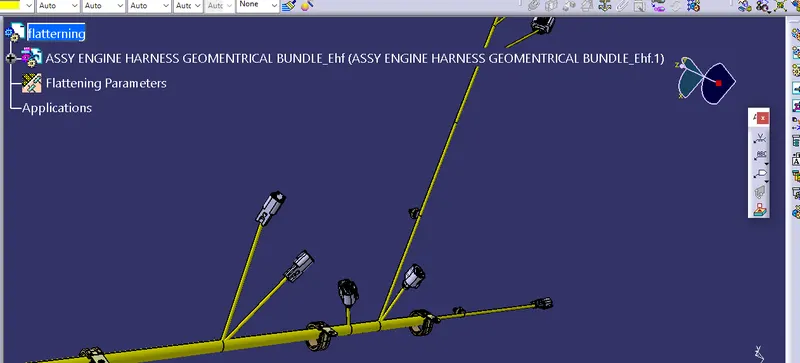

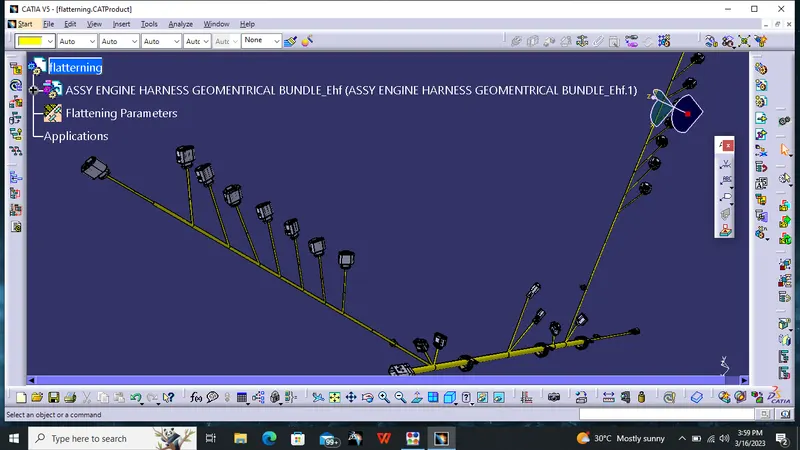

FLATTERNING:

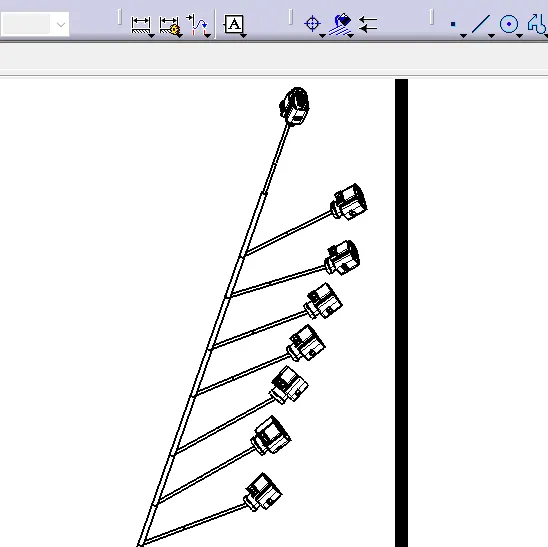

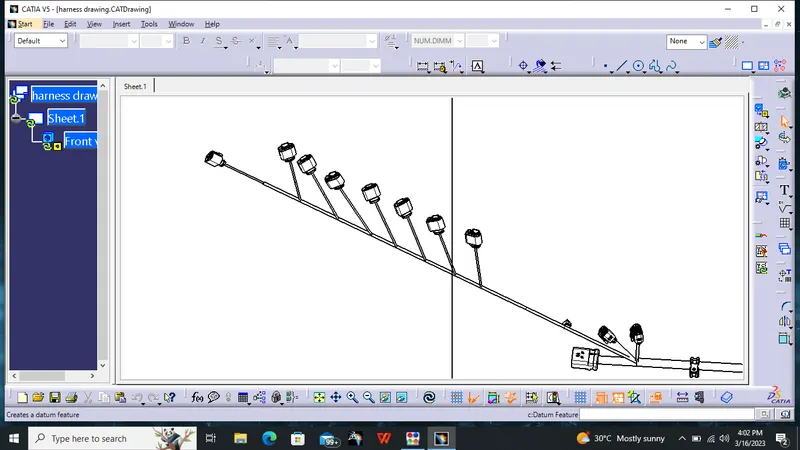

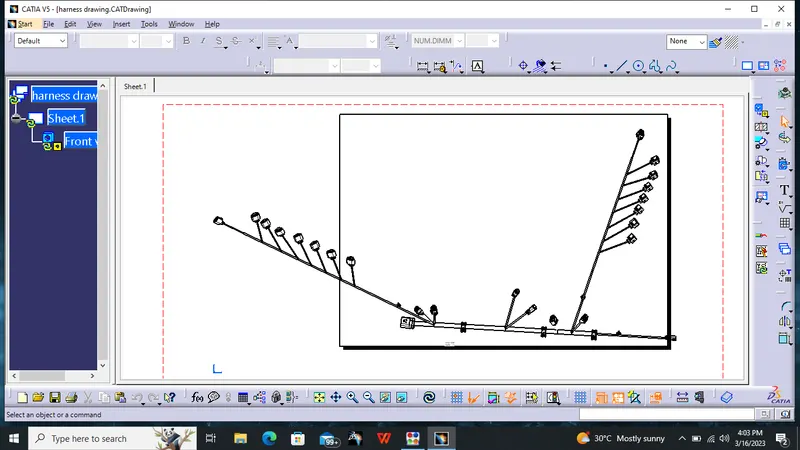

DRAWING:
