How the Double Acting Hydraulic actuator works -

Double-acting hydraulic cylinders have a Cylindrical housing and one piston. When hydraulic oil is supplied to its cap end port, hydraulic pressure force will be applied over the piston and the end cylinder will be extended. During the extension of the piston hydraulic oil at the rod, the end side will be pushed out and directed towards the reservoir.

For the returning stroke, the hydraulic direction is reversed with the help of the direction control valve. During the returning stroke hydraulic oil is supplied to the rod end side and hence piston is retracted. During the retracting of the piston cap end, oil is directed towards the reservoir. hence the double-acting hydraulic actuator operated in both the directions

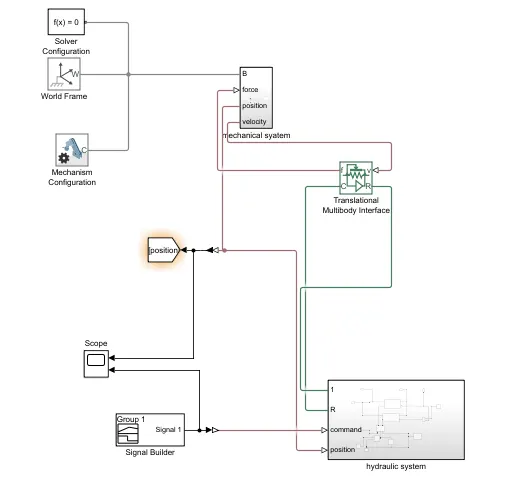

Model-

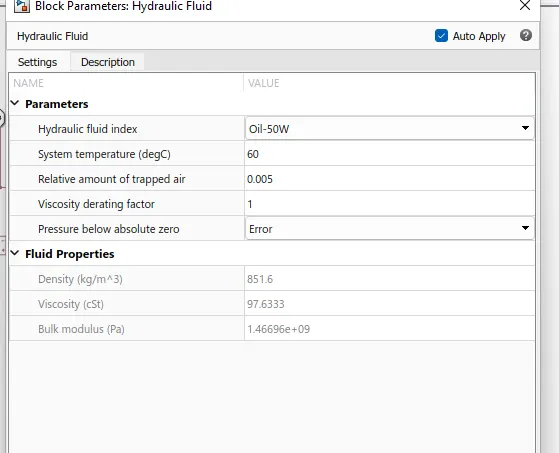

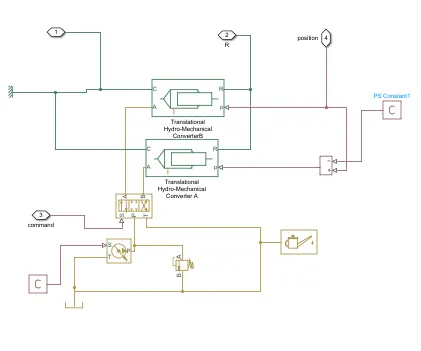

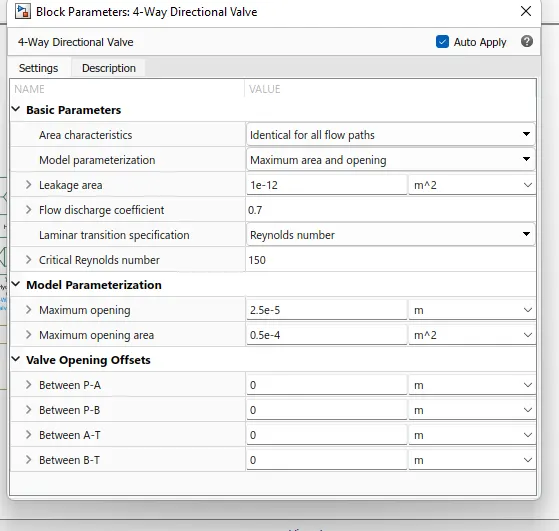

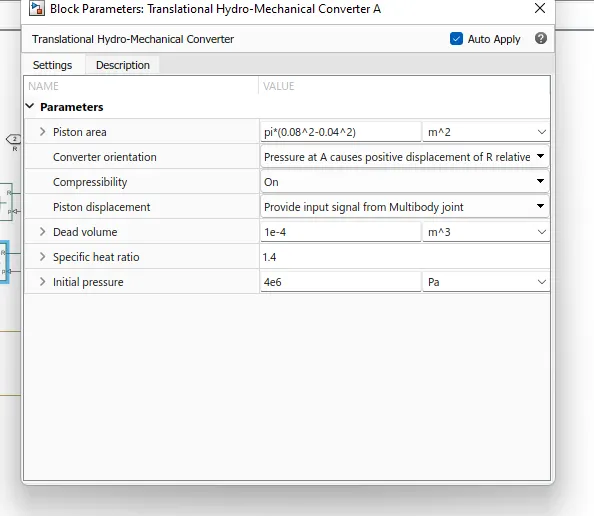

Hydraulic system-

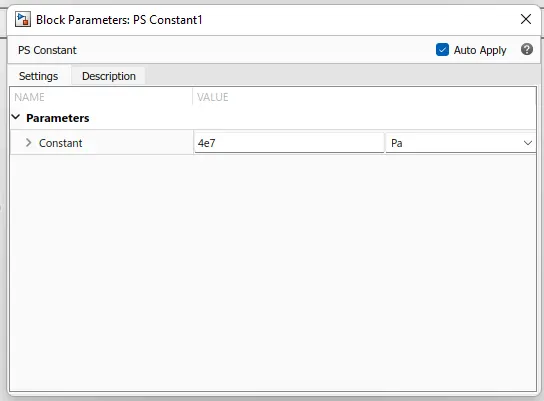

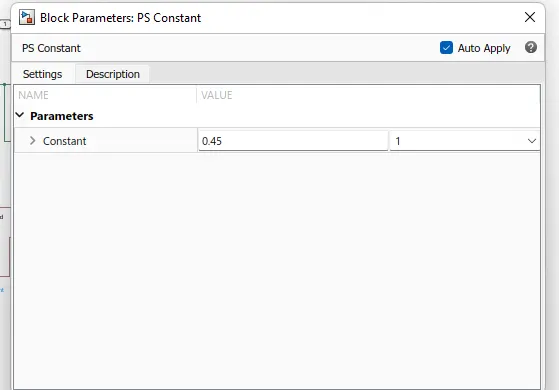

ps constant-

k

k

b

h

k

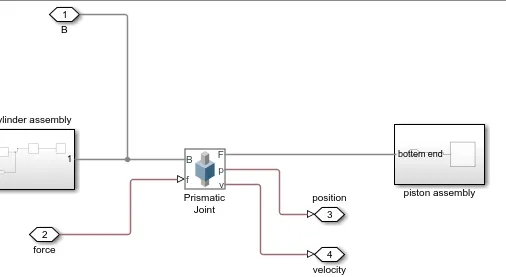

mechanical aseembly

bottom cap

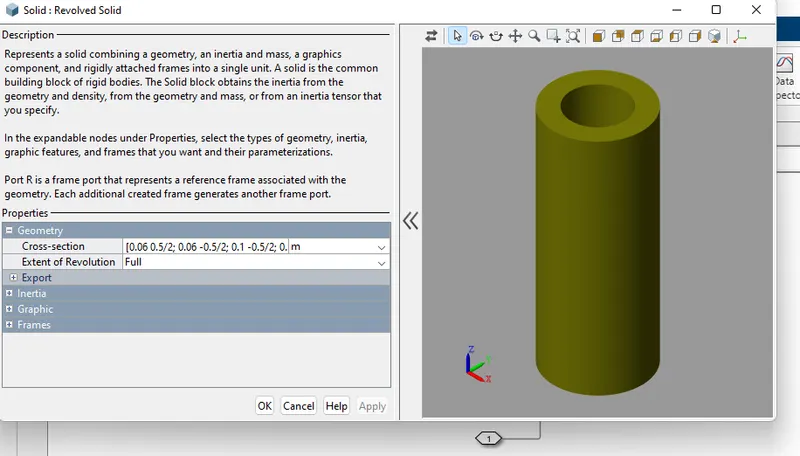

cylinder

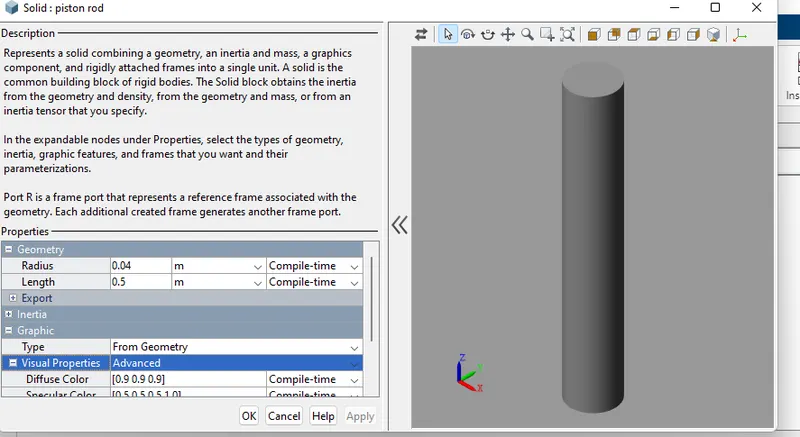

piston rod

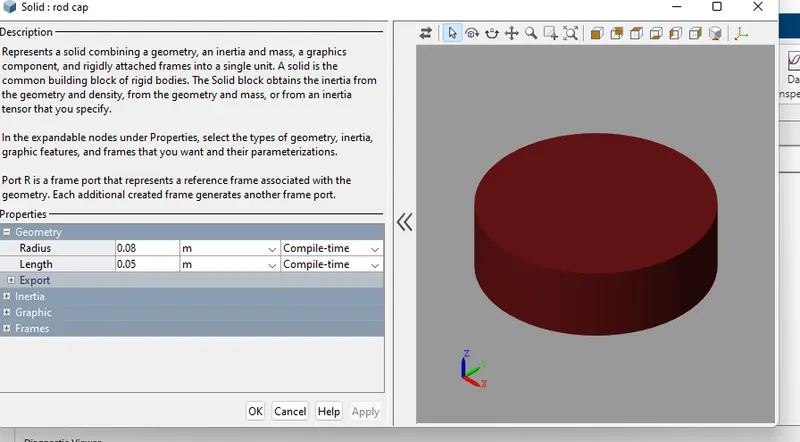

piston cap

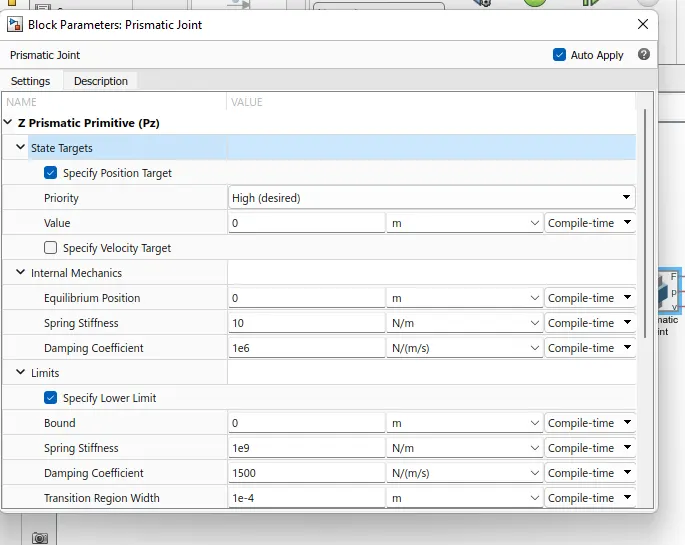

prismatic joint
