Program in Matlab to simulate the forward kinematics of a 2R Robotic Arm.

AIM: Write a program in Matlab to simulate the forward kinematics of a 2R Robotic Arm.

Theory

Kinematics is the analytical study of the geometry of motion of a mechanism:

• With respect to a fixed reference co-ordinate system,
• Without regard to the forces or moments that cause the motion.

Robot Kinematics is the relationship between the dimensions and connectivity of kinematic chains and the position, velocity and acceleration of each of the links in the robotic system, in order to plan and control movement.

There are two types of robot kinematics Forward Kinematic and Inverse Kinematics

In forward kinematics, joint angles and the lengths known with the help of given data can compute the position and the orientation of the end effector with respect to the base. Which can use DH notation simply to compute the forward kinematic solution for a given serial manipulator.

In inverse kinematics if the end effector position is known. Using the end effector position, can calculate the joint angles and the lengths. Inverse kinematics is more important for controlling a robot.

2R Robotic arm contain 2 link and 2 revolute pair, these types of arm usually used to robot which are used in manufacturing, assembly line such as drilling, cutting, pick and drop, milling etc.

Code synopsis

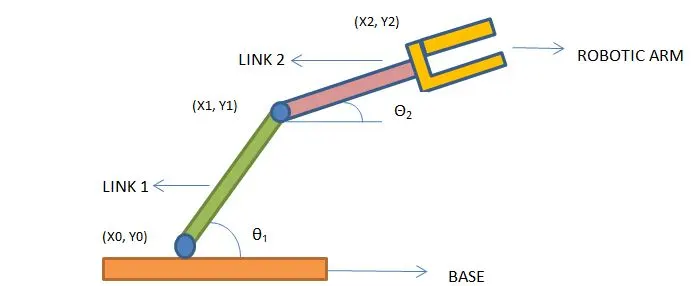

One of the link i.e. link 1 whose length is l₁, which is connected with the base making and angle θ₁ and link2 whose length l₂ is connected with link 1 at angle of θ₂ .

Θ₁ and θ₂ varies from 0^oto 90^o taking the interval of 20 using linspace command.

Consider, X0, Y0 are the initial position of link 1 which is fixed with the base. X1, Y1 are the other end position of link1. Since link1 and link 2 are connected by revolute pair, so the end position of link 1 and starting position of link 2 are same i.e. X1,Y1 .End position of the link2 is assume to be X2, Y2.

Coordinates of Link1 and link 2 as follow:

X0 = 0 Fixed position of link 1

Y0 = 0

X1 = l₁*cosθ₁ End position of link 1

Y1 = l₁ * sinθ₁

X2 = X1 + l₂* cosθ₂ End position of link 2

Y2 = Y1 + l₂ *sin θ₂

 % Forward kinematics of robotic arms
 clear all
 close all
 clc
 %inputs
 l1= 1;
 l2= 0.5;
 theta1=linspace(0,90,20);
 theta2 =linspace(0,90,20);

 ct=1;
 for i= 1:length(theta1)
     THETA1 = theta1(i);

     for j= 1:length(theta2)
         THETA2 = theta2(j);

    %cordinates of Link1
  x0= 0;
  y0=0;

  x1= l1*cosd(THETA1);
  y1= l1*sind(THETA1);

  %cordinates of Link2
  x2 = x1+l2*cosd(THETA2);
  y2 = y1+l2*sind(THETA2);

  %ploating
  plot([x0,x1],[y0,y1],[x1,x2],[y1,y2],'linewidth',3)
  axis([-0.1 1.5 0 1.5 ])
   pause(0.02)
     M(ct)= getframe(gcf);
     ct=ct+1;

     end
 end
 movie(M)
 videofile= VideoWriter('forward.avi','uncompressed avi');
 open(videofile)
 writeVideo(videofile,M)
 close(videofile)

RESULT:

Following video shows the forward kinematics of 2R Robotic arm at different angle and workspace of the robotic arm which are depend on length of the both links and angle between the link and base, angle between two links.

https://www.youtube.com/watch?v=K_Qw6Gt4SVI&feature=youtu.be
