Vehicle Dynamics : Anti-roll bar optimization

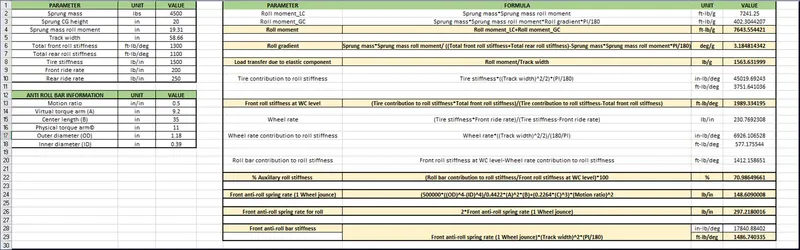

Q1. Calculate the following parameters

• Roll moment (ft-lb/g) : 7643.55 ft-lb/g


• Roll gradient (deg/g) : 3.18 deg/g


• Load transfer due to roll or elastic component (lb/g) : 1563.63 lb/g


• Front roll stiffness (ft-lb/deg) at wheel center level : 1989.33 ft-lb/g


• Front anti-roll spring rate (lb/in) for one wheel jounce : 148.61 lb/in


• Front anti-roll spring rate (lb/in) for roll : 297.22 lb/in


• Front anti-roll bar stiffness (ft-lb/deg) : 1486.74 ft-lb/g


• Auxiliary roll stiffness (%) : 70.99 %
