Preparing Schedule & Cost Estimation for a building using REVIT
1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
b. To create similar doors and windows in a floor plan layout
c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements in line
i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements
1st ans)
The shortcut keys for revit discussed in class to complete the following tasks are:-
1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box-BX
b. To create similar doors and windows in a floor plan layout-CS
c. To reduce the thickness of lines visible in plan views-TL
d. To apply override settings to a floor in the model section view-EOD
e. To increase the range of visibility in a plan view-VR
f. To select the previously selected items-Ctrl+<
g. To add annotations to the model views-DI
h. To bring the model elements in line-Al
i. To rotate the model elements_RO
j. To move an object to another location-MV
k. To copy a model element_CO/CC
l. To mirror an element about an axis-MM
m. To create an array of model elements-AR
2) Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood
2nd ans)
Aim:-We need to use the revit software and the project from week 6 to 8 prepare a schedule for the given things
Procedure:-
Step 1:-Open an existing file from the file option

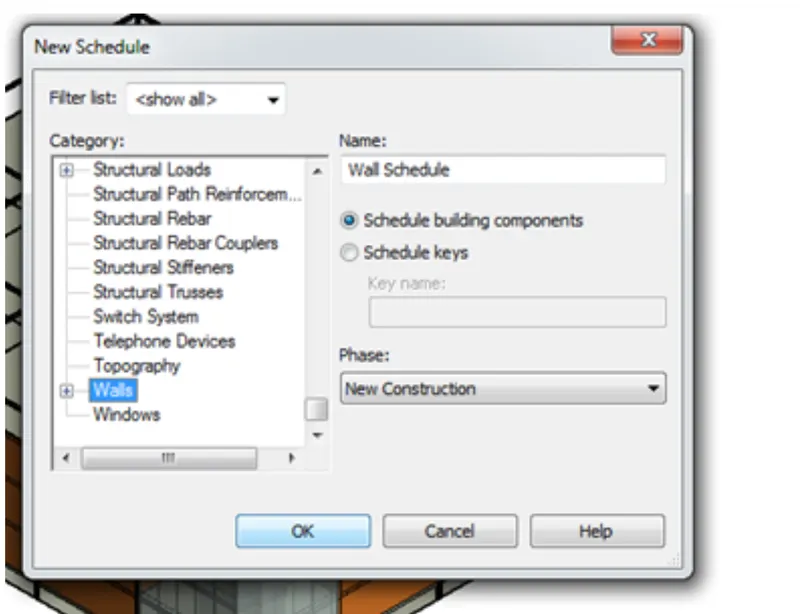

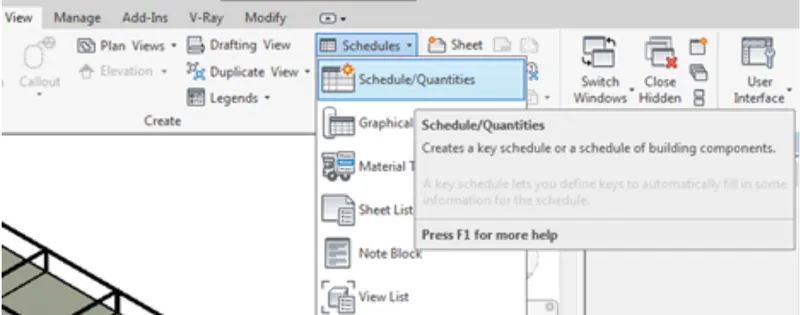

Step 2:-Now using the view toolbar , select the schedules option and click on the quantities option to schedule the properties for the items.Now in the popup window select the components which are desried to be scheduled like walls,doors,columns,etc..

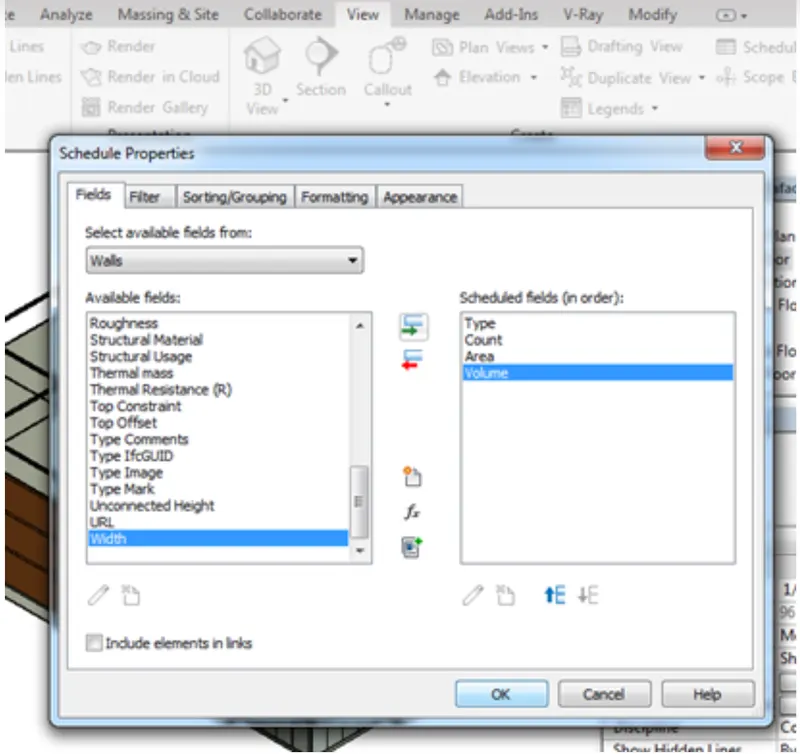

Step 3:-On the othe popup set the proportions like volume,area,etc.., Then a schedule will be set
Step 4:-Similarly we need to make another schedule for windows , concrete, etc..
windows schedule
sul

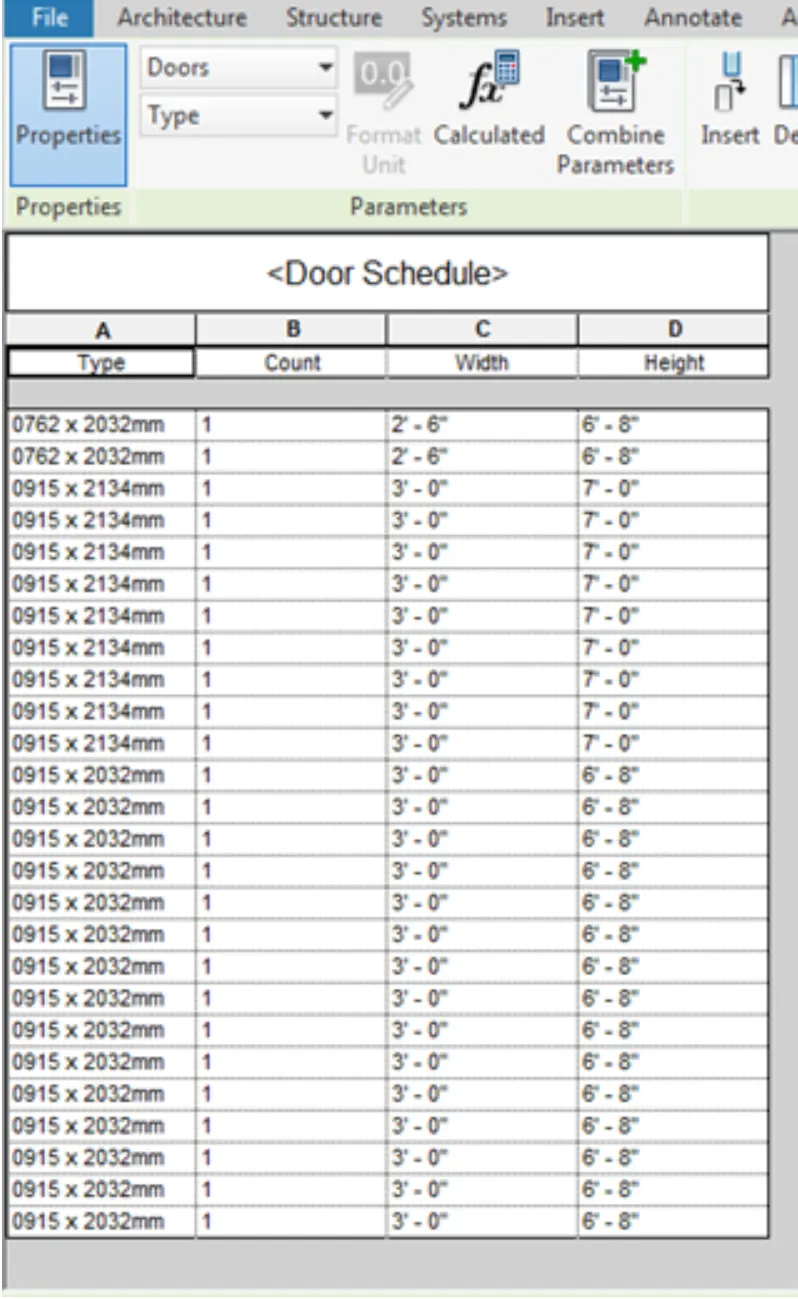

Doors schedule

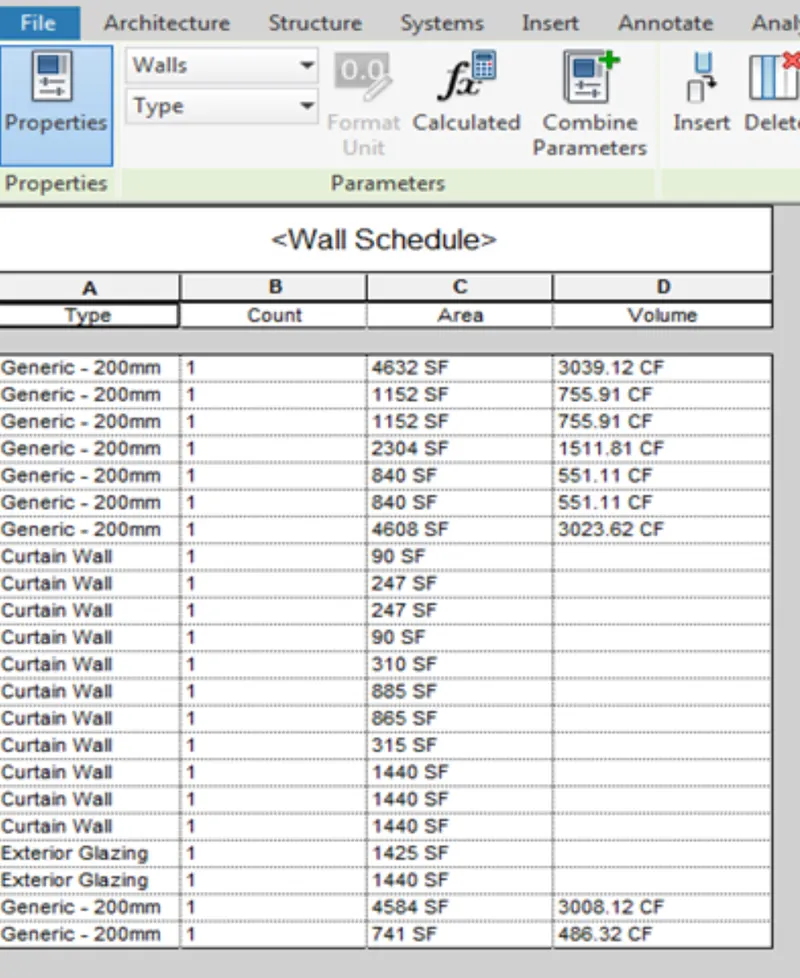

Walls schedule
Result:-Got the desired result
3) Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.
3rd ans)

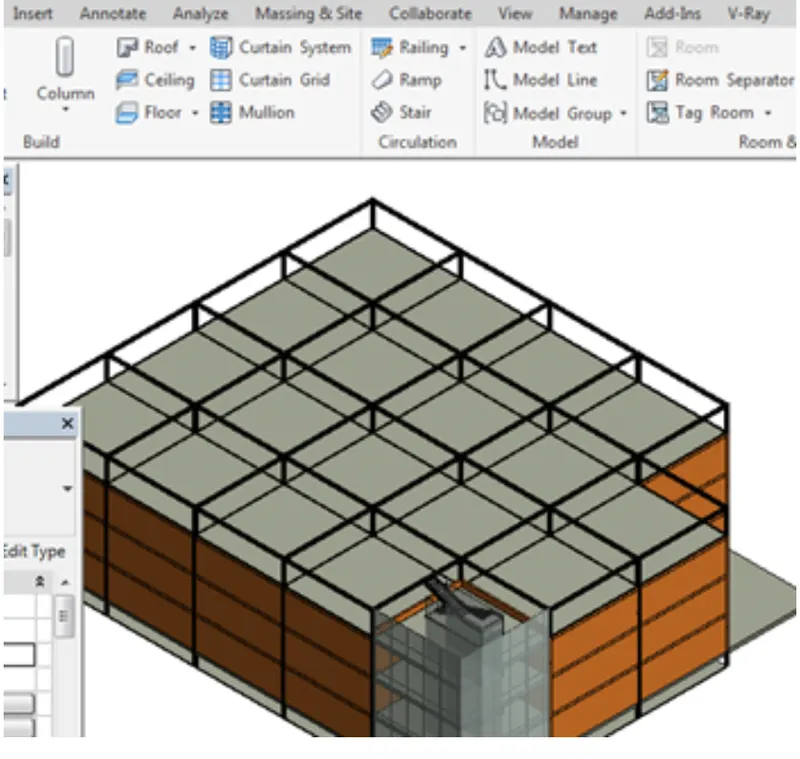

Aim:-to use revit and Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.
Procedure:-

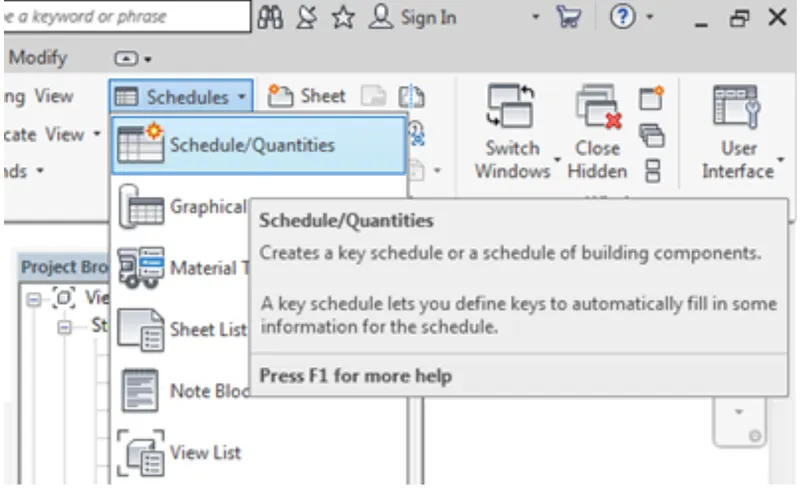

Step 1:-We need to open an existing file and select quantities from view

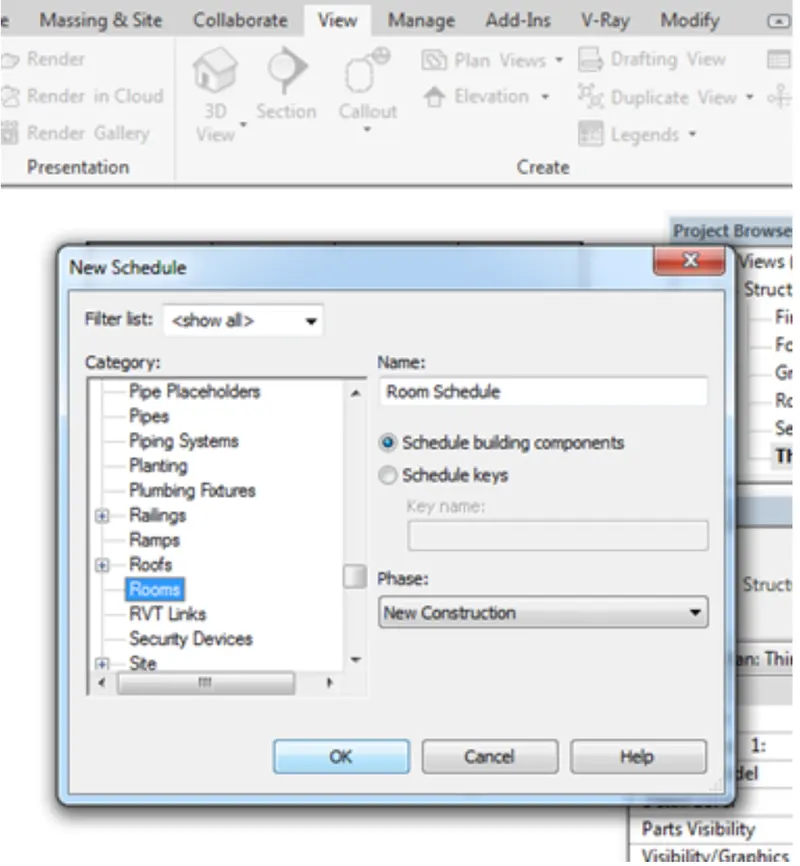

Step 2:-Select the rooms option from the window popup

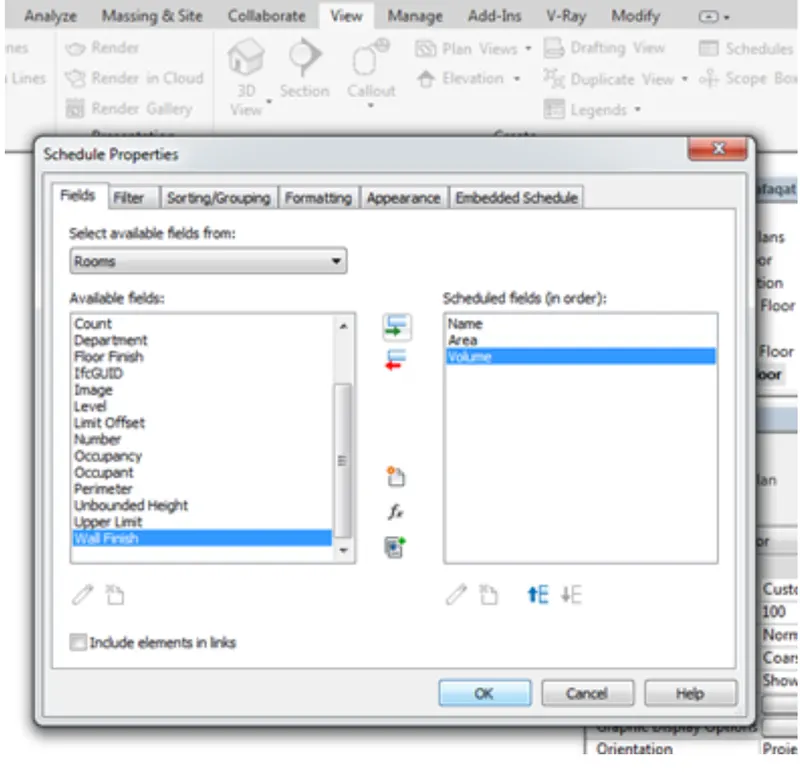

Step 3:-Now add the properties like area,volume

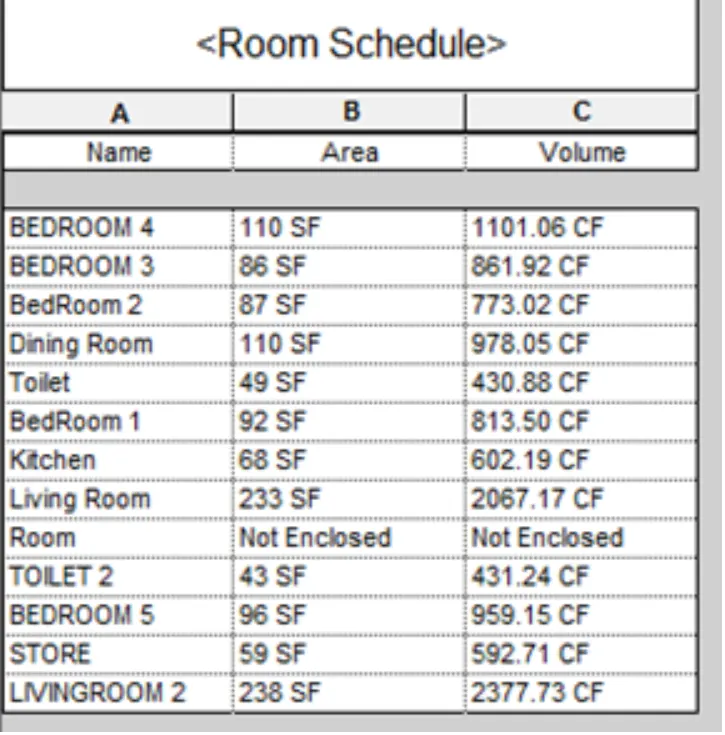

Step 4:-Each room schedule for area and volume has been created
Result:-The desired result has been done

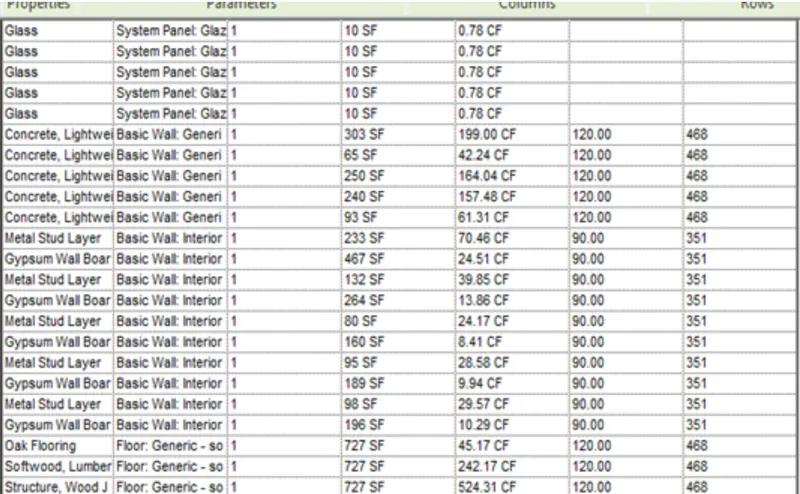

4) Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off
4th ans)
Aim:-To use the same schedule using unit cost rate for materials available in the internet and to prepare total cost of materials used in the project
Procedure:-

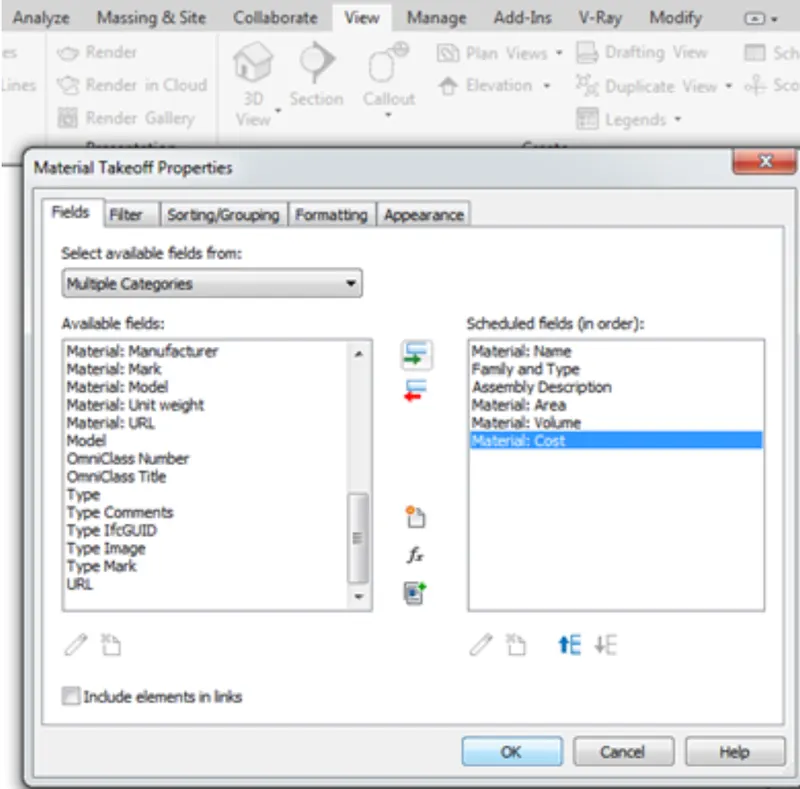

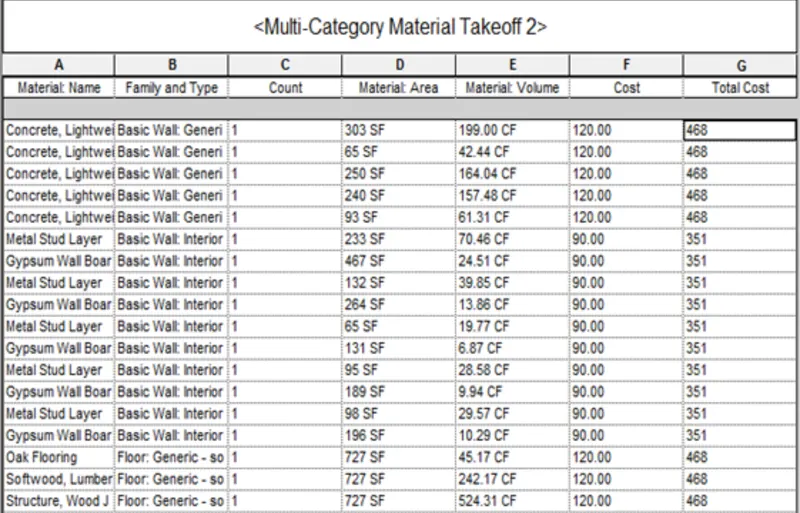

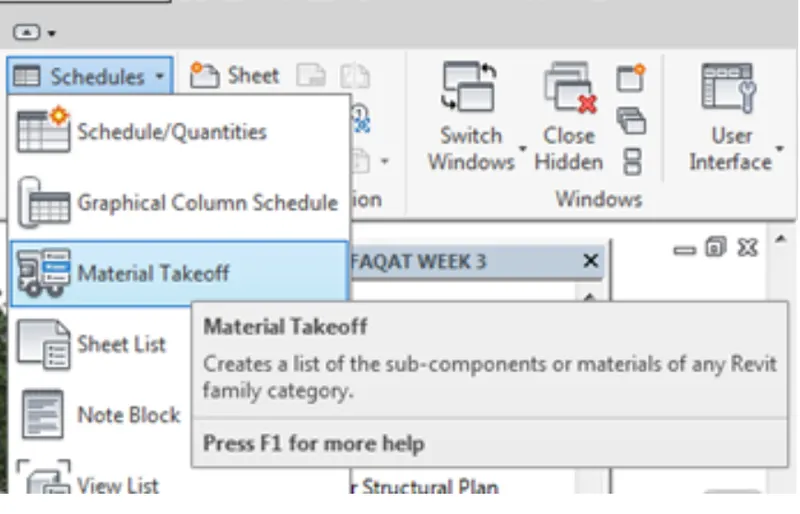

Step 1:-We need to open an already existing revit file and then use schedule option from view toolbar to select the material take off option
Step 2:-Now we need to click ok on the popup and we need to set the formula for the total cost based on the material cost and the schedule will be created

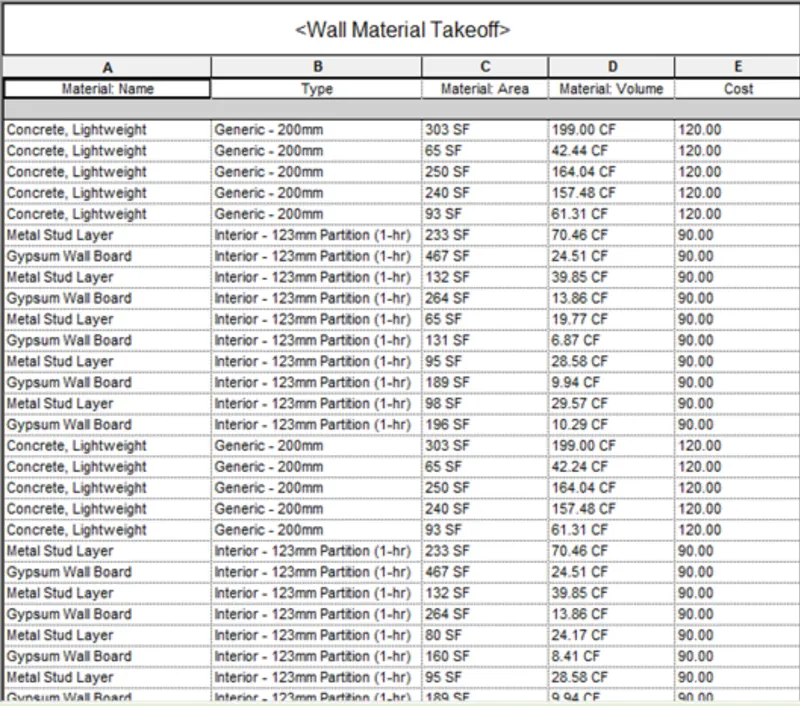

Step 3:-Now similar to the above step we need to prepare a schedule for wall material take off and other components
Result:-we got the desired result
5) Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario

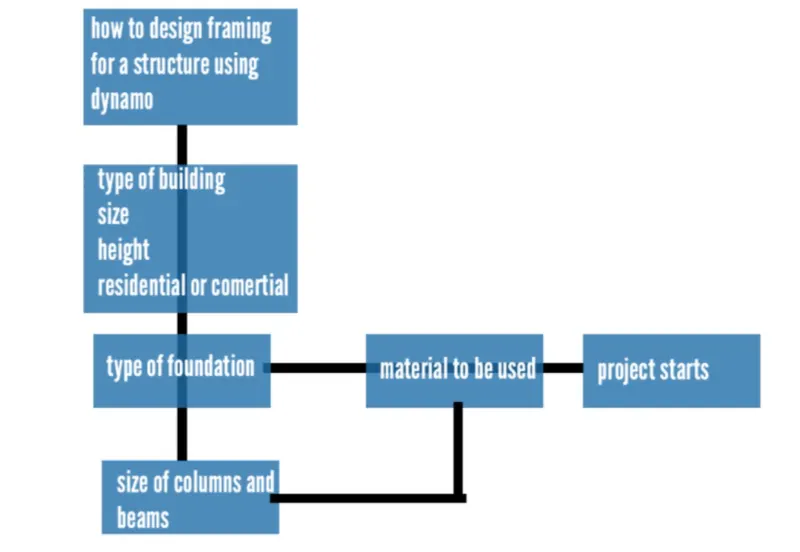

a. How to decide framings for a structure using Dynamo ?
b. If there is no water coming from the pipes

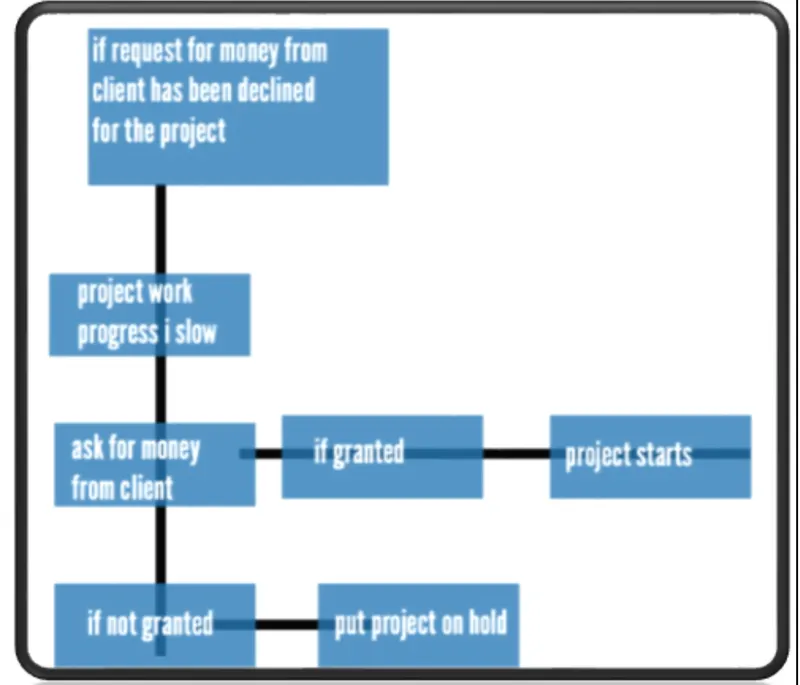

c. If request for money from client has been declined for the project
5th ans)FLowcharts are given below
a)

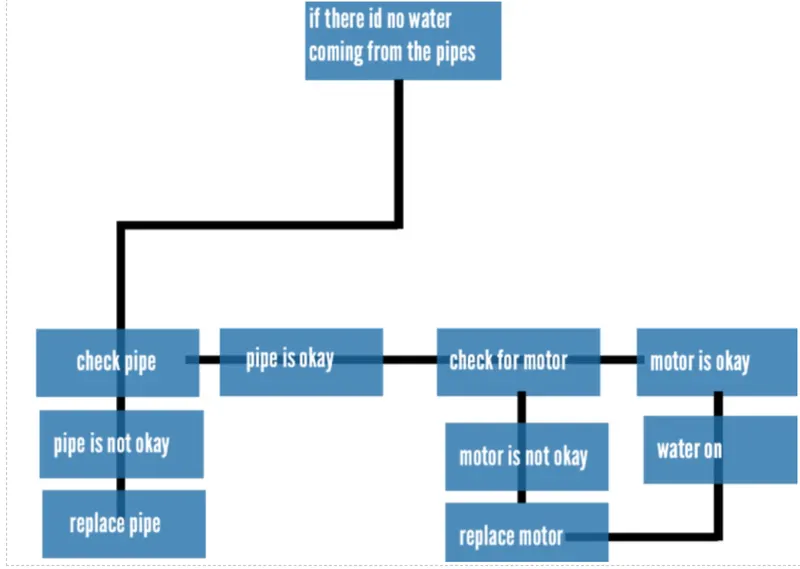

b)
c)
6) List the parameters associated with each model element
a. Wall
b. Floor
c. Door
d. Window
e. Table
f. Building
6th as)
The parameters associated with each model are as follows
a)walls
-type of wall
-lenght
-width
-height
-material used
-cost
-thicknesss
b)floor
-type of floor
-lenght
-breath
-area
-volume
-cost
-thickness
c)doors
-height of still
-lenght
-width
-materials
-type of door
-height of lintel
-thickness
d)windows
-height of still
-lenght
-width
-materials
-type of window
-height of intel
-thickness
e)table
-material
-purpose of table
-length
-width
-material
-height
f)building
-type of building
-no. of floors
-height
-width
-area
-material
-loads on buildings
-location
