Preparing Schedule & Cost Estimation for a building using REVIT

PREPARING SCHEDULE AND COST ESTIMATION FOR A BUILDING USING REVIT.

Introduction:
Schedules: A schedule is a tabular display of information, extracted from the properties of the elements in a project. A schedule can list every instance of the type of element you are scheduling, or it can collapse multiple instances onto a single row, based on the schedule's grouping criteria.

The schedule can be created at any point in the design process. If any changs are made in the model that affects the schedules, It automatically updates to reflect those changes. Using revit softwares cost estimates can also be developed. By providing the unit cost of materials, total cost can be derived.

The other concept coming under this section is Visual programming. Here, the visual programming tool is Dynamo.lt is an open source visual programming language for revit, written by designers and construction professionals. It is a programming language that allows to type lines of code; while also creating an algorithm that consist of nodes.

Dynamo and revit together can be utilised to model and analyze complex geometries, automate repetitive processes, minimise human error, export data to excel files and other file types not typically supported by Revit. Dynamo can make design process more efficient, with an intuitive interface and pre-made scripting libraries available as well.

1.

Aim: To list the shortcut keys for the following:

a. Using 3D model create a section box

b. To create similar doors and windows in a floor plan layout

c. To reduce the thickness of lines visible in plan views

d. To apply override settings to a floor in the model section view

e. To increase the range of visibility in a plan view

f. To select the previously selected items

g. To add annotations to the model views

h. To bring the model elements in line

i. To rotate the model elements

j. To move an object to another location

k. To copy a model element

l. To mirror an element about an axis

m. To create an array of model elements

Procedure:

a) Using a 3D model create a section box:

Short cut key used : Section Box - BX

b) to create similar doors and windows in a floor plan layout
Short cut key use : Create Similar - cs

c) To reduce the thickness of lines visible in plan views

Short cut key used: Thin Lines - TL

d) To apply override settings to a floor in the model section view

Short key used: Visibility Graphics and override settings - VG

e) To increase the range of visibility in a plan view

Short cut key used: View Range - VR

f) to select the previously selected items

Short cut key used: Reselect - Ctrl+c

g) To add annotations to the model views

Short cut key used: Dimension - DI

h) To bring the model elements in line

Short cut key used: Align - AL

i) To rotate the model elements

Short cut key used: Rotate - R

j) To move an object to another location

Short cut key used: Move - MV

k) to copy a model element

Short cut key used: Copy-co

l) To mirror an element about an axis

Short cut key used: Mirror - MM

m) To create an array of model elements

Short cut key used: Array - AR

2).
Aim:
To prepare the schedule for the following:

a. Walls

b. Doors

c. Windows

d. Material - Concrete/ Wood

Procedure:

• Initially open the architectural model created previously.

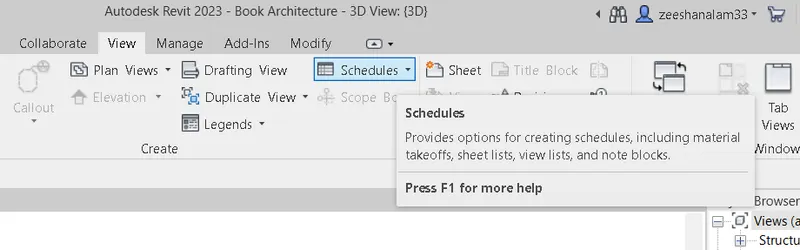

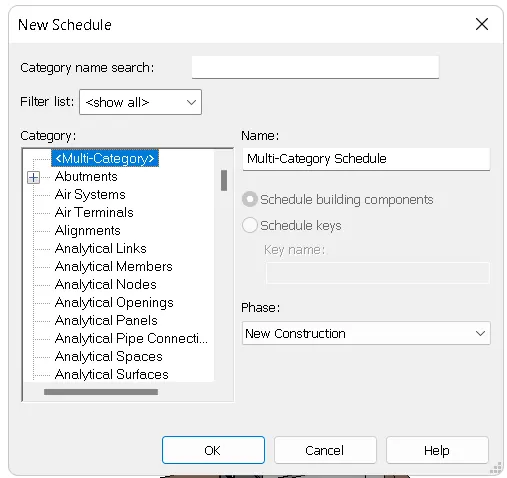

• Then go to view tab --> Schedules --> Schedule/quantities.

• Now select the required field.

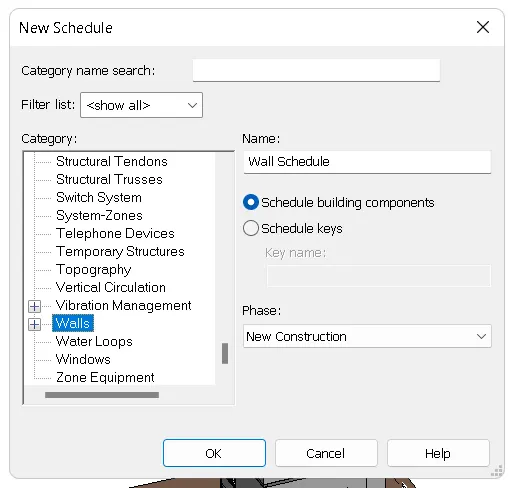

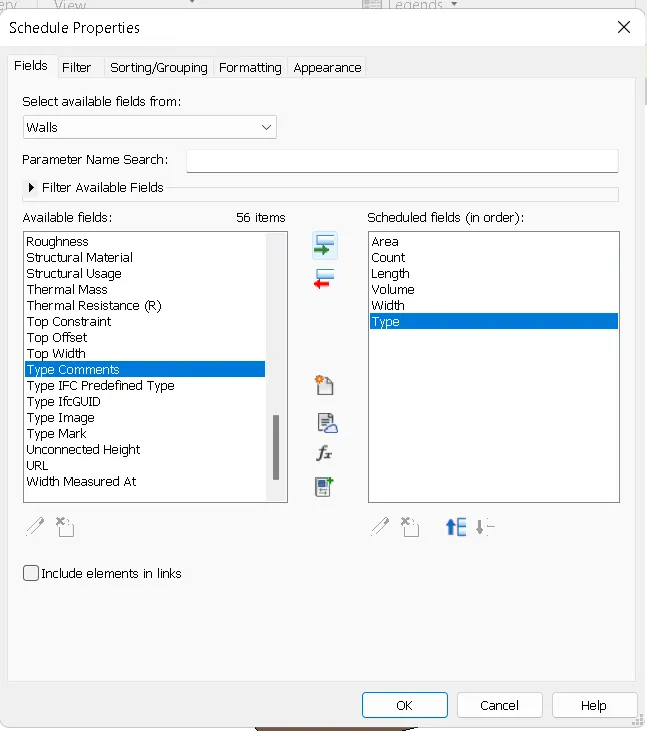

• Now, for the wall schedule choose the parameters for scheduling and then click ok.

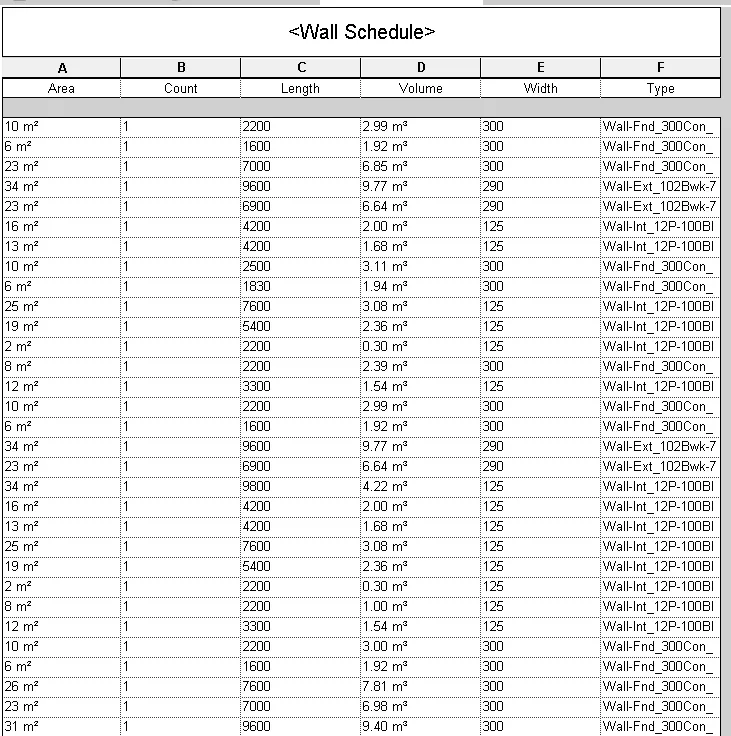

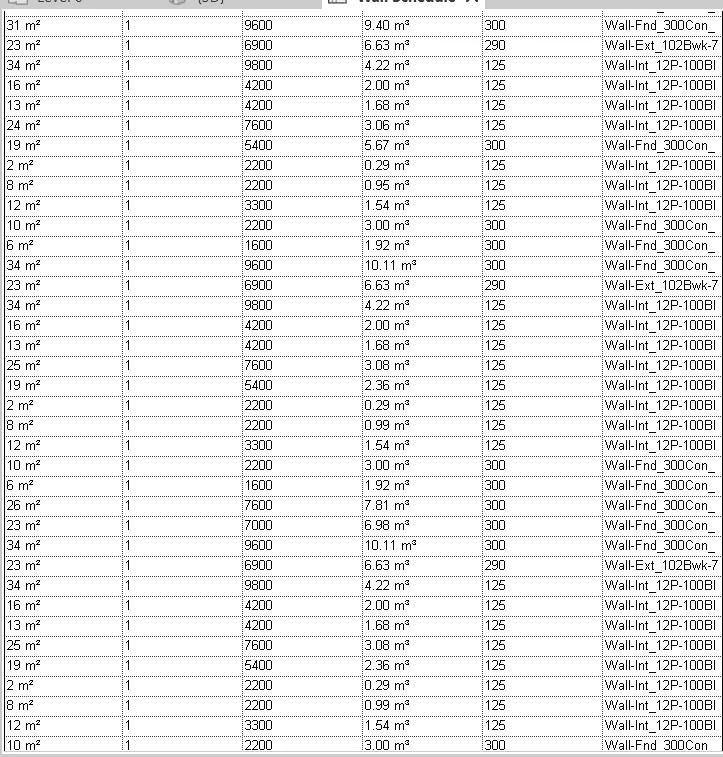

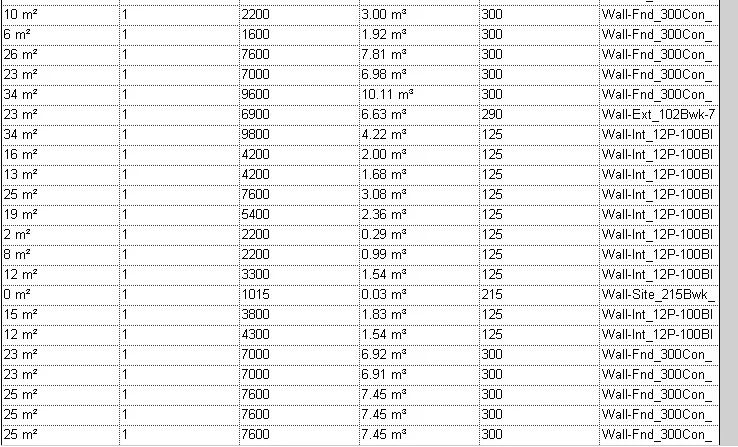

• The wall schedule is prepared as given below:

• Hence, the wall schedule is prepared.
• Similarly, prepare the door schedule, window schedule and material concrete/wood schedule.

b) Door schedule:

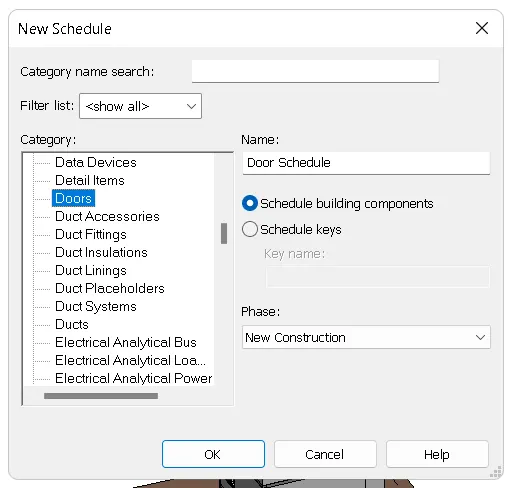

• View--> Schedule --> schedule/quantities.
• Select door.

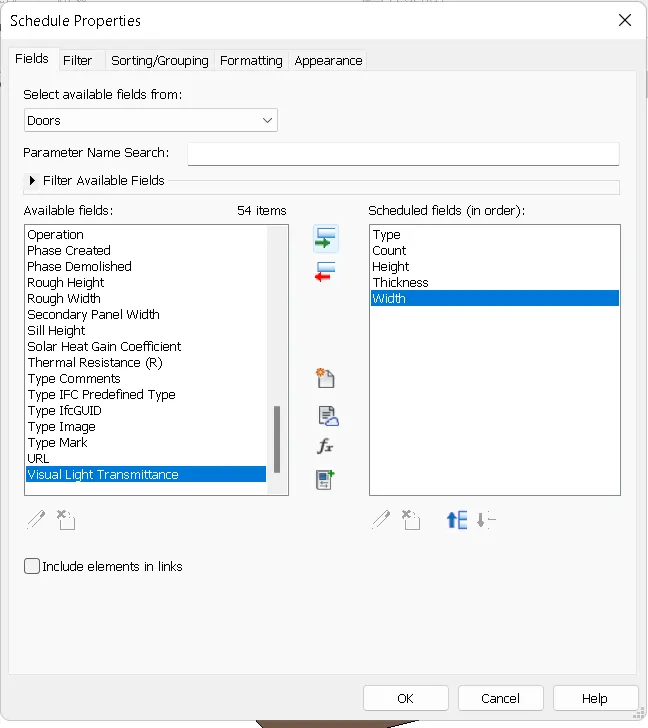

• Now, select the parameters to be considered for doors.

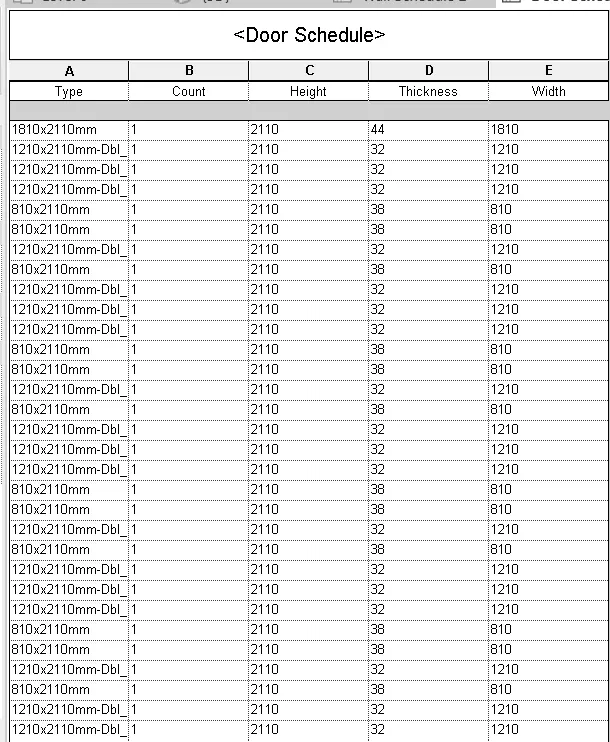

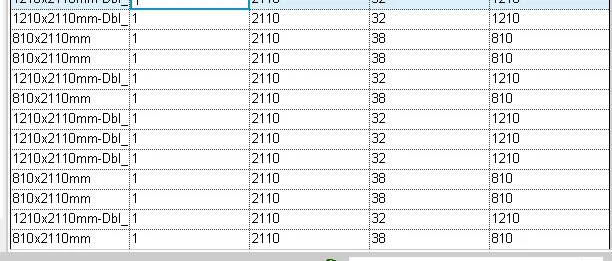

• Door schedule is given as:

c) Window schedule:

• View--> schedule --> schedule/quantities.

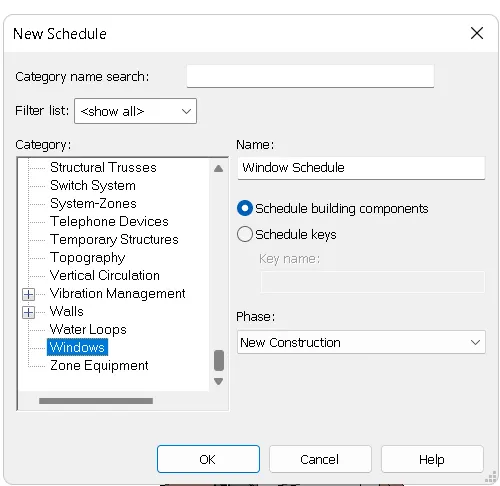

• Now, select the category as window:

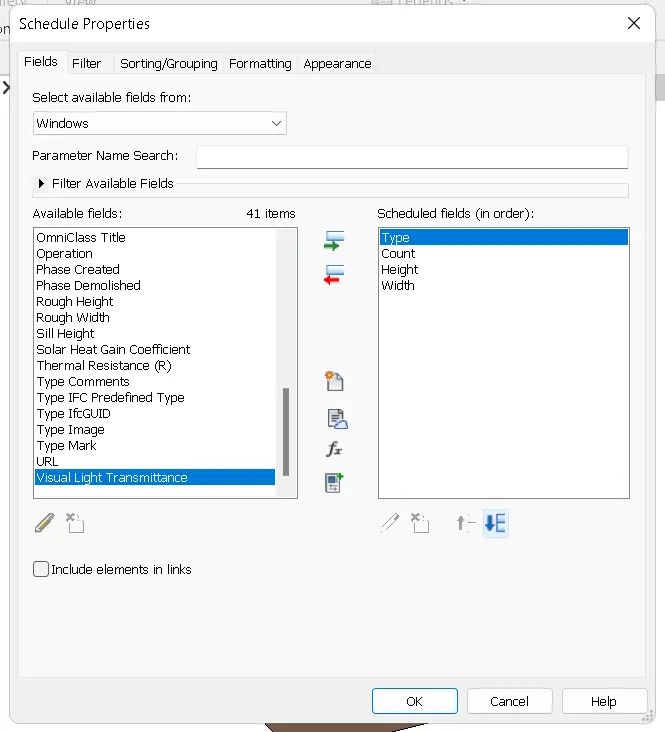

• Now, select the parameters to be considered for windows.

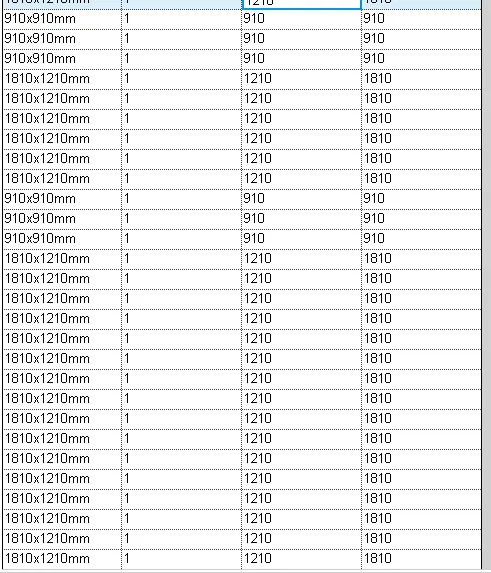

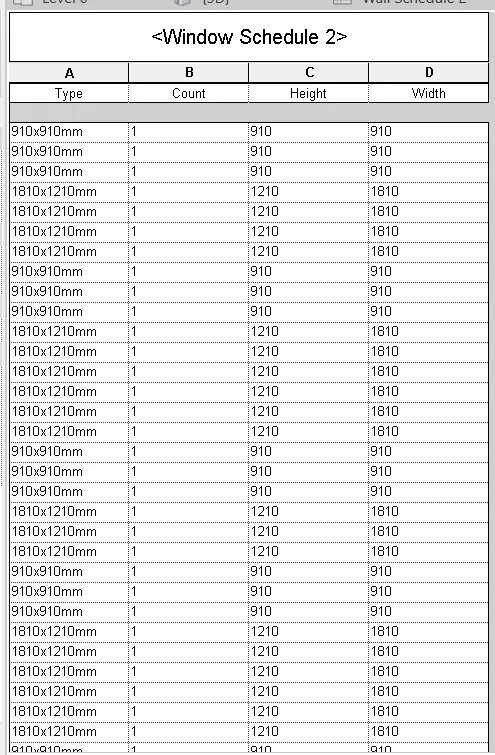

• The window schedule prepared is as given below:

d) Material- Concrete/Wood

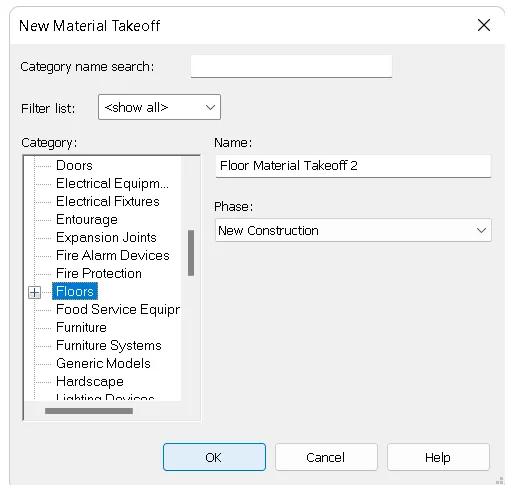

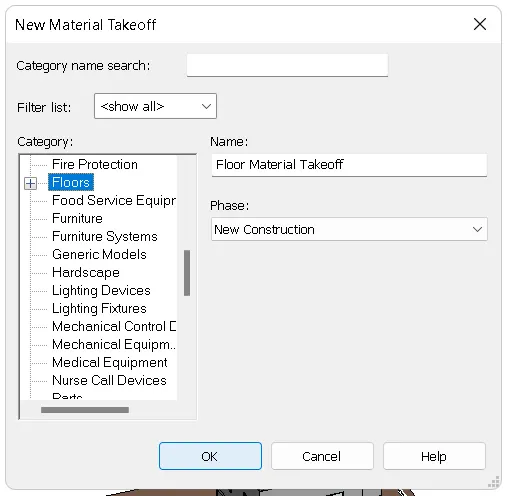

• View--> schedule --> material takeoff.
• Now, select the category as floors:

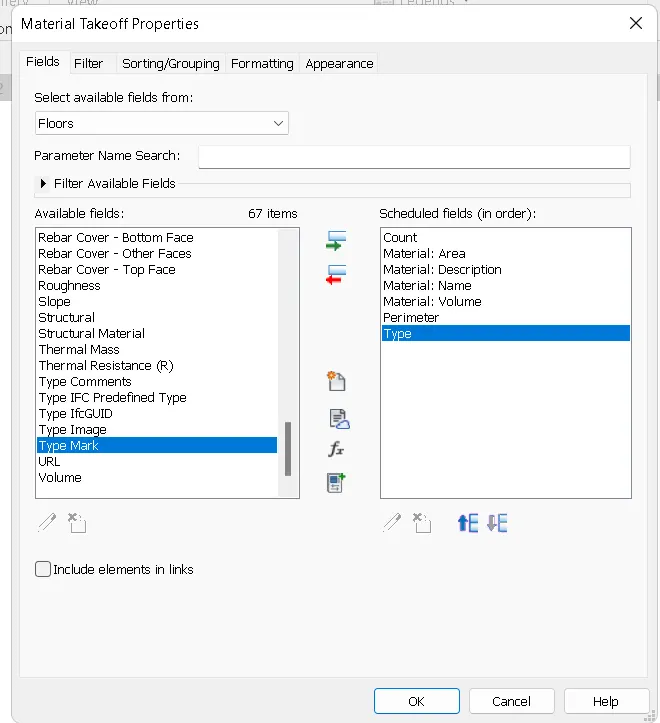

• Now, select the parameters to be considered for floor material.

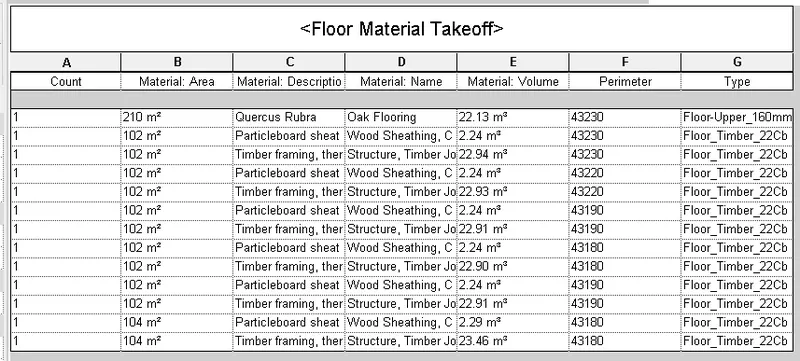

• Material takeoff scheule is given by:

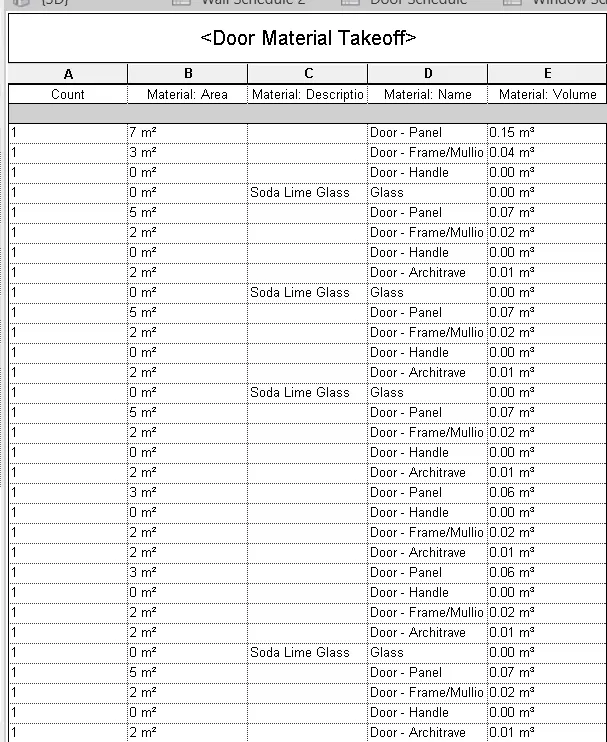

• Similarly, Material takeoff for doors is also developed.

• Hence, completed.

Result:
The wall, door, window and material schedules have been prepared.

3).
Aim:
To prepare the schedule report for area and volume of each room.

Procedure:

• Go to view --> schedule --> schedule/quantities.

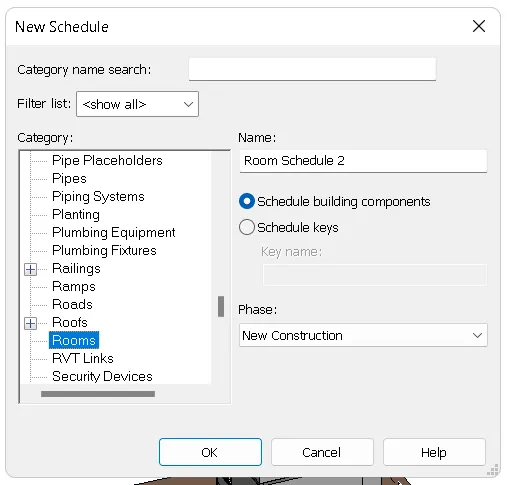

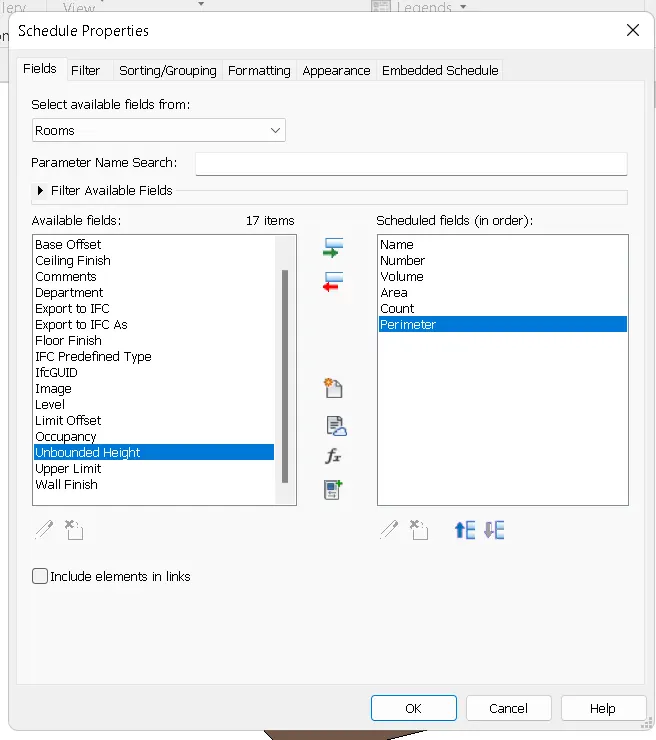

• Now, select the category as rooms:

• Now, select the parameters to be considered for room.

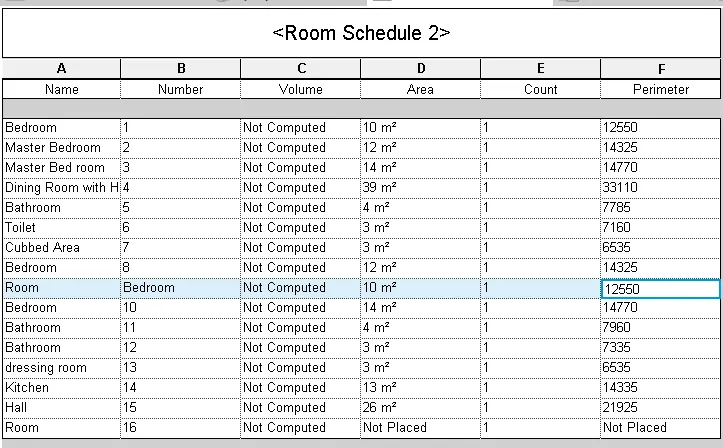

• The room area schedule is given as:

Result:
Hence, room area schedule is prepared.

4).
Aim:
To prepare the scheule of total cost of materials.
Procedure:
1. For walls:

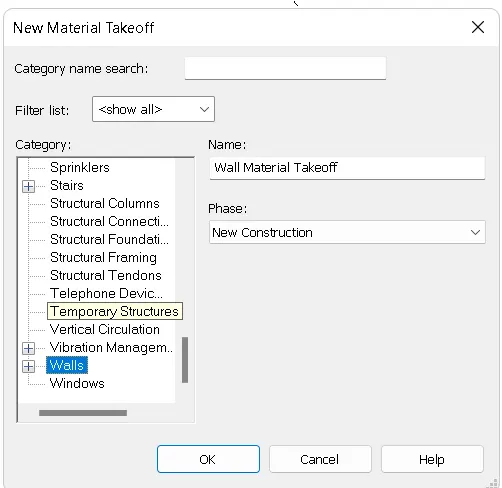

• Go to view tab --> schedules --> material take off.
• Select the category as wall.

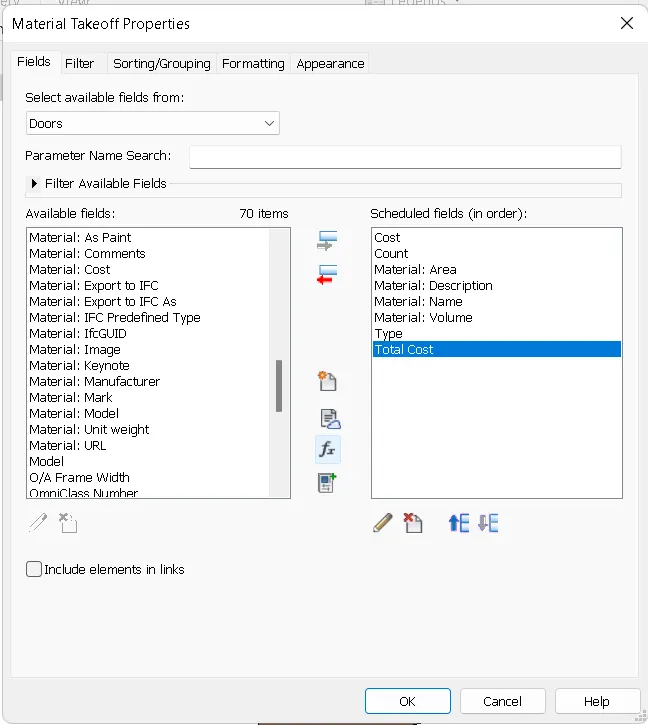

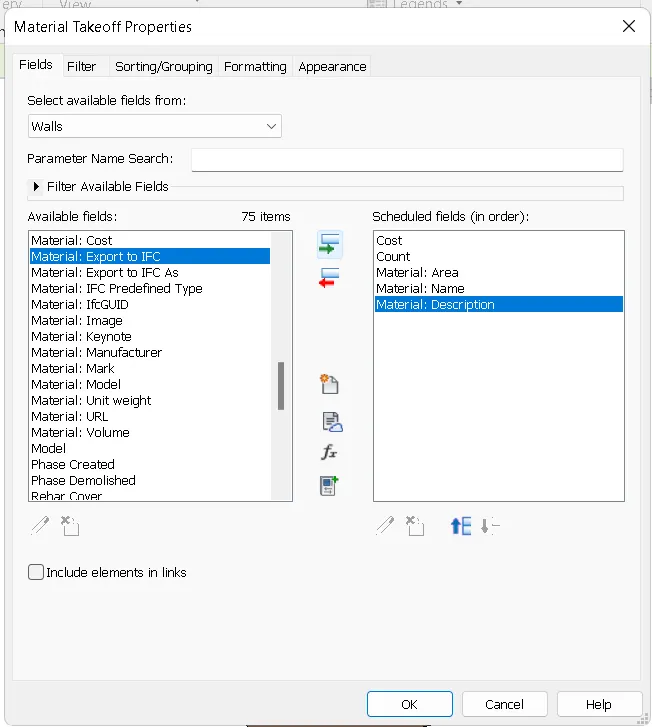

• Now, select the parameters for walls:

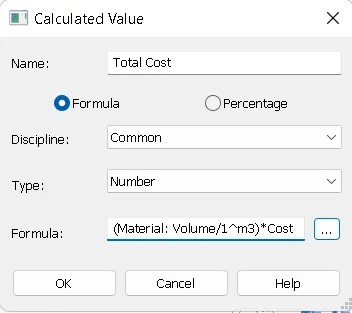

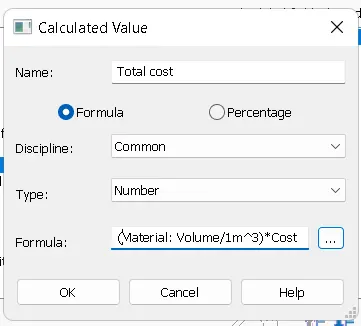

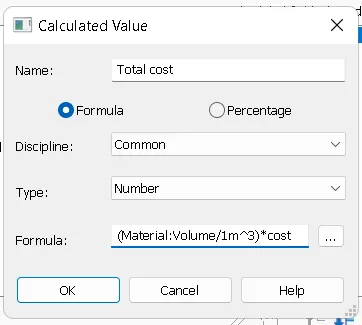

• Now, we have to include the total cost parameter which is a calculated quantity.
• For this go to add calculated quantity.

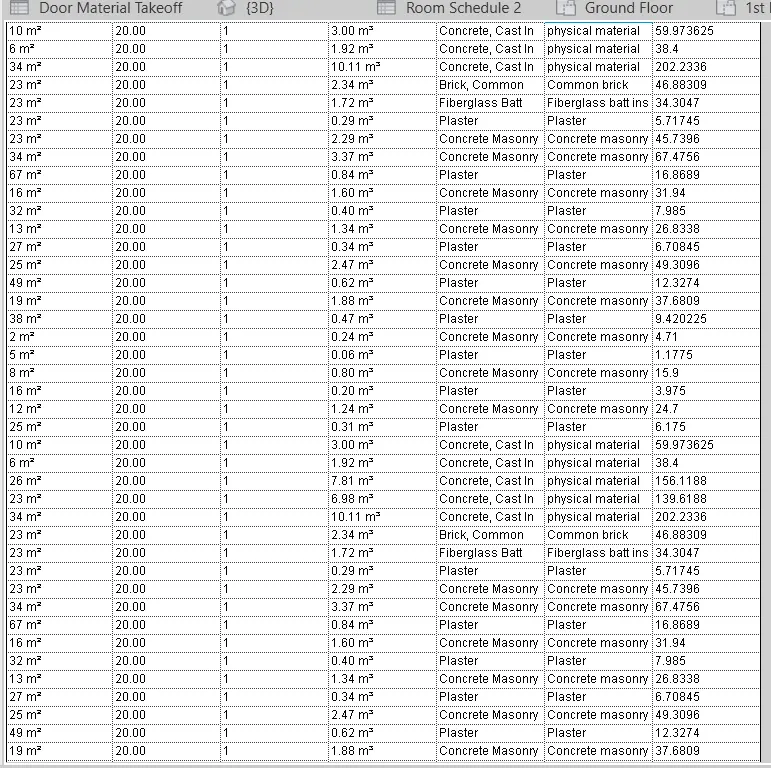

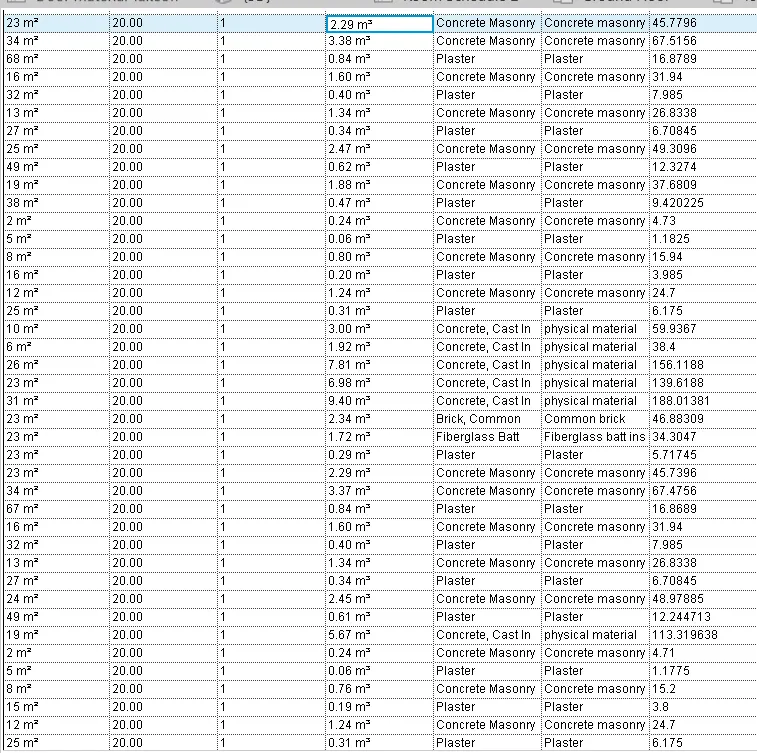

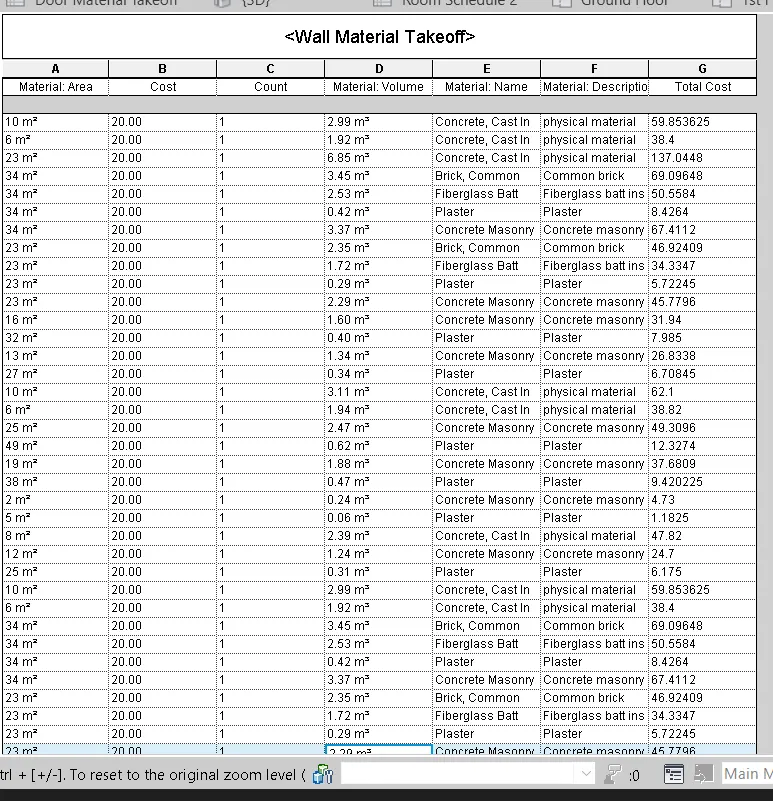

• The wall material take off is given as:

• Similarly, prepare for doors, windows, floors and furnitures material takeoff schedules.

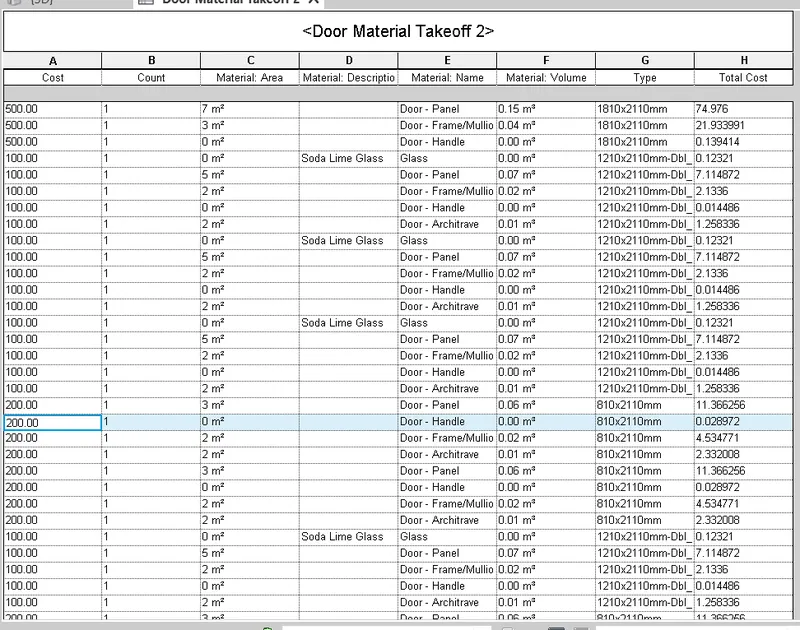

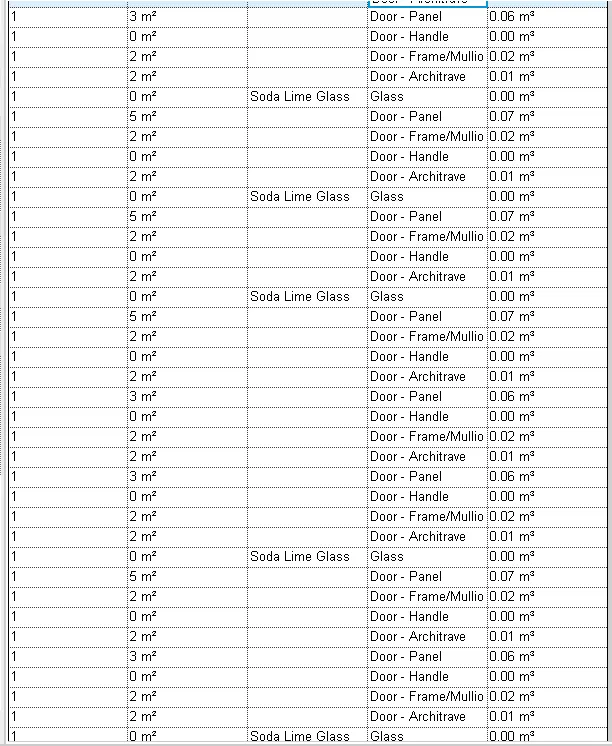

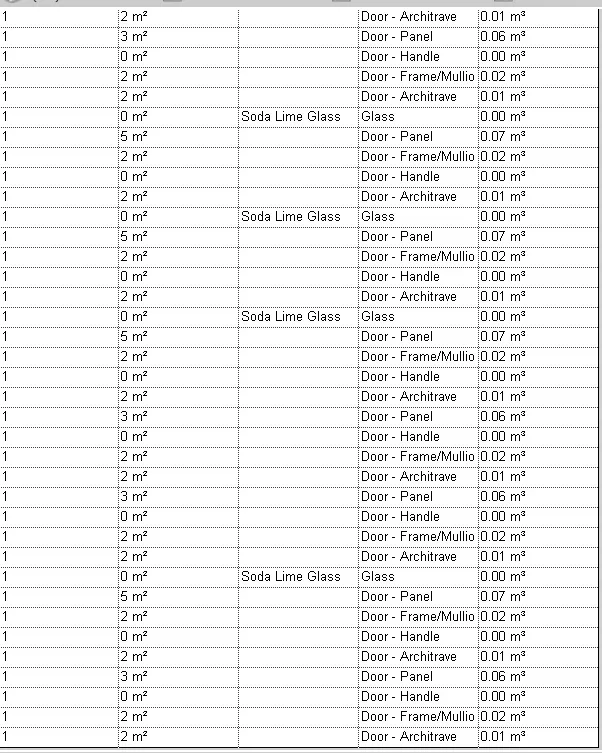

• Door material takeoff schedule:

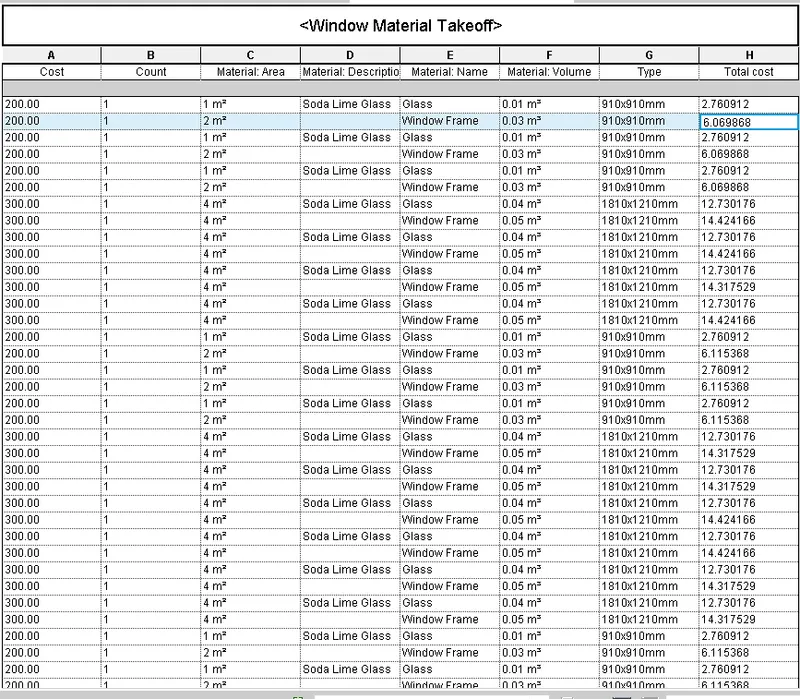

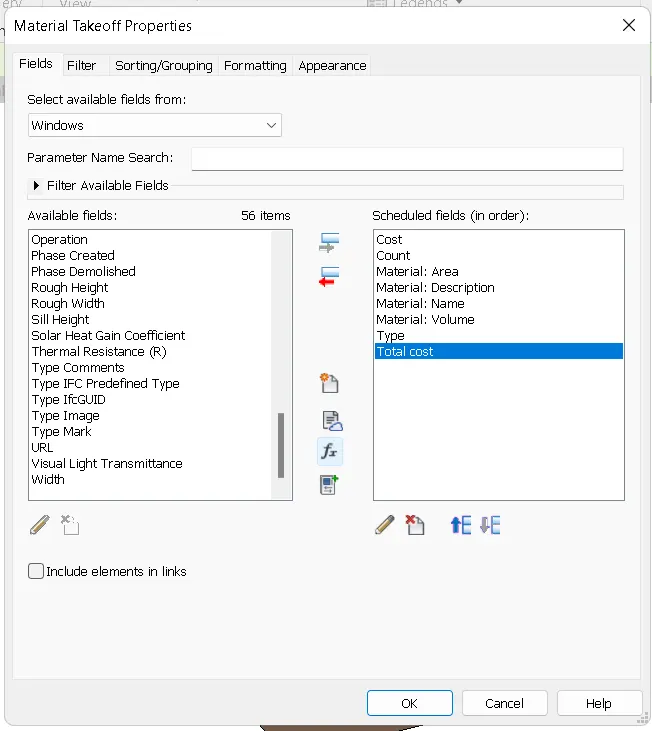

• Windows material takeoff:

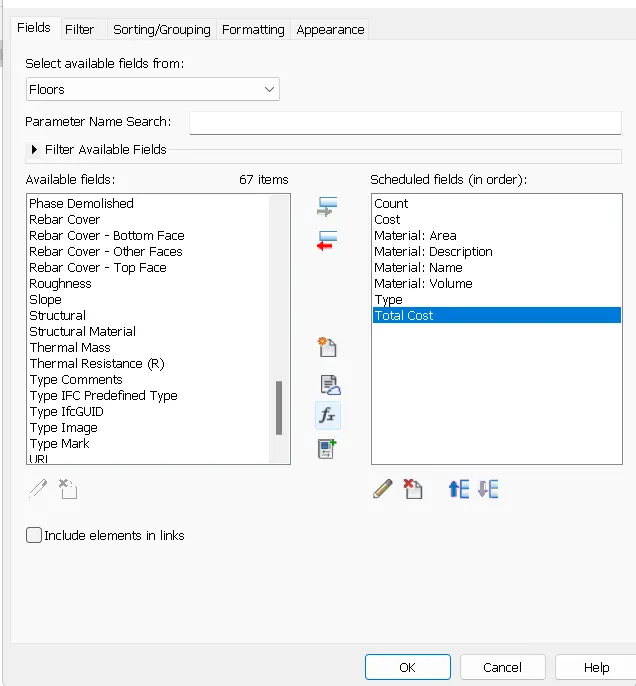

• Floor material take off schedule:

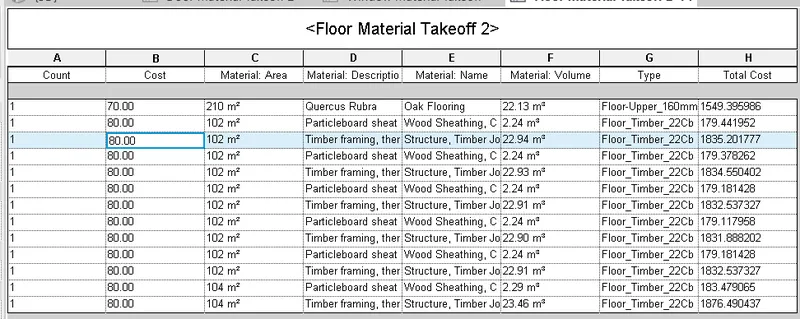

• Floor Materilas take off Schedule:

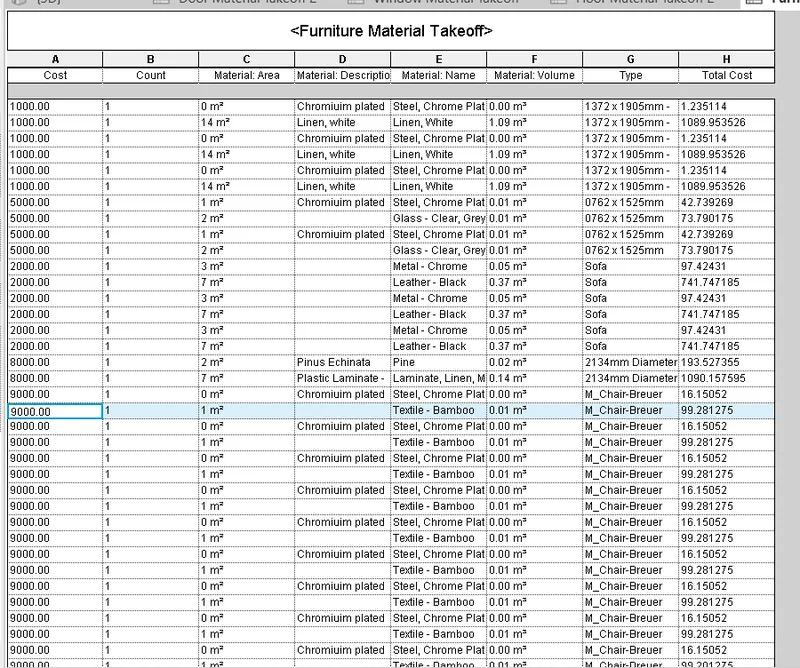

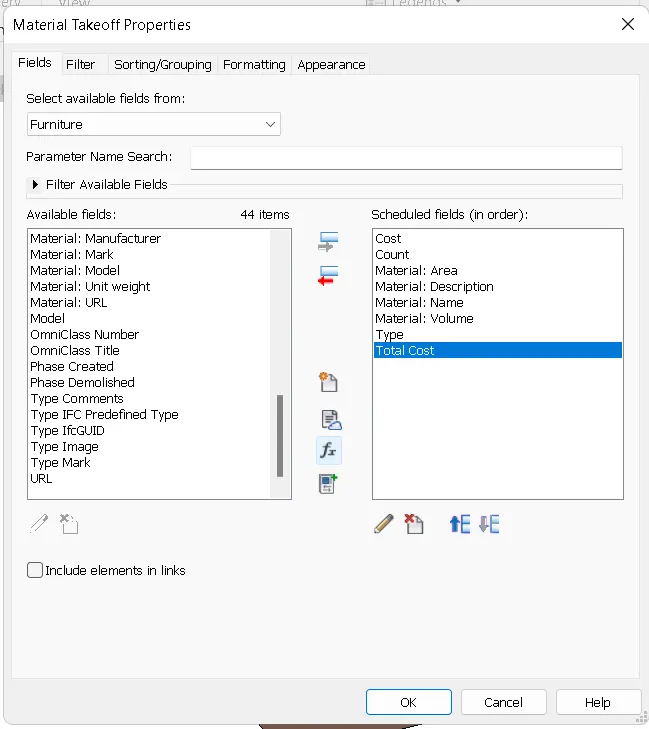

• Furniture materials Takeoff:

Result:
Hence the total cost and individual material take off schedule has been prepared.

5).

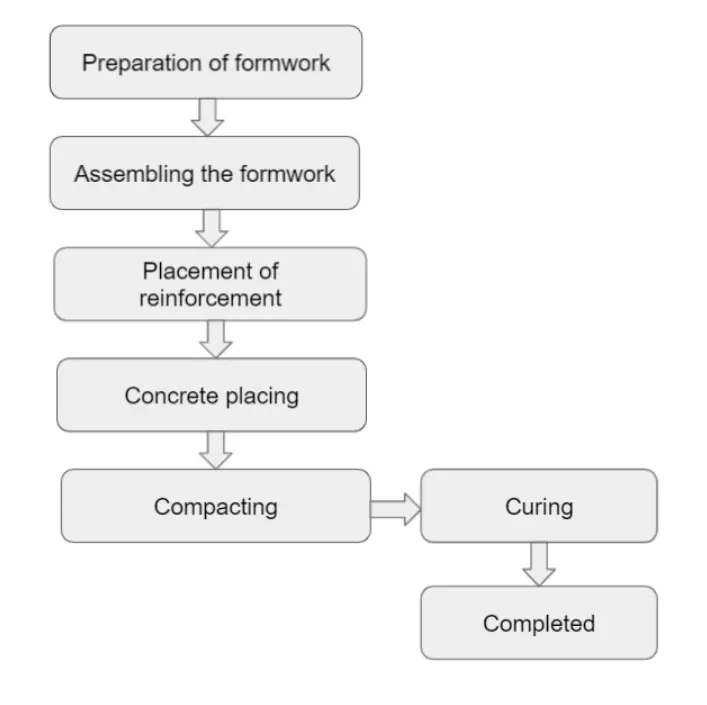

a)

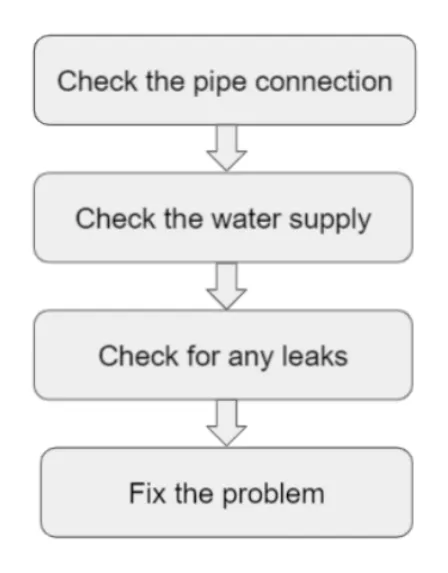

b).

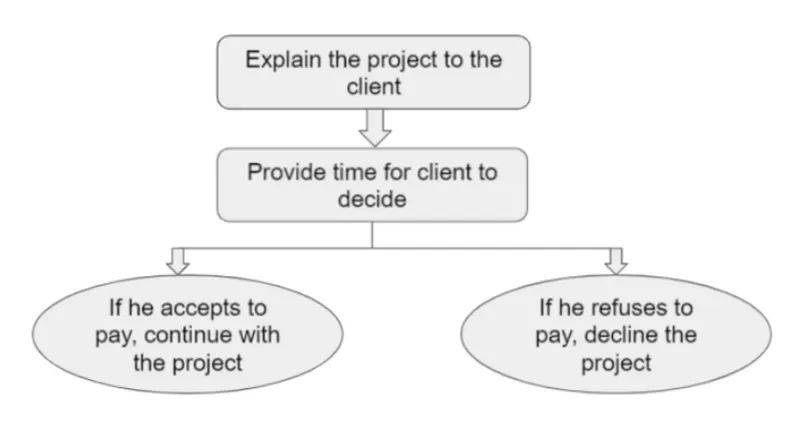

c).

6).

Parameters associated with each madelelements are as follows:

a) Walls:

• Walltype
• Walldescription
• Wall length
• Wallthickness
• Wall height
• Wall materials
• Wall location
• Material cost

b) Floor

• Floor type
• Flaardescription
• Florarea
• Floor thickness
• Floor material
• Materialoost

c) Doar

• Daar type
• Daardescription
• Door height
• Daar width
• Daar material
• Materialcast

d) window

• Window type
• Windowdescription
• Window width
• Window height
• Window material
• Material cost

e) Table:

• Table type
• Table length
• Table width
• Table weight
• Table material
• Table cost

f) Building:

• Building type
• Building floorarea
• Building perimeter
• Building location
• Building height
• Material
• Possible loads on a building
