Title: DESIGN, MODELING, RENDERING & ASSEMBLY OF AMERICAN CHOPPER BIKE
Objective:
Design all single parts or components and assembled them to build an American Chopper Bike with realistic view using rendering and Solidworks visualization.
Introduction:
In this project, we use sketching tools to draw the 2D model and using some features we can turn them to the 3D parts.
During this process we used some feature tools like Extrude Boss, Revolved Boss, Extrude Cut, Surface tools, Projected Curves, Split tools, Fillet, Chamfer etc.
Parts of American Chopper:
- Transmission Belt
- Front Fender
- Rear Fender
- Front Wheel
- Real Wheel
- Front Fork
- Chassis
- Engine
- Padel
- Gas Tank
- Oil Tank
- Kickstand

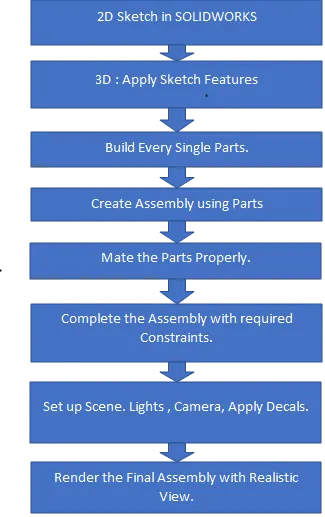

Design Methodology:
Description:
Key Features which are used to make Assembly.
- 2D Sketch
- Extrude Boss
- Extrude Cut
- Fillet/Chamfer
- Shell
- Revolved Boss
- Swept Cut
- Mirror
- Linear Pattern
- Spline Feature
- Swept Boss
- Lofted Boss
- Reference Plane
- Projected Curve
- Surface Features
- Appearances
- Decals
- Light, Camera
- Photo Rendering

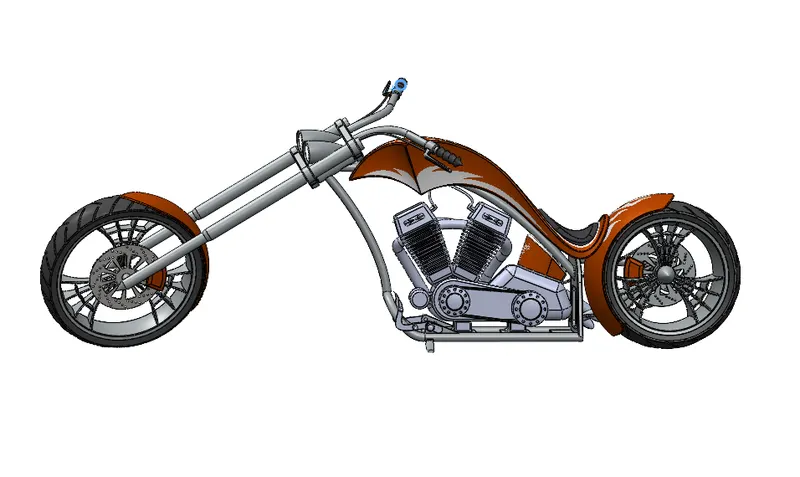

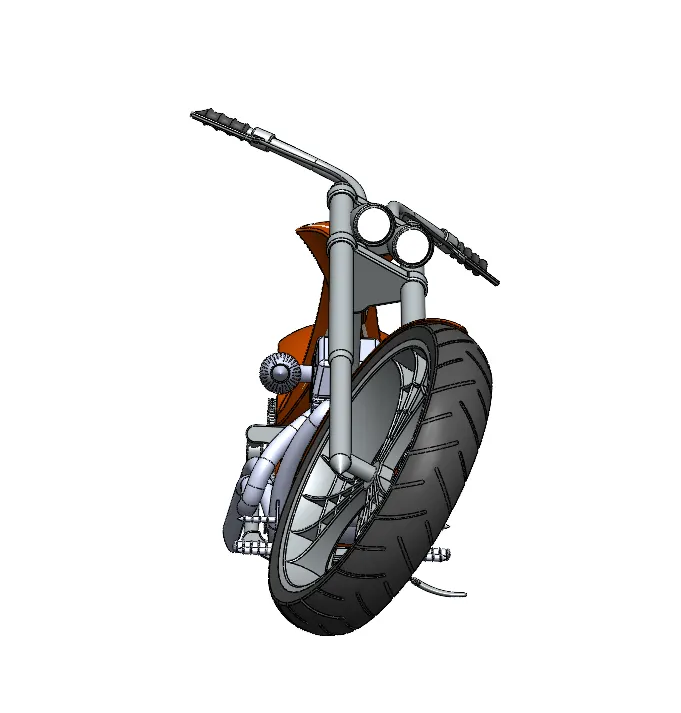

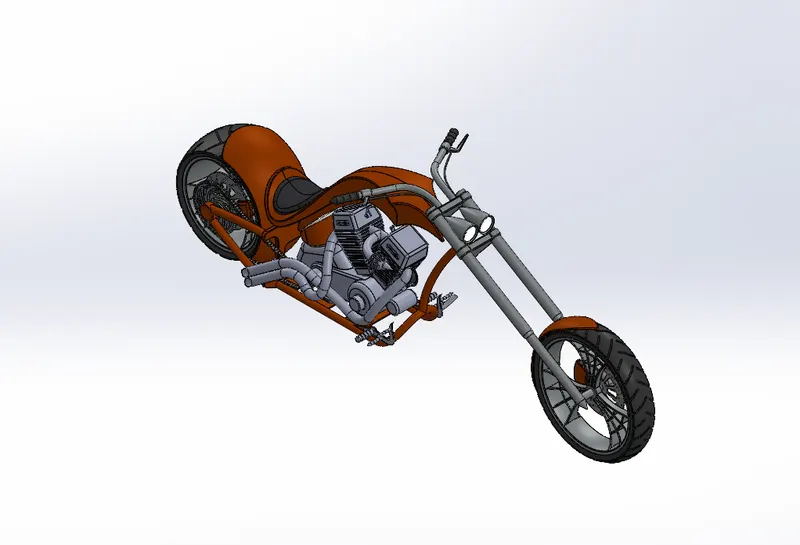

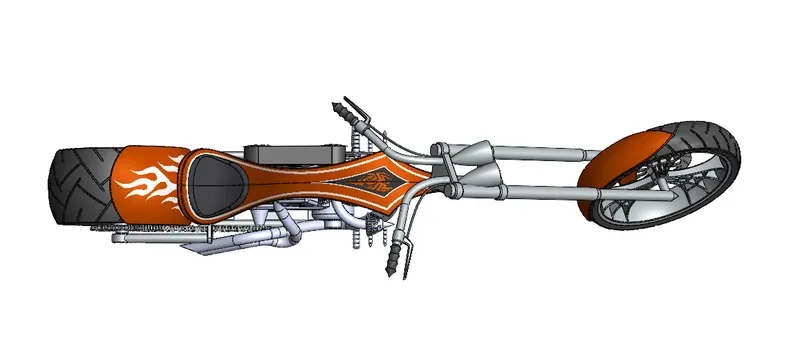

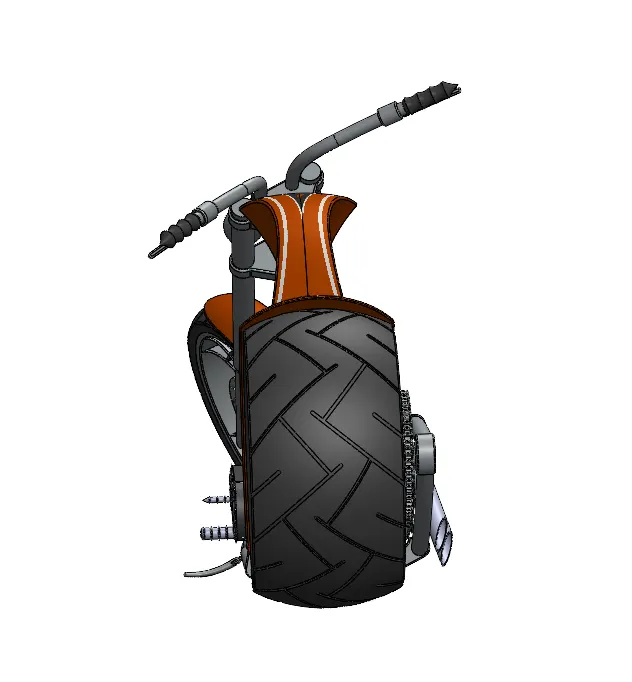

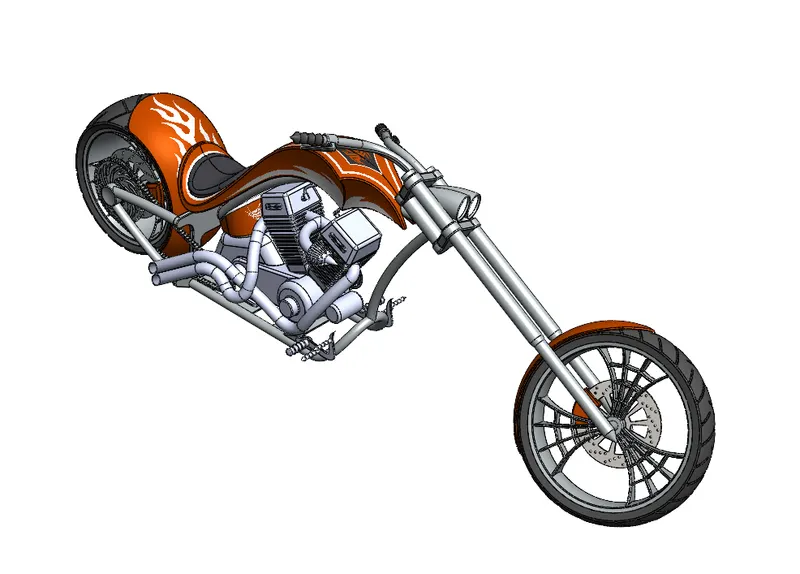

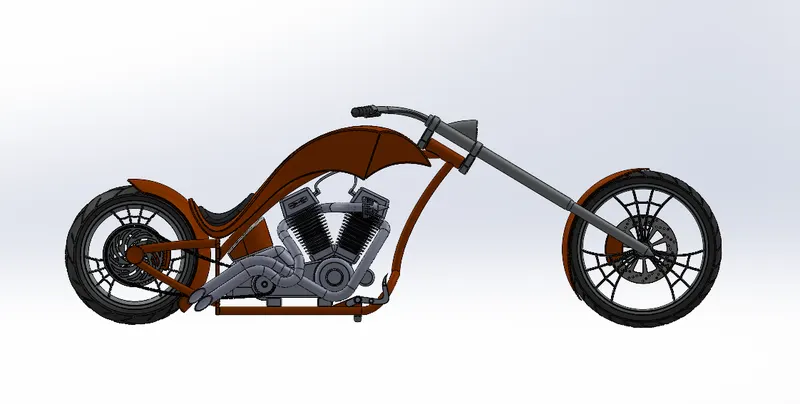

Assembly Views:
Rendering Feature Views:
SOLIDWORKS Visualization Views:
Final Model View:
Conclusion:
Learn Basic to Advance Knowledge of SolidWorks.
Understand How and Where to use the Features Correctly.
Learn how to assemble the model using the Mates.
How to give a realistic view to the model using Photoview 360 and SolidWorks Visualization.
