Photo Realistic Rendering

DESIGNING THE AMERIACAN CHOPPER USING SPLIDWORKS

• Objective:To design an american chopper using differnt methodologies of solidworks part by part and assembling different parts to get the final chopper assembly and applying decals and placing in the scenes for geeting rendered chopper.

• Introduction: While designing chopper its different parts are be designed using different different solidworks sketch tools and features . Starting from steching trasmission belt using stetch tools and extrudde and fillet features of solidworks creating a simple 3d part from 2d drawing to setting up chooper in environment and setting up scenes for rendering using rending tools and features, learned a lot about solidworks. Some of the features along with their usage while making differnt parts for chopper and mentioned below.

• Apprach: For designing any any part or machine using solidworks basic approach is to make use of 2d steches as max as possible that can also be used to create 3d curves a cool feature in solidworks and finally creating a 3d parts . Focusing on part by part lealing to assembly using specific features and skectch tools of solidworks .

• Description:

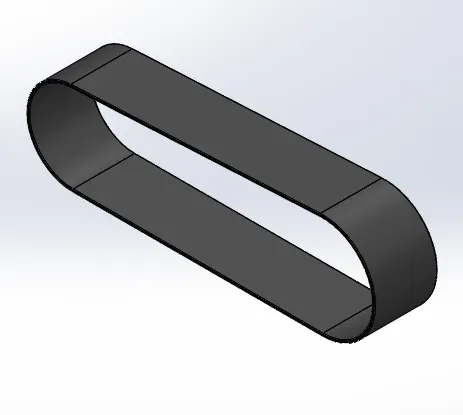

1. Transmission Belt:

Basic tools used to make a simple 2d sketch in solidwork and creating a 3d body making use of extrude and fillet feature.

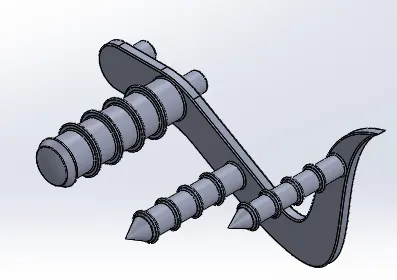

2. Kickstand:making use of sketching techinques such as spline and features like sweep and dome

3. Front Fender :

Designed using learned solidworks featues and some new features like revolve and split features.

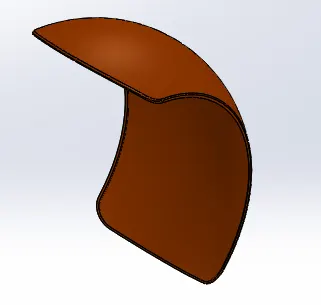

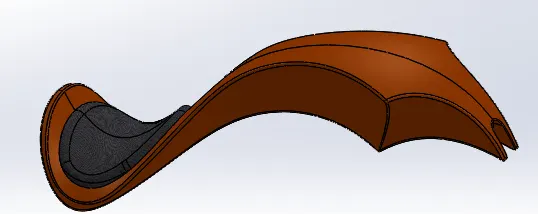

4. Rear fender: designed using learned solidwork features and using new features such as shell feature.

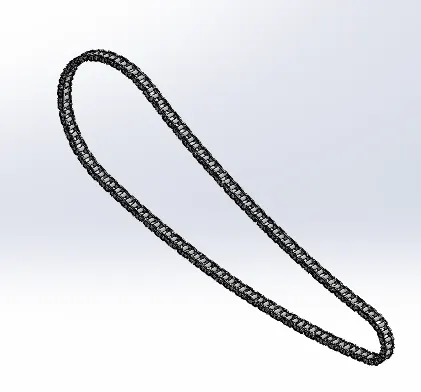

5. Chain:

Designed using learned solidworks techinques and making use of curve driven pattern.

6. Oiltank :

While designing this part of chopper one extra techique along with learned ones i.e. combine feature is used .

7. Pedal:

Learned the use of linear pattern feature.

.

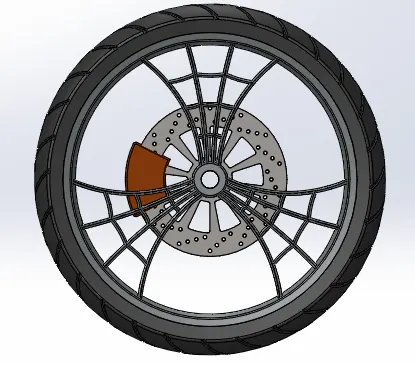

8.Front Wheel :

learned to desing the spider web design of front wheel of chopper making use of circular pattern.

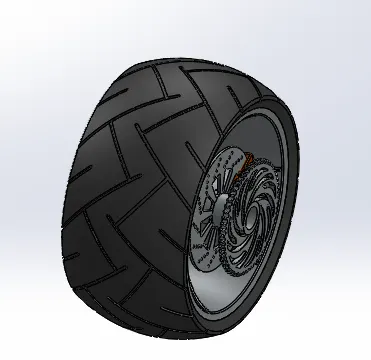

9.Rear wheel : making use circular pattern feature quite often.

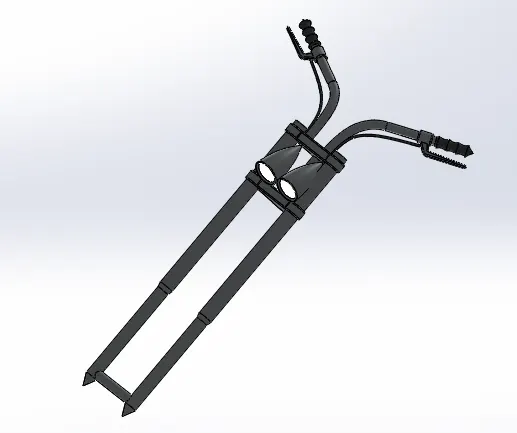

10. Front Fork : projected curves using simple 2d curves and applying custom materials .

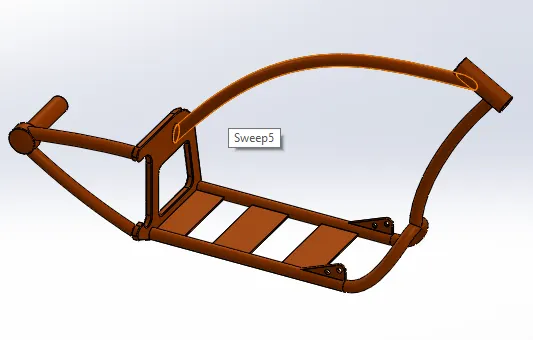

10. Chasis : Using the learned features in diffferent way to design the chasis of the chopper.

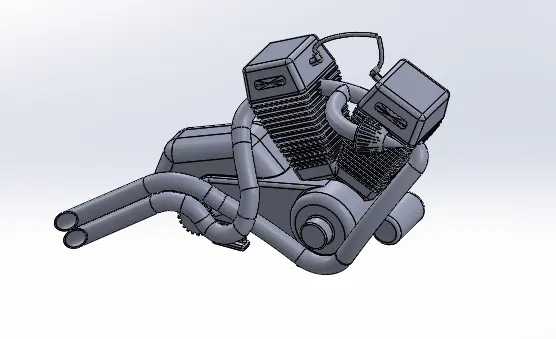

11. Engine: Improving sketching abilities and make use og composite curves while designing this part

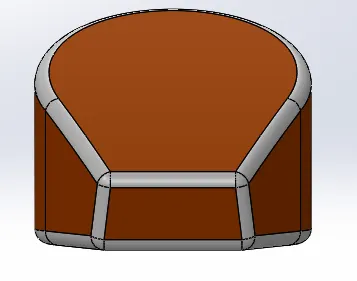

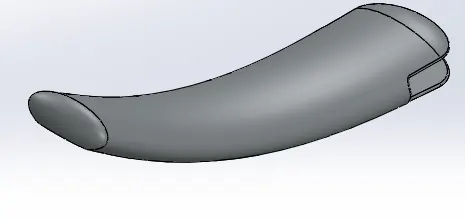

12. Gas Tank : Learned to import an refence sketch and designing the complex surface of gas tank in solidworks

.

ASSEMBLY

While in assembl diidernt solidwokrs techniques were used such as importing diffent parts ,applying decals , appling mates ( basic and adanced ), how to place diiferent component to fir properly , composing the assembbly assembly environment , applying secenes , rendrering images

RENDERWED IMAGES

CONCLUSION :

THIS DESIGNING OF CHOPPER USING DIFFENT FEATURES AND TECHNIQUS OF SOLIDWORKS PROVIDES A GREAT LEARNING EXPRIENCE STARNTING FROM SKETING TO RENDERING .
