Photo Realistic Rendering

Title of the project

American chopper

2,OBJECTIVE:

understanding and implementing shell feature sketch blocks linear pattern in solidwork user interface.the design process

behind spider webbed wheel rims.the utility of projected curves featured and revolved cut feature in solidwork.gaining insights on composite curves and make pierce features in solid works.

3.Introduction:

American Chopper is an American based that is still on air on form 2003,produced by pligrims flims& television.the series centers on paul tetulul and his son paul teutul jr.

who manufacture custom chopper style motorcycle.orange country chopper is in newburgh,new york.the contrasting work and creative styles of the chopper.

4.Description

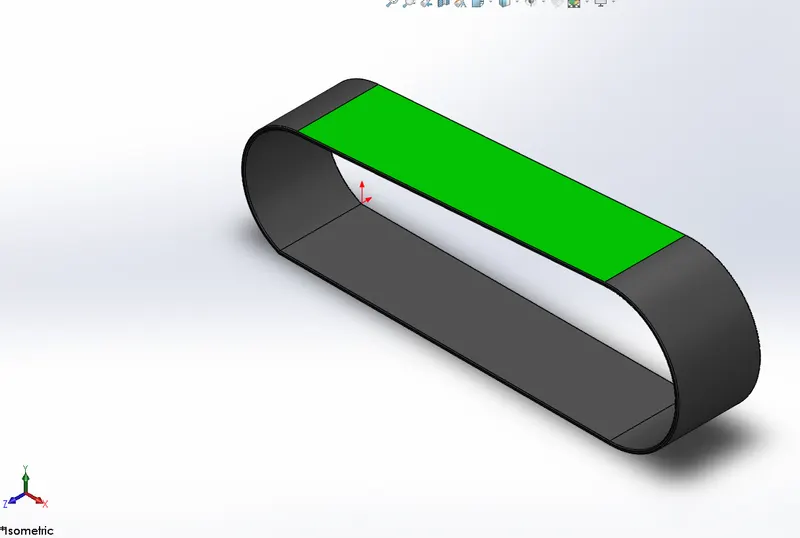

Transmission belt:

A belt is a loop of flexible material used to link two or more rotating shafts mechanically , most often parallel

Using command:

2d sketch,trim,extrude,fillets

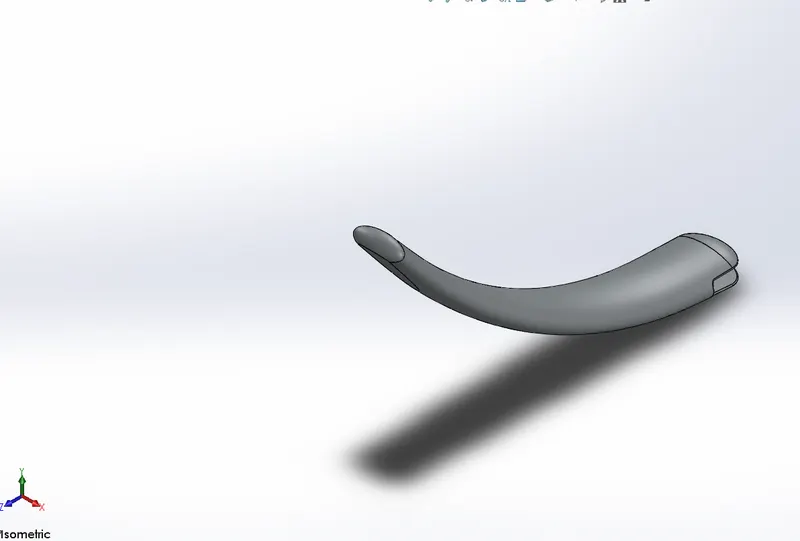

KickStand:

A kickstand is a device on a american chopper motorcycle that allows the bike to be kept upright without learning aganist

another object or the aid of a person

using command:

2d sketch ,extrude,extrudecut,loft,dome,fillet

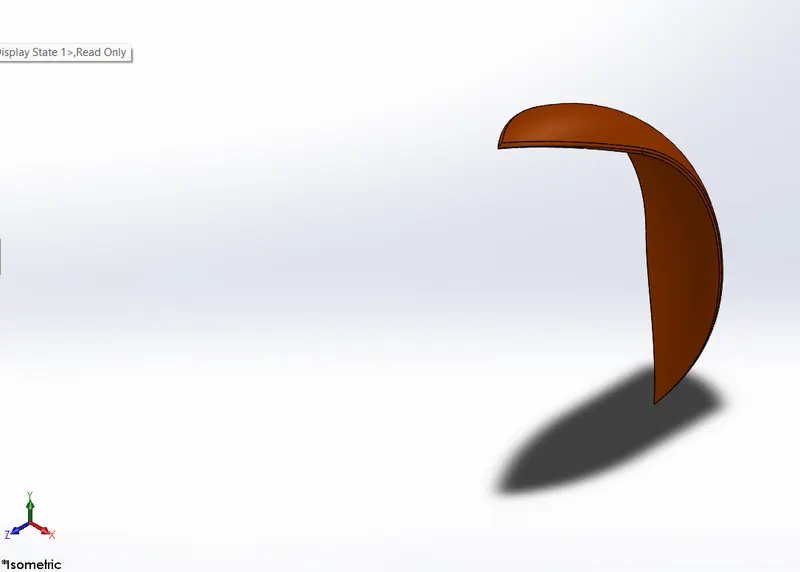

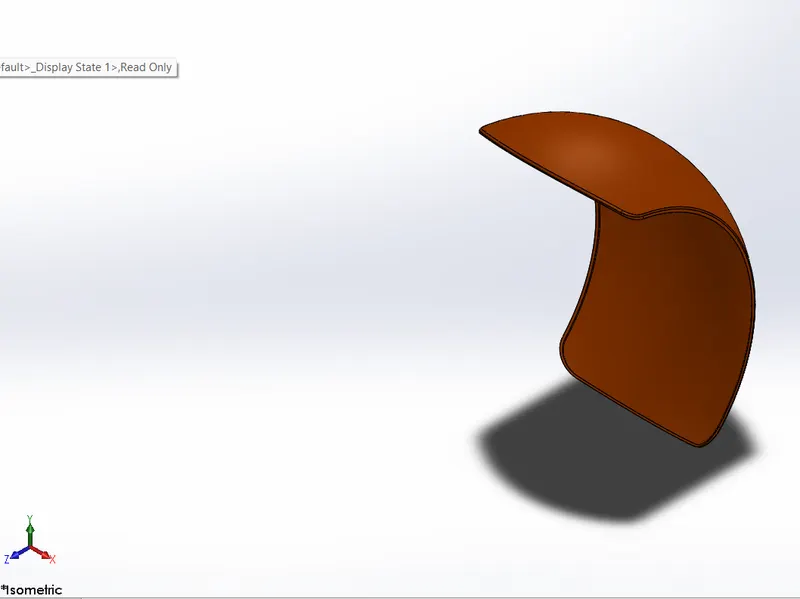

Front Fender:

its primary purpose is to prevent sand,mud,rocks,liquids,and other road spray from being thrown into the

air by the rotating tire.

using commands:

2dsketch,revolved,mirror,fillet,trim.

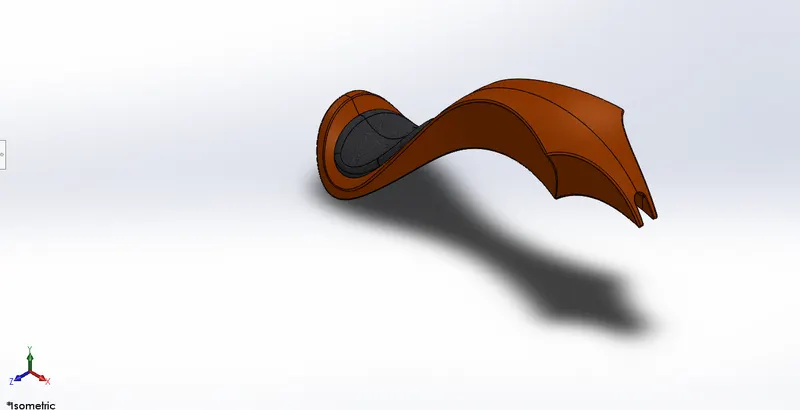

Rear Fender:

Aleardy told about fender and fender is different between front and rearside of the motor cycle

using commands:

2d sketch,revolved,trim,extrude cut,shell,fillet,insert a spline line.

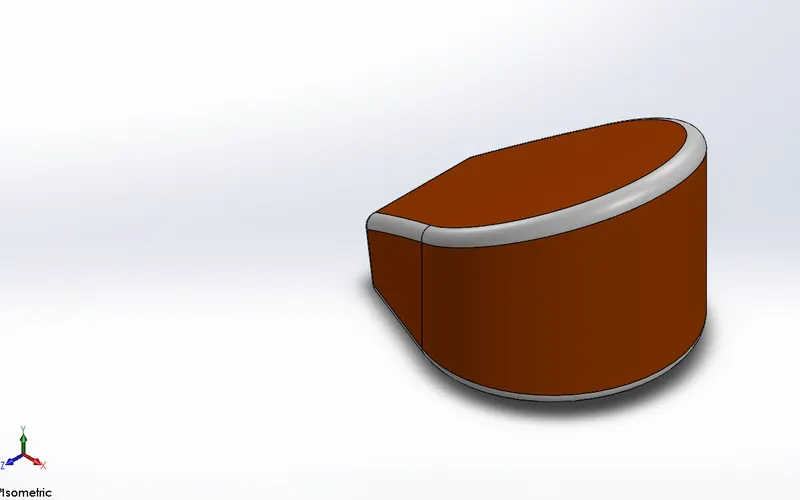

Oil tank:

A oil catch tank(oil catch can)is a device that is fitted into the cam/crank ventilation system on a car .

using commands:

2d sketch,extrude,trim,shell,fillet

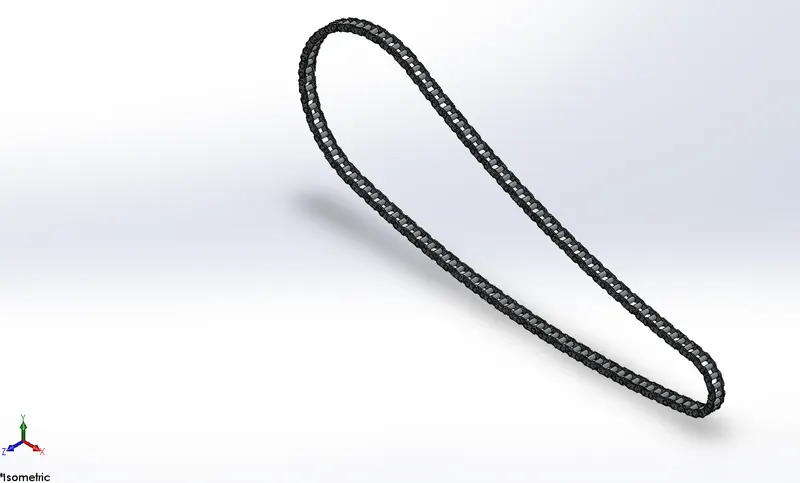

Chain:

A large sporcket will give a more efficient drive bescause it moves the point of pressure farther away from the axel , placing less stress on the bearings

using commands:

2D sketch,extrudeboss,curve pattern ,linear pattern ,mirror,fillet

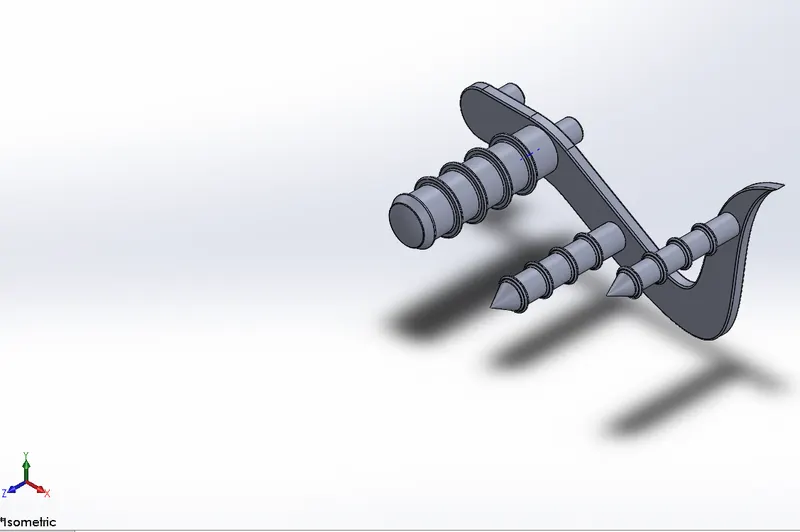

Pedal:

A motorized bicycle is a bicycle with an attached motor or engine and transmission used either to power the vechicle unassisted ,or to assist with pedaling.

used commands:

Draw a 2d sketch,extrude,revolve,dome,linear pattern,fillet ,chamfer.

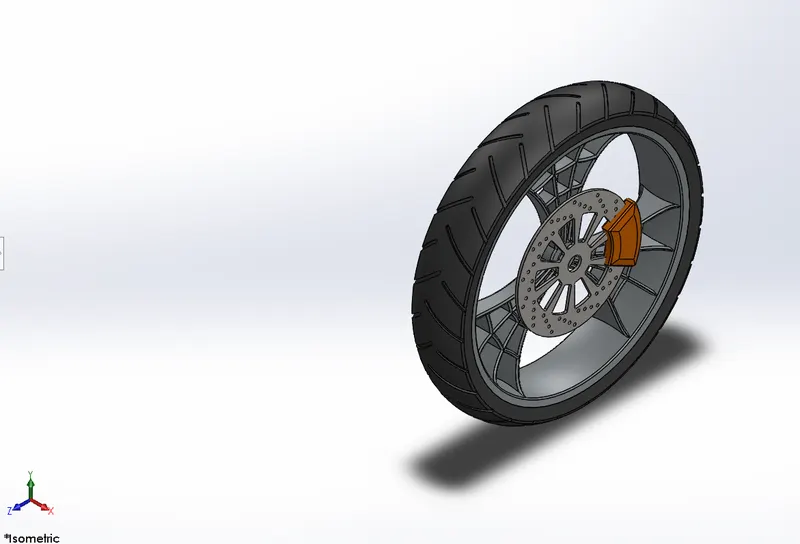

Front wheel:

Motorcycle wheel are made to cope with radial and axis force . they also provide a way of mouting other critical components such as the brakes final drive and suspension.

using commands:

2Dsketch,extrude,extrude cut,thin extrude,revolve,revolved cut,fillet,chamfer,linear pattern,mirror,circular pattern.

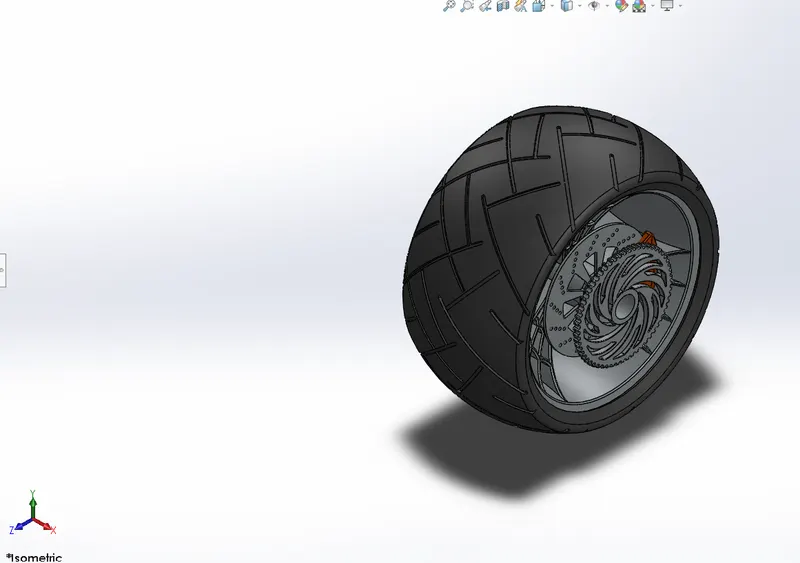

Rear Wheel:

In automative designing , an FR , or front engine,rear wheel drive layout is one where the engine is located at the front of the vechicle and driven wheels are located at the rear

using commands:

2D sketch,extrude,extrude cut,thin extrude,revolved,revolved cut,fillet,chamfer,linear pattern,mirror,circular pattern.

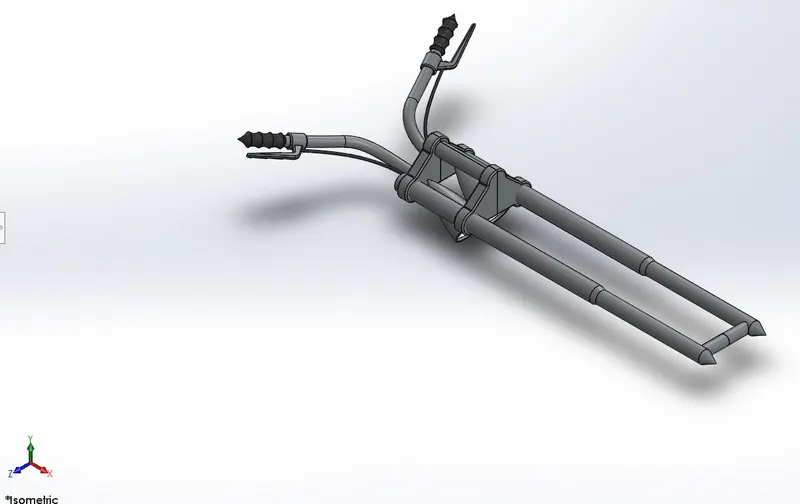

Front Fork:

A motorcycle fork connects a motorcycles front wheel and axel to its frmae,typically via a yoke ,also known as a triple clamp whioch consists of an upper yoke joined to a lower yoke via a stearing steam creating a steering acxis

using commands:

2d sketch,extrude,revolved,fillet,sweep,sheel,mirror,dome,linear pattern,projected curve

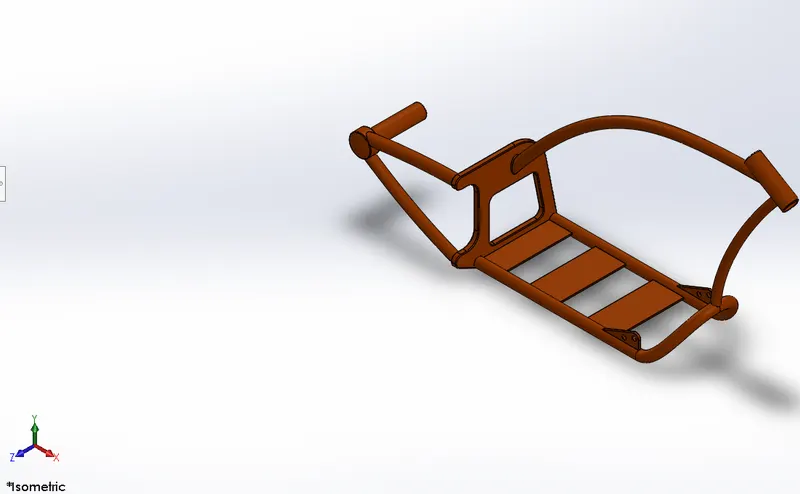

Chassis:

A motorcycle frame is a motorcycle core structure.it supports the engine,provide a location for the steering and rear suspension and supports the rider and any passenger or luggage

using commands:

2d sketch,extrude,thin extrude,extrude cut,revolved,revolved cut,mirror,dome,sweep,fillet,chamfer,projected curve

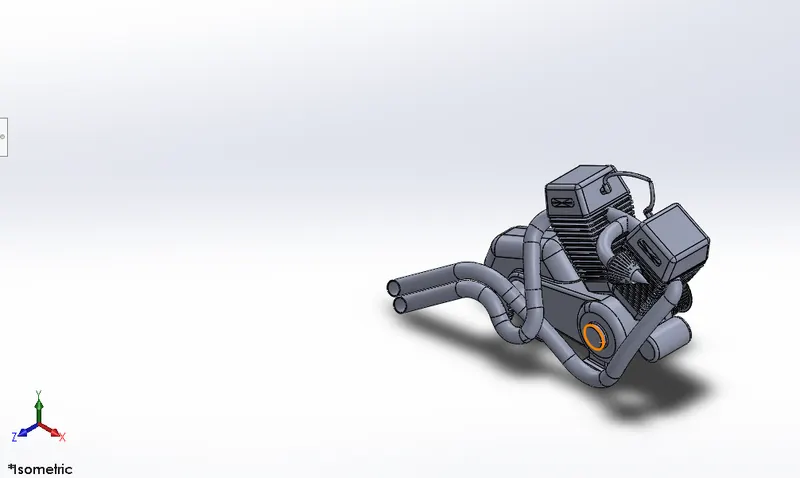

Engine:

A motorcycle engine is a engine that powers a motorcycle engines are typically two stroke or four stroke internal engines,but other engine types such as wankel and electric motors have been used

using commands:

2d sketch,extrude,extrude cut, thin extrude,chamfer,projected curves,linear pattern,circular pattern,fillet,mirror,dome,sweep

Gas tank:

Fuel tank is a safe container for flammable fluids . through any storage tank for fuel may be so called the term is typically applied to part of an engine system in which the fuel is stored and propelled or released into a engine

using commands:

2d sketch,surface sweep,surface loft,split line,mirror face,surface knit,fillet,thicken,cut sweep,sheel,mirror,extrude cut

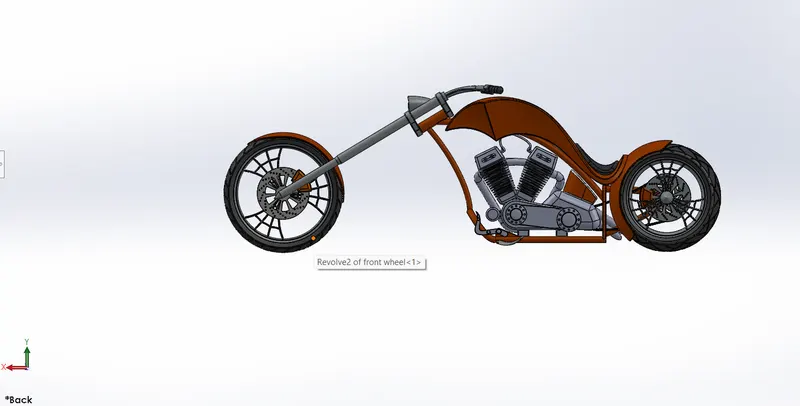

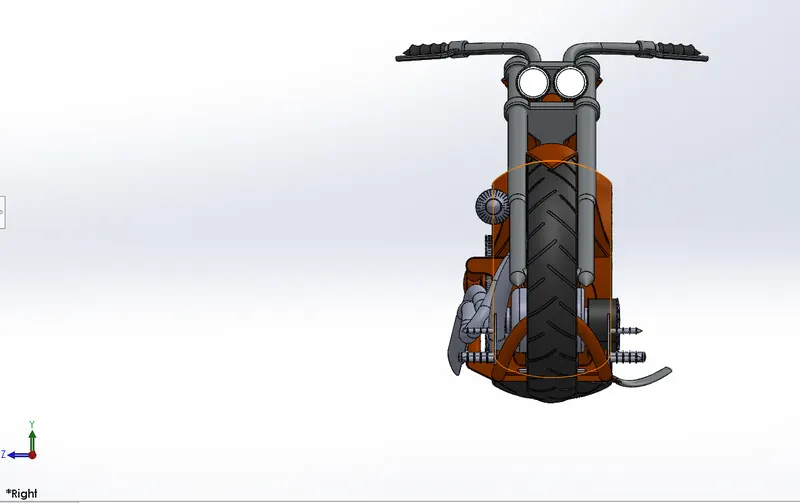

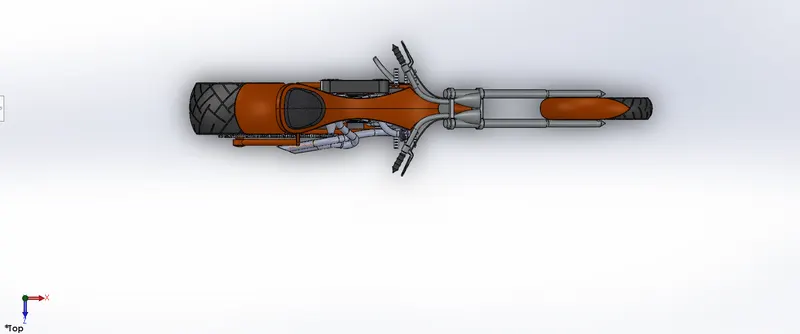

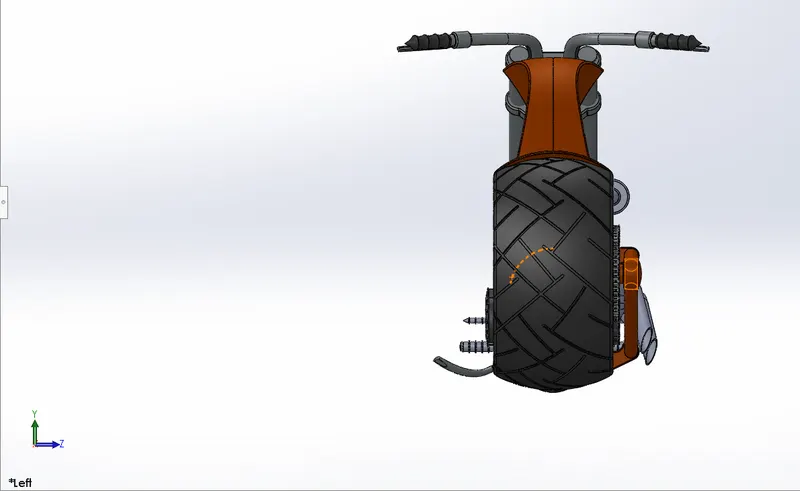

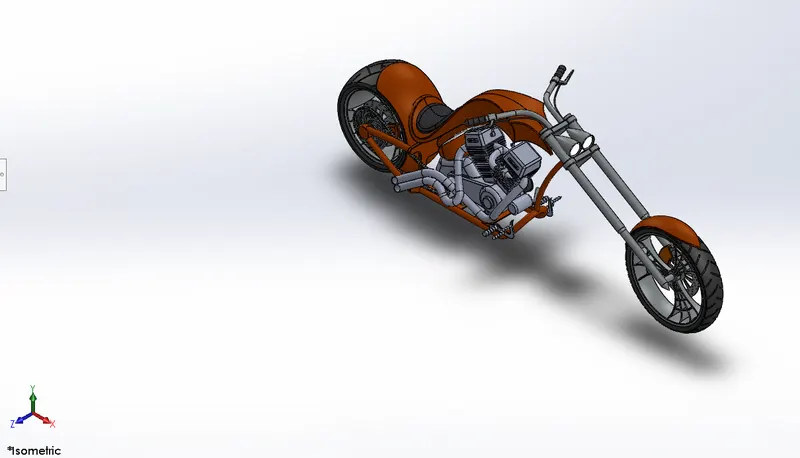

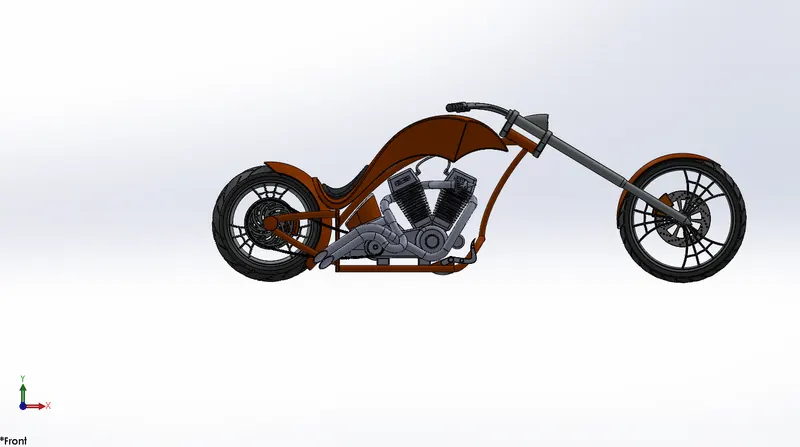

6.Assembly of chopper:

Assembiling the whole component features in chassis its including the chain , chassis, engine,front fender,front fork,front wheel,gas tank,kickstand,oil tank,pedal,rear wheel,rear fender,transmission belt

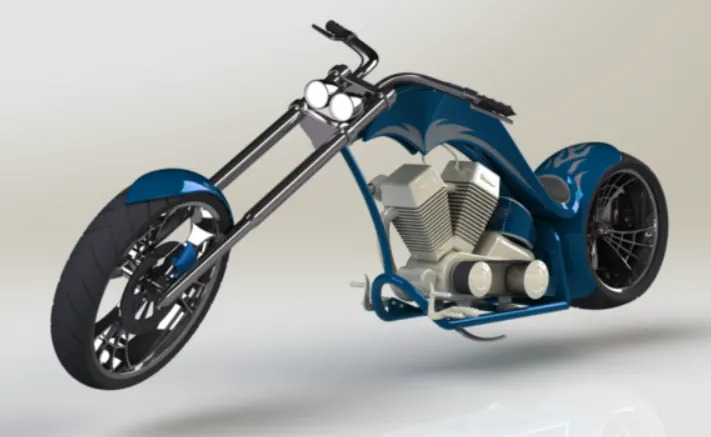

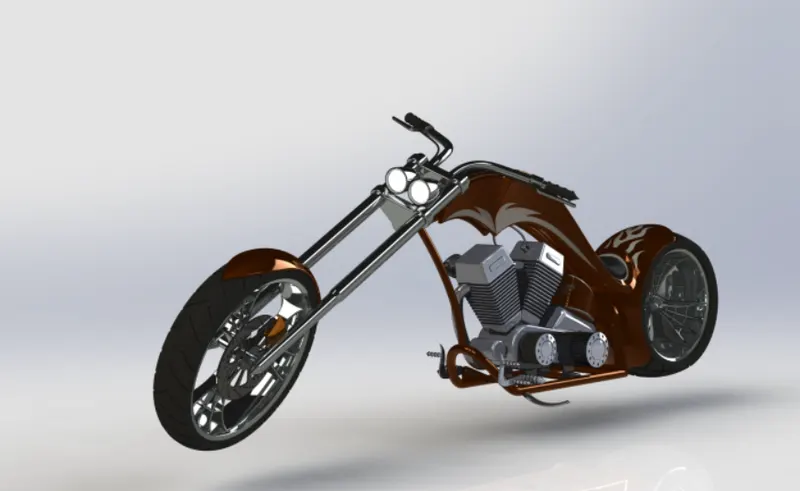

Rendring with photoview 360:

You can use the final render window to make detailed adjustments to your render compare two render and view rendering statics.

Conclusion:

Here we done the assemble of american chopper with parts and rendering view of the american chopper.
