DESIGN OF AMERICAN CHOPPER

INTRODUCTION

This report contains a detailed explanation of designing an American Chopper starting from the part modeling of the American Chopper then the assembly of chopper and the final rendering of the American Chopper.

OBJECTIVE

The main objective of this course module is to learn the basics of part modeling and also exploring most of the tools that are used in designing using solid works.

The following steps were undertaking while designing the American Chopper:

1.Design of the individual components

2.Assembly of the American Chopper

3.Application of decals,setting up the scene,lights and cameras

4.Final rendering of the American Chopper

METHODOLOGY

The American Chopper is made up of following parts:

1.Transmission belt

2.Kick stand

3.Chain

4.Rear fender

5.Rear wheel

6.Pedal

7.Front fender

8.Front wheel

9.Oil tank

10.Front work

11.Chasis

12.Engine

13Fuel tank

1.TRANSMISSION BELT

It is used to transmit the power between the two shafts in the engine.

Feartures used :

• Extrude Boss/Base
• Fillet

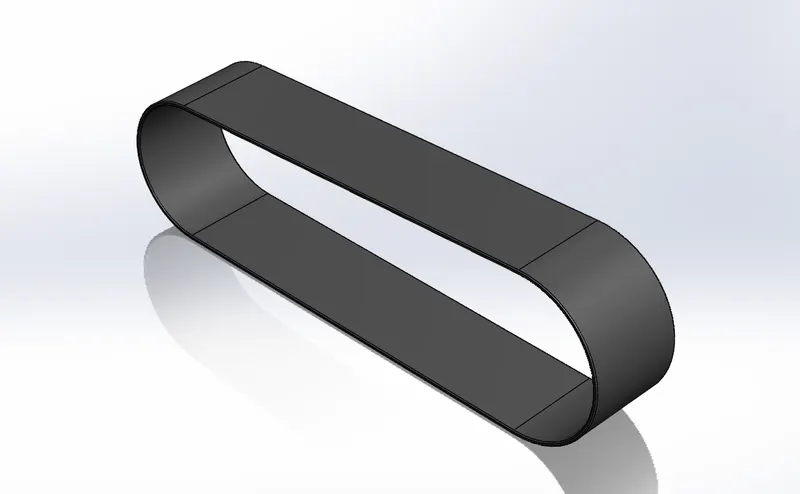

The profile of the transmisson belt is created as per the dimension in the front plane,the belt is given a thickness of 3.5mm.once the sketch is complete the belt is extruded.The square edges are given fillet.The transmission belt is made out matte rubber.

2.KICK STAND

Kick stand is a supporting structure provided to a bicycle or motorcycle to help it stand in a vertical position when stationary.

Features used:

• Lofted Boss/Base,
• Dome
• Extruded cut
• Extruded Boss/Base
• Fillet

Mainly loft feature is used to create the Kick stand.Two ellipses are created on the right plane,one at the top end and one at the bottom end of the kick stand. A path is sketched on the front plane which joins the center points of the two ellipses created before using pierce relation between the center of the ellipses and the path. using loft the body of the kick stand is created. Elliptical dome feature is used to create the rounded end of the kick stand. A slot with an extruded boss is created boss is created at the top end of the stand using which it is connected to the chassis. At last fillets are provided to the sharp edges of the stand. Chrome plate appearance is applied to the kick stand.

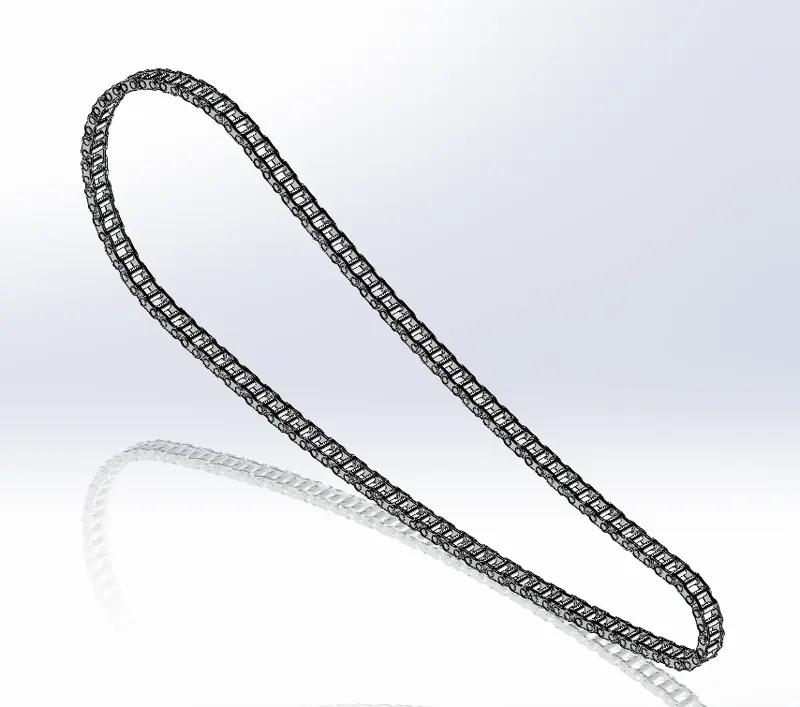

3.CHAIN

Chain is the connection used to transmit power from the engine to the rear wheel.It passes over toothed member known as sprockets.

Features used:

• Extruded Boss/Bass
• Linear pattern
• Circular pattern
• Fillet
• Mirror
• Combine

A main profile of the chain is created using three point arc and tangent relations between the arcs using the given dimensions. create two throw away sketches which are used to create the inside and outside the links of the chain. The plates of the chain. The plates of the chain links are extruded using the throw away sketches and the connecting pins are craeted using the same sketch. Only one side of the plates of the chain links are created. The created chain links are pins are then populated on the main sketch using the linear pattern and circular pattern features. All the chain link plates are then mirrored on the front plain. All the components of the chain are combined as a single part using combine feature. Cfrome steel appearance is appplied to the chain.

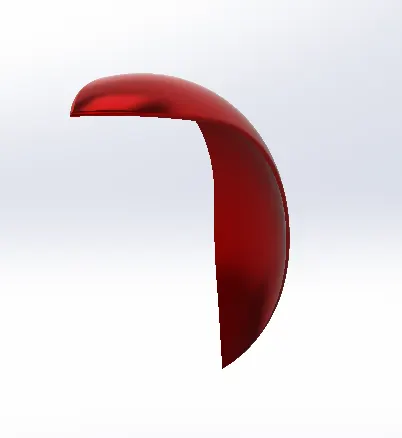

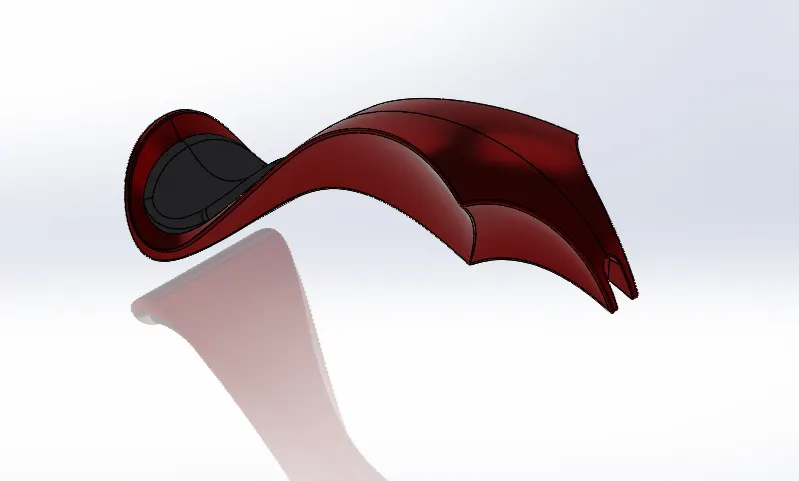

4.REAR FENDER

It is the semi cover for the rear wheel.

Features Used:

• Revolve Boss/Base
• Fillet
• Shell

A sketch of created in the front plane using a three point arc and offset it meet the thickness of the fender. Create an axis at the origin. Using revolve boss the required rear fender is created. Fillets are created on the sharp edges of the fender. Desired appearance is applied to the fender.

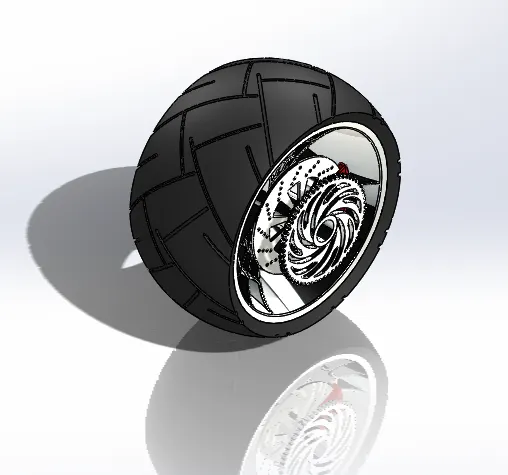

5.REAR WHEEL

The circular component of the motorcycle which helps in the motion of the vehicle and it receives power from the engine through chain drive. Rim, Tyre, Rotor, Sprocket and Caliper are the parts of the rear wheel.

Features used:

• Revolve Bass/Base
• Extruded Boss/Basse
• Extruded cut
• Revolved cut
• Circular Pattern
• Mirror
• Combine
• Chamfer
• Fillet

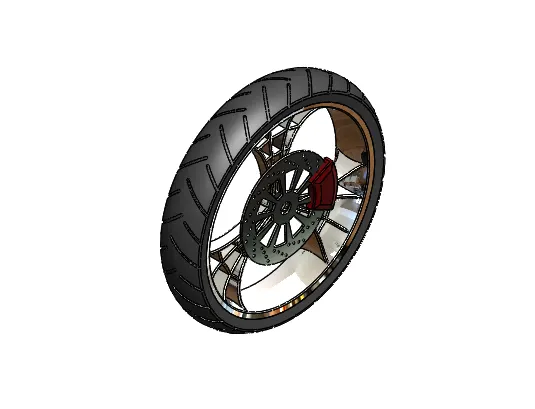

Initially the rim is created by sketching on the front plane and revolved extruded using an imaginary axis at the origin. A spider web design of the rim is created on the front plane and is extruded using mid plane extrude feature and this spider web is circular patterned to required numbers and the Rim is completed. The spider web spokes and the rim are combined to form a single solid body.

For Rotor: Sketch on the front plane and extrude it to the required dimensions. Create the necessary holes using circular pattern.

For Caliper: Create a profile using lines and circles and remove the unwanted sketch and midplane extrude the caliper profile. Provide necessary fillets and chamfers to complete the caliper.

For Sprocket: sketch a circle and extrude it to the required thickness. Apply chamfer to the outer edges and create a tooth profile on the extrude and cut it. Apply fillets to the tooth edges and create the sprocket using circular pattern feature and required number of teeth.

For Tyre:A sketch is created by converting entities of the Rim and the Tyre is revolve extruded. Later profiles are created on the surface of the Tyre to give the grips to the tyres.

seperate apperance are applied to each part of the wheel.

6. PEDAL

The part of the motorcycle where the foot of the rider rests and the place where the gears and brakes are available easily to the rider.

Features used:

• Extruded Boss/Base
• Revolve Boss/Base
• Linear pattern
• Chamfer
• Fillet

A sketch is made on the front plane in the form of the support plane is shown in the picture above along the a few circles of required dimensions on either side of the profile which are later used to produce the extruded cylinders structures for foot rest and attachment to the chassis. Provide the required fillets and linear patterns to produce the ring structures on the pedal. Appearance is provide to the pedals with chrome steel.

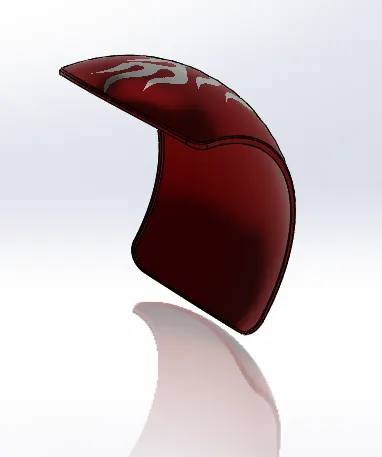

7. Front Fender

It is the covering plate of the front wheel.

Features Used:

• Revolve Boss/Base
• Split
• Shell

A sketch is created in the front plane using a three point arc and offset it meet the thickness of the fender. Create an axis at the origin .Using revolve boss the required front fender is created. Two different sketches or created in the top plane and the right plane to cut the front fender in to required shape. Fillets are created on the top edges of the fender. Desired apperance is applied to the fender.

8. Front wheel

It is rolling part situated on the front of the motorcycle. This wheel helps to guide the vehicle according to the movement of the front fork as desired by th rider.

Features used:

• Revolve Boss/Base
• Extruded Boss/Base
• Extruded Cut
• Revolved Cut
• Circular Pattern
• Mirror
• Combine
• Chamfer
• Fillet

Initially the rim is created by sketching on the front plane and revolved extruded using an imaginary axis at the origin. A spider web design is created on the front plane and is extruded using mid plane extrude feature and this spider web is circular patterned to required numbers and the rim is completed . The spider web spokes and the rim are combined to form a single body.

For Rotor: sketch on the front plane and extrude it to the required dimensions. Create the necessary hole susing circular pattern.

For Caliper: create a profile using lines and circles and remove the unwanted sketch and mid plane extrude the caliper profile. Provide necessary fillets and chamfers to caomplete the caliper.

For Tyre: A sketch is created by converting entities of the rim and the tyre is revolve extruded. Later profiles are created on the surface of the Tyre to give the grips to the tyres.

seperate appearance are applied to each part of the wheel.

9. Oil Tank

Engine oil storage unit of the motorcycle, which ensures its smooth running.

Features used:

• Extruded Boss/Base
• Combine
• Shell
• Fillet

skdbckisbflbfugwl

On the top plane create a sketch by creating a 3 point arc and few line and apply tangent relations.Then extrude the profile to obtain the oil tank. Apply necessary fillets. Now using shell

feature make the oil tank hollow of required thickness and apply the desired appearance.

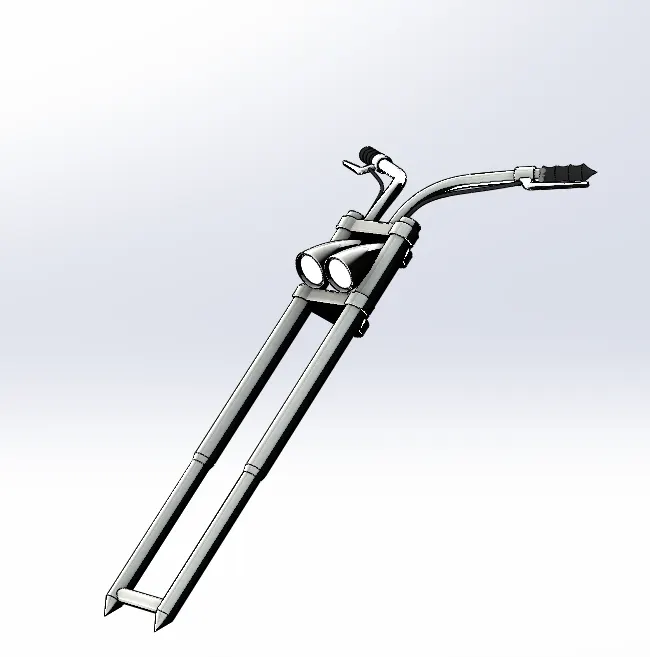

10. Front Fork

It is used to guide the entire vehicle. It holds the front wheel and other control device operated by rider. It consists of two columns along with shock absorber which is held together by trimple clamp.

Features used:

• Extruded Boss/Base
• Extruded cut
• Revolved Boss/Base
• Revolved cut
• Project curves
• swept Boss
• Dome
• Combine
• Mirror
• Chamfer
• Fillet

Create the long tube on the front plane by creating the sketches and with appropriate dimensions and then revolve extrudeit. Then create the half of the triple clamp

using appropriate dimensions sketch. On the same plane create the headlight by revolve extrusion. On the top plane and draw sketch for creating the handle using spline and sweep

paterns. Select all the created bodies and mirror them along the front plane and combine the entire object. select an appropriate appearance to the front fork.

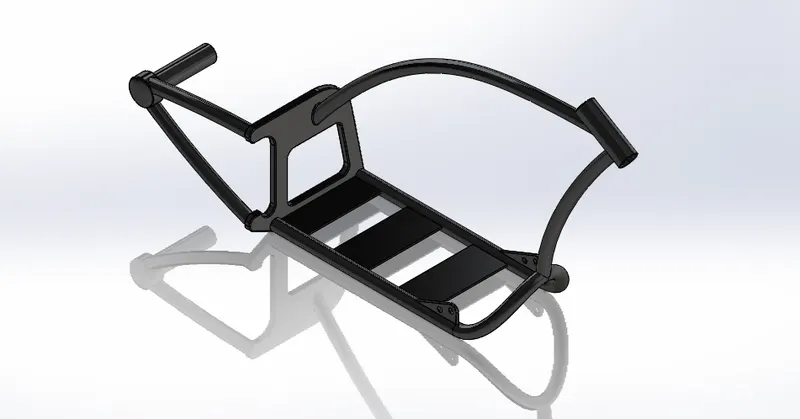

11. CHASSIS

It is the skeleton of the vehicle to which all the components of the motorcycle are attached to.It also provides the required support to the vehicle.

Features used:

• Extruded Boss/Base
• Revolved Boss/Base
• Linear pattern
• Extruded cut
• Revolved cut
• Project curves
• Swept Boss/Base
• Dome
• Combine
• Mirror
• Chamfer
• Fillet

The blueprint of the motorcycle is imported to the part design, by adjusting the location, transparency and the sketch of the chassis is carried on this blueprint. This chassis is made of

4mm thickness tubes bent and joined using splines and created/project curves. At the end all the tubes are connected to a plate and further this chassis is extended till the rear wheel hub.

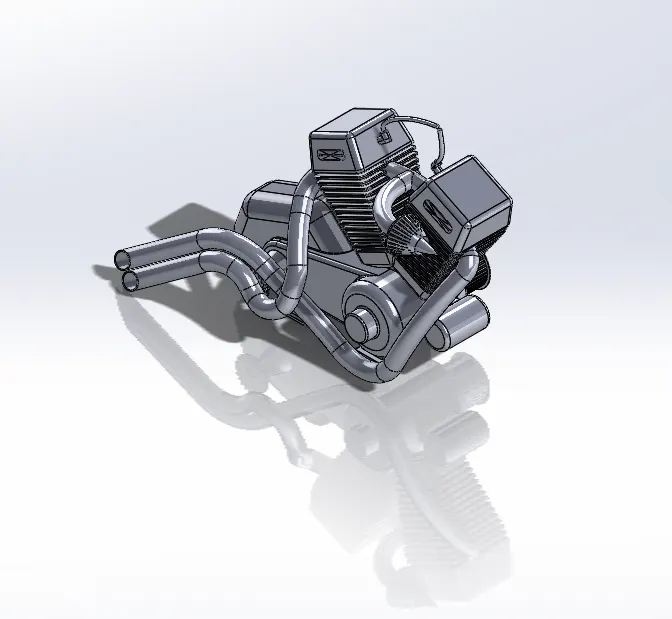

12. ENGINE

Engine is the main component of the vehicle where the power is generated by burning fuel and later the energy is transmitted to the wheel with required motion.

Features used:

• Extruded Boss/Base
• Revolved Boss/Base
• Extruded Cut
• Revolved cut
• Circular pattern
• Project Curves
• Swept Boss/Base
• Dome
• Combine
• Mirror
• Chamfer
• Fillet

Again using the inserted picture and choosing the front plane the base of the engine is created using three point circle and lines (using tangency properties)

and extrude to required dimensions. Again using the same sketch extrude the two circles. Again on the front plane create the twin engines in the V-shape. Create the sketch for the pulley

and create the pulley using the revolved extrusion. Create the cylindrical part in the front fork of the engine on the front plane. using the curves created and projected curves create the

profile of the exhaust pipes and create the swept boss feature. Then the spark plugs are created at the end. Apply the appropriate material to the engine.

Again using the inserted picture and choosing the front plane the base of the engine is created using three point circle and lines (using tangency properties) and extrude to required dimensions. Again using the same sketch extrude the two circles. Again on the front plane create the twin engines in the V-shape. create the sketch for the pulley and create the pulley using revolved extrusion. Create the cylindrical part in the front of the engine on the front plane. Using the curves created and projected curves, create the profile of the exhaust pipes and create the swept boss feature. Then the spark plugs are created at the end. Apply the appropriate material to the engine.

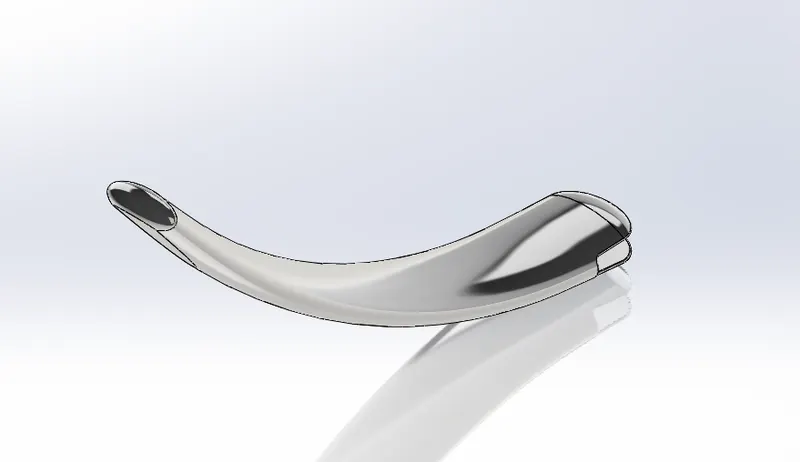

13. FUEL/GAS TANK

Fuel storage component of the American Chopper and its supplies the required fuel to the engine.

Features used:

• Swept Surface
• Loft Surface
• Boundary Surface
• Project Curves
• Knit surfaces
• Sweep cut
• Combine
• Shell
• Mirror
• Fillet

In the front plane using splines, construction lines and projected curves a surface sweep to create half of the tank. Create another surface extrude to create the seat. Now mirror the created part of the tank and knit the entire surface together. Now apply appropriate materials to the gas tank and the seat.

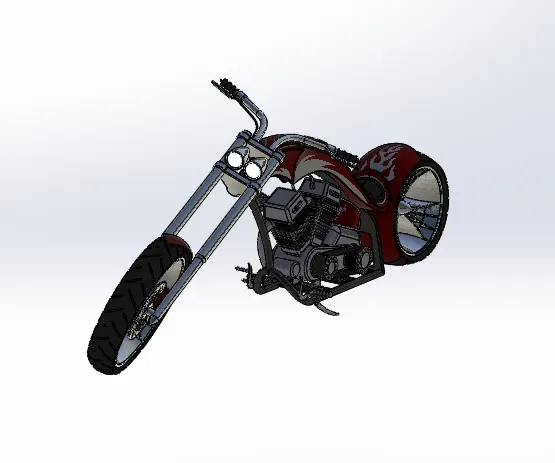

ASSEMBLY OF THE AMERICAN CHOPPER

All the deisgned components are taken into the assembly section in solid works and using different mating features such as concentric, coincident, parallel,etc., the entire assembly of the

American Chopper is created .After assembly the decals are applied to the chopper.

Once the application of the decals is finished the assembled motorcycle is taken into solid works Visualize or using photo-view 360.Here various aspects such as camera, external lightings,

background scenes, etc.are taken into consideration before the creation of the final rendering. The final rendered images of the American chopper are derived.

Assembly Tree

American Chopper Assembly

• Transmission Belt
• Kick Stand
• Chain
• Rear Fender
• Rear Wheel
• Pedal
• Front Fender
• Front Wheel
• Oil tank
• Front fork
• Chassis
• Engine
• Fuel tank

RENDERING

The rendering is the process of making an photo-realistic rendering of an solidworks models. The rendered image incoperates the apperance,lighting,scene and decals included with the model

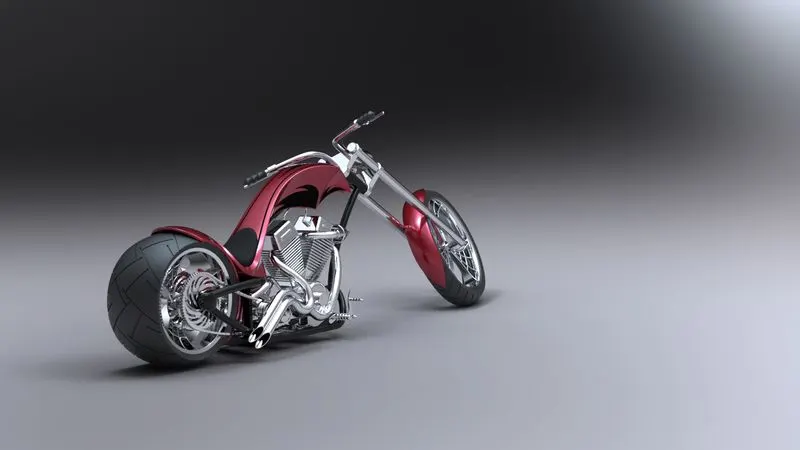

Rendered American Chopper

CONCLUSION:

• The parts of the chopper or sketched and modelled in the solid works.
• The parts are inserted into the assembly environment and by applying the mates the whole American Chopper is assembled.
• The realistic image was rendered with the use of the 'Photoview 360 & SolidWorks Visualize.
