Photo Realistic Rendering

AMERICAN CHOPPER

Objective: -

• In this project we learn & understand different option in solid works.
• To create a part of a model.
• To assemble the parts of model using constrains in an assembly.
• To render the assembly in solid works by visualize and photo view 360.

Part / Feature modeling: -

A feature or part modeling is process of adding feature to created sketched model in a design, feature that you added are listed in the part navigator, typically it can be started through datum, coordinates system, datum planes.

Assembly Modeling: -

The part or feature which is allowed in assembly and binded with related constrains and later on it considered as subassembly for other assembly.

An assembly is a part file which contains component objects & a subassembly used as a component in a higher-level assembly, it creates inter relation between the component parts, which is assembled together by applying a parametric link, both in dimensional and positional aspects.

Types of approach

There are two method of approach in design.

• Bottom-up assembly
• Top-down assembly
• In bottom-up assembly we can modify the changes in separately in other page and add component in assembly
• Top-down assembly we can modify the changes in same assembly level so we can view analysis the situation.

in American chopper we are using many components, we have designed all the parts of American chopper and assembled using constrain

• chassis
• engine
• pedal
• kickstand
• oil tank
• rear fender
• rear tire
• chain
• front fork
• front fender

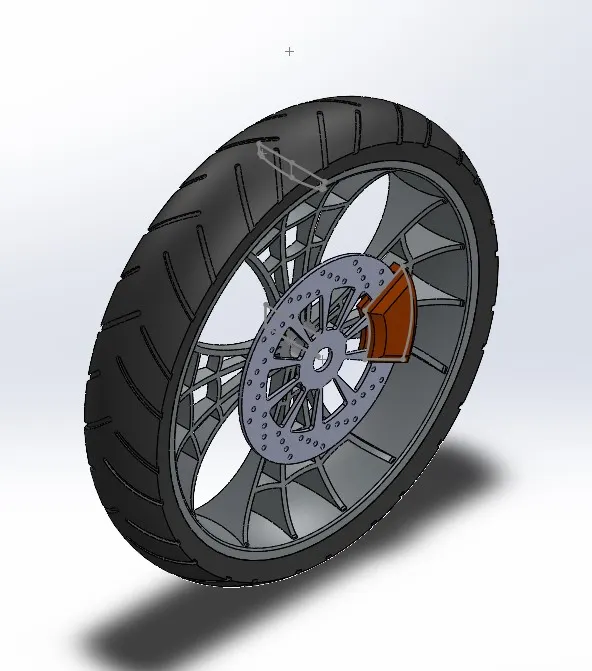

• front tire
• transmission belt

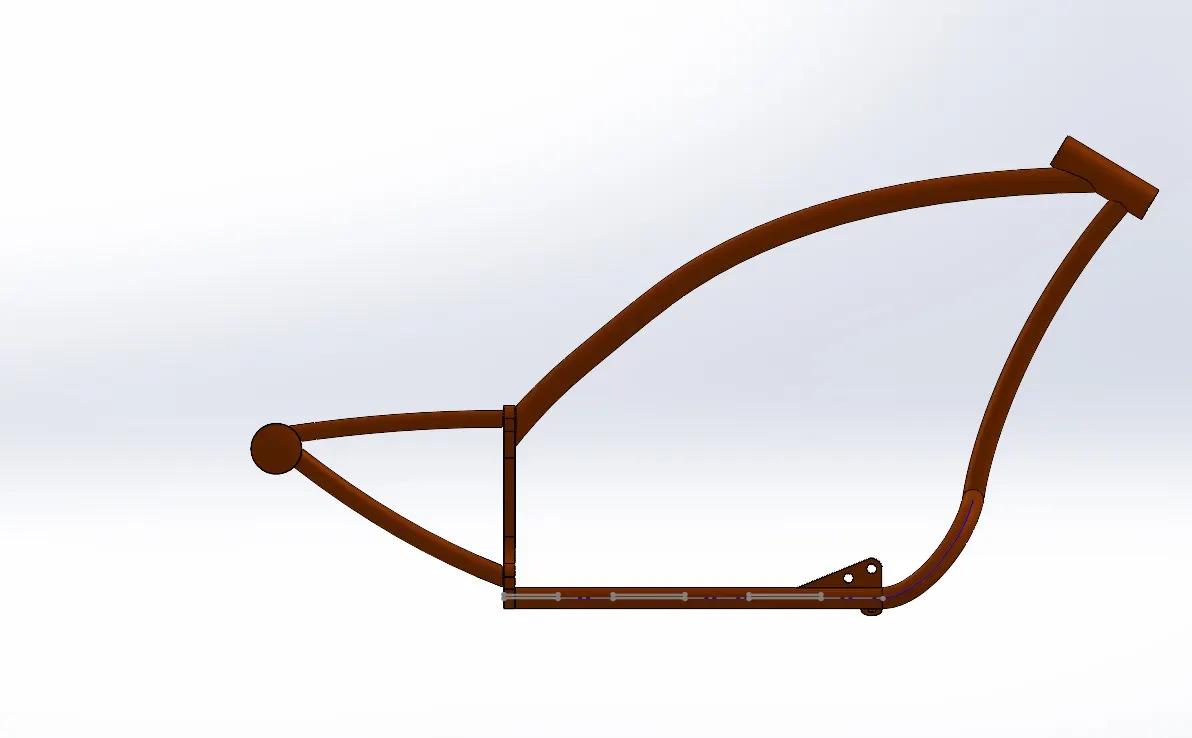

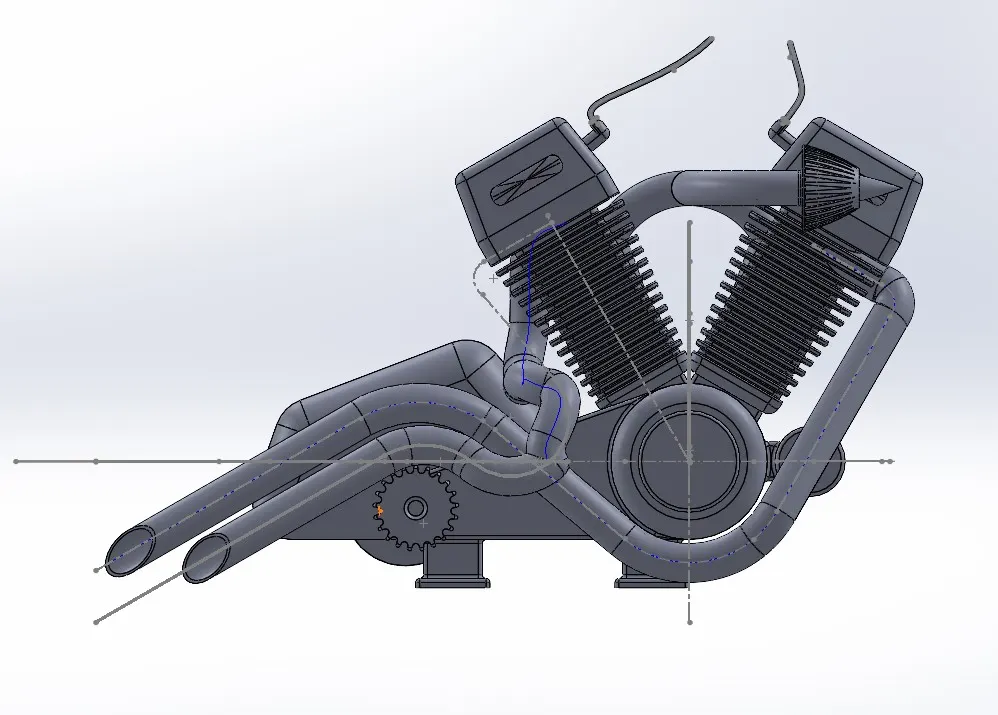

chasis engine

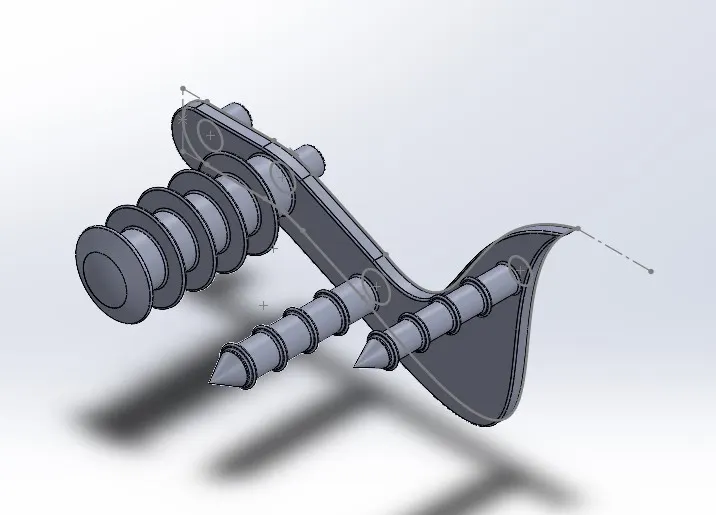

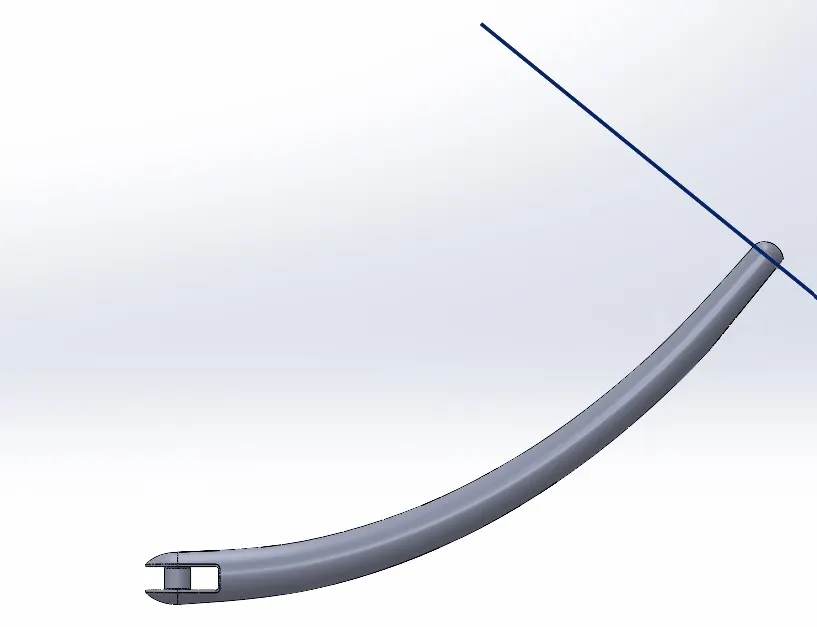

kickstand pedal oil tank

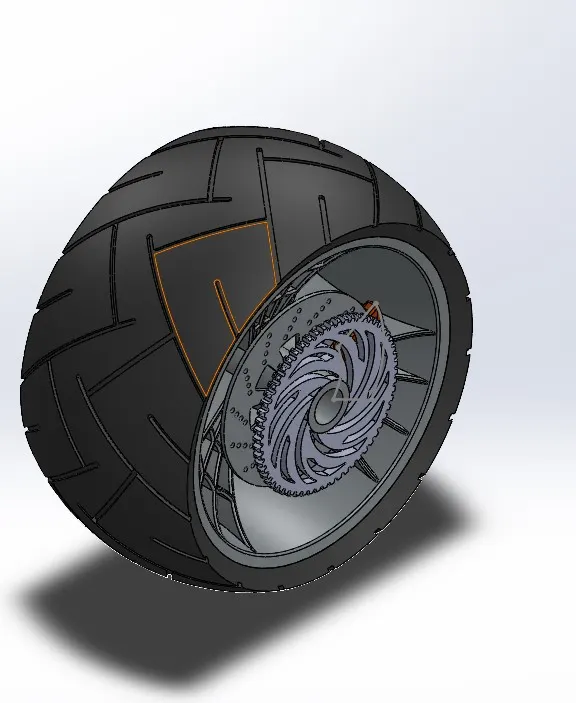

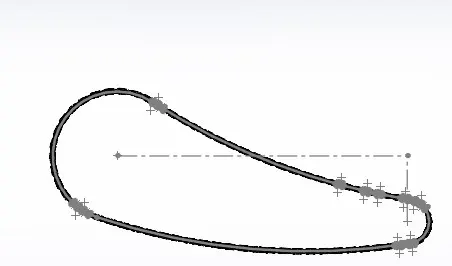

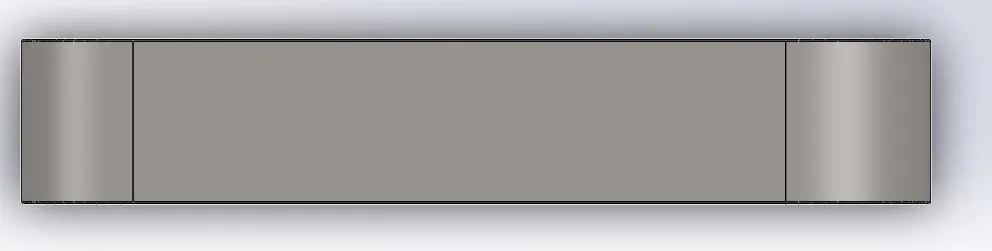

chain transmission belt front wheel

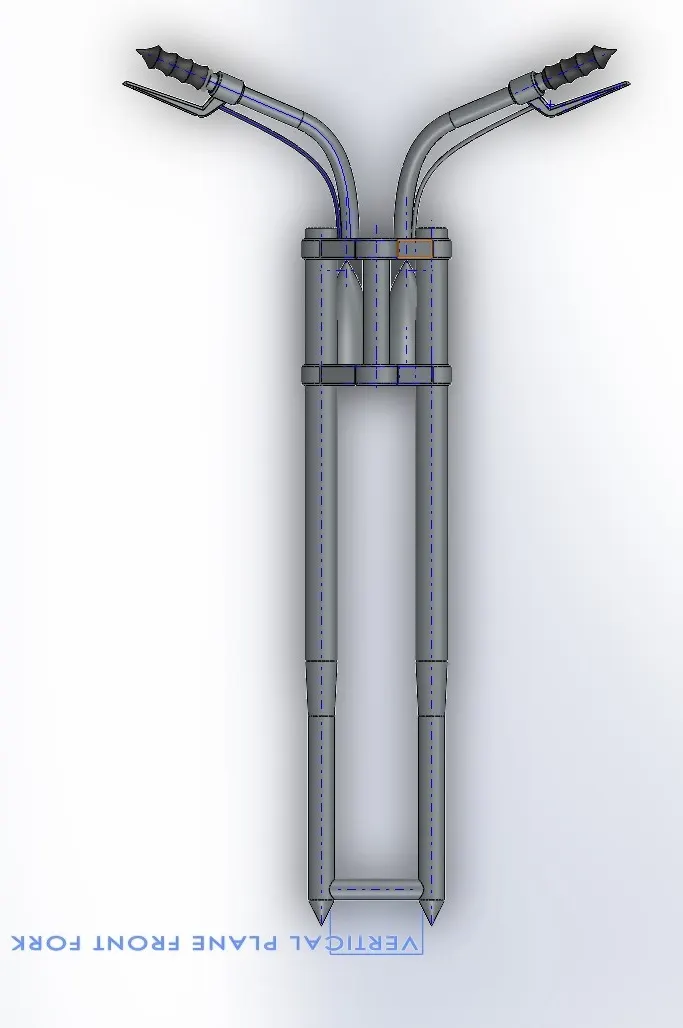

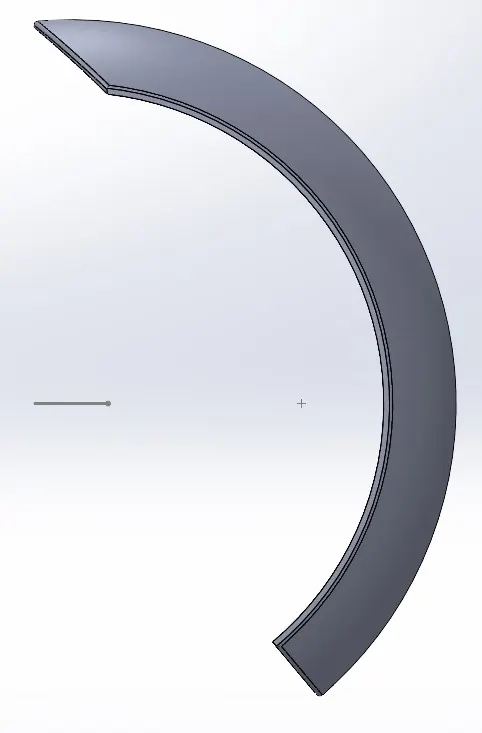

front fork front fender rear wheel

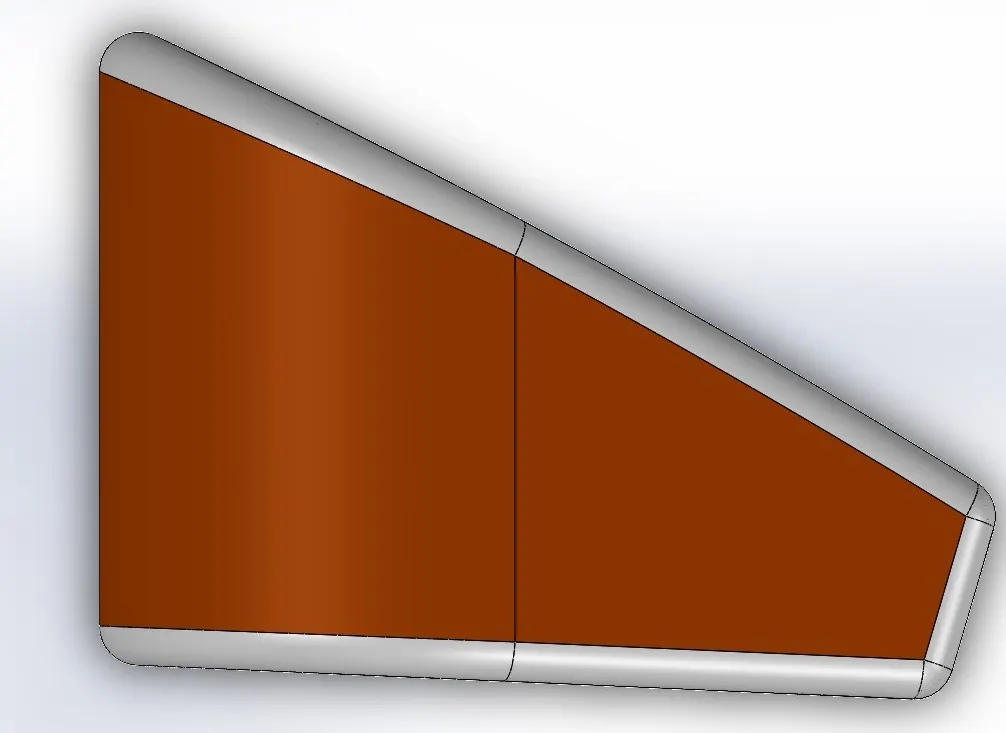

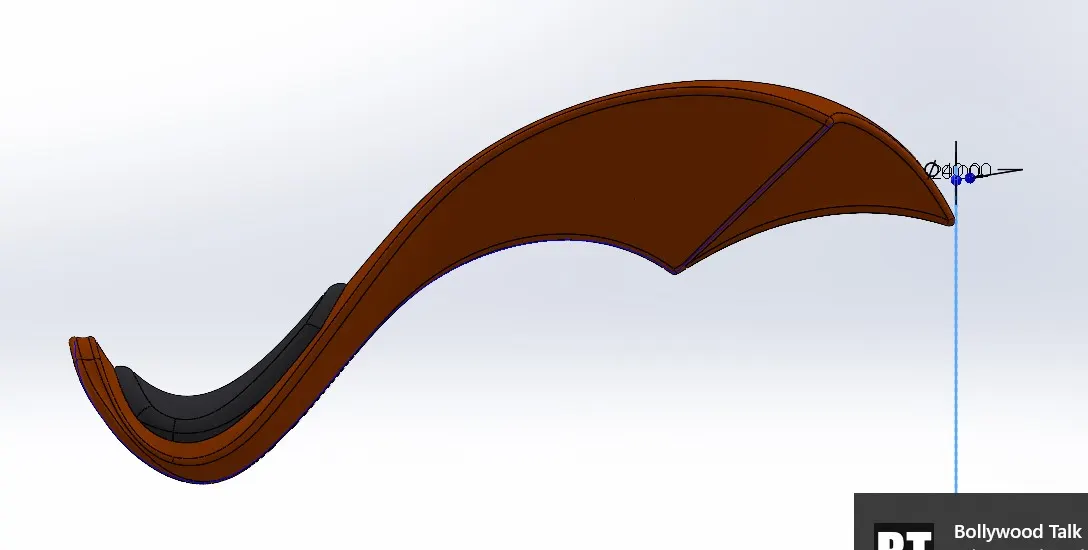

gas tank rear fender

we are here to create the structural model , render of the model

• sketch , feature , assembly , render .

feature extrude : command create a solid or sheet body by selecting a selection of curve , edges . sketches or curve feature and extending them to a linear distance.

feature revolve:command create a solid or sheet body by selecting a selection of curve , edges . sketches or curve feature and extending them to a circular distance.

extrude cut /revolve cut:command remove a solid or sheet body by selecting a selection of curve , edges . sketches or curve feature and extending them to a linear or revolve distance .

doom:this is a feature creates a boundary surface is tangent to the surface with different radius,using edges.

sweep:this is a feature creates a boundary surface is tangent to the surface with different radius,using curve.

steps for photo-realistic rendering - american chopper

step-1 :we have to finalise the position any moving orientation first we have stablise it and later we need to render it

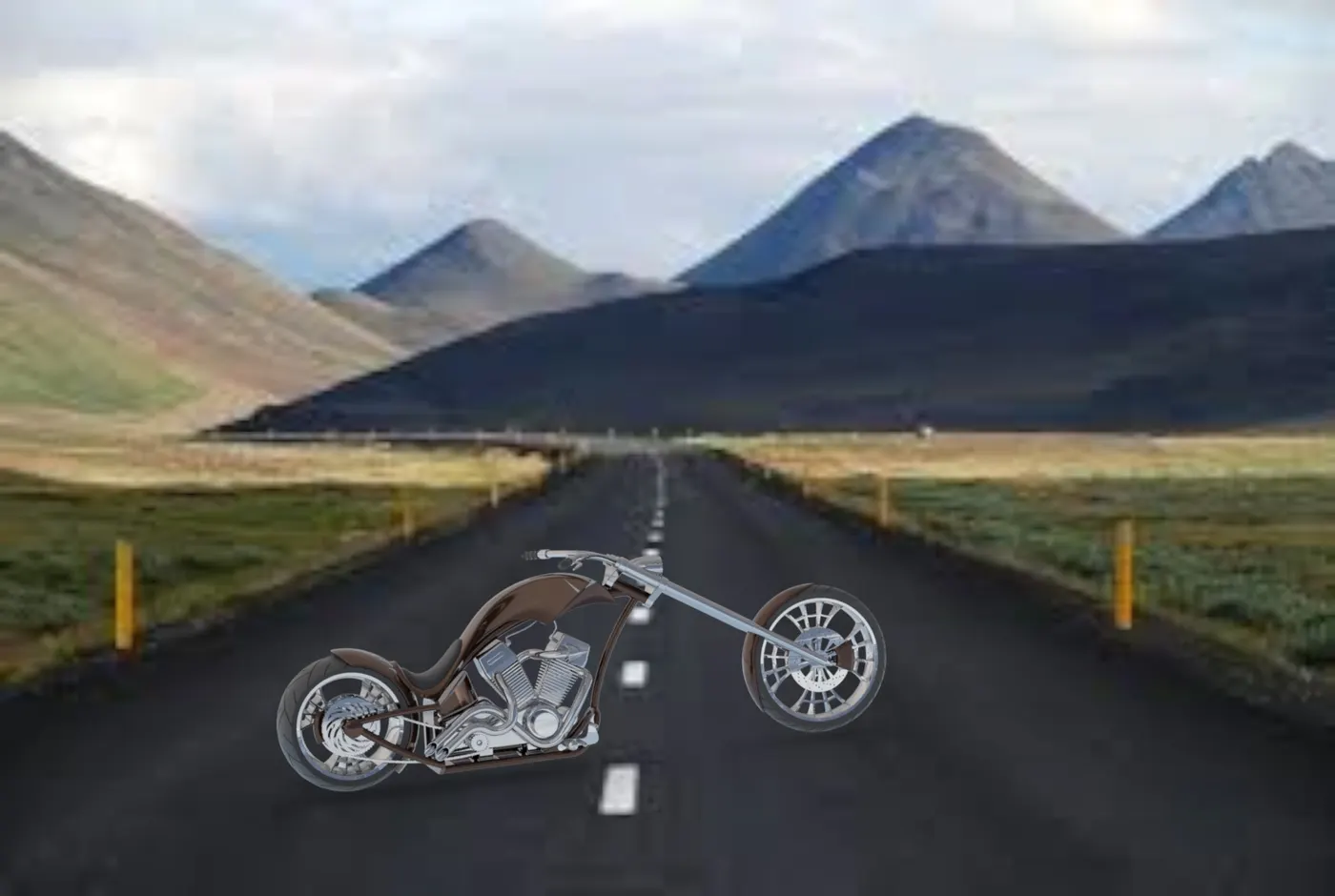

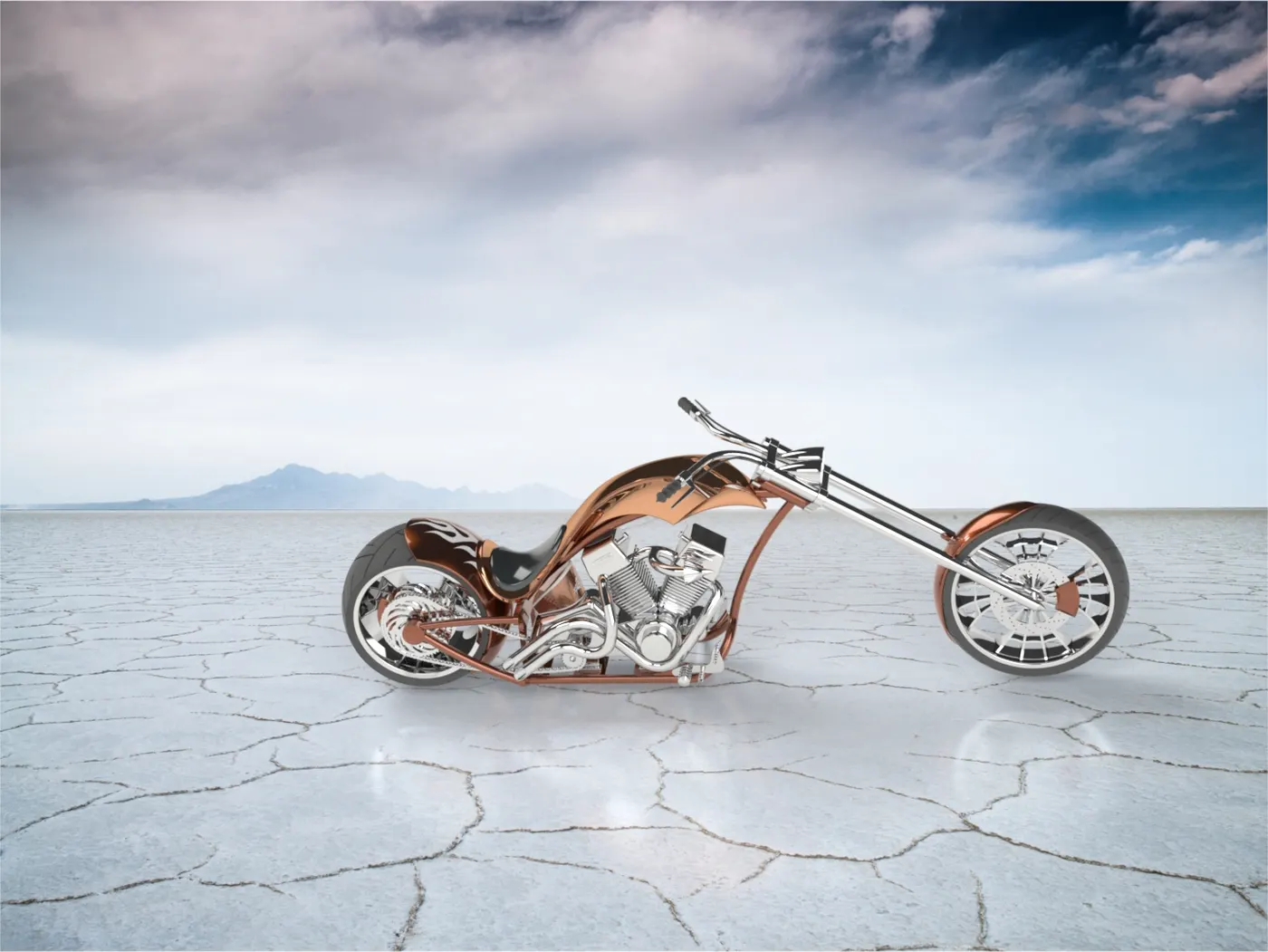

step-2 : for using rendering we need photorender 360 make trail and error to make realistic render using different environment i choosed 2 different location (desert floor , NH ROAD)

step-3 :after applying environment . set the shadows , lights , camara (use trail and error process to render better perfomence )

step-4 :select the resolution of our model final render , pixel , density and perform the render

step-5 :save ur rendering
