Challenge

Modelling of 25 storey building with the specified properties using ETABS

ETabs modeling of 25 story building

AIM

To model and analyze a 25 story building with given specification and to cross-check the parameters as per IS 1893 provision

PROCEDURE

  • Open the ETabs software
  • Click the file menu and choose to create a new model option

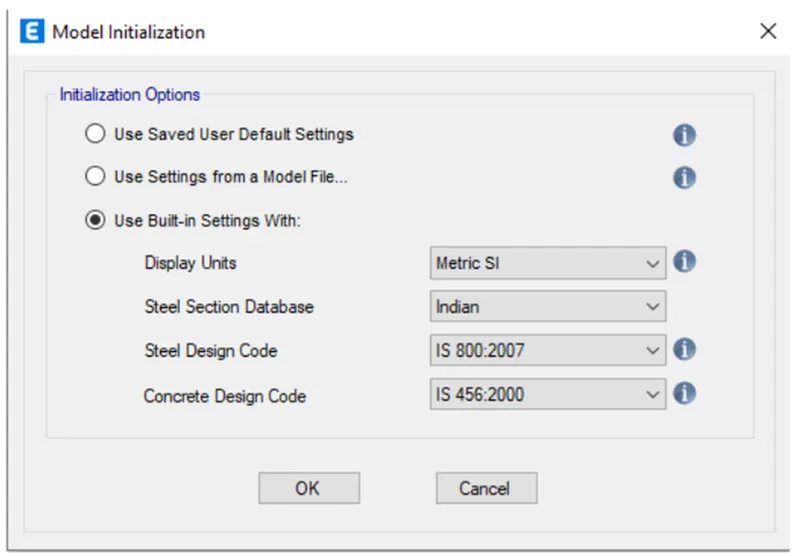

  • After choosing a new model a dialogue box will appear as model initialization

  • Choose the built-in settings option and select the display units and codes
  • After model initialization select the grid and story inputs from the New model quick templates dialogue box
  • In this dialogue choose grid spacing and custom story data which is used to provide the inputs specified above

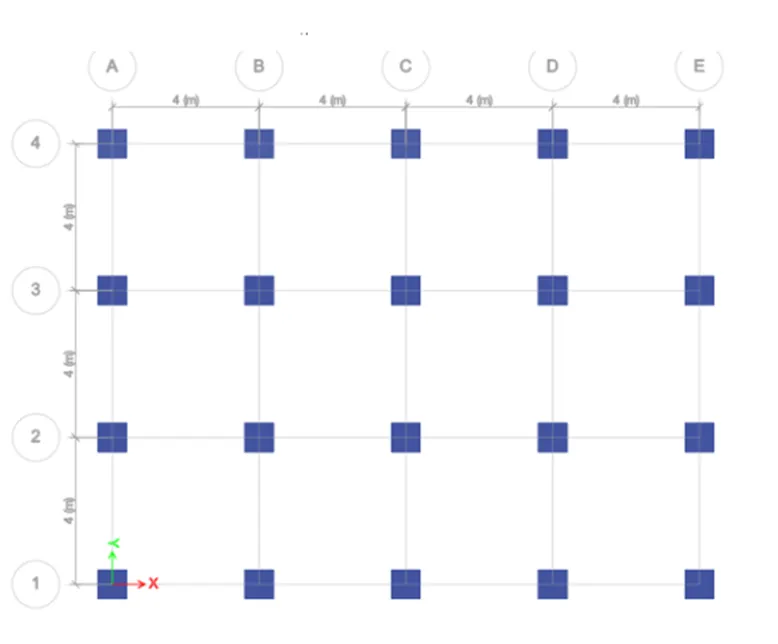

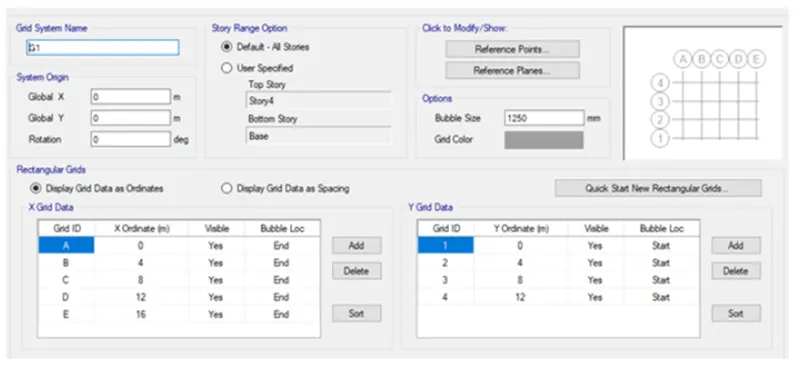

  • Enter X grid data at a distance of 4meter and y grid at as 4 at a distance of 4m

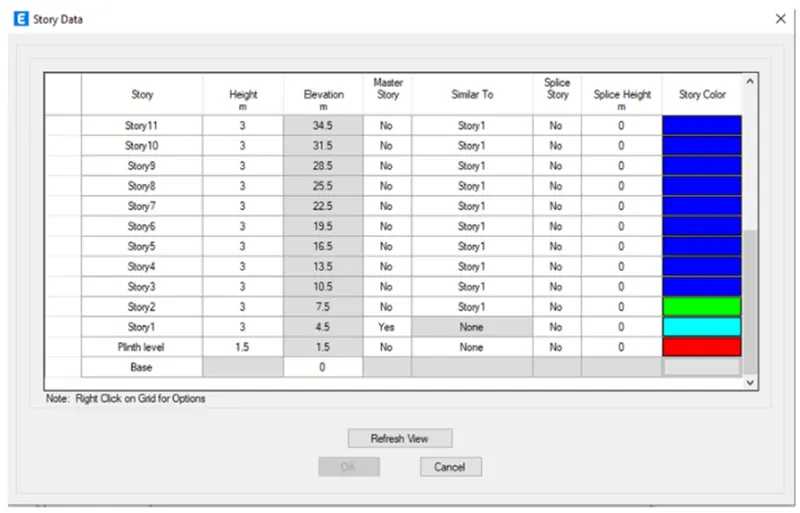

  • Now edit the stories by using the user-defined story input, 26 stories are incorporated
  • Story 1 has been labeled as master story and all above levels are labeled similar to that

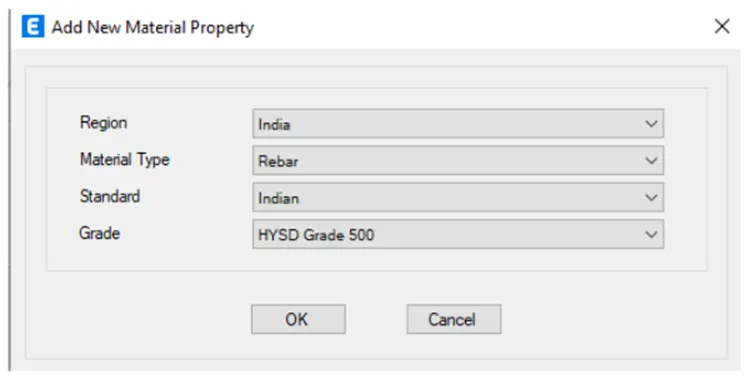

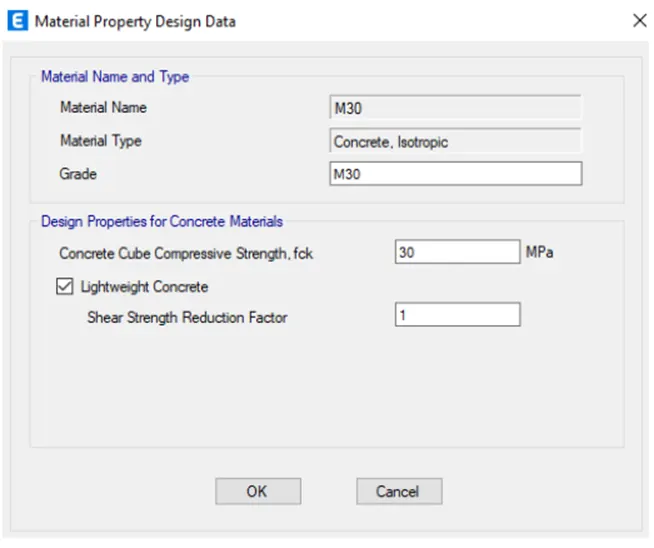

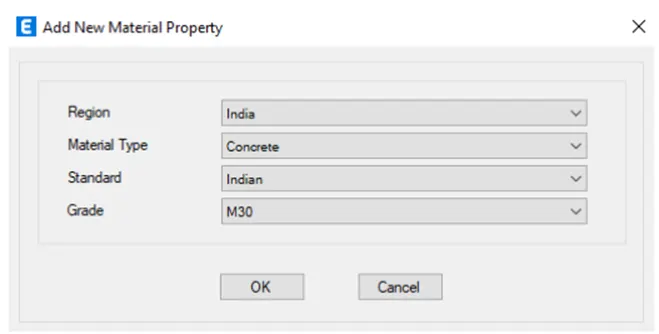

  • Select material properties under the defined tab

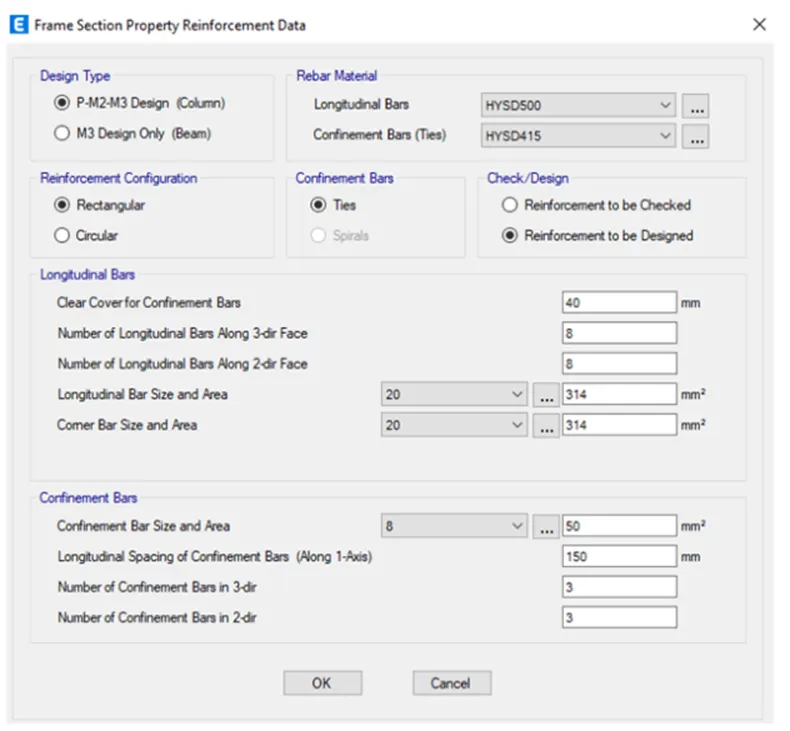

  • Define the materials of concrete M30 grade and steel of transverse of reinforcement as 415 grade and longitudinal reinforcement as 500 grade

  • Select section properties under the defined tab

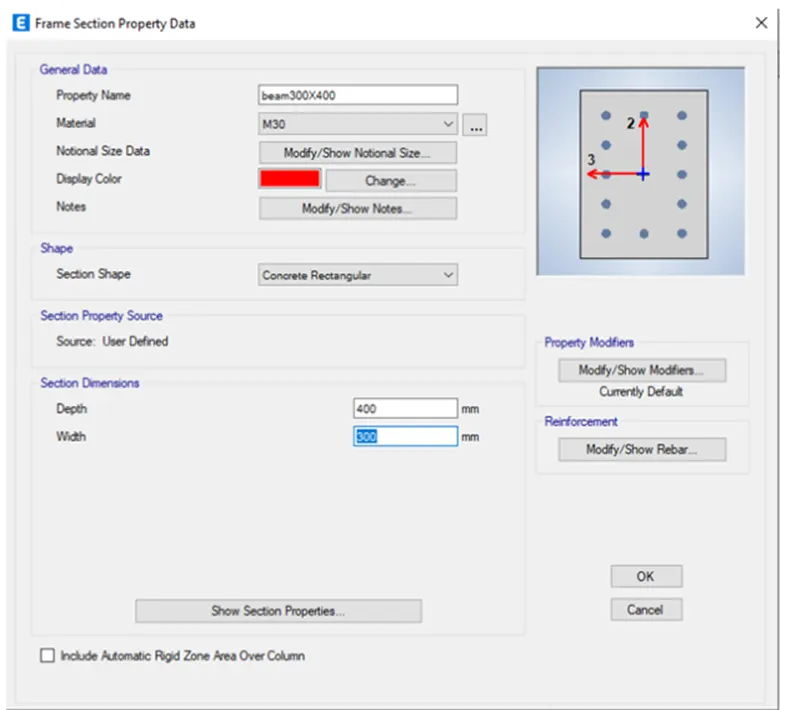

  • Click on the frame section and create the new property as beam and input the values as 300*400mm

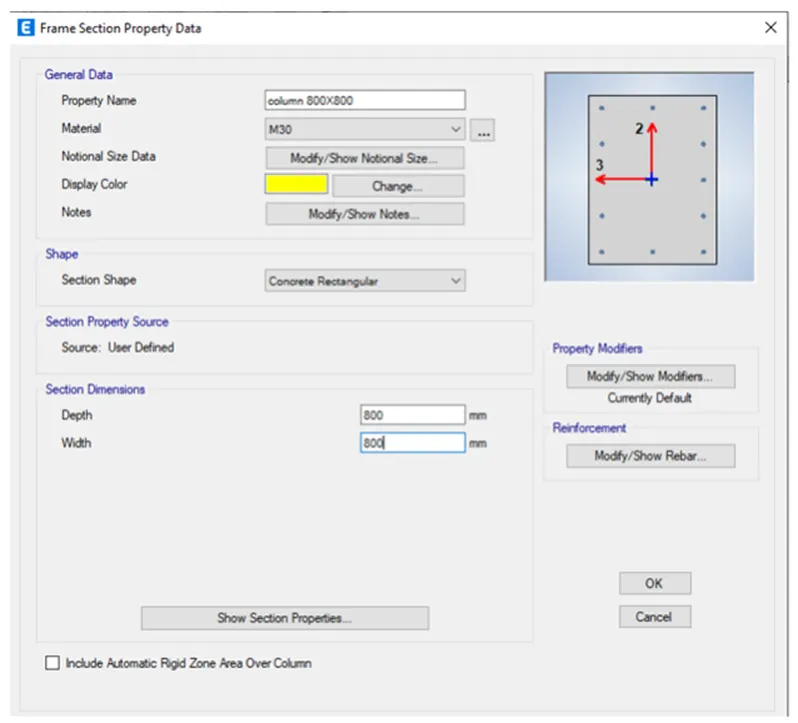

  • After the defined properties for the column as 800*800 and slab thickness as 150mm

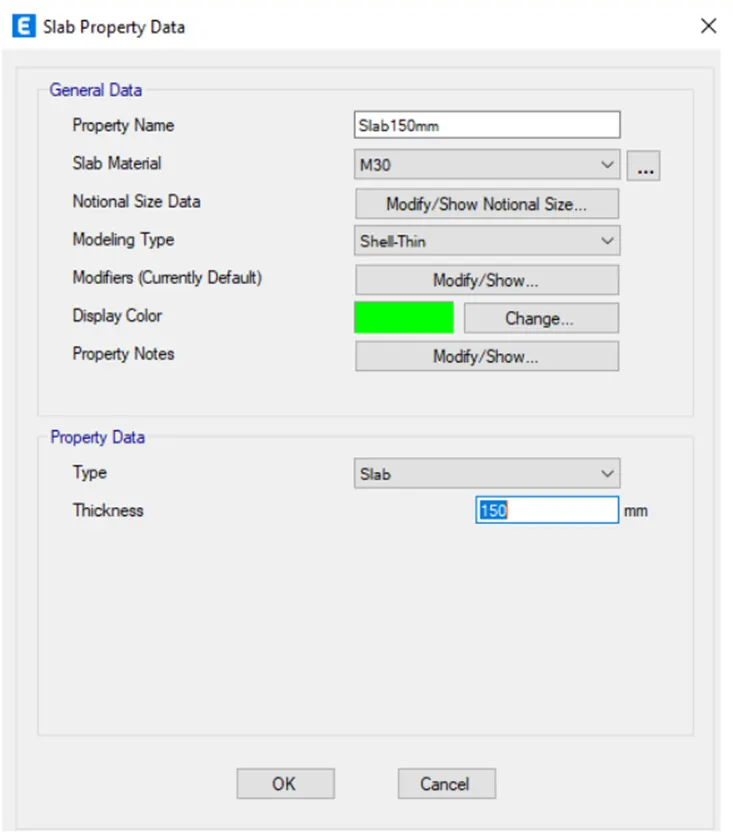

  • Using the membrane property, slab size 150mm has been added to the list
  • Membrane property will help to consider only slab weight and floor weights in analysis of structure while no stiffness component of flange advantage are considered during the calculation

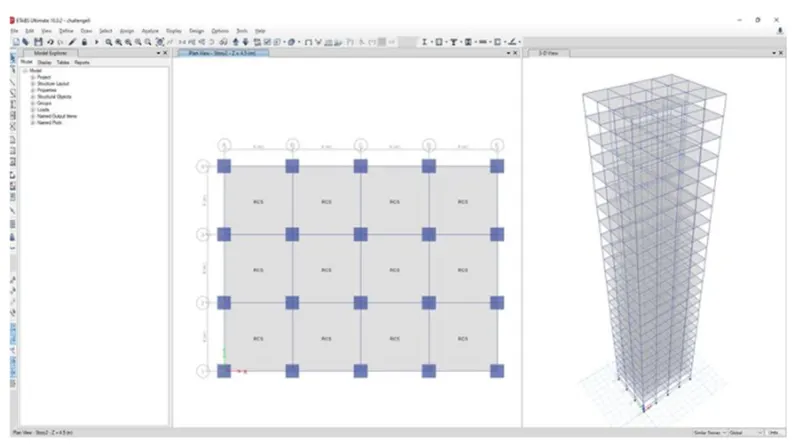

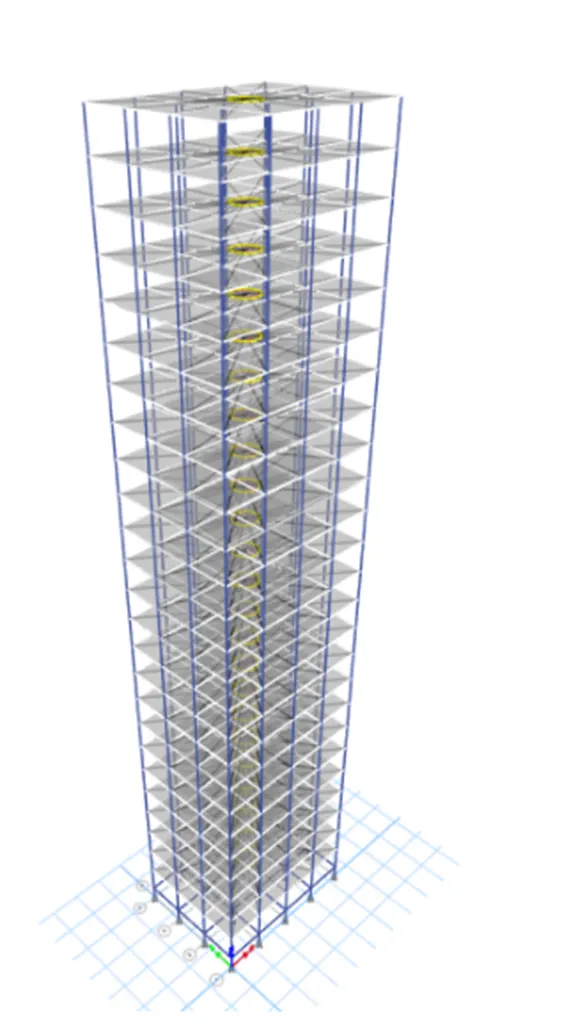

  • Now draw a column of size 800*800mm at the intersection of the horizontal and vertical grid and beam with a quick draw tool keeping all stories on

  • Beams drew using quickdraw beam tool keeping all the stories on

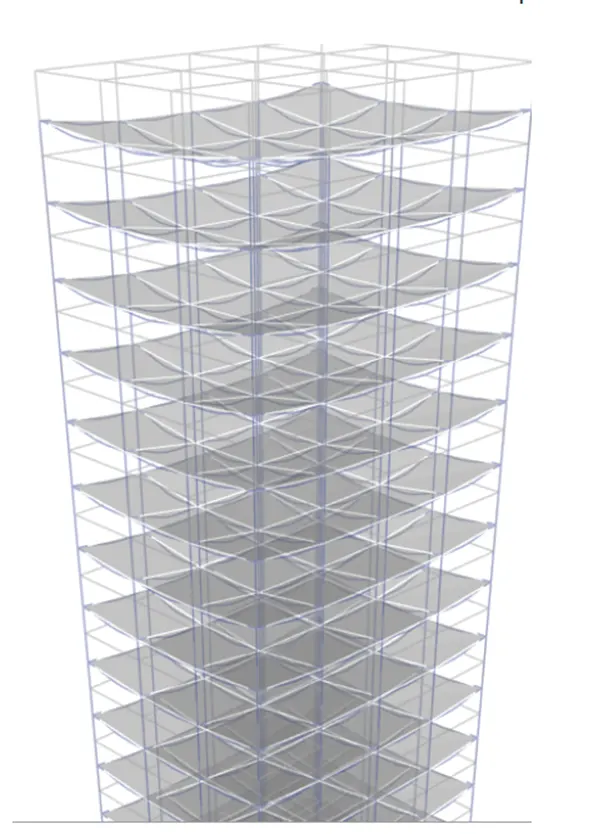

  • Using the quick draw floor option, all the slabs have been modeled keeping similar stories ON

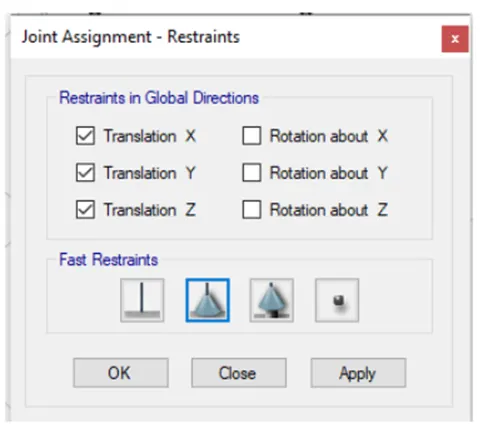

  • Select assign and click on joint select pinned support
  • Fix the pin support at the base

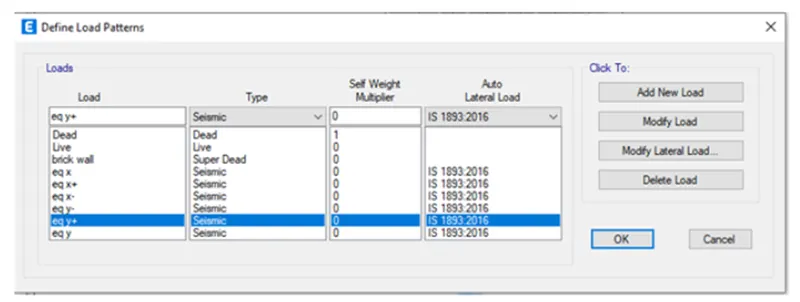

  • Now define the load pattern: Click on the define data and click on load pattern
  • Define the loads like dead load, live load, brick load, earthquake load in the X direction and positive X and negative X, and the same loads in the Y direction also. Mention IS codes of respective loads

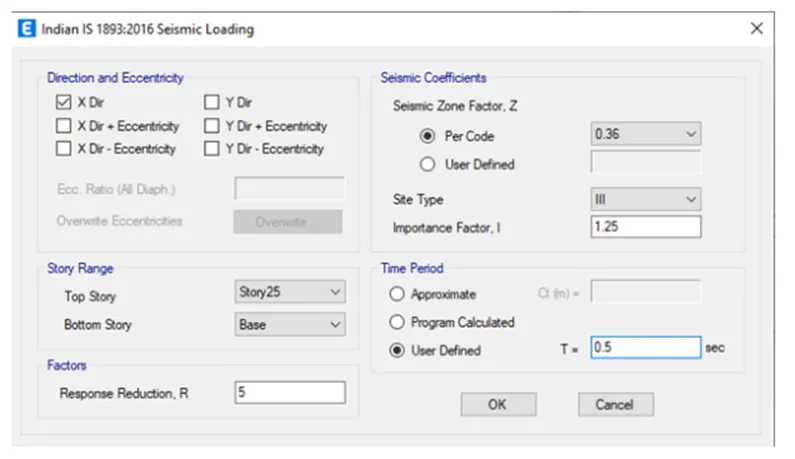

  • Click on modify lateral load, set range from base to 25th stores and seismic zone factor as 0.36, importance factor 1.25, and period 0.5 seconds

  • Do the same for all the earthquake loads
  • Assign the loads and select similar stories

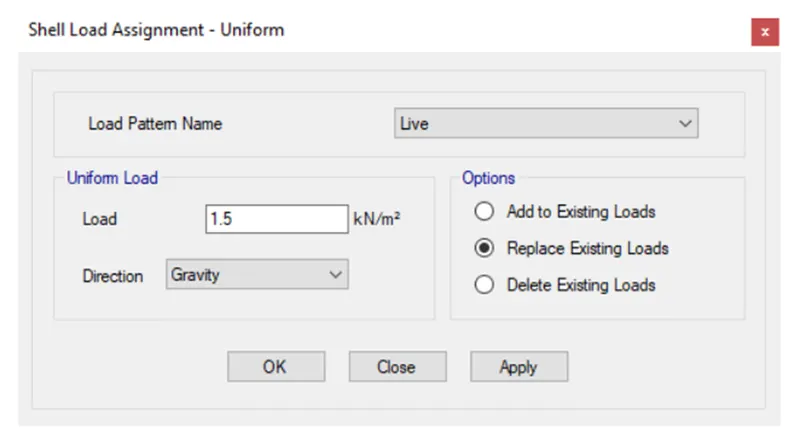

  • Click on the shell load under the assigned tab
  • Click on live load and give value as 3kN/m^2
  • Click on apply

  • For the roof, we will take only 50% of the live load

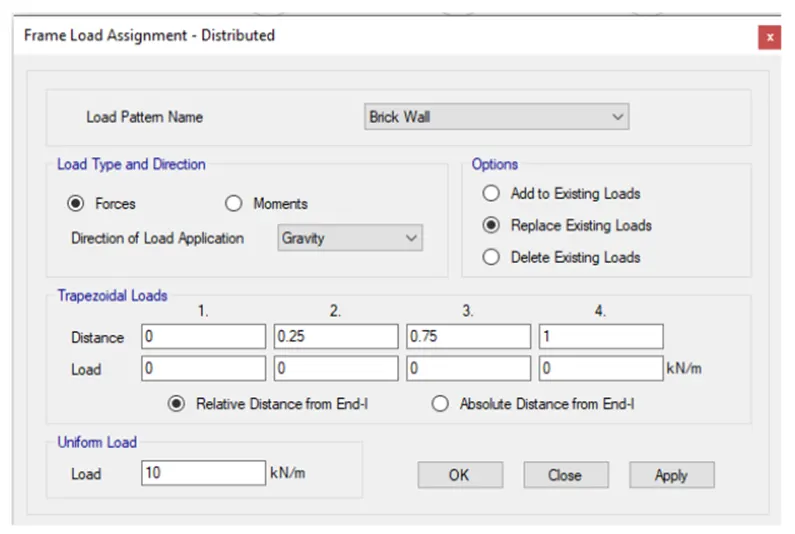

  • Similarly, add a live load of 10KN/m^2 on all the beams
  • For that select all the beams from select object type beams
  • Go to the frame load and click on the distributed load and enter the value as 10KN/M^2

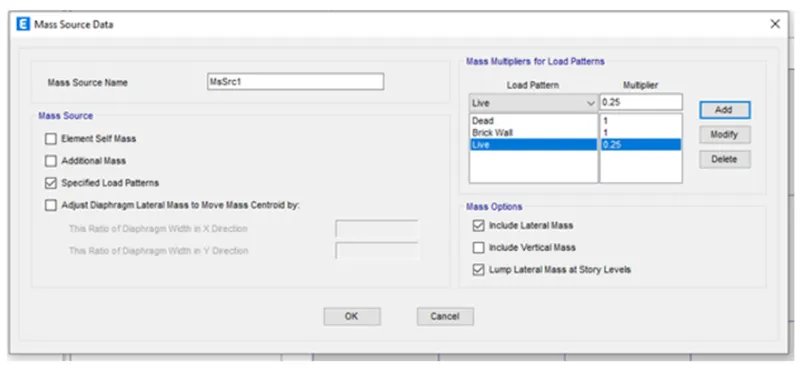

  • Now go to the mass source from the defined tab
  • Modify the mass source and tick mark the required loads
  • Add load pattern and assign to the model

  • Define the load cases

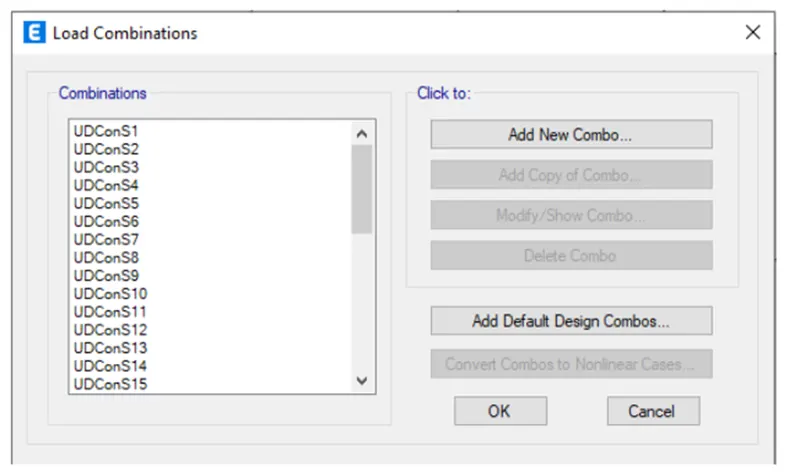

  • Click on the load combinations
  • Click on the add default design combos

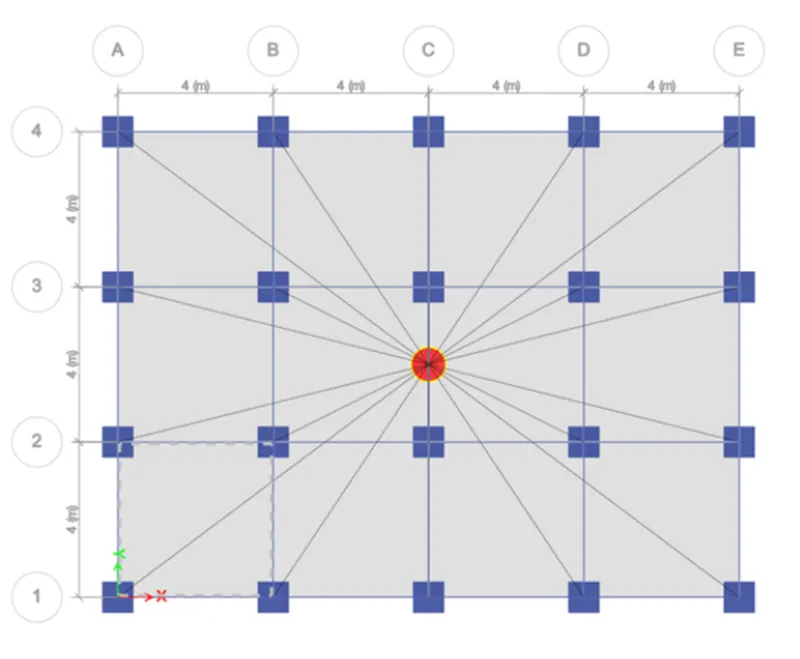

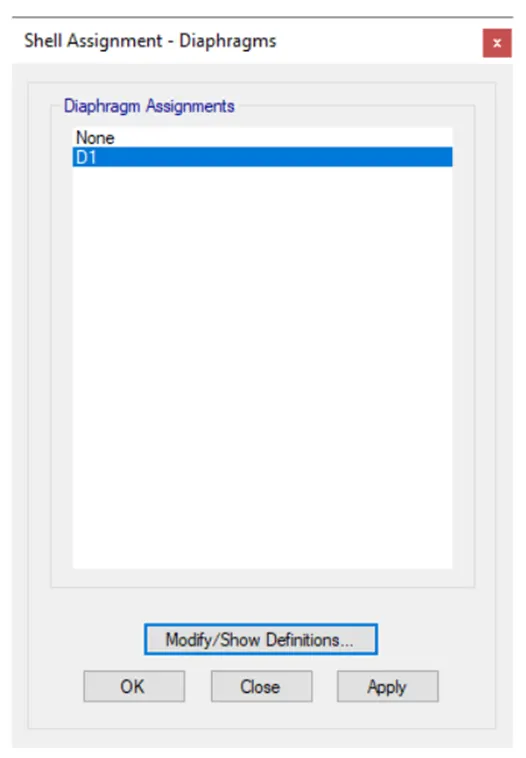

  • Now create the diaphragm by going to the assigned tab then shell and selecting diaphragms

  • Click on OK

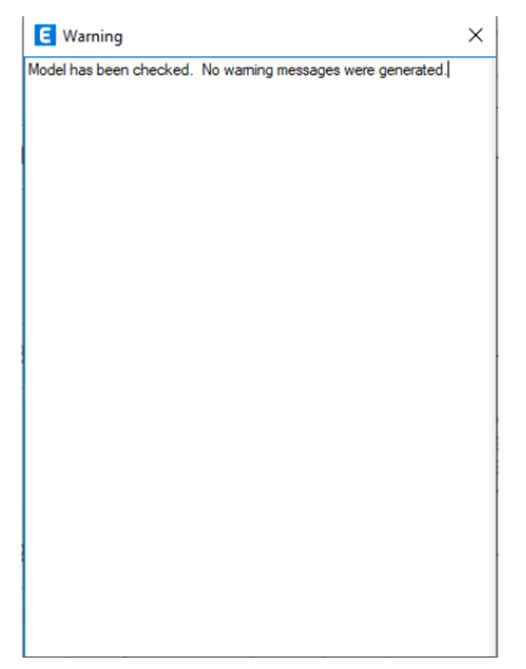

  • Analyze the model using analyze option then click on check model, the modeled structure is verified without errors and warnings

  • Using analyze>run analysis, the model is analyzed and deflection patterns, BMD/SFD patterns are cross-checked logically. It is understood that the worked model provides reliable results

RESULT

  • Now click on Display>show tables>Analysis results>Structure out>Model information>modal periods and frequencies.
  • The periods for fundamental model-1Y direction and fundamental Mode-1X are noted from the table and are as follows

  • T*1=3.746sec and Ty1=3.913sec

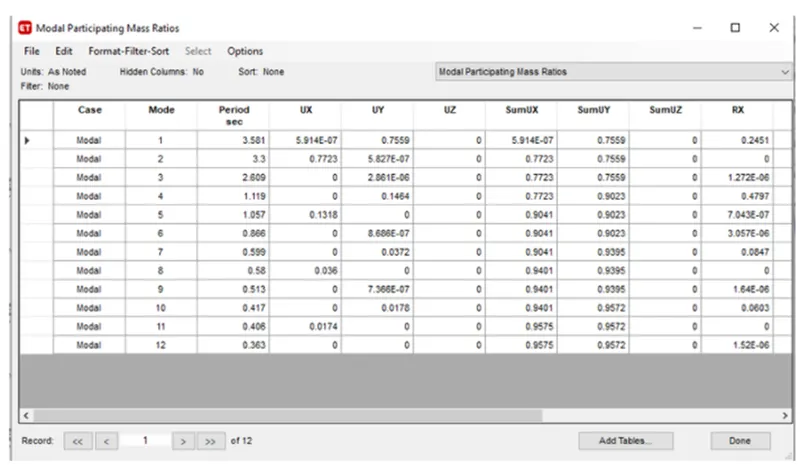

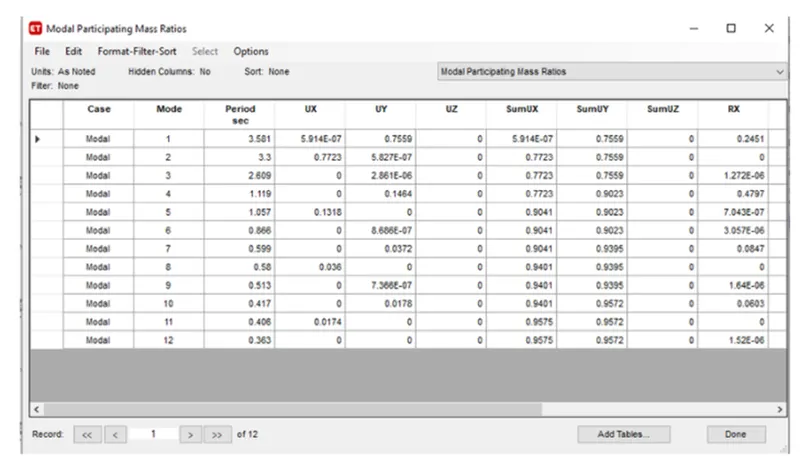

  • Display>show tables>alaysis results>structure output>modal information>modal participation mass ratios.
  • From the table, the natural period for mode-1 and torsional; DOF is noted as following

  • T*1=3.581sec Ty1=3.3sec Txy1=2.609sec
  • So from the result, it is clear that the torsional period is less than two translational time periods as required by IS1893 provision table 5
  • When we add three-mode mass ratios we get 0.9044 which means the first three modes of seismic oscillation contribute more than 65% of building weight as per Etabs analysis
  • The story drift for serviceability Base shear Case is tabulated from the following tool oaty

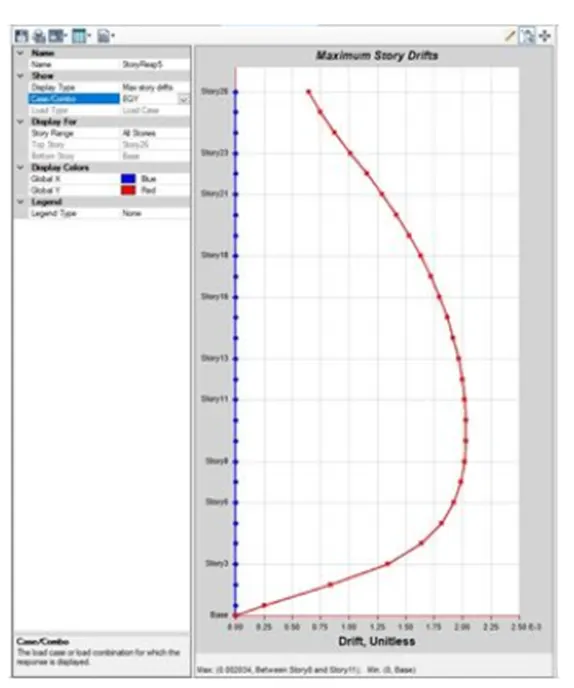

  • Go to display> story response plot
  • Keeping load case to EQY and switching to max story drift the maximum drift value noted is 0.0020

  • So as per clause 7.11.1.1, the maximum inter-story drift militates to 0.004 for each story height
  • But our value is 0.0020 which is within the code limits
  • CONCLUSION- The modeling is completed and analyzed in ETabs and the results are within the given ranges
