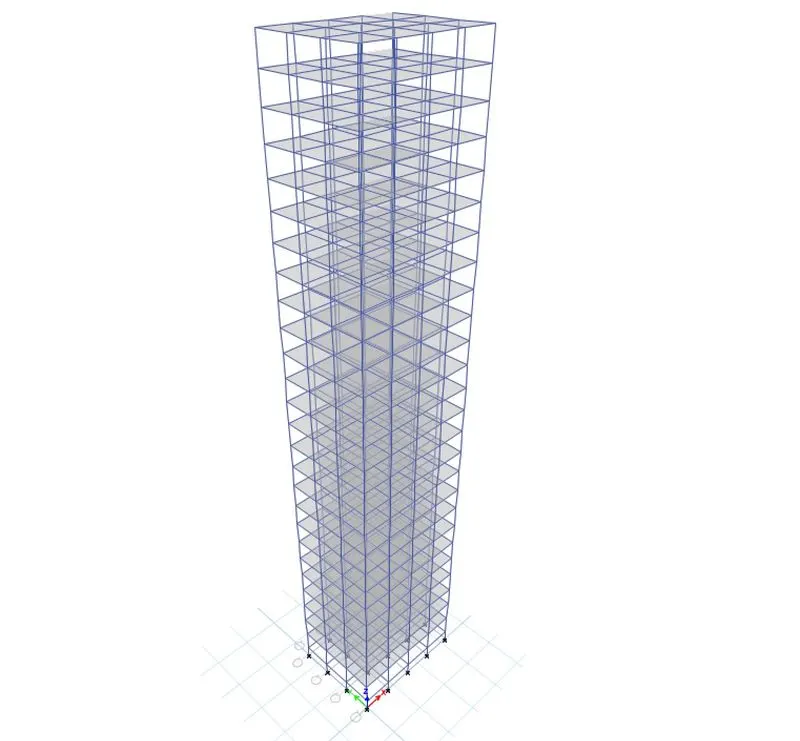

Modelling of 25 storey building with the specified properties using ETABS
GIVEN-
Beam- 300X400mm
Column- 800X800mm
Slab - 150mm

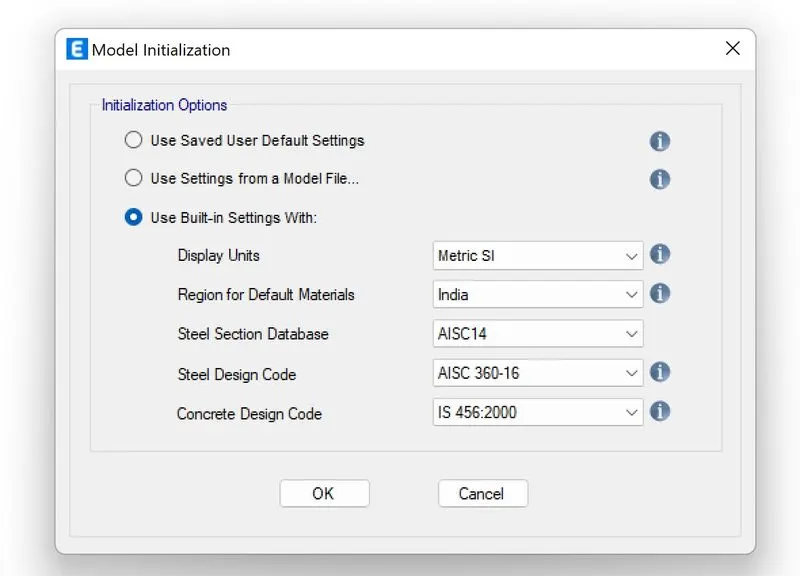

1. Input the following into new model:

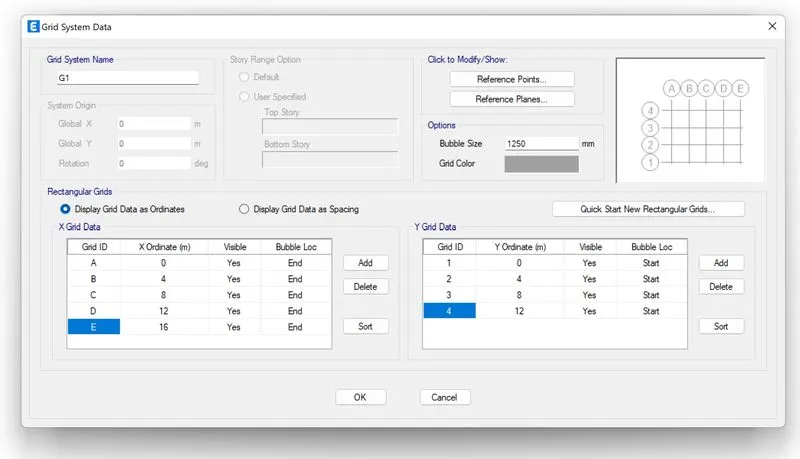

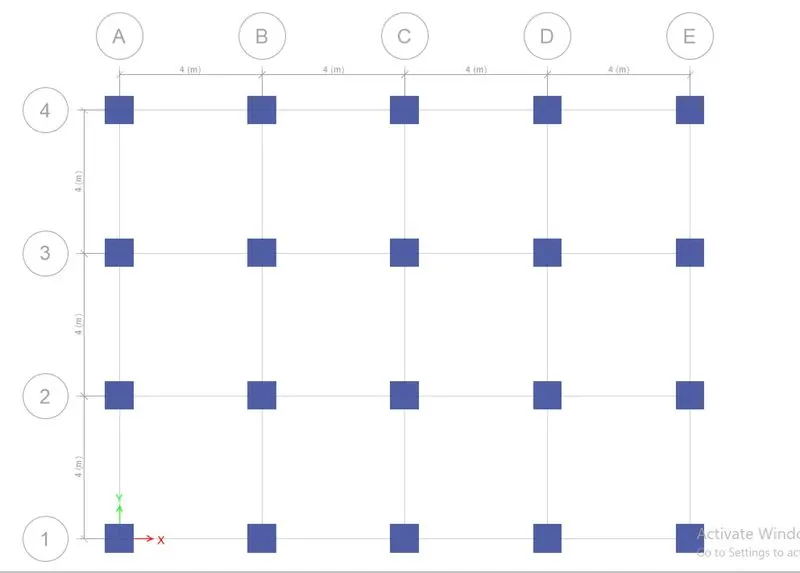

2. Add Grid settings :

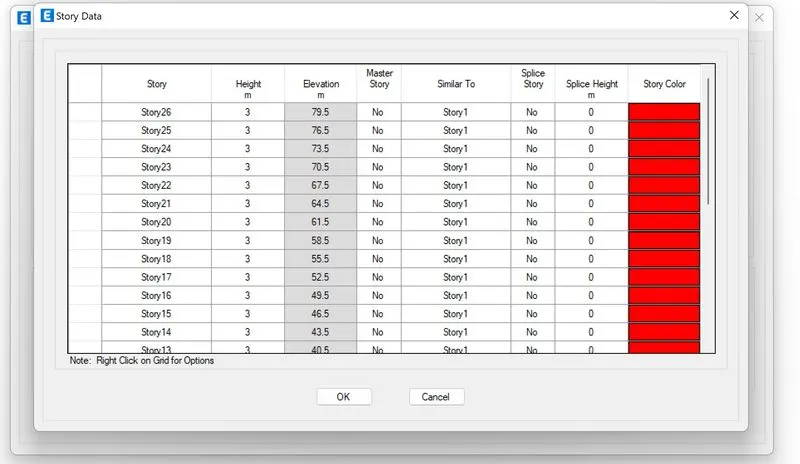

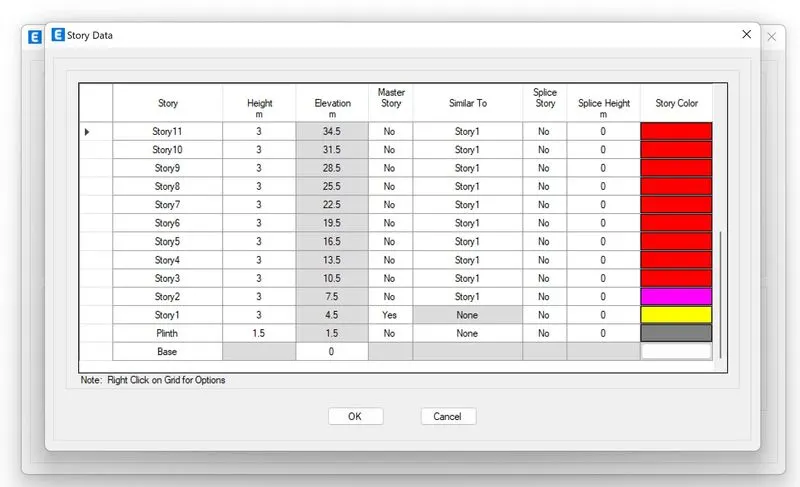

3. Add storey settings:
- add plinth elevation as 1.5m from base and rest stories 3m.
- make the 1st storey as master storey and add all as similar to first except the 'plinth level'.
4. Define material properties:

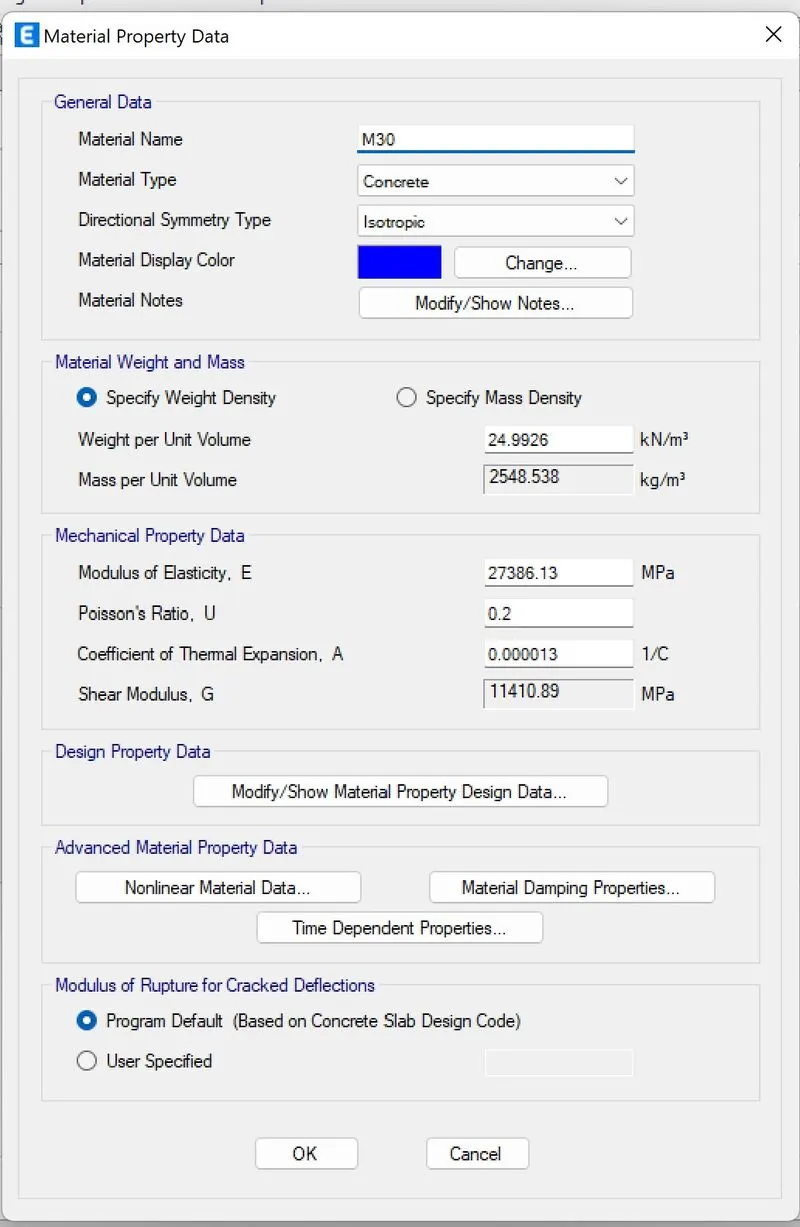

- Concrete M30

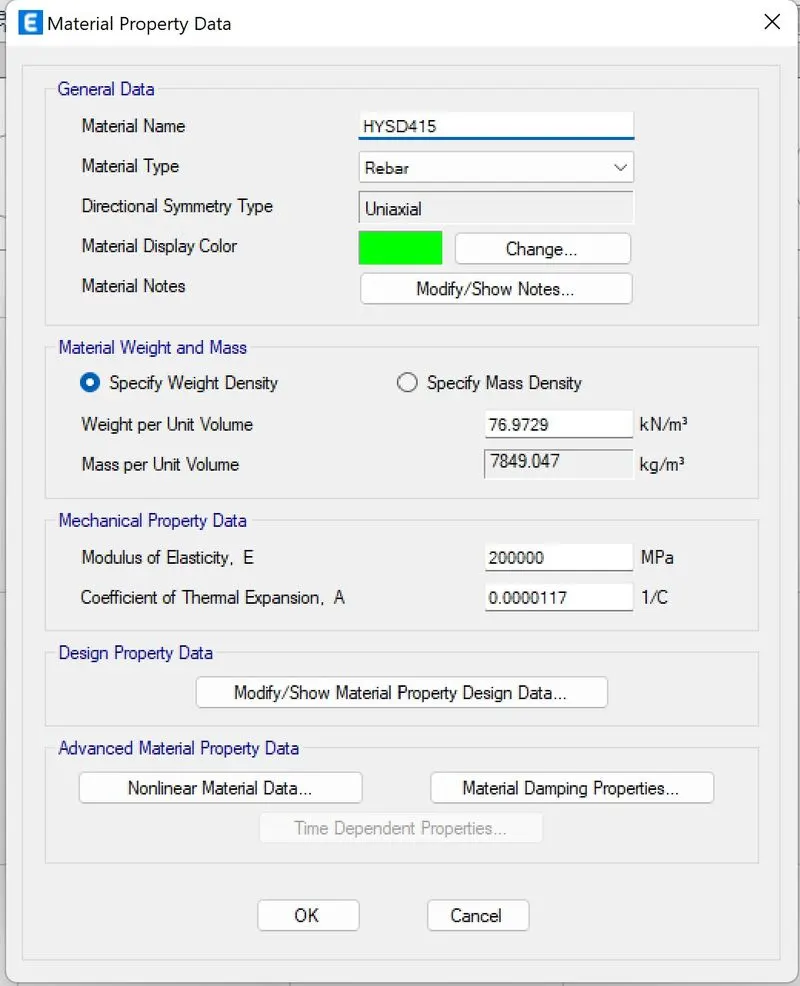

- Rebar fe415 grade

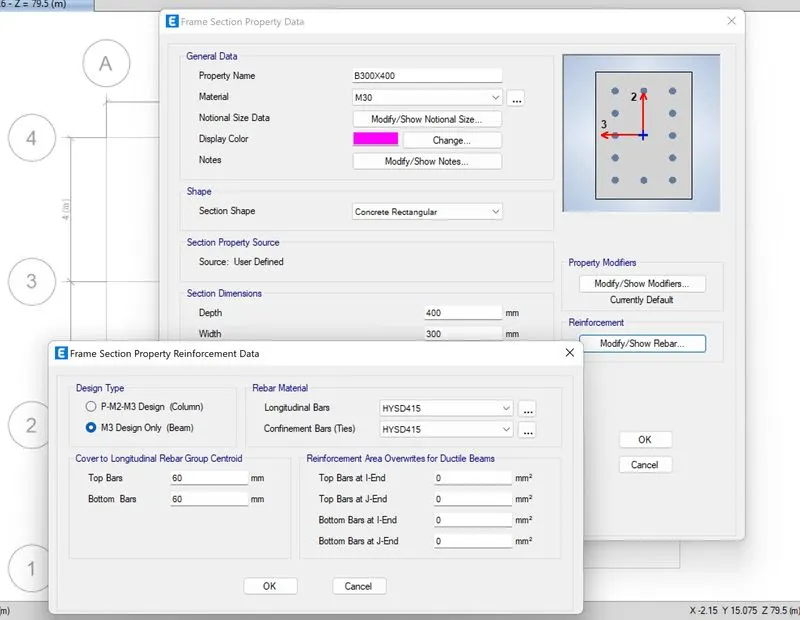

5. Define beams and columns:
- beam 300X400

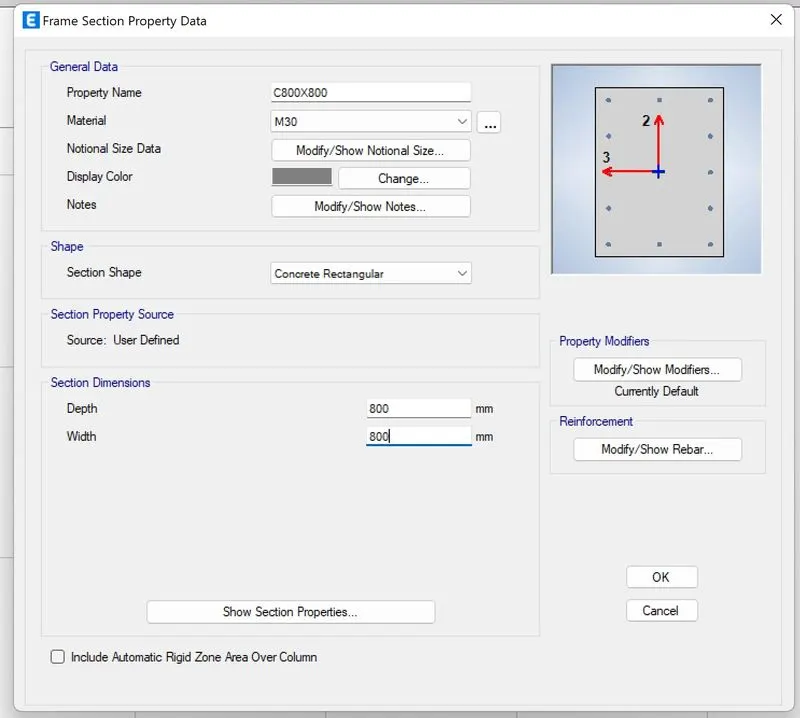

- column 800X800

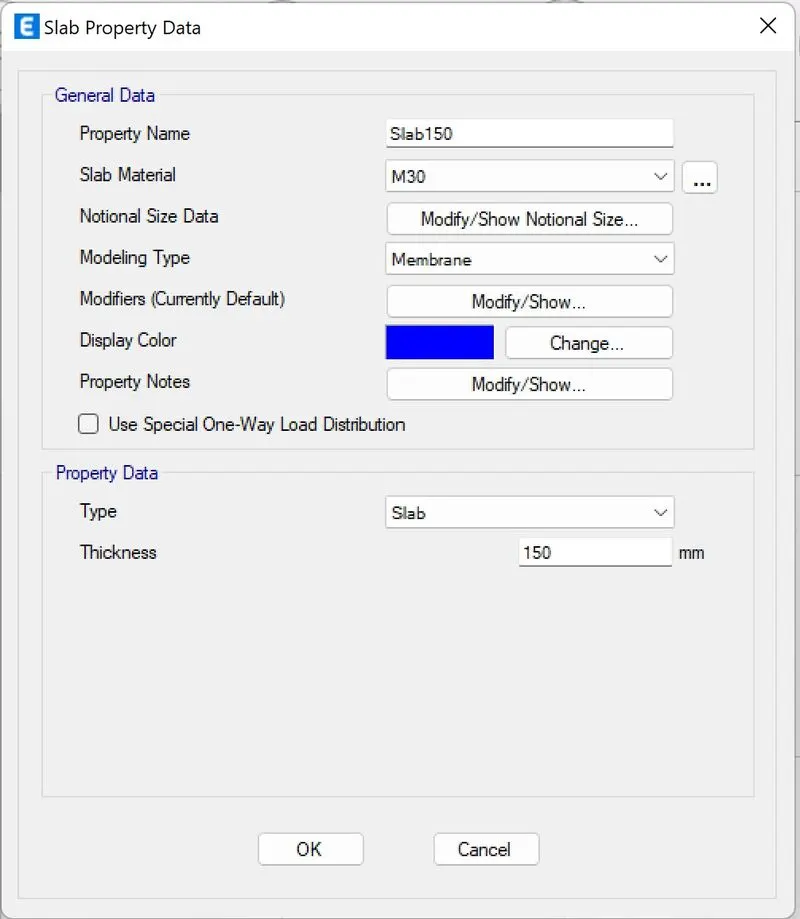

6. Define slab:
slab 150mm thickness

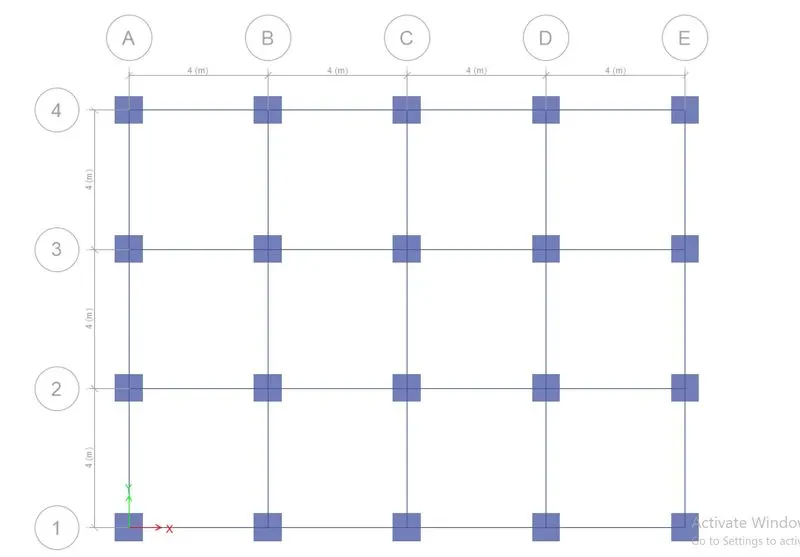

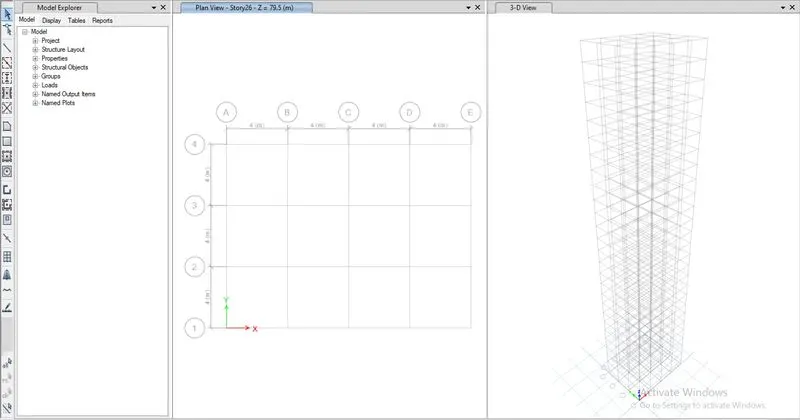

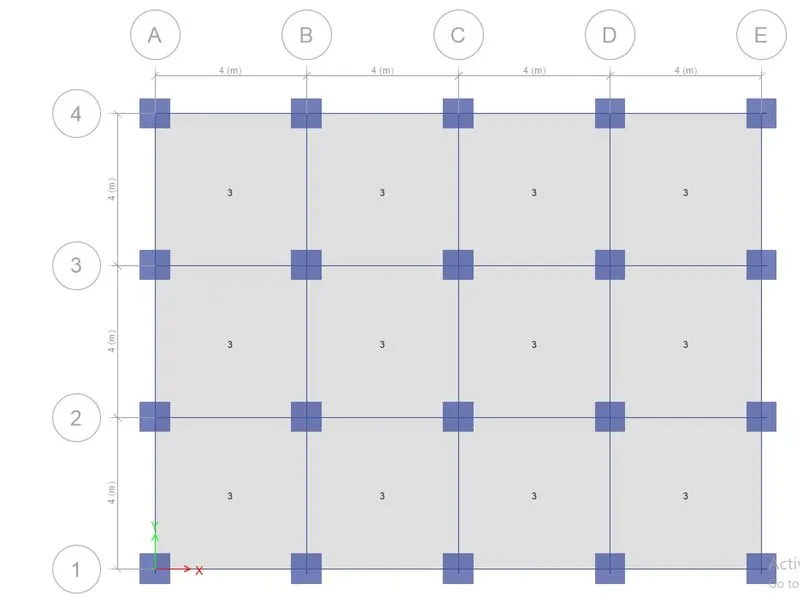

7. Drawing of beams and columns:

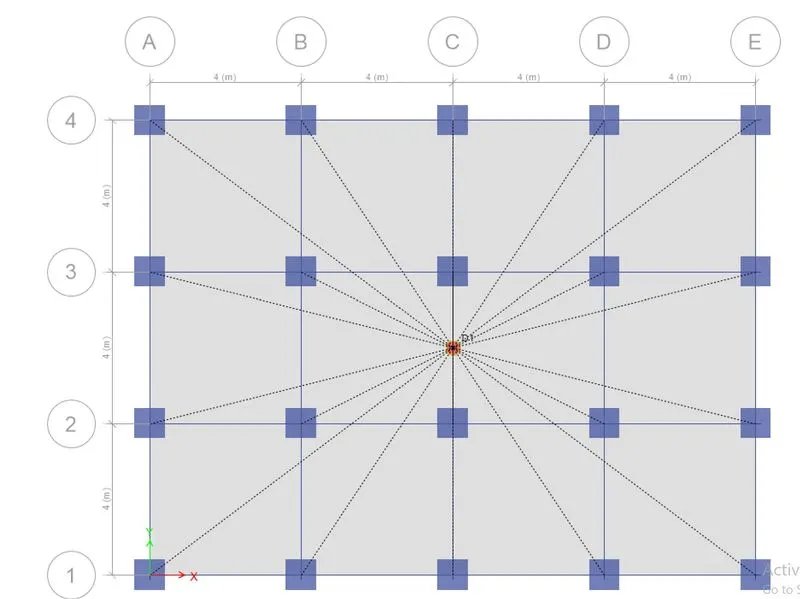

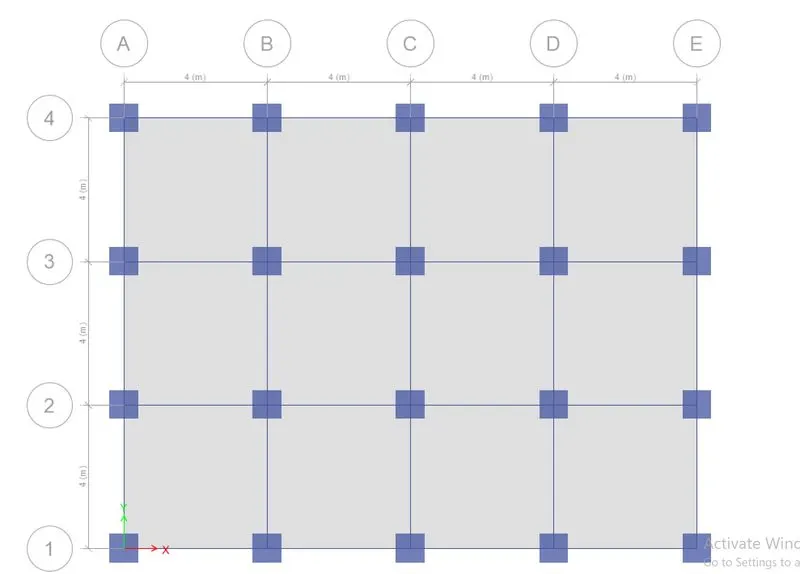

8. Slab drawing:
Slab is not drawn at the plinth level, hence turn to similar stories.

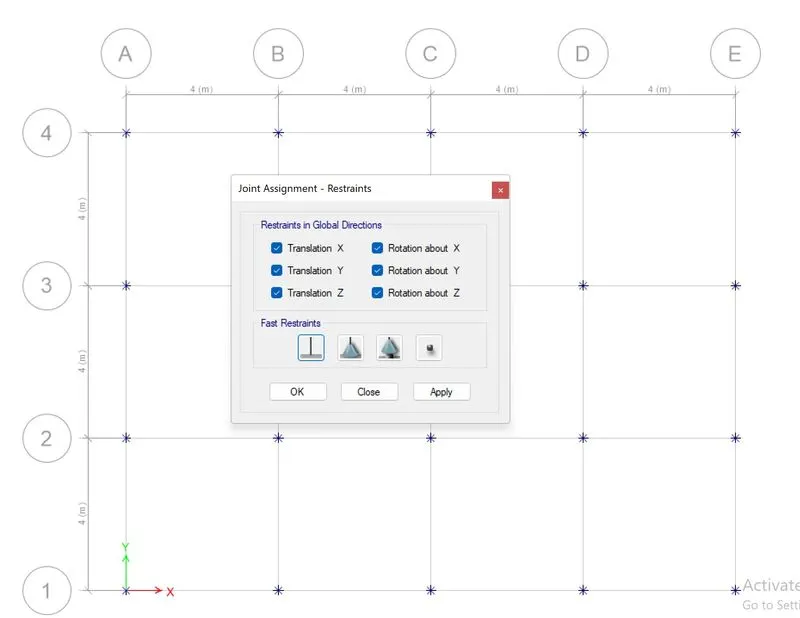

9. Fixed connections:
10. Loading :
- self weight is already assigned in ETABS.

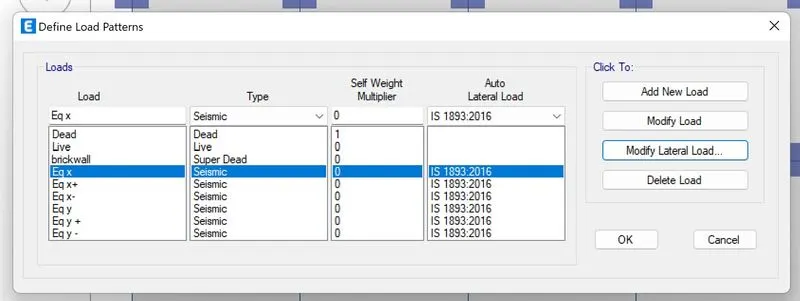

- define load patterns.

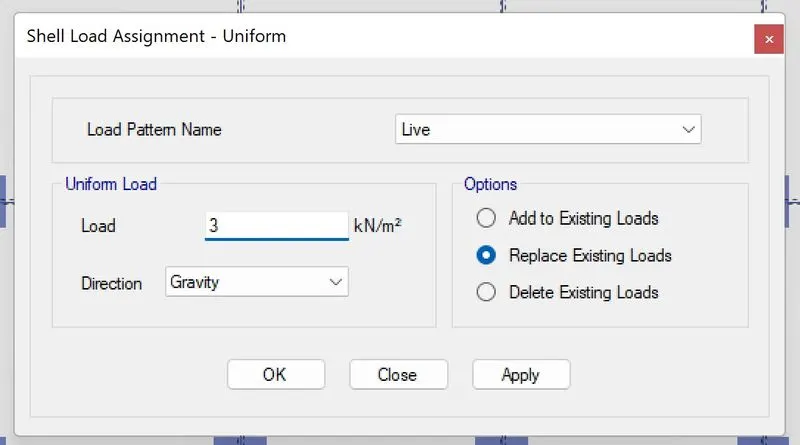

11. Live loads:
- Live loads are assigned as 3kN/mm^2.

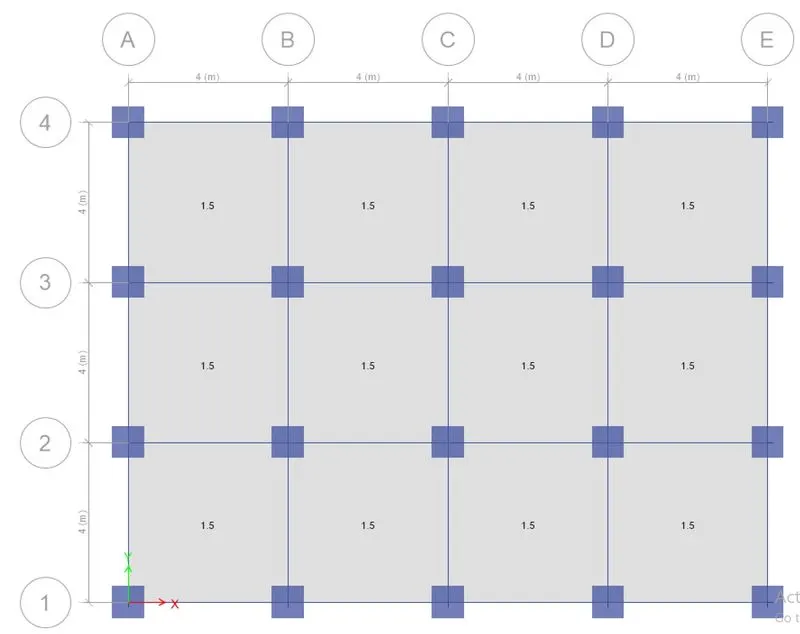

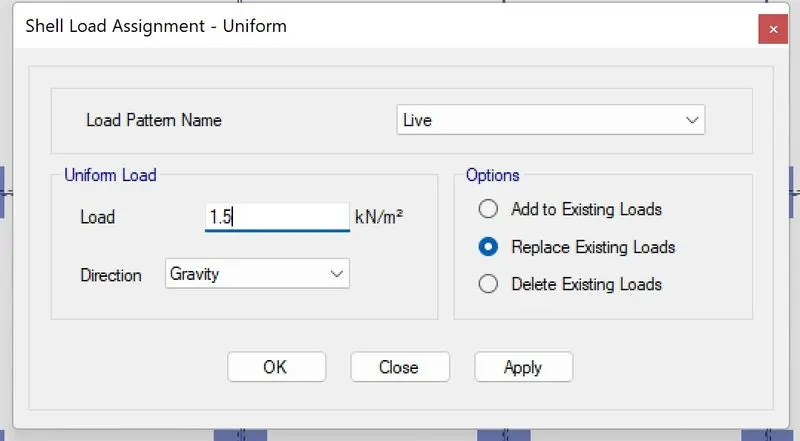

- Live load on the roof is taken as 1.5kN/m^2.

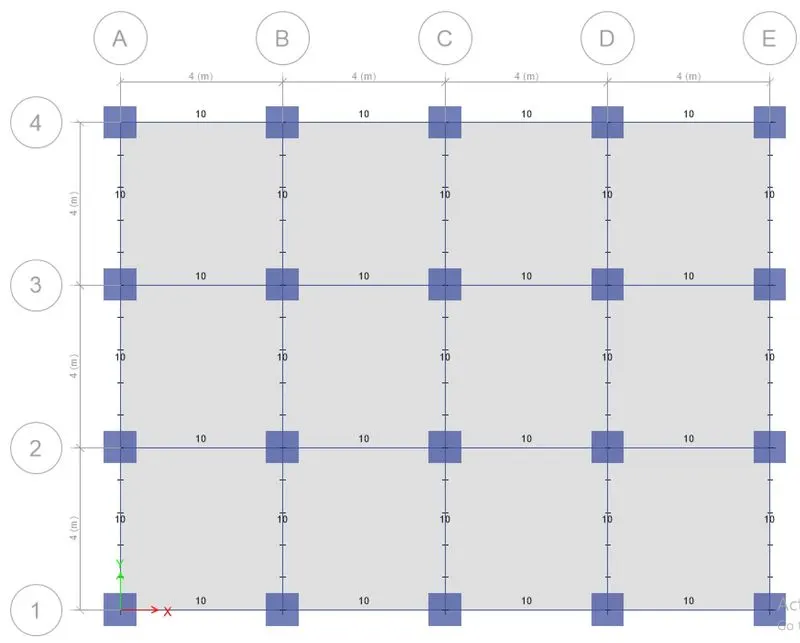

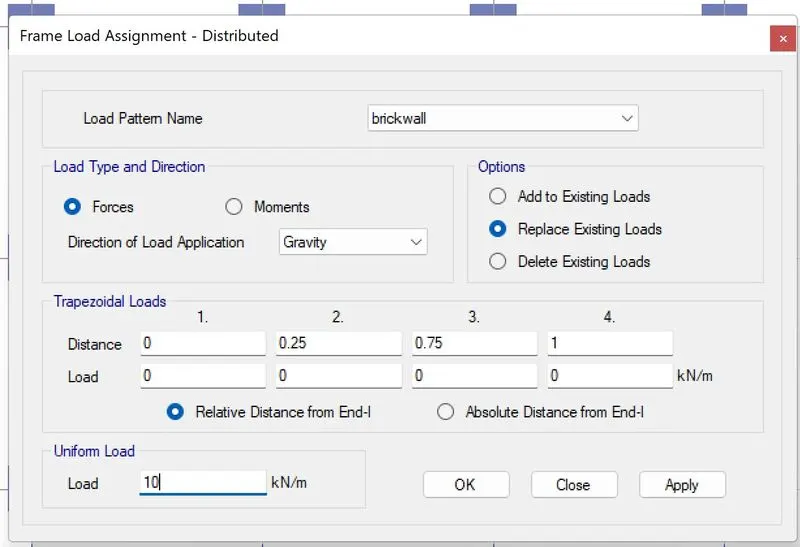

12. Uniform loads:

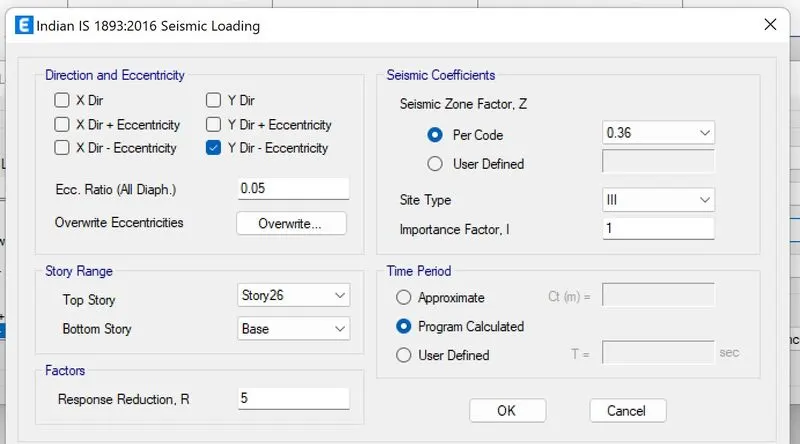

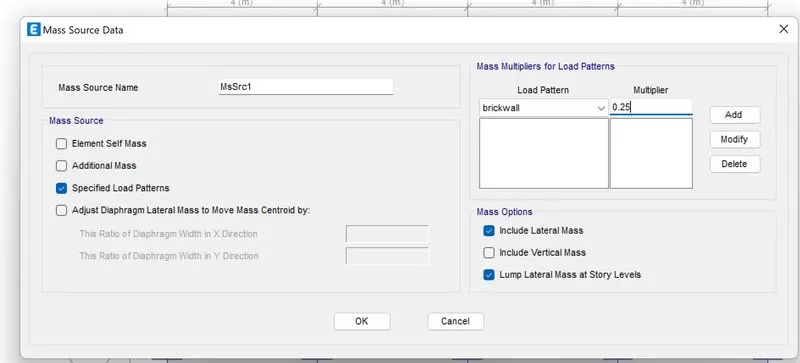

13. Define mass source:

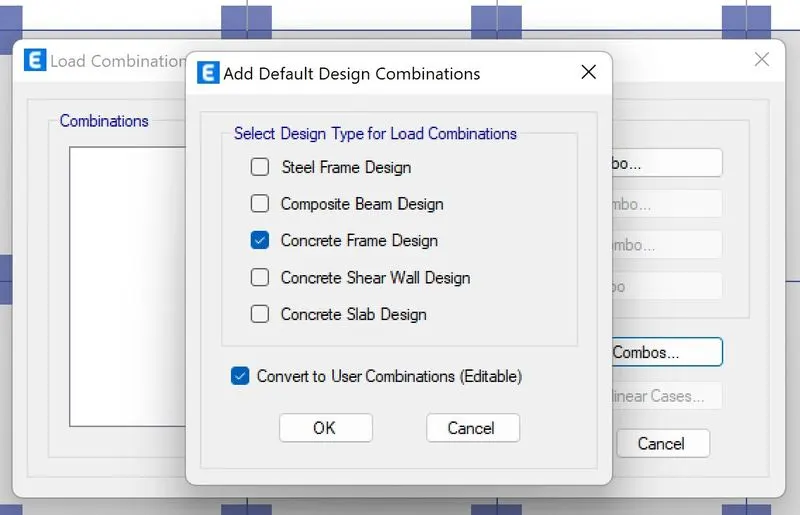

14. Define load combinations:
15. Add Diaphrams:

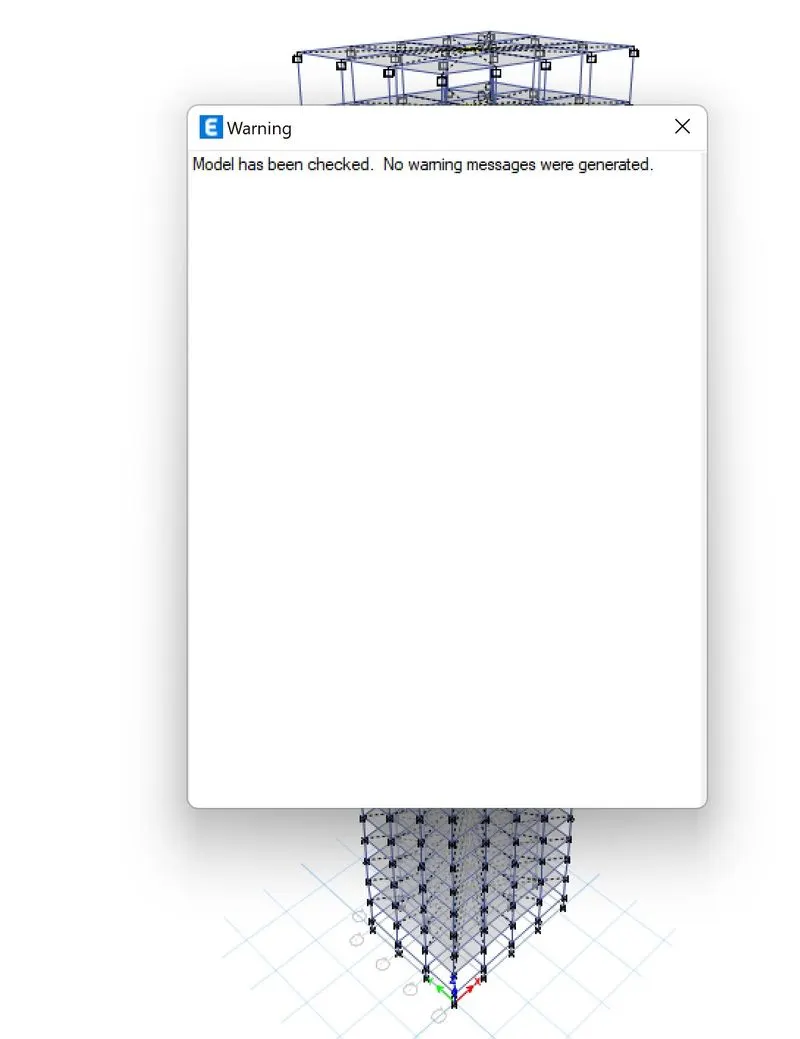

16. Check model :

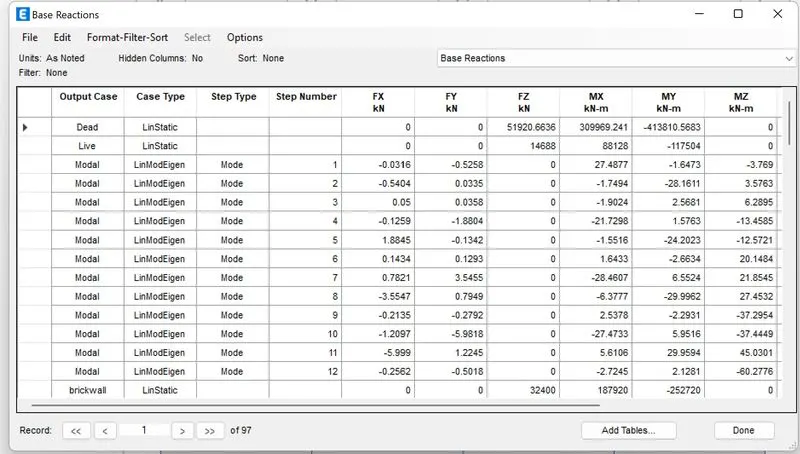

17. Run modal results:
