Modelling of 25 storey building with the specified properties using ETABS

ANSWER 1.

AIM :

To Model a 25-storey building on ETABS with structural properties as specified below and to cross check the parameters as per 1S -1893 Provisions.

PROCEDURE:

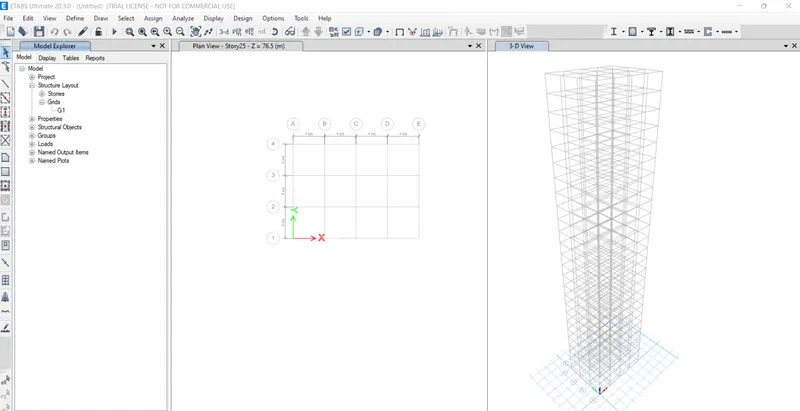

• Open the ETABS software.
• Click the file menu and choose to create a new model option.

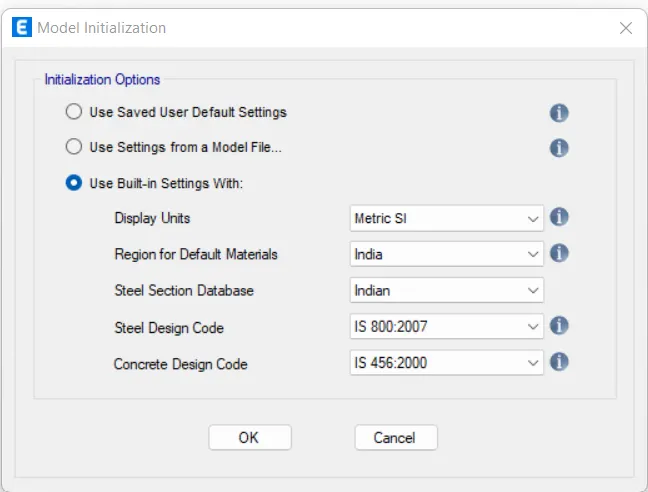

• After choosing a new model a dialogue box will appear as model intialization.

• Choose the built-in settings option and select the display units and codes.

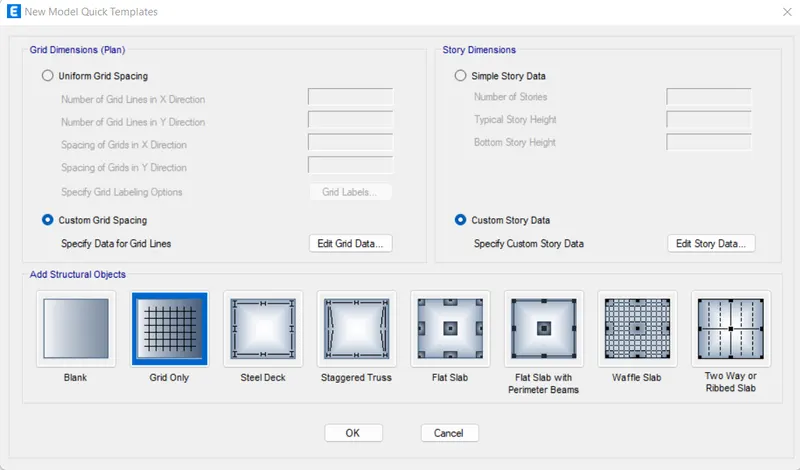

• New dialogue box will appear named New Model Quick Templates.
• Select Custom Grid spacing and custom story data.

• After models initialization, select grid and storey inputs from new model quick templates dialogue box.
• In the dialogue box choose grid spacing and custom story data which is used to provide the input specified above.

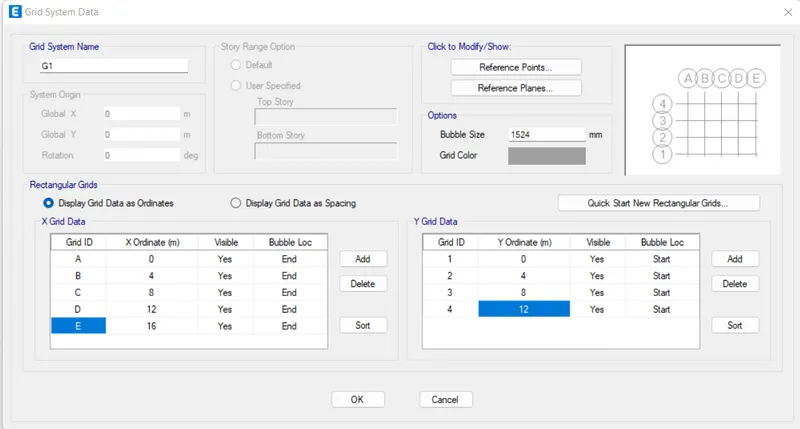

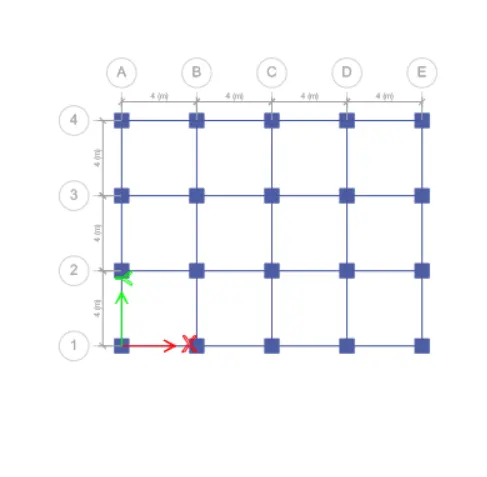

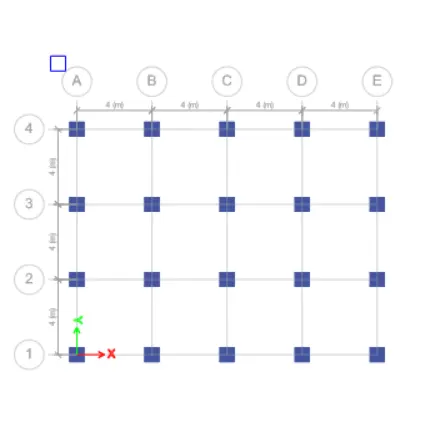

• Enter X Grid data at a distance of 4 m and Y Grid data as 4 at a distance of 4m

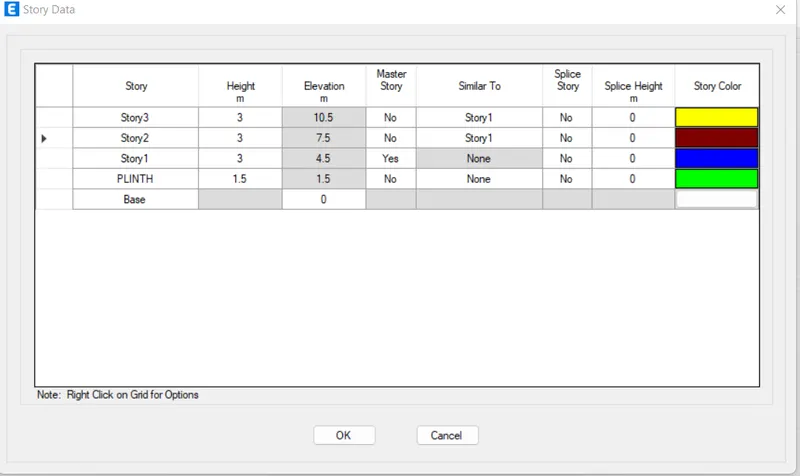

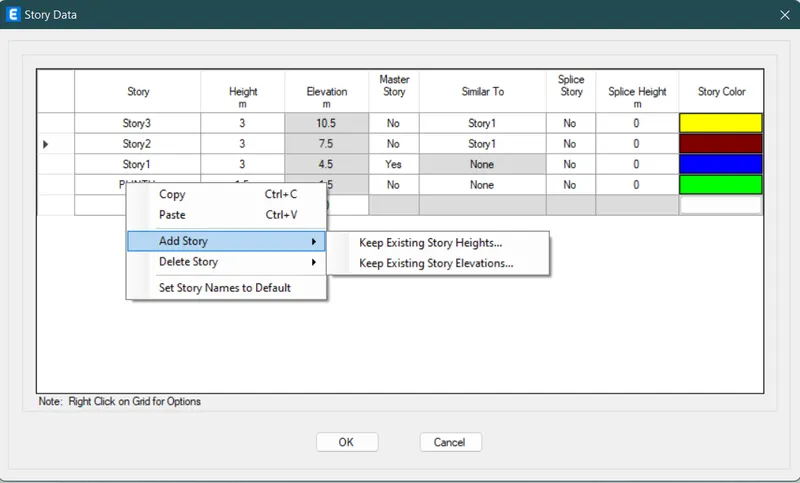

• Now edit stories by using the user-defined story input, 26 stories are incorporated (plinth at 1.5m and 25 story with 3m height each).

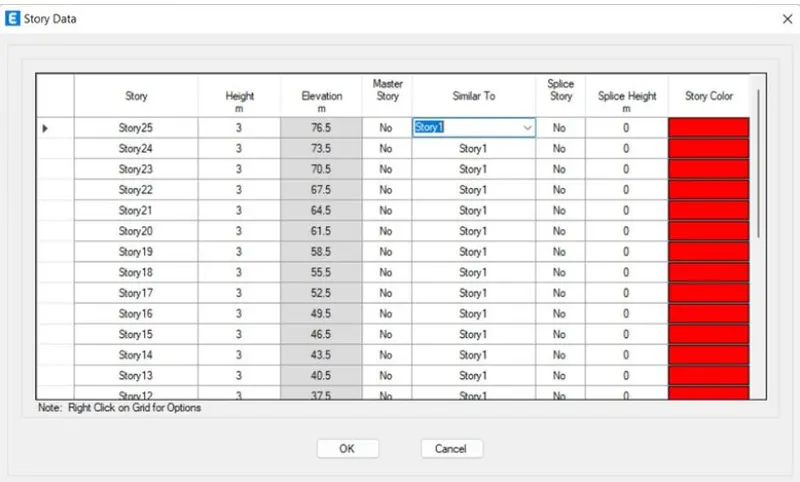

• Storey 1 has been labelled as a master storey and all above levels are labelled similar to that.

• Add Story height as 3m.

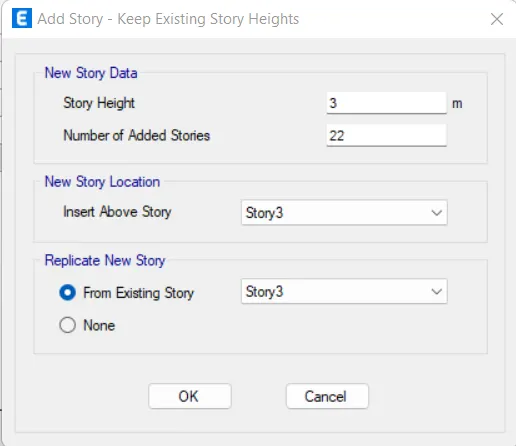

• Number of Added stories as 22.

• So, 25 storeys are successfully added in the peoject.
• Create alll the storeys as similar to storey 1.

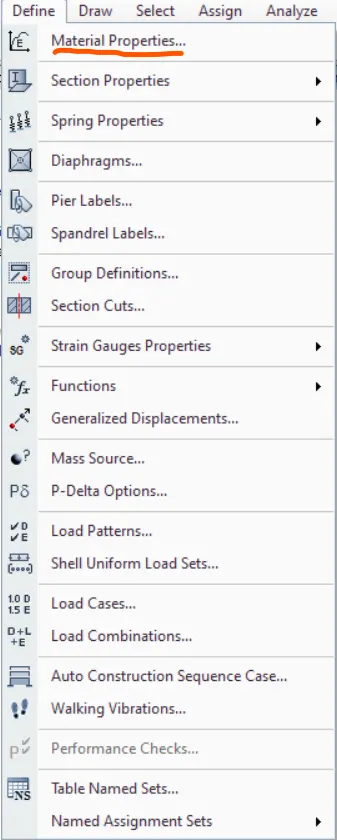

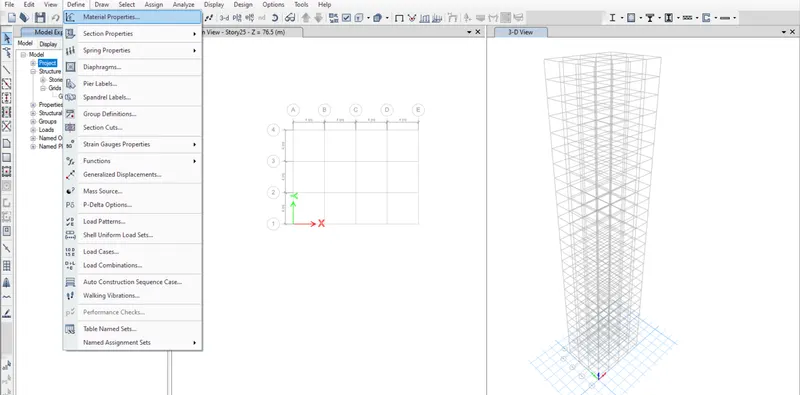

• Select Material properties under define tab.

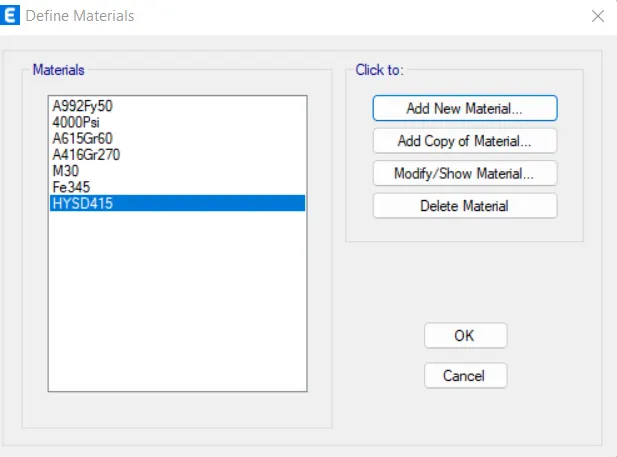

• New dialogue box will appear named Define Materials.
• Select Add new Material from the window.

• Define the materials of concrete M30 Grade and steel of reinforcement as 415 Grade and longitudinal reinforcement as 500 Grade.
• Now select Section Properties under Define Tab.

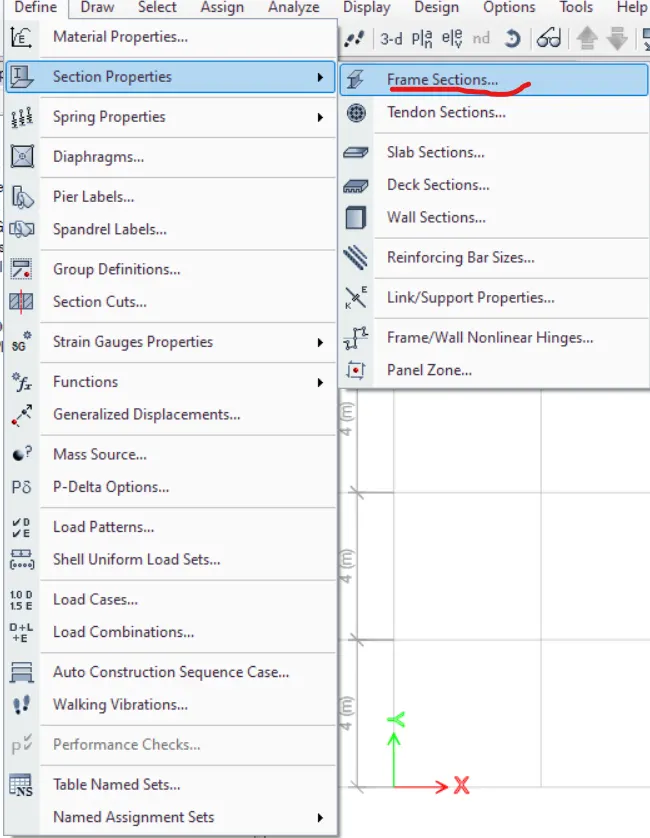

• Select Frame Sections.

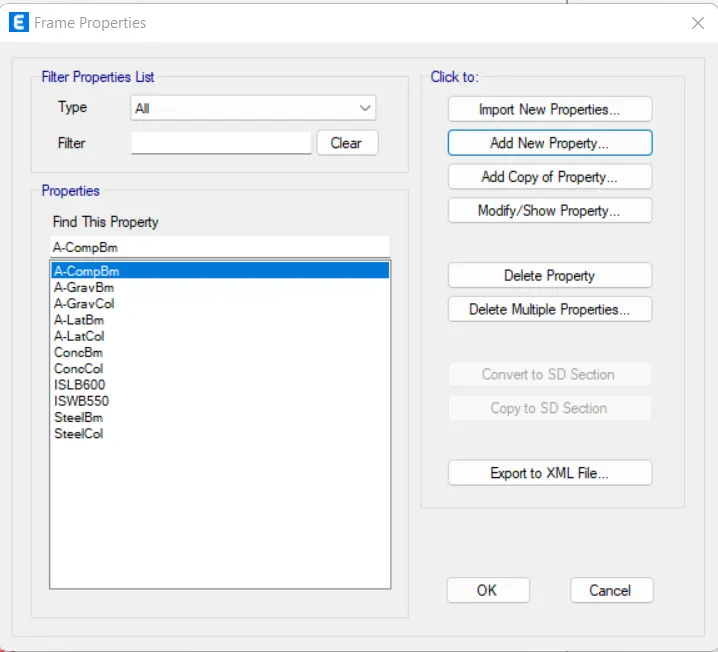

• Select Add new properties in Frame Properties.

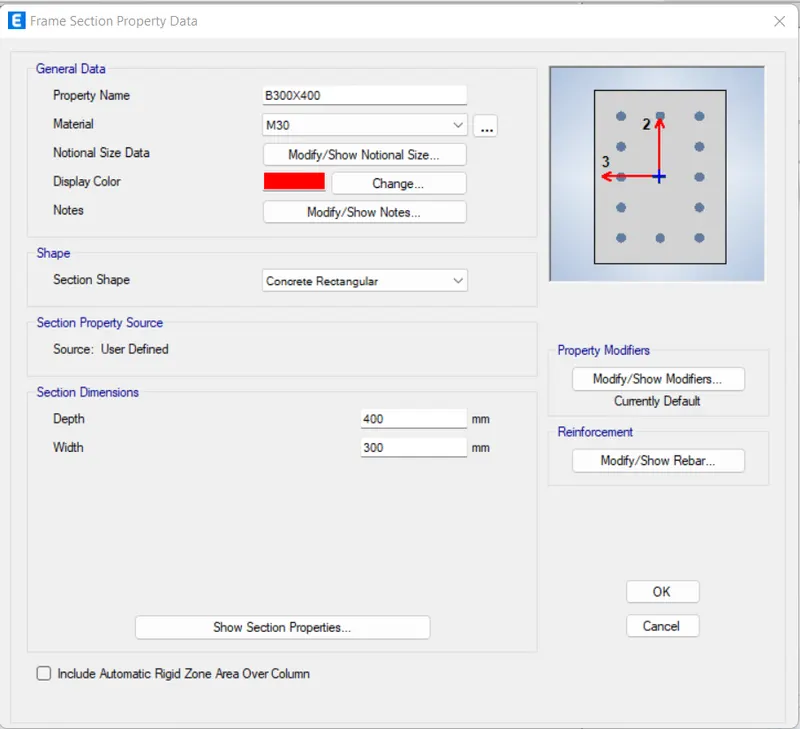

• Create a new Property as a beam and input values as 300X400.

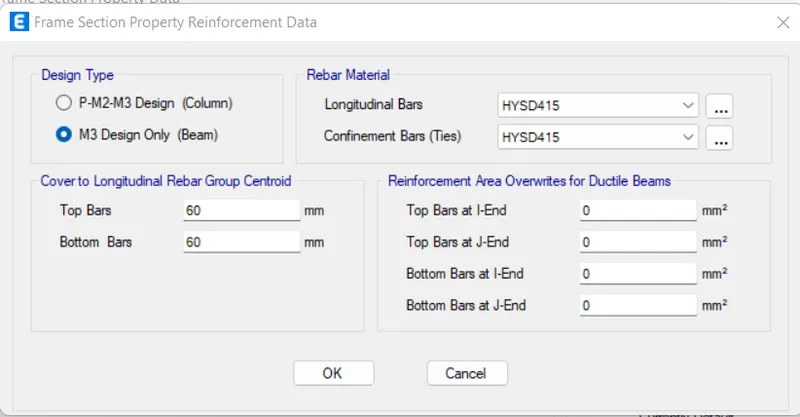

• Select Modify/Show Rebar in Reinforcement option.
• Select M3 Design only (Beam).
• Select Reabar as HYSD415.

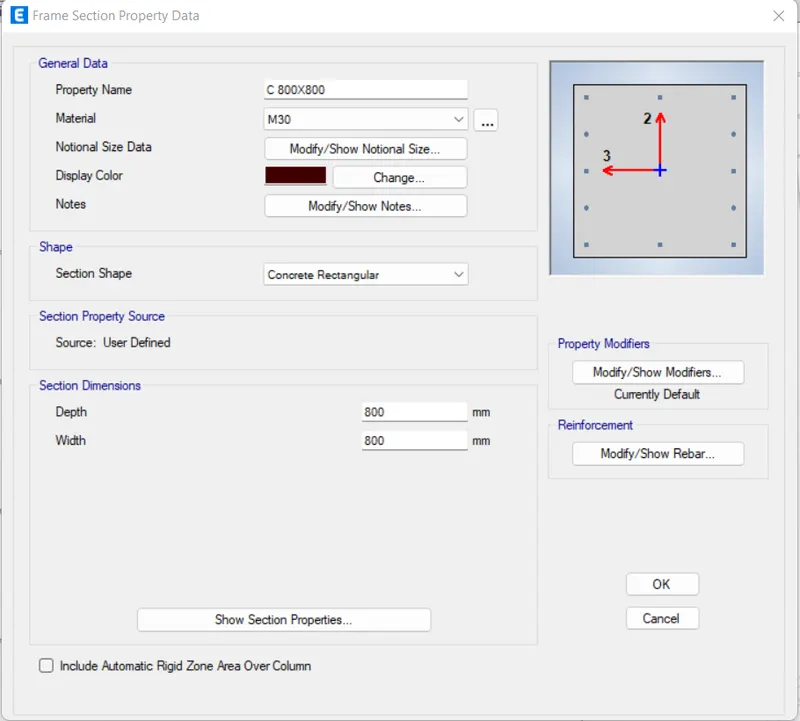

• Create a new Property as a column and input values as 800X800.

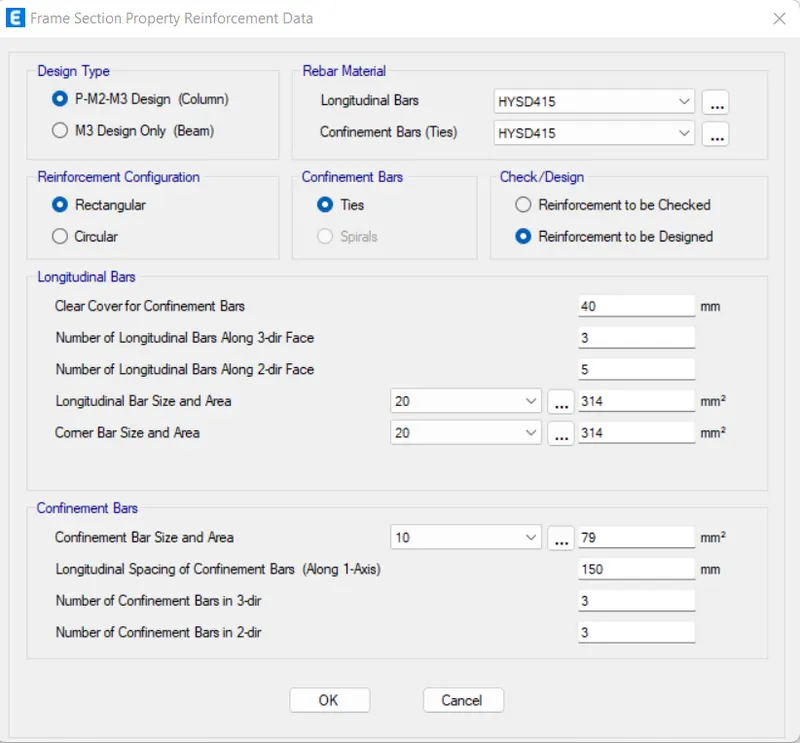

• Select Modify/Show Rebar in Reinforcement option.
• Select P-M2-M3 Design (Column).
• Select Reabar as HYSD415.

• Now select Section Properties under Define Tab.

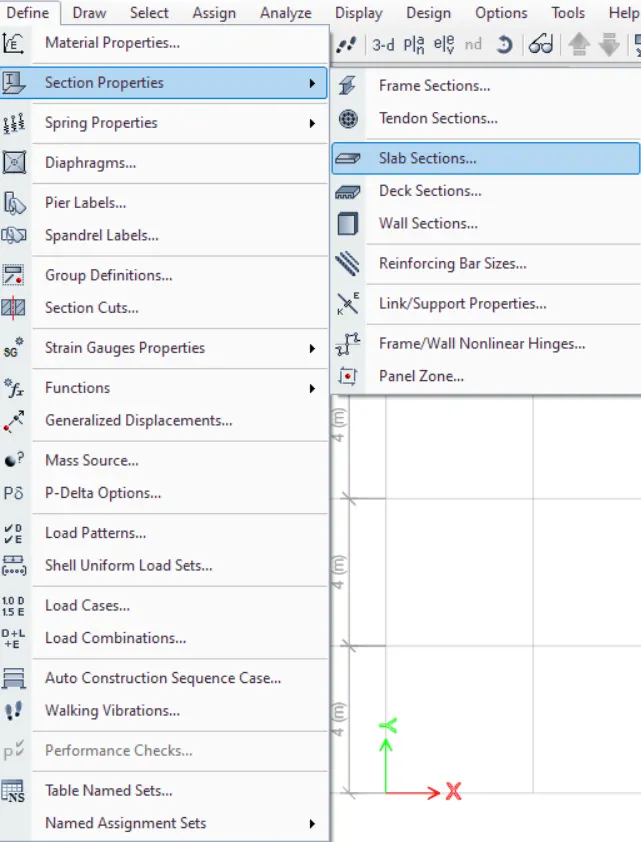

• Select Slab Sections.

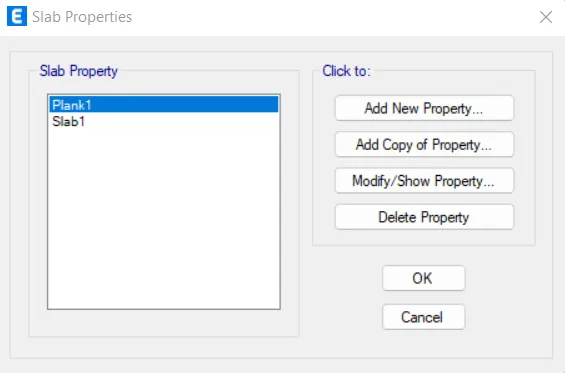

• Select Add new properties in Slab Properties.

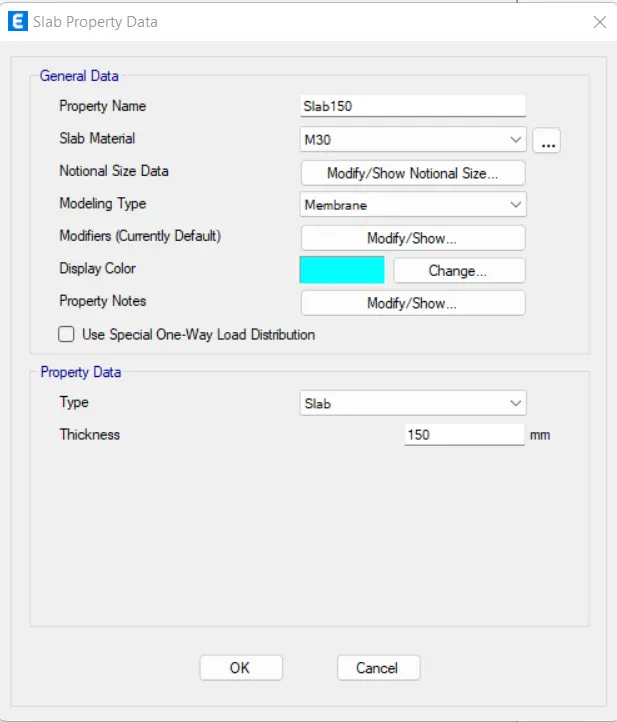

• Using the membrane properties, slab size 150 mm has been added to the list.
• Membrane property will help to consider only slab weights and Floor weights in analysis of structure while no stiffness component of flange advantage are considered during calculation.

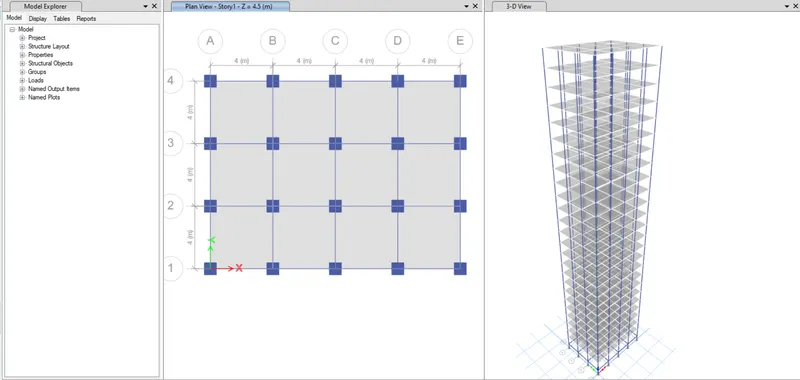

• Now draw columns of size 800X800mm at the intersection of the horizontal and vertical grids and beams with quick draw Column keeping all the stories on.

• Beams drawn using quick draw beam tool keeping all the stories on.
•
• • Using the quick draw floors option,all the slabs have been modelled keeping"similar stories" ON.

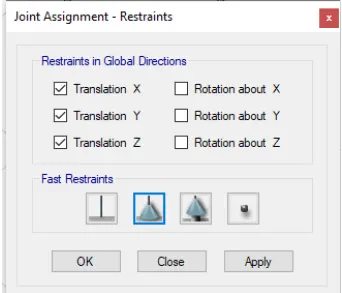

• Select assign and click on joint select pinned support.
• Fix he pin supports at the base.

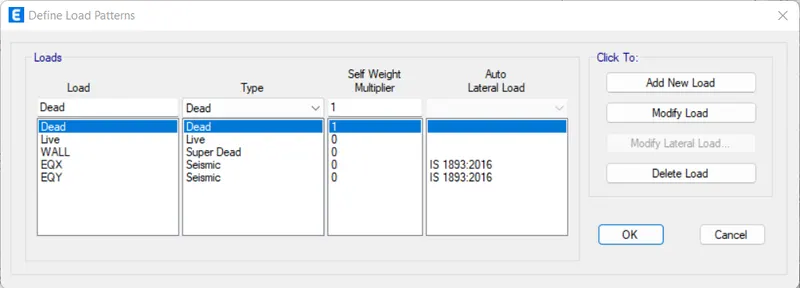

• Now define the load patterns: click on the define tab and click on load patterns.

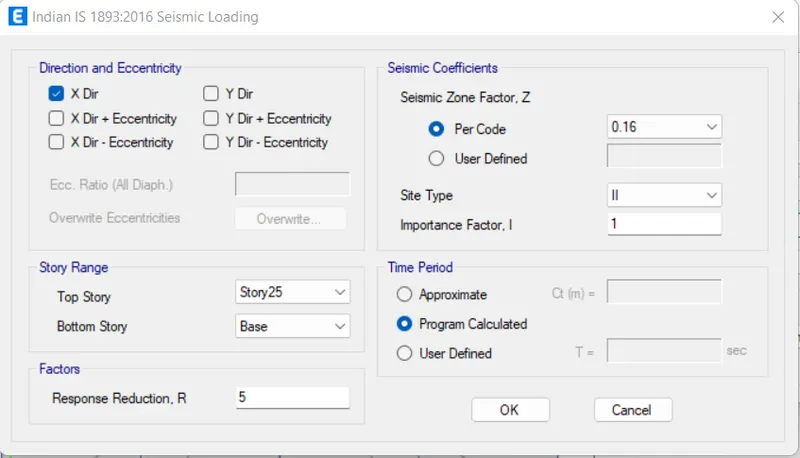

• Define the loads like dead load,live load,brick load,earth quake load in x direction and positive x and negative x and same loads in the Y direction also.Mention IS codes of respective loads.

• Do the same for all the earthquake loads.
• Assign the loads and select similar stories.
• Click on shell load under the assign tab.

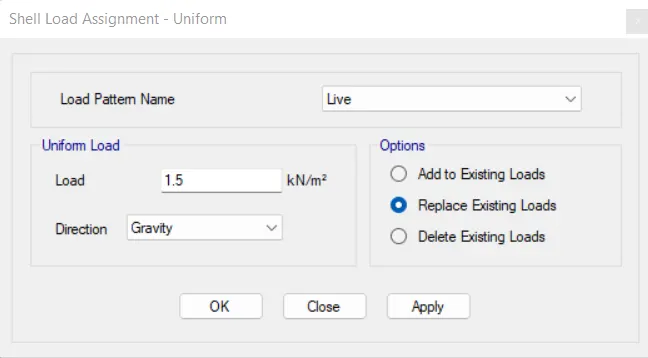

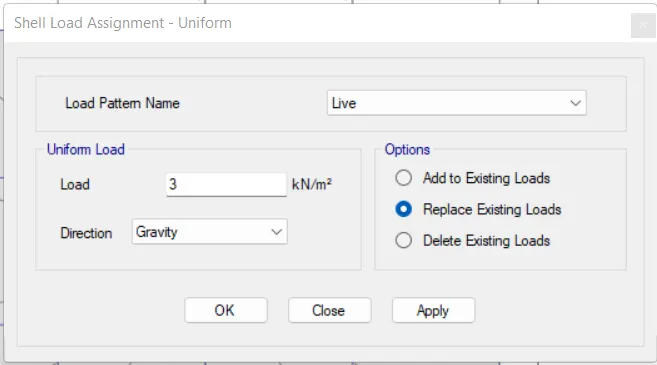

• Click on live load and give value as 3kn/m^2.
• Click on apply.

• For the roof we will take only 50% of the live load.

• Similarly add live load of 10Kn/m^2 on all the beams.
• For that select all the beams from select object type beams.

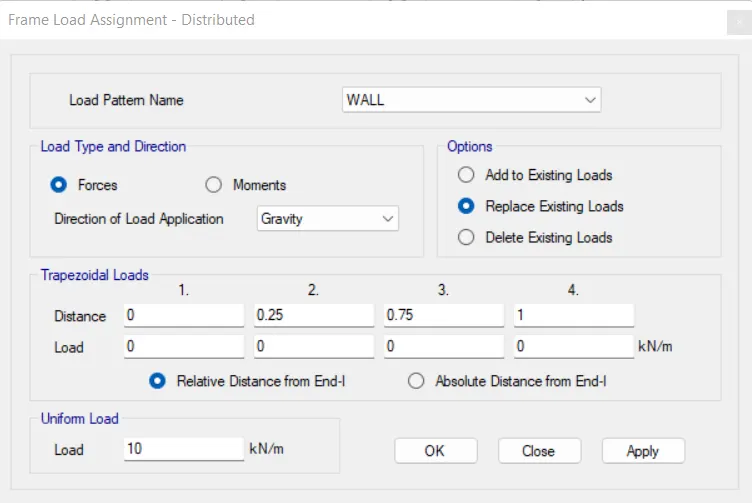

• Goto the frame load and click on the distributed load and enter the value as 10 Kn/m^2.

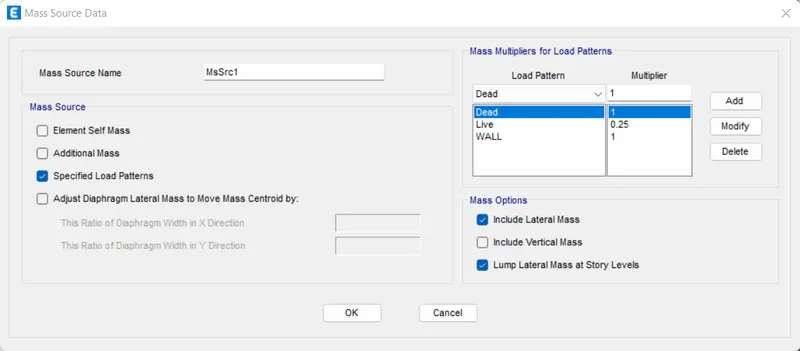

• Now go to mass source from the define tab.
• Modify the mass source and tick mark the required loads.
• Add load patterns and assign to the model.

• Define the load cases:
• Click on the load combinations.

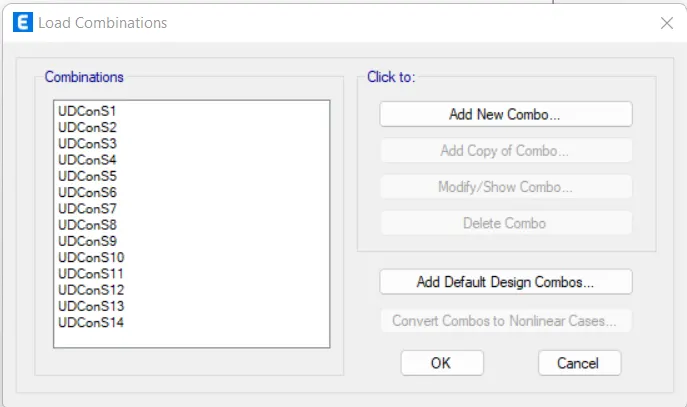

• Click on the add default design combos.

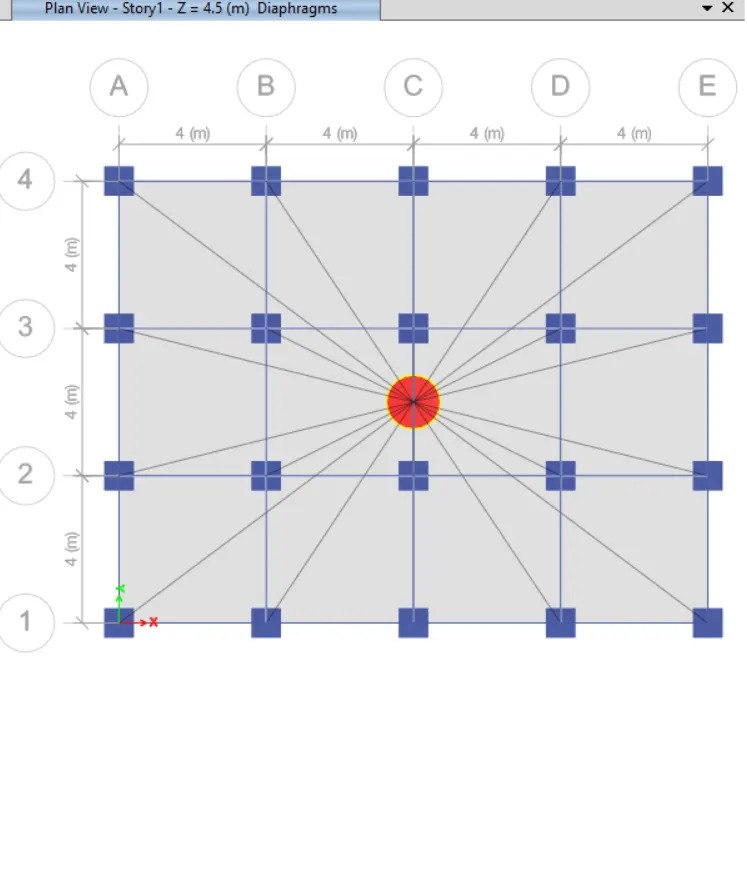

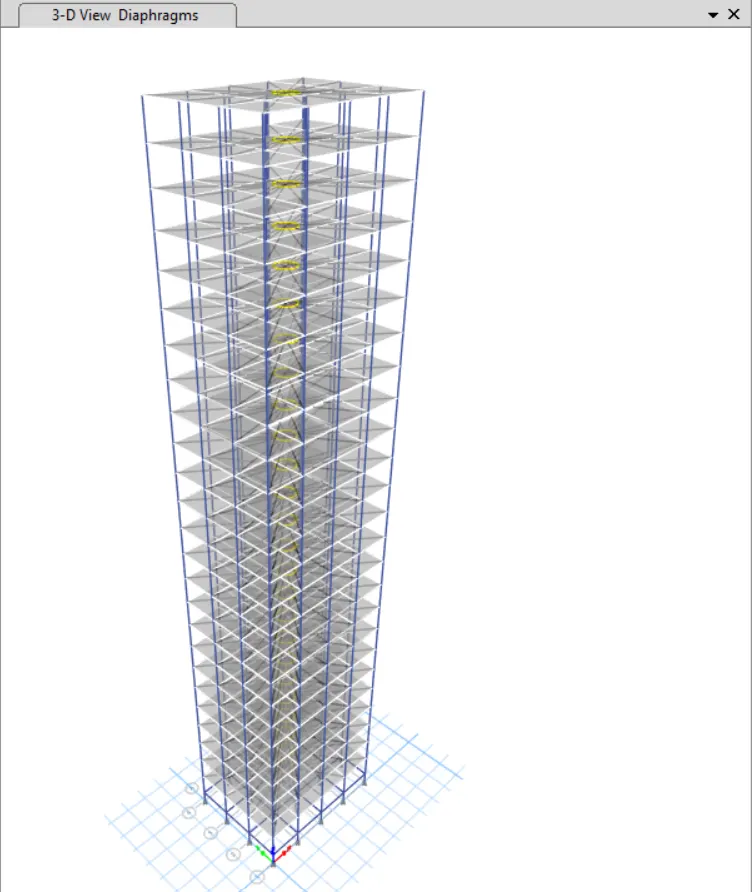

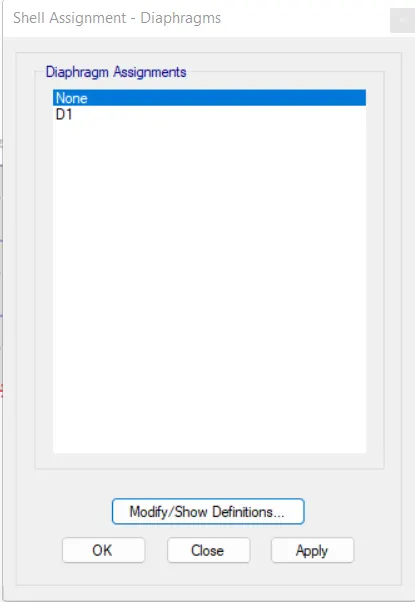

Now create the diaphragm by going to the assign tab then shell and select diaphragms.

• CLICK ON OK.

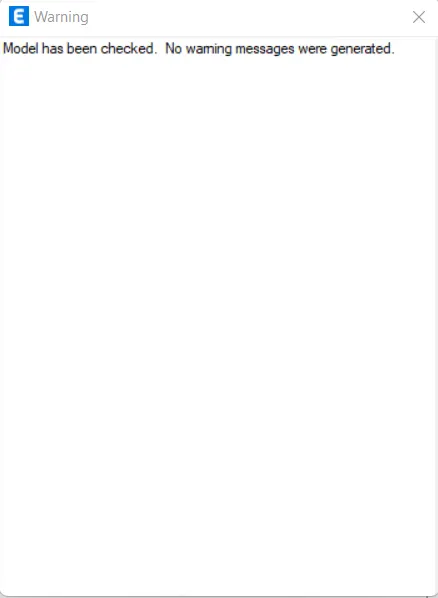

• Analyze the model using analyze option then click on check model,the modelled strucrue is verified without errors and warnings.

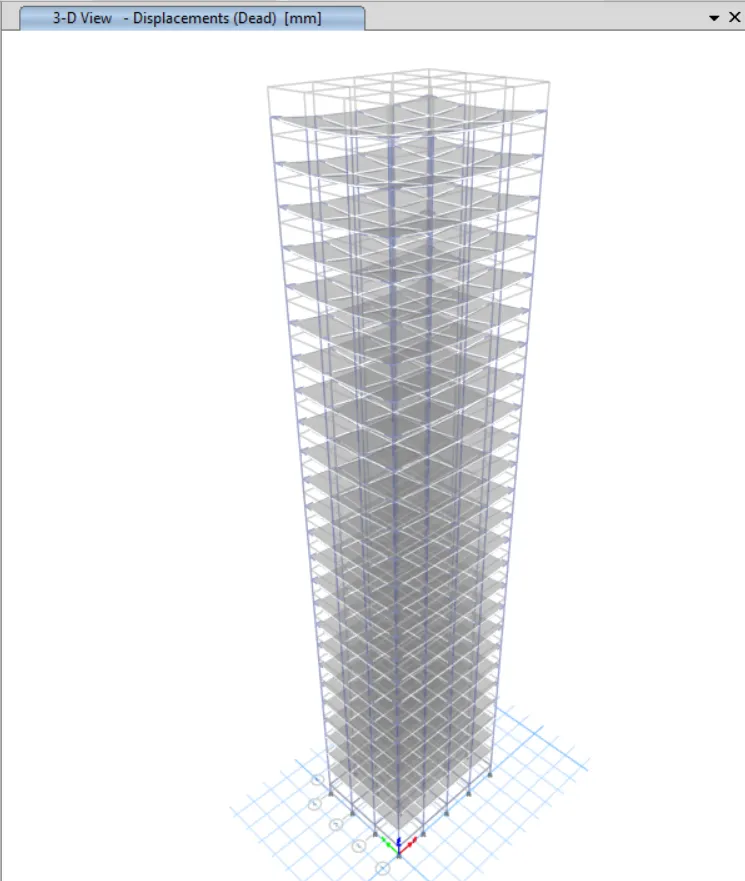

• Using analyze>run analysis,the model is analysed and deflection patterns,BMD/SFD patterns are cross checked logically.It is understood that the worked model provides reliable results.

Results:

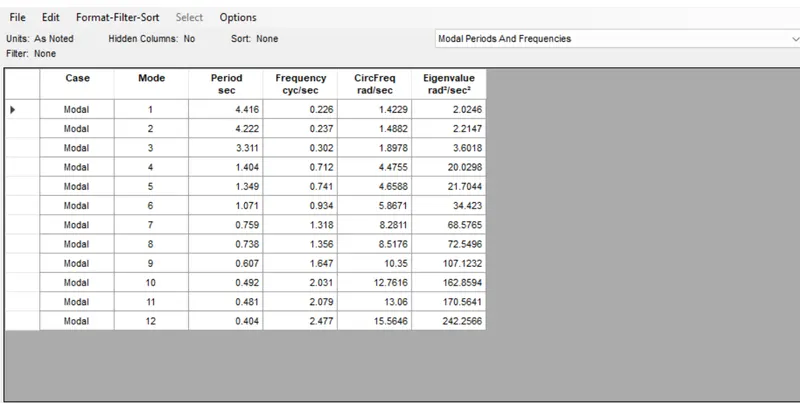

• Now click on Display>show tables>Analysis results>Structure ouput>Modal information>modal periods and frequencies.
• The time periods for fundamental mode-1Y direction and findamental Mode -1X direction are noted from the table and are as follows:

• MODEL-1 TIME PERIOD = 4.416 SECOND
• MODEL-2 TIME PERIOD =4.222 SECOND

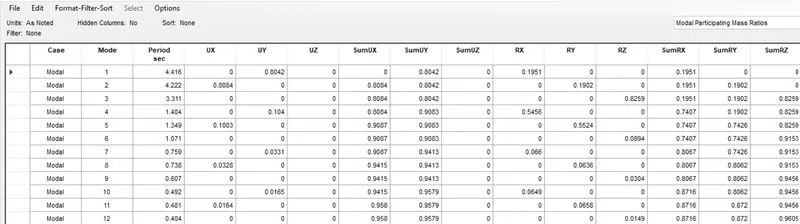

• Display>show tables>analysis results>structure output>modal information>modal participation mass ratios.
• From the table the natural time period for mode-1 and torsional DOF are noted as follow:

• Tx1=4.416 seconds Ty1=4.222 seconds Txy1=3.311 seconds
• So from the results it is clear that the torsional time period is less than two translational time period as required by IS 1893 provision table 5.
• When we add the three mode mass ratios we get 0.8042 which menas first three modes of seismic oscillation contribute more than 65% of building weight as per ETABS anaysis.
• The storey drift for serviceability Base shear case(EQX or EQY) is tabulated from the following tool path.
• Go to display>Storey response plot

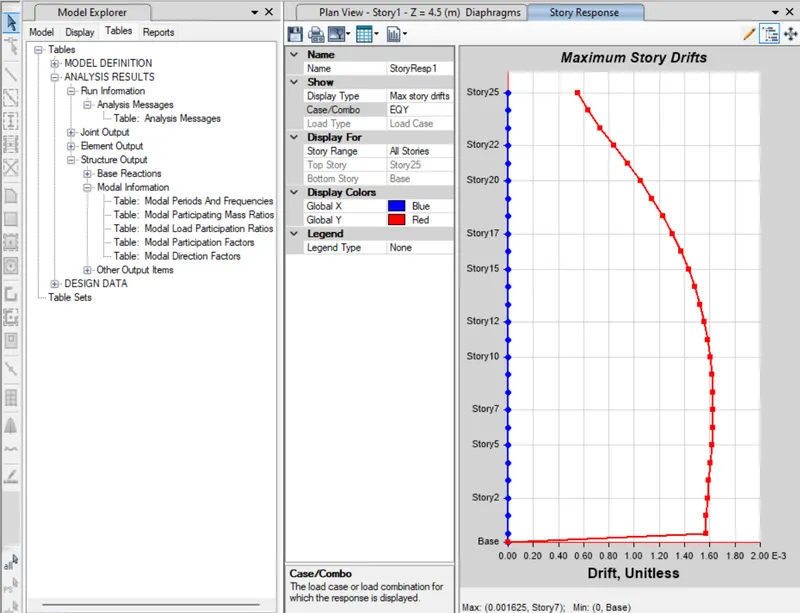

• Keeping load case to EQY and switching to max story drift the maximum drift value noted is 0.001625

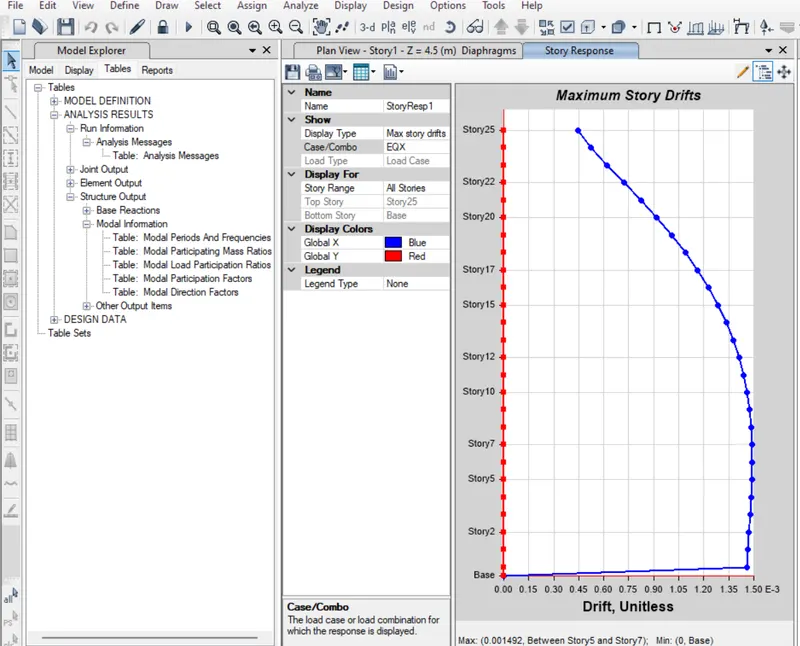

• Keeping load case to EQx and switching to max story drift the maximum drift value noted is 0.001492

• So as per the clause 7.11.1.1,the maximum inter storey drift is milited to 0.004 for each storey height.But our value is 0.001625 which is within the code limits.
• Conclusion: the modelling is completed and analysed in etabs.The results are within given ranges.
