Foundation Design using SAFE
aim
to analyze and design the isolated footing and pile on safe
steps

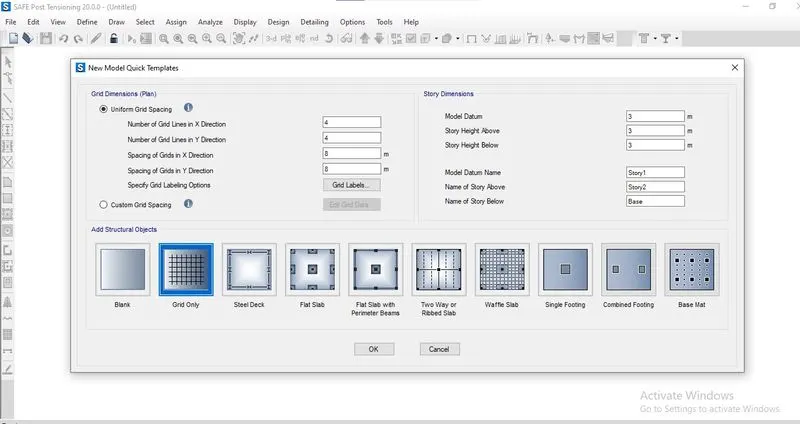

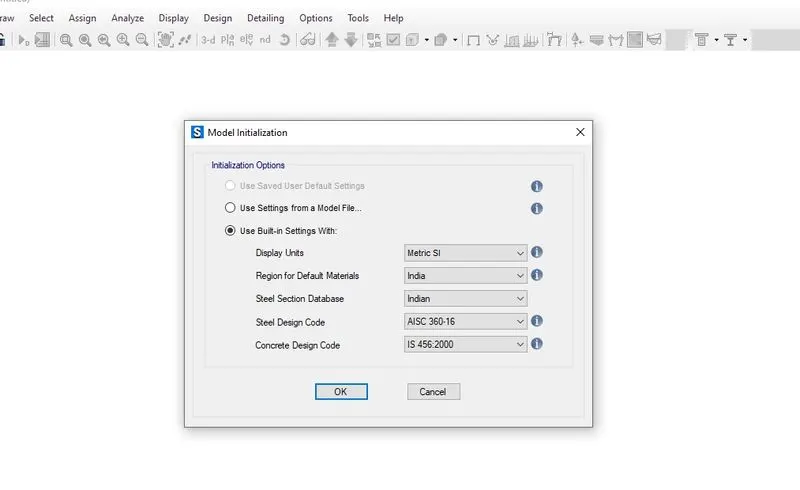

- open safe create the new file

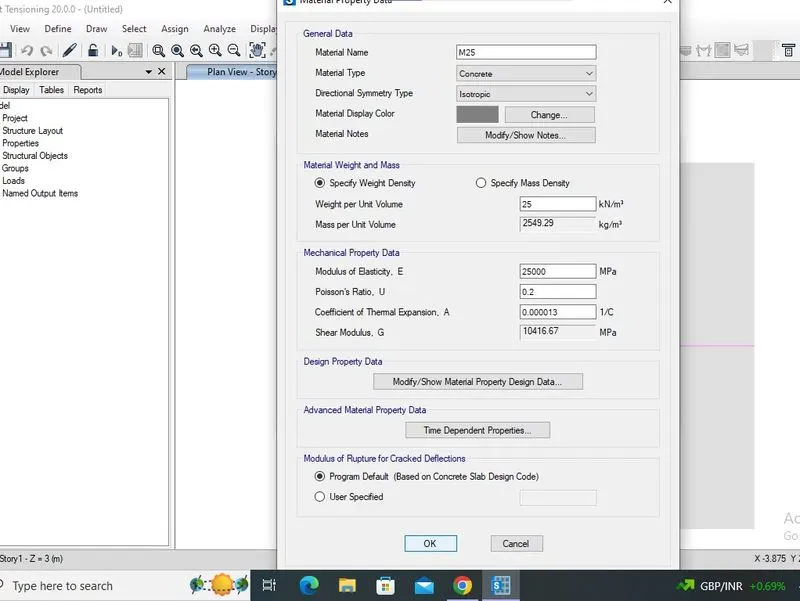

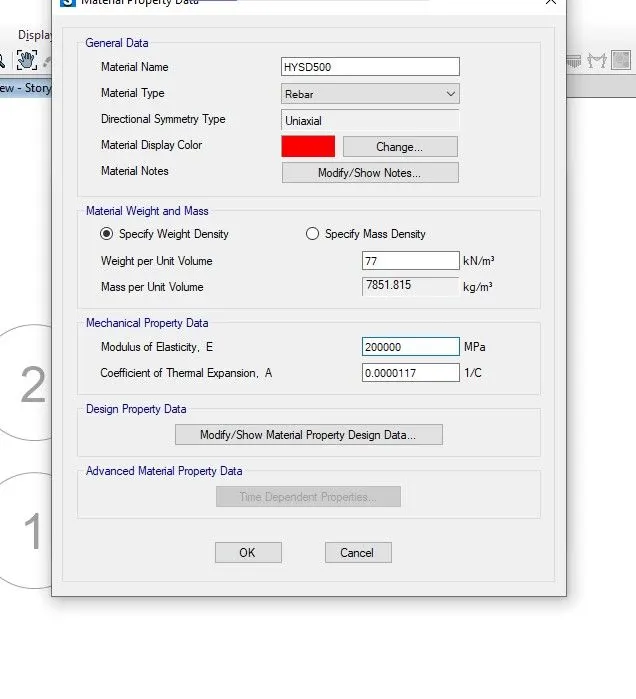

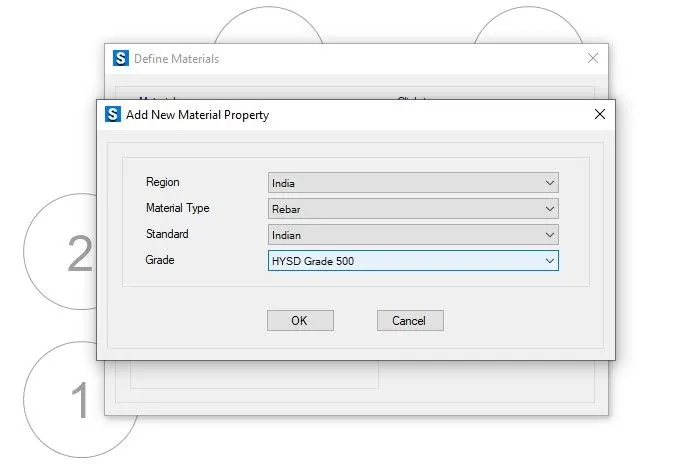

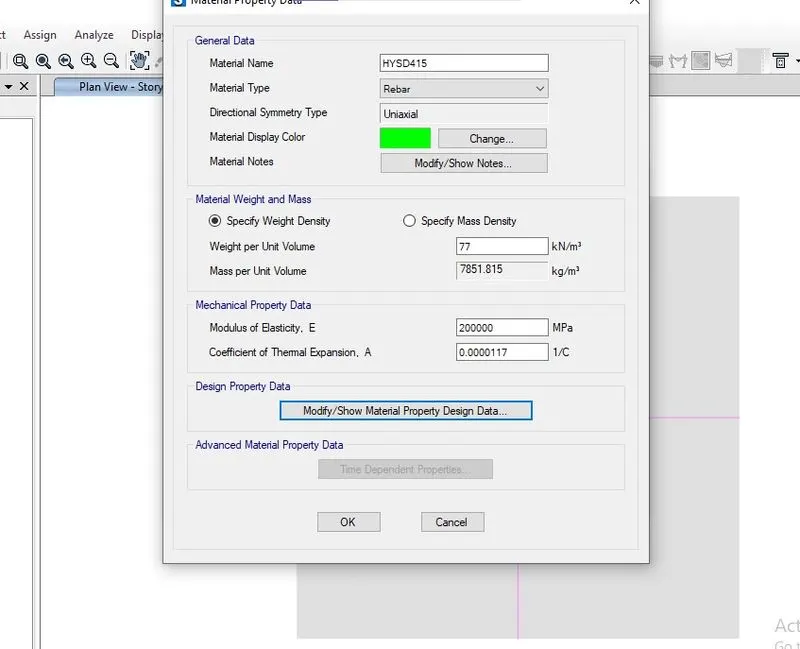

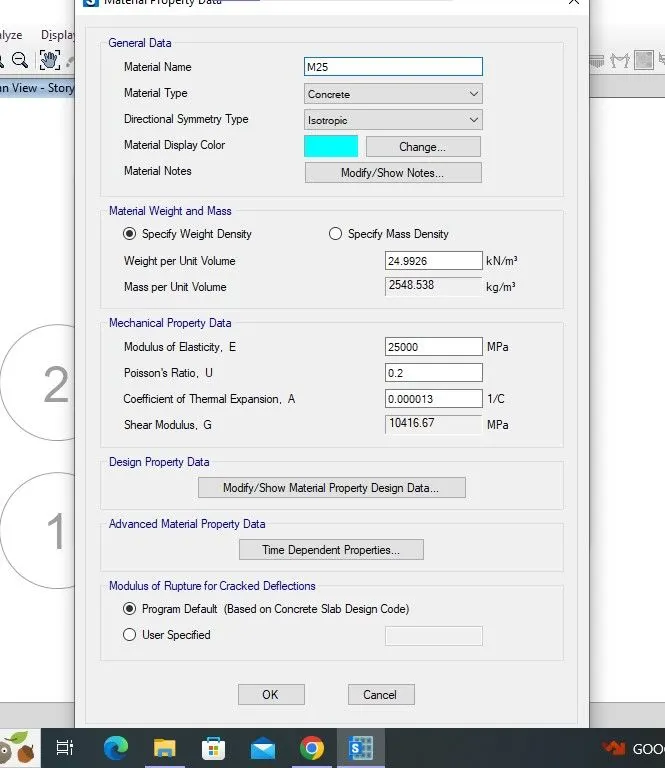

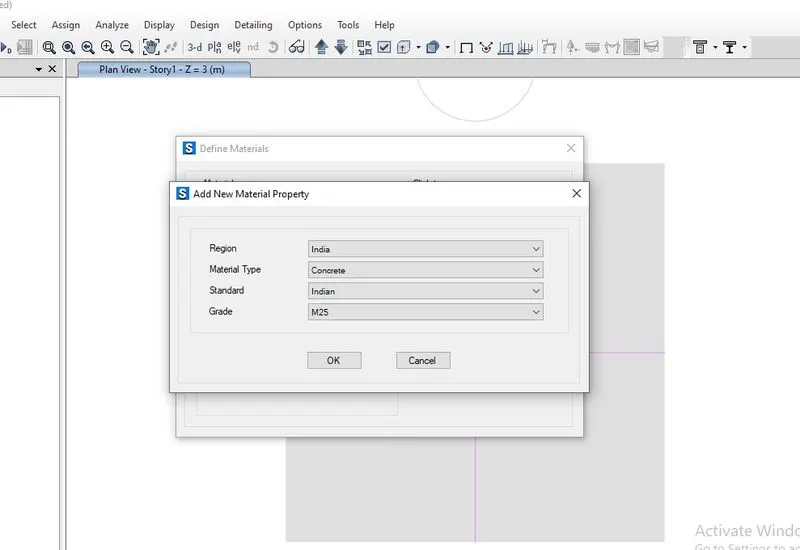

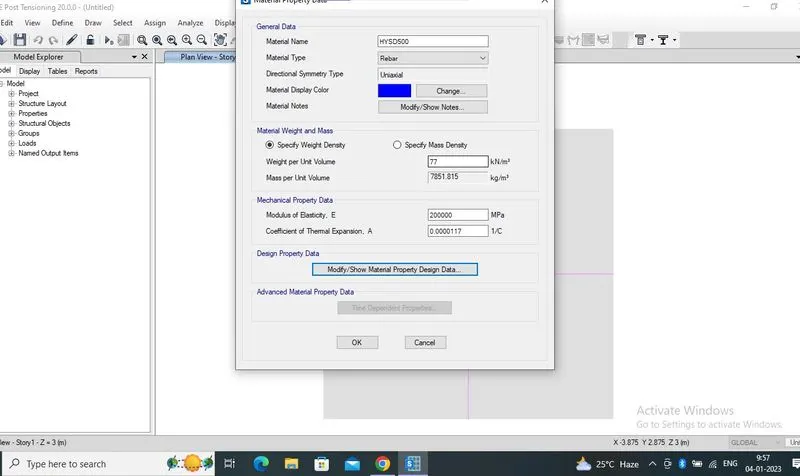

- define the material properties

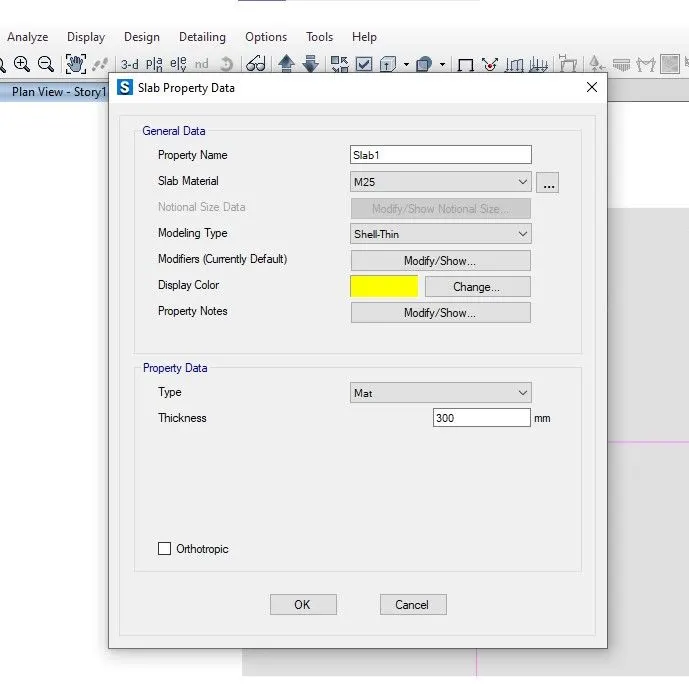

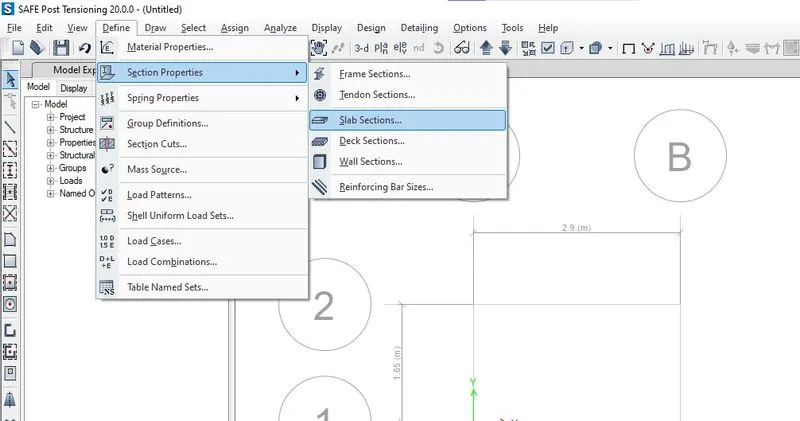

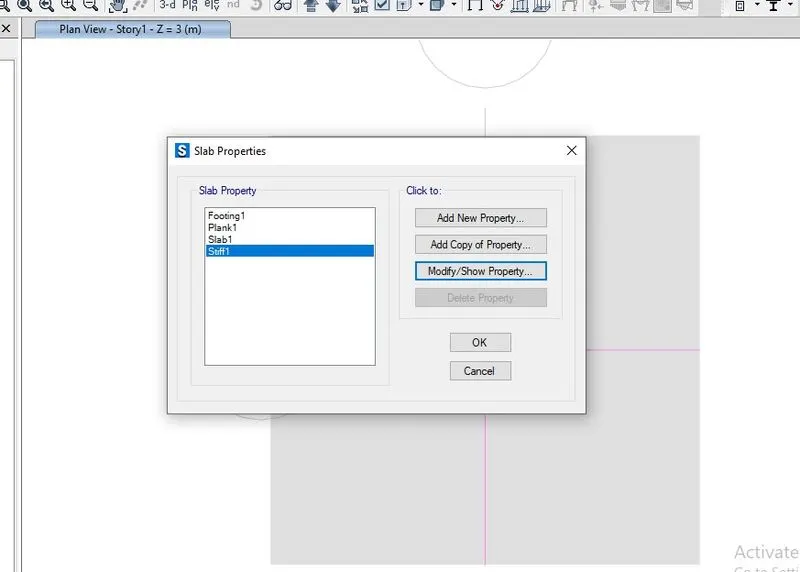

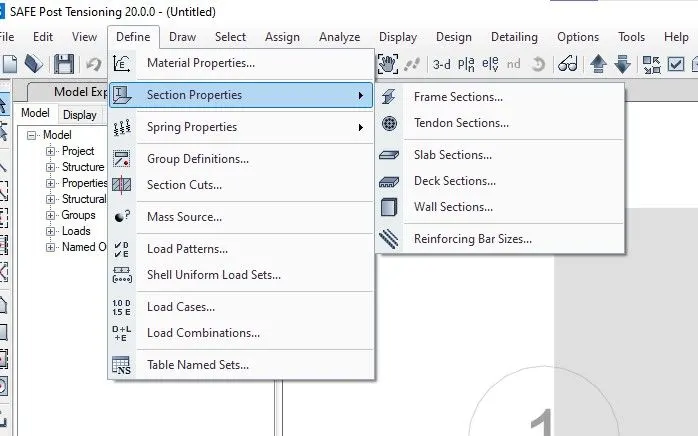

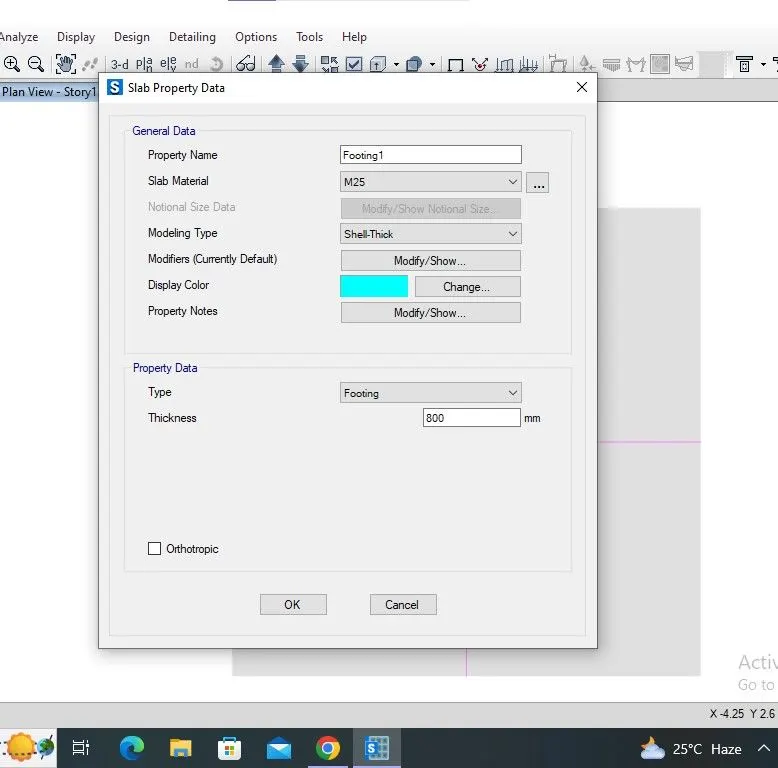

- define the section properties

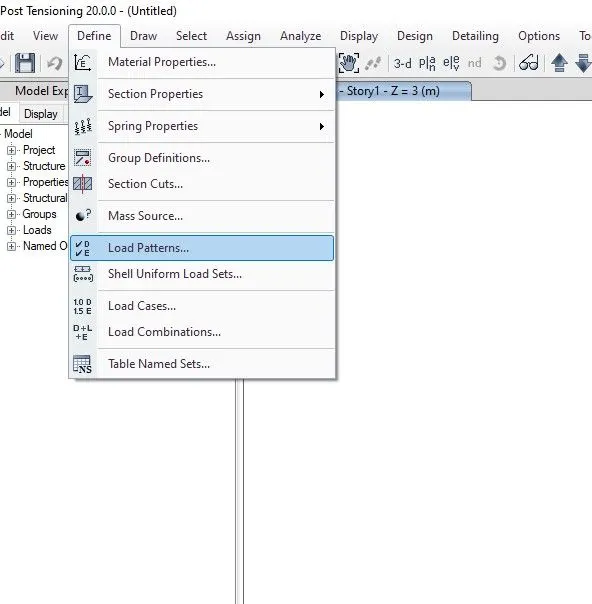

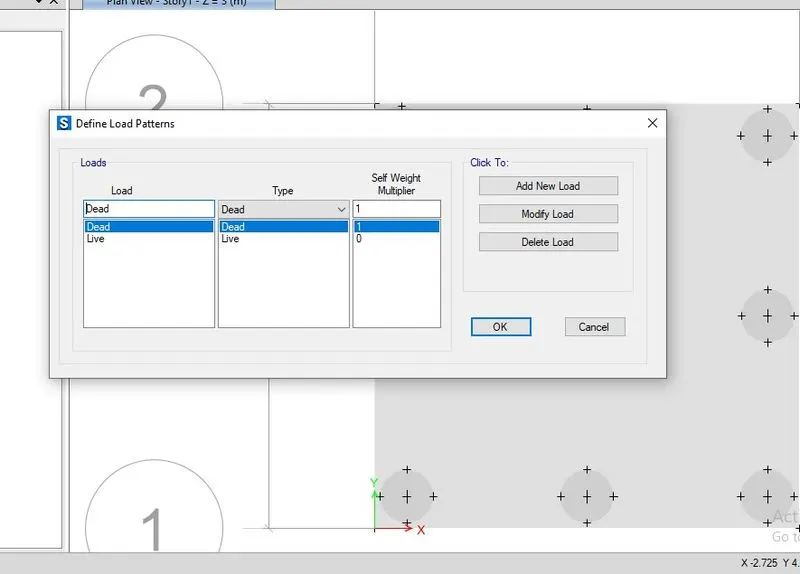

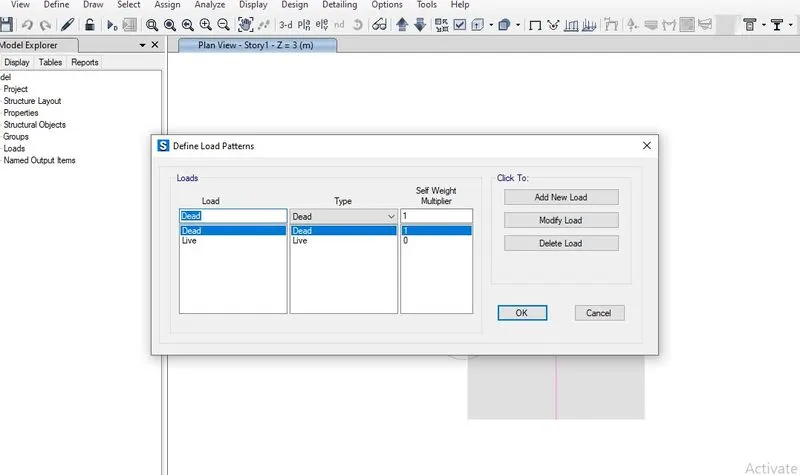

- define the load pattern

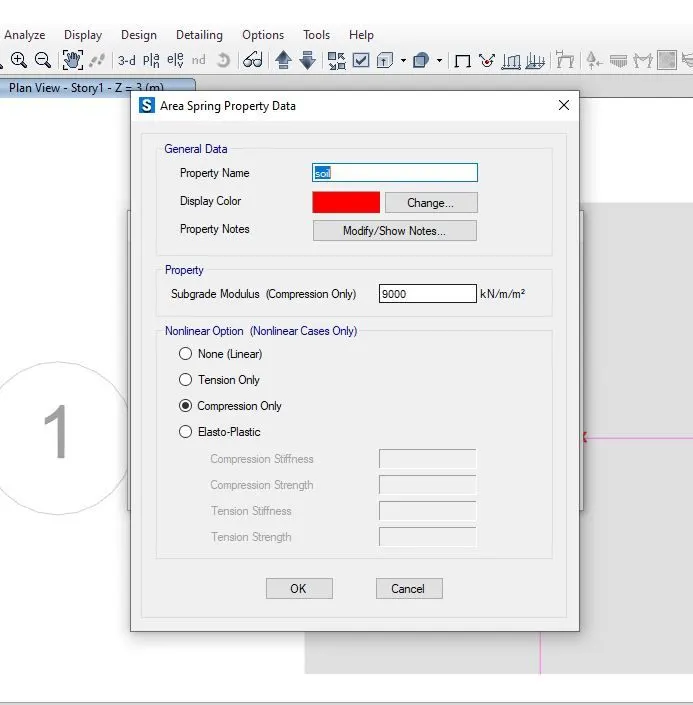

- define the area spring
- assign the area spring and load

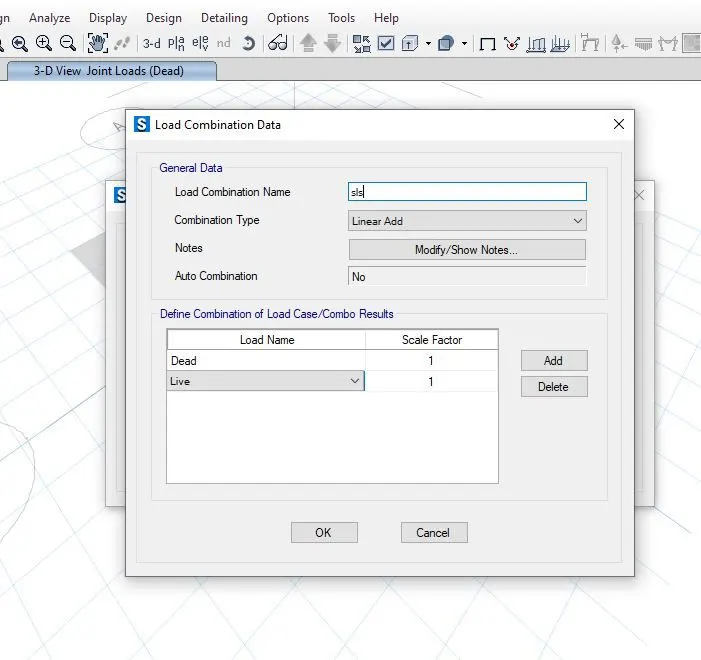

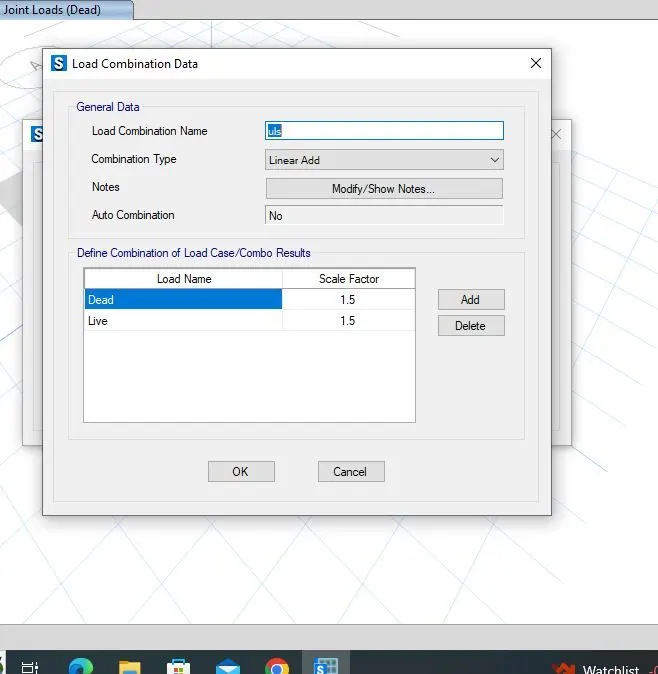

- assign the load combination
- check the model and run the analyzis

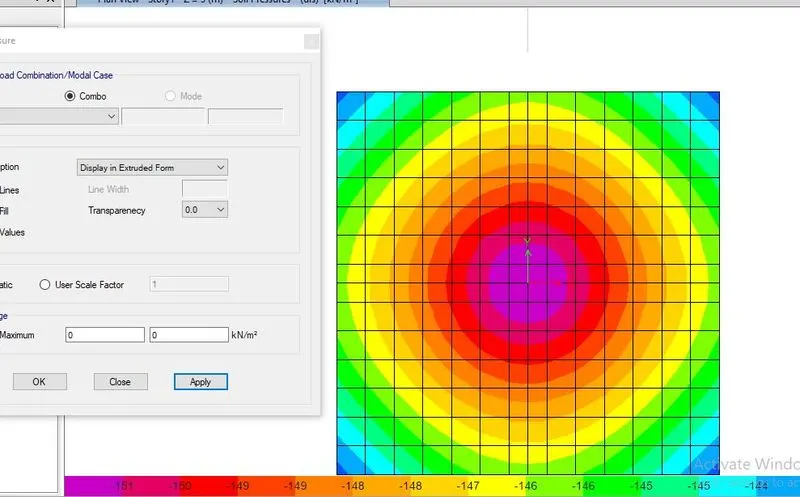

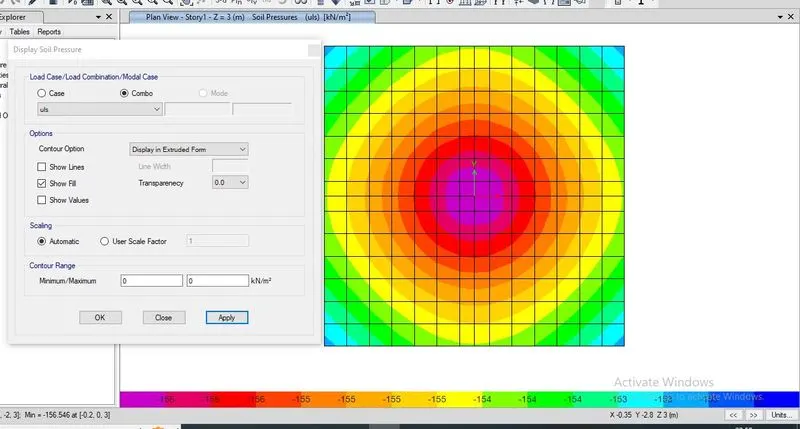

- soil pressure

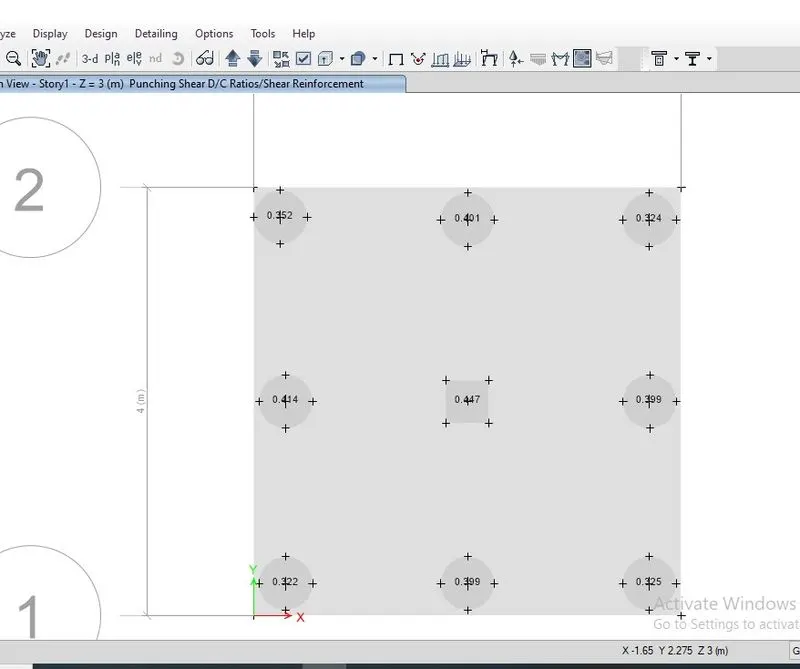

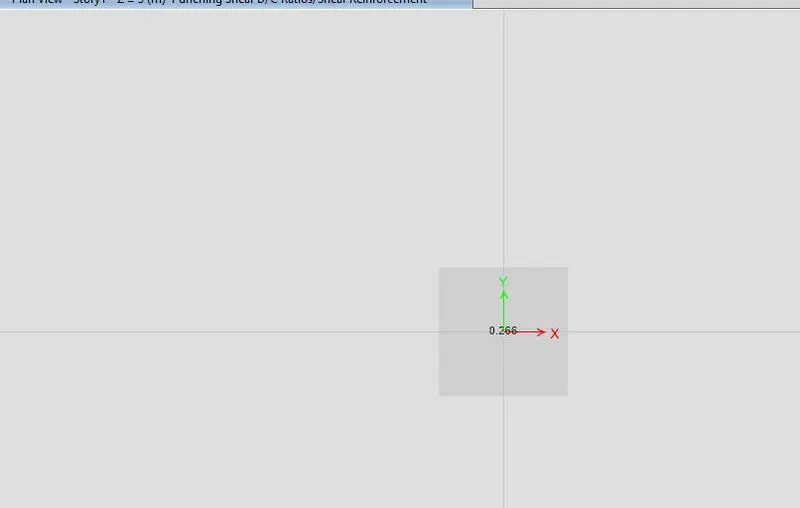

- punching shear

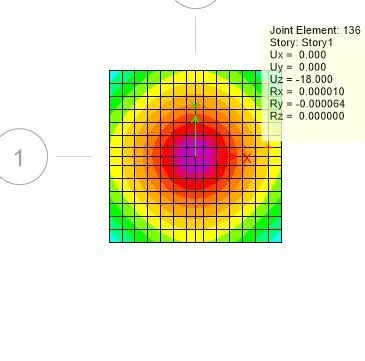

- displacements

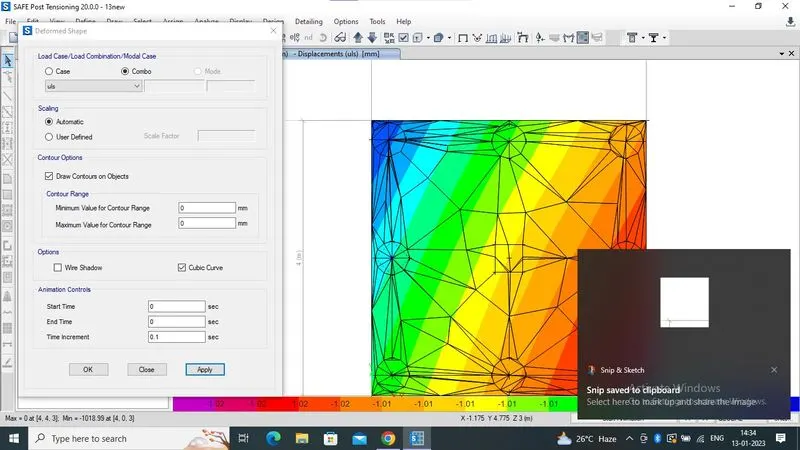

- deform
- to desin the pile
- create the new model and
- deine the material properties

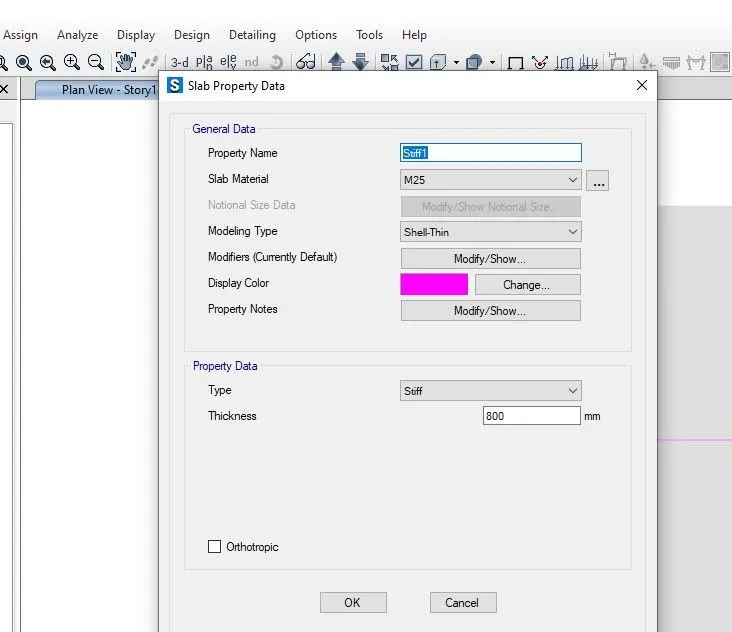

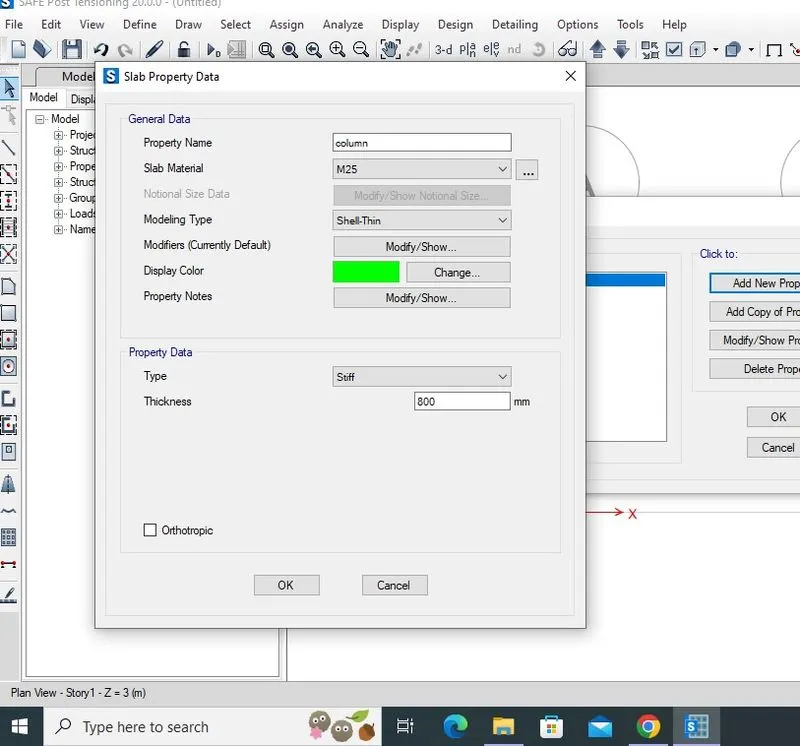

- define the section properties

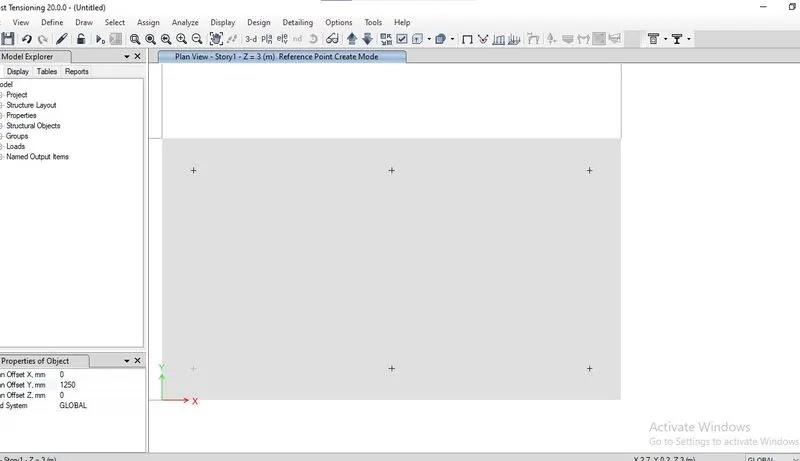

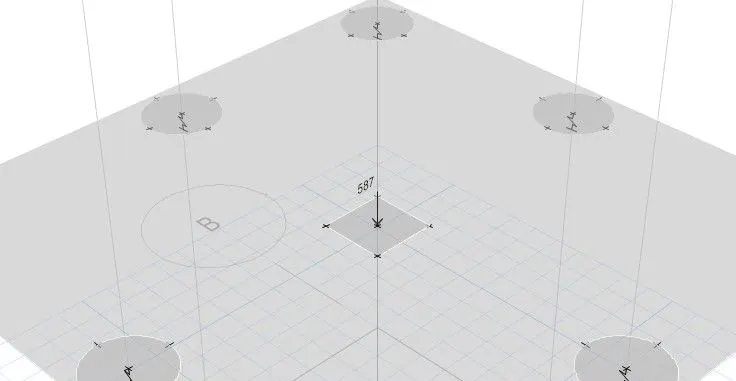

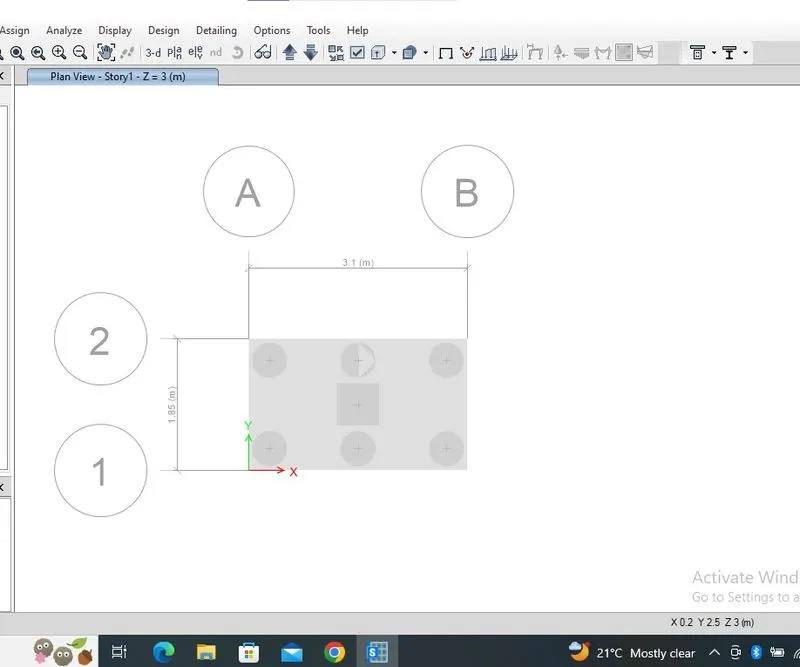

- create the slab and draw the referince points

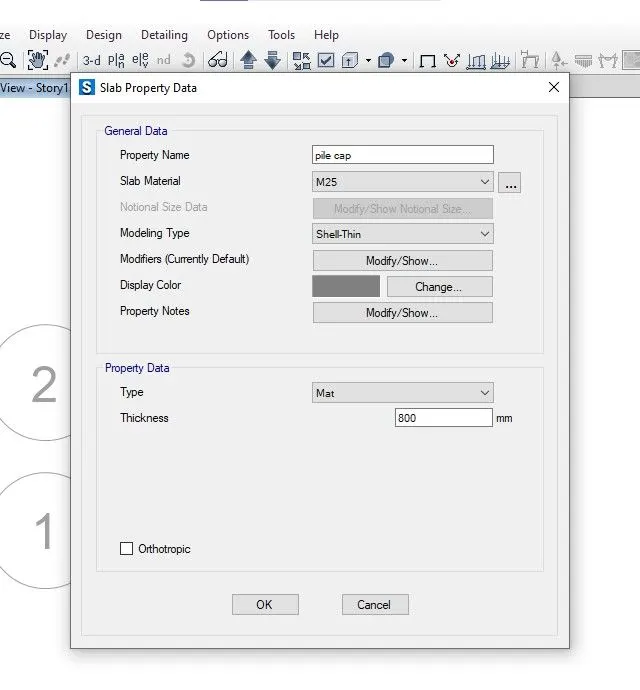

- create the pile cap and cloumn stiff

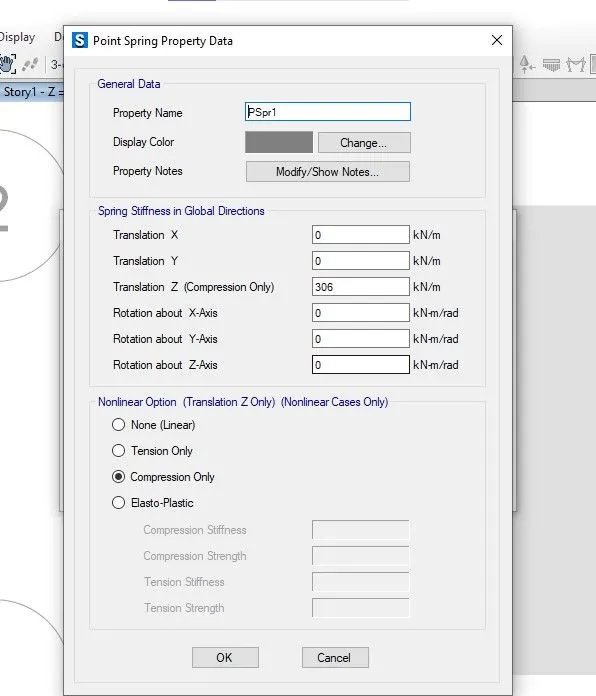

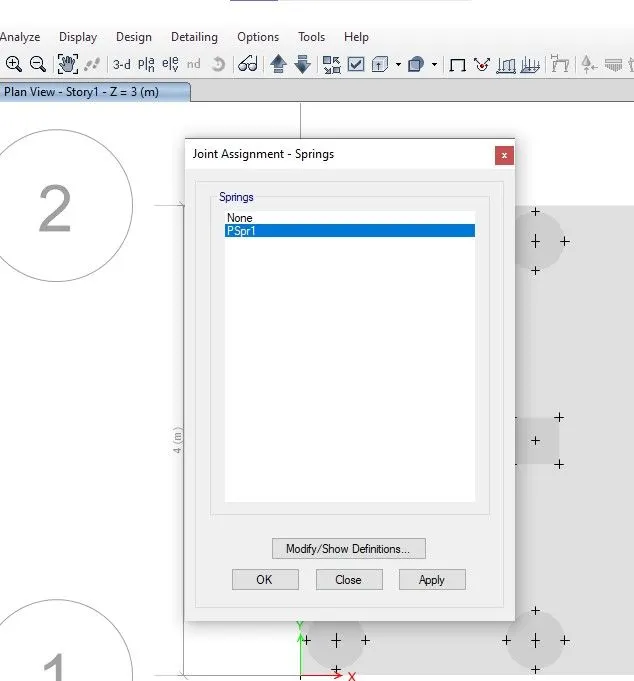

- define the point spring

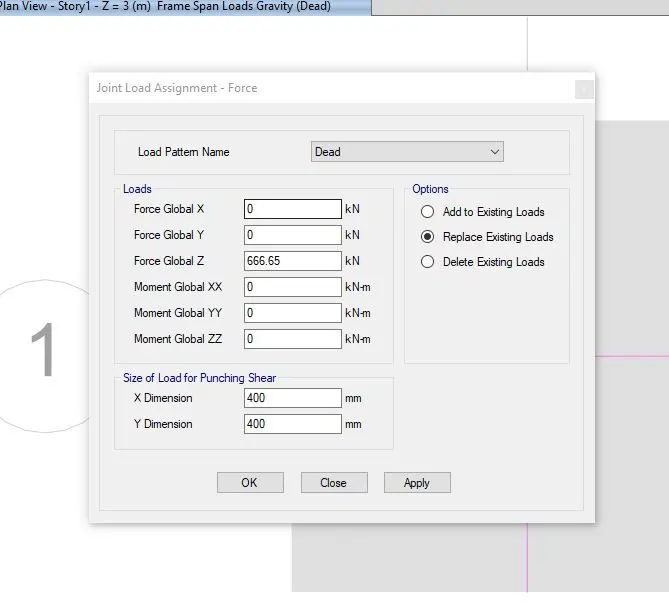

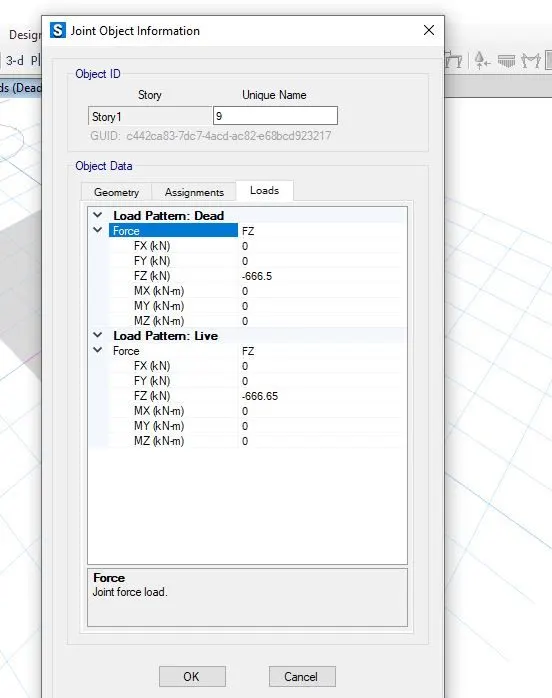

- define and assign the load
-

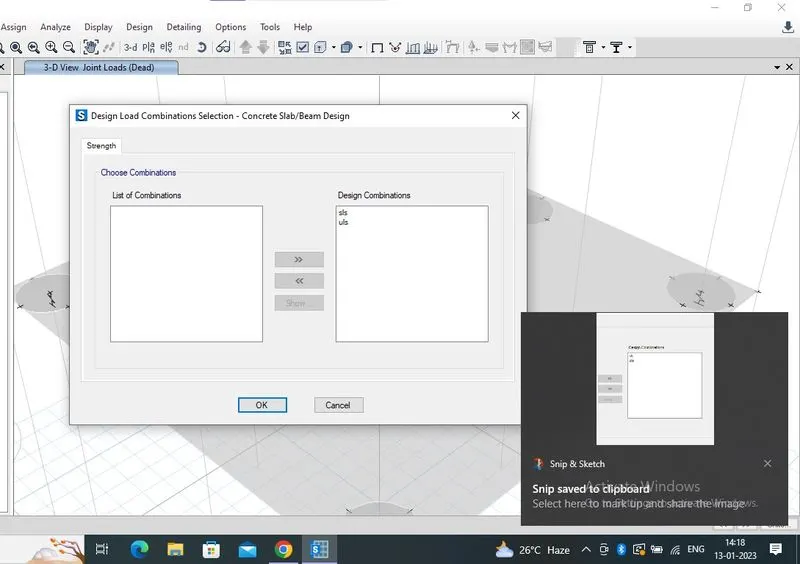

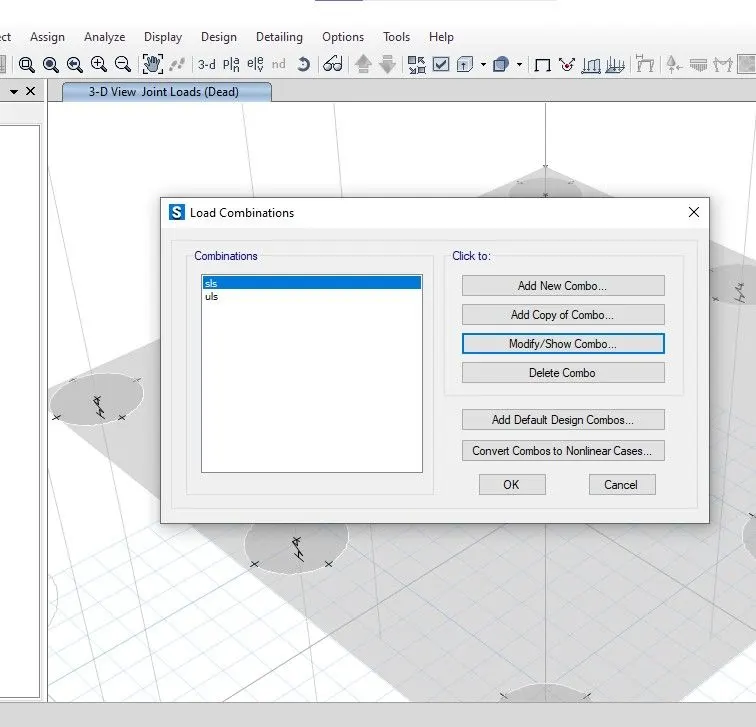

- define load combination and design it

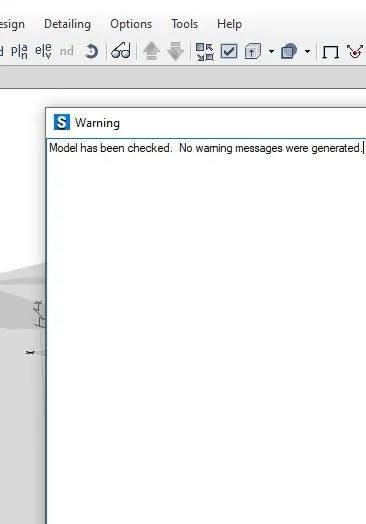

- check model
- run analysis
- result
- design completion isolated footing and pile
