Final Project: Electric Rickshaw modelling
Create a detailed MATLAB model of an electric rickshaw (three wheel passenger
vehicle) as per details below:
Rear wheels driven by PM brushed type motor
Assume efficiency points of motor controller and motor
Make an excel sheet of all input and assumed data
Results: For any three standard driving cycles show energy consumption, temperature
rise of motor and controller for 100 km constant speed driving at 45 kmph.
Your Answers
AIM: Design of an Electric Rickshaw using MATLAB Simulink
ABSTRACT:
In this project, we work to create the MATLAB model of the ELECTRIC
RICKHAEW by doing a PM brushed type DC motor and a suitable Lithium-Ion battery
for the motor. Before this, we will remember what is Electric RICKHAEW, how it's
functioning and the privileges of EV RICKHAE Then we make an actual EV RICKHAEW
model in SIMULINK with suitable blocks from the powertrain block set. My main motto is
to examine "how my RICKHAEW performs for any three standard driving cycles
showing energy consumption, the temperature rise of motor and controller for vehicle
cover around 100 km at constant speed driving 45 kmph. Made a comparison with
Mahindra e-Rickhaew and my Simulink model.
OBJECTIVES:
Create a detailed MATLAB model of an electric rickshaw (three-wheel passenger
vehicle) as per the details below:
Rear wheels driven by PM brushed type motor
Assume efficiency points of motor controller and motor
Make an excel sheet of all input and assumed data
Results: For any three standard driving cycles show energy consumption, the
temperature rise of the motor and controller for 100 km constant speed driving at
45 kmph.
METHODOLOGY:
The electric vehicle consists of a battery, motors, and controller then it generates
propulsion power.
To design any vehicle 1st we have to calculate propulsion power then the motor
is selected.
Lastly based on the motor rating or operating range and no km/charge we want
to depend on everything battery capacity and then battery capacity is selected.
So the Design flow of the vehicle engineers has to be like the following:
a. Identify what amount of propulsion power is required.
b. What is the best suitable motor for that propulsion power?
c. Then type of battery and range of battery according to the range.
INTRODUCTION:
• Electric E-Rickshaw is also known as an electric tuk-tuk, e-rickshaw and auto which
are going more popular after 2018 in the Indian market. This E-rickshaw is the best
alternative to petrol/CNG auto-rickshaw and human or horse-pulled rickshaws because
of their low fuel cost, zero emissions and less human efforts.
• The electrical system used in the Indian version is 48VDC can run 90-100 km/full
charge, top speed 25 km/hour and this electric motor power ranging from 650-1400
Watts: the battery takes 8-10 hrs to become fully charged. Basic seating capacity is
driver plus 4 passengers total of 5 persons.

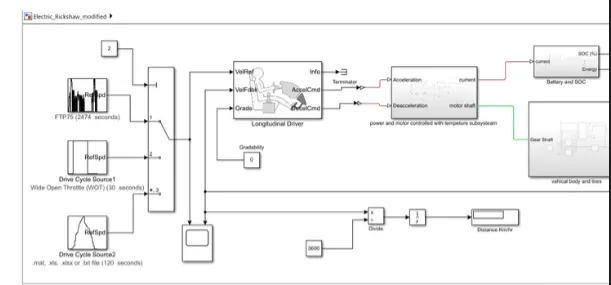

• Here basically, e-rickshaw is designed in CREO and MATLAB Simulink In the
designed electric rickshaw main blocks are battery, drive cycle, controlled, DC Motor,
Vehicle body and transmission system. Drive cycle is the input of human effort that how

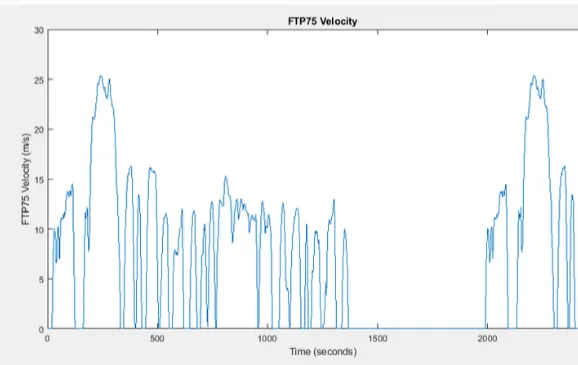

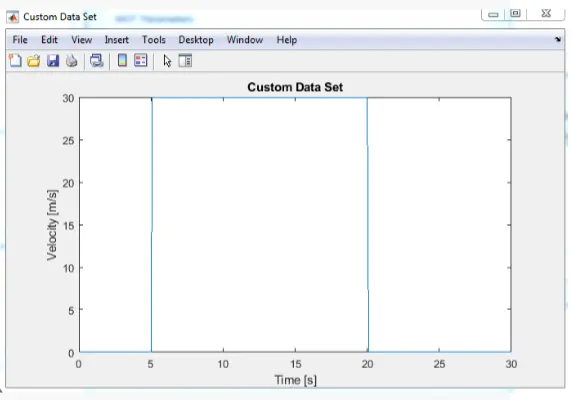

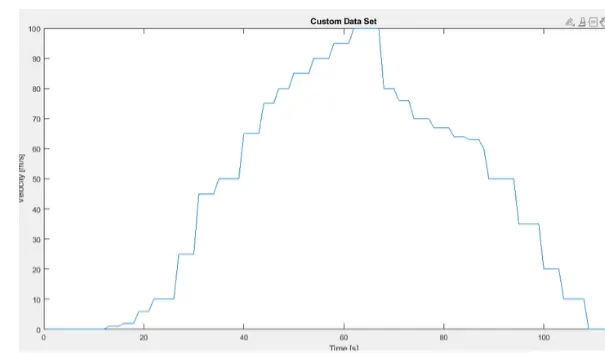

he is going to drive his actual cycle We can use dive cycle like FTP75, WOT or by using
Excel

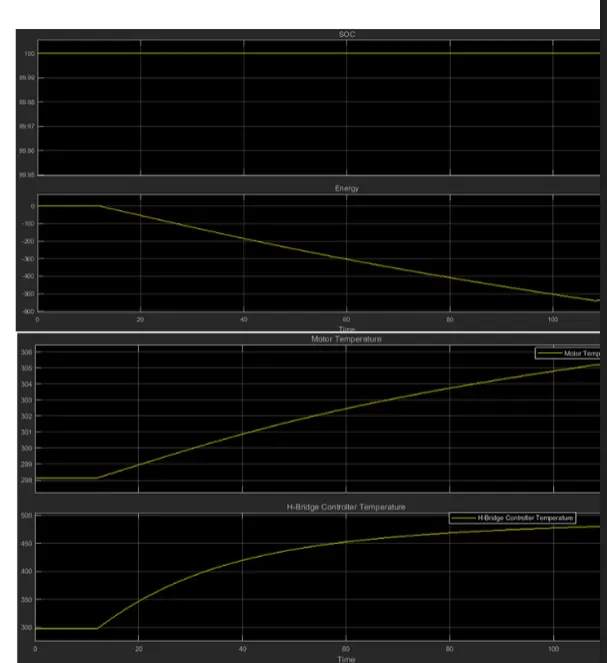

• The main objective of this project is to obtain speed by the driver, to estimate the
temperature of the motor and controller, to estimate the state of charge (SOC) and

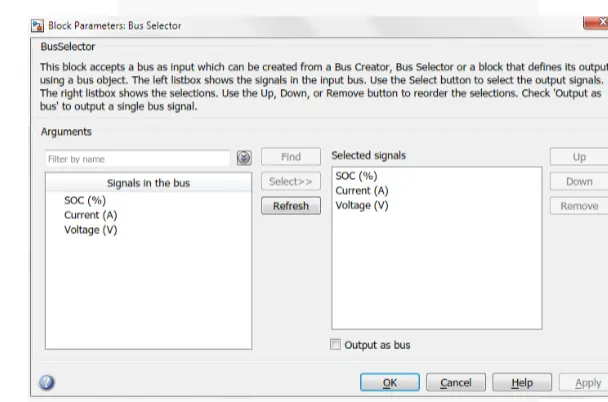

distance travel by the vehicle. There is a SOC block that will estimate the state of
charge of the battery, distance is calculated by speed and time parameter for all the
three Drive cycle
Design and Construction:
These rickshaws have an MS(Mild Steel) tubular chassis consisting of three wheels with
a differential mechanism at the rear wheels. The motor is a brushless DC motor
manufactured mostly in India and China. The electrical system used in the Indian
version is 48V and in Bangladesh is 60V The body design from the most popular
Chinese version is of very thin iron or aluminium sheets. Vehicles made in fibre are also
popular because of their strength and durability, resulting in low maintenance, especially
in India.
• The body design is varied from load carriers, passenger vehicles with no roof, to full
body with windshield for drivers comfort. It consists of a controller unit. They are sold on
the basis of voltage supplied and current output, also the number of MOSFET (metal
oxide field-effect transistors) used. The battery used is mostly a lead-acid battery with a
life of 6-12 months. Deep cycle batteries designed for electric vehicles are rarely used.
The weight of the electric car has also been a recurring design difficulty in them.
General detail of E-Rickshaw

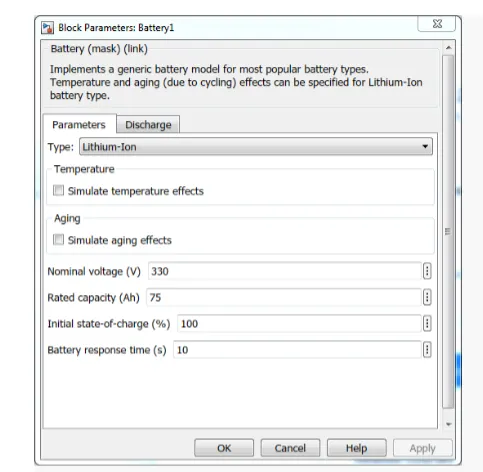

# Battery Type Lithium-ion 330 V 75
# Vehicle kerb weight 260 kgs
# Load capacity 340 kgs
# Vehicle speed 7 kmph
# Driving range 140 km (160 Ah)
# No of wheels per axel 2
# Frontal Area 91m
# Drag coefficient 5 Wheel radius 306m
# Vertical load 3000 N
# Nominal Voltage 330 V
# Rated capacity 75Ah
# Initial SOC 100 %
# Internal Resistance 5 ohm.

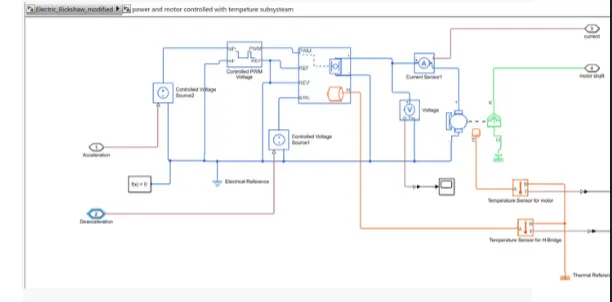

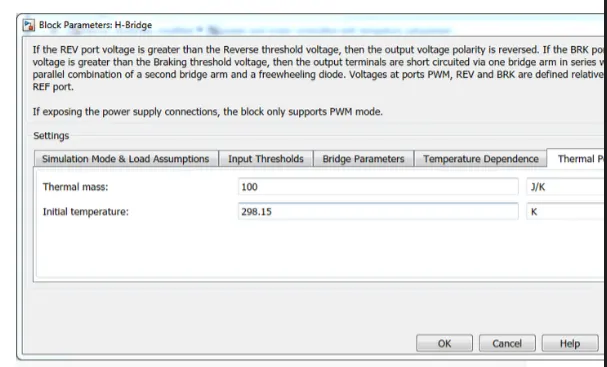

1 Power and Motor Controlled Subsystem Model ( With Temperature Senor)

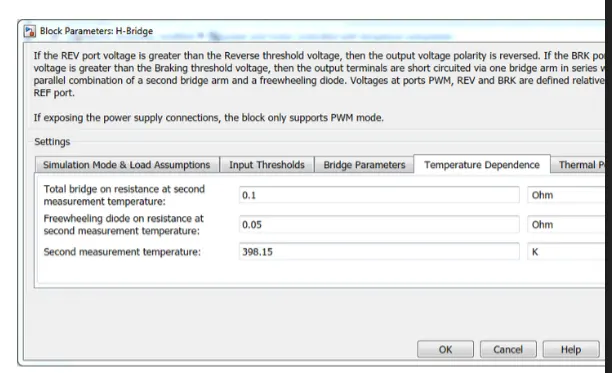

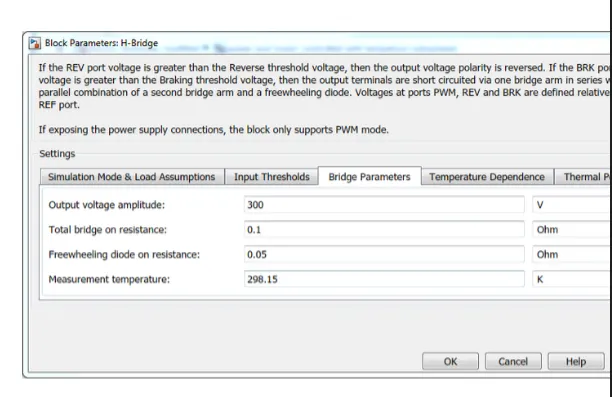

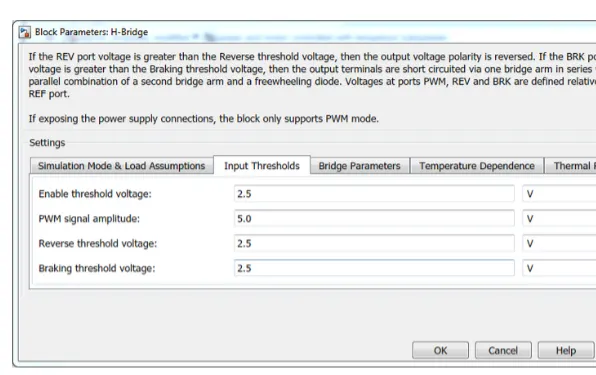

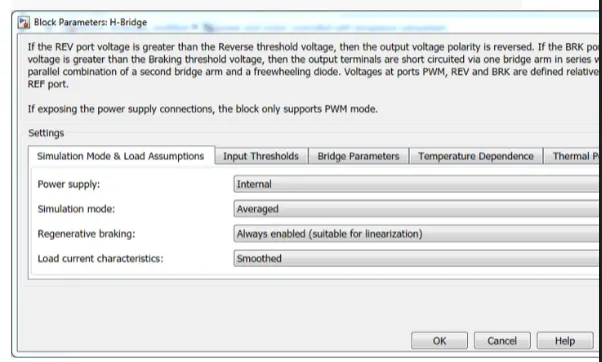

This block represents an H-bridge motor drive. The block can be driven by the
Controlled PWM Voltage block in PWM or Averaged mode. In PWM mode, the motor is
powered if the PWM port voltage is above the Enable threshold voltage
in Averaged mode. the PWM port voltage divided by the PWM signal amplitude
parameter defines the ratio of the on-time to the PWM period. Using this ratio and
assumptions about the load, the block applies an average voltage to the load
that achieves the correct average load current. The Simulation mode parameter value
must be the same for the Controlled PWM Voltage and HBridge blocks.
• If the REV port voltage is greater than the Reverse threshold voltage, then the output
voltage polarity is reversed.
• If the BRK port voltage is greater than the Braking threshold voltage, then the output
terminals are short-circuited via one bridge arm in series with the parallel combination of
a second bridge arm and a freewheeling diode.
• Voltages at ports PWM, REV and BRK are defined relative to the REF port. If exposing
the power supply connections, the block only supports PWM mode
1.2 DC Motor:

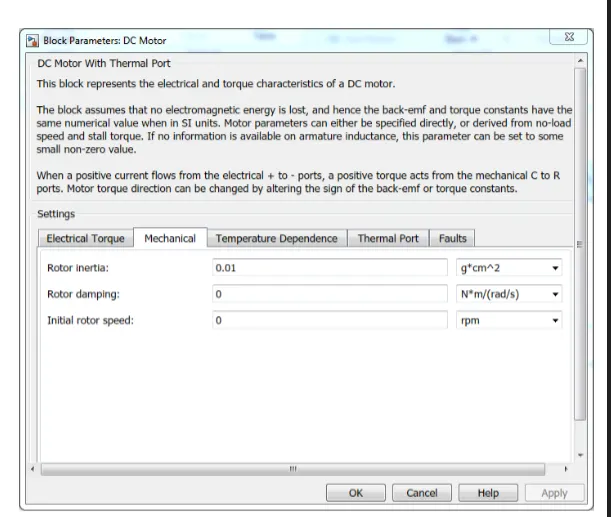

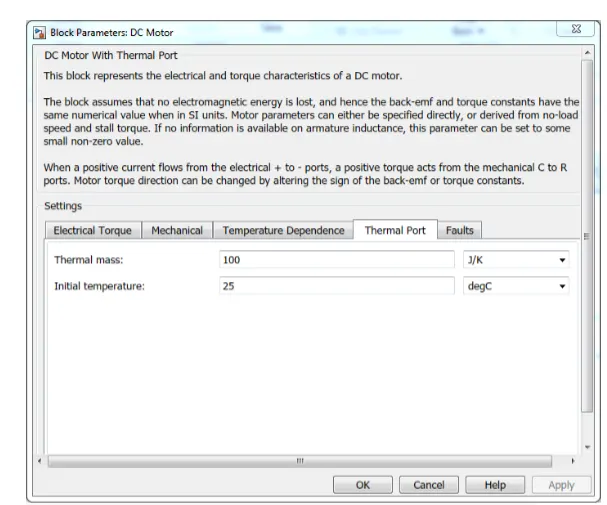

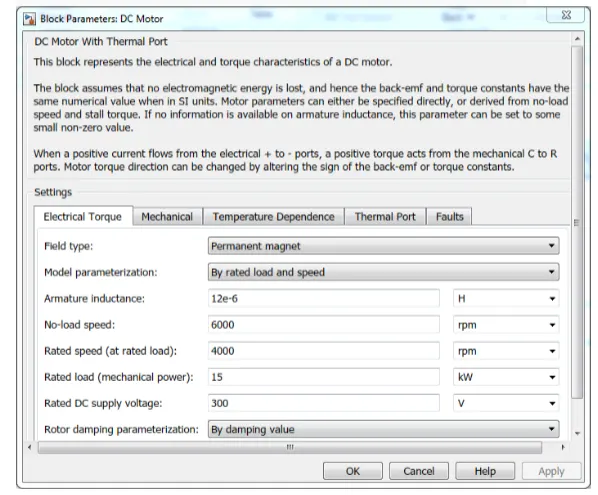

• This block represents the electrical and torque characteristics of a DC motor includes

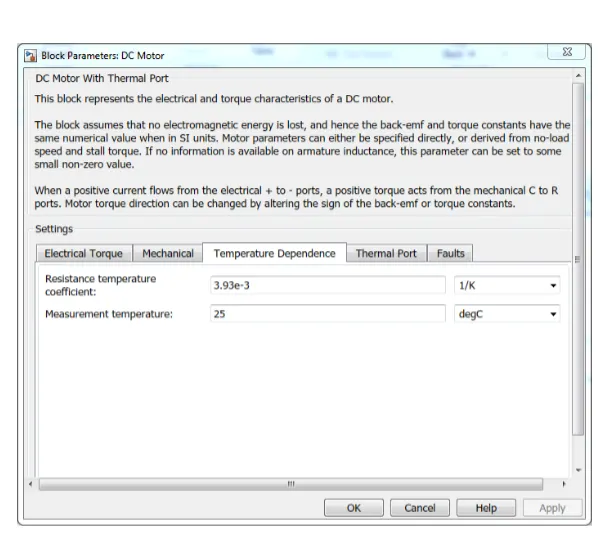

Thermal port to series the temperature of Motor
• The block assumes that no electromagnetic energy is lost, and hence the back emf
and torque constants have the same numerical value when in Si units Motor
• Motor parameters can either be specified directly or derived from the no-load speed
and stall torque. If no information is available on armature inductance, this parameter
can be set to some small non-zero value.
• When a positive current flows from the electrical to-ports, a positive torque acts from
the mechanical C to R ports. Motor torque direction can be changed by altering the sign
of the back-emf or torque constants.

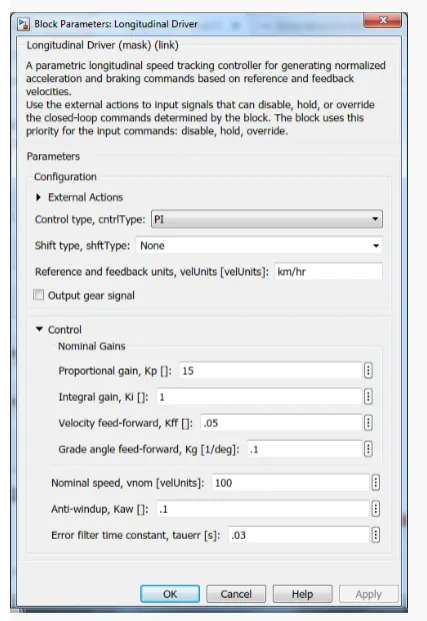

• The Motor controller will get input from the longitudinal driver. Its tasks are to control
the speed of the motor and drive according to the input of the driver.
• Majorly motor controlled we designed had two main parts named PWM voltage
generator and H-Bridge Input 1 is getting from the accelmd of a longitudinal driver and it
is given to a controlled voltage source block where it is input to the controlled PWM
voltage will generate a PWM signal in such a way that H-bridge will generate the
required voltage to operate the DC motor for the given driver input
• PWM voltage block negative reference and REF are grounded and REF of H bridge
respectively. H-bridge is a motor controller that has IGBT components aligned in the
shape of H and will operate only two at a time respectively to the input of the signal from
the PWM block.
• When deceleration occurs this H-bridge will give an output from the positive and
negative terminals of it. These negative & positive terminals are later connected to the
DC motor and battery. All these components are the simscape electrical components so
they need a connection to the solver configuration block which helps to solve the
simulation.

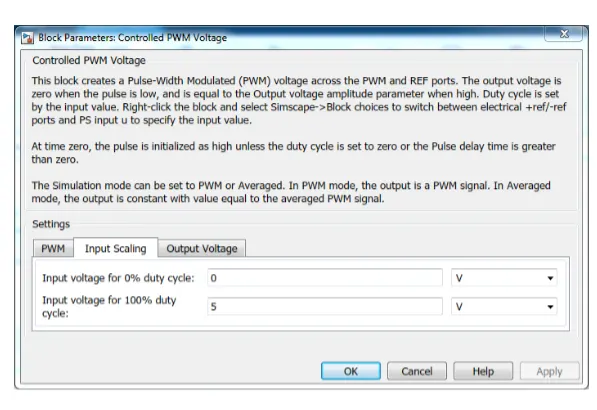

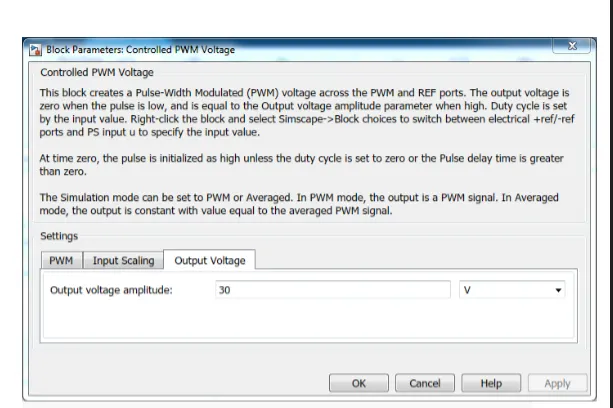

1.3 Controlled PWM Voltage:

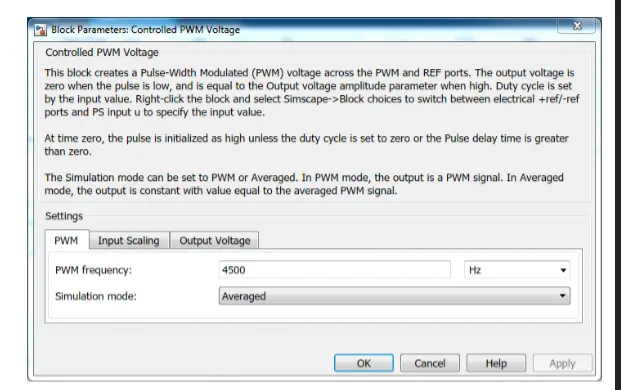

• This block creates a Pulse-Width Modulated (PWM) voltage across the PWM and REF
ports. The output voltage is zero when the pulse is low and is equal to the Output
voltage amplitude parameter when high.
The duty cycle is set by the input value. Right-click the block and select Simscape Block
choices to switch between electrical ref/-ref ports and PS input u to specify the input
value.
At time zero, the pulse is initialized as high unless the duty cycle is set to zero or the
Pulse delay time is greater than zero.
The Simulation mode can be set to PWM or Averaged. In PWM mode, the output is a
PWM signal. In Averaged mode, the output is constant with a value equal to the
averaged PWM signal. Select Simulation mode as Averaged.

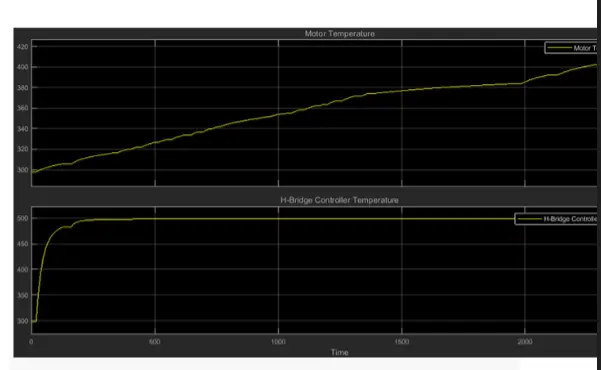

1.4 Temperature Sensor:
• Temperature Sensor is used to measure the temperature of the H-Bridge and Motor.
This block measures temperature in a thermal network. There is no heat flow through
the sensor. The physical signal port T reports the temperature difference across the
sensor.
The measurement is positive when the temperature at port A is greater than the
temperature at port B.
1.5 Solver Configuration:
Defines solver settings to use for simulation.
(2) Vehicle Body and Tire Subsystem Model:
• Motor will produce the rotational output which will give to the vehicle body and
transmission system. The rotational output is taken by the gear system here to maintain
the constant speed throughout the transmission without any loss in speed from the
motor to tires.

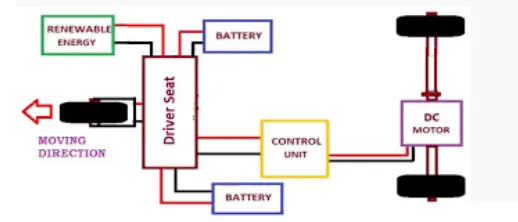

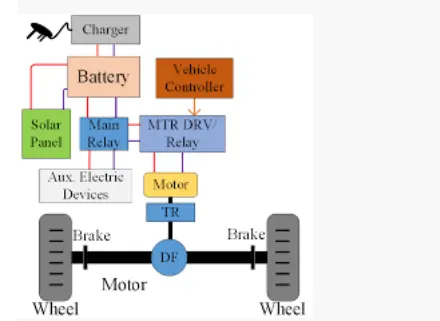

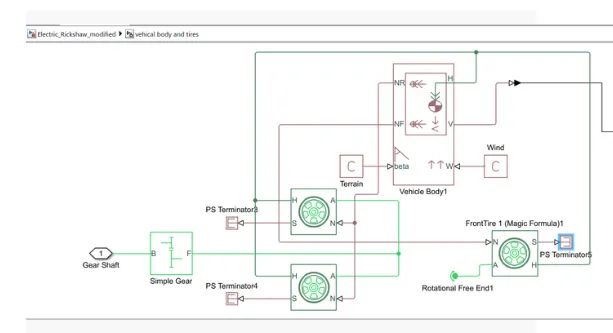

• Below is a diagram that is how it is inside the vehicle body and transmission system
and in the main design, it is referred just only as a transmission system. Here I created
a Rear-wheel drive transmission system.
• The gear output is given to axels of Rear tires in the circuit it is shown that gear is
connected to Rear wheels and the front tire is free to rotational motion, thus the vehicle
moves forward. N is the normal force caused by the tires and it is given to the vehicle
body normal force port.
• The vehicle body has an H-Hub, S- Tire slip, N-Normal force. As axel connection, wind
velocity, inclination angle. The tires hub is connected as a common node to the vehicle
body.
• The vehicle body wind velocity is connected to a constant block and the beta-
inclination angle is connected to another constant block where we can assign wind
velocity and inclination angle as per requirement. Velocity is the output port where we
can get at which speed the vehicle is moving. The velocity is taken out to get the
distance travelled and state of charge

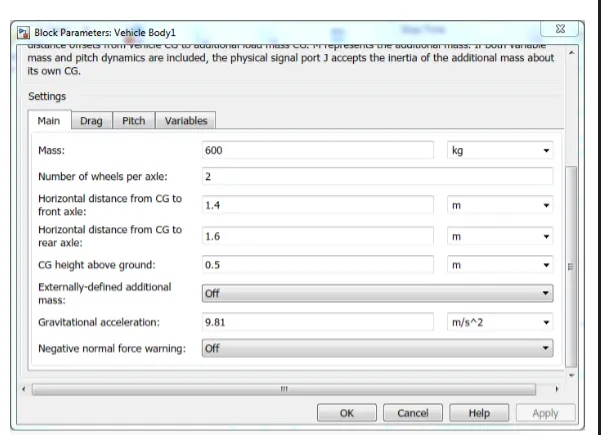

2.1 Vehicle Body Parameters:
• Vehicle body mass, Centre of gravity distance values and aerodynamic drag variables
are modified.
• Pitch dynamics are kept ON with other variable values as default values.
2.1.1 Tire

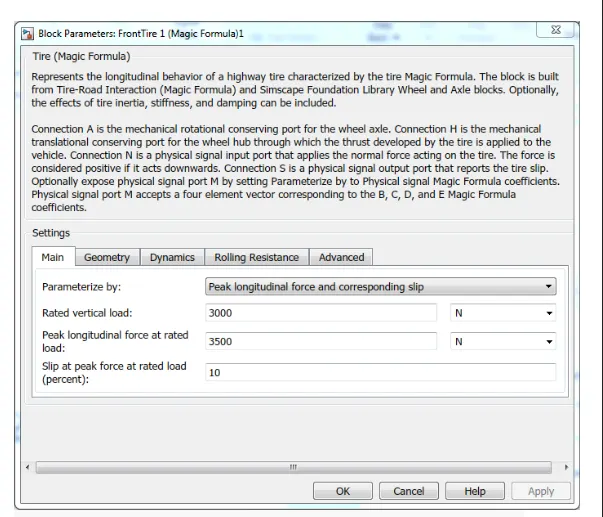

• Represents the longitudinal behaviour of a highway tire characterized by the tire Magic
Formula. The block is built from Tire-Road Interaction (Magic Formula) and Simscape
Foundation Library Wheel and Axle blocks. Optionally, the effects of tire inertia, stiffness
and damping can be included.
• Connection A is the mechanical rotational conserving port for the wheel axle.
• Connection H is the mechanical translational conserving port for the wheel hub
through which the thrust developed by the tire is applied to the vehicle.
• Connection N is a physical signal input port that applies the normal force acting on the
tire. The force is considered positive if it acts downwards.
• Connection S is a physical signal output port that reports the tire slip. Optionally
expose physical signal port M by setting Parameterize by to Physical signal Magic
Formula coefficients.
• Physical signal port M accepts a four-element vector corresponding to the B, C, D, and
E Magic Formula coefficients.
2.1.2 Gear:

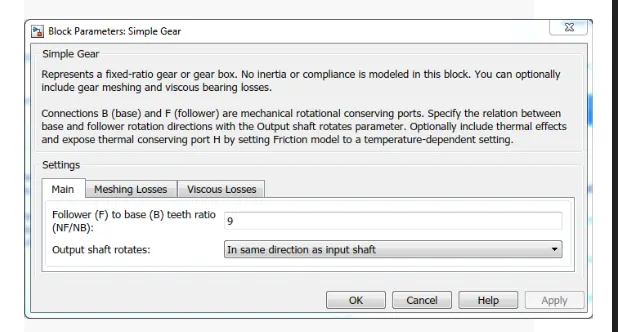

Represents a fixed-ratio gear or gearbox. No inertia or compliance is modelled in this
block. You can optionally include gear meshing and viscous bearing losses.
Connections B (base) and F (follower) are mechanical rotational conserving ports.
Specify the relation between base and follower rotation directions with the Output shaft
rotates parameter.
Optionally include thermal effects and expose thermal conserving port H by right-
clicking on the block and selecting Simscape block choices to switch between variants
Output shaft rotates in the same direction of the input shaft.
The base is connected to the Motor shaft and the follower is connected to the Rear-
wheel derive.
2.1.3 Vehicle Body:
• This block basically represents a two-axle vehicle body in longitudinal motion. The
block accounts for - body mass, aerodynamic drag, road incline, weight distribution
between axles due to acceleration road profile.
• Here, connection H is the mechanical translational conserving port hub. NF & NR
correspond to the output ports for normal reaction forces on the front axle and rear axle
wheels respectively.
• Connection V represents the actual output translational velocity of the vehicle beta is
the road inclination angle & W corresponds to the headwind speed (headwind direction
opposite to that of the vehicle).
• The gross weight is given to be 600 kg. The geometric parameters of the vehicle are
given as.

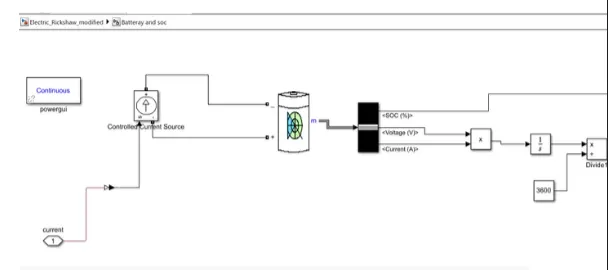

(3) Battery And Soc Subsystem Model:
The battery is required to power the controller and motor. The controller uses the
battery power according to produce the input given by the motor to obtain maximum
speed. The battery is also used to power every electrical component in the vehicle.
• The Battery block implements a generic dynamic model that represents the most
popular types of rechargeable batteries.
. The battery has two-stage one is charging and another one is discharging state.
The battery is of 75Ah capacity.
The Nominal voltage of the battery is 330 V
Initial SoC is 100%
The battery as a series internal resistance plus a charge-dependent voltage source
defined by:
where SoC is the state of charge and Vnom is the nominal voltage.
Coefficient
beta is calculated to satisfy a user-defined data point [AH1,VI].
• The battery has a positive and negative terminal which is given the voltage-
controlled source where the battery consumption is controlled by the motor controller
and then it is given to the SOC block
3.2 Battery State of Charge:
• SoC is the percentage or level of battery presents after certain travel or consumption
of battery charge by the vehicle.
• In the designed vehicle battery charge or SOC is calculated by giving it to the rate
transition and then to gain where 1/inominal battery capacity) then to a discrete-time
integrator and it will get minus from the 1 as it is considered a 100% of battery and it is
multiplied with 100 to get a percentage of battery.
• The majority of blocks are simscape blocks were physical to Simulink converter is
used to convert the physical signal from simscape block to Simulink signal.
3.3 Controlled Current Source:
• The Controlled Current Source block converts the Simulink input signal into an
equivalent current source. The generated current is driven by the input signal of the
block. The positive current direction is as shown by the arrow in the block icon.
• We can initialize the Controlled Current Source block with a specific AC or DC current.
if we want to start the simulation in steady-state the block input must be connected to a
signal starting as a sinusoidal or DC waveform corresponding to the initial values
• Double click controlled current source and from the drop-down menu of measurement
select current.
• Signal output will connect with scope by adding the current signal to it. (+) the terminal
will connect with the battery (-) terminal.
The Bus Selector block outputs the signals you select from the input bus The block can
output the selected elements separately or in a new virtual bus
Here just we have mange the output and connect it with different Scope Block.
3.5 PowerGUI:
a. The powerful block allows us to choose one of these methods to solve
b. Continuous, which uses a variable-step solver from Simulink your circuit:
c. Discretization of the electrical system for a solution at fixed time steps.
Continuous or discrete phasor solution
d. The powerful block also opens tools for steady-state and simulation results
analysis and for advanced parameter design.
(4) Longitudinal Driver:
Longitudinal Driver is an inbuilt block provided by the powertrain blocks.
•It is a parametric longitudinal speed tracking controller for generating
normalized Acceleration and Braking commands based on reference and feedback
velocities
• The VelFdbk port corresponds to the feedback velocity. The actual velocity output
given by the vehicle body is connected here. By comparing the actual (feedback)
velocity with the reference velocity, the driver block generates acceleration and braking
signals in order to minimise the error between the two concerned velocities.
• Grade corresponds to the grade angle. For this simulation, no inclination is considered
and hence, a constant block with value 1 is connected.
• Info gives the output for the bus signal for different block calculations like the
difference in reference vehicle speed and vehicle speed, etc.
• AccelCmd & DecelCmd correspond to the acceleration and deceleration commands
generated respectively and are connected to the corresponding parts of the Controlled
PWM Voltage block
• Here, the selected control type is Pl. Accordingly, the block implements proportional-
integral (PI) control with tracking windup and feed-forward gains.
(5)Reference velocity (Drive cycle)
• Drive cycle is assumed as the driver's input of a vehicle, it replaced how a driver will
drive a vehicle. Here I have used three drive cycles which are used to test the vehicle
performances.
• These drive cycles will have high-speed low speed. braking conditions in it
• There are different drive cycles like WOT FTP75 etc. Here in this model I have used
FTP 75 WOT & Manically prepared in excel Drive Cycle source
5.1 FTP 75 Drive cycle
Generates a standard or user-specified longitudinal drive cycle.
The block output is the vehicle longitudinal speed.
we can import drive cycles from:
# Predefined sources
# Workspace variables, including arrays and time series objects
# mat, Xls, xlsx, or txt files
Use the fault tracking parameters to identify drive cycle faults within the specified speed
and time tolerances
5.2 Wide Open Throttle (WOT):
5.3 Manually prepared Drive Cycle:
link for xcle sheet:-
https://docs.google.com/spreadsheets/d/1V3IDVDysbalFB5cQE04VoftlJlSrcVjS/e
dit?usp=sharing&ouid=117983317012408976267&rtpof=true&sd=true.
• All 3 Drive cycles are controlled by the controller provided above by constant through
Multi-part switch
Simulink model for Electric Rickshaw
Hole Simulink model Explanation:
• Initially the current flow to DC Motor from the battery through the DC-DC power
converter to drive the motor. The required voltage will be controlled in the controller.
The Controller will follow the given drive cycle reference and run the motor in the
required rpm
Then the motor power is transmitted to the wheels of a vehicle through the gearbox and
the controller will take the vehicle speed and compare and control.
Output Plots:

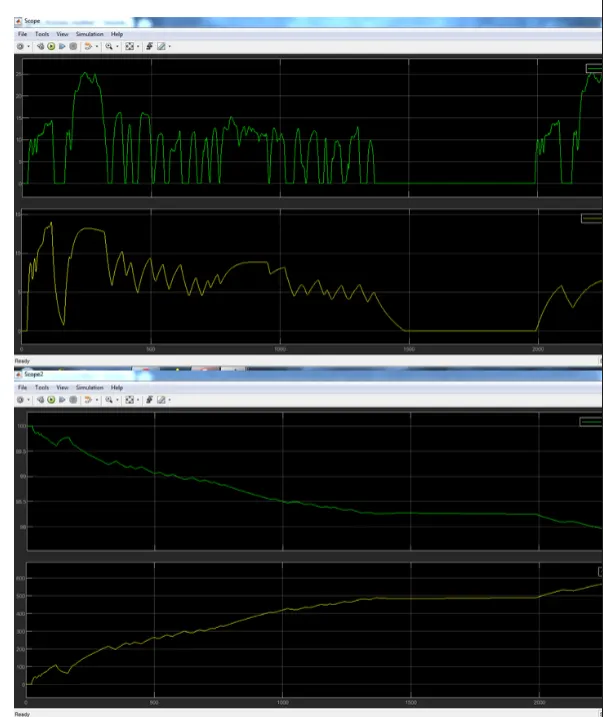

1. For FTP75 Drive Cycle:
By running the Vehicle with F1P75 Drive cycle for 2474 see the distance travelled
is 3.529 km.
The actual Speed is approximately followed the 90% of reference Drive cycle.
The Temperature of Motor is increased to 415°C.
o The Temperature of Controller is 500°C.

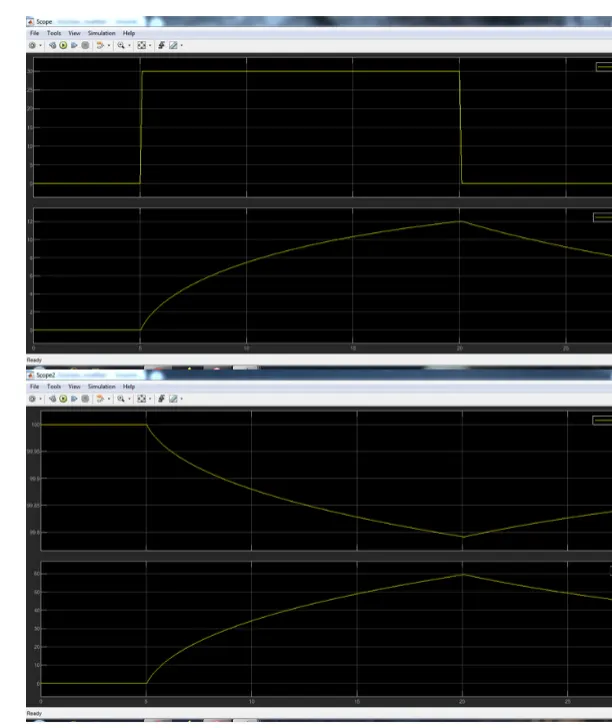

2. For WOT Drive Cycle:
By running the Vehicle with WOT Drive cycle for 30 sec. the distance travelled is
0.1497km.
The actual Speed is approximately followed the 85% of reference Drive cycle.
The SoC% of the battery is reduced to 91% at 100 th sec and after that 100 to 200 sec.,
the battery get charged by by back EMF.
o The Temperature of Motor is increased to 305°C.
The Temperature of Controller is = 480°C.

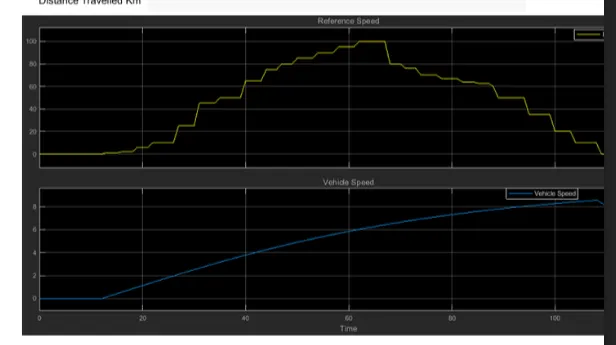

3. For Manually prepared Drive Cycle:
• To increase the speed of the vehicle, the output voltage amplitude is applied to 400 V.
. By running the Vehicle with Manually prepared Drive cycle for 120 sec the distance
travelled is 0.1644km.
The actual path of the speed is approximately followed the of reference Drive cycle as
above.
The SoC% of the battery is reduced to = 94.2 %.
The Temperature of Motor is increased to 305°C.
The Temperature of Controller is 480°C.
CONCLUSION:
# Here I have compromised with the temperature of Motor and controller to achieve
vehicle speed is near to reference speeds. Since I haven't used any cooling system in
the model. In the real time application, the motor temperature is less than 100 C
# In the real time application, the motor, battery & controller temperature is controlled by
air cooling. Hence, the temperature of this components is not increased to this extent.
# Hence. Created a MATLAB model of an Electric Rickshaw (three wheel passenger
vehicle) by using Li-ion
battery, PM Brushed DC Motor.
# Detremined the variations of Temperature of Motor and controller, SoC% and Energy
consumed by the by vehicle for all the three Reference Drive cycles (.e: FTP75, WOT,
Manually prepared).
# This Battery powered Rickshaw will be the most popular mode of transport in the
future.
