FINAL INDEPENDENT PROJECT

PROJECT TITILE : APPLE MAGIC MOUSE PRODUCT DESIGN

CONTENT;

• OBJECTIVE
• TOOLS USED/METHOD OF CREATION
• METHODOLOGY
• REALVIEW
• ISOMETRIC , FRONT - BACK , TOP - BOTTOM & RIGHT - LEFT Views
• FEATURE TREE
• CONCLUSION

OBJECTIVE;

AS THE COURSE ULTIMATE SOLIDWORKS DESIGN CAME TO AN END WITH LOT OF LEARNINGS. SO, THIS INDEPENDANT PROJECT SHOWS THE LEVEL OF MY INVOLOVEMENT AND KNOWLEDGE GOT FROM THE COURSEWORK. AS MY INTEREST AND FOCUS ON MY CAREER PATH IS TO BECOME A PRODUCT DESIGNER AND IM SO OBSESSED WITH THE PROJECTED CURVES, SO I CHOOSE THE APPLE MAGIC MOUSE TO DESIGN AND PRESENT IN THIS INDEPENDANT PROJECT PLATFORM.

TOOLS USED/METHOD OF CREATION;

1. CREATING PLANES
2. CREATION OF SKETCH
3. MATCHING SKETCH ACCORDING TO THE REFERANCE IMAGE.
4. CREATING SPLINES
5. CREATION OF INTERSECTION CURVES
6. SURFACE LOFT
7. SURFACE FILL
8. THICKEN SURFACES
9. KNITTING SURFACES
10. TRIMMING SURFACES
11. MIRRORING
12. FILLETS
13. LOGO BOCK INSERTING
14. PROJECTING LOGO USING SPLIT LINE
15. APPEARANCES & VIEWS

METHODOLOGY;

FIRST STEP IS TO CREATE A SKETCH AND MATCH THE SIDE VIEW FROM THE IMPORTED IMAGE.

NEXT IS TO CREATE A SKETCH ACCORDING TO THE IMAGE IN TOP VIEW AND CREATE A INTERSECTION CURVE USING THE 2 SKETCHES THAT WE HAVE CREATED.

MOST OF THE ENTITIES ARE REPETITIVE, SO WE CAN DO IT EASILY USING MIRRORING OPTION.

AFTER THE SKETCHES THAT ARE MATCHED WITH THE IMAGES IN ALL VIEWA, NEED TO START WITH THE CREATION OF SURFACES USING SURFACE FILL & SURFACE LOFTS.

AS A PART OF SURFACE DESIGN, SURFACES TO BE KNITTED AND TRIM THE EXCESS SURFACES.

THE SURFACES WE CREATED NEED TO BE BODY SO, WE SHOULD THICKEN THE SURFACES AS 1MM.

FINISHING AND APPEARANCE IS TO BE GOOD SO, THE DESIRED EDGES IN PRODUCT IS TO BE DONE WITH FILLETS.

FOR GETTING THE LOGO, WE USE THE BLOCK INSERTING AND PROJECT ON THE TOP SURFACE USING SPLIT LINE OPTION.

FINALLY , THE COLOR / APPEARANCES SHOULD BE SET ACCORDINGLY TO THE ORIGINAL EXISTING PART TO LOOK BETTER.

TO GET A REALVIEW - WE CAN TURN ON THE VIEW CALLED SHADOWS IN SHADED MODE IN VIEWS OPTION.

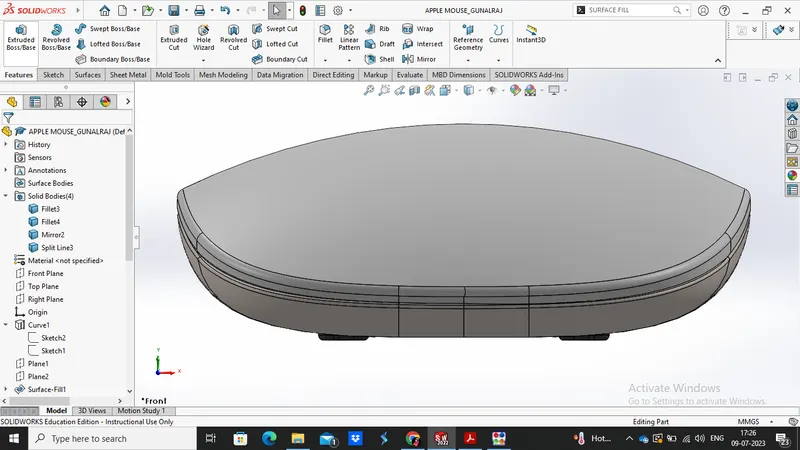

REAL VIEW;

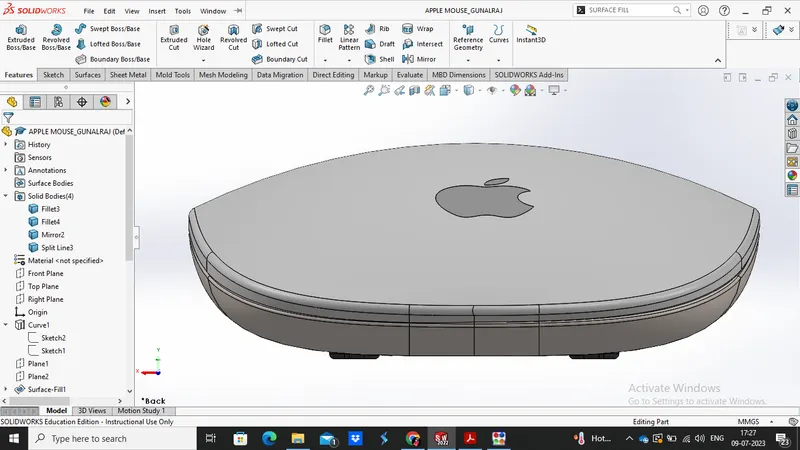

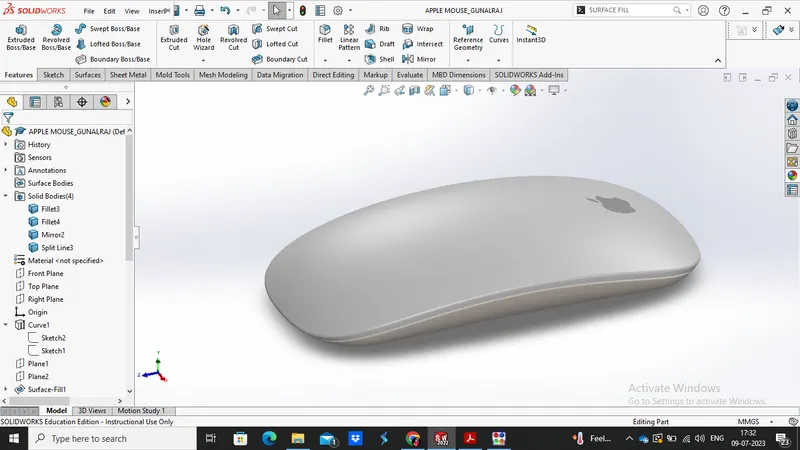

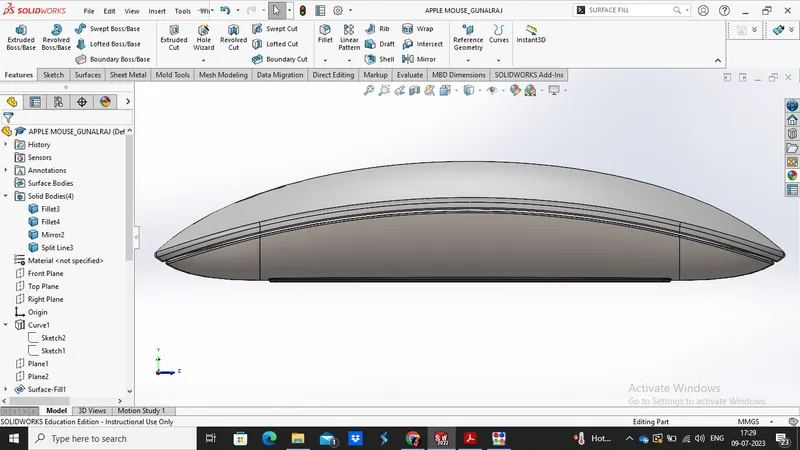

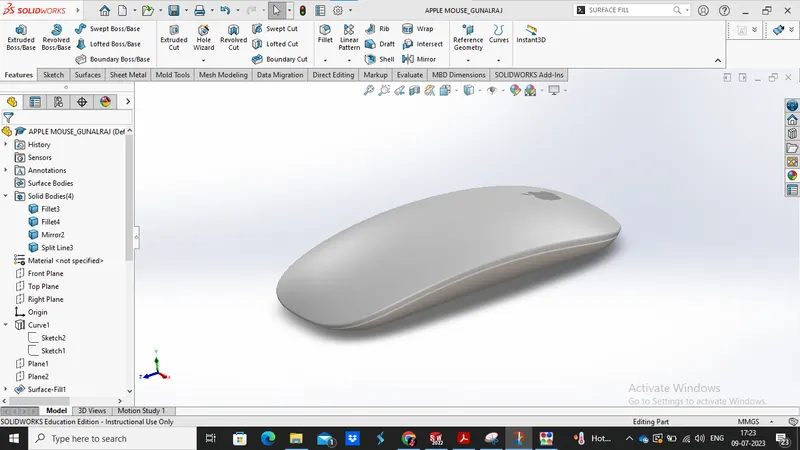

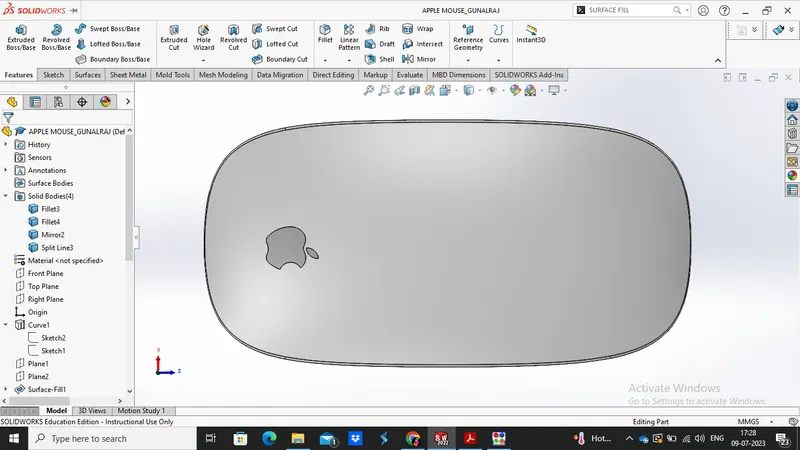

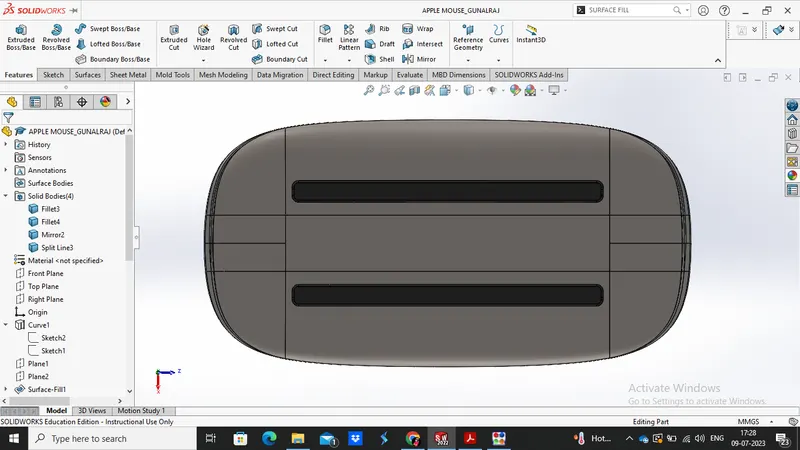

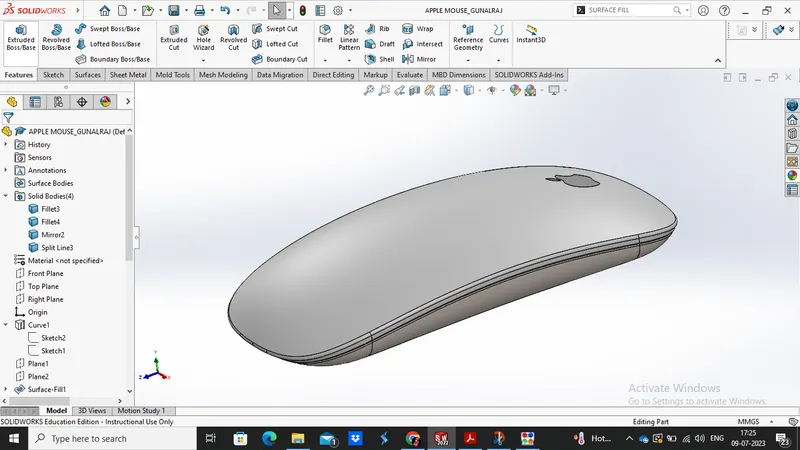

ISOMETRIC , FRONT - BACK , TOP - BOTTOM & RIGHT - LEFT View

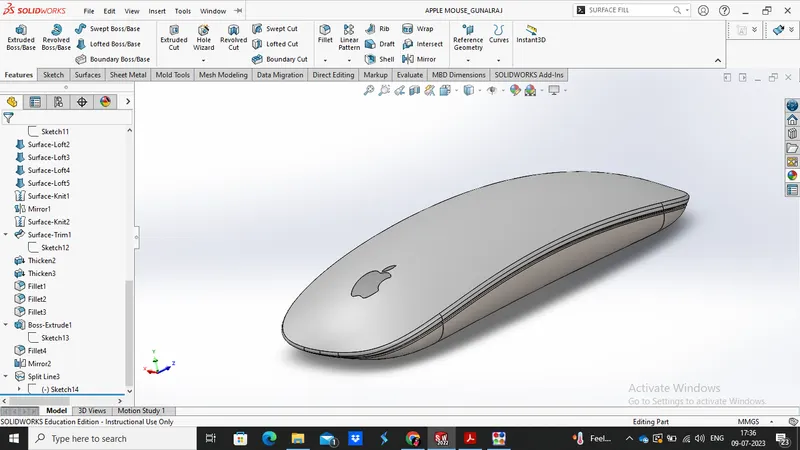

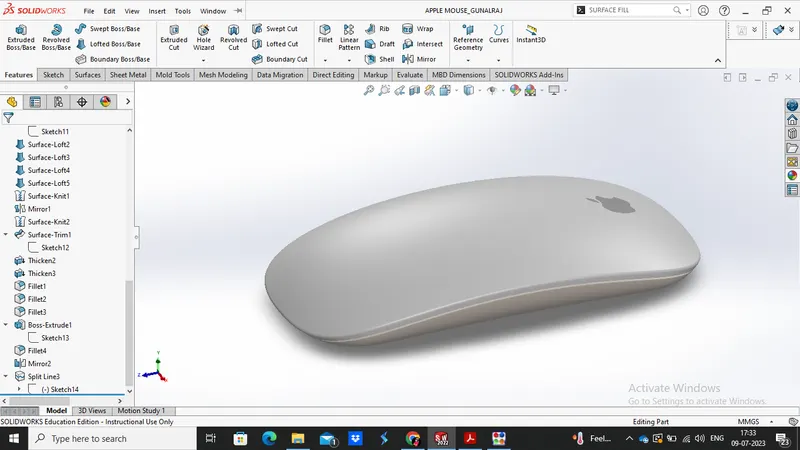

FEATURE TREE;

CONCLUSION;

THIS WAS A GREAT EXPERIENCE WITH A LOT LEARNINGS AS THE PROJECT IS SUCCESSFULLY DONE WITHOUT ANY ASSIST FROM THE PROJECT TITLE SELECTION TO PROJECT REPORT SUBMISSION. THIS LEADS TO A GREAT SUBMISSION OF INTEREST IN DESIGN FOR MY FUTURE CAREER ROLES & RESPONSIBLITIES.
