Fender Design - Wheel Arch Challenge
WHEEL ARCH CALCULATION
Fender Wheel Arch Regulations
- Japan Regulation Requirements
- European Regulation Requirements
- US Regulation Requirements

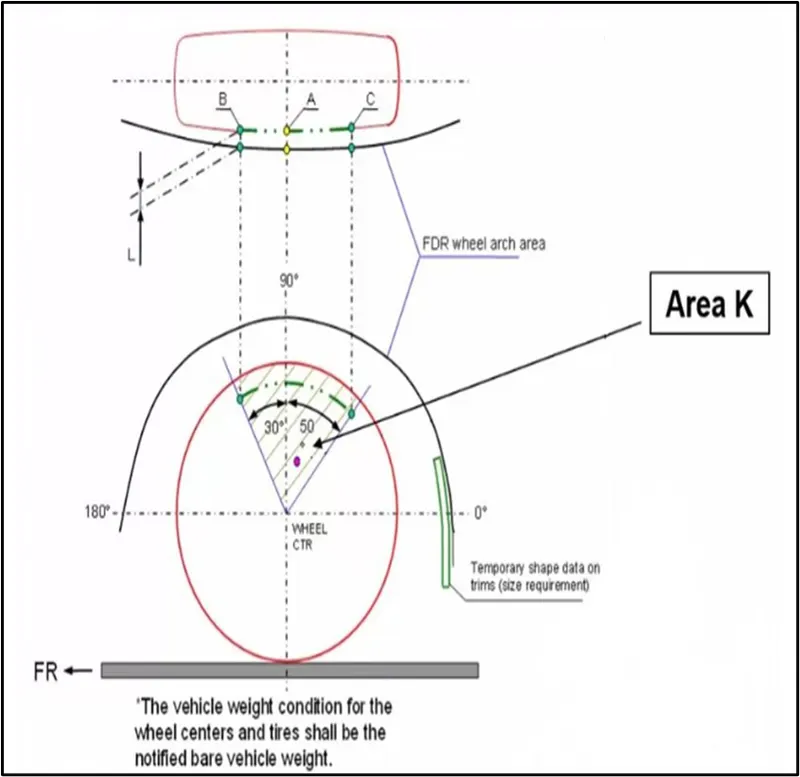

Japan Regulation Requirements
- Measure clearance L of tire, hub, cap & fender in three different positions within area K and produce clearance check chart to validate.
- Clearance must be greater than 5mm in all three positions.
- Wheel guard reqmt: The value of ‘a’ shall be more than 5mm at a line 30⁰ forward and 50⁰ rearward from the central vertical axis of wheel.

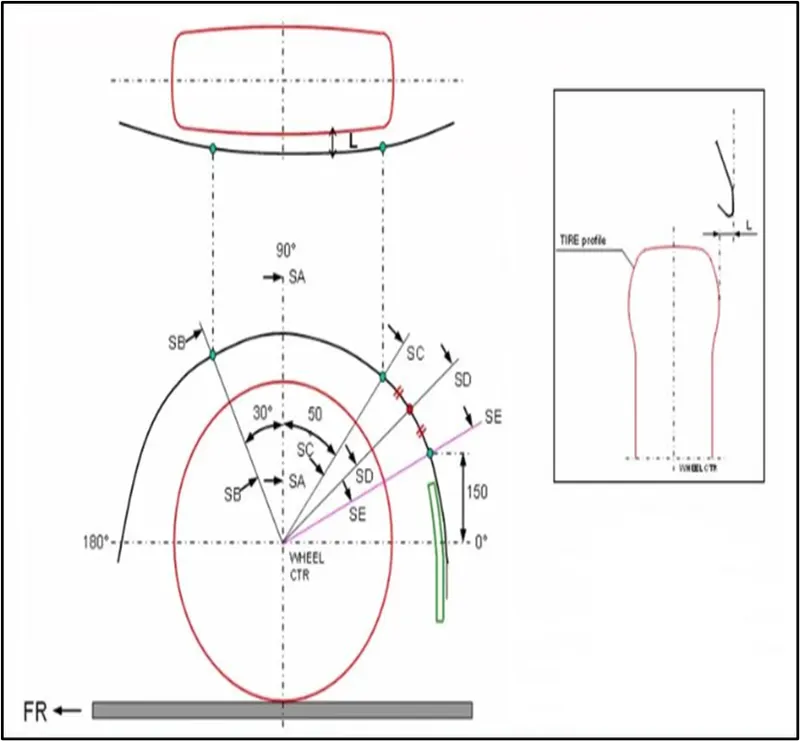

European Regulation Requirements
- Measure CL L at sections SA-SA, SB-SB, SC-SC, SD-SD, SE-SE and produce CL check chart to validate.
- At all five sections the CL L value should be greater than 10mm.
- Wheel guard reqmt: The value of ‘a’ shall be more than 5mm at a line 30⁰ forward and 50⁰ rearward from the central vertical axis of wheel.

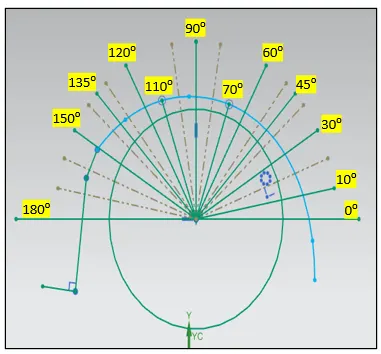

US Regulation Requirements
- Make clearance check details on all positions from -100⁰ to 100⁰ & make the clearance check table.
- All values should be greater than 5mm.
- The value of ‘a’ shall be more than 5mm at a line 30⁰ forward and 50⁰ rearward from the central vertical axis of wheel.

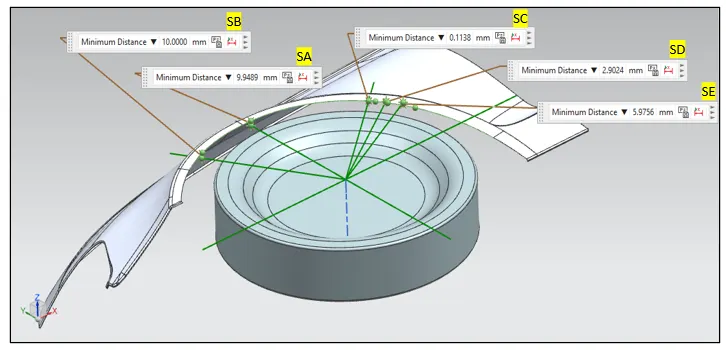

Wheel Arch Calculation
|
SECTIONS |
REQUIREMENT |
MEASUREMENT |
REMARKS |
|
SA-SA |
10 MM |
9.9489 MM |
DISSATISFY |
|
SB-SB |
10 MM |
10 MM |
SATISFY |
|
SC-SC |
10 MM |
0.1138 MM |
DISSATISFY |
|
SD-SD |
10 MM |
2.9024 MM |
DISSATISFY |
|
SE-SE |
10 MM |
5.9756 MM |
DISSATISFY |
===============================================
