Fender Design - Wheel Arch Challenge

1.WHEEL ARCH

wheel arch is semi circular part of fender potioned above the wheel of vehicle

the design of whell arch fender should be shield wheels and protect passanger

2.OBJECTIVE OF WHEEL ARC CHALLANGE

calculate the wheel arc areaand provide whether the given fender of car pass the europian standard or not

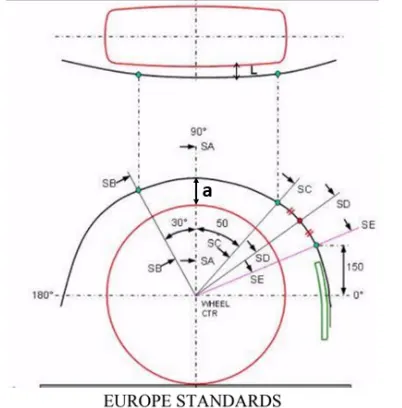

3.EUROPIAN STANDARD OF WHEEL ARC

the clearence L shown in above figre should be minimum 10 mm

wheel guard reqvirment value of a should be minimum 5mm

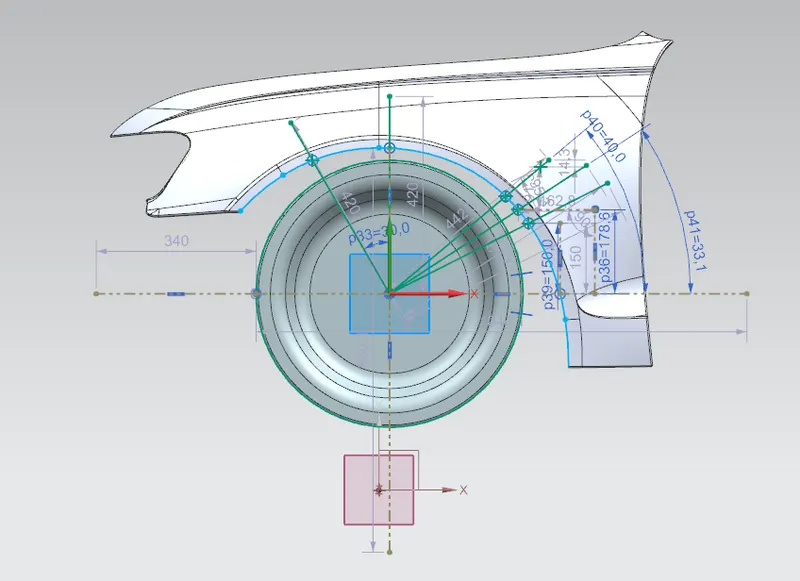

4.OBTAINING RESULT

A. OBTAINING THE VALUE OF CLEARENCE L

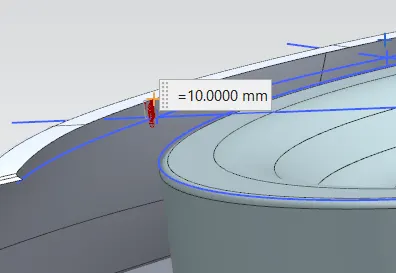

a) measuring L at given wheel and fender at SB

value of L at sb = 10 mm

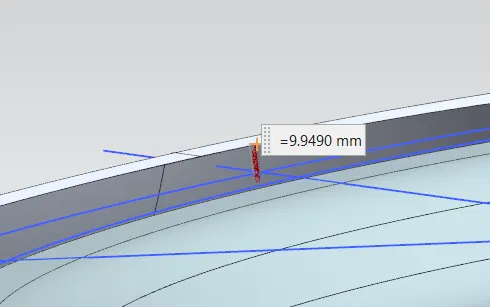

b) measuring L at given wheel and fender at SA

value of L at sa = 9.9490 mm

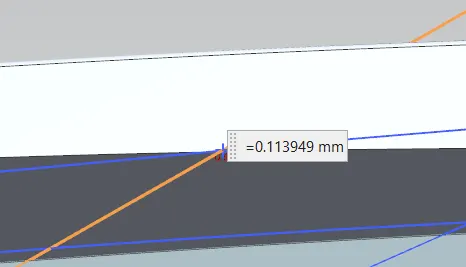

c) measuring L at given wheel and fender at SC

value of L at sc = -0.113949 mm

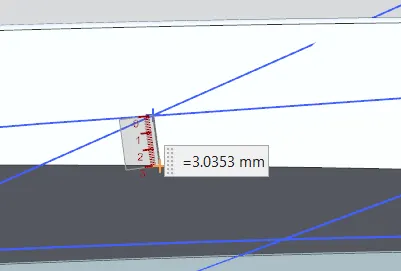

d) measuring L at given wheel and fender at SD

value of L at sd = -3.0353

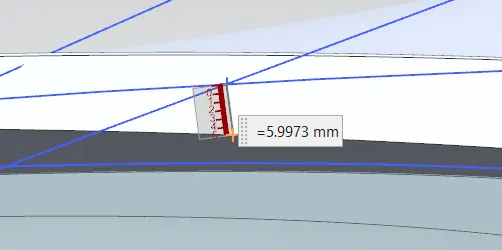

e) measuring L at given wheel and fender at SE

value of L at se = -5.9973

TABLE A clearence l obtained at section SB ,SA,SC,SD,SE

fender doesnt pass at section sa,sc,sd,se in europian standerd

B) OBTAINING THE VALUE OF CLARENCE A WHEEL GURD REQVIRMENT

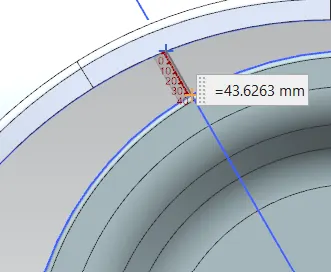

a) finding the value at a line 30 degree forword from center

value a at line 30 degree forword is 43.6263 mm

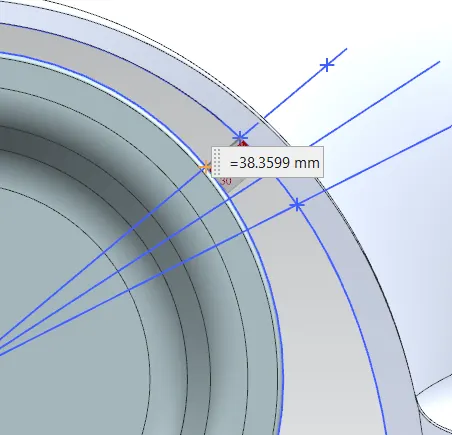

b) finding the value at a line 50 degree rearword from center

value of a at line 50 degree reword is 38.599 mm

TABLE B

clearence at sb and sa

4. CONCLUSION

from the above result obtained we can conclude that the given fender does not pass the europion standard

5. SUGGESTION TO STYLING TEAM

they should increse the l clearence in fender to and more than 10 mm at sa,sc,sd,se
