Fender Design - Wheel Arch Challenge
| LINES | CLEARANCE (DISTANCE) | RESULTS |

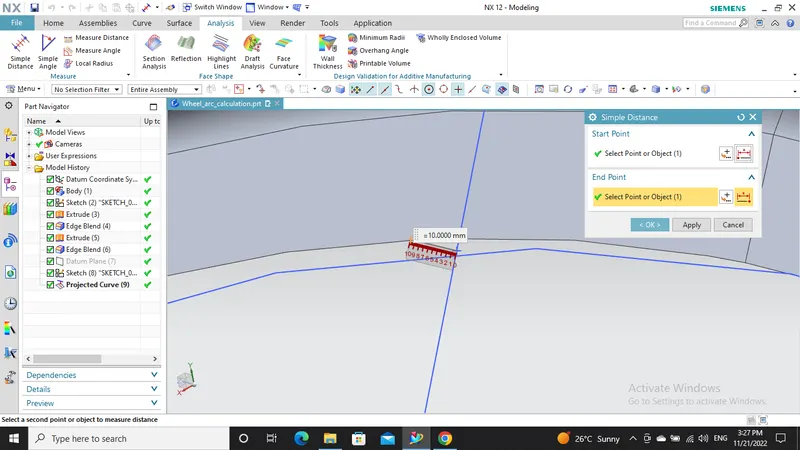

| 1 | 10mm <= 10mm | It is ok for European regulations |

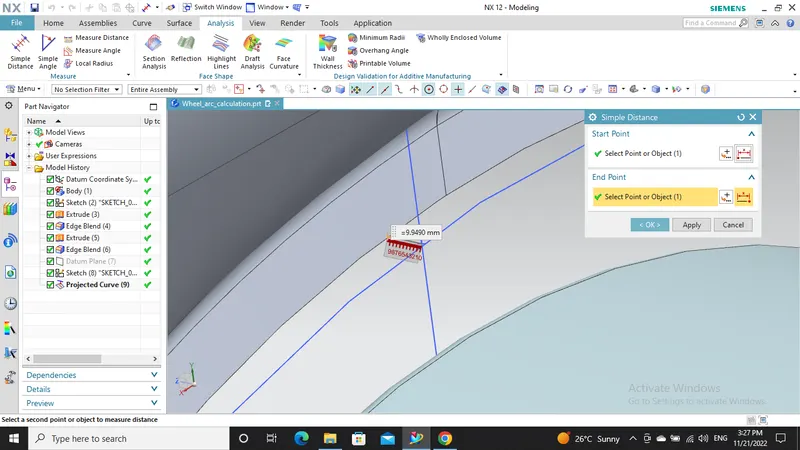

| 2 | 9.9490mm <= 10mm | Passes fail for Europian regulations |

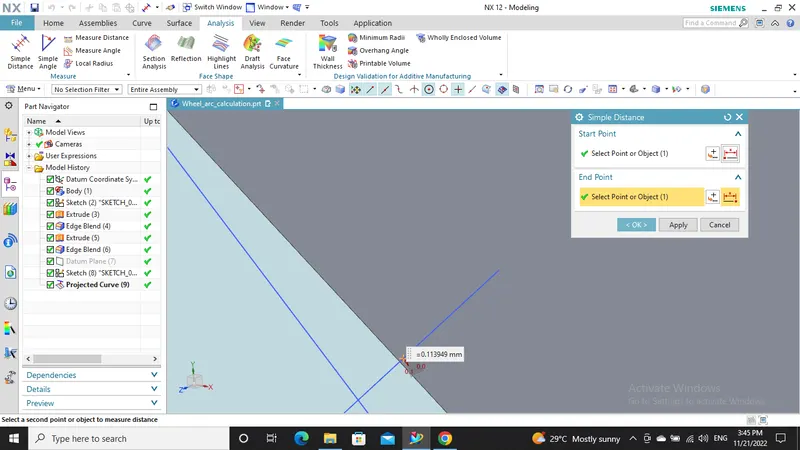

| 3 | -0.113949mm<= 10mm | Passes fail for Europian regulations |

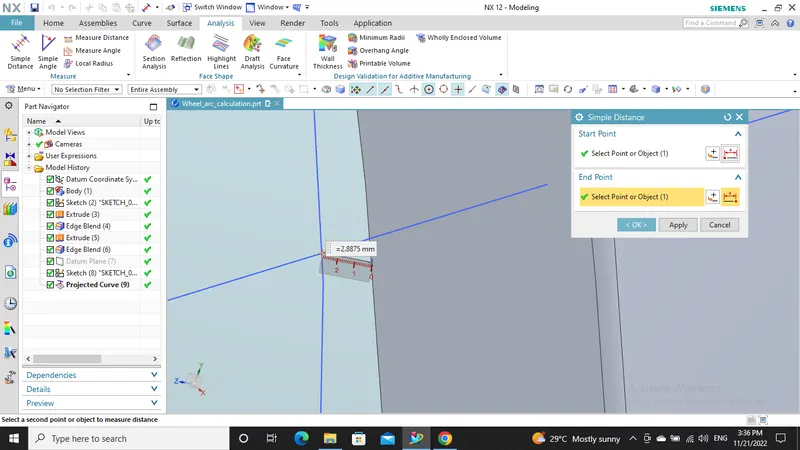

| 4 | -2.8875mm<= 10mm | Passes fail for Europian regulations |

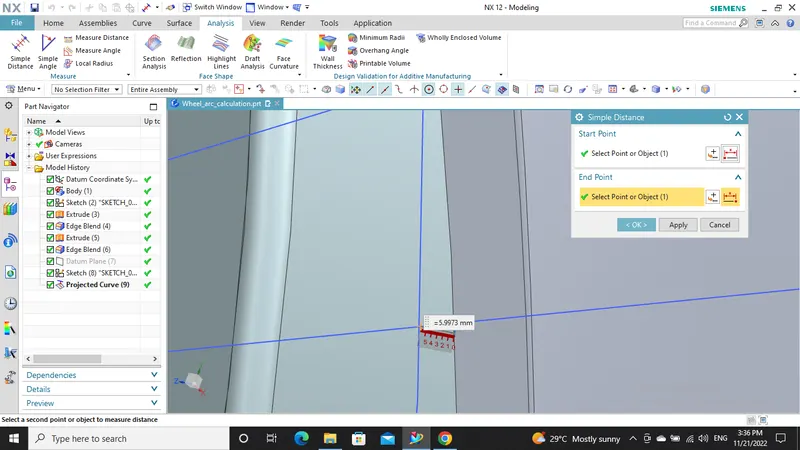

| 5 | -5.9973mm<= 10mm | Passes fail for Europian regulations |

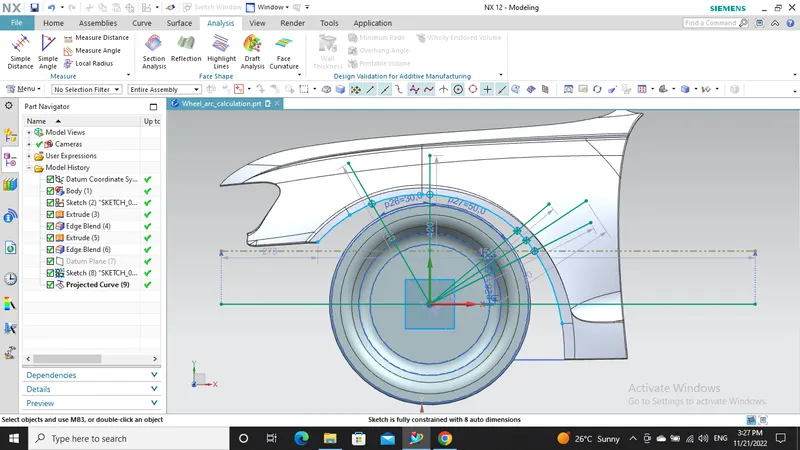

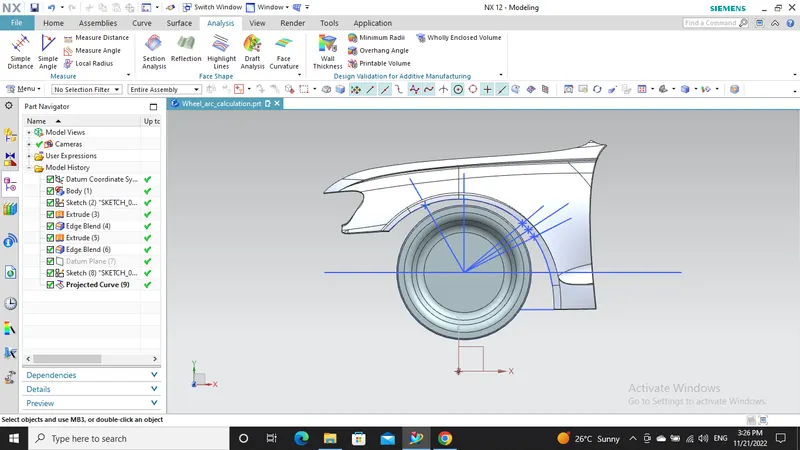

WHEEL ARC FENDER-
CONCLUSION- From the above results obtained, we can conclude that the given fender doesn't pass the European Standards for Wheel Arch area. With this result, the styling team is required to modify the surface of the fender such that the clearance of the line 2,3,4 & 5 are have the less than 10mm clearance (distance), but the clearance of that 2,3,4, & 5 no. of lines need above the 10mm clearance to pass the European regulations.
SCREENSHOTS-
