Fender Design - Wheel Arch Challenge

Your Answers Use the provided styling surface to come up with a back door design, use appropriate design methodologies, and provide the necessary reinforcements and embossed. AUTOMOTIVE DESIGN OF CAR BACK DOOR USING NX CAD OBJECTIVE:  i) From the given styling surface, develop a back door using appropriate design methodologies.…

Your Answers Use the provided styling surface to come up with a back door design, use appropriate design methodologies, and provide the necessary reinforcements and embossed. AUTOMOTIVE DESIGN OF CAR BACK DOOR USING NX CAD OBJECTIVE:  i) From the given styling surface, develop a back door using appropriate design methodologies.…

Your Answers Use the provided styling surface to come up with a back door design, use appropriate design methodologies, and provide the necessary reinforcements and embossed. AUTOMOTIVE DESIGN OF CAR BACK DOOR USING NX CAD OBJECTIVE:  i) From the given styling surface, develop a back door using appropriate design methodologies.…

Provide appropriate dimensions and check for Draft analysis. Do a curvature study on the roof and perform calculations to determine the position of the Bow-roofs. Suggest and implement remedies in the design if the criterion is not full-filling Start with creating a roof ditch area with a tool opening angle of 7 degrees.…

Follow the given Master section to create the Drip Area.   ABOUT FENDER  The fender is a sheet metal part of an automobile. It Plays a vital role in the automobile industry. This type of coverage covers the engine department from the side and works as a shelter for the wheels. Its primary function is to prevent…

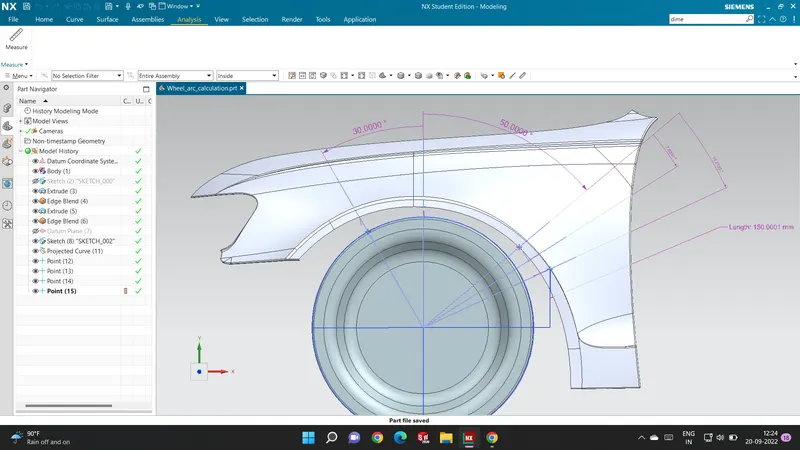

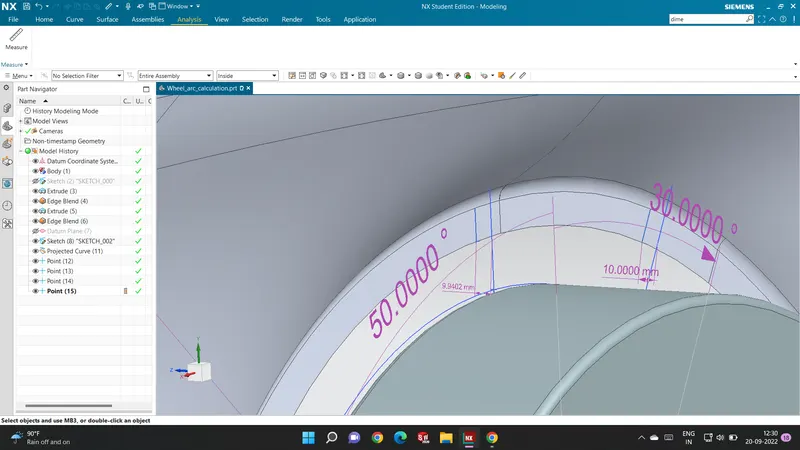

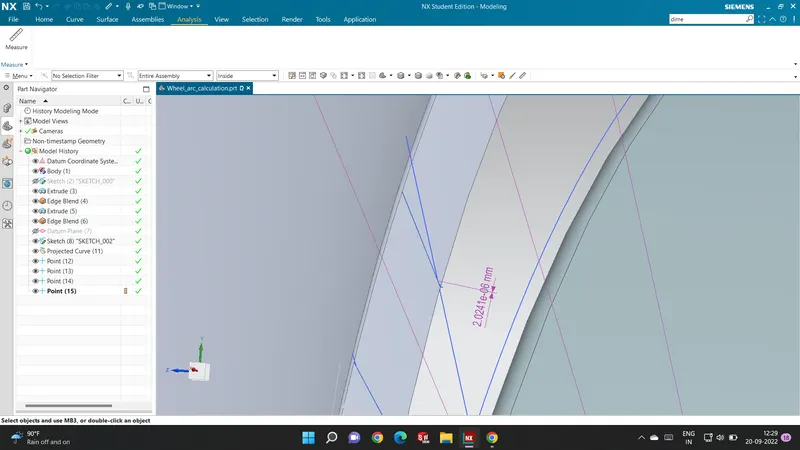

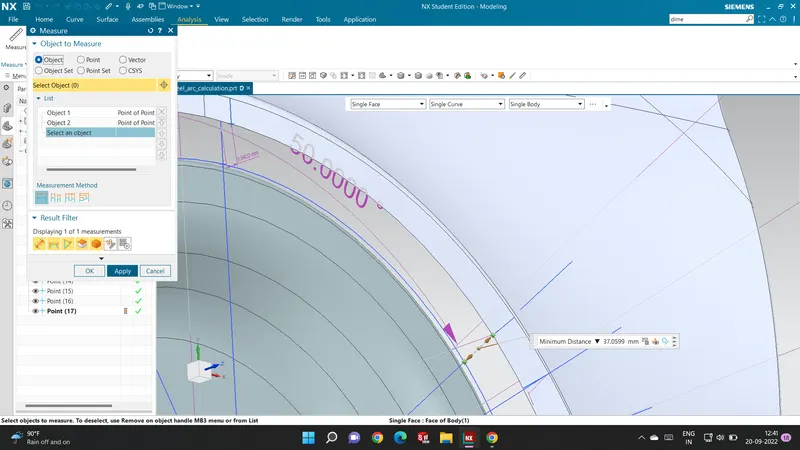

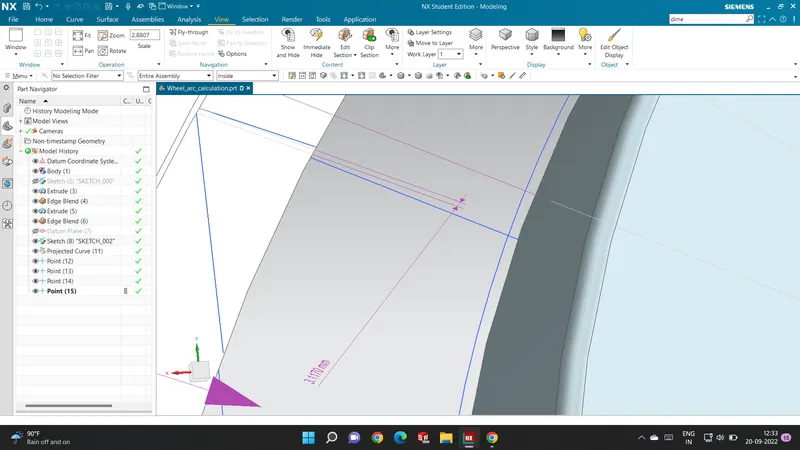

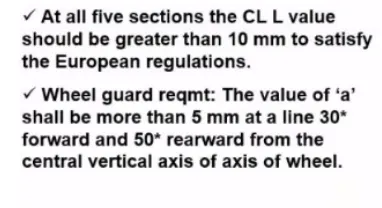

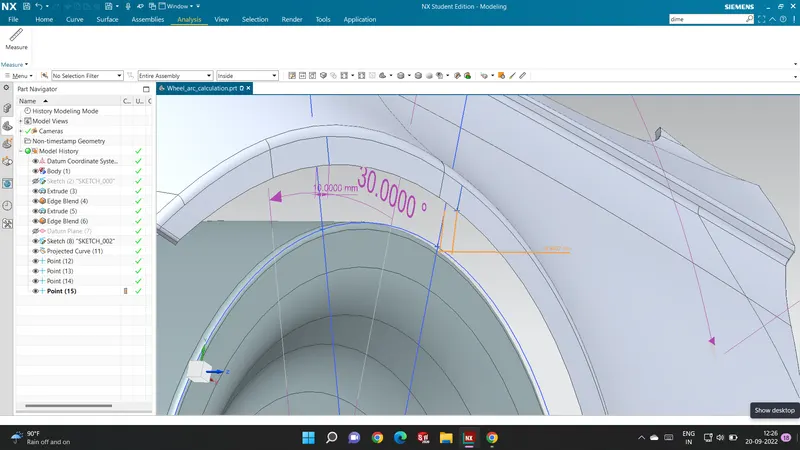

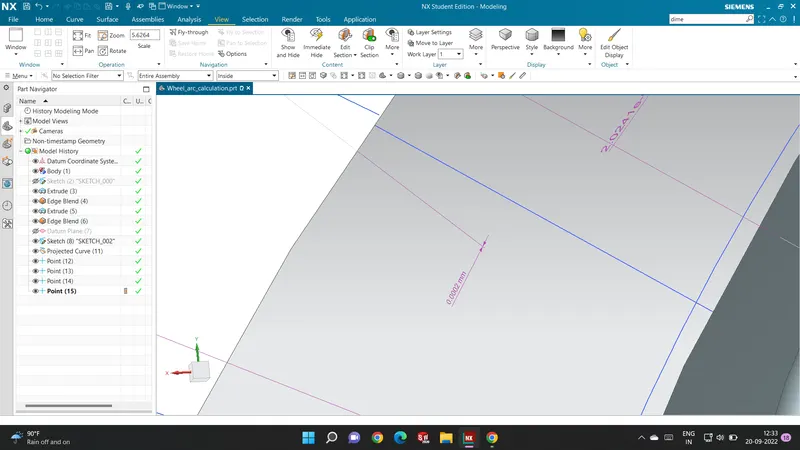

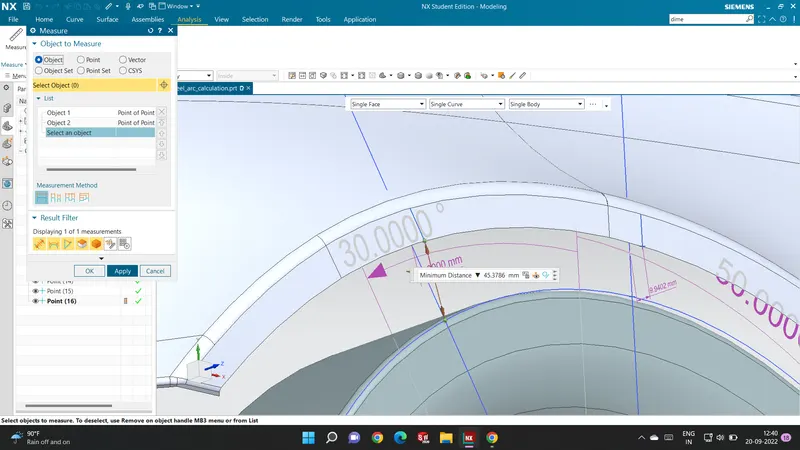

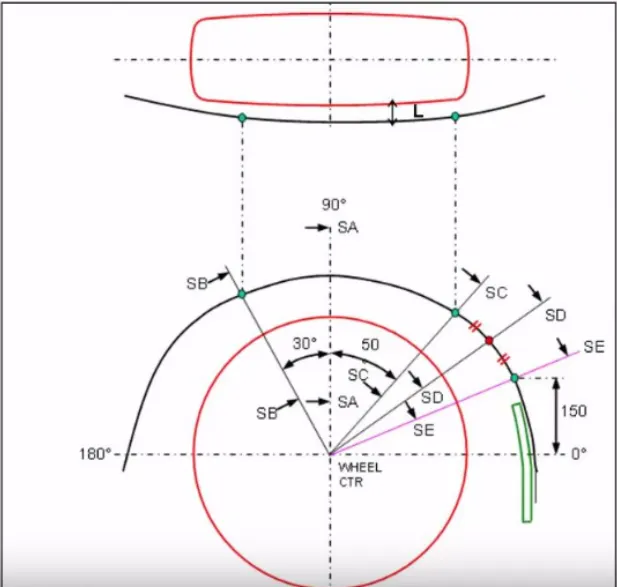

Calculate the Wheel Arch gap at required points and check whether the car passes the European standard. Aim:- Calculate the wheel arc gap at the required points and check whether the car passes the European standard or not.   Theory:- 1. About Fender The fender is a sheet metal part of an automobile. It Plays a vital role…

Use the Section from your Hood design and calculate the Section Modulus using the formula  S = I/y  Where,  S = Section Modulus I = Moment of Inertia y = distance between the neutral axis and the extreme end of the object    Come up with a new section with an improved Section Modulus compared to…

Introduction The hood or bonnet is the hinged cover over the engine of motor vehicles. Hoods can open to allow access to the engine compartment (or trunk on rear-engine and some mid-engine vehicles) for maintenance and repair. From a design perspective, the hood should meet some specific conditions like pedestrian safety,…

Aim:-Write a one-pager about Under-Body Coating and its purpose, its types in detail, and its pros and cons. Objective:- Explain the Under-Body coating Process It's Type  It's Purpose  Pros and cons of under-body coating  THEORY:- What is the Under-Body coating Process? The under-body…

Benchmark with presently available cars in the market for the following case.   Mr . D.S. Pughazhyendhii is a married man who lives in Bangalore which is a highly crowded city. His Family comprises five members including his wife, a five-year-old boy, his father, and his mother. He visits his native place Madurai which…

Frstly i convert surface body to solid by the use of part design . and after that the hairing harness process is start . i have define all the connector as electrical define and alssemble all the connector in their respective place as shiwn in tahe video. with starting of wiring routing chenging of all the colour is done…

v

i have follow all the steps as shown in video but the iges part file which i download from description have some incompelete surfaces please help me how i made it smooth . by this problem i am not able to convert it solid
