Fender Design - Wheel Arch Challenge

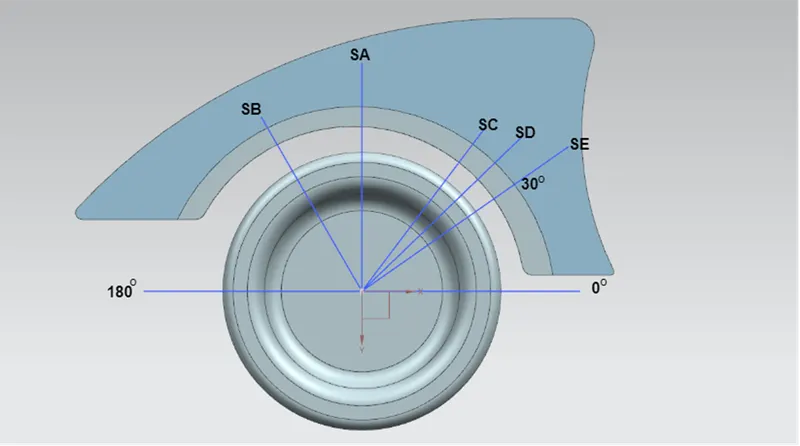

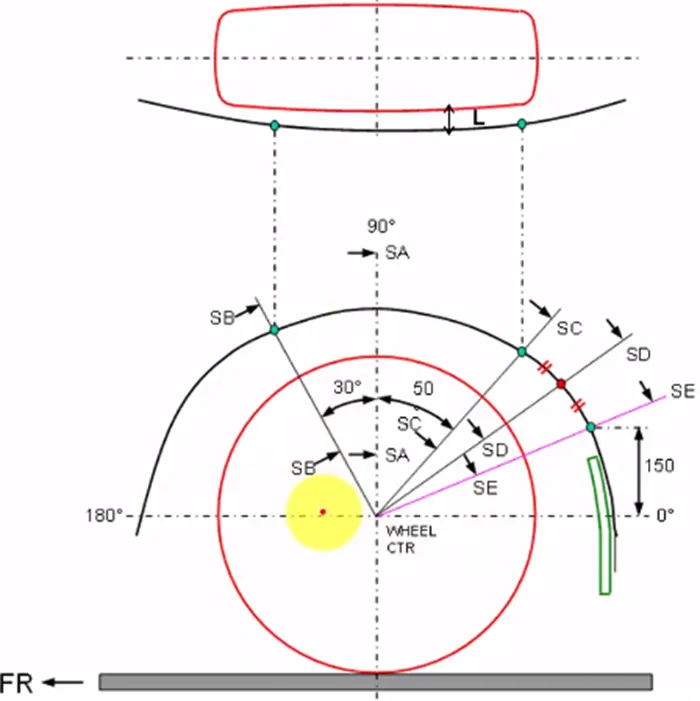

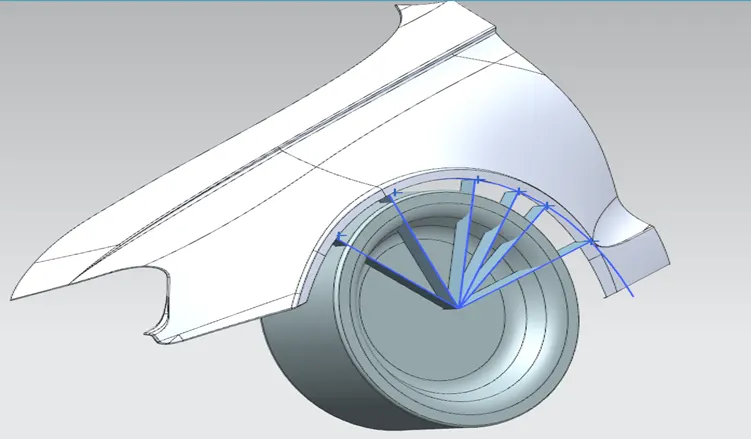

Wheel Arch:
| Section | Clearance L in mm | Result |

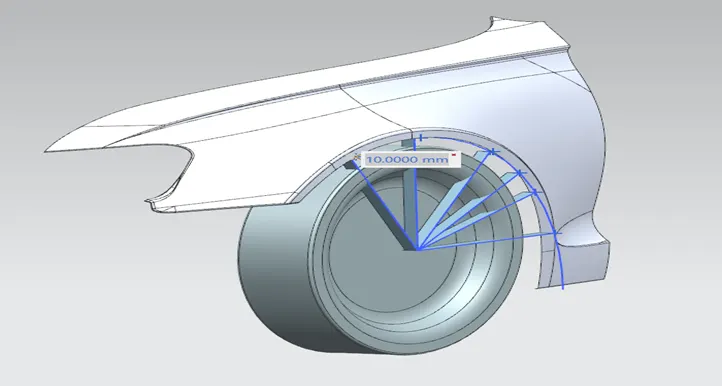

| SA | 10 | Pass |

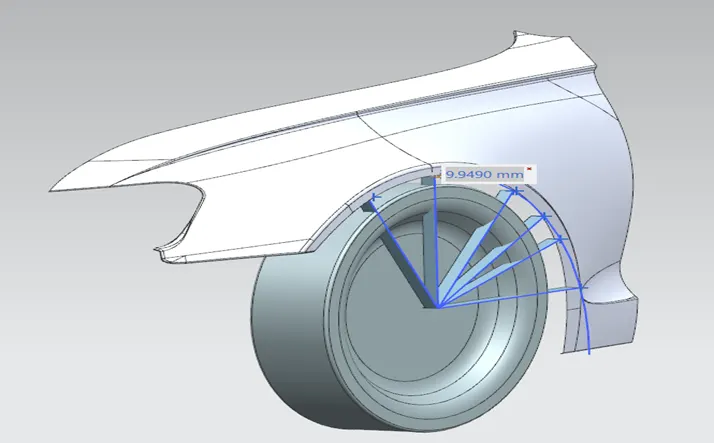

| SB | 9.949 | Fail |

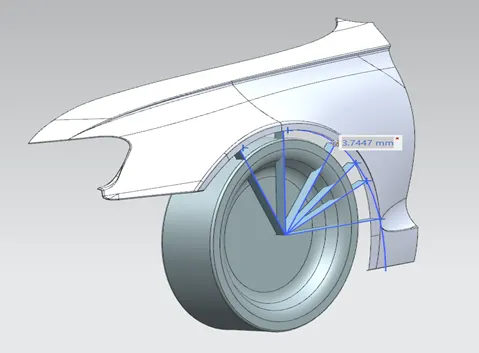

| SC | 3.7447 | Fail |

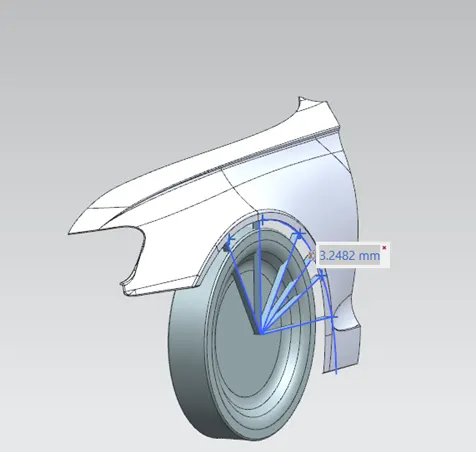

| SD | -3.2482 mm | Fail |

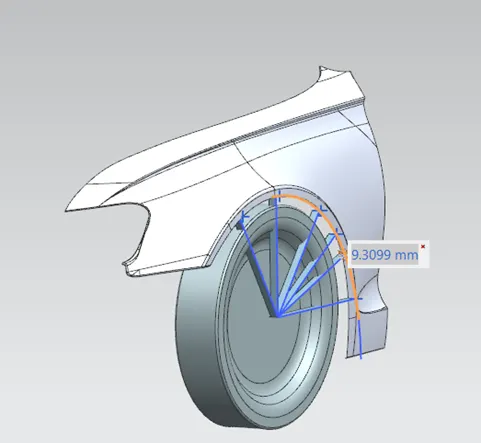

| SE | -9.3099 mm |
Fail |
Conclusion:
Hence it is proven that after measuring the given wheel arch clearance, it will not suitable or not pass for design/manufacturing the part as per European standards.
