Fender Design - Wheel Arch Challenge
AIM : Calculate the Wheel Arch gap at required points and check whether the car passes the European standard.

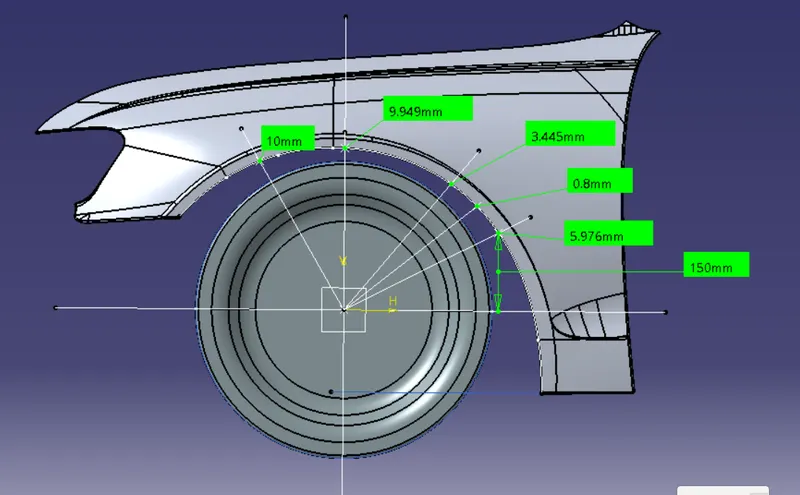

steps creat wheel arch :
- create a datum plane at the outermost face of the wheel.
- create a point in datum plane.
- Draw a Horizontal and vertical line across the centre of the wheel and make it a reference line.
- From horizontal reference make line 150 mm. this line is SE. Draw a line between SC and SE and name it SD.
images 01;

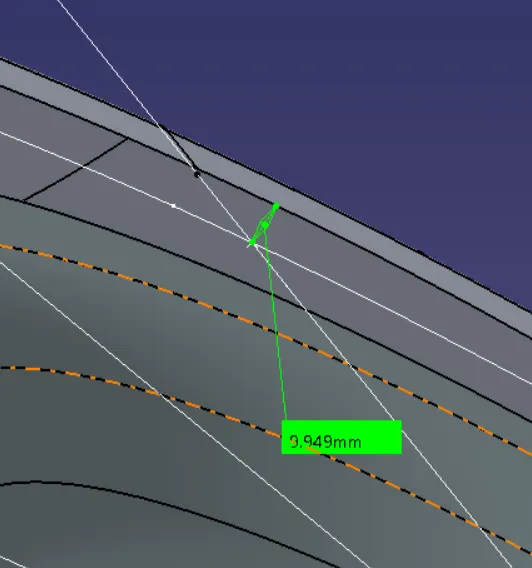

Clearance 'L' at SA L=9.949mm
image 02;

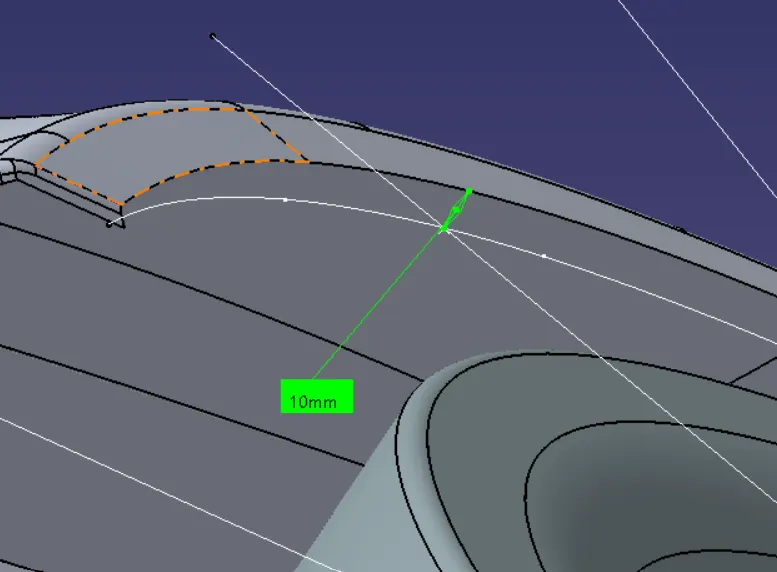

Clearance 'L' at SB L= 10mm
image 03;

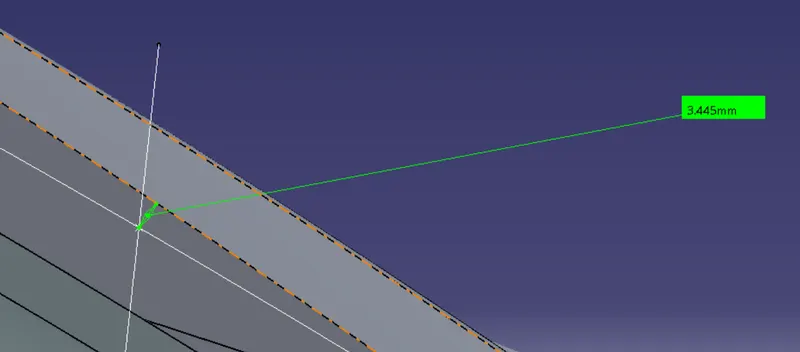

Clearance 'L' at SC L=3.445mm
image 04;

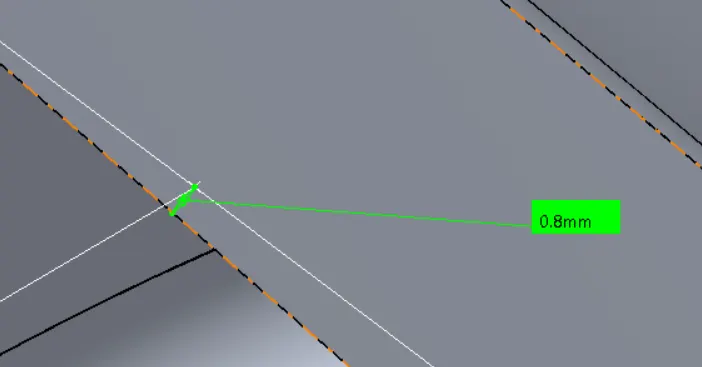

Clearance 'L' at SD L=0.8mm
image 05;

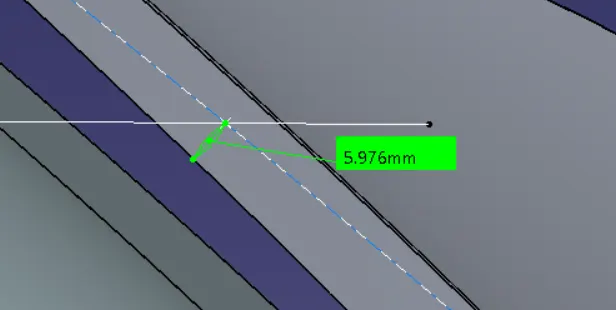

Clearance 'L' at SE L=5.976mm
image 06;
Conclusion:
|
Section |
L<10mm |
Pass/Fail |
|
SA-SA |
L=9.949mm |
Fail |
|
SB-SB |
L=10mm |
Pass |
|
SC-SC |
L=3.445mm |
Fail |
|
SD-SD |
L=0.8mm |
Fail |
|
SE-SE |
L=5.976mm |
Fail |
