Fender Design - Wheel Arch Challenge
AIM: Calculate the Wheel Arch gap at required points and check whether the car passes the European standard.

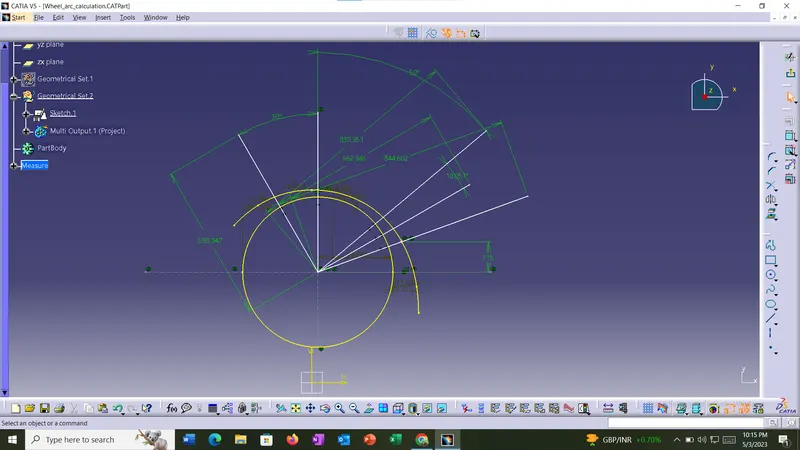

- Take the outline of the wheel and the fender.
- Make the centre of the wheel circle.
- Draw horizontal and vertical perpendicular axes from the centre of the wheel circle.
- Draw lines at 30 degrees and 50 degrees from the centre.
- Make a point on the fender line at 150mm from the horizontal.
- Extend a line to this point from the centre.
- Then make a line that is exactly between the 50-degree line and the line made on the 150mm point.

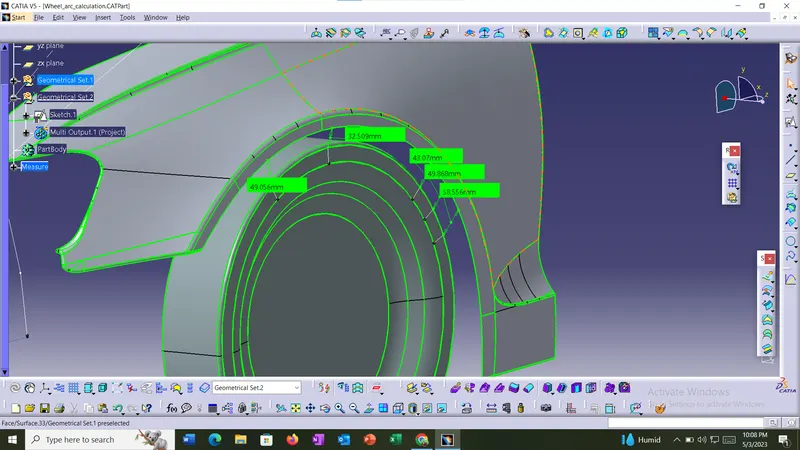

| DISTANCE | RESULT | |
| SA-SA | 32.5 | PASS |
| SB-SB | 49.05 | PASS |
| SC-SC | 43.07 | PASS |
| SD-SD | 49.86 | PASS |
| SE-SE | 58.55 | PASS |
