Fender Design - Wheel Arch Challenge

1.WHEEL ARC CALCULATION IT VERY IMPORTANT IN EVERY OEM INDUSTRY

• MAIN PURPOSE OF WHEEL ARC CALCULATION IS SAFETY OF PASSENGERS,CUSTOMER
• ITS HAS MANY STANDARDS EXAMPLE:- EUROPEAN,JAPAN
• WE INDIANS ARE USED EUROPEAN STANDARDS

2.IN EUROPEAN CONCEPTS DISTANCE OF POINTS ARE MUST BELOW 10MM

3.AND THERE ARE 5 POINTS FROM WHEEL FACE (THAT HAS 5 POINTS IN DIFFERENT ANGLES FROM NEUTRAL AXIS FROM ORINGIN OF THE WHEEL POINTS) TO FENDER BODY FACE HORIZONTAL INTERSECT TO THE FENDER FACE 5 POINTS

4.ITS MUST BE 10MM OR ABOVE 10MM TO PASS THE EUROPEAN STANDARDS

AS YOU ASKED WHEEL ARC CALCULATION FOR GIVEN PART FILE

BELOW DERIVED

1.BY DRAWN POINT 1 DERIVED 30° LEFT OF THE NEUTRAL AXIS LINE FROM CENTER POINT OF THE WHEEL

2.POINT 2 DERIVED 90° NEUTRAL AXIS LINE FROM CENTER POINT OF THE WHEEL

3.POINT 3 DERIVED 50° RIGHT OF THE NEUTRAL AXIS LINE FROM CENTER POINT OF THE WHEEL

4.POINT 4 DERIVED BISECTING OF TWO LINE TAKEN FROM POINT 3 LINE AND OFFESTING LINE FROM BASE LINE THATS POINT 5 LINE

5.POINT 5 DERIVED FROM OFFSECTING THE LINE FROM 150MM FROM BASE LINE

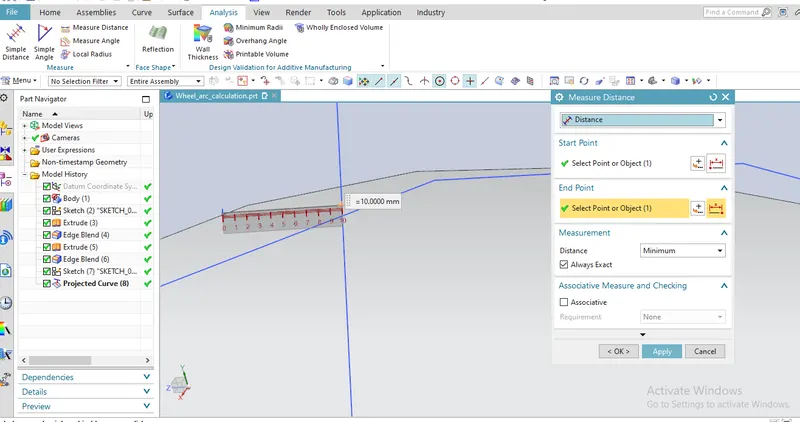

POINT 1 DISTANCES=10MM

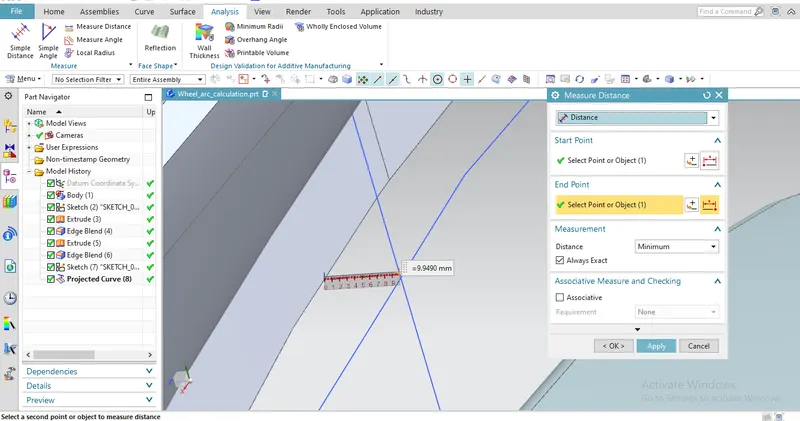

POINT 2 DISTANCES=9.9490MM

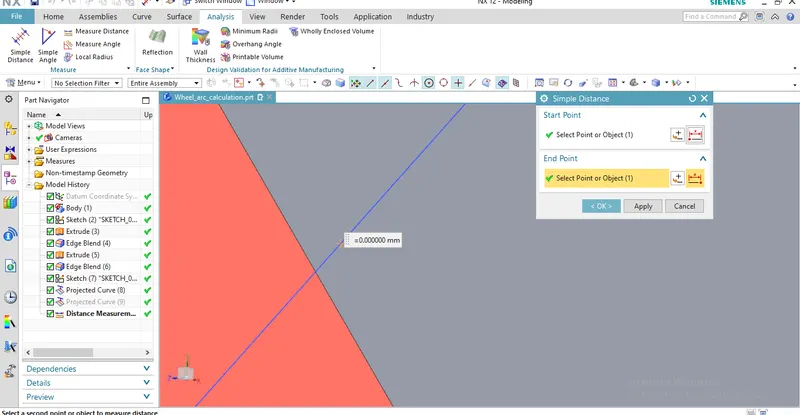

POINT 3 DISTANCES=0.000MM

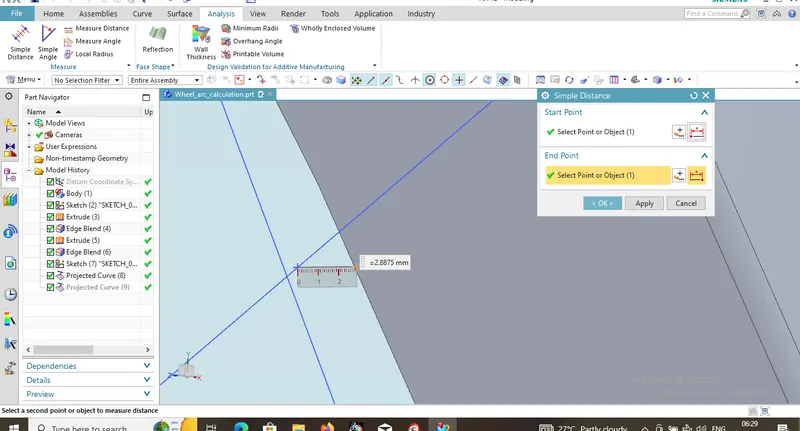

POINT 4 DISTANCES=2.8875MM

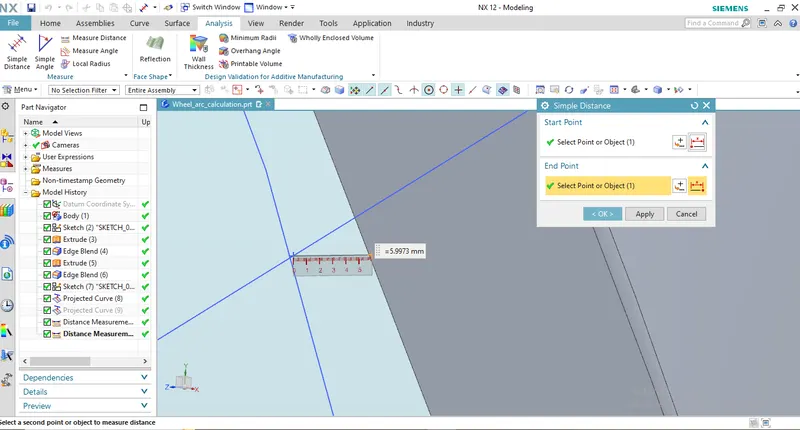

POINT 5 DISTANCES=5.9973MM

CONCULSION TABLE ACCEPT OR NOT AS PER EUROPEAN STANTARDS

POINT1	DISTNACES	10MM	ITS ACCEPT THE MINIMUM DISTANCE 10MM
POINT2	DISTNACES	9.9490MM	ITS NOT ACCEPT
POINT3	DISTNACES	0.000MM	ITS NOT ACCEPT
POINT4	DISTNACES	2.8875MM	ITS NOT ACCEPT
POINT5	DISTNACES	5.9973MM	ITS NOT ACCEPT
