Fender Design

Fender Design: Following the Master section to create the Drip Area and For the Sill, Bumper, Baffle(Splash), and A-Pillar mount, thus, I create my own design according to the Engineering standard that I learned.

Prepare a report with all the relevant images included for the mounting points created.

Objective: Design a perfect fender using the master section

Introduction: The fender is part of a car or other vehicle that covers and protects the wheels, The fender is located over the wheels of the vehicle. As such, there are four fenders on a typical vehicle: front right, front left, rear right and rear left.

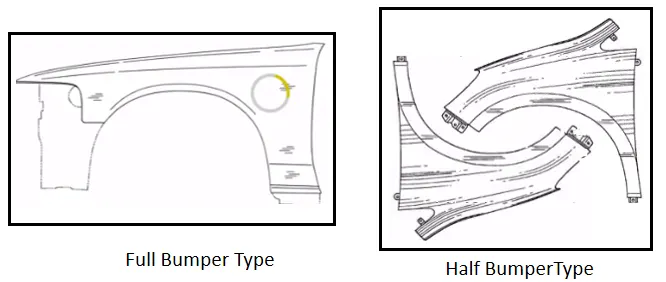

there are two types of fender

1 full bumper type

2 half bumper type

types of fender mountings

there are five types of mountings are used

1 Drip mounting

2 Bumper mounting

3 A-pillar mounting

4 Sill mounting

5 baffle mounting

I followed the master section to create mounts

Creating an all-mounting Area following the given Master Section's dimension

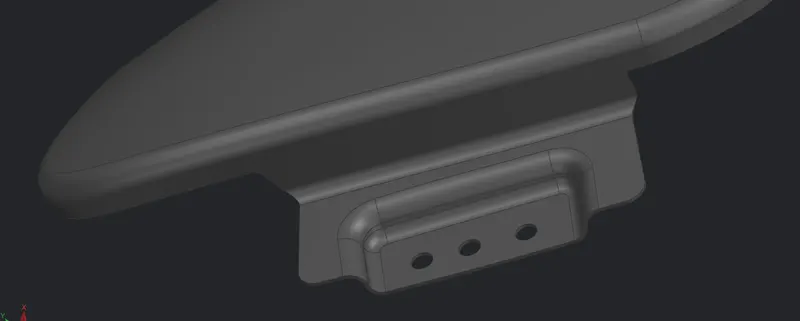

creating a perfect mounting area, for this, I used Emboss and dart and hole

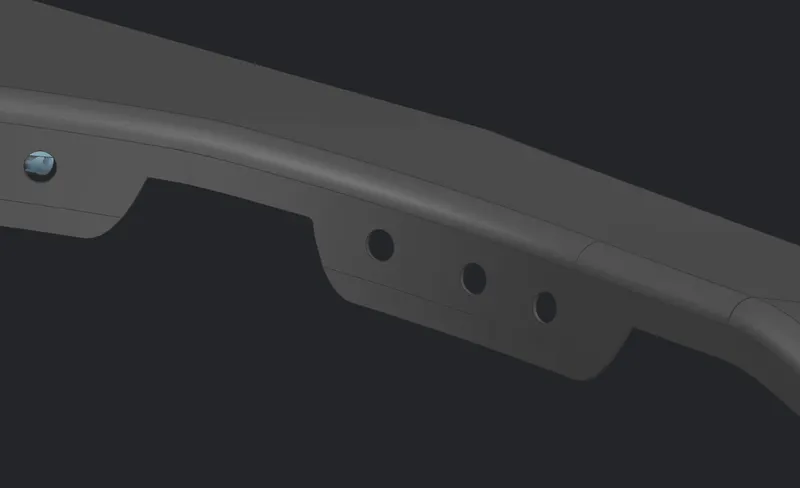

1 Drip Area

2 Selling Area

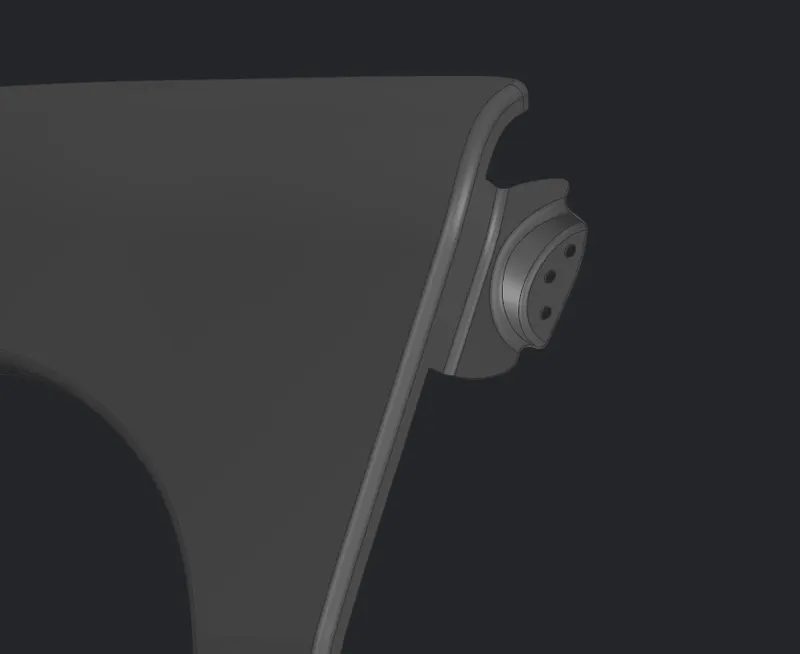

3 A-pillar mounting area

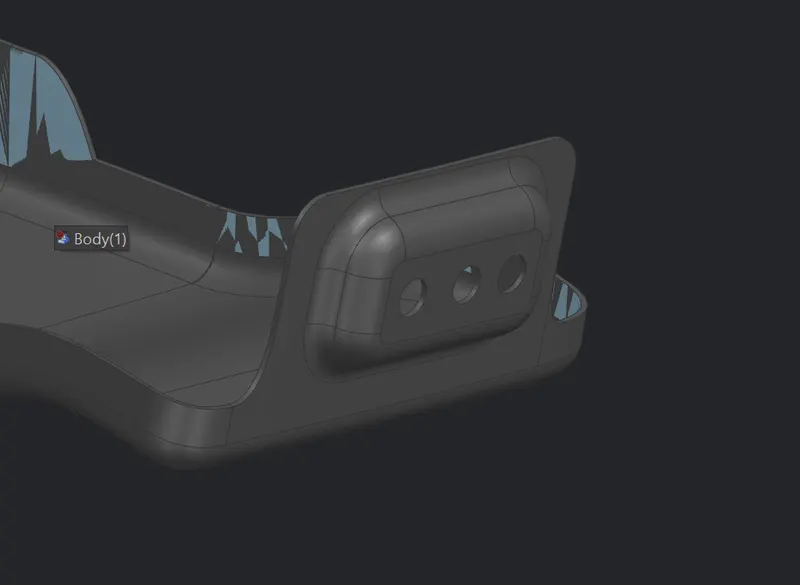

4 Bumper mounting

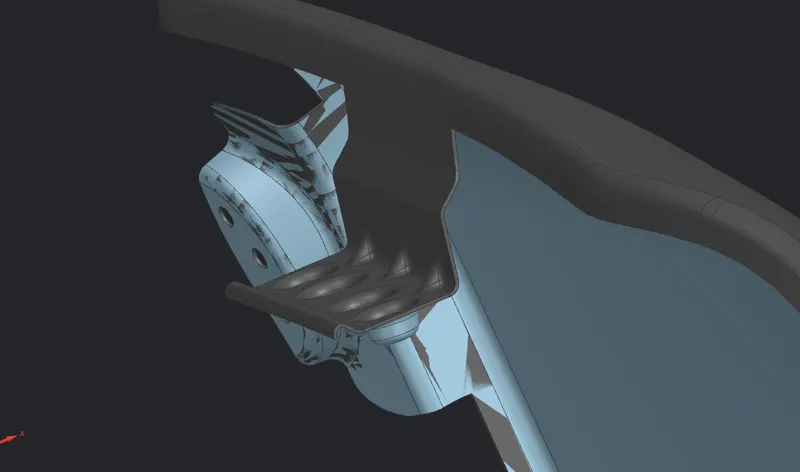

5 baffle mounting

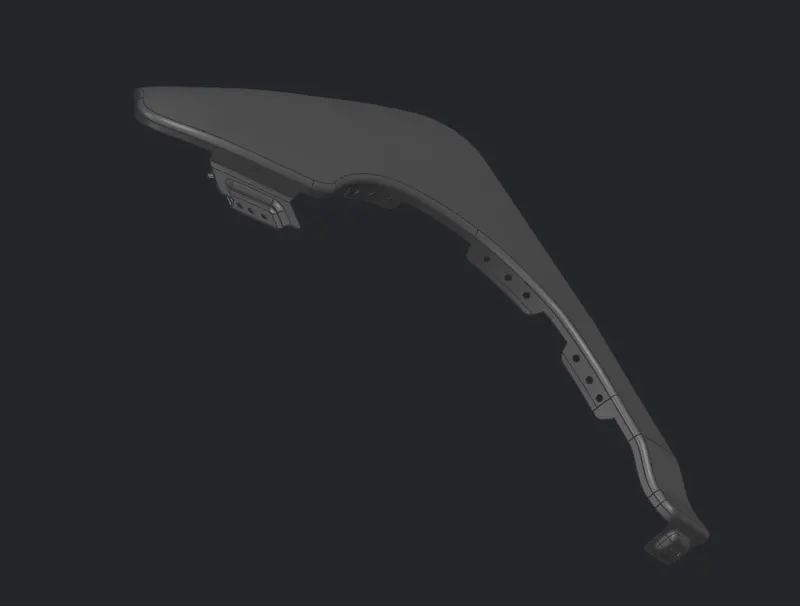

here is the all mounting area covered now

the final model after giving a thickness of 0.75

CONCLUSION-I Completed the Fender design by creating Mounting Area as per the design Requirement using the master section.
