Fender Design - Wheel Arch Challenge

Wheel Arch

An arch-shaped cavity in the body of a vehicle, which houses a wheel.Fenders form an arch on the front side of the vehicle body around each of the wheel openings. Wheel Arch Liners (WAL) are now much more than just covers to protect the bodywork. Their acoustic and aerodynamic properties make them indispensable components in modern vehicles. Providing extended protection and enhancing the exterior style of the vehicle with a more rugged appearance, the wheel arch protection is manufactured from a high-quality, durable plastic with an Anthracite coloured finish. Easy to fit, they are ideal for protecting the wheel arches when driving off-road.

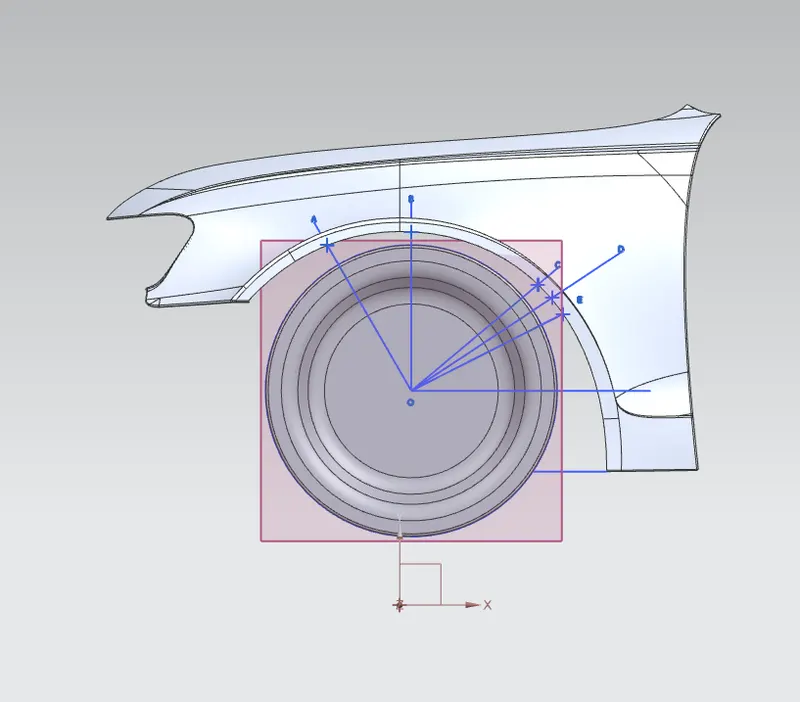

From horizontal line to point E is 150mm.

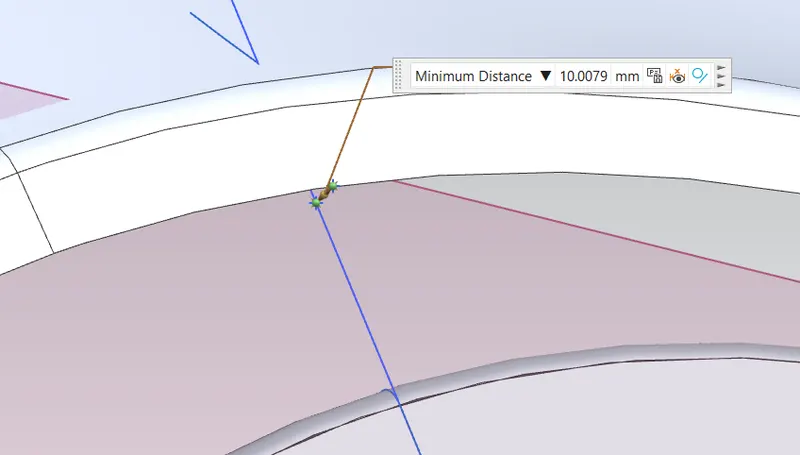

Length OA = 10mm

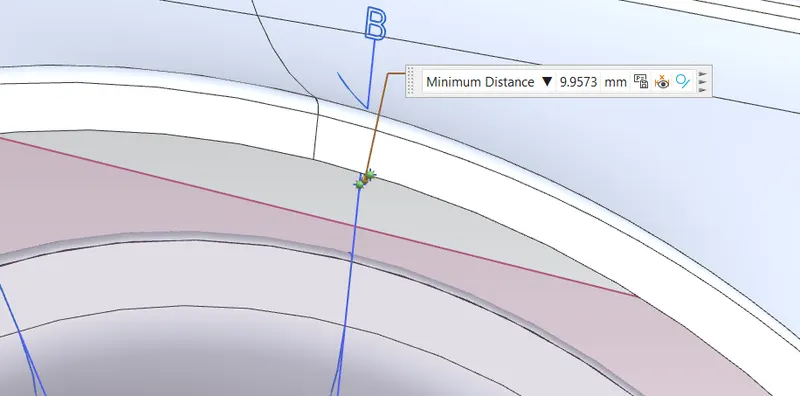

Length OB = 9.96mm

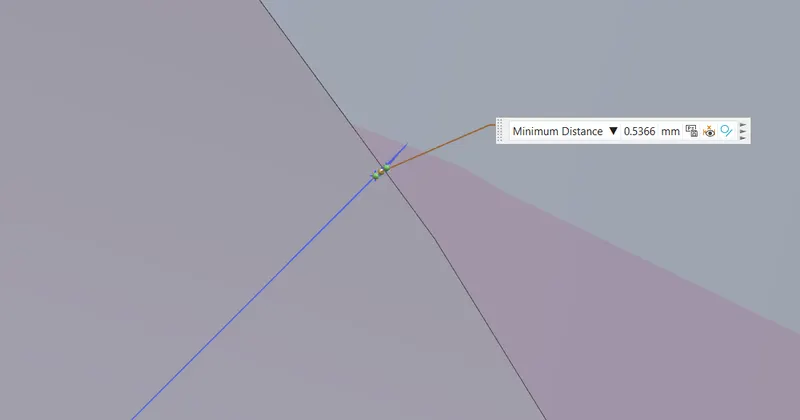

Length OC = 0.5mm

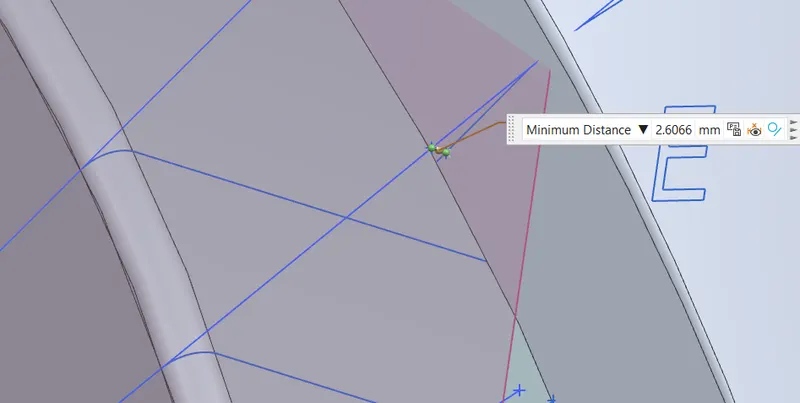

Length OD = 2.6mm

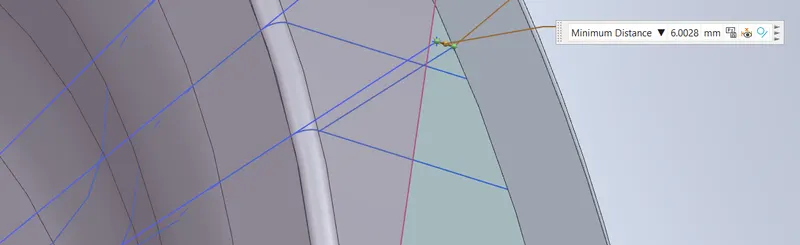

Length OE = 6mm

CONCLUSION

Hence, the values of length OC,OD and OE are negative.
