Fender Design Challenge
FENDER DESIGN
OBJECTIVE :
1. Design drip area
2. Design Sill Mount Area
3. Design cowl Mount Area
4. Design Bumper Mount Region and A Pillar Mount Region
INPUT FROM STYLING TEAM

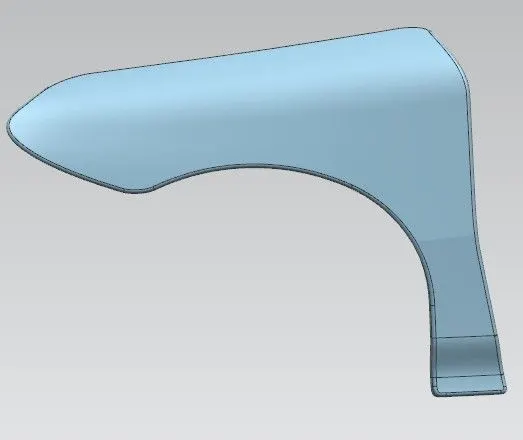

A class Surface

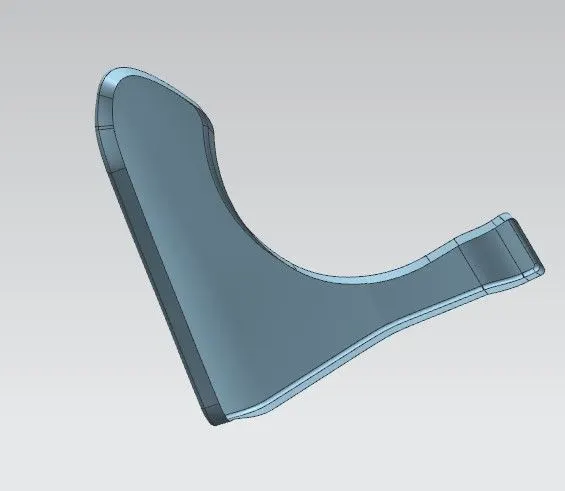

1. Design of Drip Area

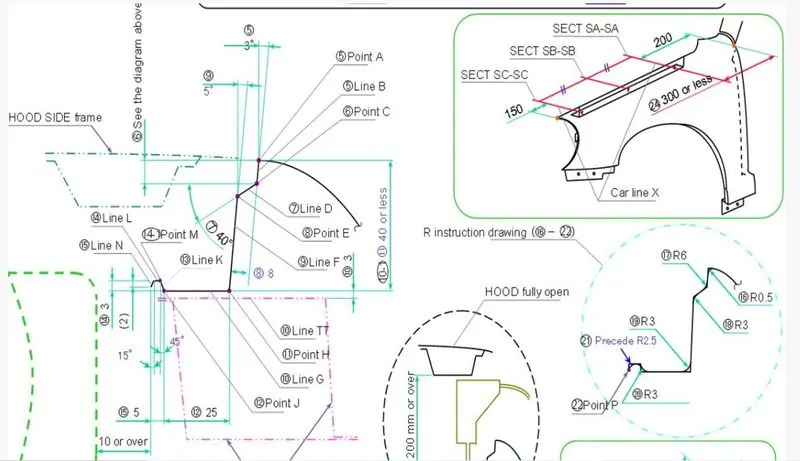

Master section to follow to create the Drip Area.
Creating Drip Area Following the given Master ,Regulations and standards :

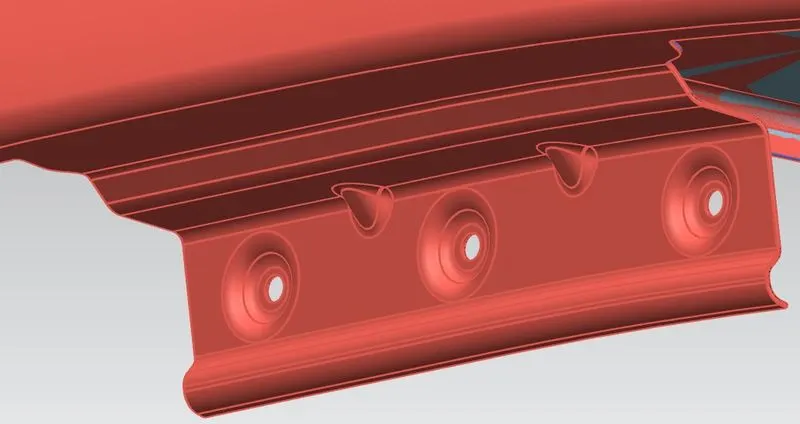

2. Design Of Sill Mount Area
Giving Draft Angles and Fillets

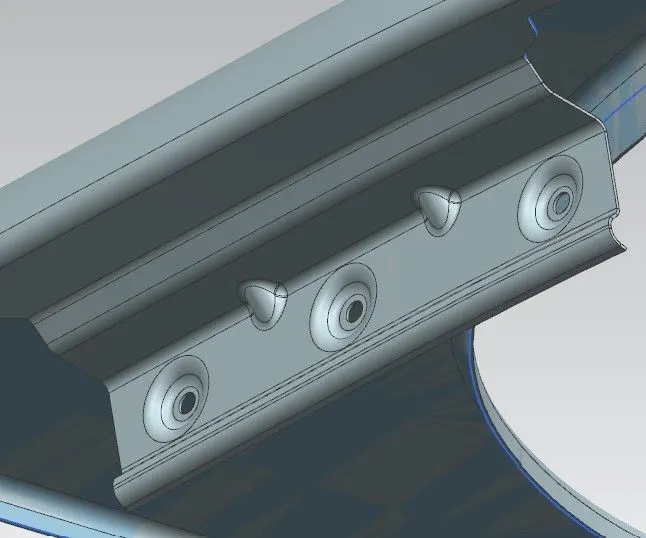

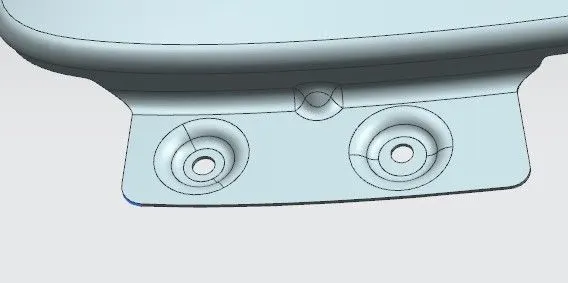

Creating Embosses

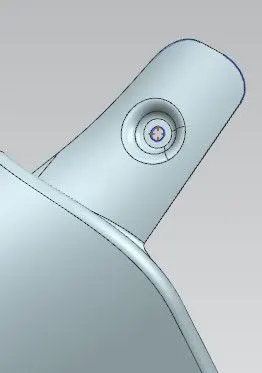

Design cowl mount area

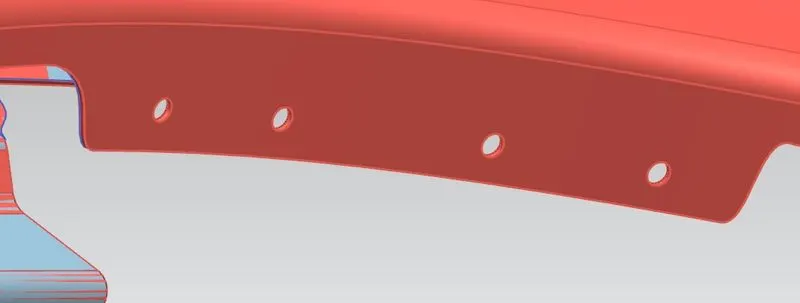

Design Bumper Mount Region and A Pillar Mount Region
As per manufacturing considering always take a smoth surface and not make a soft corner .

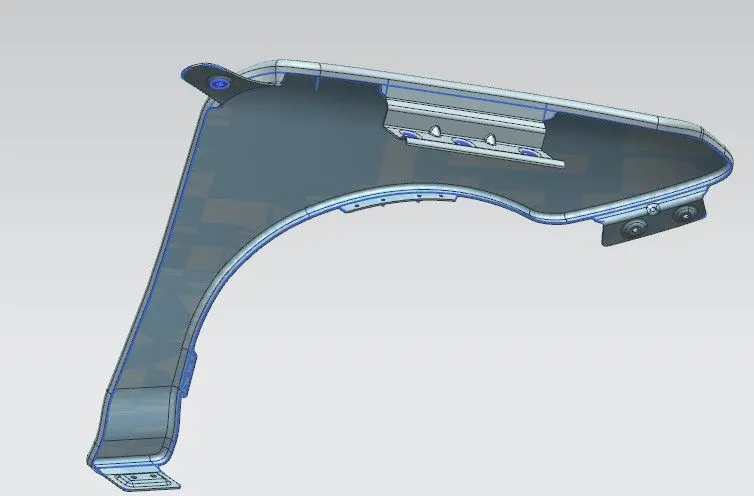

Final fender part after giving thickness of 0.75mm to make a solid body.
