Fender Design Challenge

Aim: Design the fender as per the given skin model, and provides the proper space and position for the A pillar,sill,bumper,body,drip mounting area.

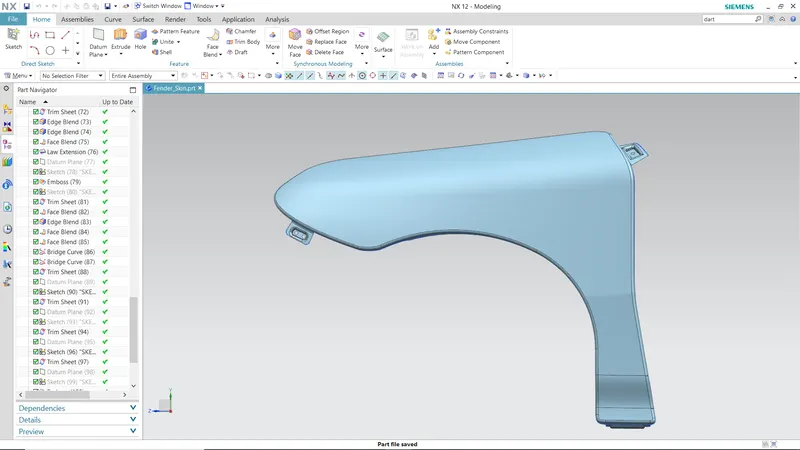

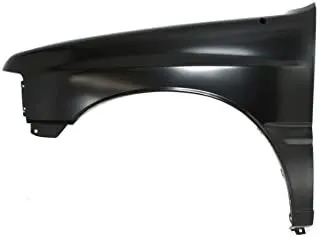

FENDER

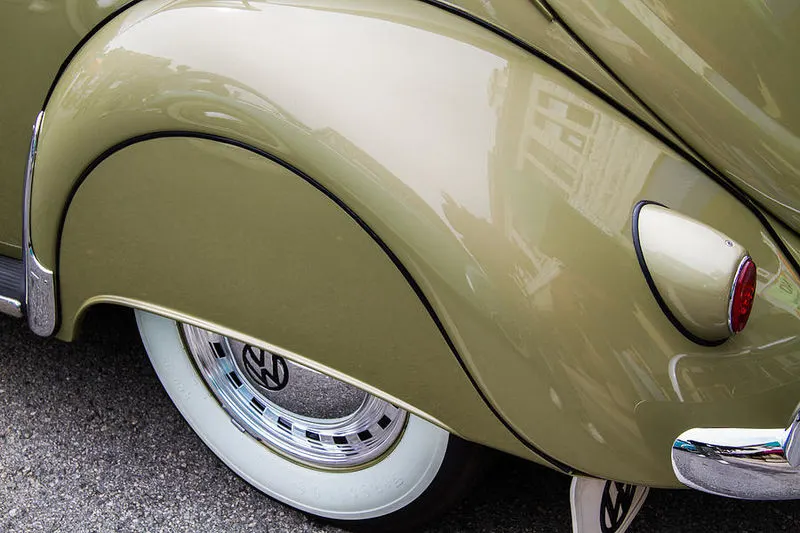

A fender is an automotive component that protects and frames a vehicles wheels and keeps mud from splashing them. Fender are seen on the front wheels of the majority of the modern cars. Fender are mounted on the side of the vehicle and frame the wheel well to keep object from being thrown into the air by rotating wheels. Its purpose is to safeguard the tyres from kicking up mud. If there was nothing covering the wheels, the rotating wheel would kick up all kinds of debris. the fender not only protects your automobile from road debirs.This is why cars with massive oversized tyres are frequently required to have fender flares instaled.

Types of fender

Full bumper type in the present time this types is not used in the industry, because it required more material more weight and large scarp.

Half Bumper type

This types are used in the present cars because it required less material and small blank size with very less scrap as compared with full bumper type.

Area to be considered for designing a fender

• Drip area
• Bumper mounting area
• sill mounting area
• Body mounting area

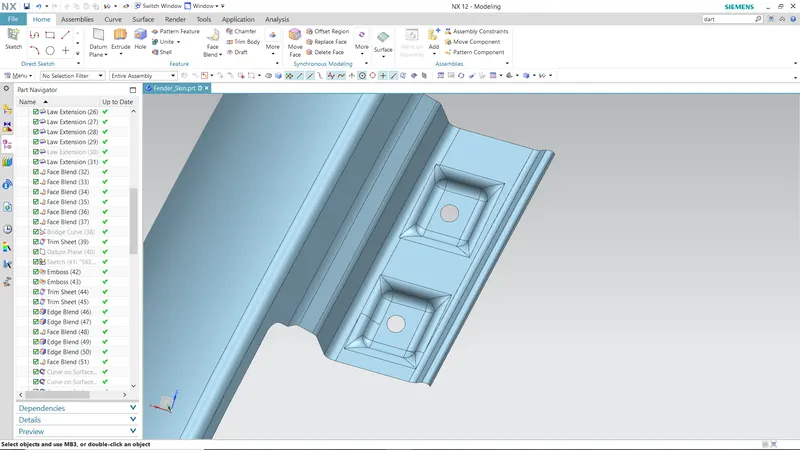

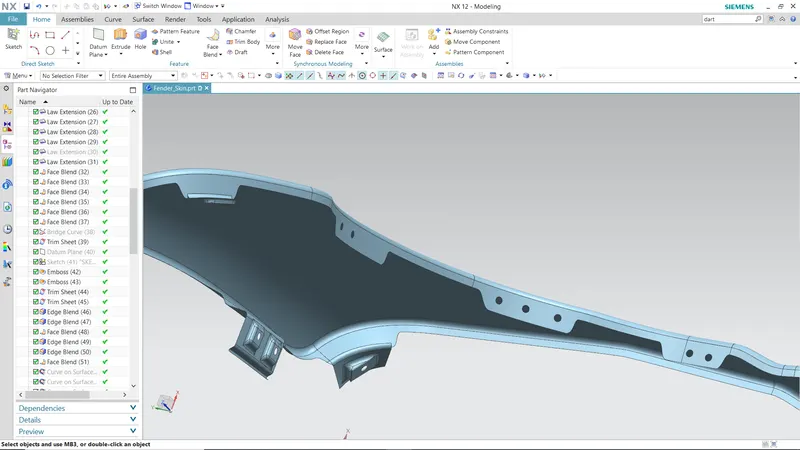

Drip area

The area through which the fender is attached to the engine compartment using the fasteners. while the designing it must to considered the necessary design parameters for the drip area such as 200mm clearence from back side of the fender for cowl mounting area amd 150mm clearences from front for the head lamp housing unit.

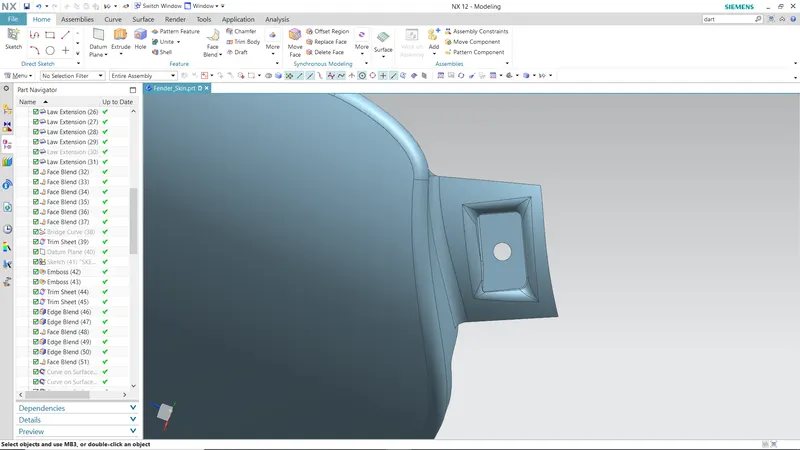

A Pillar area

The piller is provided on the both side of the front windshield in the place.

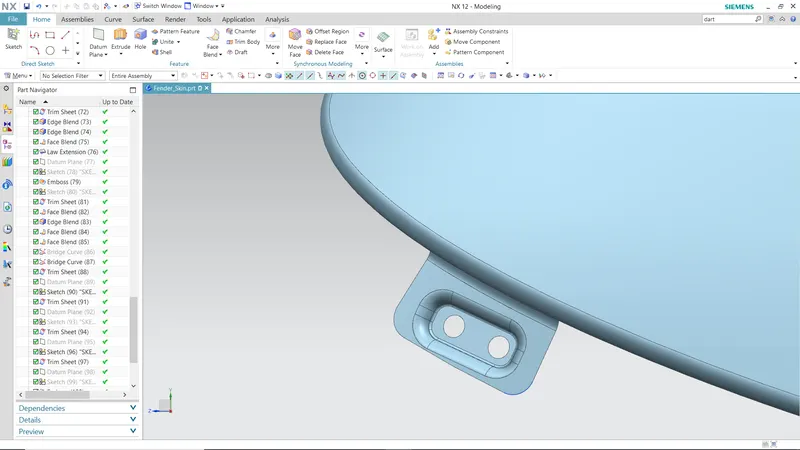

Bumper mounting area

In this mounting the fender connects with the bumper. It must be very rigid.

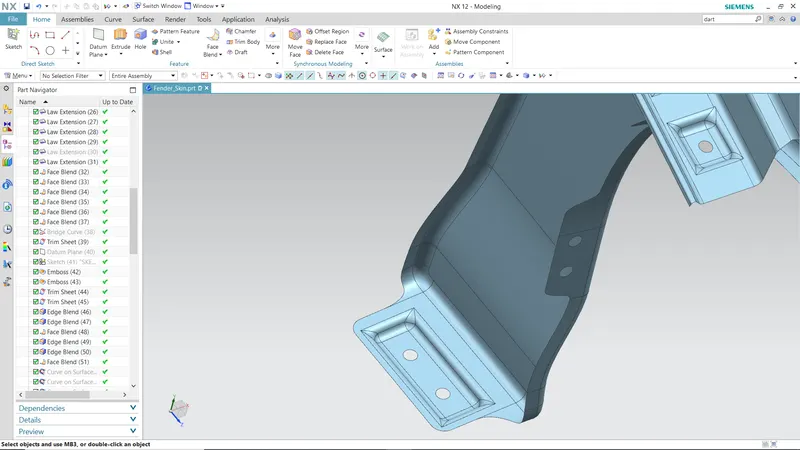

Sill mounting area

This area is the bottom part of the fender.

Baffle mount

Conclusion

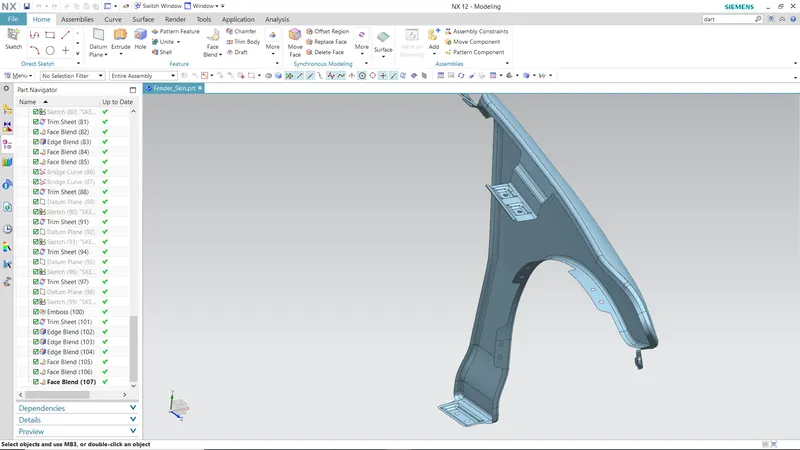

The fender model is created with considering all the parameter with a thickness of 0.75.
