FENDER DESIGN
AIM:
To design a front fender of a car by following the given master section as per the design considerations of OEM.
INTRODUCTION:
Fender is the American English term for the part of an automobile, motorcycle or other vehicle body that frames a wheel well. Its primary propose is to prevent sand, rocks, mud, liquids, and other road spray from being thrown into the air by the rotating tire. Fender are typically rigid and can be damaged by contact with the road surface. Sticky materials, such as mud, may adhere to the smooth outer tire surface, while smooth loose objects, such as stones, can be become temporarily embedded in the tread grooves as the tire rolls over the ground. These materials can be ejected from the surface of the tire at high velocity as the tire imparts kinetic energy to the attached objects. For a vehicle moving forward, the top of the tree is rotating upward and forward, and can throw objects into the air at other vehicle or pedestrians in front of the vehicle. Fender is a front outer side member of a car, which covers the wheel side. It has so many small features with ups and downs.
FENDER:
It is an aesthetic component/part of a car that frames the wheels. Prevention of sand, Mud particles, and other road contaminants from being thrown into the engine compartment and also to the pedestrians by the rotating tires are the main purpose served by the fenders.
The front fenders are separate components whereas the rear fenders are integrated with the body sides.
TYPES OF FENDERS
<!-- [if !supportLists]-->1. <!--[endif]-->FULL BUMPER TYPE:
These types of fenders were used in earlier models of vehicles. They contribute to the major increment of the steel weight by just covering the front headlights with respect to the bumper region. The problem associated with this kind of fender is there is a lot of wastage in the blank and every inch of a material is a cost to the industry.
<!-- [if gte vml 1]>
<!--[endif]-->
<!-- [if !supportLists]-->2. <!--[endif]-->HALF BUMPER TYPE:
These fenders are mainly used for serving the purpose of cost-cutting and reducing enough proportions of the steel wait resulting in a reduction of the weight of the vehicle slightly. They can be economically manufactured, that is by slightly increasing the blank size, we can produce two fenders at a time.
<!-- [if gte vml 1]>
<!--[endif]-->

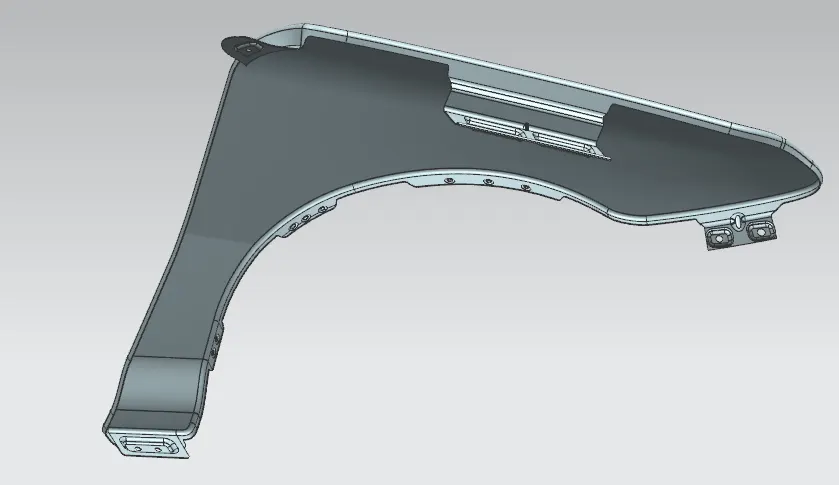

MOUNTING REGIONS ON FENDER:
<!-- [if gte vml 1]>
<!--[endif]-->
There are 5 mounting regions on the fender, they are
<!-- [if !supportLists]-->· <!--[endif]-->Pillar mounting
<!-- [if !supportLists]-->· <!--[endif]-->Body mounting
<!-- [if !supportLists]-->· <!--[endif]-->Sill mounting
<!-- [if !supportLists]-->· <!--[endif]-->Bumper mounting
<!-- [if !supportLists]-->· <!--[endif]-->Drip mounting
Master Section:
<!-- [if gte vml 1]>
<!--[endif]-->

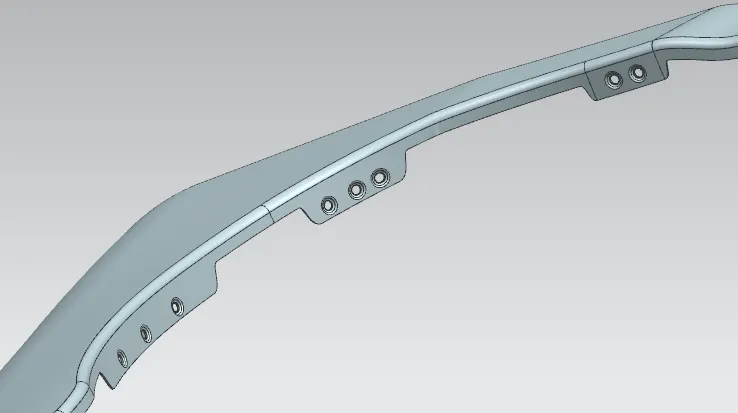

DESIGN OF DRIP AREA MOUNTING:
<!-- [if !supportLists]-->· <!--[endif]-->It is the important mounting unit of the fender it is connected with the engine compartment therefore the lot of design constraints are to be followed while designing the fender
<!-- [if !supportLists]-->· <!--[endif]-->While designing the drip area we have to initially leave 200-300 mm for cowl top
<!-- [if !supportLists]-->· <!--[endif]-->For placing the headlamp, we have to leave at least 150 mm at the front while designing the fender
<!-- [if !supportLists]-->· <!--[endif]-->Cowl top part consists pf wiper motor and its instruments
<!-- [if !supportLists]-->· <!--[endif]-->Two darts are added on the longer side of the drip area in order to provide the stiffness and adds strength to the part. This helps the fender to not to vibrate and impact the forces outside of the fender during motion of the vehicle.
<!-- [if !supportLists]-->· <!--[endif]-->Embossing are provided on the mounting to strengthen them during fastening.
<!-- [if gte vml 1]>
<!--[endif]-->

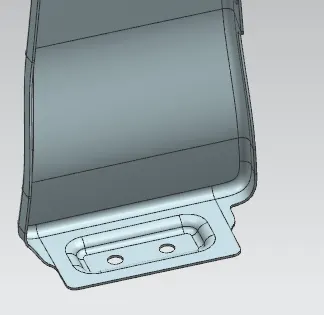

DESIGN OF SILL MOUNTING AREA:
Sill is the panel directly below the bottom of the door supporting the floor and may be used to combine the floor and the body. The bottom end of the fender is mounted on the sill body for reinforcement of the fender panel, thus the sill mounting position is designed with holes and emboss M5 fasteners are used to fix the fenders on the sill body.
<!-- [if gte vml 1]>

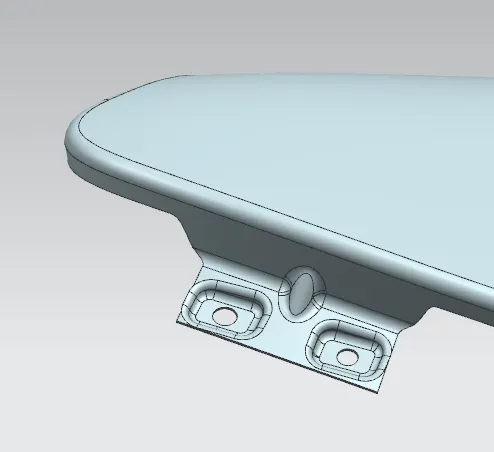

DESIGN OF BUMPER MOUNTING AREA:
Bumper mounting area is used to fix the plastic bumper to the fender with the help of the fasteners.
<!-- [if gte vml 1]>
<!--[endif]-->

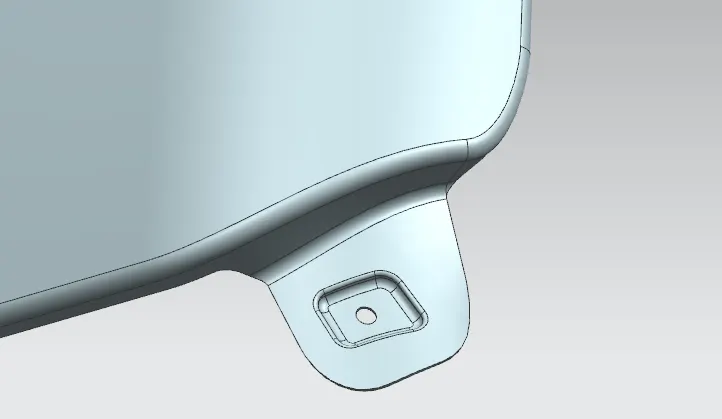

DESIGN OF A-PILLAR MOUNTING AREA:
The A -pillar is the structural pillar that combines the body to the roof. this make the sides of the windshield rest. front fenders are fastened to the A -pillar to form a robust structure.
<!-- [if gte vml 1]>
<!--[endif]-->
DESIGN OF BAFFLE MOUNTING AREA:
Baffle mounting or mudguard are clip fit type of mounting on the inner side of the fender arch over the tyre.it protects the car engine compartment and pedestrians from causing injuries from chip out debris on the road when the car is in motion. they are mounted on the fender using a special type of locking clips which are made up of plastics.
<!-- [if gte vml 1]>
<!--[endif]-->
APPLYING OF THICKNESS TO THE SURFACE:
The thickness of 0.75 mm inward on the final sewed surface of the fender to the sheet metal parameters.
DIFFERENT VIEWS OF FENDER:

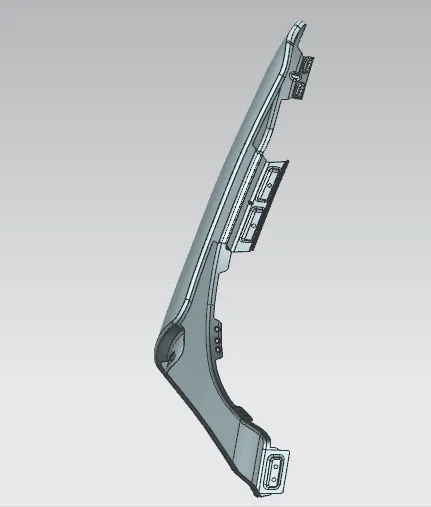

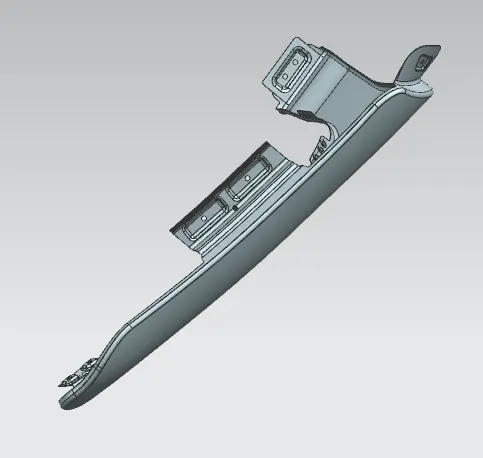

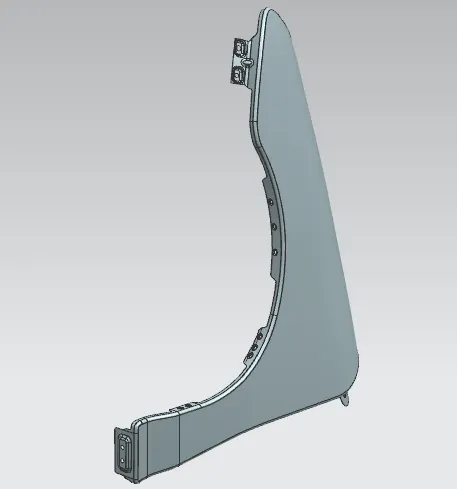

<!-- [if gte vml 1]>
<!--[endif]-->
<!-- [if gte vml 1]>
<!--[endif]-->
<!-- [if gte vml 1]>
<!--[endif]-->
<!-- [if gte vml 1]>
<!--[endif]-->
Purpose of Fender:
Cleanliness:
Protect the car, occupants and passersby from items, water, mud, snow, ice, thrown off the tires as you drive.
Safety:
Protects pedestrian from the wheel, e.g. it is better to be it by a laterally moving fender than a rolling tire, keeps loose, streaming items from being wrapped up in a rolling wheel.
Aerodynamics:
Smooths the car profile so you don't get a lot of drag off the uncovered wheels. Some fenders are enclosed on the side for this.
General Appearance:
Looks better with fender. Gives a finished look, looks more streamlined.
CONCLUSION:
Thus, all mounting areas for the fender designed from skin data and master section is done by following all design rules.
