Fender Design

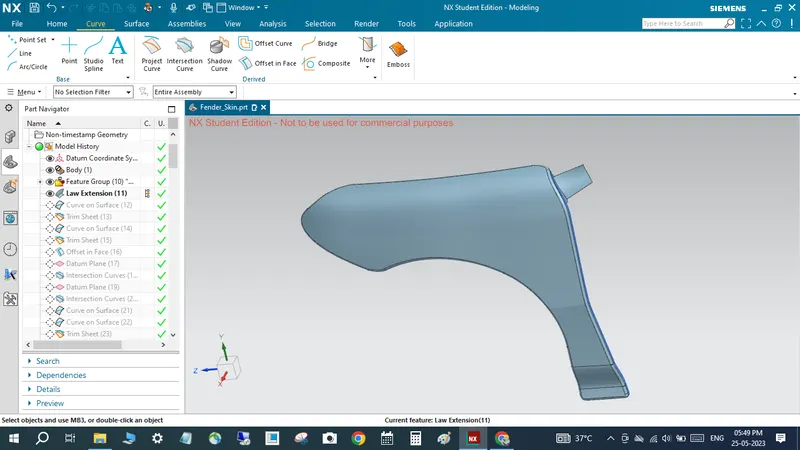

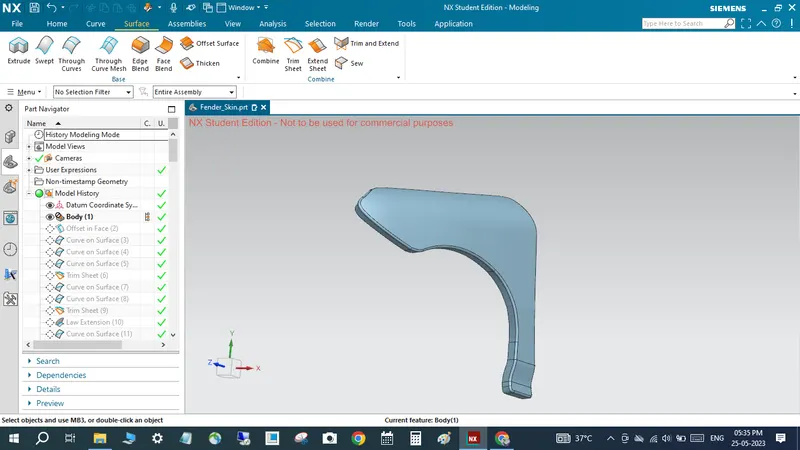

FENDER DESIGN GIVEN SURFACE BODY

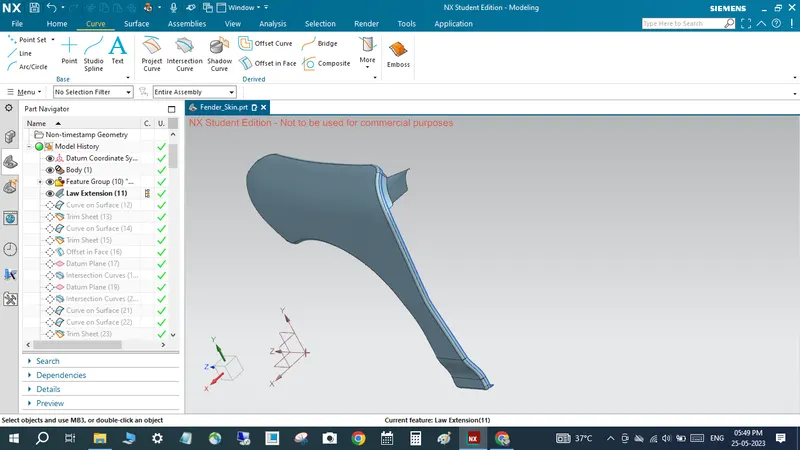

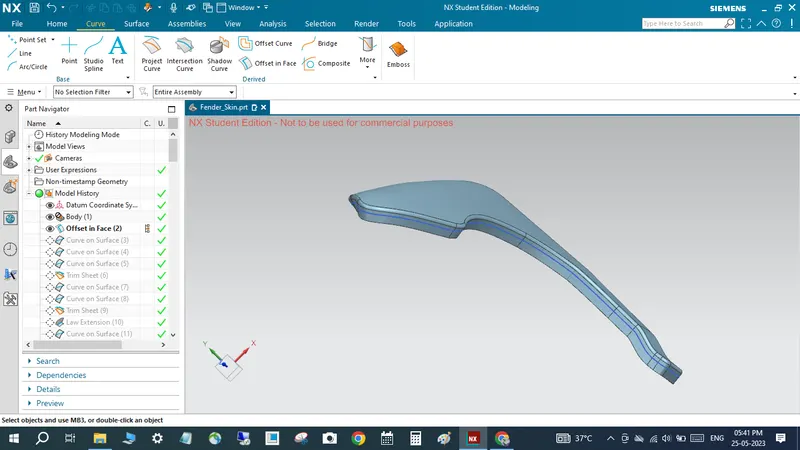

to use Offset in face command to create 5 mm down side and for purpose of reduce material cost and create mount support flange

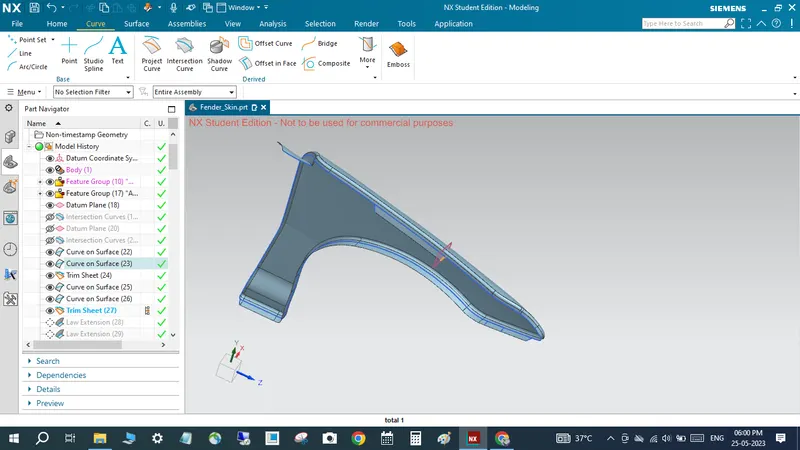

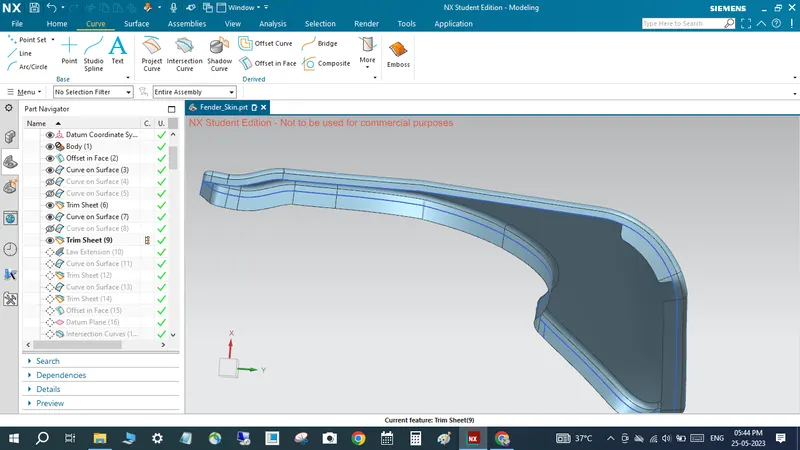

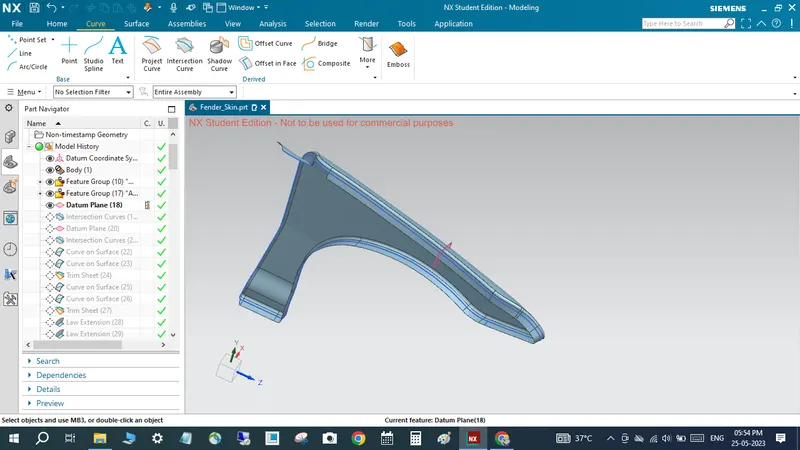

To use curve on surface Command to create flange support and to remove unwanted surfaces

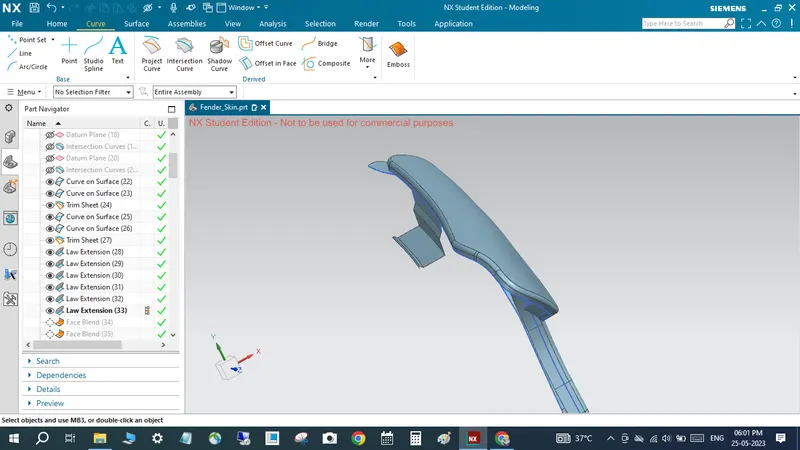

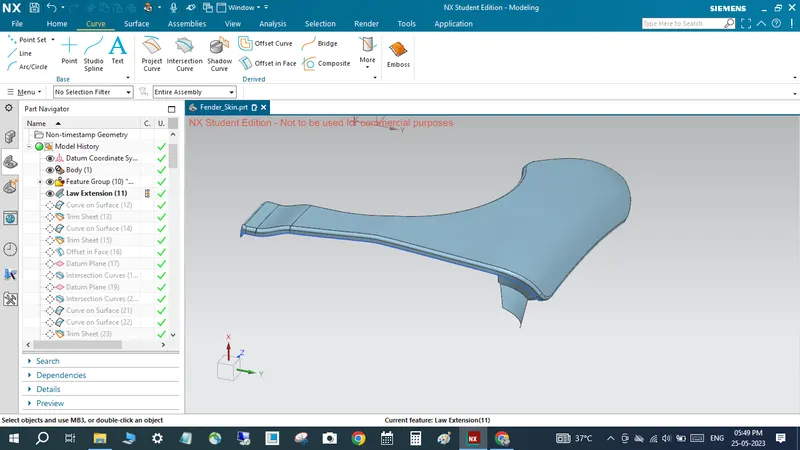

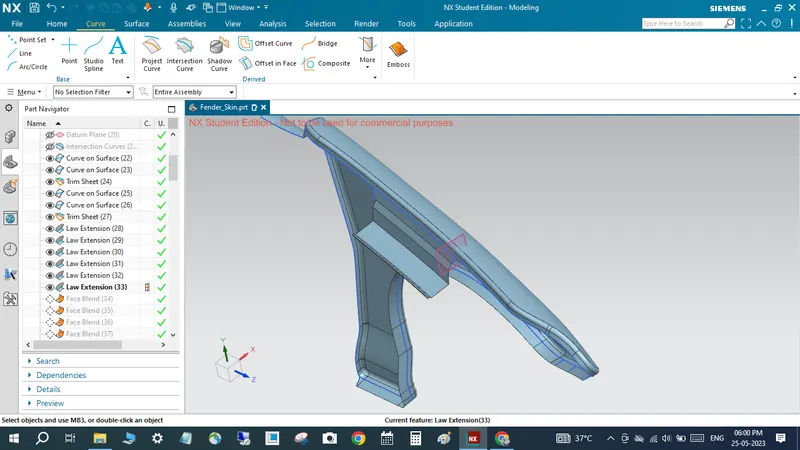

Create with A pillar support mount for using law extension and trim and bend command

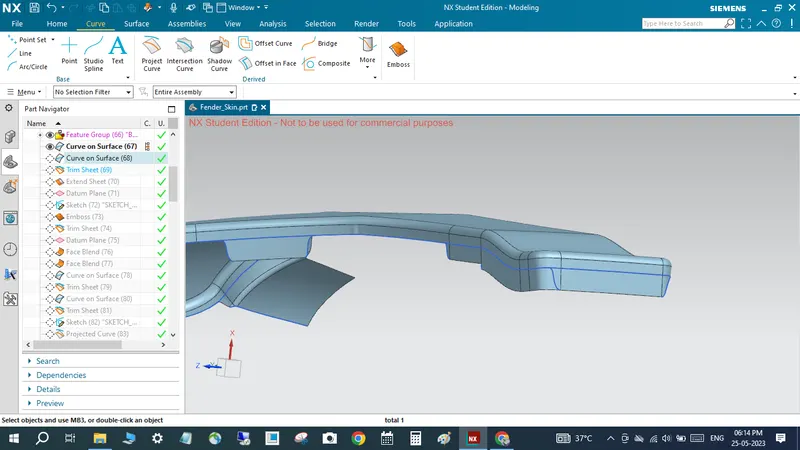

To create drip area mount for TO maintain 200 mm gap from A pillar area and 150 mm from bumper area depending up on the car length

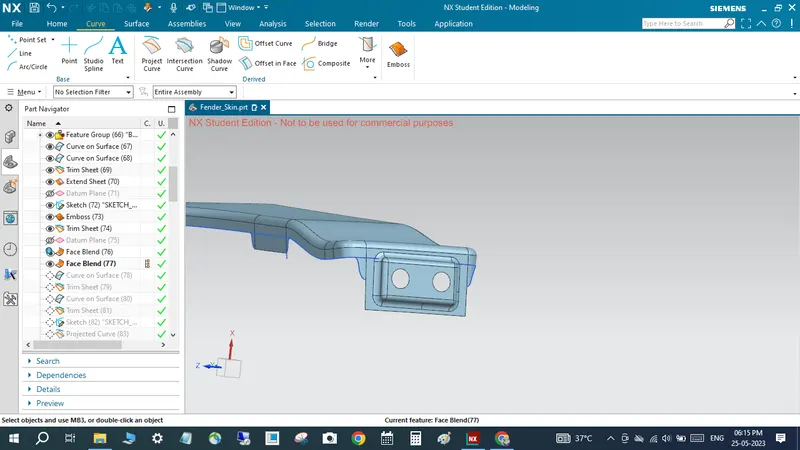

Drip area emboss to created

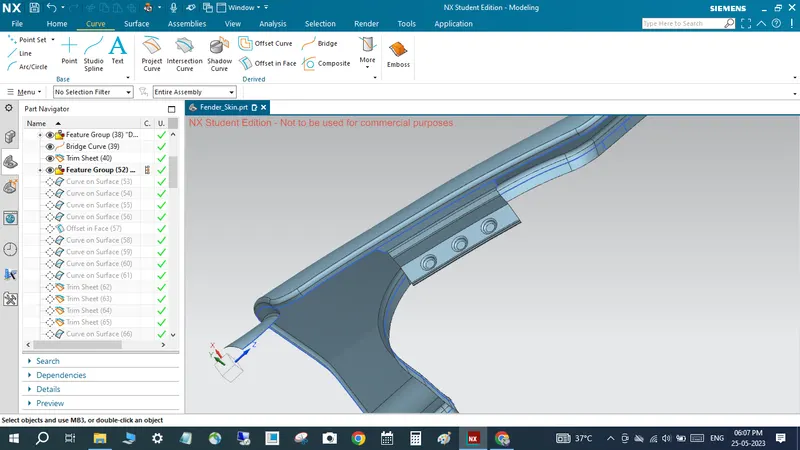

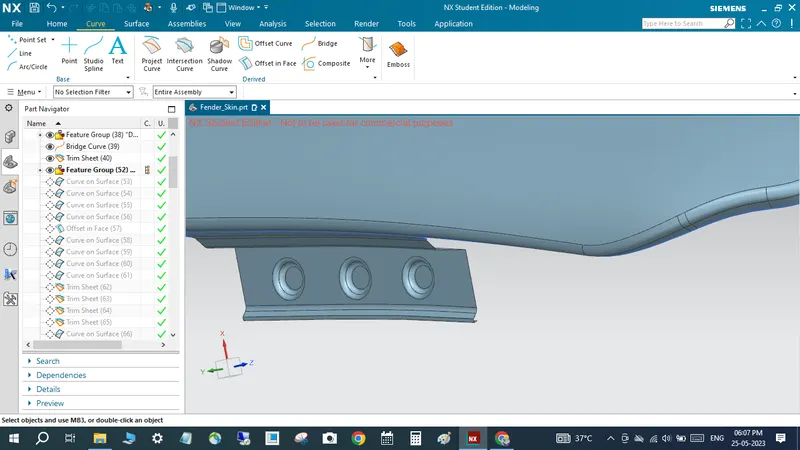

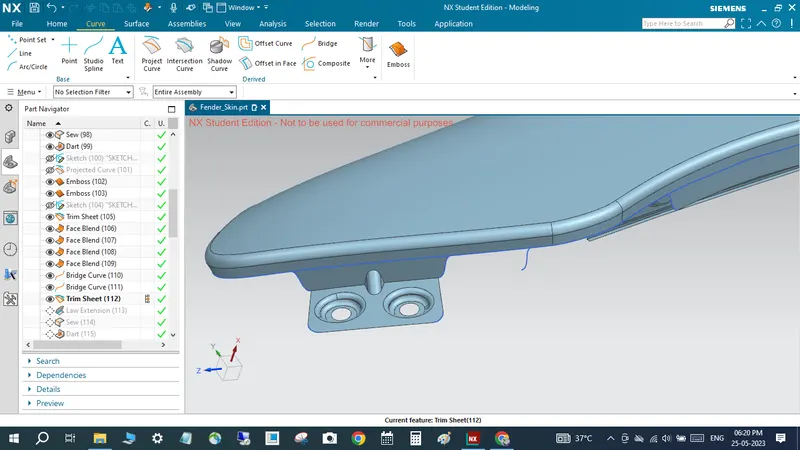

To create flange in buffle area side mount

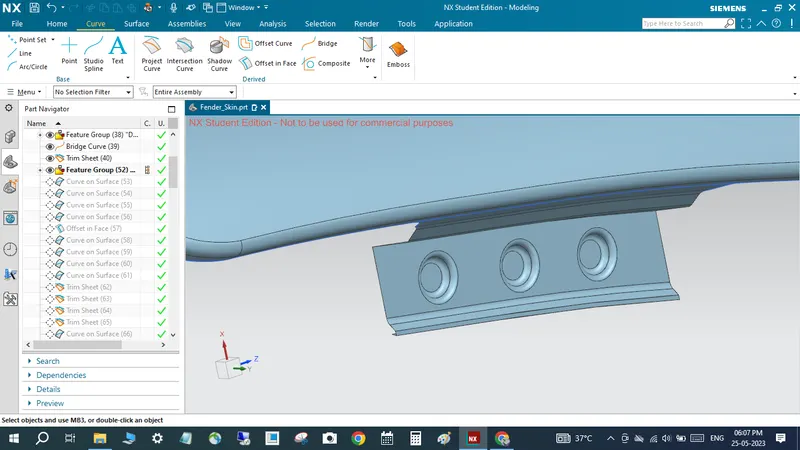

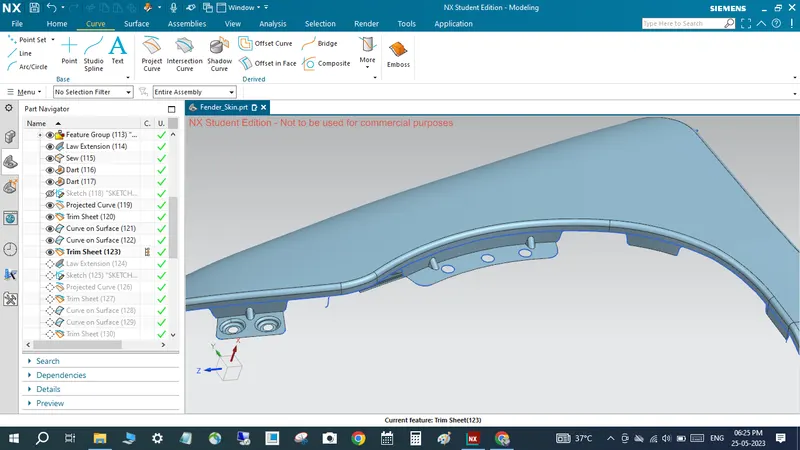

To Create flange mount in sill area side

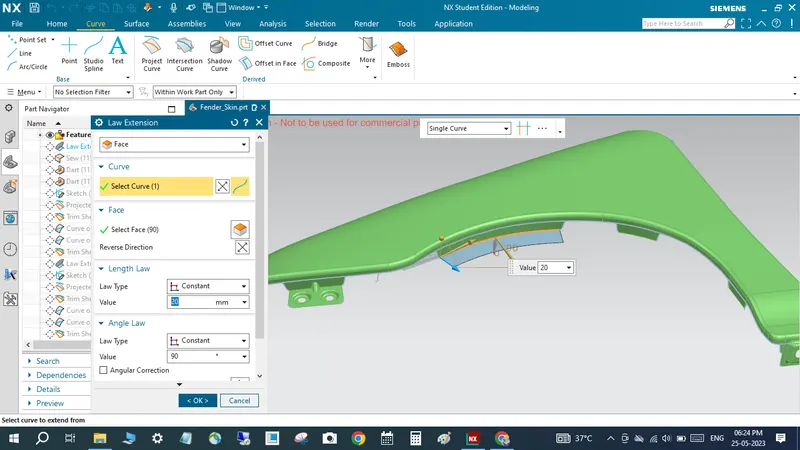

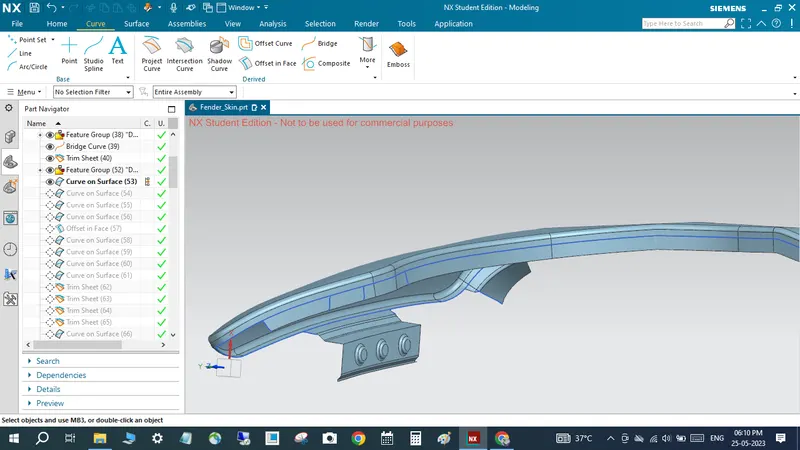

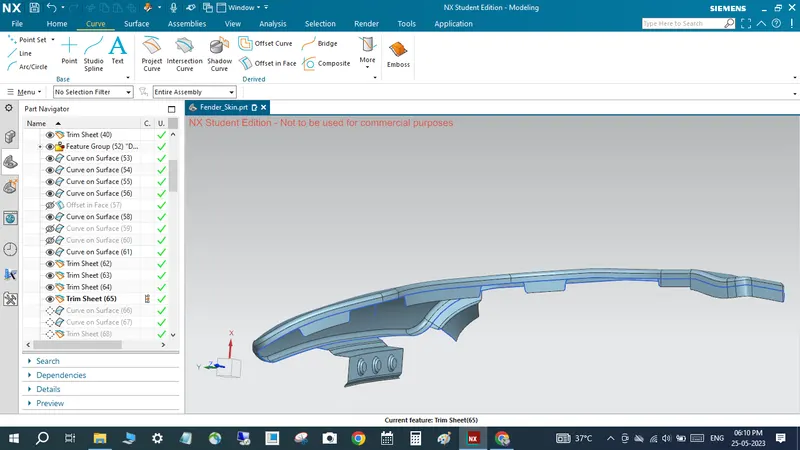

To create flange in bumper area using law extension and trim and also create dart for stengthen support avoid vibration

to create flange in buffle area side

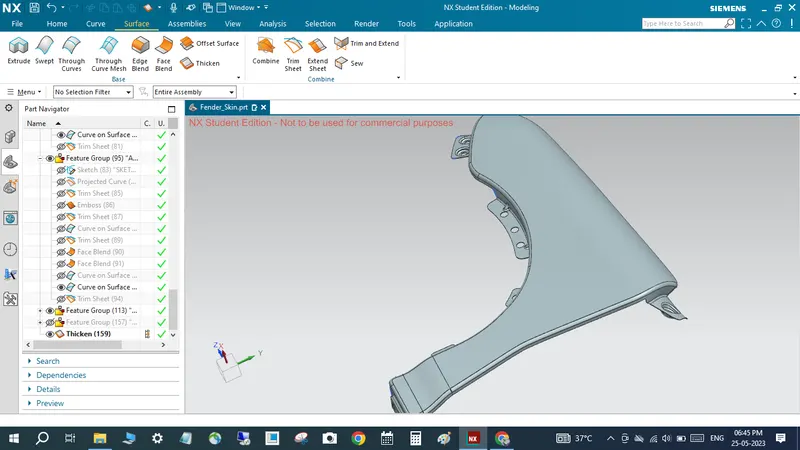

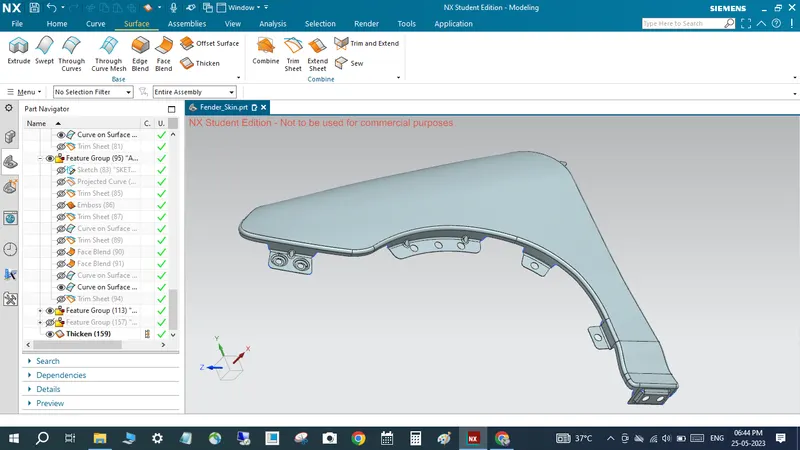

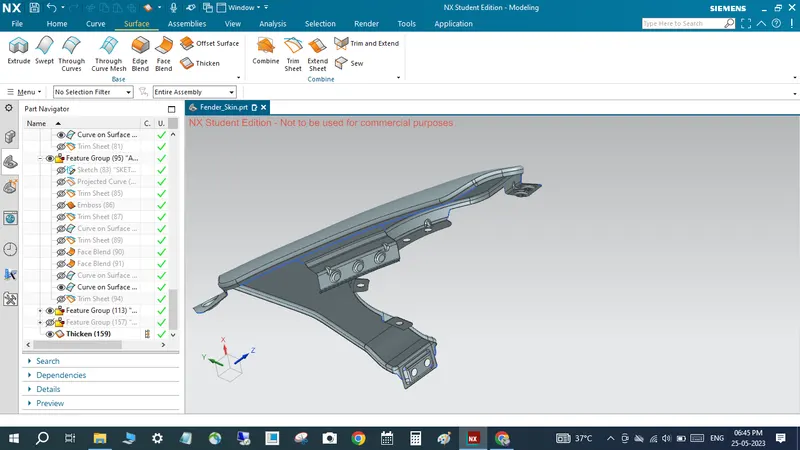

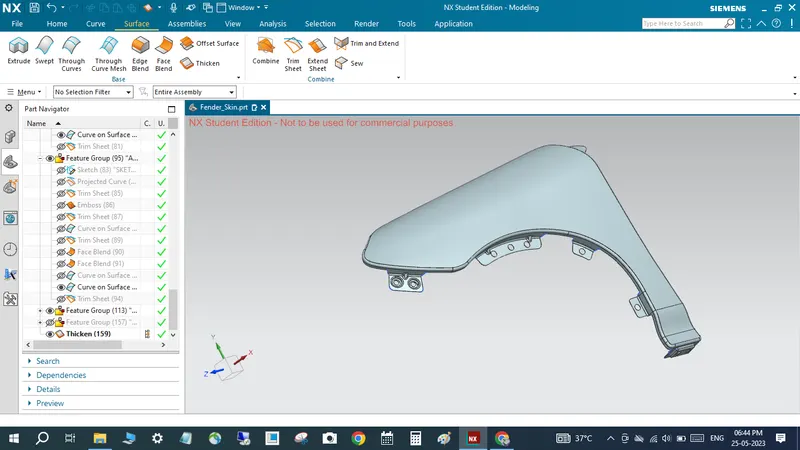

To use thicken command to thicken surface 0.75
