Fender Design

FENDER DESIGN USING NX-CAD

OBJECTIVE:

The main objective of this project is to design a fender using a new age design software-NX-CAD

INTRODUCTION:

Aluminum automotive components made using a hot blow forming process are reducing vehicle weight and increasing the fuel efficiency of today’s cars. However, before General Motors (GM) and the Department of Energy (DOE) sponsored research in this technology, blow forming of aluminum was not a viable process for automakers. The prior blow forming process called superplastic forming (SPF), was not suitable for the industry’s high-production-rate demands, and the materials required for SPF were too expensive three times the cost of standard, non-SPF, aluminum sheet metal. Therefore, bringing SPF to the automotive industry required developing low-cost SPF alloys and faster forming cycles. Reducing the cost of SPF alloys also required demonstrating the viability of SPF to both the automotive and aluminum industries. DOE initiated a program of joint-funded research between GM and Kaiser Aluminum, with the Pacific Northwest National Laboratory (PNNL) providing a catalyst to encourage GM to develop aluminum blow forming processes. Based on early research, General Motors recognized the inherent limitations of superplastic forming and moved forward with the commercialization of an advanced blow forming process, called Quick Plastic Forming.

Aluminium, for its low density compared to steel, is the most promising materials for achieving weight savings in future automotive body structure. Aluminum alloy has larger spring back and the lower plasticity; all of characters are difficulty for the stamping of complex shape of aluminum alloy car. As well known, Aluminum alloy is one of the superplastic materials which have longer elongation and no spring back under the superplastic state . These advantages of superplastic forming (SPF) process are the possibility to realize very complex part in one single operation and the low tooling costs . According to the capability of aluminum alloy and the advantages of SPF, a study of Finite Element Analysis (FEA) of superplastically formed front fender of aluminum alloy has been carried out. Considering the cost of the formed part, a commercial aluminum alloy sheet 5182 i.e. its material properties, which are used in FEA of stamping process of car panels, is selected as analytical material.

FENDER:

The fender acts as a housing for the wheel and protects everything else by keeping the dirt and debris contained within the curved enclosure. This prevents the particles from spewing or damaging car parts on the car’s underbody and even other vehicles driving by.

Remember that all your car's tyres grip the road and turn forcefully to propel the car. But, as it does that, it also grips sand, tiny rocks, branches, and everything else, throwing it upward as it turns. That would be very damaging to the car and hazardous to other road users too.

TYPE OF FENDER

There are two type of fender , They are

1.Full bumper type

2.Half bumper type

FULL BUMPER TYPE:

HALF BUMPER TYPE:

A fender is different than a bumper because it's a metal structure that frames the wheel well of your car, instead of the front or back. The fender extends between the front door to the front bumper covering the front wheels of the vehicle.

MOUNTING REGIONS ON FENDER:

There are five mounting region on a fender ; they are

• A-PILLAR MOUNTING
• BODY MOUNTING
• SILL MOUNTING
• BUMPER MOUNTING
• DRIP AREA MOUNTING

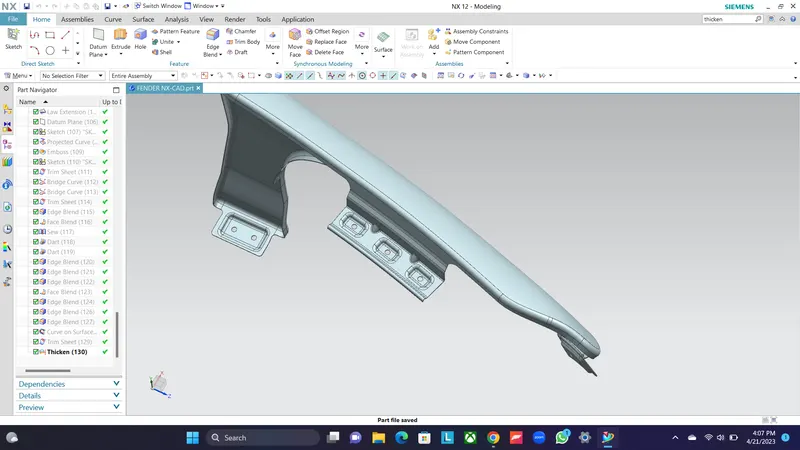

A-PILLAR MOUNTING:

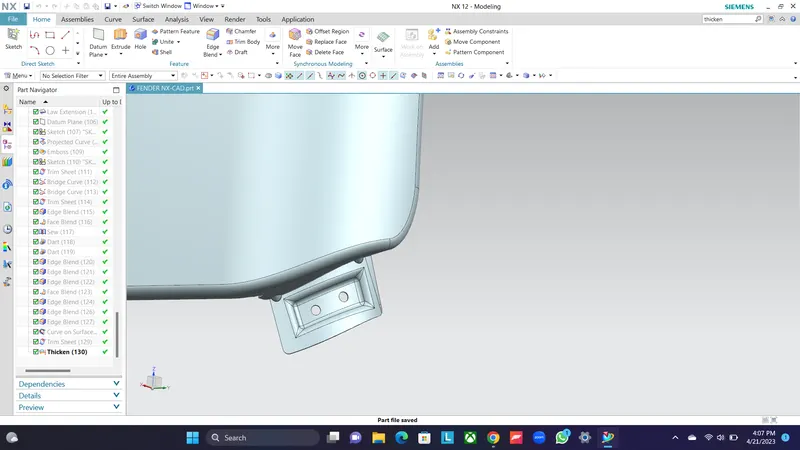

SILL MOUNTING AREA :

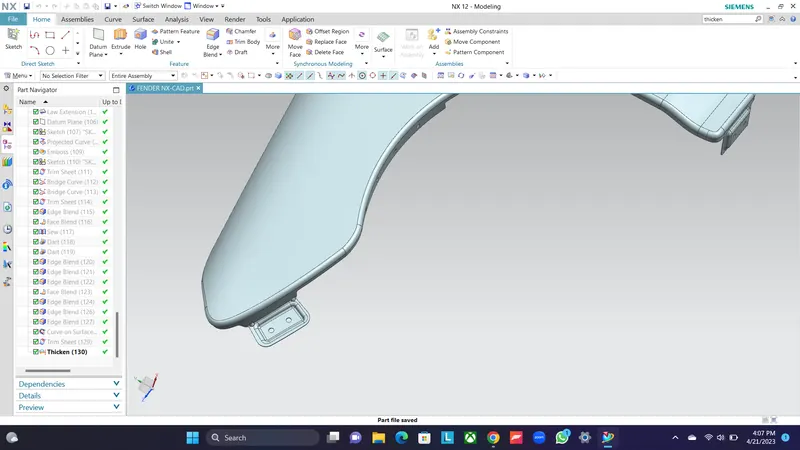

BUMPER MOUNTING AREA:

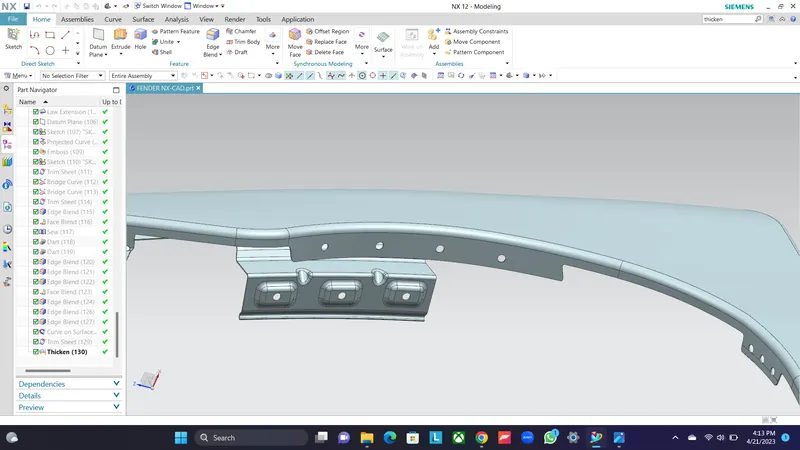

DRIP AREA MOUNTING :

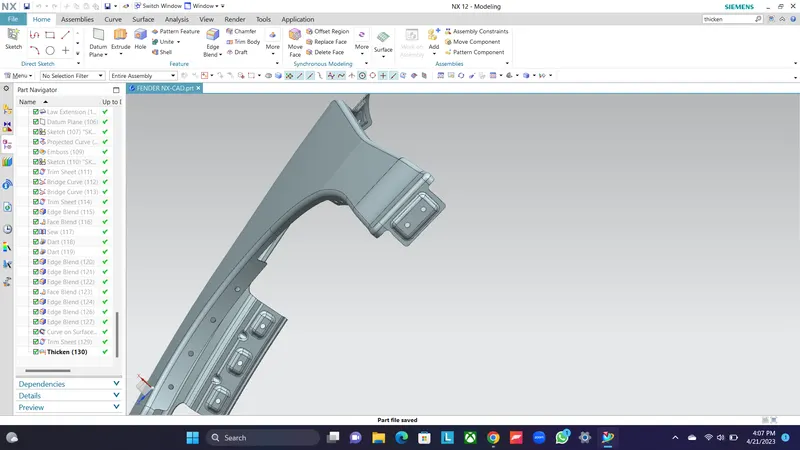

BAFFLE MOUNTING AREA :

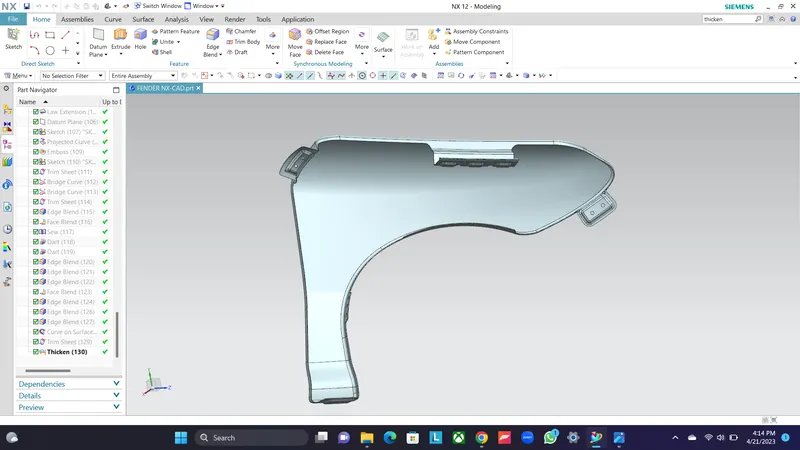

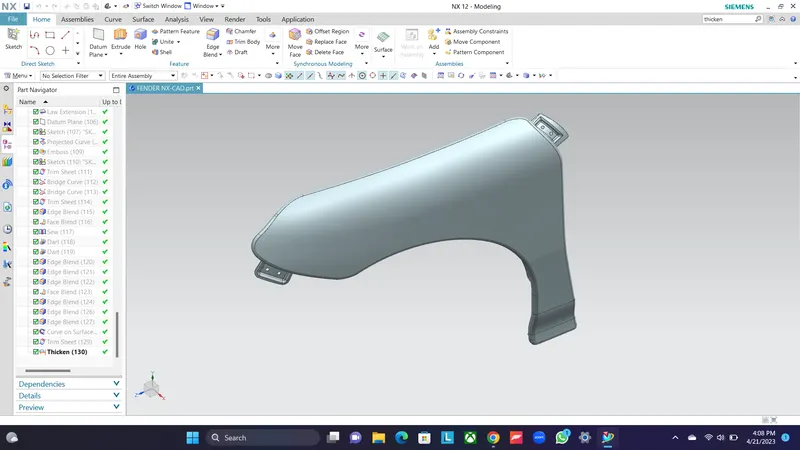

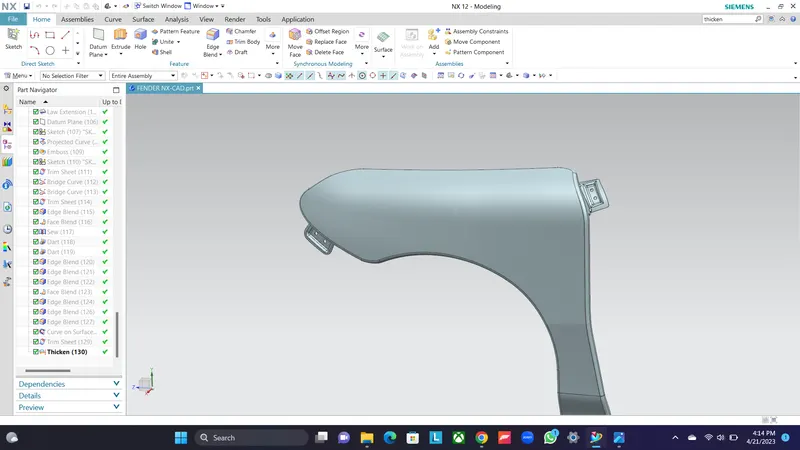

VIEWS OF FENDER DESIGN:

CONCLUSION:

We have developed front fender with mounting points following the design parameters and mastersection .
