Fender Design

Downloaded all relevant data from google drive link for fender design.

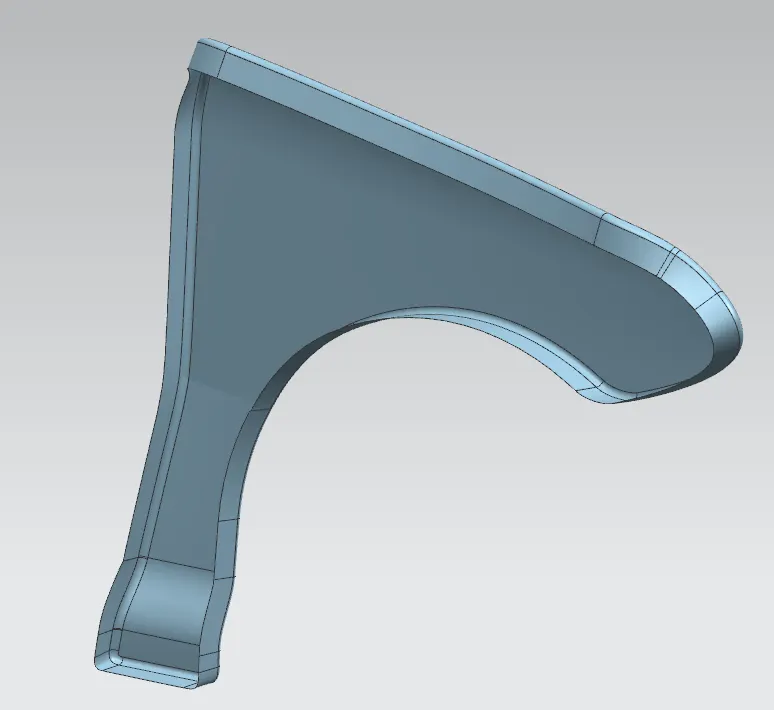

Refering to given skin data, the flanges given are already given in required angle and inclination(3 Degree). So I used them for creating mounting embosses and A piller mounting.

Improved the surface by eliminating sharp corners and created law extension for A piller mounting.

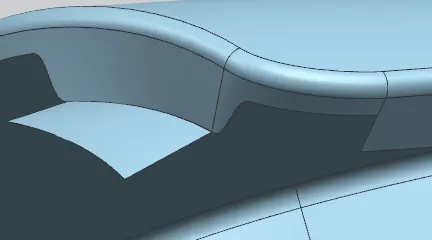

Trimmed off the excess portion for making Engine compartment mounting using curve on surface, offset curve and trim sheet.

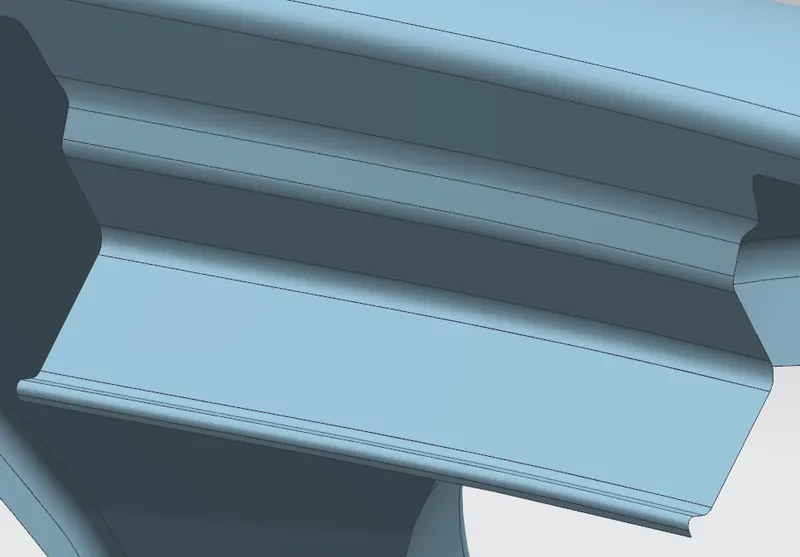

Using Law entension, created steps for mounting stratagies, provided edge blends using given master sections.

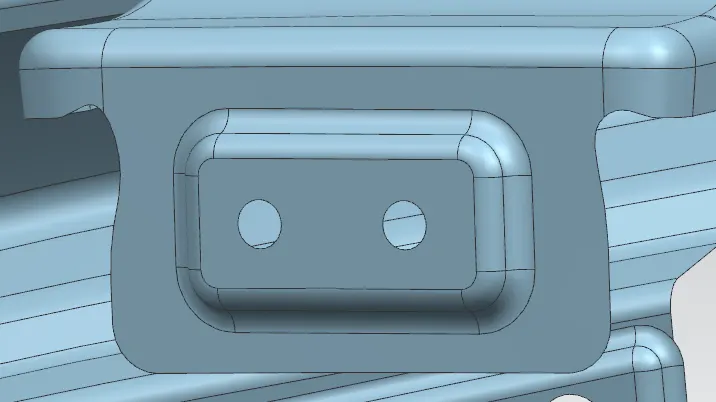

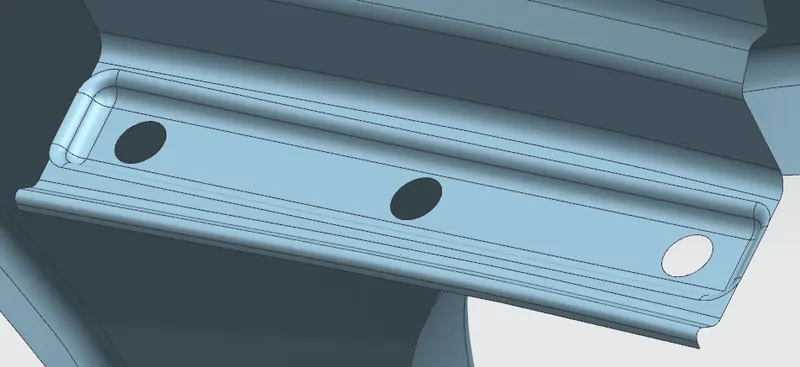

Created Emboss and made 3 holes for mounting the fender inside the engine compartment and provided fillets. Made extra flange as per given in master sections.

Created same portion for baffle and sill mounting using same commands.(Offset curve, Curve on surface and trim sheet)

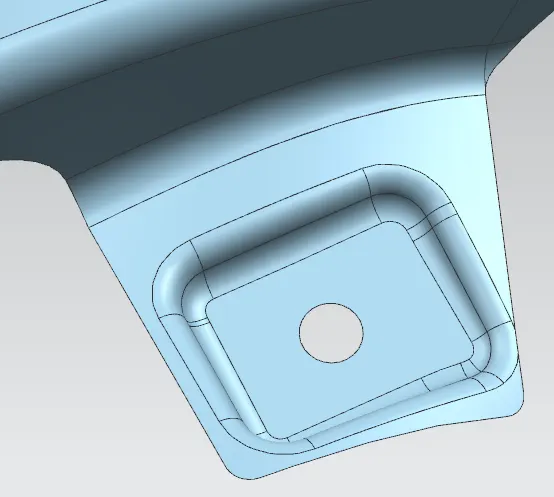

For bottom mounting, extended the sheet for creating a large emboss and 2 mounting holes as shown in image.

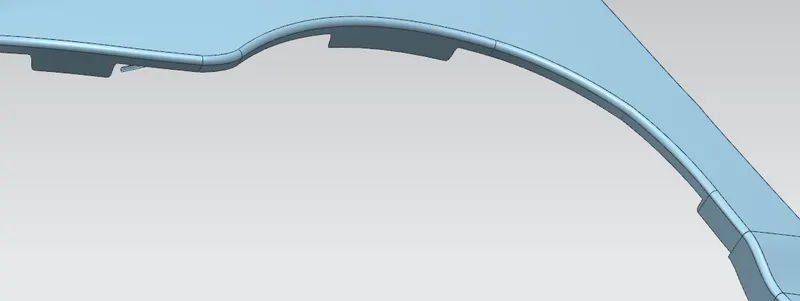

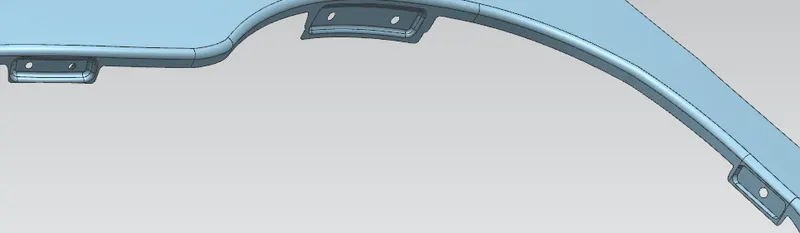

Likewise, created embosses and holes for baffle mounting and sill fitment. Here Baffle mounting used is curved for curved baffle part for wheel protection.

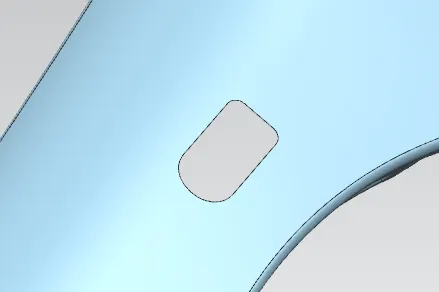

Trimmed the sheet as shown in image for providing Turn indicator mounting.

Provided relief stratagies for sill mounting area to reduce stress of vibration impacted on vehical.

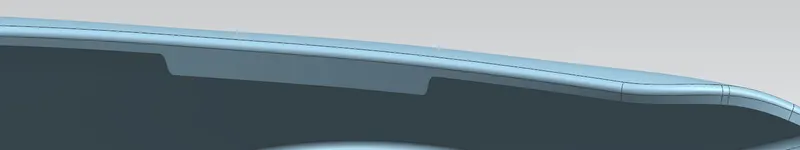

A smooth emboss with flat surface for mounting of A piller is created using new datum plane provided blends.

All embosses(except A piller) are provided depth of 3.5mm and blend radius 2mm.

Baffle mounting emboss is made curved considering wheel diameter and baffle terminology.

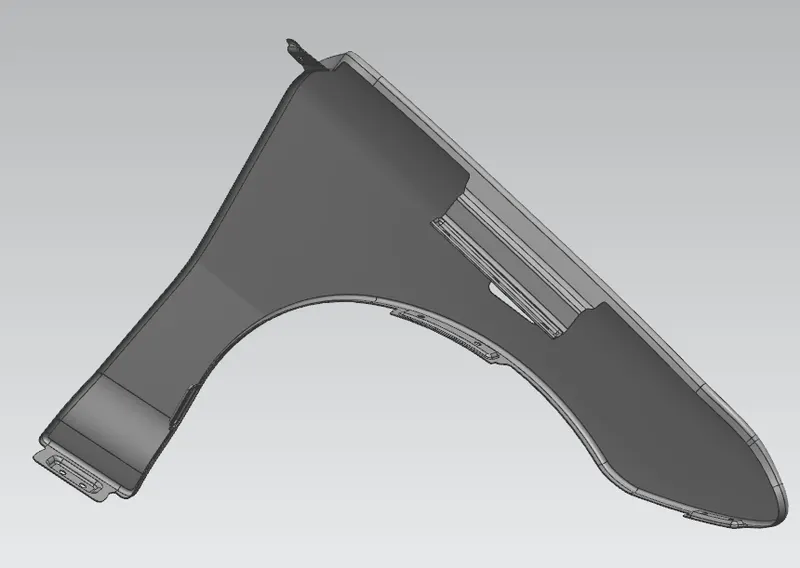

Finally done thickening of 0.75mm form inside and done some edge blends to remove sharp corners.

Saved the data in .prt and .stp format. Created a zip file and submitted.

Thank you...
