Fender Design
OBJECTIVE: To create the mounting area accordig to given master section and following best practices of the industry.

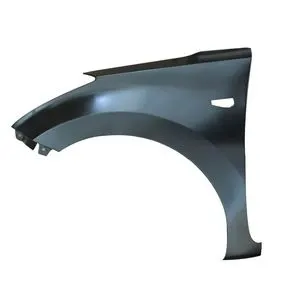

FENDER:
Fender are side covering part avialable just above 4- tyres of the car. This surve various purposes such as it a styling surface as well as it holds the fender liner and mud flaps which help in providnig protection to the car body and the pedestrian from the flying objects from the tyres.
Fender can be of two type .
1.FULL BUMPER TYPE :
Full bumper types requires bigger parent sheet metal , also it left bigger size of unused cutout , which is wastage of material.
2. HALF BUMPER TYPE:

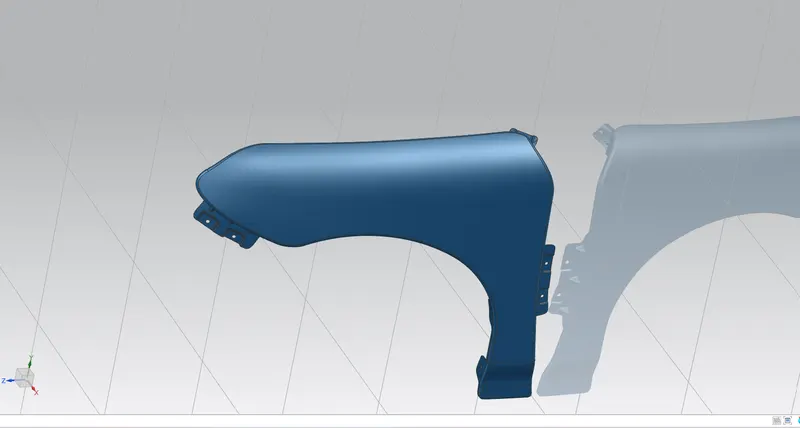

Half bumper type remove the problem of material wastage ,as two fender can be made from the same sheet ,if we orient them backto back .
Each details given in the master section have some importance they are not given without any reason , we will discuss each of them one by one .
1.

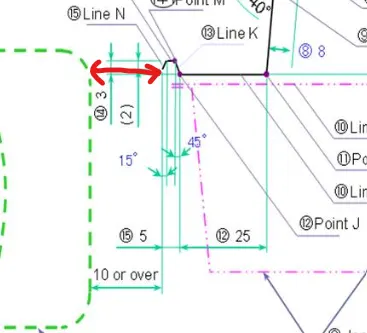

The higlighted portion is provided in order to avoid the acceses of human eyes to see unpleasant envornment of inside of the engine room.
2. Clearance from the engine :

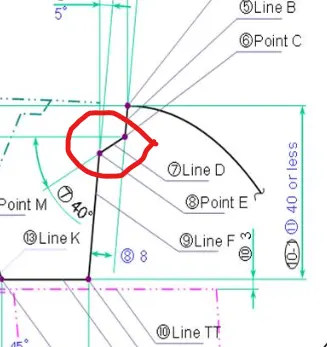

There should be enough clearance between the drip area of the fender and the engine so that the NVH issue is not raised.

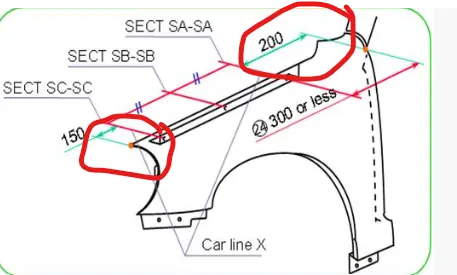

3. Clearance between cowl and bumper for drip area: There should be enough diffrance between the drip area and the cowl mountings , becouse cowl has so many pripherals mountings also there should be enough diffrance between the drip area and the head lamp also.
4.Clearance for easy handling of tools:

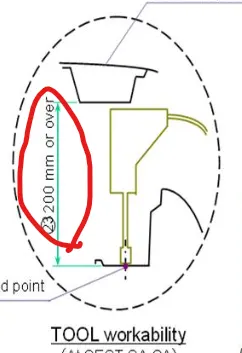

After opening the hood there should be enough clearance between the hood and the engine room so that the tools can be easily inserted inside the room and worked upon.

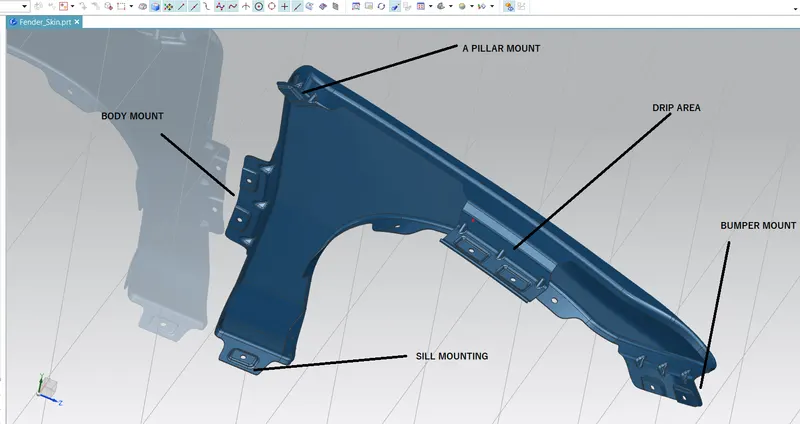

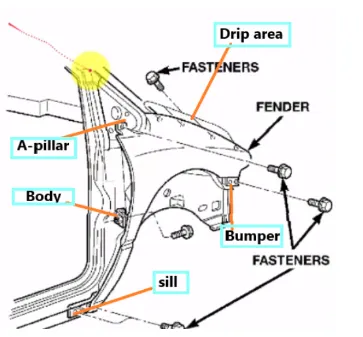

There are mostly 5 mountings position of fender they are:
1.A PILLAR
2. BODY
3. SILL
4.BUMPER
5.DRIP AREA
The embosses provided on the mounting flanges should be flat it should not be curved else it will create the NVH issue.
Proper dart should be given to provide sufficient strength to the flanges.
Practice of proper draft angle is also maintained.
