Fender Design
DESIGN OF FRONT FENDER-

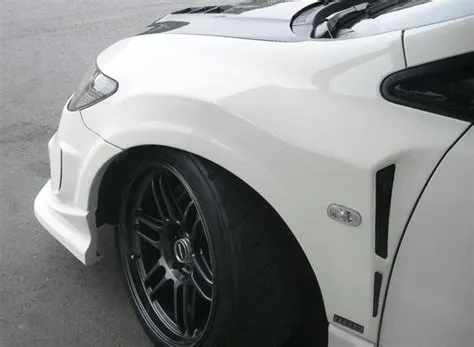

FENDER IS THE US ENGLISH TREM FOR THE PART OF AN AN AUTOMOBILE (VEHICLE BODY) THAT FRAMES A WHELL WELL (THE FR=ENDER UNDER SIDE)
ITS IS PRIMARY PURPOSE IS TO PREVENT SAND ,MUD ROCKS ,LIQUIDS AND OTHER ROAD SPRAY FORM BEING THROWN INTO AIR BY THE ROTATING MOTION
WHEN VEHICLE IS MOVING ,TRIES PICK UP STONES AND OTHERS AND HURL THEM IN ALL DIRECTION (FENDERS ARE BASICALLY PRESENT TO PREVENT ANY INJURIES TO PEDERTRIANES AND CONTAIN THE MOTION OF THESE PARTICLES
THERE ARE MAINLY TWO TYPES OF FENDER DESIGN
FULL TYPE FENDER
HALF TYPE FENDER
IN OLDEN DAY FULL TYPE FENDER USED TO IMPOVE AND MORE ADVANTAGES OF FULL TYPE HALF VERY INTRODUES ITS VERY LOW WEIGHT AND LOW COST WHEN COMPARED TO THE FULL TYPE FENDER
IN THIS PRESENTATION WE LEARING ABOUT THE FOLLOWING
DESIGN REQIUEREDMENT
IMPORTANT REGULATION
Drip area :
This region is mounted below the hood inner panel which needs to be flush when the hood is in a closed condition and also there should be very fewer gaps.
The drip area is either spot welded or in some cases bolted down via self-tapping screws.

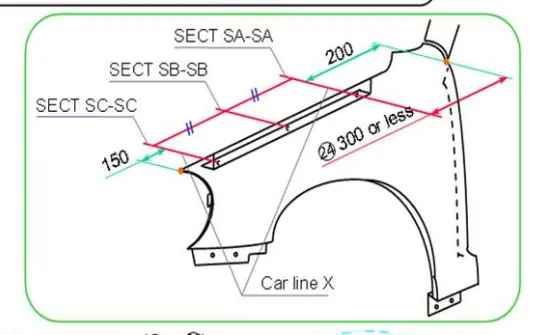

The following design sheet/master section shows the criteria which need to be followed while designing the drip mounting.
A-pillar area
The A-pillar area mounting depends upon the A-pillar of the car the mounting can also be provided with ribs to strengthen the part. this mounting is critical in design as it has to be mounted on A-pillar properly
Body side area
Another mounting point is created for the body side on the fender this mounting is created such that it can be mounted on the body of he car. it may consist of one or two bolting holes
Sill area
Sill area mounting is also an important mounting part.this mounting point is basically on the bottom of the fender. the mounting part should be created such that the fender is firmly attached to the sill
Procedure :
Input -
MASTER SECTION OF DESIGN THE FENDER
ABOVE THE PROCEDUE for create the fender drip mount
the drip mount want 150 mm distance from the head lamp area and 200 mm from a pillar area
below all image are attached from my design

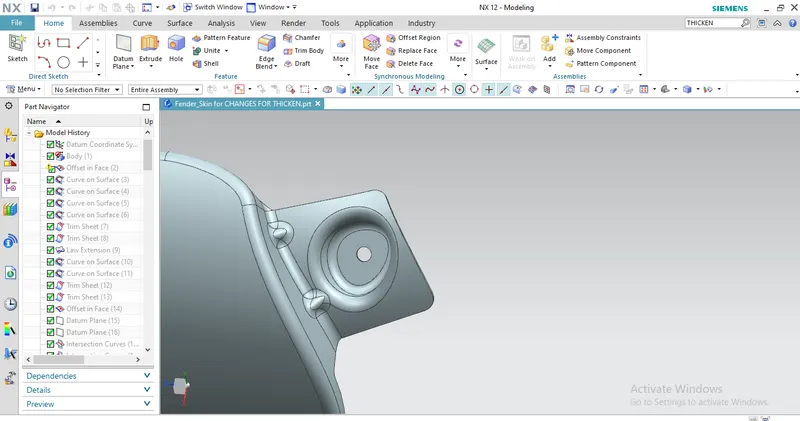

sill area mount
bumper side

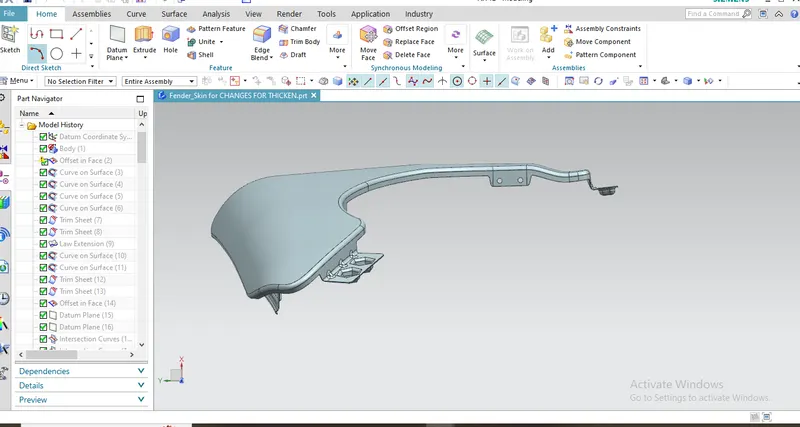

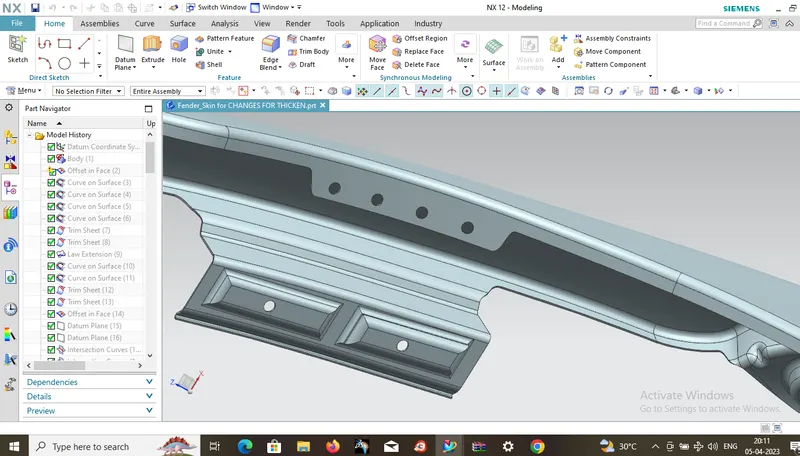

drip mount
coul munt
Baffle mounting

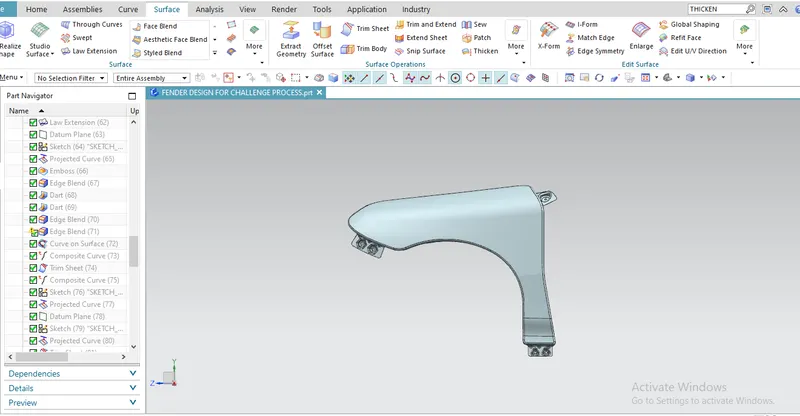

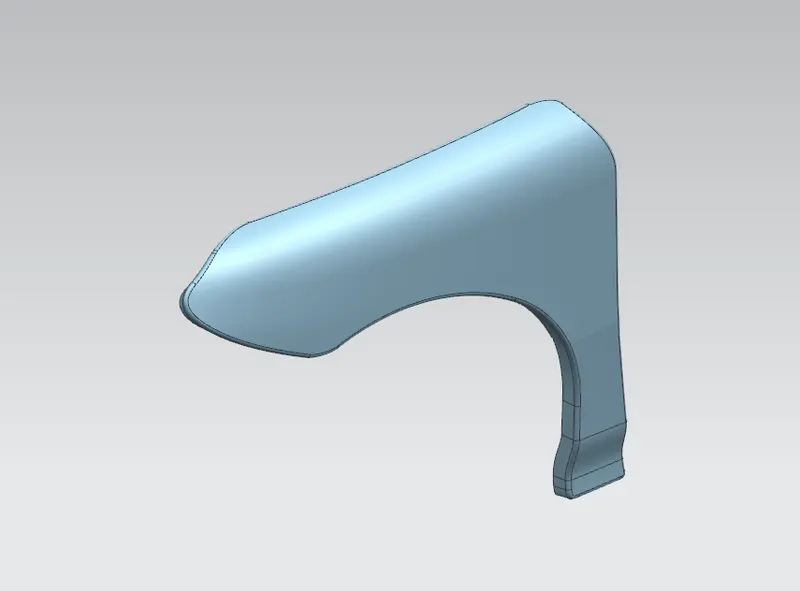

output
