Challenge

Fender Design

GIVEN DATA:

MAIN OBJECTIVE:

FENDER :

The main purpose of the fender is to prevent sand,mud, rocks,liquids and another road spray from being thrown into the air by the rotating tire.

TYPES OF FENDERS :

There are two types of fenders:

1) full bumper type

2) half bumber type

Presently we are using the half bumper type , the reason for choosing the half bumper type is that when we choose the full bumper type the blank used for creating it is very large and also has the lot of wastage , but in the case of the half bumper type we have the possibility to reduce the scrap . This is what we called as scrap management
In half bumper type we reduce the usage of the steel material and uses the lots of plastic on the bumper which in term decreases the cars weight and increases the performance

MOUNTING REGIONS ON FENDER :

There are 5 mounting regions on the fender

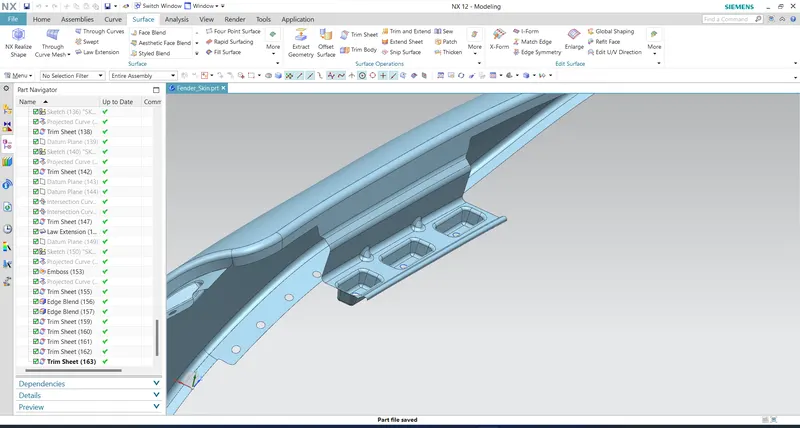

DRIP MOUNTING:

It is the important mounting uni of the fender . it is connected with the engine compartment , therefore the lot of design constraints are to be followed while designing the fender
While designing the drip area we have to initially leave 200-300 mm for cowl top
For placing the headlamp we have to leave at least 150 mm at the front while designing the fender
Cowl top part consists pf wiper motor and its instruments

Two darts are added on the longer side of the drip area in order to provide the stiffness and adds strength to the part . This helps the fender to not to vibrate and impact the forces outside of the fender during motion of the vehicle.
Embossing are provided on the mounting to strengthen them during fastening

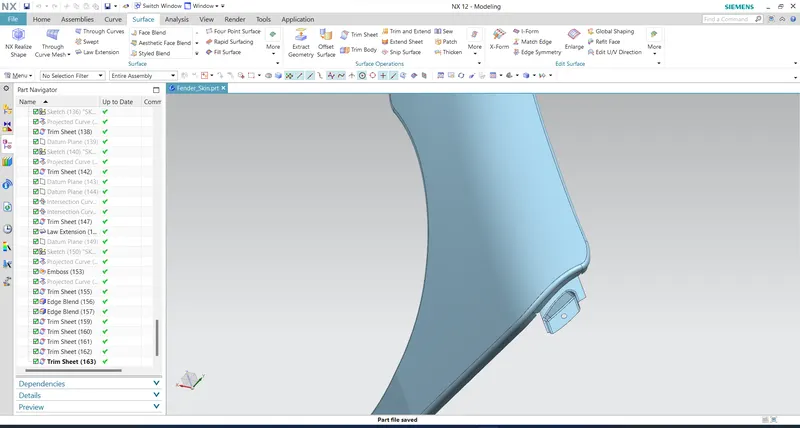

A PILLAR MOUNTING:

The A -pillar is the structural pillar that combines the body to the roof . this make the sides of the windshield rest . front fenders are fastened to the A -pillar to form a robust structure

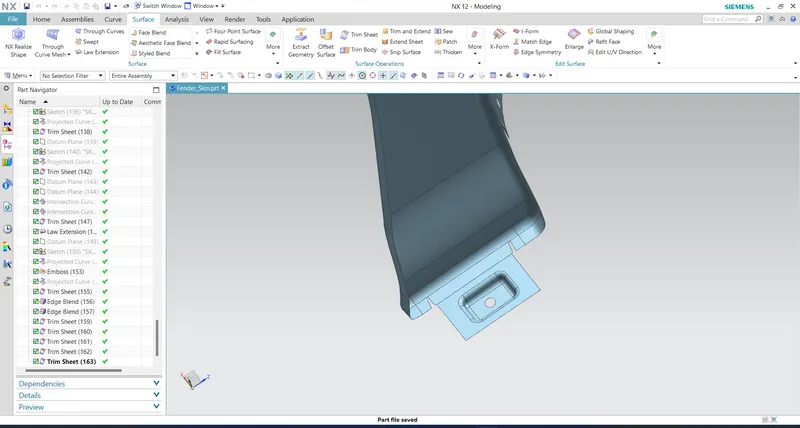

SILL MOUNTING:

Sill is the panel directly below the bottom of the door supporting the floor and may be used to combine the floor and the body . The bottom end of the fender is mounted on the sill body for reinforcement of the fender panel , thus the sill mounting position is designed with holes and emboss . M5 fasteners are used to fix the fenders on the sill body.

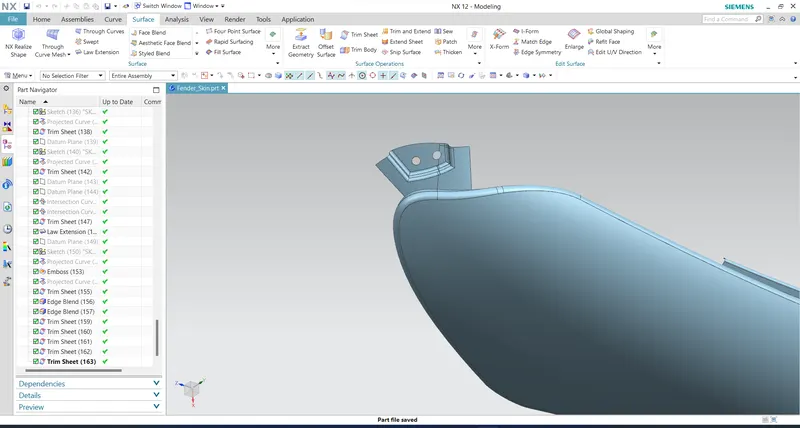

BUMPER MOUNTING:

Bumper mounting area is used to fix the plastic bumper to the fender with the help of the fasteners

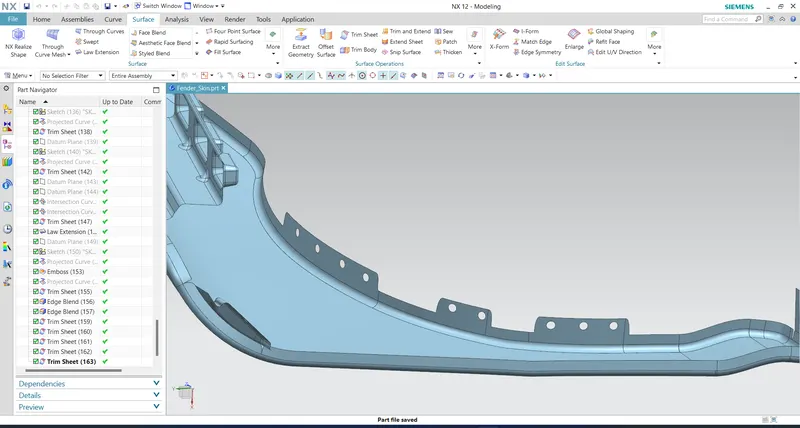

BAFFLE REGION:

Baffle mounting or mudguard are clip fit type of mounting on the inner side of the fender arch over the Tyre . it protects the car engine compartment and pedestrians from causing injuries from chip out debris on the road when the car is in motion . they are mounted on the fender using a special type of locking clips which are made up of plastics

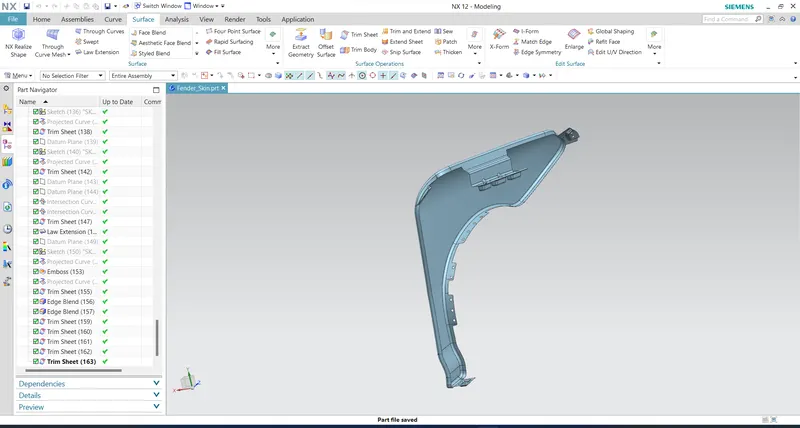

FENDER DESIGN:
