FENDER DESIGN
FENDER DESIGN IN SIEMENS NX SOFTWARE
OBJECTIVE OF REPORT
To design the fender according to the given Sketch, design parameters related to industry standards.
ABOUT

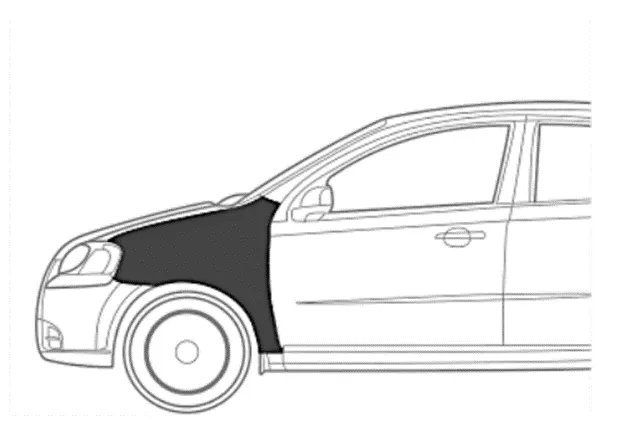

A fender is a piece of a vehicle, cycle, or some other vehicle Its fundamental job is to prevent sand, mud, rocks, liquids, and other road sprinkles from being thrown into the air by the turning tire. In extra to fender, various parts like internal mount, side, and cowl mounts are joined with well nuts' help. They give satisfactory protection to the engine room portions and suspension, etc. In like manner, the fender keeps all the debris from the road from throwing into the air. Despite the fender, Fender skirts are given to give better protection.
Fender is the American English articulation for the piece of a vehicle, cruiser, or other vehicle body that traces a wheel well. Its essential job is to hinder sand, mud, rocks, liquids, and various roads shower from being thrown into the air by the turning tire. Fenders are customarily unbendable and can be hurt by contact with the road surface. Crude materials, similar to mud, may adhere to the smooth outside tire surface, while smooth free articles, similar to stones, can end up being unexpectedly embedded in the track grooves as the tire turns over the ground. These materials can be jump-started out from an external perspective of the tire at fast as the tire gives engine energy to the joined things. For a vehicle pushing ahead, the most noteworthy place of the tire is turning upward and progress and can throw Objects into the air at various vehicles or individuals by walking before the vehicle. A fender is a front outer side individual of a vehicle, which covers the wheel side. It has innumerable little features with great
and terrible occasions.
Types Of Fender Use in Automobile Industry
There are two main types of fenders-

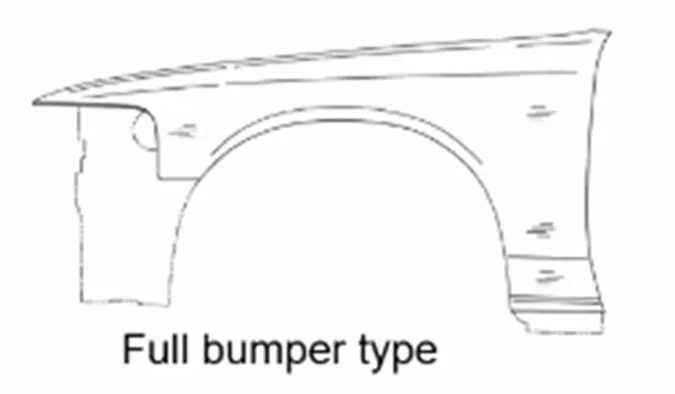

1-Full Fender Type- The full fender type is the standard sort of fender where more material use is observed. This sort is utilized in the old designs of vehicles where it manufactures the general weight and suitably lessens execution. The upkeep is besides modestly more because of more surface.

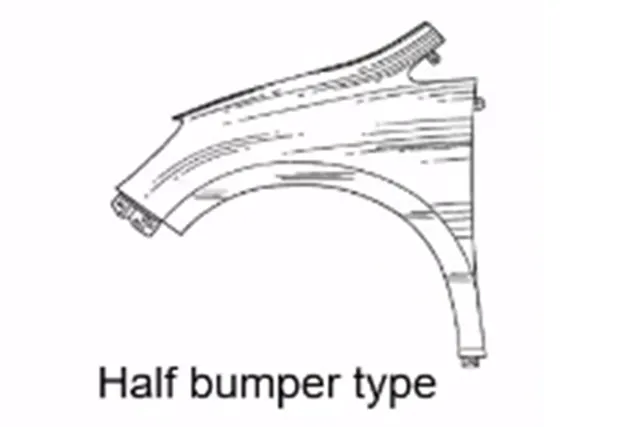

2-Half Fender Type- Half fender type is a forefront design where less material use is seen, so capability increments by decreasing the indisputable size and giving more presentation. The assistance in like way unassumingly low stood apart from the full guard type.
Advantages of the fender in Automobile car
1-Fender has a plastic part called Baffle or fender Liner which fits the underside the fender to protect the metal from corrosion by stopping the flow of mud and water inside from different road conditions.
2- It is the sheet of metal covering of the car.
3- It is designed to provide resistance against wind, mud, and roadside partials.
4- Cause minor, and even major damage to other vehicles.
5- Scratch the bodies of other vehicles.
6- Get other vehicles or pedestrians on the roadside dirty and Hurt pedestrians.

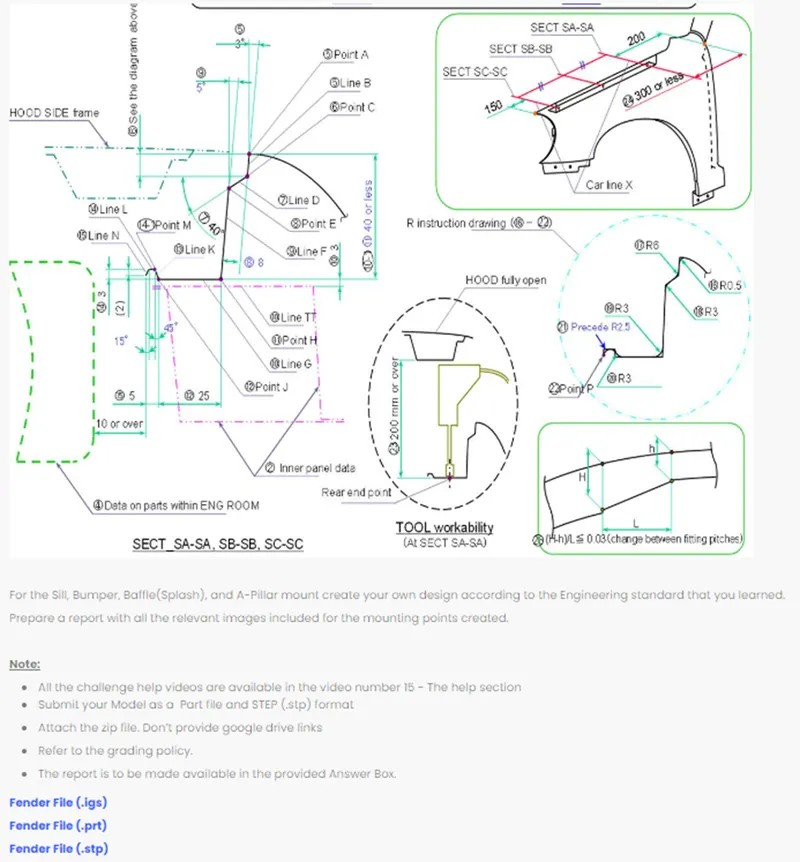

DATA TO BE USED FOR DESIGN

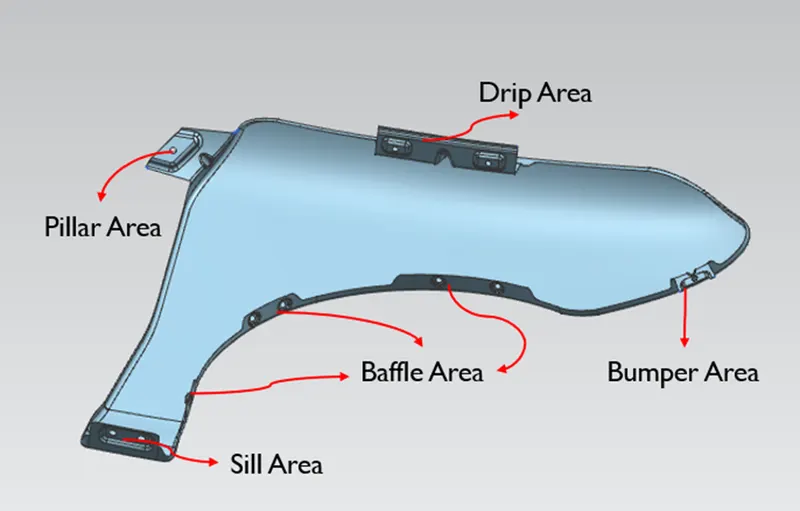

TYPES OF MOUNTINGS IN FENDER
1-Dip Mounting Area- Primarily, the fundamental design of a fender incorporates developing the spilling area as it is a huge mounting region and requires certain characteristics that should qualify a fender design. Accepting it isn't true to form design, the spilling area would be recognizable from the opening between the hood and the fender. The overabundance of mountings is covered by various parts.

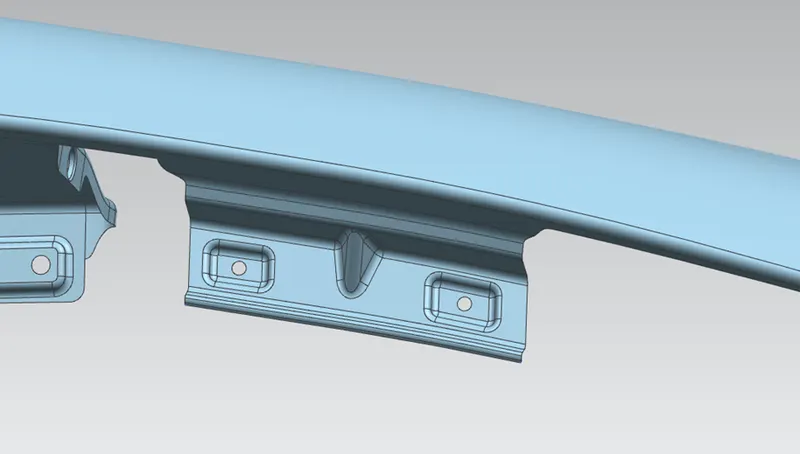

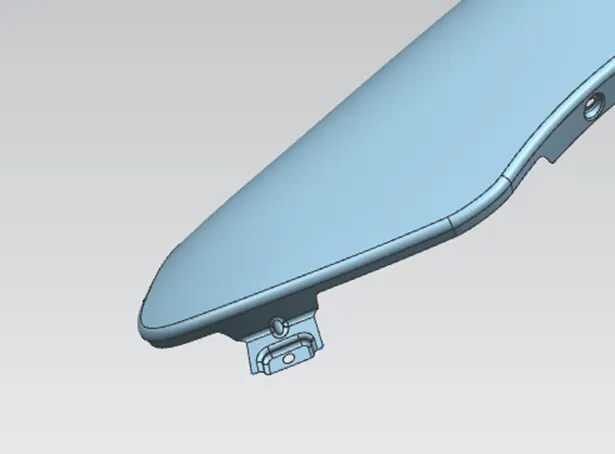

2-Sill Mounting Area- An auto vehicle is essentially outfitted with wide openings for obliging doorways at the different sides of its body. Since the vehicle body encounters various kinds of distantly decided forces, for instance, vertical bends and longitudinal turns which act around the rotation of the vehicle body, a fundamental is that those sections of the vehicle body which include the entrance openings, especially the lower isolates, be outfitted with sufficient rigidity. This fundamental is generally met by using side edges which are only arranged at a lower right and a lower left piece of a vehicle body to connect the longitudinal method of the vehicle body. The side edges top in as working off people to ensure the vehicle body's inflexible idea around the doorway openings.

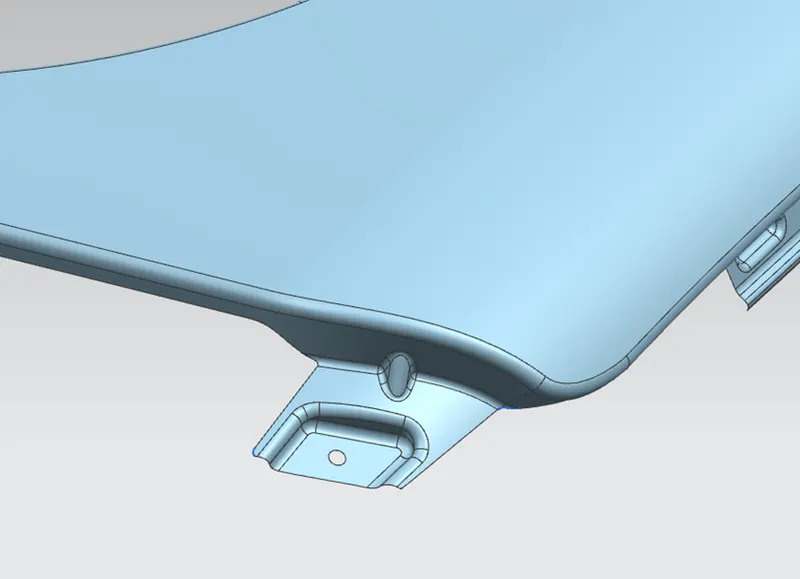

3-Pillar Mounting Area- Pillars are vertical support on a vehicle. They have arranged all the glass on a vehicle. They are critical for holding the glass set up and adding basic uprightness to a vehicle, primarily the housetop. The "A" pillar holds the windshield set up. "B" pillars head after the primary entrance. They by and large offer a critical fundamental framework for a vehicle's roof. As a general rule, they are bound to the body edge and wrapped directly into the housetop. Dependent on the design, there may be different pieces joined to expand the reliability of the roof. They are moreover responsible for where an entrance's snare interfaces with the body. "C" pillars hold a vehicle's back window set up.

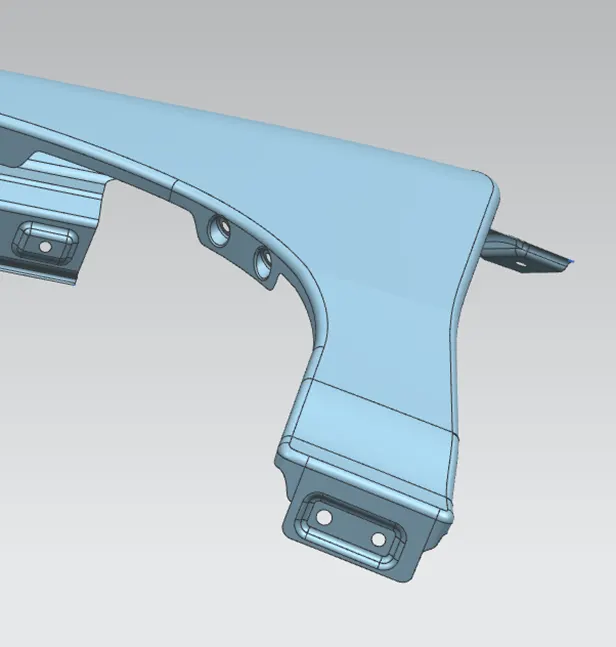

4-Bumper Mounting Area- A guard is a construction appended to or incorporated with the front and backsides of a car, to ingest sway in a minor impact, in a perfect world limiting fix costs. Along these lines, the guard mounting area includes the excess piece of the fender that covers the sprinkle locale in that of a half fender type. Guards are progressively being designed to alleviate injury to people on foot struck via vehicles, for example, using guard covers made of adaptable materials. Front guards, particularly, have been brought down and made of gentler materials, like froths and crushable plastics, to diminish the seriousness of the effect on legs.

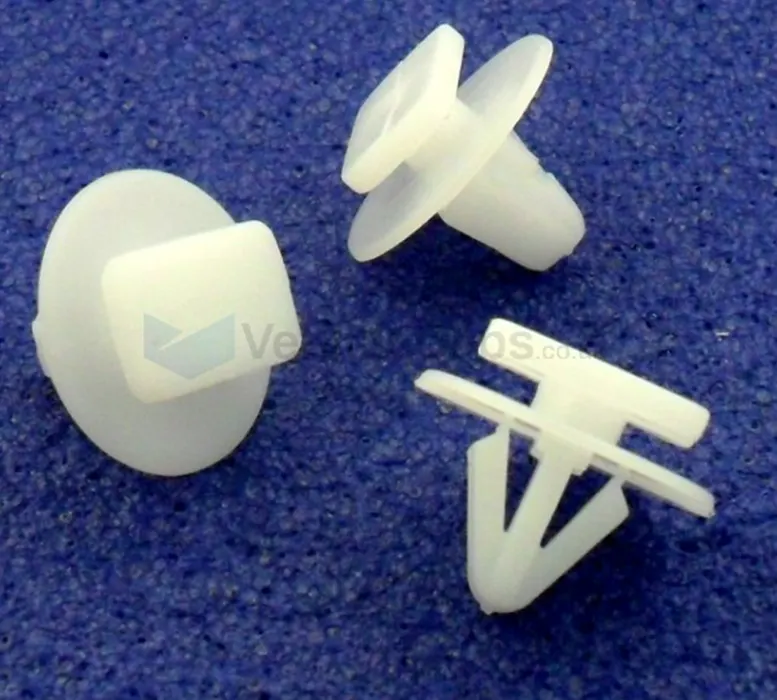

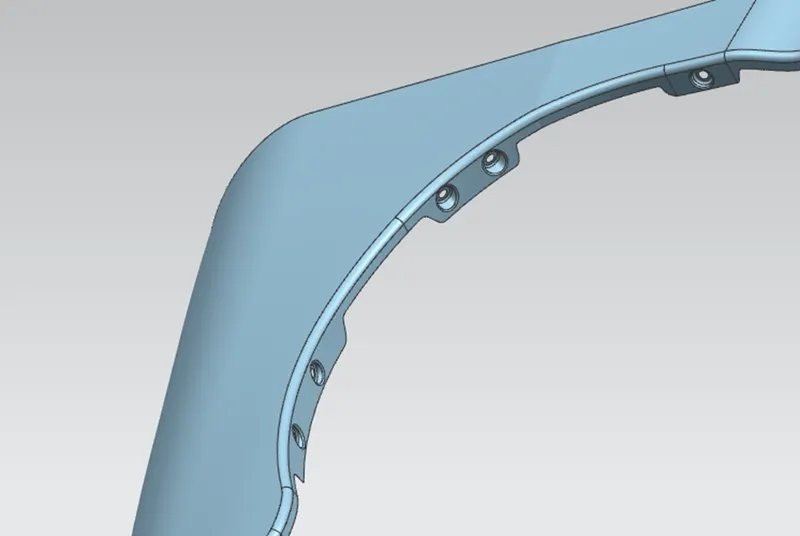

5-Baffle Mounting Area- To stop all the debris going into the engine room and various sections like suspension joints and so on, a sprinkle defender mounting part is being set. The Baffle mounting area requires just to hold the baffle defender mounting the openings are being given in the design. For certain automobiles, notwithstanding the fender, fender skirts, and guards are submitted in solicitation to give better protection. The design isn't exceptionally connected with baffle mounting. Just to offer openings to the hooks set up.
Manufacturing Process-Fender manufacturing by Injection molding process nowadays. A car Fender bumper is made by a process called injection molding, which basically consists of making a special polyurethane compound and introducing it into a large fender. RIM is a process that conserves raw materials and reduces costs. It is similar to injection molding except thermosetting polymers are used, which requires a curing reaction to occur within the mould. Common items made via RIM include automotive bumpers, air spoilers, and fenders.

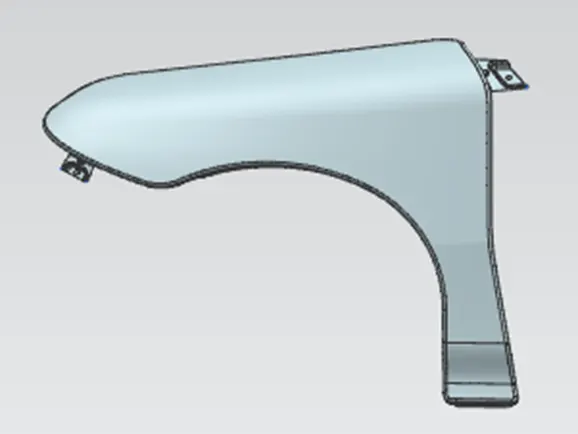

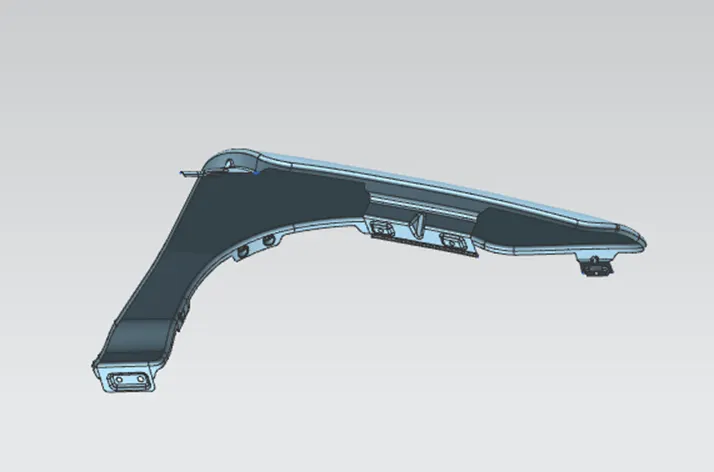

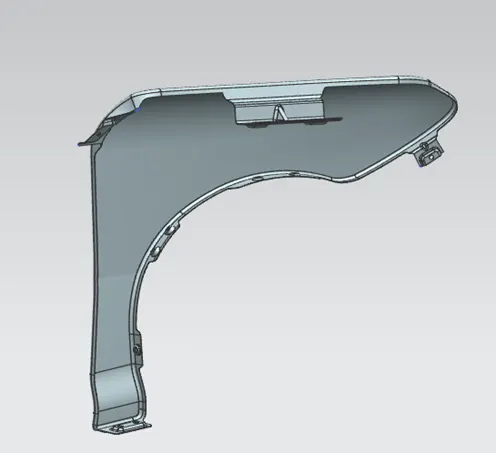

Final View of Fender Design
Conclusion- Fender Design is completed by using UG NX. and satisfying all the requirements with the given data.
