Fender Design

                                                                FENDER DESIGN

• Fender is the US english term for the part of an automobile( vehicale body)that  frames a wheel (fender under side ).
• Its primary purpose is to prevent sand ,mud ,rocks ,liquids ,and other road spray from bieng thrown in the air by the rotating tire .
• when vehicle is moving ,tyres pick up stones and others them in all directions .Fenders are basically present to prevent any injuries to pedestrians and contain the nation of these particales.
• most passenger automobiles have four fenders one over each wheel for vehicle with narrow car body that expose expose the tire the fender is exposed curve over the top of the tire .For wide body vehicles that cover the tire the fender forms the wheel well surrounding the tire and is not directly visible from above the car body.
• wheel wells tend to be much larger than the diameter of the tire becouse they do not move with the tire suspension and consequently must  be  larger enough to allow the full range of the tire motion on the suspension withought touching the interror of the wheel well .
• move Elaborate designs include fender skirts for enclosing the outside edge of the wheel well and stylized  pontoon fenders for the exposed fenders .

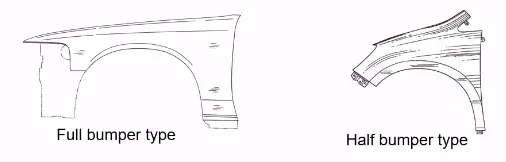

•                                                                                                                                                                    TWO TYPES FENDER

1) FULL BUMPER TYPE

2) HALF BUMPER TYPE

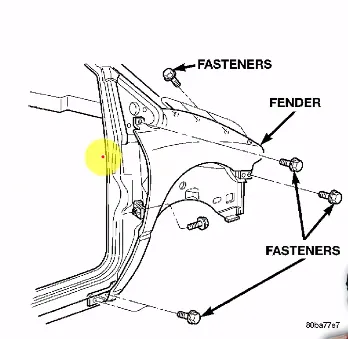

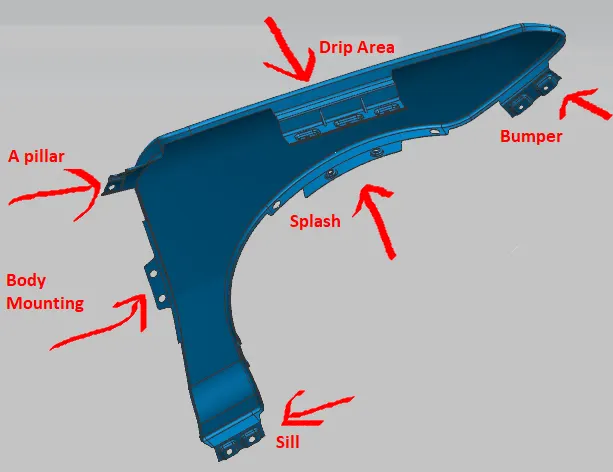

                            Fender  Basically  mounting points

• Body
• A piller
• Drip
• sill
• cowll
•
•
