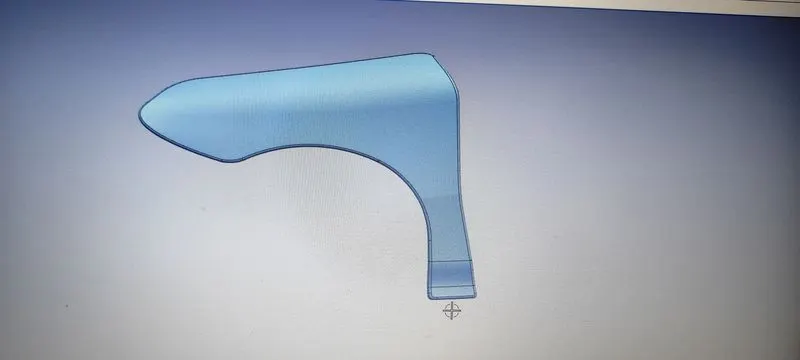

Fender Design

Fender is the ameerican english

term for the part of an automobile , motor cycle or other vechicle body that frames a wheel well the fender underside

Its Primary Purpose is to prevent Sand,Mual,Rock,Liquids and other road spray from being thrown in to the air by the rotating tire

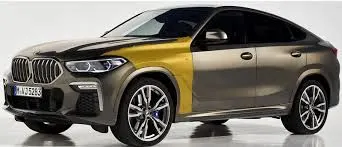

The fender are located over the whells of the vehicle Two in the front right and left Two in the back right and left of vehicle

TWo type fenders

1.FULL FENDER 2. HALF FENDER

DIFFERENCE BETWEEN FULL FENDER AND HALF FENDER

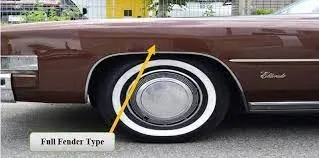

FULL FENDER

i) Old design

ii) More Material Consumption is Observed

iii) Increases the over all weight and thus reduces Performance

iv) The mainteance also relatively more due more surface

HALF FENDER

i) Now days use half fender

ii) Less Material Consumption is Observed

iii) Increases by reducing size of blank and more Performance

iv) The mainteance also relatively low compared to full fender

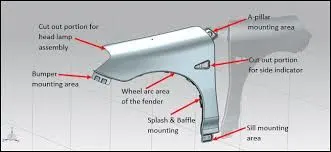

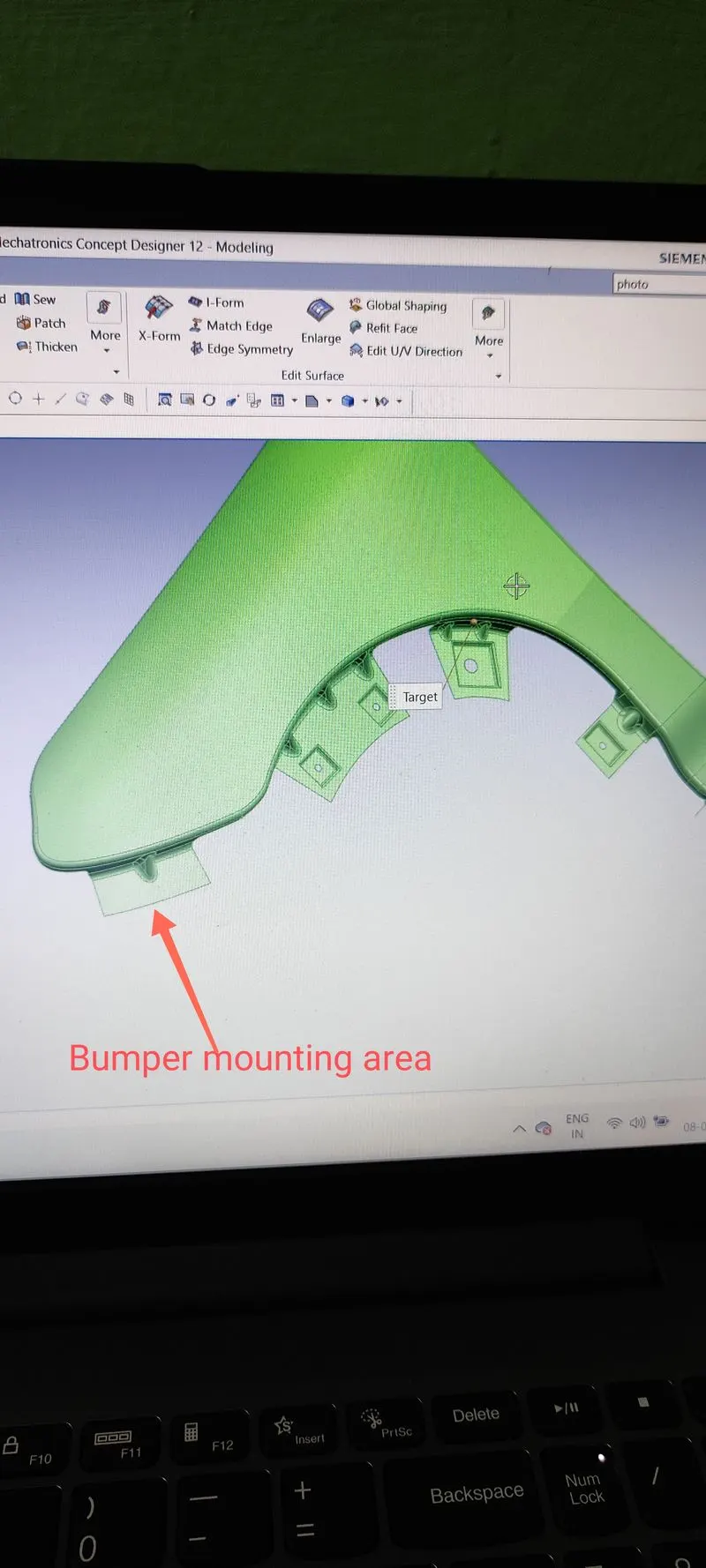

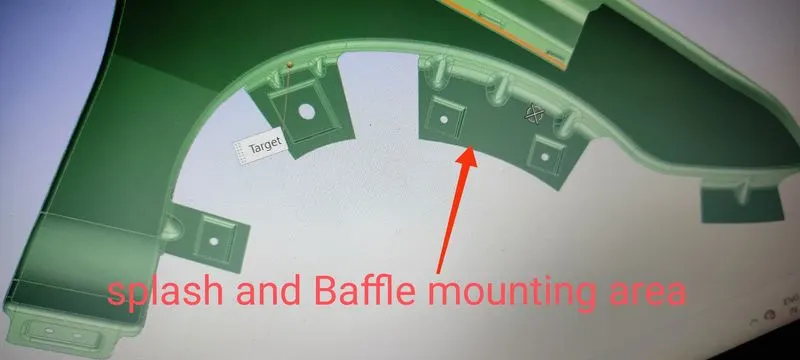

MOUNTING

There are 5 mounting poins in a fender

1.Body

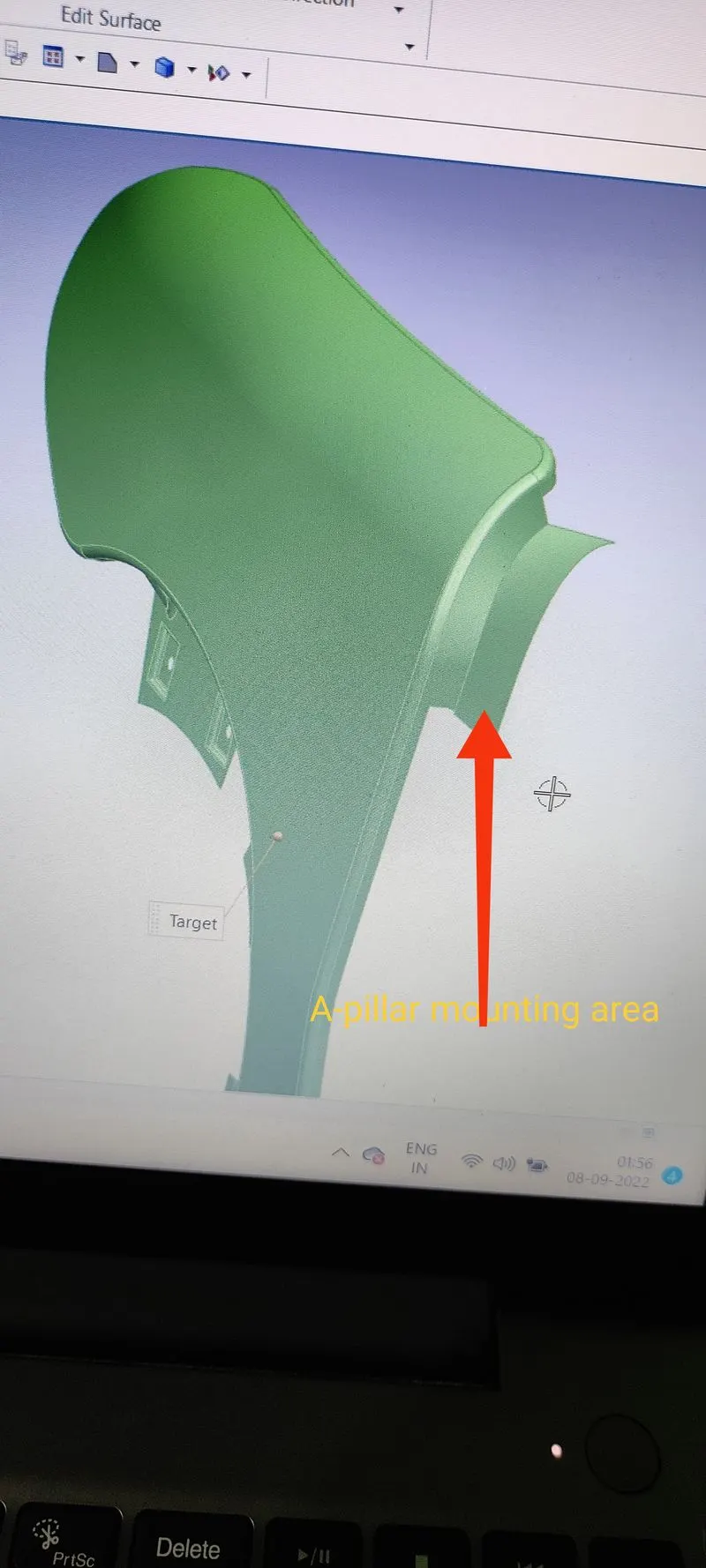

2.Apillar

3.Sill

4.Cowl

5.Drip

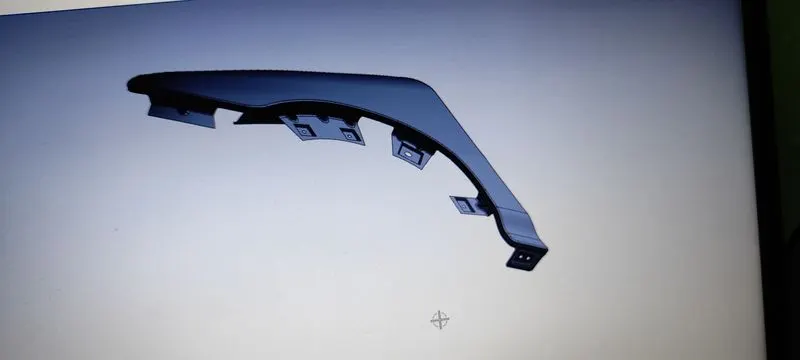

Fasteners

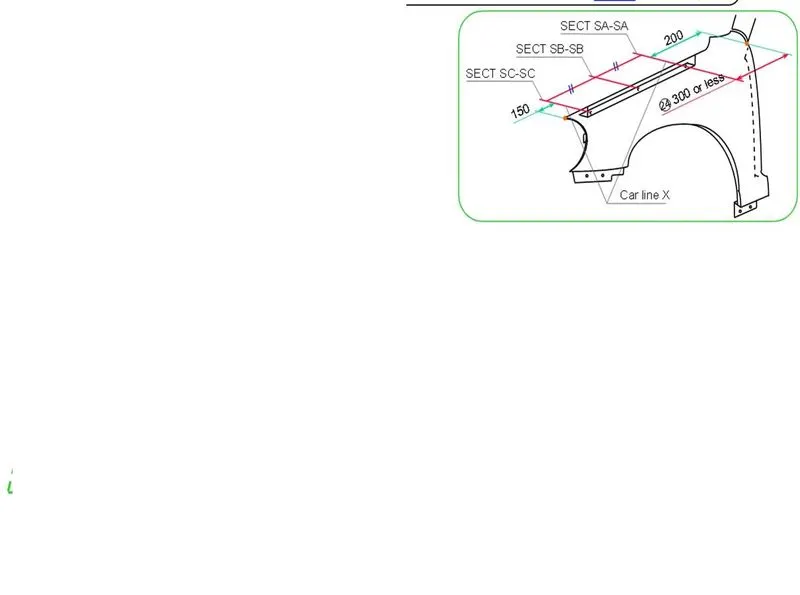

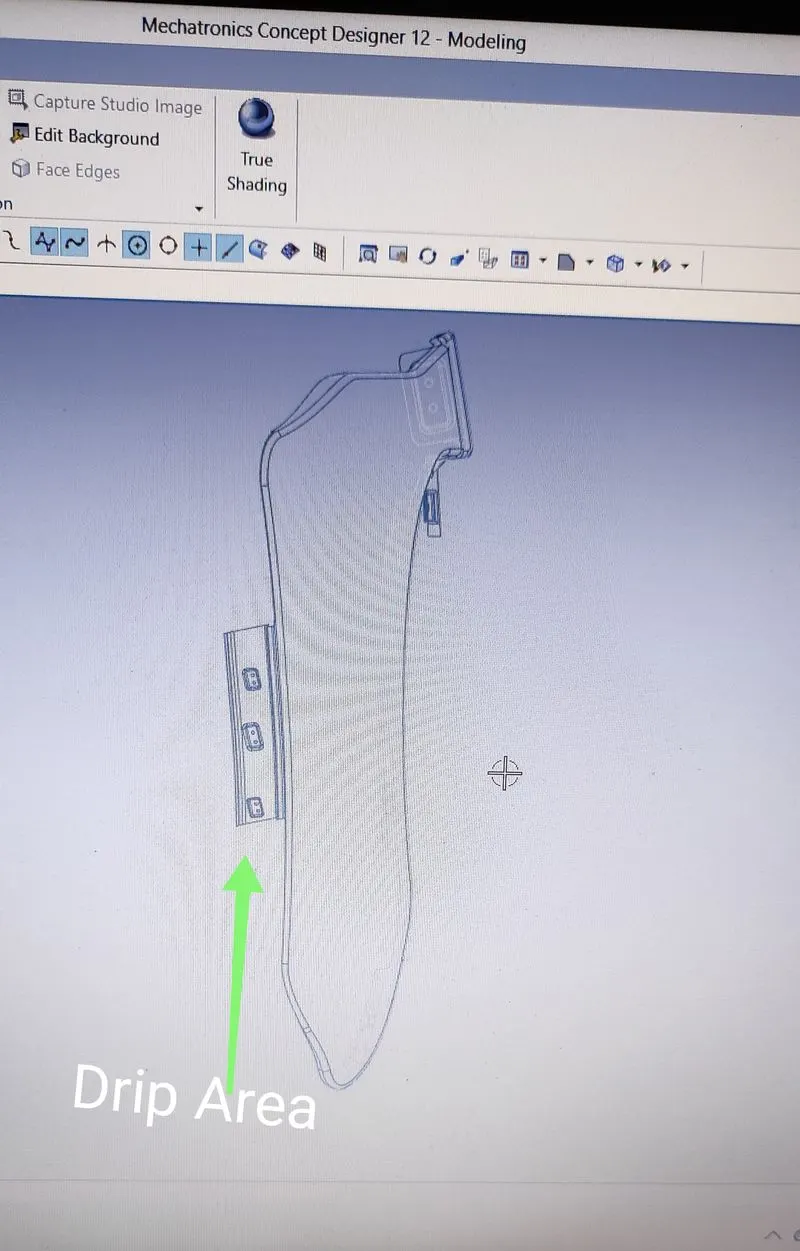

Master section to create the Drip Area

Drip

• A minimum gap of 200 mm should be maintained from the rear end of the fender. This is because to have spacing for cowl mounting.
• The second thing is to maintain a minimum gap of 150 mm front end of the fender for headlamp mountings.

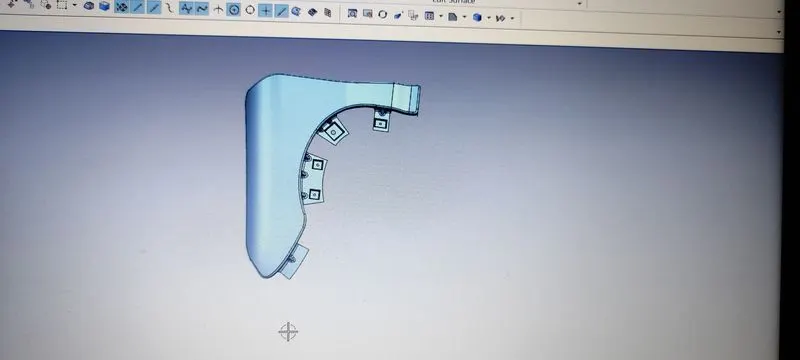

fender useing tools

Curve

offset Curve, Curve of Surface, Projected Curve, Bridge Curve

Surface

Trim Sheet, Law Extension, Face Blend, Edge Blend,Emboss, Sew

Dart

Sketch this are useing in fender design
